2ASCK-BSCS5BSCS5

使用说明书 Operating instruction 图一 图二 一.功能介绍Function Introduction： 1.“指示灯①”→提供手机充电座工作信号指示。 "LED①" → provide working signal indication of mobile phone charging stand. 2. “指示灯②”→提供耳机充电座工作信号指示。 "LED②" → Provide working signal indication of earphone charging stand. 3. “手机无线充电座”→给手机无线充电功能。 "Mobile phone Wireless Charging Seat" → Wireless charging function for mobile phone. 4. “耳机无线充电座”→给耳机无线充电功能。 "Wireless Charging Seat for Headphones" → Wireless charging function for headphones. 5. “电源-DC”→提供DC电源输入。 "Power-dc" → Provide DC power input. 二．功能使用说明Functional instructions： 1.取用配用充电器和配线连接“电源-DC”接口即可给手机耳机无线设配充电， Connect the charger and wiring to the "power-DC" interface to charge the wireless device of the mobile phone headset. 插入电源后“指示灯①”闪两下接着“指示灯②”闪一次进入正常状态， When the power is plugged in, the "indicator" flashes twice, and then the "indicator" flashes once to enter the normal state. 当把手机放入“手机无线充电座”位置时可正常给手机无线充电并且“指示 灯①”常亮，当“手机无线充电座”面壳上沾有金属类异物时“指示灯①” 自动连续闪烁并立即停止给手机无线充电； When the mobile phone is placed in the position of "mobile phone wireless charging seat", it can charge the mobile phone wirelessly normally and the "indicator light" will always be on. When the "mobile phone wireless charging seat" has metal foreign matter on its surface, the "indicator light" will automatically flash continuously and immediately stop charging the mobile phone wirelessly. 2.当把耳机挂在“耳机无线充电座”上即能正常给耳机无线充电，并且“指 示灯②”常亮，当“耳机无线充电座”面壳上沾有金属类异物时立即停止 给耳机无线充电. When the earphone is hung on the "earphone wireless charging stand", the earphone can be normally charged wirelessly, and the "indicator light" is always on. When the "earphone wireless charging stand" is stained with metal foreign matter, the earphone wireless charging stand can be charged wirelessly. 注意事项：配充电器要QC2.0以上版本，数据线要2A电流。 Note: The charger needs QC2.0 or above, and the data cable needs 2A current. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: The equipment complies with FCC Radiation exposure limits set forth for uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

DongguanGreenPowerOneCo.,Ltd AgentAuthorization Date:2020-09-25 Company: DongguanGreenPowerOneCo.,Ltd Address:No.26,HongyunStreet,QingxiTown,DongguanCity,Guangdongprovince, China ProductDescription:BSCS5 FCCIDNumber:2ASCK-BSCS5 TestedModelNumber:BSCS5 WeauthorizeEurofinsProductServiceGmbH,StorkowerStrasse38c,D-15526Reichenwalde, Germany,toactonourbehalfonallmattersconcerningthecertificationofabovementioned equipment. WedeclarethatEurofinsProductServiceGmbHisallowedtoforwardallinformationrelatedto theapprovalandcertificationofequipmenttotheregulatoryagenciesasrequiredandtodiscuss anyissuesconcerningtheapprovalapplication.AnyandallactscarriedoutbyEurofinsProduct ServiceGmbHonourbehalfshallhavethesameeffectasactsofourown. We,DongguanGreenPowerOneCo.,Ltd,theundersigned,herebyauthorizeShenzhenToby TechnologyCo.,Ltd.(IvanSu,SupervisorofEMCDep.),ShenzhenMicrowaveCertification ServicesCo.,Ltd.(GilbertLui,MarketingManager)andKa.Ma.SUG(KarinSchmidt,CEO)on ourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment.We,the undersigned,herebyauthorizeShenzhenTobyTechnologyCo.,Ltd.(IvanSu,Supervisorof EMCDep.)toactonourbehalfinmattersrelatingtotheapplicationforaFCCequipment authorizationformentionedFCCIDNumberincludingthesigningofForm731,necessaryforms anddocumentsinconnectionwiththisapplication.AnyandallactscarriedoutbyShenzhenToby TechnologyCo.,Ltd.(IvanSu,SupervisorofEMCDep.)onourbehalfshallhavethesameeffect asactsofourown.ThisauthorizationexpiresonFebruary28,2022. YoursSincerely, <SignatureofSilverGuo> Name：SilverGuo Company:DongguanGreenPowerOneCo.,Ltd Address:No.26,HongyunStreet,QingxiTown,DongguanCity,Guangdong province,China Phone:+86-769-87333899 Fax:+86-769-87333899 E-Mail:[email protected]

DongguanGreenPowerOneCo.,Ltd CONFIDENTIALITYREQUEST forCertificationundertheFCCRules Date:Sep.25,2020 FederalCommunicationCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21046 TOWHOMITMAYCONCERN PursuanttoParagraphs§0.457and0.459oftheCommission’sRules(47C.F.R.)andSection §552(b)(4)oftheFreedomofInformationAct,werequestconfidentialityforthefollowingproduct: FCCIDNumber:2ASCK-BSCS5 TestedModelNumber:BSCS5 Fortheproductstatedabove,werequestthatthefollowinginformationbeheldconfidential: Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term ConfidentialityDays BlockDiagram SchematicDiagram/ CircuitDiagram CircuitDescription/ OperationalDescription PartsList TuneUpInformation User’sManual ExternalPhotos InternalPhotos TestSetupPhotos Thelong-termconfidentialityexhibitscontainourtradesecretsandproprietaryinformationthat couldbeofbenefittoourcompetitors. Theshort-termconfidentialityonthebasisofensuringthatbusinesssensitiveinformationremains confidentialuntiltheactualmarketingofournewdevice. Pleasedonothesitatetocontactmeifyouhaveanyqueries. YoursSincerely, <SignatureofSilverGuo> Name ：SilverGuo Company: DongguanGreenPowerOneCo.,Ltd Address:No.26,HongyunStreet,QingxiTown,DongguanCity,Guangdong province,China Phone:+86-769-87333899 Fax:+86-769-87333899 E-Mail:[email protected]

DongguanGreenPowerOneCo.,Ltd ModelDeclarationLetter ForFCCID:2ASCK-BSCS5 We,theundersigningcompany CompanyName:DongguanGreenPowerOneCo.,Ltd Address:No.26,HongyunStreet,QingxiTown,DongguanCity,Guangdongprovince, China Herebyconfirmthatthefollowingproducts: Productdescription:BSCS5 ModelNumber(s):BSCS5,GW09 TradenameorBrand(s):N/A AllthesemodelsareidenticalinthesamePCB,layoutandelectricalcircuit, theonlydifferenceismodelnameforcommercial. <SignatureofSilverGuo> Name：SilverGuo Company:DongguanGreenPowerOneCo.,Ltd Address:No.26,HongyunStreet,QingxiTown,DongguanCity,Guangdong province,China Phone:+86-769-87333899 Fax:+86-769-87333899 E-Mail:[email protected]

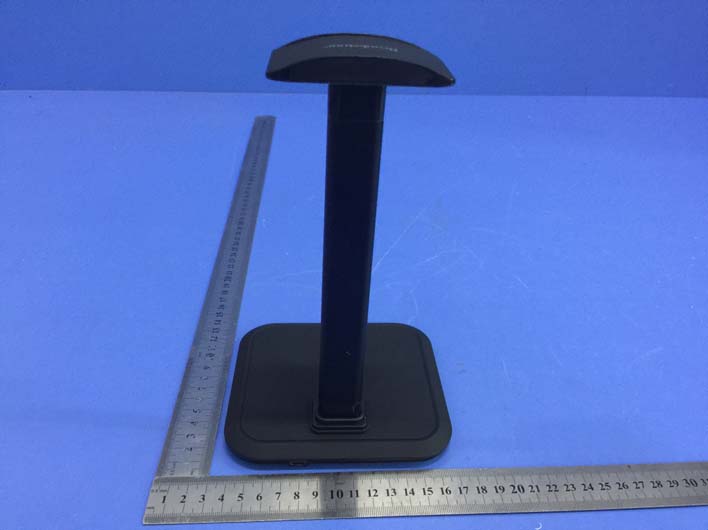

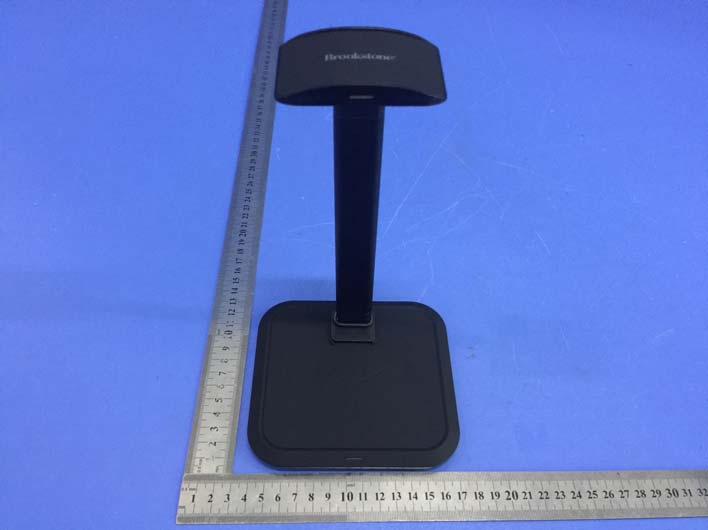

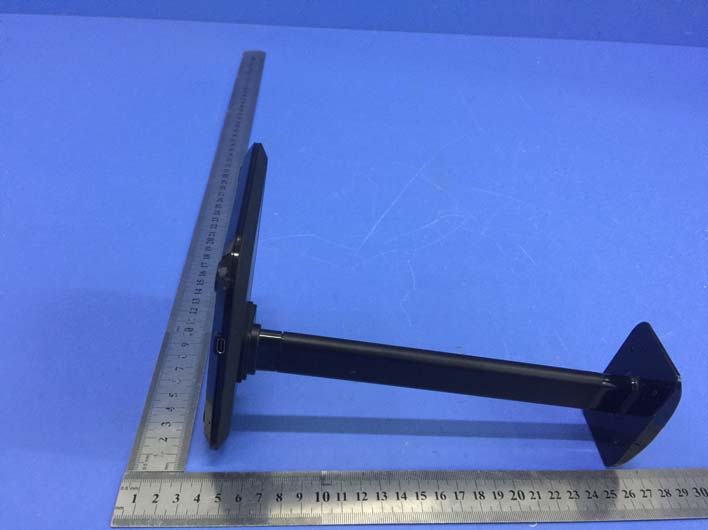

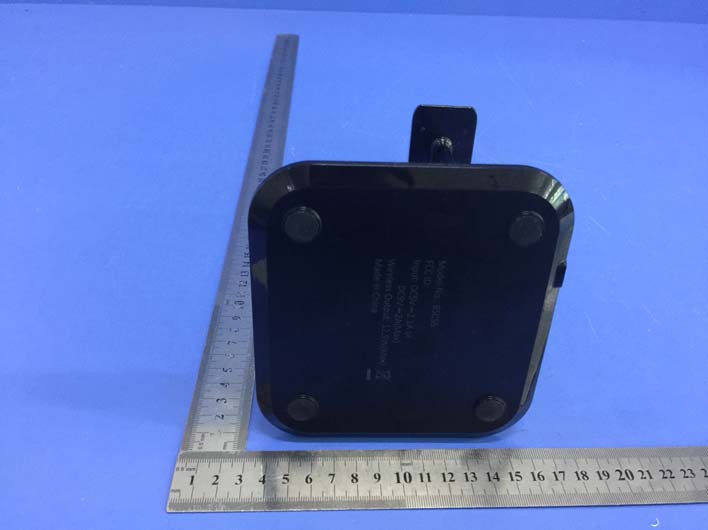

Report No. : TB-FCC175686 FCC ID: 2ASCK-BSCS5 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No. : TB-FCC175686 FCC ID: 2ASCK-BSCS5 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Report No. : TB-FCC175686 FCC ID: 2ASCK-BSCS5 TB-RF-075-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT

Report No. : TB-FCC175686 FCC ID: 2ASCK-BSCS5 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION 8

Report No. : TB-FCC175686 FCC ID: 2ASCK-BSCS5 TB-RF-074-1.0 Appendix IFCC ID Label

Report No. : TB-FCC175686 FCC ID: 2ASCK-BSCS5 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 7 Internal of EUT Photo 8 Internal of EUT Report No. : TB-FCC175686 FCC ID: 2ASCK-BSCS5 TB-RF-075-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB Antenna Report No. : TB-FCC175686 FCC ID: 2ASCK-BSCS5 TB-RF-075-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB Antenna

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE175687 Page: 1 of 8 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2ASCK-BSCS5 1. Client Information Applicant : Dongguan Green Power One Co.,Ltd Address : No.26, Hongyun Street, Qingxi Town, Dongguan City, Guangdong province, China Manufacturer : Dongguan Green Power One Co.,Ltd Address : No.26, Hongyun Street, Qingxi Town, Dongguan City, Guangdong province, China 2. General Description of EUT EUT Name : BSCS5 Models No. : BSCS5, GW09 Sample ID : 20200831-11_1-01 Model Difference : All these models are identical in the same PCB, layout and electrical circuit, the only difference is model name for commercial. Product Description : Operation Frequency: 110KHz-205KHz Modulation Type: ASK Antenna: Coil Antenna Power Supply : Input: DC 5V, 2A or DC 9V, 2A Wireless Output: 12.5W Max Software Version : GJX202003 Hardware Version : GJX802V3 Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE175687 Page: 2 of 8 TB-RF-074-1.0 RF Exposure Considerations 1. Measuring Standard KDB 680106 D01 RF Exposure Wireless Charging App v03. 2. Requirements According to the item 5.2 of KDB 680106 D01v03: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation: (1) Power transfer frequency is less than 1 MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Limits For Maximum Permissible Exposure (MPE) Report No.: TB-MPE175687 Page: 3 of 8 TB-RF-074-1.0 3. Test Setup Note: The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface. 4.Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01 v03. Remark: The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 5. Test Equipment List Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Due Date Magnetic field meter NARDA ELT-400 EE030 Sep. 11, 2020Sep. 10, 2021 5.4 Deviation From Test Standard No deviation 15cm Report No.: TB-MPE175687 Page: 4 of 8 TB-RF-074-1.0 6. Mode of operation during the test / Test peripherals used Test Modes: TM1 AC/DC Adapter (9V/2A) + EUT + Mobile Phone +Watch) (Battery Status: <1%) Record TM2 AC/DC Adapter (9V/2A) + EUT + Mobile Phone +Watch) (Battery Status: <50%) Pre-tested TM3 AC/DC Adapter (9V/2A) + EUT + Mobile Phone +Watch) (Battery Status: <99%) Pre-tested TM4 AC/DC Adapter (9V/2A) + EUT + Mobile Phone (Battery Status: <1%) Pre-tested TM5 AC/DC Adapter (9V/2A) + EUT + Mobile Phone (Battery Status: <50%) Pre-tested TM6 AC/DC Adapter (9V/2A) + EUT + Mobile Phone (Battery Status: <99%) Pre-tested TM7 AC/DC Adapter (9V/2A) + EUT + Watch (Battery Status: <1%) Pre-tested TM8 AC/DC Adapter (9V/2A) + EUT + Watch (Battery Status: <50%) Pre-tested TM9 AC/DC Adapter (9V/2A) + EUT + Watch (Battery Status: <99%) Pre-tested TM10 AC/DC Adapter (5V/2A) + EUT + Mobile Phone +Watch) (Battery Status: <1%) Pre-tested TM11 AC/DC Adapter (5V/2A) + EUT + Mobile Phone +Watch) (Battery Status: <50%) Pre-tested TM12 AC/DC Adapter (5V/2A) + EUT + Mobile Phone +Watch) (Battery Status: <99%) Pre-tested TM13 AC/DC Adapter (5V/2A) + EUT + Mobile Phone (Battery Status: <1%) Pre-tested TM14 AC/DC Adapter (5V/2A) + EUT + Mobile Phone (Battery Status: <50%) Pre-tested TM15 AC/DC Adapter (5V/2A) + EUT + Mobile Phone (Battery Status: <99%) Pre-tested TM16 AC/DC Adapter (5V/2A) + EUT + Watch (Battery Status: <1%) Pre-tested TM17 AC/DC Adapter (5V/2A) + EUT + Watch (Battery Status: <50%) Pre-tested TM18 AC/DC Adapter (5V/2A) + EUT + Watch (Battery Status: <99%) Pre-tested Note: All test modes were pre-tested, but we only recorded the worst case in this report. 7. Test Result E-Filed Strength at 15 cm from the edges surrounding the EUT and 15 cm above the top surface Charge Port Charging Battery Level Frequency Range (MHz) Measured E-Field Strength Values (V/m) FCC E-Field Strength 50% Limits (V/m) FCC E-Field Strength Limits (V/m) Test Position A Test Position B Test Position C Test Position D Test Position E E1 1% 0.113 47.050 48.859 46.446 50.367 47.351 307.0 614.0 50% 0.113 43.129 47.351 45.843 47.653 44.938 307.0 614.0 99% 0.113 40.414 38.906 39.510 41.018 41.319 307.0 614.0 E2 1% 0.113 42.827 44.335 43.430 41.922 44.034 307.0 614.0 50% 0.113 36.494 37.097 35.890 38.303 37.398 307.0 614.0 99% 0.113 31.970 30.763 32.271 33.478 33.779 307.0 614.0 Note: V/m= A/m *377 Report No.: TB-MPE175687 Page: 5 of 8 TB-RF-074-1.0 H-Filed Strength at 15 cm from the edges surrounding the EUT and 15 cm above the top surface Cha rge Port Charging Battery Level unit Freque ncy Range (MHz) Measured H-Field Strength Values (A/m) FCC H-Field Strength 50% Limits (A/m) FCC H-Field Strength Limits (A/m) Test Position A Test Position B Test Position C Test Position D Test Position E H 1 1% u…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC175686 Page: 1 of 26 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2ASCK-BSCS5 Original Grant Report No. : TB-FCC175686 Applicant : Dongguan Green Power One Co.,Ltd Equipment Under Test (EUT) EUT Name : BSCS5 Model No. : BSCS5 Series Model No. : GW09 Brand Name : N/A Sample ID : 20200831-11_1-01 Receipt Date : 2020-09-15 Test Date : 2020-09-15 to 2020-09-24 Issue Date : 2020-09-25 Standards : FCC Part 15, Subpart C(15.209) Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, Test/Witness Engineer : Garen Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC175686 Page: 2 of 26 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. TEST SOFTWARE ..................................................................................................................... 9 4. TEST EQUIPMENT .................................................................................................................. 10 5. CONDUCTED EMISSION TEST ........................................................................................... 11 5.1 Test Standard and Limit .................................................................................................... 11 5.2 Test Setup ........................................................................................................................... 11 5.3 Test Procedure ................................................................................................................... 12 5.4 Deviation From Test Standard ......................................................................................... 12 5.5 EUT Operating Mode ........................................................................................................ 12 5.6 Test Data ............................................................................................................................. 12 6. RADIATED EMISSION TEST ................................................................................................ 13 6.1 Test Standard and Limit .................................................................................................... 13 6.2 Test Setup ........................................................................................................................... 14 6.3 Test Procedure ................................................................................................................... 15 6.4 Deviation From Test Standard ......................................................................................... 15 6.5 EUT Operating Condition ................................................................................................. 15 6.6 Test Data ............................................................................................................................. 15 7. BANDWIDTH MEASUREMENT ............................................................................................ 16 7.1 Test Standard and Limit .................................................................................................... 16 7.2 Test Setup ........................................................................................................................... 16 7.3 Test Procedure ................................................................................................................... 16 7.4 Deviation From Test Standard ......................................................................................... 16 7.5 EUT Operating Condition ................................................................................................. 16 7.6 Test Data ............................................................................................................................. 16 8. ANTENNA REQUIREMENT ................................................................................................... 17 8.1 Standard Requirement ...................................................................................................... 17 8.2 Deviation From Test Standard…

Text truncated - open the document above for the full version.

Report No. : TB-FCC175686 FCC ID: 2ASCK-BSCS5 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (9KHz-30MHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No. : TB-FCC175686 FCC ID: 2ASCK-BSCS5 TB-RF-075-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
