2ASCK-FB67RING SIZED PHONE REMOTE

2402-2480MHz 24M

Dongguan Green Power One Co.,Ltd Add: No.26, Hongyun Street, Qingxi Town, Dongguan, China Tel：+86-769-87333899 Fax: 86-769-87333899 E-mail：[email protected] Product Similarity Declaration Date: 2023/01/05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern, We, Dongguan Green Power One Co.,Ltd. hereby declare that we have a product named as RING SIZED PHONE REMOTE,(Model No: FB-67, FCC ID: 2ASCK-FB67) was tested by Shenzhen Accurate Technology Co., Ltd., meanwhile, for our marketing purpose, we would like to list a series model No.: GF74 on reports and certificate, all model numbers are electrically identical except model No. We co nfirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Sig natur e: Printed Name: Silver Guo Title: Project department manager

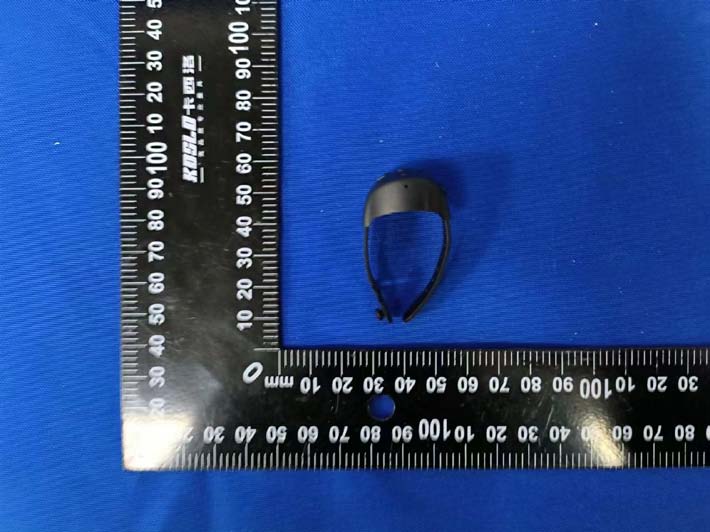

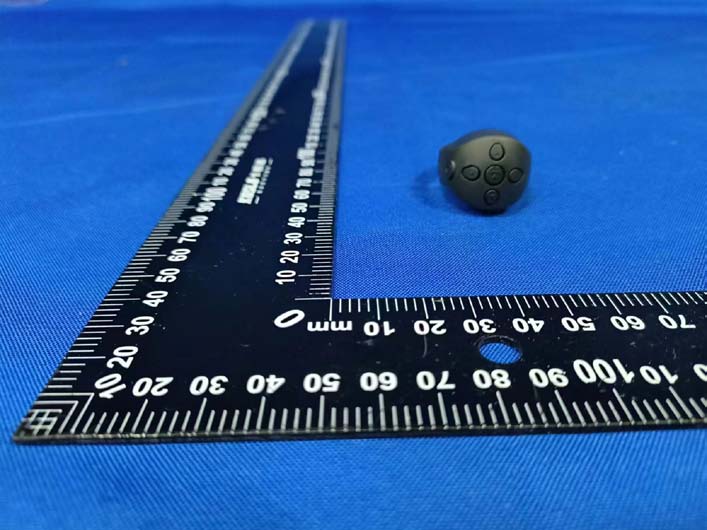

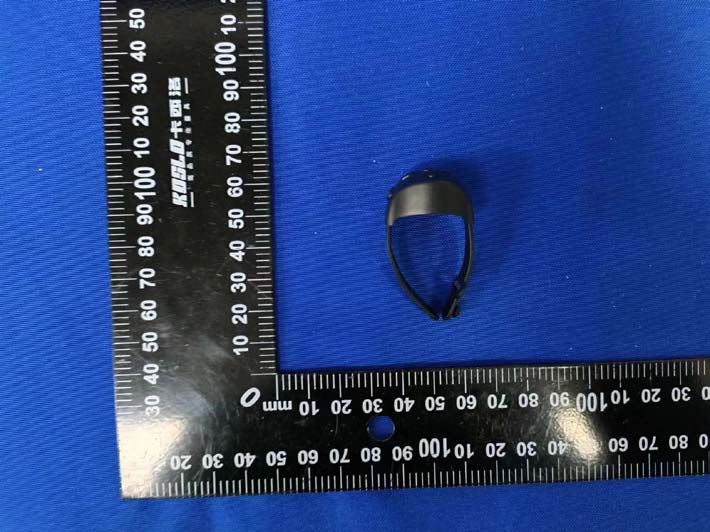

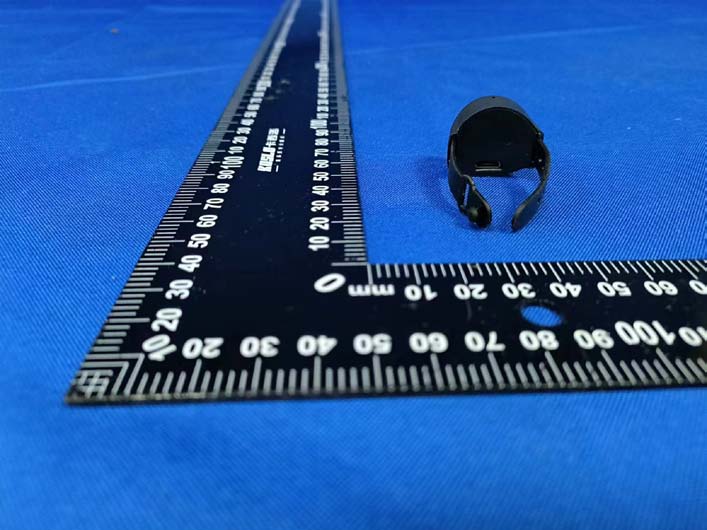

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3221123-56107E-RF External Photos Page 1 of 4 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3221123-56107E-RF External Photos Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3221123-56107E-RF External Photos Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3221123-56107E-RF External Photos Page 4 of 4

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3221123-56107E-RF LABEL AND LOCATION Page 1 of 1 FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3221123-56107E-RF Internal Photos Page 1 of 4 Internal Photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3221123-56107E-RF Internal Photos Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3221123-56107E-RF Internal Photos Page 3 of 4 BT Antenna Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3221123-56107E-RF Internal Photos Page 4 of 4

RISC 32-bit CPU DC-96MHz operation 73KB data RAM 8KB I-cache 2way 1KB Rocache 1way 64 Vectored interrupts 8 Levels interrupt priority Flexible I/O 17 GPIO pins All GPIO pins can be programmable as input or output individually All GPIO pins are internal pull-up/pull-down selectable individually CMOS/TTL level schmitt triggered input External wake up/interrupt on all GPIOs Peripheral Feature One Full Speed USB OTG controller Four Multi-function 32-bit timers, support capture and PWM mode Three full-duplex advanced UART(DMA) Three SPI interface supports host and device mode（DMA） One IIC interface supports host and device mode RTC,with alarm clock and time base to wake up the chip 16-bit PWM generator for motor driving Three IQ Encoder 8 channels 10-bit ADC 1 channel 8 levels Low Power Detector Embedded PMU support low power mode 2 Crystal Oscillator Watchdog Power-on reset Bluetooth Feature CMOS single-chip fully-integrated radio and baseband Compliant with Bluetooth Bluetooth Piconet and Scatternet support Meet class2 and class3 transmitting power requirement Support GFSK and π/4 DQPSK all packet types Receiver with -92dBm sensitivity Support a2dp\avctp\avdtp\avrcp\hfp\spp\smp\att\gap\ gatt\rfcomm\sdp\l2cap profile Power Supply DC 3.7V form battery or DC 5V form USB port

Shenzhen Accurate Technology Co., Ltd. Report No.: SZ3221123-56107E-RF Version 11: 2021-11-09 Page 11 of 51 FCC-BT FCC§15.247 (i), §1.1307 (b) – RF EXPOSURE Applicable Standard According to FCC §2.1093 and §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D04 Interim General RF Exposure Guidance v01, clause 2.1.3.1-SAR-Based Exemption: A more comprehensive exemption, considering a variable power threshold that depends on both the separation distance and power, is provided in § 1.1307(b)(3)(i)(B). This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions. Accordingly, a RF source is considered an RF exempt device if its available maximum time-averaged (matched conducted) power or its effective radiated power (ERP), whichever is greater, are below a specified threshold. This exemption threshold was derived based on general population 1-g SAR requirements and is detailed in Appendix C. Test Result For worst case: Mode Frequency Maximum Tu n e-up Conducted Power Antenna Gain ERP Distance SAR-Based Exclusion Threshold SAR-Based Exclusion (MHz) (dBm) (dBi) (dBd) (dBm) (mm) (mW) (dBm) BDR/EDR 2402-2480 3 -0.91 -3.06 -0.06 5 2.717 4.34 Yes Note 1: The tune-up power was declared by the applicant. Note 2: 0dBd=2.15dBi. Result: Compliant.

1234 B C D 654321 D C B A USB-Micro S5 S4 S3 S2 S1 Right click S6 D1 ON OFF/Photo Key UP Left lick Down Confirm key L2 2.7P 8 6 GND 5 D+ 4 ID 3 D- 2 VBUS 1 7 9 J26 DP B T A N T P A 8 P B 4 S W 1 2 VDDIO BT AVDD P B 5 C O PA1 C I P A 7 PA2 DM PA0 VBAT LDO5V PA9 ID2 P B 6 P B 7 DP DM DM DP C2 105 1 2 3 4 5 67 8 9 1 0 11 12 13 14 15 1617 18 19 2021 C3 102 C1 105 C4 105 Y1 24M S 5 S W - P B S2 SW-PB S1 SW-PB S3 SW-PB S4 SW-PB ANTENNA S 6 S W - P B L1 10UH C6 104 C5 106 BT AVDD LDO5V D2 BT BATTERY VBAT D2 LEDBlue D1 LEDRed AC6323

Report No: SSP23020055A Antenna Test Report Page 1 of 5 Antenna Test Report Test Standard: IEEE 149-1979 Manufacturer: Dongguan Lei Aisen Electronic Technology Co., LTD Product Name: 2.4GHz Antenna for Ring Phone Remote Model: GF74 FB-67 Report No.: SSP23020055A Tested Date: 2023-02-20 Issued Date: 2023-02-20 Tested By: William Liu (Engineer) Approved By: Lahm Peng (Manager) Prepared By: Shenzhen ZRLK Testing Technology Co., Ltd. 1F, No. 35 Building, Changxing Technology Industrial Park, Yutang Street, Guangming New District, Shenzhen City, Guangdong Province, China Tel.: +86-755-33019599 Website: www.zrlklab.com Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen ZRLK Testing Technology Co., Ltd. Report No: SSP23020055A Antenna Test Report Page 2 of 5 1. General Information 1.1 Product Information Manufacturer Manufacturer: Dongguan Lei Aisen Electronic Technology Co., LTD Address of Manufacturer: Room 301, Building 3, No.49, Jinshan Road, Chashan Town, Dongguan City, Guangdong Province General Description of Antenna Product Name: 2.4GHz Antenna for Ring Phone Remote Model No.: GF74 FB-67 Frequency Range: 2400MHz-2500MHz Type of Antenna: PCB Antenna Antenna Gain: -0.91dBi (Max.) Impedance: 50 ohm Antenna View (9mm*3.5mm) 1.2 Test Methodology All measurements contained in this report were conducted with standards IEEE 149-1979 for IEEE Standard Test Procedures for Antennas. 1.3 Test Facilities Testing Lab: Shenzhen ZRLK Testing Technology Co., Ltd. All measurement facilities used to collect the measurement data are located at 1F, No. 35 Building, Changxing Technology Industrial Park, Yutang Street, Guangming New District, Shenzhen City, Guangdong Province, China Report No: SSP23020055A Antenna Test Report Page 3 of 5 2. OTA Test 2.1 Gain Frequency Peak Gain (dBi) Efficiency 2410MHz -1.01 23% 2420MHz -0.91 24% 2430MHz -0.98 24% 2440MHz -1.15 24% 2450MHz -1.22 25% 2460MHz -1.24 25% 2470MHz -1.30 25% 2480MHz -1.13 25% 2490MHz -1.23 26% 2500MHz -1.24 26% 2.2 Radiation Pattern View Phi = 0 Report No: SSP23020055A Antenna Test Report Page 4 of 5 Phi = 90 Theta = 90 Report No: SSP23020055A Antenna Test Report Page 5 of 5 2.3 Test Setup View

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 11: 2021-11-09 Page 1 of 51 FCC-BT TEST REPORT Applicant Name : Dongguan Green Power One Co.,Ltd Address : No.26, Hongyun Street, Qingxi Town, Dongguan, China Report Number : SZ3221123-56107E-RF FCC ID: 2ASCK-FB67 Test Standard (s) FCC PART 15.247 Sample Description Product Type: RING SIZED PHONE REMOTE Model No.: FB-67, GF74 Trade Mark: GPO, iHip Date Received: 2022-11-23 Date of Test: 2022-12-16 Report Date: 2022-12-18 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Roger.Ling Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: SZ3221123-56107E-RF Version 11: 2021-11-09 Page 2 of 51 FCC-BT TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 SPECIAL ACCESSORIES ................................................................................................................................................. 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC§15.247 (i), §1.1307 (b) – RF EXPOSURE ......................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 TEST RESULT ............................................................................................................................................................. 11 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP ....................................................................................................................................... 13 TEST PROCEDURE ................................................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3221123-56107E-RF Test Photos Page 1 of 2 Photo of Power Line Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3221123-56107E-RF Test Photos Page 2 of 2 Radiated Spurious Emissions Test View (Below 1GHz) Radiated Spurious Emissions Test View (Above 1GHz)
