2ASCK-VM30090NWireless Charging Stand

Maintenance and Care - Before using your charging stand, inspect the ports and plugs to make sure that they are clear of dust and debris. - Use a soft cloth to clean your charging stand. Never use any harsh chemicals or detergents. Make sure your mount is dry before using. - When your charging stand is not in use, it should be stored in a cool, dry place. - Never tug or yank on a USB cable that is connected to your device. Connect and disconnect all cables carefully. - Please recycle or dispose of your charging stand properly based on the laws and rules of your municipality. Contact local recycling facilities and/or the manufacturer of your vent mount for further information. Thank you for purchasing the GOMOVI Wireless Charging Stand, item VM30090N. Witht his charging stand, you can charge Qi compatible devices horizontally and vertically. Please read this manual carefully before using the wireless charging stand. USER’S MANUAL ITEM VM30090N FeaturesCharger SetupWIRELESS CHARGING Using the included USB cable, connect the cable’s standard USB end into a power source (computer or wall adapter [not included]). Then insert the cable’s Micro USB end into the port on the charger. 1. The LED indicator will illuminate red when the charging stand is powered ON. 2. Place your phone in the center of the Qi charging pad, vertically or horizontally, and the LED Indicator will illuminate blue indicating that your device is charging. ‘ 3. Take your phone off the Qi charging pad when charging is complete. Quick Charge LED Indicator Charges Horizontally and Vertically Qi Compatible Charging Port Qi Charging Pad V i v i ta r O n e Y e a r Wa r r a n t y This warranty covers the original consumer purchaser only and is not transferable. This warranty covers products that fail to function properly UNDER NORMAL USAGE, due to defects in material or workmanship. Your product will be repaired or replaced at no charge for parts or labor for a period of one year. What Is Not Covered by Warranty Damages or malfunctions not resulting from defects in material or workmanship and damages or malfunctions from other than normal use, including but limited to, repair by unauthorized parties, tampering, modification or accident. To Obtain Warranty Service and Troubleshooting Information: Call 1-800-592-9541 or visit our website at www.vivitar.com. To receive warranty service along with the name and address of an authorized product service center, the original consumer purchaser must contact us for problem determination and service procedures. Proof of purchase in the form of a bill of sale or receipted invoice, evidencing that the product is within the applicable warranty period(s), MUST be presented in order to obtain the requested service. It is your responsibility to properly package and send any defective products along with a dated copy of proof of purchase, a written explanation of the problem, and a valid return address to the authorized service center at your expense. Do not include any other items or accessories with the defective product. Any products received by the authorized service center that are not covered by warranty will be returned unrepaired. NO WARRANTIES, WHETHER E XPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILI- T Y OR FITNESS FOR A PARTICUL AR PURPOSE, OTHER THAN THOSE E XPRESSLY DESCRIBED ABOVE SHALL APPLY. DISTRIBUTOR FURTHER DISCL AIMS ALL WARRANTIES AF TER THE E XPRESS WARRANT Y PERIOD STATED ABOVE. NO OTHER E XPRESS WARRANT Y OR GUARANT Y GIVEN BY ANY PERSON, FIRM OR ENTIT Y WITH RESPECT TO THE PRODUCT SHALL BE BINDING ON DISTRIBUTOR. REPAIR, REPL ACEMENT, OR REFUND OF THE ORIGINAL PURCHASE PRICE - AT DISTRIBUTOR’S SOLE DISCRETION - ARE THE E XCLUSIVE REMEDIES OF THE CONSUMER. IN NO EVENT WILL DISTRIBUTOR, ITS MANUFACTURERS, OR SAKAR INT. BE LIABLE FOR ANY INCIDENTAL, DIRECT, INDIRECT, SPECIAL, PUNITIVE OR CONSEQUENTIAL DAMAGES (SUCH AS, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF PROFITS, BUSINESS, SAVINGS, DATA OR RECORDS) CAUSED BY THE USE, MISUSE OR INABILIT Y TO USE THE PRODUCT. E XCEPT AS STATED HEREIN, NO OTHER WARRANTIES SHALL APPLY. NOTWITHSTANDING THE FOREGOING, CONSUMER’S RECOVERY AGAINST DISTRIBUTOR SHALL NOT E XCEED THE PURCHASE PRICE OF THE PRODUCT SOLD BY DISTRIBUTOR. THIS WARRANT Y SHALL NOT E XTEND TO ANYONE OTHER THAN THE ORIGINAL CONSUMER WHO PURCHASED THE PRODUCT AND IS NOT TRANSFERABLE. Some countries, states or provinces do not allow the exclusion or limitation of incidental or consequential damages or allow limitations on warranties, so limitation or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights that vary from state to state or province to province. Contact your authorized retailer to determine if another warranty applies. F C C S tat e m e n t Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct …

Text truncated - open the document above for the full version.

Dongguan Green Power One Co.,Ltd Add: No.26, Hongyun Street, Qingxi Town, Dongguan City, Guangdong province, China Date: 2021/1/12 FCC ID: 2ASCK-VM30090N Dear Sir/Madam, We, Dongguan Green Power One Co.,Ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Wireless Charging Stand Model no.: VM30090N, GWA17 Sincerely, Name/Title： Silver Guo/Project department manager Company: Dongguan Green Power One Co.,Ltd Address: No.26, Hongyun Street, Qingxi Town, Dongguan City, Guangdong province, China Phone: +86-769-87333899 Fax: +86-769-87333899 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021/1/12> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ASCK-VM30090N VM30090N For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Silver Guo/Project department manager Company: Dongguan Green Power One Co.,Ltd Address: No.26, Hongyun Street, Qingxi Town, Dongguan City, Guangdong province, China Phone: +86-769-87333899 Fax: +86-769-87333899 E-Mail: [email protected]

Dongguan Green Power One Co.,Ltd No.26, Hongyun Street, Qingxi Town, Dongguan City, Guangdong province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021/1/12 To whom it may concern: We, Dongguan Green Power One Co.,Ltd the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ASCK-VM30090N including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Silver Guo/Project department manager Company: Dongguan Green Power One Co.,Ltd Address: No.26, Hongyun Street, Qingxi Town, Dongguan City, Guangdong province, China Phone: +86-769-87333899 Fax: +86-769-87333899 E-Mail: [email protected]

Dongguan Green Power One Co.,Ltd Date: 01/12/2021 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: 2ASCK-VM30090N To Whom It May Concern: This letter is to ascertain that Dongguan Green Power One Co.,Ltd Product Wireless Charging Stand Model: VM30090N, GWA17, has been the units used for conducting FCC compliance testing, and it meets KDB 680106 Clause 5(2) all 6 conditions as stated below hence PAG is need to required. 1 Power transfer frequency is less than 1 MHz. Yes, Operation Frequency is 110KHz-205KHz. 2 Output power from each primary coil is less than or equal to 15 watts. Yes,max output power less than 15W. 3 The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. Yes 4 Client device is placed directly in contact with the transmitter Yes. 5 Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion).. Yes. 6 The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes. If you have any question or concerns, pls. contact us. Sincerely, Name: Silver Guo Date: 2021-01-12 Title: Project department manager Signature of applicant

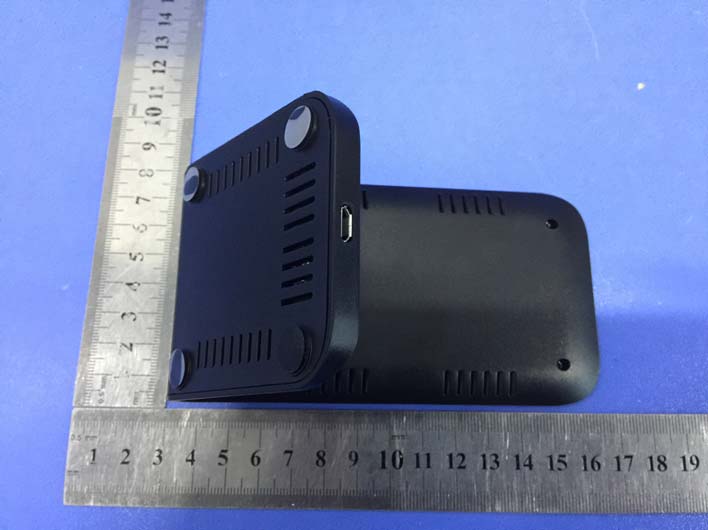

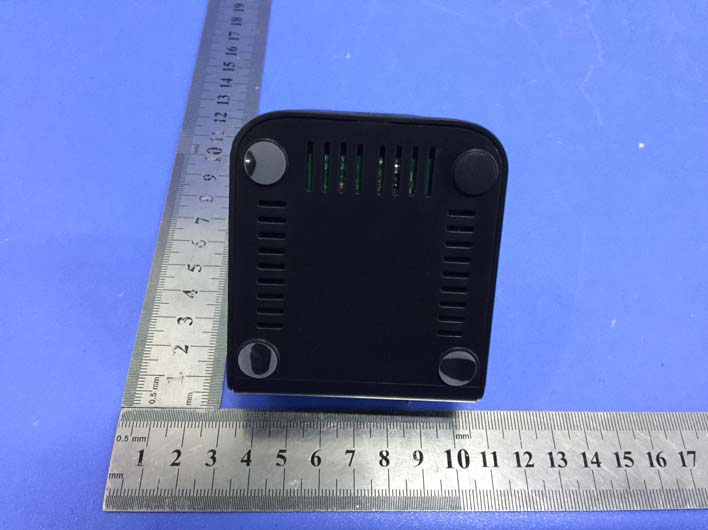

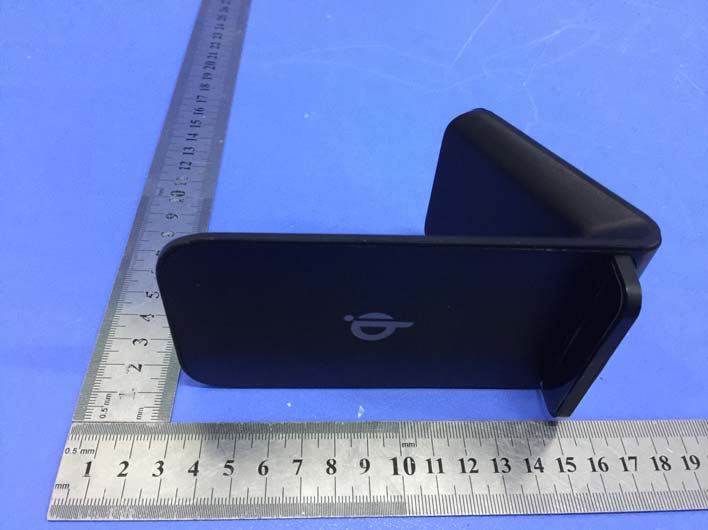

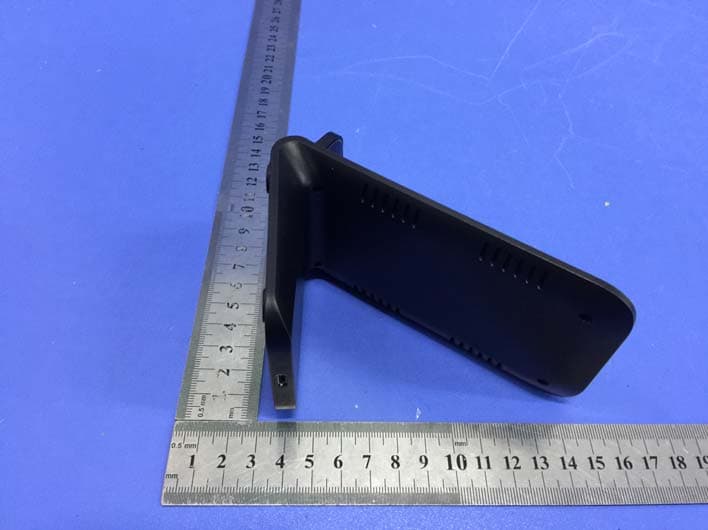

Page: 3 of 9 FCC ID: 2ASCK-VM30090N TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Page: 4 of 9 FCC ID: 2ASCK-VM30090N TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Page: 5 of 9 FCC ID: 2ASCK-VM30090N TB-RF-075-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT

Page: 1 of 9 FCC ID: 2ASCK-VM30090N TB-RF-074-1.0 Appendix IFCC ID Label Page: 2 of 9 FCC ID: 2ASCK-VM30090N TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION 8

Page: 6 of 9 FCC ID: 2ASCK-VM30090N TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 7 Internal of EUT Photo 8 Internal of EUT Antenna Page: 7 of 9 FCC ID: 2ASCK-VM30090N TB-RF-075-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE178201 Page: 1 of 6 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2ASCK-VM30090N 1. Client Information Applicant : Dongguan Green Power One Co.,Ltd Address : No.26, Hongyun Street, Qingxi Town, Dongguan City, Guangdong province, China Manufacturer : Dongguan Green Power One Co.,Ltd Address : No.26, Hongyun Street, Qingxi Town, Dongguan City, Guangdong province, China 2. General Description of EUT EUT Name : Wireless Charging Stand Models No. : VM30090N, GWA17 Sample ID : 20201225-16_1-01 Model Difference : All these models are identical in the same PCB, layout and electrical circuit, the only difference is model name for commercial. Product Description : Operation Frequency: 110KHz-205KHz Modulation Type: ASK Antenna: Coil Antenna Power Supply : Input: DC 5V, 2A or DC 9V, 1.67A Wireless Output: 10W Max Software Version : N/A Hardware Version : CHW1003 V1.0 Connecting I/O Port(S) : : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE178201 Page: 2 of 6 TB-RF-074-1.0 RF Exposure Considerations 1. Measuring Standard KDB 680106 D01 RF Exposure Wireless Charging App v03. 2. Requirements According to the item 5.2 of KDB 680106 D01v03: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation: (1) Power transfer frequency is less than 1 MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Limits For Maximum Permissible Exposure (MPE) Report No.: TB-MPE178201 Page: 3 of 6 TB-RF-074-1.0 3. Test Setup Note: The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface. 4.Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01 v03. Remark: The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 5. Test Equipment List Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Due Date Magnetic field meter NARDA ELT-400 EE030 Sep. 11, 2020 Sep. 10, 2021 6. Deviation From Test Standard No deviation 15cm Report No.: TB-MPE178201 Page: 4 of 6 TB-RF-074-1.0 7. Mode of operation during the test / Test peripherals used Test Modes: TM1 AC/DC Adapter (5V/2A) + EUT + Mobile Phone placed vertical (Battery Status: <1%) Pre-tested TM2 AC/DC Adapter (5V/2A) + EUT + Mobile Phone placed vertical (Battery Status: <50%) Pre-tested TM3 AC/DC Adapter (5V/2A) + EUT + Mobile Phone placed vertical (Battery Status: <99%) Pre-tested TM4 AC/DC Adapter (9V/1.67A) + EUT + Mobile Phone placed vertical (Battery Status: <1%) Pre-tested TM5 AC/DC Adapter (9V/1.67A + EUT + Mobile Phone placed vertical (Battery Status: <50%) Pre-tested TM6 AC/DC Adapter (9V/1.67A) + EUT + Mobile Phone placed vertical (Battery Status: <99%) Pre-tested TM7 AC/DC Adapter (5V/2A) + EUT + Mobile Phone placed horizontally (Battery Status: <1%) Pre-tested TM8 AC/DC Adapter (5V/2A) + EUT + Mobile Phone placed horizontally (Battery Status: <50%) Pre-tested TM9 AC/DC Adapter (5V/2A) + EUT + Mobile Phone placed horizontally (Battery Status: <99%) Pre-tested TM10 AC/DC Adapter (9V/1.67A) + EUT + Mobile Phone placed horizontally (Battery Status: <1%) Pre-tested TM11 AC/DC Adapter (9V/1.67A + EUT + Mobile Phone placed horizontally (Battery Status: <50%) Pre-tested TM12 AC/DC Adapter (9V/1.67A) + EUT + Mobile Phone placed horizontally (Battery Status: <99%) Pre-tested Note: All test modes were pre-tested, but we only recorded the worst case (TM4, TM5, TM6, TM10, TM11, TM12,) in this report. Report No.: TB-MPE178201 Page: 5 of 6 TB-RF-074-1.0 8. Test Result E-Filed Strength at 15 cm from the edges surrounding the EUT and 15 cm above the top surface Phone location Charging Battery Level Frequency Range (MHz) Measured E-Field Strength Values (V/m) E-Field Strength 50% Limits (V/m) E-Field Strength Limits (V/m) Test Position A B C D E vertical 1% 0.128 42.978 43.732 61.074 44.863 47.502 307.0 614.0 50% 0.128 47.125 43.355 49.010 47.502 43.355 307.0 614.0 99% 0.128 60.697 49.764 43.732 35.061 41.470 307.0 614.0 horizontally 1% 0.128 50.518 45.994 50.895 47.502 49.387 307.0 614.0 50% 0.128 49.010 40.716 42.978 47.125 56.173 307.0 614.0 99% 0.128 73.138 64.467 50.518 53.157 49.010 307.0 614.0 Note: V/m= A/m *377 H-Filed Strength at 15 cm from the edges surrounding the EUT and 15 cm above the top surface Phone location Charging Battery Level unit Frequency Range (MHz) Measured H-Field Strength Values (A/m) H-Field Strength 50% Limits (A/m) H-Field Strength Limits (A/m) Test Position A B C D E Vertical 1% uT 0.128 0.143 0.145 0.203 0.149 0.157 -- -- 1% A/m 0.128 0.114 0.116 0.162 0.119 0.126 0.815 1.63 50% uT 0.128 0.156 0.144 0.162 0.158 0.144 -- -- 50% A/m 0.128 0.125 0.115 0.130 0.126 0.115 0.815 1.63 99% uT 0.128 0.201 0.165 0.145 0.116 0.138 -- -- 99% A/m 0.128 0.161 0.132 0.116 0.093 0.110 0.815 1…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC178200 Page: 1 of 26 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2ASCK-VM30090N Original Grant Report No. : TB-FCC178200 Applicant : Dongguan Green Power One Co.,Ltd Equipment Under Test (EUT) EUT Name : Wireless Charging Stand Model No. : VM30090N Series Model No. : GWA17 Brand Name : GOMOVI Sample ID : 20201225-16_1-01 Receipt Date : 2020-12-29 Test Date : 2020-12-29 to 2021-01-12 Issue Date : 2021-01-11 Standards : FCC Part 15, Subpart C(15.209) Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, Test/Witness Engineer : Rebeca Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC178200 Page: 2 of 26 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. TEST SOFTWARE ..................................................................................................................... 9 4. TEST EQUIPMENT .................................................................................................................. 10 5. CONDUCTED EMISSION TEST ........................................................................................... 11 5.1 Test Standard and Limit .................................................................................................... 11 5.2 Test Setup ........................................................................................................................... 11 5.3 Test Procedure ................................................................................................................... 12 5.4 Deviation From Test Standard ......................................................................................... 12 5.5 EUT Operating Mode ........................................................................................................ 12 5.6 Test Data ............................................................................................................................. 12 6. RADIATED EMISSION TEST ................................................................................................ 13 6.1 Test Standard and Limit .................................................................................................... 13 6.2 Test Setup ........................................................................................................................... 14 6.3 Test Procedure ................................................................................................................... 15 6.4 Deviation From Test Standard ......................................................................................... 15 6.5 EUT Operating Condition ................................................................................................. 15 6.6 Test Data ............................................................................................................................. 15 7. BANDWIDTH MEASUREMENT ............................................................................................ 16 7.1 Test Standard and Limit .................................................................................................... 16 7.2 Test Setup ........................................................................................................................... 16 7.3 Test Procedure ................................................................................................................... 16 7.4 Deviation From Test Standard ......................................................................................... 16 7.5 EUT Operating Condition ................................................................................................. 16 7.6 Test Data ............................................................................................................................. 16 8. ANTENNA REQUIREMENT ................................................................................................... 17 8.1 Standard Requirement ...................................................................................................... 17 8.2…

Text truncated - open the document above for the full version.

Page: 8 of 9 FCC ID: 2ASCK-VM30090N TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (9KHz-30MHz) Photo of Setup for Radiated Emission (Below 1 GHz) Page: 9 of 9 FCC ID: 2ASCK-VM30090N TB-RF-075-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
