  3. 2ASG4-SAANCFS01

2ASG4-SAANCFS01BT&NC Headphone

Status Audio LLC
BT&NC Headphone - FCC ID 2ASG4-SAANCFS01 - Status Audio LLC
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Jan 13, 2021
Application Purpose
Original Equipment
Date of Application
Jan 12, 2021
Equipment Note
BT&NC Headphone
Frequency Range
2402.00000000 - 2480.00000000
Company
Status Audio LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FLAGSHIP ANC USER GUIDE SAANC-FS You made an excellent choice. Your Flagship ANC headphones: Cancel a staggering amount of ambient noise Operate wirelessly with virtually every modern device (phone, laptop, tablet, desktop, TV, etc) Operate in wired mode (with the included 3.5mm cable) Have touch controls on the right ear-cup to control playback Include an airline adaptor (to use on - you guessed it - an airplane) Charge Your headphones arrive with a bit of juice. We highly recommend you give them a full charge prior to use. This will take about 1.5 hours. You'll see a green LED light when the headphones are fully charged. Please use the USB-C cable we provided. Why? Not all USB-C cables will work with the Flagship ANC Headphones. There are different charging standards that are outside of our control. For example: your laptop's USB-C charger will NOT charge the headphones. If you need to use a third party charger, it should originate in a USB-A connection. USB-AUSB-C Touch Controls (Volume) The FlagshipANC headphoneshaverobusttouch controlsbuilt intothe right ("R") ear-cup. Swipe upand downonthe right ("R") earcuptocontrol volume: A quick swipe upordownwilladjustthe volumeone increment. For largervolumeadjustments, swipe and thenholdyourfingerinplace. The volumewilladjustaslongasyourfingerisstill incontact withthe ear-cup. Operating in Cabled Mode Your Flagship ANC headphones come with a 3.5mm Aux cable. This means your can use the headphones when the battery is dead, or when a wireless connection isn't available. Speaking of airplanes - we also include an airline adaptor. You know, for those weird two-prong airplane plugs. Safety Information Warning! Continued exposure to loud noise (more than 85 decibels)(85 dBA) may cause gradual but permanent damage to hearing. Always turn the level of your source down to a low level before placing the headphones on your ears. Gradually turn up volume until you achieve a comfortable level. Never listen at high volumes for long periods. Do not tamper or disassemble the headphones, as doing so will void the warranty. Besides removable ear-pads, there are no user-serviceable parts inside. Be aware of your surroundings. Do not use headphones when it is unsafe to do so, for example when operating a vehicle, crossing the street, or any activity requiring you to pay attention to your surroundings. For more information about safe listening and hearing health, please visit the Hearing Health Foundation at: hearinghealthfoundation.org FCC Warning Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. WWW.STATUS.CO FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Cover Letter(s)

Sample Agency Request Letter QF094234 Page 1 of 1 Revision 0 Authority to Act as Agent Date: 2020-12-25 TUV Rheinland Group 762 Park Avenue Youngsville, NC 27596 To Whom It May Concern: I appoint TUV Rheinland (Shenzhen) Co., Ltd. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with STATUS AUDIO LLC / 2 NORTHSIDE PIERS APT 11E BROOKLYN,NY,11249-4091 United States of America For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 12 months By : James Bertuzzi (Signature) (Print Name) Title : Product Manager Telephone : +12035616980 On behalf of : STATUS AUDIO LLC (Company Name)

Cover Letter(s)

Confidentiality Letter Date: 2020-12-25 Subject: Confidentiality Request forFCC ID: 2ASG4-SAANCFS01 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Part List/Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent User’s Manual Superior Communications has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. Sincerely, By: James Bertuzzi (Signature/Title) (Print name) STATUS AUDIO LLC

External Photos

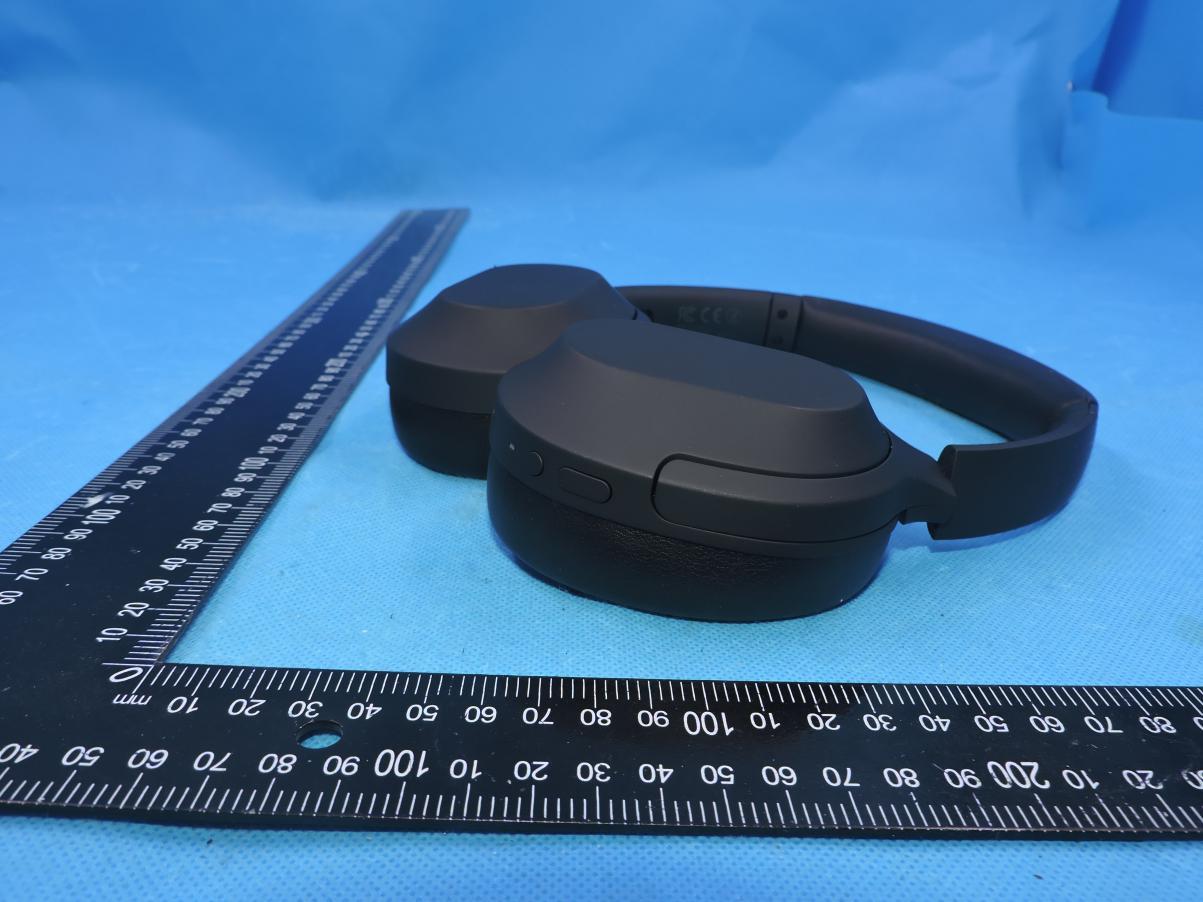

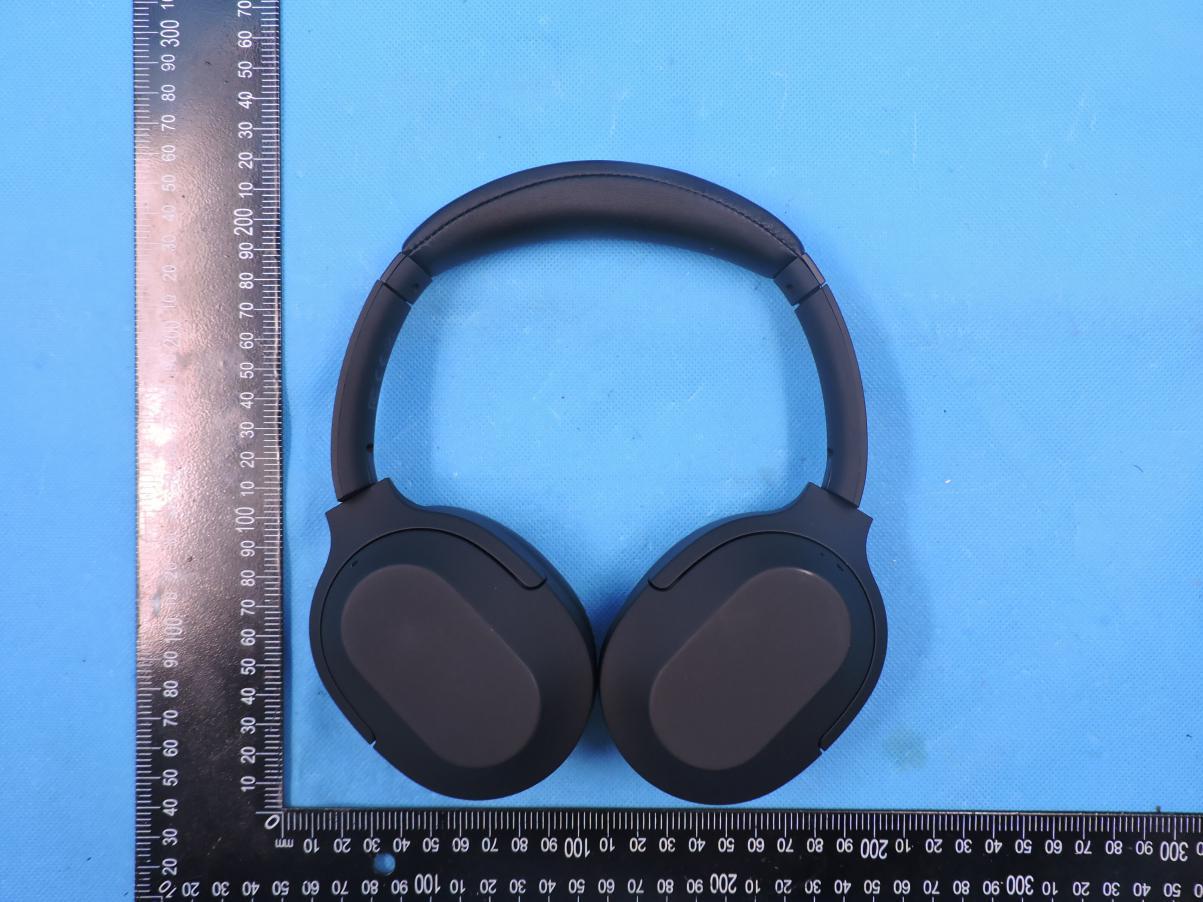

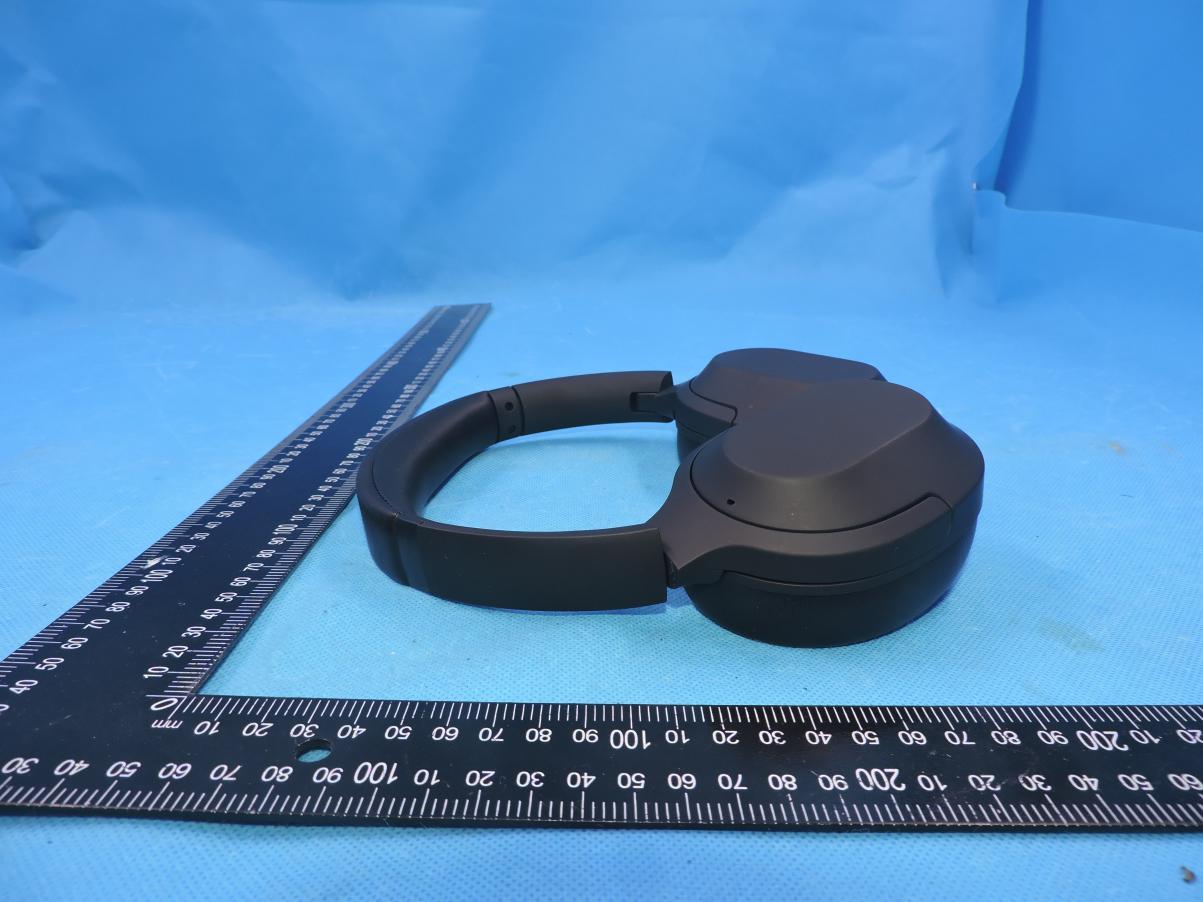

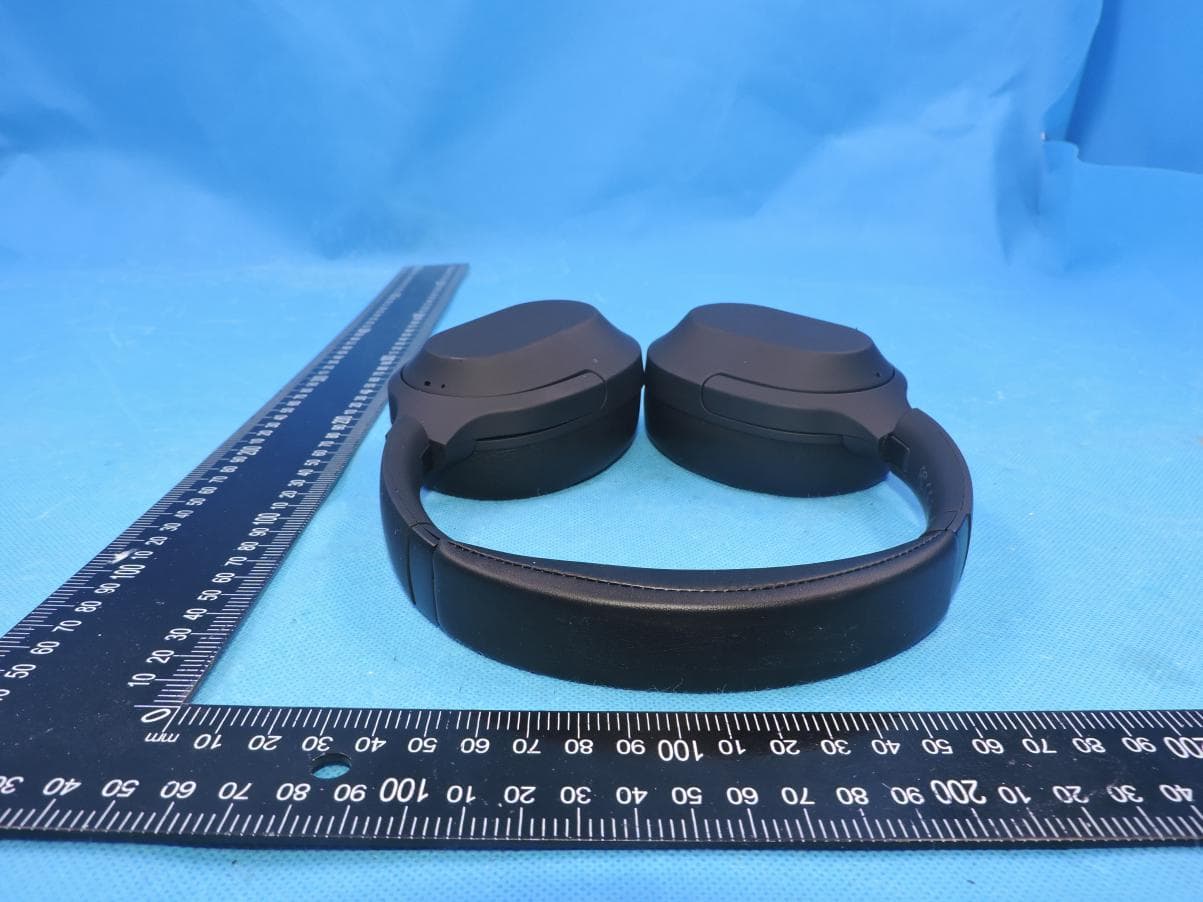

Page 1 of 3 Report No.: STS2012212 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: SAANC-FS Photo 1 Photo 2 Page 2 of 3 Report No.: STS2012212 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2012212 Photo 5 Photo 6

ID Label/Location Info

FCC Label 10mm*30mm The label is printed on the shell Model: SAANC-FS FCC ID: 2ASG4-SAANCFS01

Internal Photos

Page 1 of 7 Report No.: STS2012212 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: SAANC-FS Photo 1 Photo 2 BT Antenna Page 2 of 7 Report No.: STS2012212 Photo 3 Photo 4 Page 3 of 7 Report No.: STS2012212 Photo 5 Photo 6 Page 4 of 7 Report No.: STS2012212 Photo 7 Photo 8 Page 5 of 7 Report No.: STS2012212 Photo 9 Photo 10 Page 6 of 7 Report No.: STS2012212 Photo 11 Photo 12 Page 7 of 7 Report No.: STS2012212 Photo 13 Photo 14

RF Exposure Info

RF EXPOSURE EVALUATION METHOD FCC ID: 2ASG4-SAANCFS01 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Maximum measured transmitter power. BT4.1+EDR The Worst Case Mode 2402-2480MHz Detector PEAK GFSK 8±1dBm π/4-DQPSK 8±1dBm 8DPSK 8.5±1dBm Remark: The worst case gain of the antenna is 3.53dBi. 3.53dBi logarithmic terms convert to numeric result is nearly 2.25 GFSK 2.402 8.71 9 7.94328235 2.4622 3 π/4-DQPSK 2.48 8.82 9 7.94328235 2.5018 3 8DPSK 2.48 9.17 9.5 8.91250938 2.8071 3 Mode Limit Maximum Peak Conducted Output Power (dBm) frequency (GHz) Tune up Power(dBm) Tune up Power (mW) Result Threshold at which no SAR required is 2.8071≤ 3.0 for 1-g SAR, Separation distance is 5mm.

Test Report

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao‘an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.: STS2012212W02 Issued for STATUS AUDIO LLC 2 NORTHSIDE PIERS APT 11E BROOKLYN,NY,11249-4091 United States of America Product Name: BT&NC Headphone Brand Name: STATUS Model Name: SAANC-FS Series Model: N/A FCC ID: 2ASG4-SAANCFS01 Test Standard: FCC Part 15.247 S T L A B S Page 2 of 76 Report No.: STS2012212W02 TEST RESULT CERTIFICATION Applicant‘s Name ................... : STATUS AUDIO LLC Address .................................. : 2 NORTHSIDE PIERS APT 11E BROOKLYN,NY,11249-4091 United States of America Manufacturer's Name ............. : Honsenn Technology Co.,Ltd Address .................................. : No.230,Er Heng Road ,Wentang Zhuanyao Industrial Zone,Dongcheng District,Do ngguan City,Guangdong province, China Product Description Product Name ........................ : BT&NC Headphone Brand Name ......................... : STATUS Model Name ........................... : SAANC-FS Series Model .......................... : N/A Test Standards ....................... : FCC Part15.247 Test Procedure ....................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................... : Date of receipt of test item ......... : 28 Dec. 2020 Date (s) of performance of tests : 28 Dec. 2020 ~ 07 Jan. 2021 Date of Issue ............................. : 07 Jan. 2021 Test Result ................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 76 Report No.: STS2012212W02 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10 2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 2.6 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 14 2.7 EQUIPMENTS LIST 15 3. EMC EMISSION TEST 17 3.1 CONDUCTED EMISSION MEASUREMENT 17 3.2 RADIATED EMISSION MEASUREMENT 21 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 33 4.1 LIMIT 33 4.2 TEST PROCEDURE 33 4.3 TEST SETUP 34 4.4 EUT OPERATION CONDITIONS 34 4.5 TEST RESULTS 35 5. NUMBER OF HOPPING CHANNEL 50 5.1 LIMIT 50 5.2 TEST PROCEDURE 50 5.3 TEST SETUP 50 5.4 EUT OPERATION CONDITIONS 50 5.5 TEST RESULTS 51 6. AVERAGE TIME OF OCCUPANCY 52 6.1 LIMIT 52 6.2 TEST PROCEDURE 52 6.3 TEST SETUP 52 6.4 EUT OPERATION CONDITIONS 52 6.5 TEST RESULTS 53 7. HOPPING CHANNEL SEPARATION MEASUREMEN 59 Page 4 of 76 Report No.: STS2012212W02 Table of Contents Page 7.1 LIMIT 59 7.2 TEST PROCEDURE 59 7.3 TEST SETUP 59 7.4 EUT OPERATION CONDITIONS 59 7.5 TEST RESULTS 60 8. BANDWIDTH TEST 66 8.1 LIMIT 66 8.2 TEST PROCEDURE 66 8.3 TEST SETUP 66 8.4 EUT OPERATION CONDITIONS 66 8.5 TEST RESULTS 67 9. OUTPUT POWER TEST 73 9.1 LIMIT 73 9.2 TEST PROCEDURE 73 9.3 TEST SETUP 73 9.4 EUT OPERATION CONDITIONS 73 9.5 TEST RESULTS 74 10. ANTENNA REQUIREMENT 75 10.1 STANDARD REQUIREMENT 75 10.2 EUT ANTENNA 75 Page 5 of 76 Report No.: STS2012212W02 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 07 Jan. 2021 STS2012212W02 ALL Initial Issue Page 6 of 76 Report No.: STS2012212W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(iii) Number of Hopping Frequency PASS -- 15.247(a)(1)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ̳N/A‘ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 76 Report No.: STS2012212W02 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao‘an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 30-1GHz ±4.39dB 4 All emissions, radiated 1G-6GHz ±5.10dB 5 All emissions, radiated>6G ±5.48dB 6 Conducted Emission (9KHz-150KHz) ±2.79dB 7 Conducted Emission (150KHz-30MHz) ±2.80dB Page 8 of 76 Report No.: STS2012212W02 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name BT&NC Headphone Trade Name STATUS Model Name SAANC-FS Series Model N/A Model Difference N/A Chann…

Text truncated - open the document above for the full version.

Test Setup Photos

Page 1 of 2 FCC ID: 2ASG4-SAANCFS01 DSS Setup photo Model name: SAANC-FS DSS conduction DSS radiation L Page 2 of 2 FCC ID: 2ASG4-SAANCFS01 DSS radiation H

Contact Information

Applicant

James Bertuzzi
[email protected]+12035616980Fax: N/A

Technical Contact

Shenzhen STS Test Services Co., Ltd.Bovey Yang
[email protected]

1/F., Building B, Zhuoke Science Park · China

Test Firm

SHENZHEN STS TEST SERVICES CO.,LTD.Bovey Yang
[email protected]+86 755-36886288

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz8.26 mW
Confidentiality
Long Term
Grant Notes
Output power listed is peak conducted.
