2ASG4-SAEEMIBetween Micro (Wireless Earbuds)

Responsible Party： Status Audio LLC 2 Northside Piers 11E, Brooklyn, New York, 11249, United States Tel:1-203-561-6980

Status Audio LLC 2 Northside Piers 11E, Brooklyn, New York, 11249, United States Jan. 18, 2021 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2ASG4-SAEEMI Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Schematics 3: Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Status Audio LLC Contact person: James Bertuzzi Title: General Manager

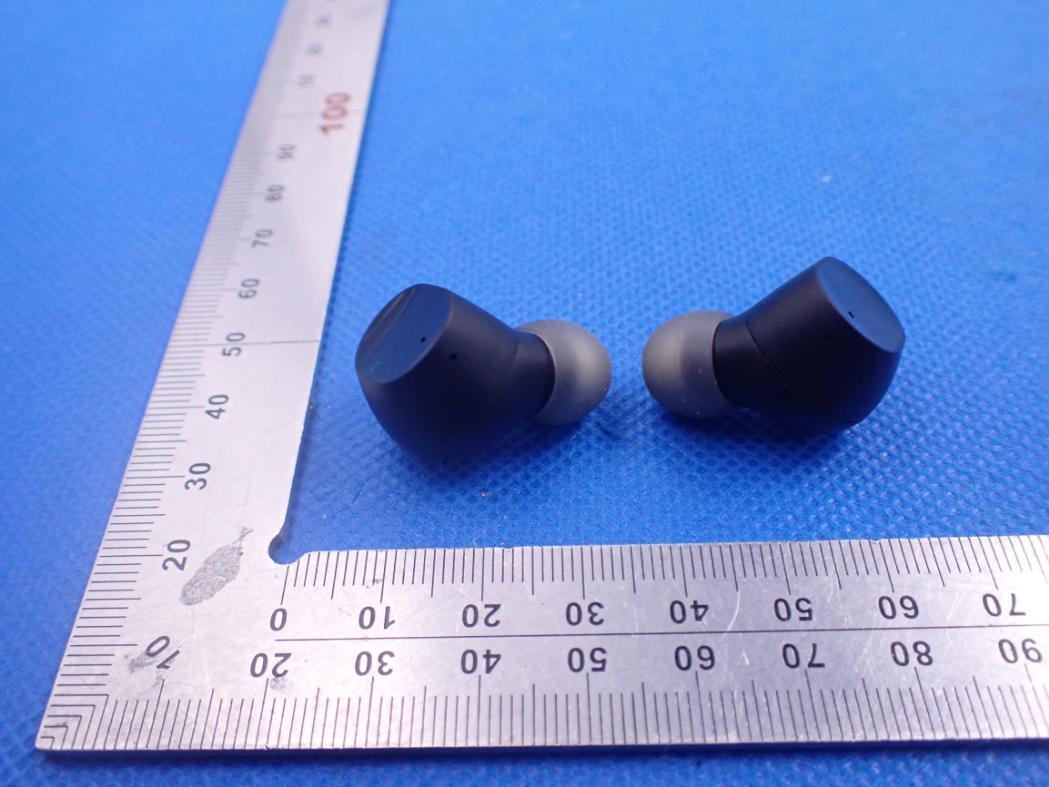

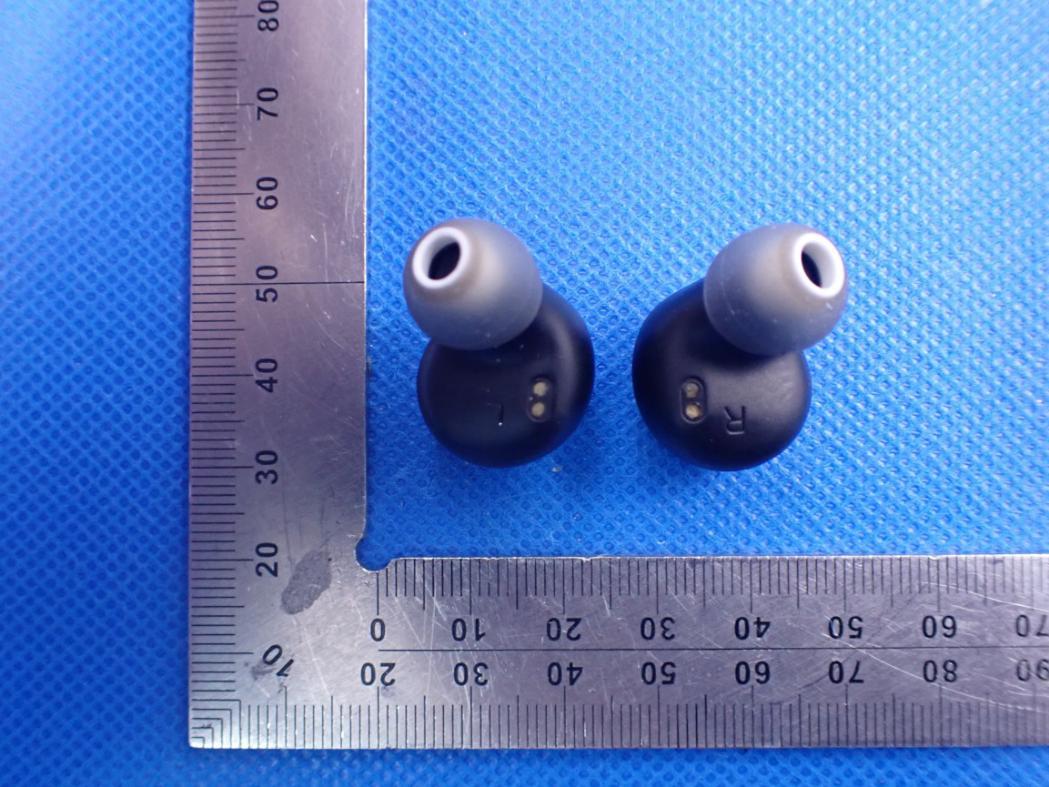

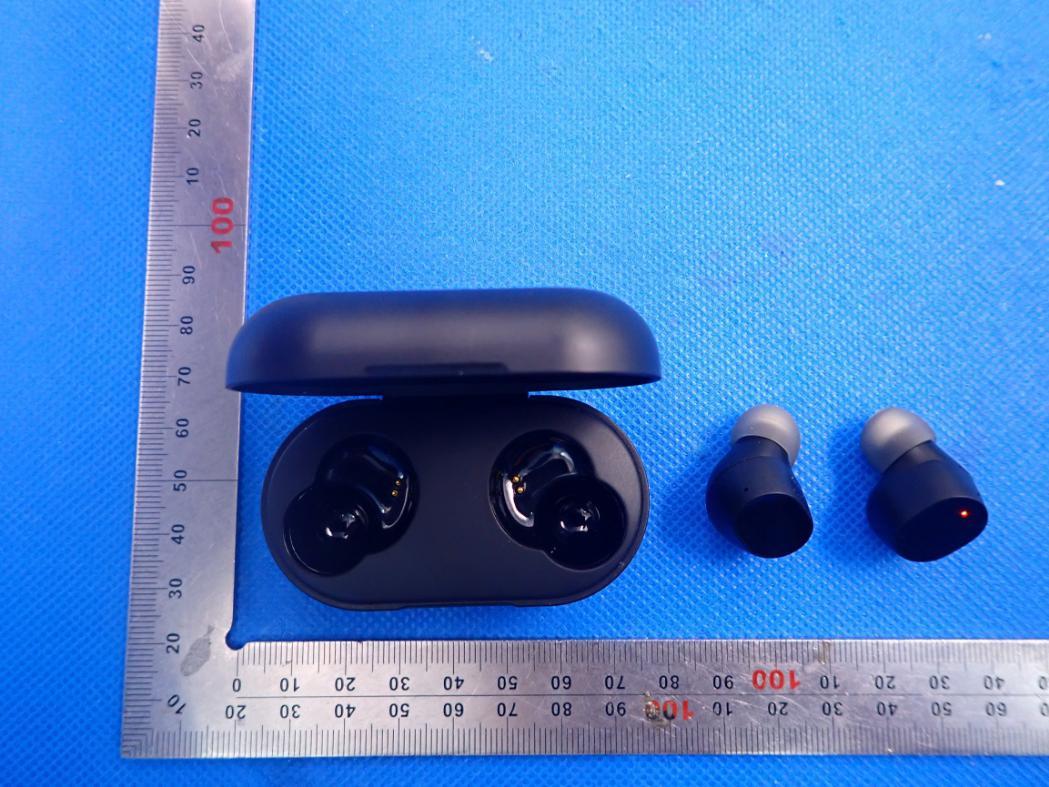

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

Internal Photos Left OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3 Right OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 BT Antenna

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Between Micro Model Name SAEE-MI FCC ID 2ASG4-SAEEMI 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR/EDR: P t = -2.785dBm=0.53mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.53mW /5mm) .[√2.402GHz)]=0.16<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 65 FCC Test Report Report No.: AGC07105201204FE03 FCC ID : 2ASG4-SAEEMI APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Between Micro BRAND NAME : Status MODEL NAME : SAEE-MI APPLICANT : Status Audio LLC DATE OF ISSUE : Jan. 16, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC07105201204FE03 Page 2 of 65 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jan. 16, 2021 Valid Initial Release Report No.: AGC07105201204FE03 Page 3 of 65 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 2.10. ANTENNA REQUIREMENT..................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 20DB BANDWIDTH ........................................................................................................................................ 18 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 18 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 18 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 19 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 23 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 23 Report No.: AGC07105201204FE03 Page 4 of 65 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 23 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 23 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 23 10. RADIATED EMISSION ................................................................................................................................. 34 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 34 10.2. TEST SETUP ......................................................................................................................................... 36 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 37 10.4. TEST RESULT........................................................................................................................................ 37 11. NUMBER OF HOPPING FREQUENCY ...........................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC07105201204FE03 Page 41 of 65 EUT Between Micro Model Name SAEE-MI Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 5 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4882.00045.130.1445.2774-28.73 peak 4882.00038.770.1438.9154-15.09 AVG 7323.00041.852.3644.2174-29.79 peak 7323.00034.092.3636.4554-17.55 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Between Micro Model Name SAEE-MI Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 5 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4882.00043.980.1444.1274-29.88 peak 4882.00038.170.1438.3154-15.69 AVG 7323.00040.332.3642.6974-31.31 peak 7323.00031.262.3633.6254-20.38 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type Report No.: AGC07105201204FE03 Page 42 of 65 EUT Between Micro Model Name SAEE-MI Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 6 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00046.750.2246.9774-27.03 peak 4960.00038.460.2238.6854-15.32 AVG 7440.00041.222.6443.8674-30.14 peak 7440.00032.692.6435.3354-18.67 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Between Micro Model Name SAEE-MI Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 6 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00046.190.2246.4174-27.59 peak 4960.00038.240.2238.4654-15.54 AVG 7440.00040.382.6443.0274-30.98 peak 7440.00033.822.6436.4654-17.54 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type RESULT: PASS Note: The amplitude of other spurious emissions from 1G to 25 GHz which are attenuated more than 20 dB below the permissible value need not be reported. Factor = Antenna Factor + Cable loss - Amplifier gain, Over=Measure-Limit. The “Factor” value can be calculated automatically by software of measurement system. All test modes had been tested. The π /4-DQPSK modulation is the worst case and recorded in the report. Report No.: AGC07105201204FE03 Page 43 of 65 TEST RESULT FOR RESTRICTED BANDS REQUIREMENTS EUT Between Micro Model Name SAEE-MI Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 4 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC07105201204FE03 Page 44 of 65 EUT Between Micro Model Name SAEE-MI Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 4 Antenna Vertical PK AV RESULT: PASS Report No.: AGC07105201204FE03 Page 45 of 65 EUT Between Micro Model Name SAEE-MI Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 6 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC07105201204FE03 Page 46 of 65 EUT Between Micro Model Name SAEE-MI Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 6 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. The π /4-DQPSK modulation is the worst case and recorded in the report. Report No.: AGC07105201204FE03 Page 47 of 65 11. NUMBER OF HOPPING FREQUENCY 11.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: The frequency band of operation. Depending on the number of channels the device supports, it may be necessary to divide the frequency range of operation across multiple spans, to allow the individual channels to be clearly seen. 2. RBW: To identify clearly the individual channels, set the RBW to less than 30% of the channel spacing or the 20 dB bandwidth, whichever is smaller. 3. VBW ≥ RBW. Sweep: Auto. Detector function: Peak. Trace: Max hold. 4. Allow the trace to stabilize. 11.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 11.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 11.4. LIMITS AND MEASUREMENT RESULT TOTAL NO. OF HOPPING CHANNEL LIMIT (NO. OF CH) MEASUREMENT (NO. OF CH) RESULT >=15 79 PASS TEST PLOT FOR NO. OF TOTAL CHANNELS Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC07105201204FE03 Page 48 of 65 12. TIME OF OCCUPANCY (DWELL TIME) 12.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: Zero span, centered on a hopping channel. 2. RBW shall be≤channel spacing and where possible RBW should be set >> 1 / T, where T is the expected dwell time per channel. 3. Sweep: As necessary to capture the entire dwell time per hopping channel; where possible use a video trigger and trigger delay so that the transmitted signal starts a little to the right of the start of the plot. The trigger level might need slight adjustment to prevent triggering when the system hops on an adjacent channel; a second plot might be needed with a longer sweep time to show two successive hops on a channel. 4. Detector function: Peak. Trace: Max hold. 5. Use the marker-delta function to determine the transmit time per hop. 6. Repeat the measurement using a longer sweep time to determine the number of hops over the period specified in the requirements. The sweep time shall be equal to, or less than, the period specified in the requirements. Determine the number of hops over the sweep time and calculate the total number of hops in the period specified in the requirements, using the following equation: (Number of hops in the period specified in the requirements) = (number of hops on spectrum analyzer) × (period specified in the requirements / analyzer s…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz CONDUCTED TEST SETUP
