2ASK3NV-6474RStarriders Autonomous RC Drone

WARNING: Never leave product charging unattended for extended periods of time. Always disconnect your STARRIDERS™ from the charger immediately after the STARRIDERS™ is fully charged. Please refer to enclosed safety instructions. INSTRUCTION BOOKLET Colors and styles may slightly vary from photo PACKAGE CONTAINS: Instruction BookletUSB Charging Cord Controller STARRIDERS™ 11 CHOKING HAZARD - Small parts. Not suitable for children under 3 years. WARNING! AUTONOMOUS RC DRONE FCC Part 15 C Notice CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Conforms to safety requirements of ASTM, FCC and CPSIA. This product is manufactured by Amax Industrial Group China Co. Limited Office No.3,10/F Witty Commercial Building 1A-1L Tung Choi street, Mongkok. Kowloon Hongkong STARRIDERS™ is the registered trademarks of Amax Group USA, LLC. ©2023. All rights reserved. Made in China C010-USA-V1.0 FEATURES CHARGING THE STARRIDERS™ 1. Turn off your STARRIDERS™ and plug the included USB charging cord into the charging socket on the bottom of the STARRIDERS™ (see diagram A). 2. Connect the other end of the USB cable to either your computers USB port or a UL/CE approved USB wall charger (see diagram B). IMPORTANT: If using a high-speed USB wall adapter make sure that the output is less than 7V otherwise the STARRIDERS™’s internal charging circuit will shut down for safety reasons and not allow the STARRIDERS™ to accept the charge. 3. When charging begins, the indicator lights on the STARRIDERS™ will light red to indicate that the battery is charging. When the battery is fully charged the indicator lights will turn a solid green color. 4. The charging time may vary depending on the remaining percentage of charge the battery had left in it from previous use. The average charging time is approximately 40-50 minutes. Once fully charged the STARRIDERS™ operates for approximately 5-7 minutes depending on the intensity of play. LOW BATTERY INDICATOR: During play, when the STARRIDERS™'s batteries begin to run low, the on-board indicator lights will change to a solid RED color and the Starriders Pilot will start flashing. This indicates that you have approximately one-minute left to play, and shortly after, the STARRIDERS™ will automatically begin to descend and land. CHARGING THE CONTROLLER 1. Plug the included USB charging cord into the charging socket of the controller (see diagram C). 2. Connect the other end of the USB cable to either your computers USB port or a UL/CE approved USB wall charger (see diagram B). 3. When charging begins, the indicator lights on the controller will light red to indicate that the battery is charging. When the battery is fully charged the indicator lights will turn a solid green color. 4. The charging time may vary depending on the remaining percentage of charge the battery had left in it from previous use. The average charging time is approximately 25-35 minutes. LOW BATTERY INDICATOR: During play, when the CONTROLLER ’s batteries begin to get low, the indicator lights will start flashing RED color. TABLE OF CONTENTS Features ...............................................................................................................2 Charging The STARRIDERS™.........................................................................................2 Charging The Controller..............................................................................................2 STARRIDERS™ Diagram..............................................................................................3 Remote Control Diagram.............................................................................................3 Understanding The On-board Indicator Lights When Flying Your Starriders™....................................4 Lets Get Started! ......................................................................................................4 How To Control Your STARRIDERS™ ...............................................................................5 Light & Music Switching Of Starrider™............................................................................6 How To Do 360 ̊ Stunt Rolls! (Using Hand Gesture) ................................................................6 How To Do 360º Stunt Rolls (Using Controller).................................................................7 Trouble Shooting......................................................................................................8 How To Play Safely!......................................................…

Text truncated - open the document above for the full version.

AMAX INDUSTRIAL GROUP CHINA CO., LTD Date: 5/10/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(5) Attestation FCC ID: 2ASK3NV-6474R 1. AMAX INDUSTRIAL GROUP CHINA CO., LTD certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2. AMAX INDUSTRIAL GROUP CHINA CO., LTD certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Name: Nancy Chen Job Title: QA Manager Company Name: AMAX INDUSTRIAL GROUP CHINA CO., LTD

Date: 3/6/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) FCC US Agent Letter of Attestation Grantee Code: 2ASK3 To whom it may concern: FCC US Agent Amax Group USA, LLC FCC FRN: 0033533266 Sus an Sheffield-Ocampo 12645 Memorial Dr, Suite F1 388, Houston, TX 77024 USA [email protected] This letter is t o confirm that we have accepted the responsibility to act as US Agent on behalf of AMAX INDUSTRIAL GROUP CHINA CO., LTD for the above referenced FCC Grantee Code. We are aware of the requirements and responsibilities of the applicant’s agent for service of process as outlined in the FCC section 2.911(d)(7) and Report and Order FCC 22-84 paragraph 63. Sincerely, Susan Sheffield-Ocampo CFO Amax Group USA, LLC

AMAX INDUSTRIAL GROUP CHINA CO., LTD Date: 5/10/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) Agent Designation Attestation FCC ID: 2ASK3NV-6474R AMAX INDUSTRIAL GROUP CHINA CO., LTD as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility under CFR 47 §2.929(c) to inform the FCC whenever the agent information changes. U.S. Agent Information: Contact Person: Susan Sheffield-Ocampo Company Name: Amax Group USA,LLC Company Address: 12645 Memorial Dr,Suite F1 388, Houston, TX 77024 USA Email: [email protected] Sincerely yours, Name: Nancy Chen Job Title: QA Manager Company Name: AMAX INDUSTRIAL GROUP CHINA CO., LTD

AMAX INDUSTRIAL GROUP CHINA CO., LTD Address: OFFICE NO.3 10/F WITTY COMMERCIAL BUILDING 1A-1L TUNG CHOI STREET MONGKOK KOWLOON HONG KONG, China Confirmation Letter We, AMAX INDUSTRIAL GROUP CHINA CO.,LTD The product: Starriders Autonomous RC Drone And model No.: 2092086, OA-6 487, NV-6 474 FCC ID: 2ASK3NV-6474R 2092086, OA-6487 have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction with NV-6474.The difference lies only the model number. all these changes do not degrade the unwanted emissions of the certified product. Contact Name: Nancy Chen Title of Person: QA Manager Date： 05/12/2023

AMAX INDUSTRIAL GROUP CHINA CO., LTD Date: 3/6/2023 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: AMAX INDUSTRIAL GROUP CHINA CO., LTD Contact Name: Nancy Chen Title of Person：QA Manager Address: OFFICE NO.3 10/F WITTY COMMERCIAL BUILDING 1A-1L TUNG CHOI STREET MONGKOK KOWLOON HONG KONG, China

AMAX INDUSTRIAL GROUP CHINA CO., LTD Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2ASK3NV-6474R To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: AMAX INDUSTRIAL GROUP CHINA CO., LTD Contact Name: Nancy Chen Title of Person：QA Manager Address: OFFICE NO.3 10/F WITTY COMMERCIAL BUILDING 1A-1L TUNG CHOI STREET MONGKOK KOWLOON HONG KONG, China Date: 5/10/2023

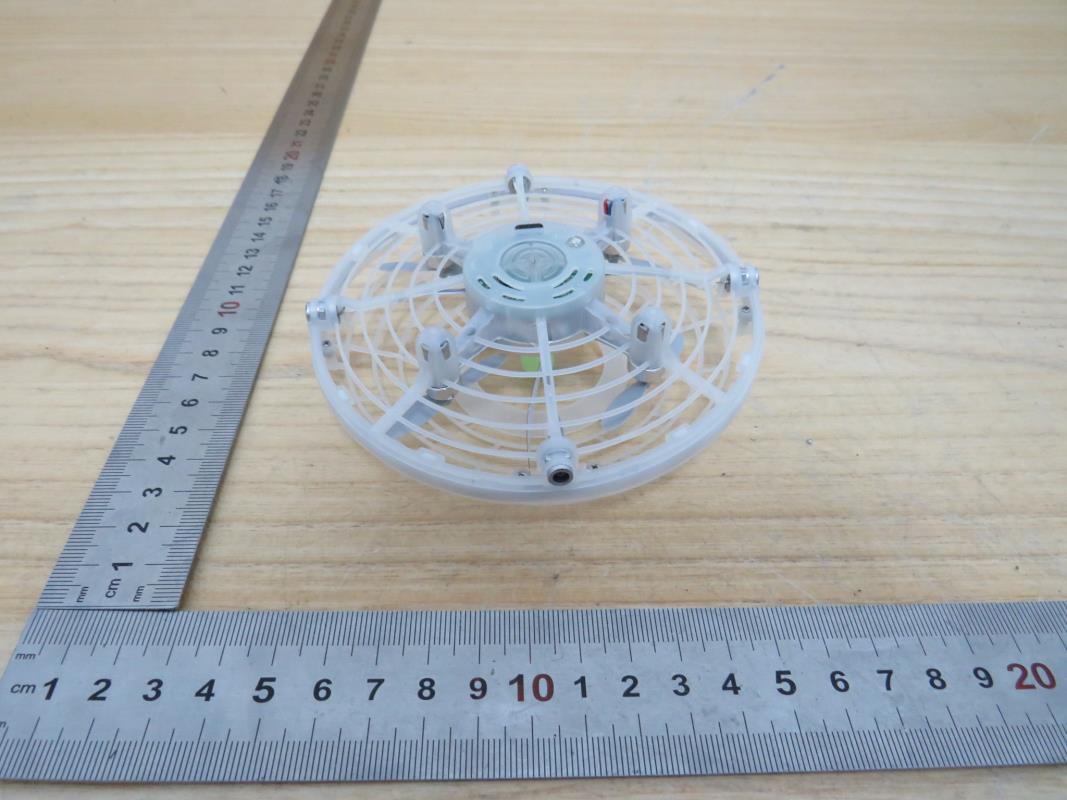

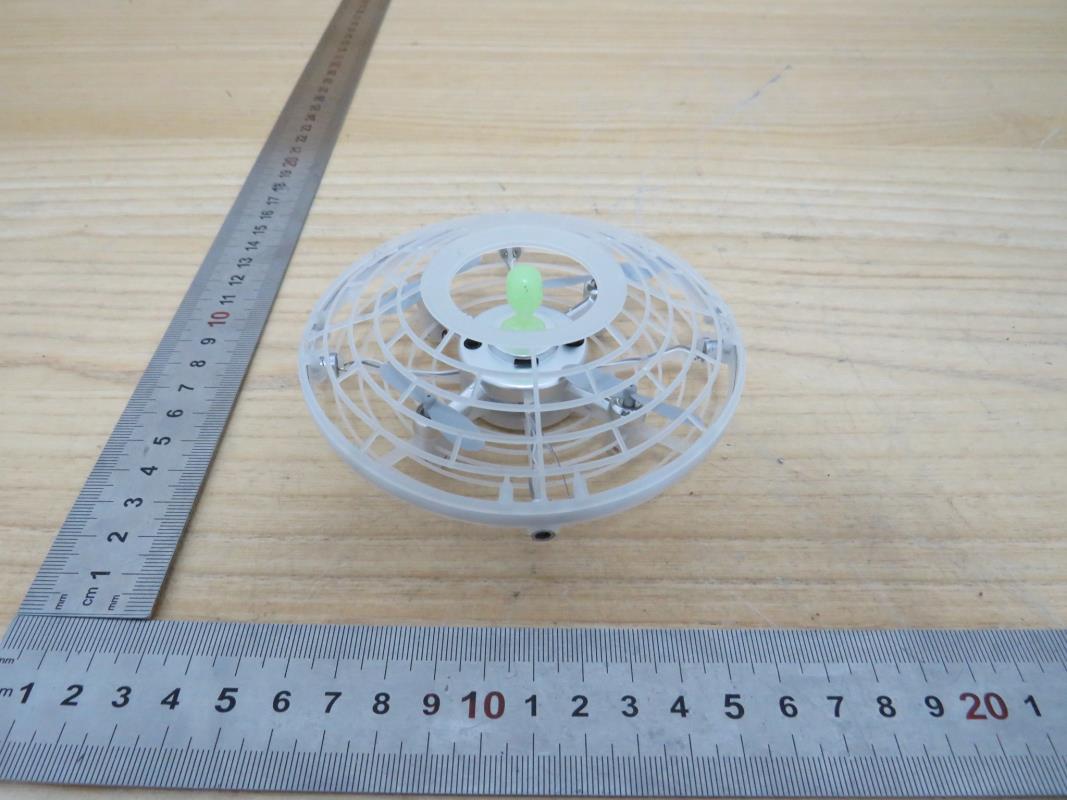

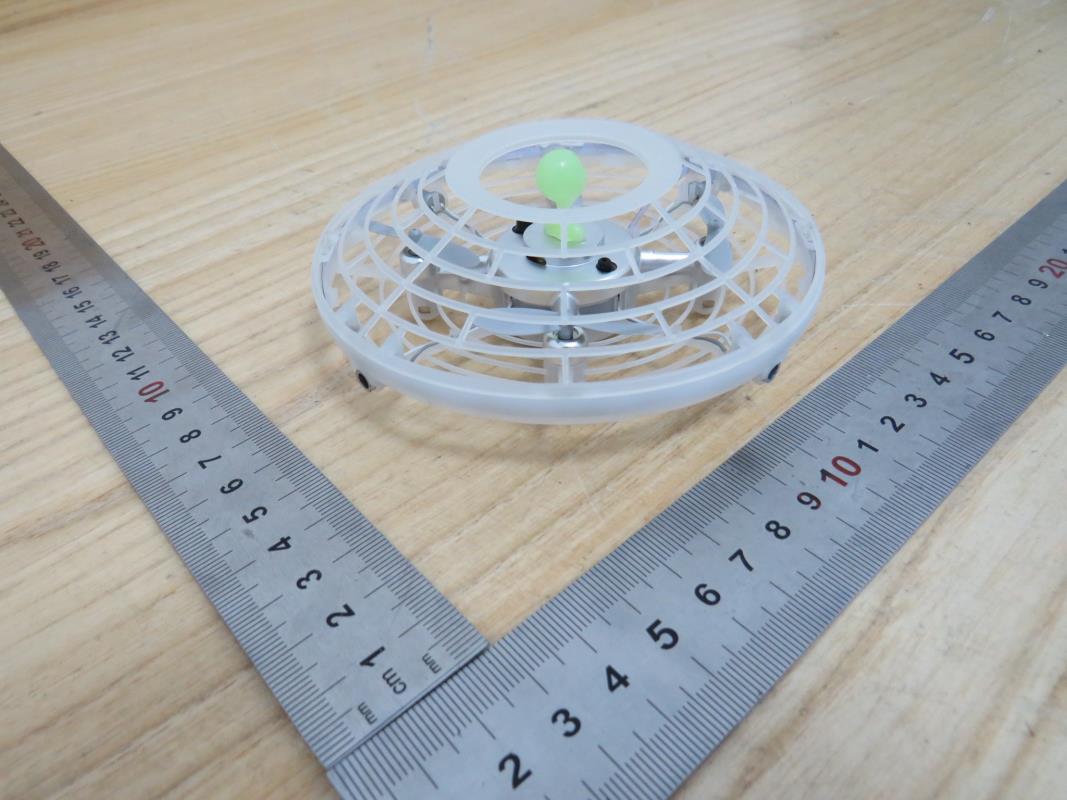

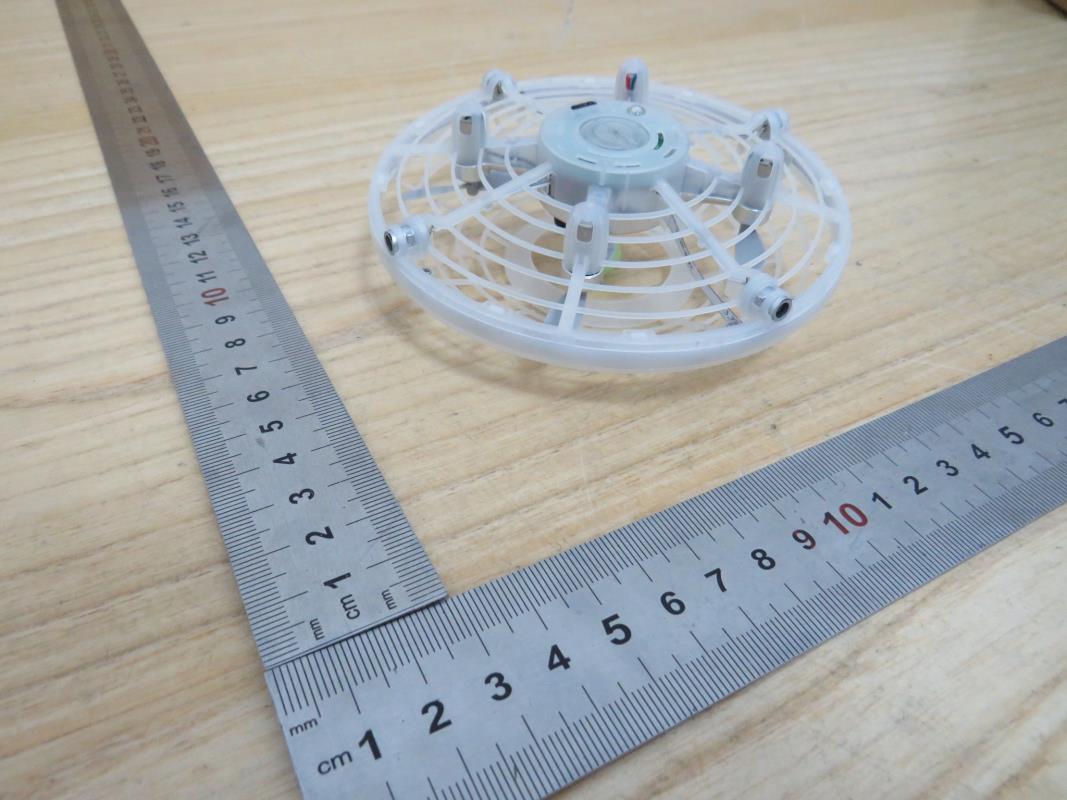

Appendix I External Photographs Page 2 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. External Page 3 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Page 4 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch.

3.8mm 21mm F C C I D : 2 A S K 3 N V - 6 4 7 4 R Note: 1. This would be a plastic label with a permanent adhesive.

Appendix II Internal Photographs Page 2 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal Antenna Page 3 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Page 4 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch.

FCC ID: 2ASK3NV-6474R According to 447498 D04 Interim General RF Exposure Guidance v01, 2.1.4 MPE-Based Exemption An alternative to the SAR-based exemption is provided in § 1.1307(b)(3)(i)(C), for a much wider frequency range, from 300 kHz to 100 GHz, applicable for separation distances greater or equal to λ/2π, where λ is the free-space operating wavelength in meters. The MPE-based test exemption condition is in terms of ERP, defined as the product of the maximum antenna gain and the delivered maximum time-averaged power.10 For this case, a RF source is an RF exempt device if its ERP (watts) is no more than a frequency-dependent value, as detailed tabular form in Appendix B. These limits have been derived based on the basic specifications on Maximum Permissible Exposure (MPE) considered for the FCC rules in § 1.1310(e)(1). B.4 SAR-based Exemption SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time- averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). The example values shown in Table B.2 are for illustration only. 1. SAR test exclusion threshold for 2.4 GHz is 3 mW. -The maximum Peak field strength is 89.38 dBuV/m, the ERP=89.38-97.4= -8.02 dBm=0.1578 mW. Note: Both time averaged power and the ERP had been test, but only the worst data (ERP) was recorded in the report. - When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 2. Conclusion: No SAR is required.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C TEST REPORT For Starriders Autonomous RC Drone MODEL NUMBER: 2092086, OA-6487, NV-6474 REPORT NUMBER: 4790848339-RF-2 FCC ID: 2ASK3NV-6474R ISSUE DATE: May 11, 2023 Prepared for AMAX INDUSTRIAL GROUP CHINA CO.,LTD OFFICE NO.3 10/F WITTY COMMERCIAL BUILDING 1A-1L TUNG CHOI STREET MONGKOK KOWLOON HONG KONG Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4790848339-RF-1 Page 2 of 56 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 May 11, 2023 Initial Issue REPORT NO.: 4790848339-RF-1 Page 3 of 56 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Clause Test Items FCC Rules Test Results 1 20dB Bandwidth and 99% Occupied Bandwidth CFR 47 FCC §15.215 € Pass 2 Radiated Emission CFR 47 FCC §15.249 (a)(d)€ CFR 47 FCC §15.205 and §15.209 Pass 3 Conducted Emission Test for AC Power Port CFR 47 FCC §15.207 Pass 4 Antenna Requirement CFR 47 FCC §15.203 Pass Note 1: This test report is only published to and used by the applicant, and it is not for evidence purpose in China. Note 2: The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C > when <Accuracy Method> decision rule is applied. REPORT NO.: 4790848339-RF-1 Page 4 of 56 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. CONTENTS 1. ATTESTATION OF TEST RESULTS ...................................................................................... 5 2. TEST METHODOLOGY .......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ...................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ..................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................ 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................. 7 5. EQUIPMENT UNDER TEST .................................................................................................... 8 5.1. DESCRIPTION OF EUT ............................................................................................. 8 5.2. CHANNEL LIST .......................................................................................................... 8 5.3. MAXIMUM FIELD STRENGTH .................................................................................. 8 5.4. TEST CHANNEL CONFIGURATION ......................................................................... 8 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................ 9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................ 9 5.7. DESCRIPTION OF TEST SETUP ............................................................................ 10 6. MEASURING EQUIPMENT AND SOFTWARE USED ......................................................... 11 7. ANTENNA PORT TEST RESULTS ...................................................................................... 12 7.1. 20DB BANDWIDTH AND 99% OCCUPIED BANDWIDTH ...................................... 12 7.2. DUTY CYCLE ........................................................................................................... 19 8. RADIATED TEST RESULTS ................................................................................................ 21 8.1. RESTRICTED BANDEDGE AND FIELD STRENGTH OF INTENTIONAL EMISSIONS ............................................................................................................................... 31 8.2. SPURIOUS EMISSIONS (1 GHZ ~ 3 GHZ) ............................................................. 34 8.3. SPURIOUS EMISSIONS (3 GHZ ~ 18 GHZ) ........................................................... 40 8.4. SPURIOUS EMISSIONS (9 KHZ ~ 30 MHZ) ........................................................... 46 8.5. SPURIOUS EMISSIONS (30 MHZ ~ 1 GHZ) ........................................................... 49 8.6. SPURIOUS EMISSIONS (18 GHZ ~ 26 GHZ) ......................................................... 51 9. AC POWER LINE CONDUCTED EMISSION ....................................................................... 53 10. ANTENNA REQUIREMENT .................................................................................... 56 REPORT NO.: 4790848339-RF-1 Page 5 of 56 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS App…

Text truncated - open the document above for the full version.

天线产品规格书 PRODUCT SPECIFICATION 1、产品技术指标（PRODUCT TECHNICAL SPECIFICATION） 电性能指标Electrical Specifications 频率范围Frequency Range (MHz) 2400-2500 频带宽度Bandwidth (MHz) 100 输入阻抗Input Impendence (Ω) 50 电压驻波比V.S.W.R ≤2 增益Gain (dBi) 0 ± 0.8dBi 极化形式Polarization Type 垂直Vertical 雷电保护Lightning Protection 交流接地 功率容量Power Capacity (w) 0.5 机械指标Mechanical Specifications 天线长度Antenna Length (mm) Ø1.5 X 33和Ø1.5 X 80 辐射体Radiator 铜Cu 连接器型号Connect Type 直接焊接 工作温度Working Temp(°C) -40~65 储藏温度Storage Temperature(°C) -40~80 颜色Color 透明 重量Weight (g) 0.37g(8cm长)和0.15g(3.3cm) 产品简介 该天线是专为四驱动飞碟设计生产的，天线具有性价比高，结构小 巧，生产方便的优点。 2、产品图片（PRODUCT PICTURE） 3、产品规格图(PRODUCT SPECIFICATION CHART) 4、驻波图（STATIONARY WAVE PATTERN） 5、增益图

Appendix III Setup Photographs Radiated Disturbance below 1 GHz and above 30 MHz Radiated Disturbance below 30 MHz Radiated Disturbance Setup (Above 1 GHz) Conducted Emission Setup
