2ASKB-HIRES55V3P177GHz HiResRadar for Autonomous Drive Applications

TN21Ott0063 February 01, 2021 Certification for Astyx HiRes 6455V3P1 Model/FCC ID: 2ASKB-HIRES55V3P1 PMN: Hires 6455V3P1 Thedeviceundertestismanufacturedbythegrantee(AstyxGmbH)andsoldasanOEMproduct.PerCFR 47Part95SubpartM,thegranteemustensurethattheend-userhasallapplicable/appropriateoperating instructions.Whenend-userinstructionsarerequired,asisthecasewiththisproduct,thegranteemust notify the OEM to notify the end-user. AstyxGmbHwillsupplythefollowinginformationtothereseller/distributordictatingwhatmustbeincluded in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL Thefollowinginformation(inblue)mustbeincludedintheendproductuser’smanualtoensurecontinued FCCregulatorycompliance.TheIDnumbersmustbeincludedinthemanualifthedevicelabelisnotreadily accessibletotheenduser.Thecomplianceparagraphs(inblue)belowmustbeincludedintheuser's manual. For USA: FCC ID : 2ASKB-HIRES55V3P1 US: RadiofrequencyradiationexposureInformation:ThisequipmentcomplieswithFCCandICradiation exposurelimitssetforthforanuncontrolledenvironment.Thisequipmentshouldbeinstalledandoperated withaminimumdistanceof20cmbetweentheradiatorandyourbody.Thistransmittermustnotbe co-located or operating in conjunction with any other antenna or transmitter. US: FCC Notice Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidthe user's authority to operate the equipment. Registergericht München HRB 116 461 USt-Id. Nr. DE 186 893 572 Geschäftsführer: Carl Jenkins, Robert Vets, Thomas Sonnauer FoA-S1-2020-08-31 Bankverbindungen Hypovereinsbank München IBAN: DE61 7002 0270 0015 7512 61 BIC Code: HYVEDEMMXXX Rechnungsanschrift Astyx GmbH Rechnungswesen Postfach 1248 85504 Ottobrunn Liefer- / Besuchsanschrift Caroline-Herschel-Str. 2 85521 Ottobrunn 1/ 1

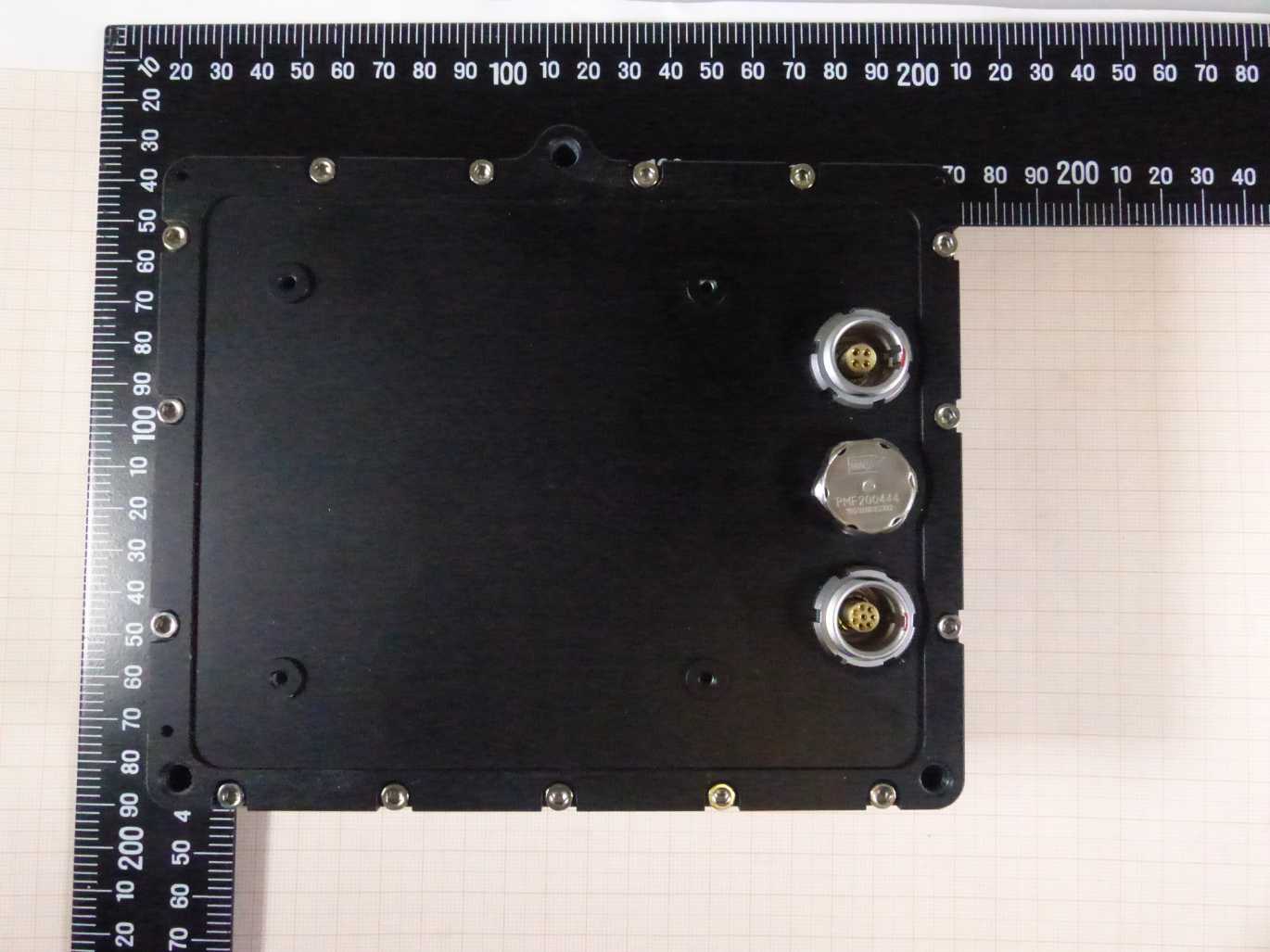

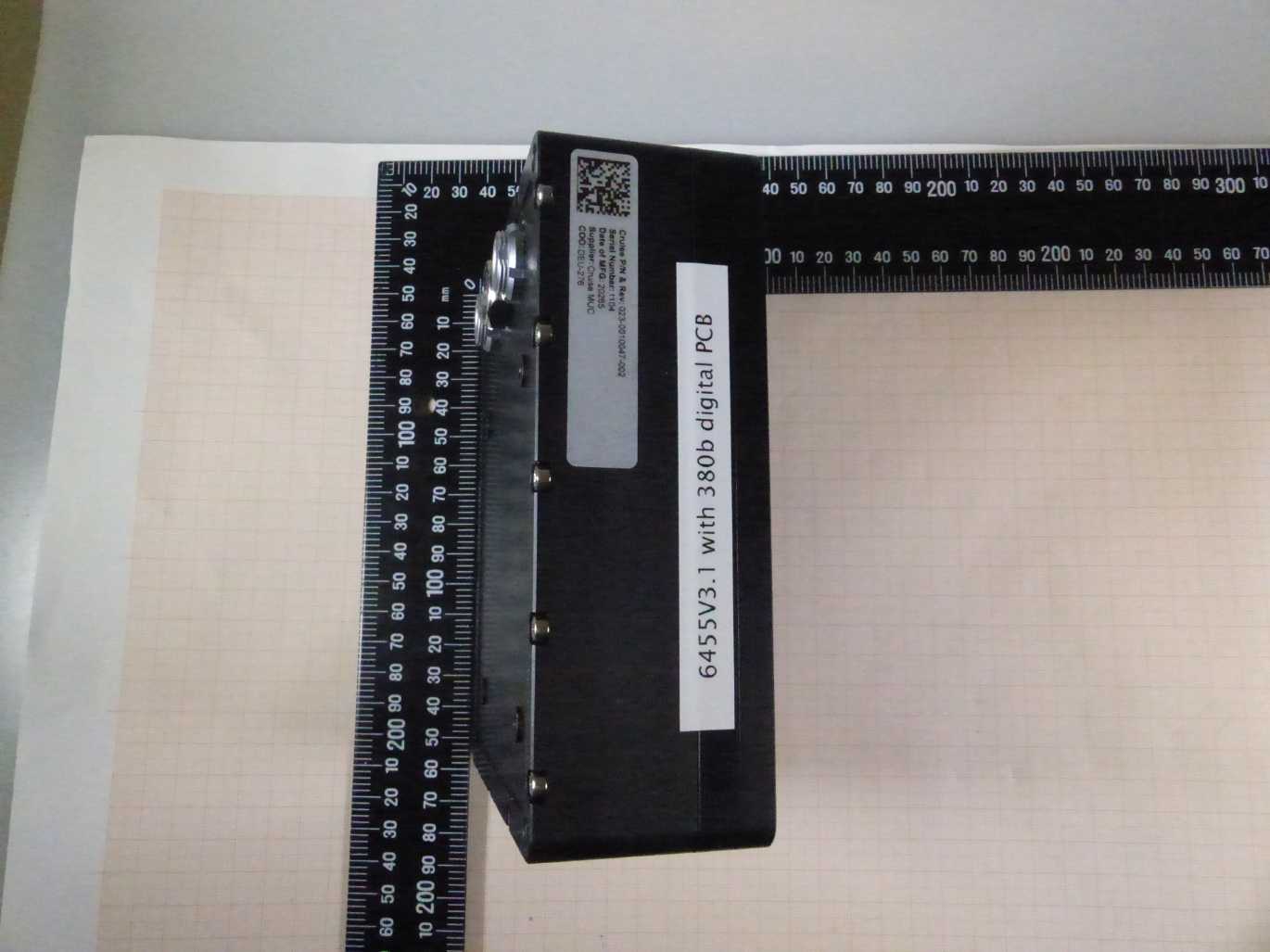

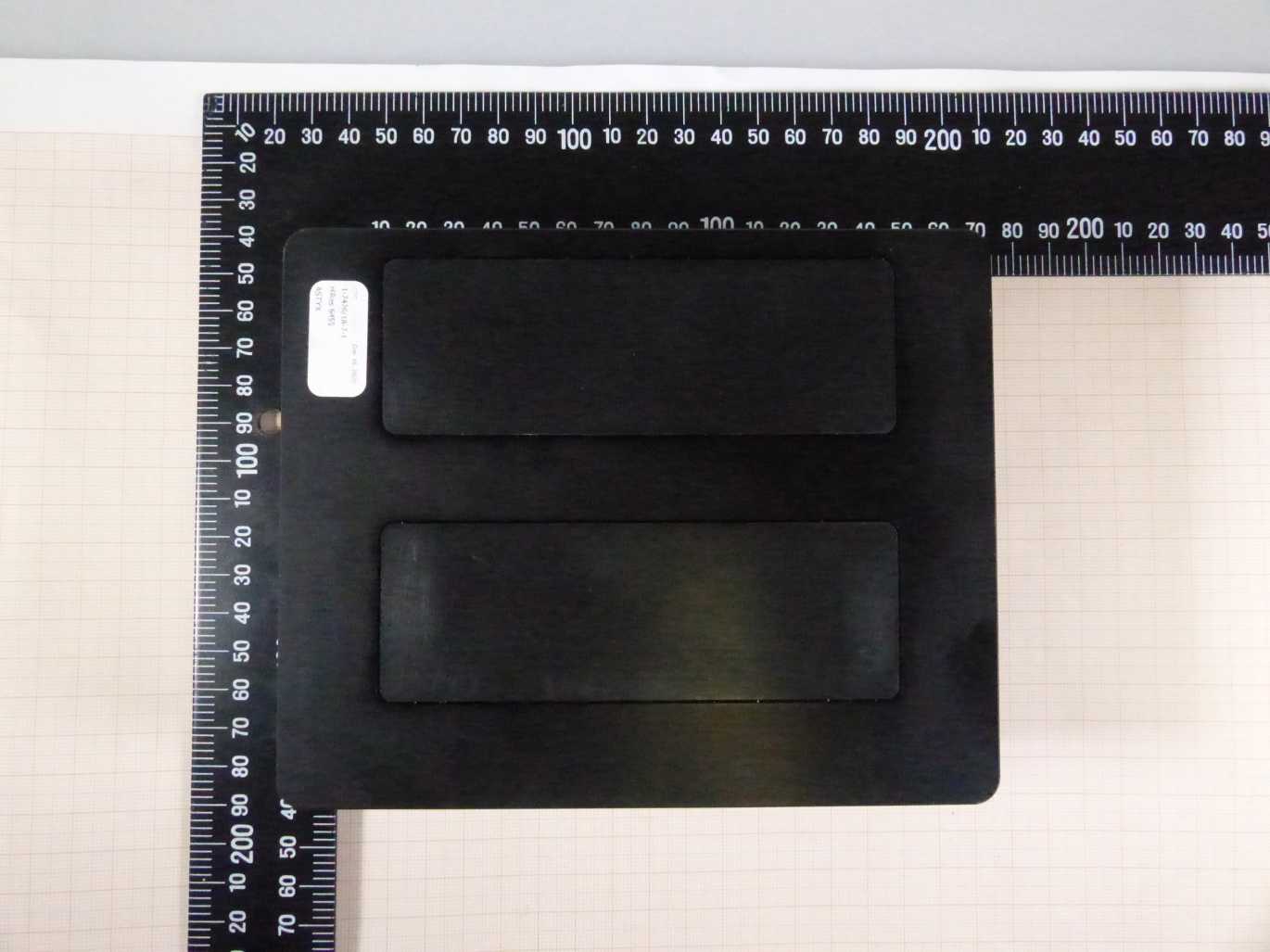

Annex A 1-7426/18-07-01_AnnexA External photos of the Equipment Under Test This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Sebastian Janoschka Lab Manager Radio Communications & EMC CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photos Photo 1 Photo 2 2020-11-07Document No. 1-7426/18-07-01_AnnexA2/6 Photo 3 Photo 4 2020-11-07Document No. 1-7426/18-07-01_AnnexA3/6 Photo 5 Photo 6 2020-11-07Document No. 1-7426/18-07-01_AnnexA4/6 Photo 7 2020-11-07Document No. 1-7426/18-07-01_AnnexA5/6 Document history VersionApplied changesDate of release initial release2020-11-07 - END OF DOCUMENT - 2020-11-07Document No. 1-7426/18-07-01_AnnexA6/6

Annex B 1-7426/18-07-01_AnnexB Internal photos of the Equipment Under Test This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Sebastian Janoschka Lab Manager Radio Communications & EMC CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photos Photo 1 Photo 2 2020-11-07Document No. 1-7426/18-07-01_AnnexB2/8 Photo 3 Photo 4 2020-11-07Document No. 1-7426/18-07-01_AnnexB3/8 Photo 5 Photo 6 2020-11-07Document No. 1-7426/18-07-01_AnnexB4/8 Photo 7 Photo 8 2020-11-07Document No. 1-7426/18-07-01_AnnexB5/8 Photo 9 Photo 10 2020-11-07Document No. 1-7426/18-07-01_AnnexB6/8 Photo 11 2020-11-07Document No. 1-7426/18-07-01_AnnexB7/8 Document history VersionApplied changesDate of release initial release2020-11-07 - END OF DOCUMENT - 2020-11-07Document No. 1-7426/18-07-01_AnnexB8/8

© CTC advanced GmbH Page 1 of 2 BNetzA - CAB - 02/21 - 102 Maximum Permissible Exposure (MPE) & Exposure evaluation Report identification number: 1-7426/18-07-05 MPE (FCC) Certification numbers and labeling requirements FCC ID 2ASKB-HIRES55V3P1 This report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorised: Alexander Hnatovskiy Marco Scigliano Lab Manager Testing Manager Radio Communications & EMC Radio Communications & EMC Report no.: 1-7426/18-07-05 © CTC advanced GmbH Page 2 of 2 EUT technologies: Technologies: Max. power measured EIRP [dBm] EIRP declared by customer 77 GHz VRD 16.11 20 dBm NOTE: Test results taken from CTC Advanced report 1-7426/18-07-02 Prediction of MPE limit at given distance - FCC Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG / 4π R 2 where: S = Power density P = Power input to the antenna G = Antenna gain R = Distance to the center of radiation of the antenna PG = Output Power including antenna gain The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 300 -1500 f/1500 30 1500 - 100000 1.0 30 where f = Frequency (MHz) Prediction: worst case Technologies: VRD Frequency (MHz) 77000 PG Declared max power (EIRP) 20 dBm R Distance 20 cm S MPE limit for uncontrolled exposure 1 mW/cm 2 Calculated Power density: 0.0199 mW/cm² Calculated percentage of Limit: 1.99% This prediction demonstrates the following: The power density levels for FCC at a distance of 20 cm are below the maximum levels allowed by regulations.

TEST REPORT Test report no.: 1-7426/18-07-0 2 Testing laboratory Applicant CTC advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: https://www.ctcadvanced.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate starting with the registration number: D-PL-12076-01. ASTYX GmbH Caroline-Herschel-Str. 2 85521 Ottobrunn / GERMANY Phone: +49 (0) 89 201 804 0 Contact: Serhat Ay & Sigmund Ott e-mail: [email protected] & [email protected] Phone: +49 173 2127350 & +49 173 2112952 Manufacturer ASTYX GmbH Caroline-Herschel-Str. 2 85521 Ottobrunn / GERMANY Test standard/s CFR 47 Part 95, Subpart M The 76-81 GHz Band Radar Service CFR 47 Part 2, Subpart J Frequency allocations and radio treaty matters; general rules and regulations For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: 77GHz Radar for Autonomous Drive Applications Model name: HiRes 6455 FCC ID: 2ASKB-HIRES55V3P1 Frequency: 76 – 81 GHz Antenna: Integrated patch antenna Power supply: 10 V to 16 V DC Temperature range: -20°C to +50°C This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorized: Test performed: Meheza Walla Sebastian Janoschka Lab Manager Lab Manager Radio Communications Radio Communications Test report no.: 1-7426/18-07-02 © CTC advanced GmbH Page 2 of 72 1 Table of contents 1 Table of contents ............................................................................................................................................. 2 2 General information ......................................................................................................................................... 3 2.1 Notes and disclaimer ............................................................................................................................ 3 2.2 Application details ................................................................................................................................ 3 2.3 Test laboratories sub-contracted ......................................................................................................... 3 3 Test standard/s, references and accreditations .............................................................................................. 4 4 Reporting statements of conformity – decision rule ...................................................................................... 5 5 Test environment ............................................................................................................................................. 5 6 Test item........................................................................................................................................................... 6 6.1 General description ............................................................................................................................... 6 6.2 Additional information .......................................................................................................................... 6 7 Description of the test setup ............................................................................................................................ 7 7.1 Shielded semi anechoic chamber ......................................................................................................... 8 7.2 Shielded fully anechoic chamber ........................................................................................................ 10 7.3 Radiated measurements > 18 GHz...................................................................................................... 12 7.4 Radiated measurements > 50/85 GHz ................................................................................................ 12 8 Sequence of testing ....................................................................................................................................... 14 8.1 Sequence of testing radiated spurious 9 kHz to 30 MHz ................................................................... 14 8.2 Sequence of testing radiated spurious 30 MHz to 1 GHz .................................................................. 15 8.3 Sequence of testing radiated spurious 1 GHz to 18 GHz ................................................................... 16 8.4 Sequence of testing radiated spurious above 18 GHz ....................................................................... 17 8.5 Sequence of testing radiated spurious above 50/85 GHz with external mixers ................................ 18 9 Measurement uncertainty .............................................................................................................................. 19 10 Far field consideration for measurements above 18 GHz .................................................................... 20 11 Summary of measurement results ............................................................................................................. 21 12 Measurement results.................................................................................................................................. 22 12.1 Radiated power ................................................................................................................................ 22 12.2 Modulation characteristics .............................................................................................................. 26 12.3 Occupied bandwidth ......................................…

Text truncated - open the document above for the full version.

Annex D 1-7426/18-07-01_AnnexD Setup photos of the Equipment Under Test This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Sebastian Janoschka Lab Manager Radio Communications & EMC CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photos Photo 1 Photo 2 2020-11-07Document No. 1-7426/18-07-01_AnnexD2/10 Photo 3 Photo 4 2020-11-07Document No. 1-7426/18-07-01_AnnexD3/10 Photo 5 Photo 6 2020-11-07Document No. 1-7426/18-07-01_AnnexD4/10 Photo 7 Photo 8 2020-11-07Document No. 1-7426/18-07-01_AnnexD5/10 Photo 9 Photo 10 2020-11-07Document No. 1-7426/18-07-01_AnnexD6/10 Photo 11 Photo 12 2020-11-07Document No. 1-7426/18-07-01_AnnexD7/10 Photo 13 Photo 14 2020-11-07Document No. 1-7426/18-07-01_AnnexD8/10 Photo 15 2020-11-07Document No. 1-7426/18-07-01_AnnexD9/10 Document history VersionApplied changesDate of release initial release2020-11-07 - END OF DOCUMENT - 2020-11-07Document No. 1-7426/18-07-01_AnnexD10/10
