Hardware Installation Guide AdvantageGPS.com l 1-800-553-7031 Welcome Experience 4G LTE Evo, the next evolution in GPS tracking. Advantage by Procon Analytics - where automotive telematics meets genuine analytics. Installation Made Easy Tools needed for install: screwdrivers, wire strippers and cutters, crimping tool and voltmeter. Plus, you might want to have the following handy: connectors, velcro, and zip ties. • Make sure there is not metal above the device as it may interfere with the signal. • Keep it from direct exposure to the sun, heat, rain, moisture, etc., and away from heater vents or hot engine compartments. • Do not tightly kink or wrap excess cable. Mounting Evo [ILLUSTRATIONS 1 & 2] • Install the Evo device in a concealed location under the dash. • Hold it in place. • Mark the location for the velcro. • Attached velcro to the back of the device and the other to the dash. FACING DOWN! Evo Wiring [POWER/SERIAL CABLE DIAGRAM] We’ve included a detachable wiring harness. Connect everything before plugging harness into the Evo device. Black Wire: Ground – Connect the ground wire to the vehicle chassis (should always be first connection made.) Red Wire: 12 VDC Constant Power – Connect to a constant power source. Voltage should read 12V when the vehicle’s ignition line is in the off position. White Wire: Ignition input (optional unless payment reminder is used) Green Wire: Programming Input (not used) Yellow Wire: Output (Connects to starter interruptor relay) GREEN BLACK YELLOW RED Input Ground Output +12V Battery Once the wires are attached and Evo is mounted, plug the harness into it and power up. The LED indicators will show: • A solid green light indicates a good cellular coverage. Note: If the light does not lock on and go solid, you’re not getting a good signal. Unit will not track properly. • A solid red light indicates good GPS signal. ECM Starter Disable [DIAGRAM 1] If the starter is controlled by the ECM (Engine Control Module), splice the wire that leads directly from the ECM to the starter. Note: Do not splice into the wire leading from ignition switch to the ECM. GREEN (Not In Use) Note: Yellow wire connects to Yellow relay wire. Note: Ground should always be the first connection made RED = Ignition WHITE = Starter YELLOW = Input Starter Interrupter [OPTIONAL FEATURE – DIAGRAM 1] • Locate and cut the starter wire of the vehicle. This wire will only display 12VDC while the vehicle is starting. • Connect yellow wire from the harness to the yellow wire of the starter interrupt relay. • Connect red wire from the starter interrupt relay to the ignition switch side of the starter wire. • Connect white wire of the starter interrupt relay to the starter side of the starter wire. Payment Reminder [OPTIONAL FEATURE] •Locate a switch ignition power wire that reads 12V when the vehicle’s ignition is in the ON position and 0 Volts when the vehicle ignition is in the OFF position. The ignition wire retains 12V as the vehicle is starting. •Connect the white wire from harness to the vehicles ignition wire. •If the white wire is not connected, the payment reminder feature will activate upon the change of vehicle voltage, instead of when the vehicle starts. Note: If the white wire is not connected properly, the payment reminder option will not function as designed. LED Troubleshooting [TECHNICAL DATA] Technical Data Operating Voltage 7V - 28V Power Consumption 2.5 mA (standby), 50 mA (active) Operating Temperature -30 o C to +75 o C Storage Temperature -40 o C to +85 o C Operation Humidity 20% to 90% (non-condensing) Solid Green = Cellular Signal is OK Flashing Green = Searching Solid Red = GPS Signal is OK Flashing Flashing Red = Searching Note: The following LED behavior is indicative of an over-the-air update: • Solid Red (15 secs.) • Green and Red flashing simultaneously (about 60 secs.). Installation may continue while device receives updates, however, al ways confirm both LEDs are solid before finalizing. 8 FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between theequipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. IC warning statements: ‐ English: This device complies with Industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES‐3 (B)/NMB‐ 3(B). ‐ French: Le présentappareilestconforme a…

Text truncated - open the document above for the full version.

Phillips Connect Technologies 12012 Burke Street Santa Fe Springs CA 90670 United States Of America Date: 2021-2-5 IC: 25015-AQA01 Dear Sir/Madam, We,Phillips Connect Technologies Hereby declares the following statement for Innovation, Science and Economic Development, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Battery Operated LTE Cellular GPS Tracker Model no.: Arrow-QA, Arrow-QAC, 4-6350-17, 4-6350-10, 4-6351-17 Sincerely, (Signed) Name / Title: Alice Ogi / Engineering Program Manager Company: Phillips Connect Technologies Address: 12012 Burke Street Santa Fe Springs CA 90670 United States Of America Phone: (562) 356-6886 Fax: (562) 781-1179 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-2-5> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ASKH-AQA01 Arrow-QA For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Alice Ogi/Engineering Program Manager Company: PHILLIPS CONNECT TECHNOLOGIES LLC Address: 2323 Main St Unit#5 Irvine, CA 92614, Irvine, CA 92614, United States Phone: (562) 356-6886 Fax: (562) 781-1179 E-Mail: [email protected]

PHILLIPS CONNECT TECHNOLOGIES LLC 2323 Main St Unit#5 Irvine, CA 92614, Irvine, CA 92614, United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-2-5 To whom it may concern: We, PHILLIPS CONNECT TECHNOLOGIES LLC the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ASKH-AQA01 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Alice Ogi/Engineering Program Manager Company: PHILLIPS CONNECT TECHNOLOGIES LLC Address: 2323 Main St Unit#5 Irvine, CA 92614, Irvine, CA 92614, United States Phone: (562) 356-6886 Fax: (562) 781-1179 E-Mail: [email protected]

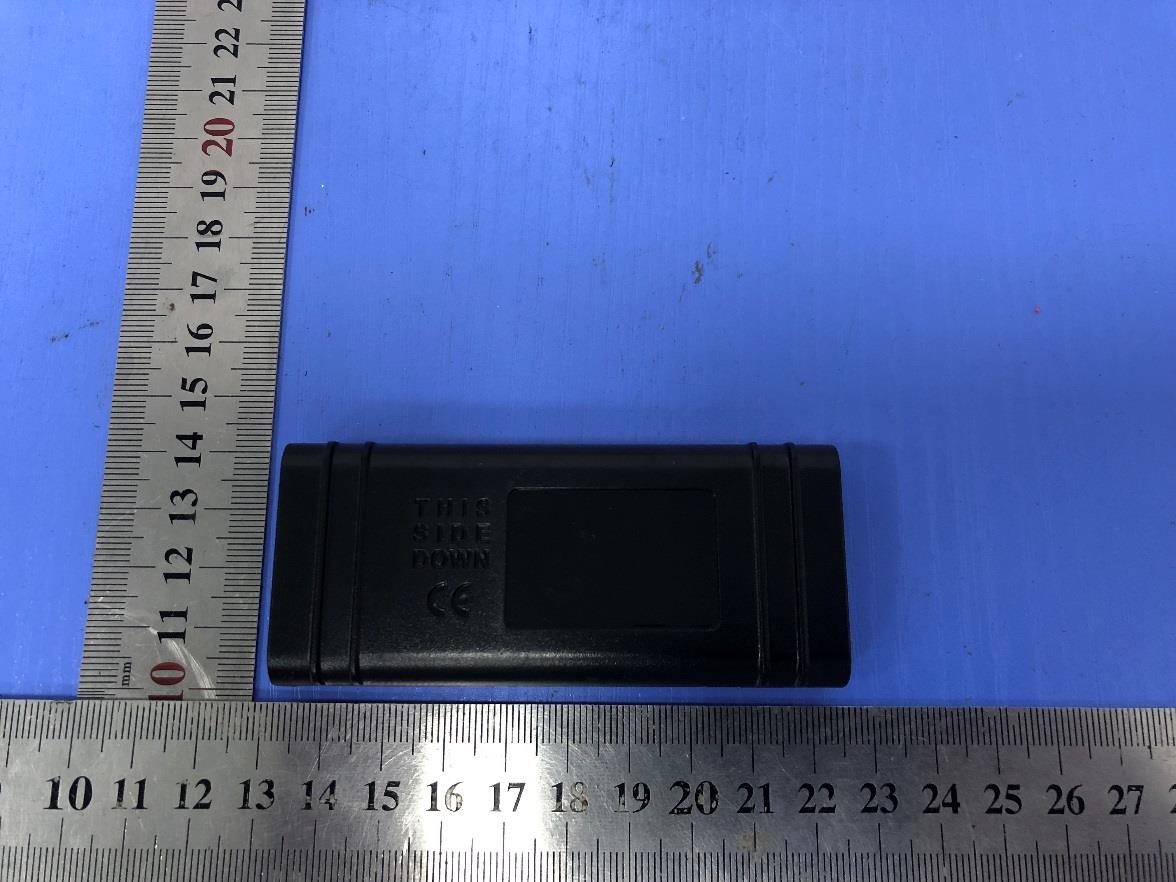

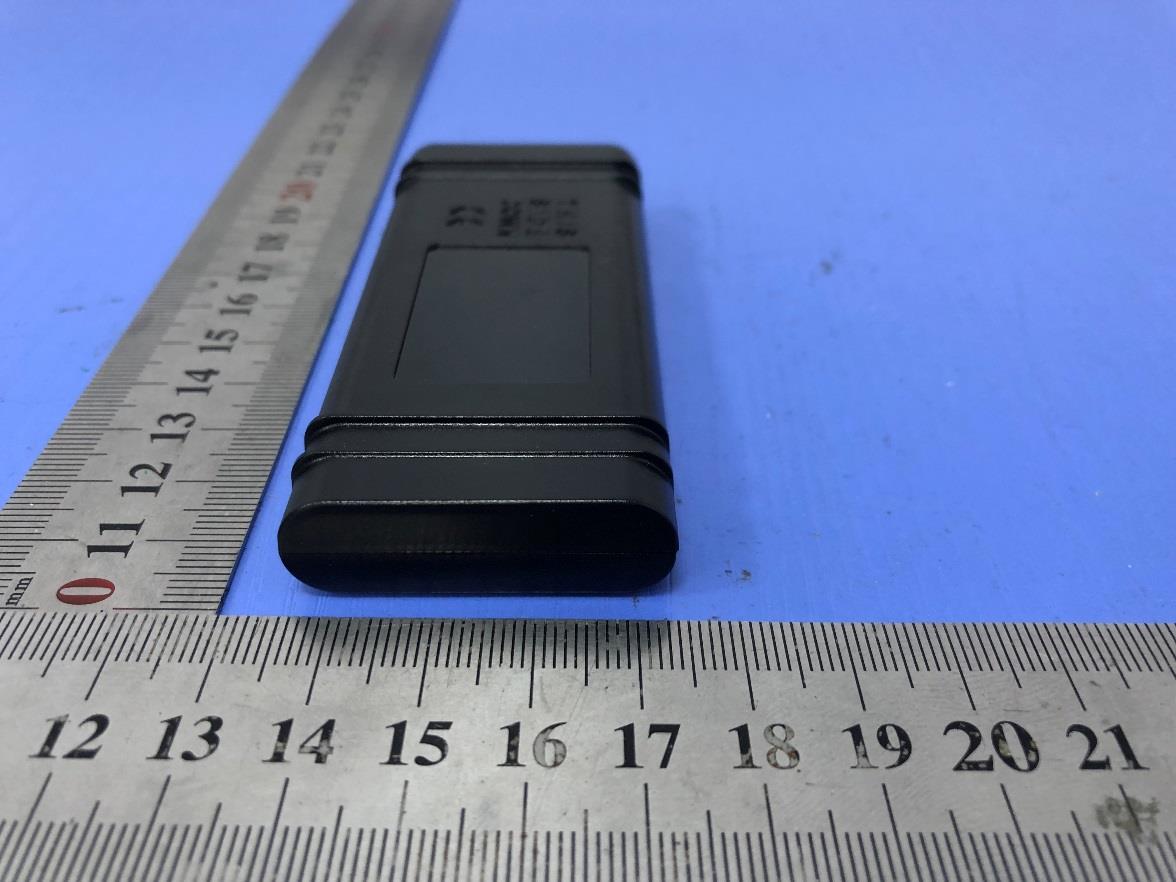

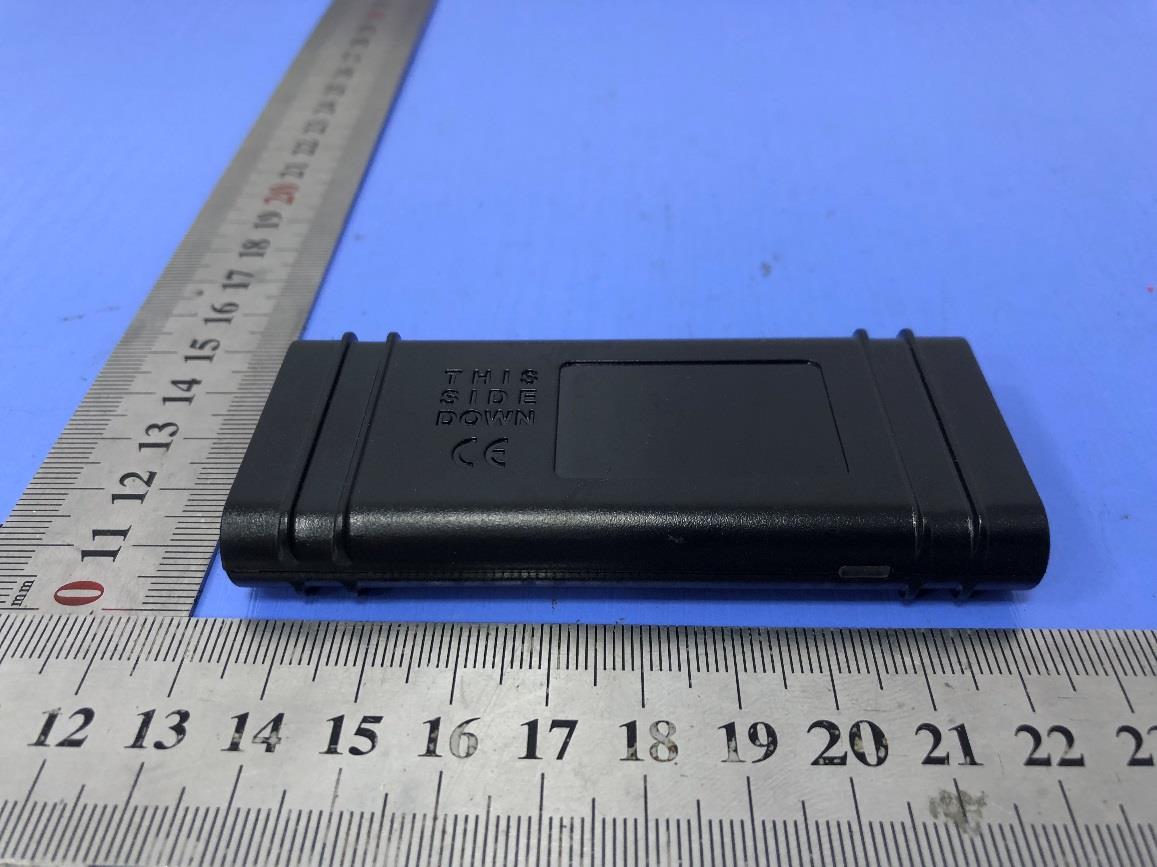

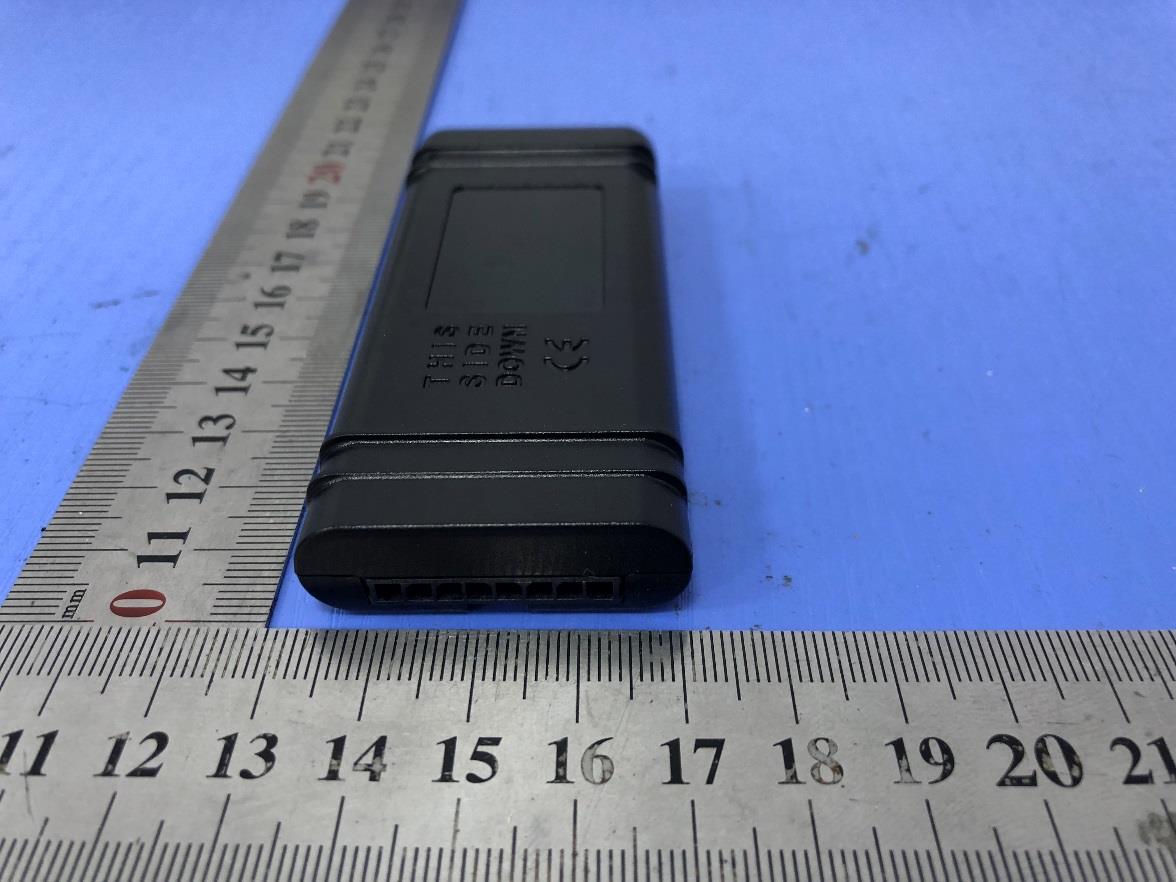

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 Report No.: LCS200826027AEA Exterior Photograph Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 Report No.: LCS200826027AEA Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 Report No.: LCS200826027AEA Fig. 5 Fig. 6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L3.0cm*W2.0cm Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location Battery Operated LTE Cellular GPS Tracker Model No.: Arrow-QA FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Contains FCC ID: XMR2020BG95M2 Contains IC: 10224A-2020BG95M2

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Interior Photograph Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Fig.7 Fig.8 BLE Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 Maximum Permissible Exposure Report 1. Product Information Name of EUT Battery Operated LTE Cellular GPS Tracker Test Model Arrow-QA Additional Models Arrow-QAC, 4-6350-17, 4-6350-10, 4-6351-17 Model Declaration PCB board, structure, External and internal of these model(s) are the same, So no additional models were tested. Power Supply DC 12V, 1000mA Hardware Version P2.0.1 Software Version 2.8.2 Bluetooth Frequency Range 2402MHz-2480MHz Channel Number 40 channels for Bluetooth V5.0 (BT LE) Channel Spacing 2MHz for Bluetooth V5.0 (BT LE) Modulation Type GFSK for Bluetooth V5.0 (BT LE) Antenna Description Internal Antenna, 2.57dBi(Max.) NB-IOT Please Refer To FCC ID: XMR2020BG95M2 GPS Support and only RX SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Arrow-QHC can only use antennas certificated as follows provided by manufacturer; Antenna type and antenna number Operate frequency band Maximum antenna gain Notes Internal Antenna 2400 MHz – 2500 MHz 2.57 dBi BT 6. Conducted Power [BLE Max Conducted Power] Mode Channel Frequency(MHz) Max Conducted Power (dBm) GFSK 0 2402 -4.343 19 2440 -4.868 39 2480 -5.526 7. Manufacturing Tolerance <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -4.0 -5.0 -5.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 8. Measurement Results 8.1 Standalone MPE Evaluation 8.1.1 BT LE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. [BT LE] Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE (mW/cm 2 ) MPE Ratio dBm W GFSK -3.0 0.0005 2.57 1.81 0.0002 1.0 0.0002 Remark: 1. Output power including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer; 3. We choos…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Page 1 of 16 Appendix A RF Test Data for BT LE V5.0(DTS) (Conducted Measurement) Product Name: Battery Operated LTE Cellular GPS Tracker Trade Mark: Phillips Connect Technologies Test Model: Arrow-QA Environmental Conditions Temperature: 23.5  C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Diamond Lu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Page 2 of 16 A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH -4.343 30 PASS BT LE MCH -4.868 30 PASS BT LE HCH -5.526 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Page 3 of 16 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Page 4 of 16 A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -20.642 8 PASS BT LE MCH -21.467 8 PASS BT LE HCH -21.884 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Page 5 of 16 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Page 6 of 16 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6610 ≥0.5 PASS BT LE MCH 0.6701 ≥0.5 PASS BT LE HCH 0.6583 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Page 7 of 16 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Page 8 of 16 A.5 Occupied Bandwidth Mode Channel Occupied Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 1.0354 ≥0.5 PASS BT LE MCH 1.0403 ≥0.5 PASS BT LE HCH 1.0418 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Page 9 of 16 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Page 10 of 16 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH -4.644 -37.461 -24.644 PASS BT LE MCH -5.219 -37.841 -25.219 PASS BT LE HCH -6.049 -37.724 -26.049 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Page 11 of 16 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Page 12 of 16 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Page 13 of 16 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH -5.081 -49.634 -25.08 PASS BT LE HCH -6.446 -48.633 -26.45 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Page 14 of 16 A.8 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -43.49 2.57 0 54.34 PEAK 74 PASS Ant1 2310.0 -53.59 2.57 0 44.24 AV 54 PASS Ant1 2390.0 -43.17 2.57 0 54.66 PEAK 74 PASS Ant1 2390.0 -53.24 2.57 0 44.59 AV 54 PASS 2480 Ant1 2483.5 -41.93 2.57 0 55.90 PEAK 74 PASS Ant1 2483.5 -52.78 2.57 0 45.05 AV 54 PASS Ant1 2500.0 -42.25 2.57 0 55.58 PEAK 74 PASS Ant1 2500.0 -52.60 2.57 0 45.23 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Page 15 of 16 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 IC: 25015-AQA01 Page 16 of 16 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 Report No.: LCS200826027AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 34 FCC TEST REPORT For PHILLIPS CONNECT TECHNOLOGIES LLC Battery Operated LTE Cellular GPS Tracker Test Model: Arrow-QA Additional Model No. : Arrow-QAC, 4-6350-17, 4-6350-10, 4-6351-17 Prepared for : PHILLIPS CONNECT TECHNOLOGIES LLC Address : 12012 Burke Street SANTA FE SPRINGS, CA 90670 United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : August 28, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : August 28, 2020 ~ September 15, 2020 Date of Report : September 17, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 Report No.: LCS200826027AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 34 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200826027AEA Date of Issue .................................. : September 17, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : PHILLIPS CONNECT TECHNOLOGIES LLC Address .......................................... : 12012 Burke Street SANTA FE SPRINGS, CA 90670 United States Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No.................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Battery Operated LTE Cellular GPS Tracker Trade Mark ..................................... : Phillips Connect Technologies Test Model ...................................... : Arrow-QA Ratings ........................................... : DC 12V, 1000mA Result ............................................ : Positive Compiled by: Supervised by: Approved by: Cherry Chen / Administrators Jin Wang / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 Report No.: LCS200826027AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 34 FCC -- TEST REPORT Test Model............................... : Arrow-QA EUT......................................... : Battery Operated LTE Cellular GPS Tracker Applicant............................... : PHILLIPS CONNECT TECHNOLOGIES LLC Address.................................. : 12012 Burke Street SANTA FE SPRINGS, CA 90670 United States Telephone............................... : Fax.......................................... : Manufacturer........................ : PHILLIPS CONNECT TECHNOLOGIES LLC Address................................... : 12012 Burke Street SANTA FE SPRINGS, CA 90670 United States Telephone............................... : Fax.......................................... : Factory................................... : / Address................................... : / Telephone............................... : Fax.......................................... : Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200826027AEA September 17, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 Report No.: LCS200826027AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 34 Revision History Revision Issue Date Revisions Revised By 000 September 17, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-AQA01 Report No.: LCS200826027AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 34 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 7 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 7 1.4. DESCRIPTION OF TEST FACILITY ...........................................…
