2ASKH-LCA01Bluetooth GPIO Detector

Utility Trailer Wiring Instructions Smart 7 with LampCheck ATIS 2/4/2021 Step 1 – mount Smart 7 to trailer Step 2 – run harness, with approximately 2” of jacket fed through Smart 7 grommet Step 3 – connect ring terminals on main harness to bottom row of studs, as shown in Figure 1 Step 4 – connect .180 male bullet from main harness to female .180 bullet in Smart 7 to supply red power to ABS, as shown in Figure 1. Figure 1 Step 5 – run harnesses for Automatic Tire Inflation System, with approximately 2” of jacket fed through Smart 7 grommet. Step 6 – connect ATIS wiring and LampCheck ATIS as shown in Figure 2 Figure 2 Note – LampCheck ATIS ground wire will be pre-installed on ground post. FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement To comply with FCC RF exposure compliance requirements, this grant is applicable to only mobile configurations. The antennas used for this transmitter must be installed to provide a separation di stance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. ISED Statement ‐ English: This device complies with Industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES‐3 (B)/NMB‐3(B). ‐ French: Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradioélec triquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement. This radio transmitter (ISED certification number: 25015-LCA01) has been approved by Industry Canada to operate with the antenna types listed with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Le présent émetteur radio (ISED certification number: 25015-LCA01) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal. Les types d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-6-25> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ASKH-LCA01 LampCheck For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Gil Winograd/Vice President Company: PHILLIPS CONNECT TECHNOLOGIES LLC Address: 12012 Burke Street SANTA FE SPRINGS California United States 90670 Phone: 9494242318 Fax: 949298-5610 E-Mail: [email protected]

PHILLIPS CONNECT TECHNOLOGIES LLC 12012 Burke Street SANTA FE SPRINGS California United States 90670 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-6-25 To whom it may concern: We, PHILLIPS CONNECT TECHNOLOGIES LLC the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ASKH-LCA01 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Gil Winograd/Vice President Company: PHILLIPS CONNECT TECHNOLOGIES LLC Address: 12012 Burke Street SANTA FE SPRINGS California United States 90670 Phone: 9494242318 Fax: 949298-5610 E-Mail: [email protected]

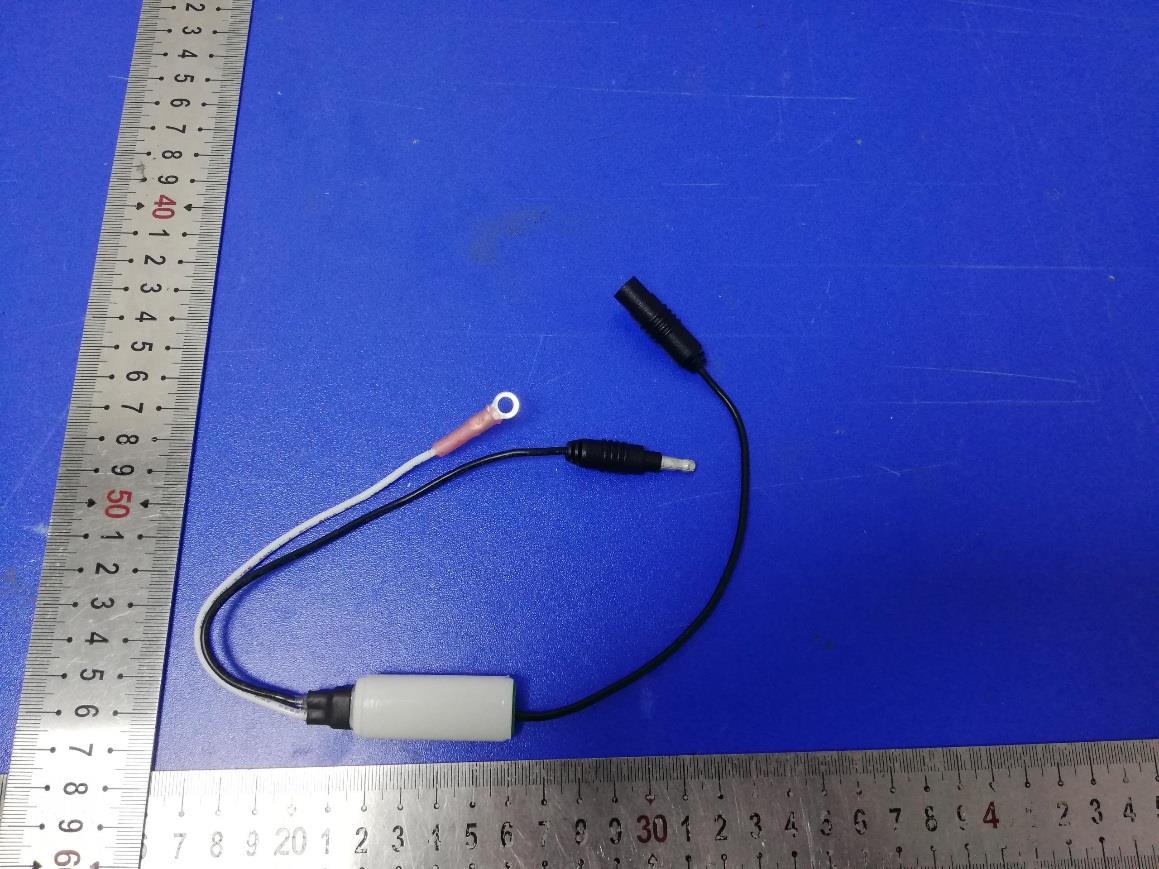

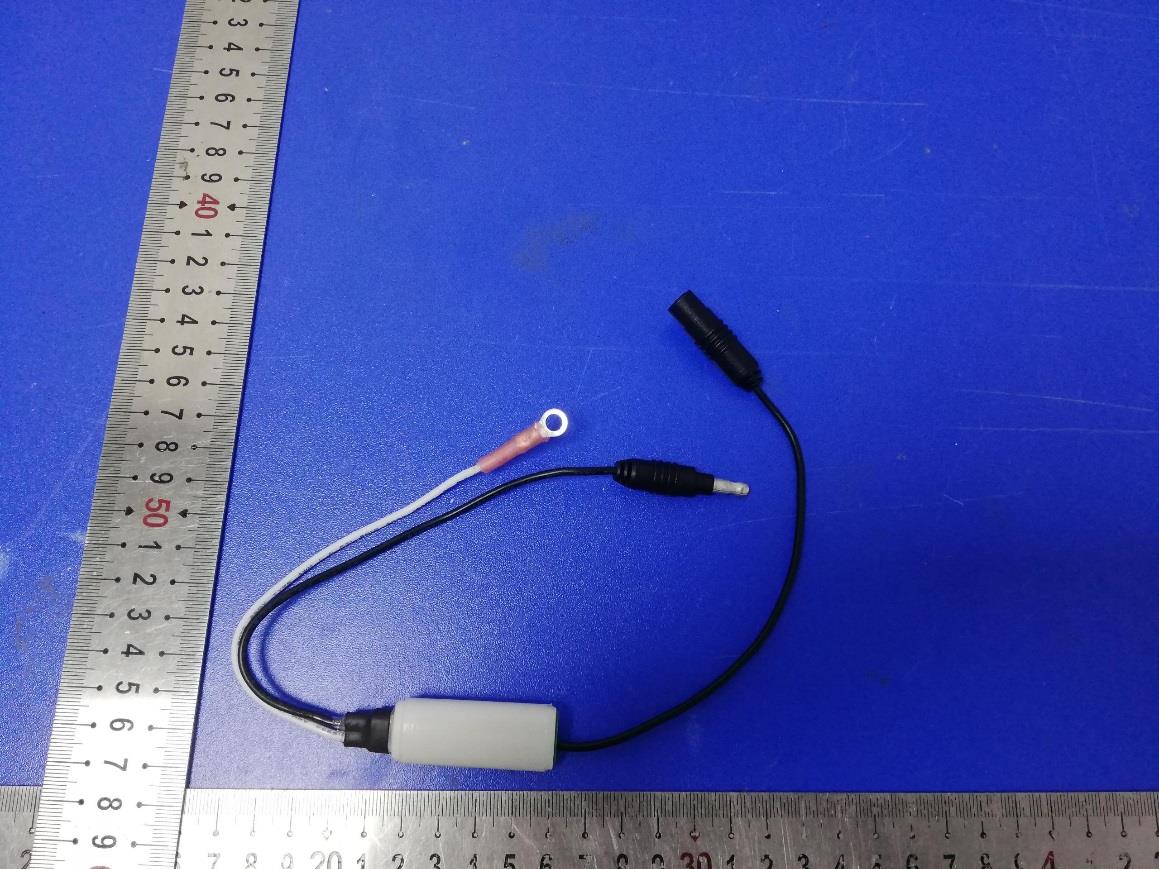

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Fig.3 Fig.4

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2cm*W1cm Label Location Bluetooth GPIO Detector Model No.: LampCheck FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 HVIN: LampCheck

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ASKH-LCA01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 Maximum Permissible Exposure Report 1. Product Information FCC ID : 2ASKH-LCA01 EUT : Bluetooth GPIO Detector Test Model : LampCheck Power Supply : Input: DC 12V, 100mA Hardware Version : P1 Software Version : V1 Bluetooth Frequency Range : 2402MHz ~ 2480MHz Bluetooth Version : V5.0 Bluetooth Channel Number : 40 channels for Bluetooth V5.0 (BT LE / BT 2LE) Bluetooth Channel Spacing : 2MHz for Bluetooth V5.0 (BT LE / BT 2LE) Bluetooth Modulation Type : GFSK for Bluetooth V5.0 (BT LE / BT 2LE) Antenna Description : Ceramics Antenna, 1.82dBi(Max.) Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Fixed Device Sample No. : 210427124A-1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ASKH-LCA01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498 D01 General RF Exposure Guidance v06 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ASKH-LCA01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Bluetooth GPIO Detector can only use an antenna certificated as follows provided by manufacturer; Antenna Identification Antenna type and antenna number Operate frequency band Maximum antenna gain BLE ANT Ceramics Antenna 2402MHz – 2480MHz 1.82dBi(Max.) 6. Conducted Power [BLE Max Conducted Power] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) BT LE 0 2402 6.346 19 2440 6.301 39 2480 5.873 BT 2LE 0 2402 6.411 19 2440 6.344 39 2480 5.89 7. Manufacturing tolerance BT LE (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 6.0 6.0 6.0 Tolerance ±(dB) 1 1 1 BT 2LE (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 6.0 6.0 6.0 Tolerance ±(dB) 1 1 1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ASKH-LCA01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 8. Measurement Results As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. Mode RF output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BLE 7 5.01 1.82 1.52 0.0015 1.0 Remark: 1. Output pow…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 Report No.: LCS210427124AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 31 FCC TEST REPORT For Phillips Connect Technologies LLC Bluetooth GPIO Detector Test Model: LampCheck Prepared for : Phillips Connect Technologies LLC Address : 12012 Burke Street Santa Fe Springs, CA 90670 United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 07, 2021 Number of tested samples : 2 Sample No. : 210427124A-1, 210427124A-2 Serial number : Prototype Date of Test : May 07, 2021 ~ May 12, 2021 Date of Report : May 13, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 Report No.: LCS210427124AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 31 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210427124AEA Date of Issue ................................... : May 13, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Phillips Connect Technologies LLC Address ........................................... : 12012 Burke Street Santa Fe Springs, CA 90670 United States Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : Bluetooth GPIO Detector Trade Mark .......................................................................................................................................... : Phillips Connect Technologies Test Model .......................................................................................................................................... : LampCheck Ratings ................................................................................................................................................ : Input: DC 12V, 100mA Result ........................................... : Positive Compiled by: Supervised by: Approved by: Jin Wang/ Administrator Linda He/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 Report No.: LCS210427124AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 31 FCC -- TEST REPORT Test Model........................... : LampCheck EUT......................................... : Bluetooth GPIO Detector Applicant............................... : Phillips Connect Technologies LLC Address.................................. : 12012 Burke Street Santa Fe Springs, CA 90670 United States Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Asiatelco Technologies Co Ltd Address................................... : #68 HuaTuo Road, Building-8, Zhangjiang Hi-Tech Park, Pudong, Shanghai 201204, China Telephone............................... : / Fax.......................................... : / Factory................................... : Asiatelco Technologies Co Ltd Address................................... : #68 HuaTuo Road, Building-8, Zhangjiang Hi-Tech Park, Pudong, Shanghai 201204, China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210427124AEA May 13, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 Report No.: LCS210427124AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 31 Revision History Revision Issue Date Revisions Revised By 000 May 13, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 Report No.: LCS210427124AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 31 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 1 of 34 Appendix A RF Test Data for BT V5.0(BLE) (Conducted Measurement) Product Name: Bluetooth GPIO Detector Trade Mark: Phillips Connect Technologies Test Model: LampCheck Environmental Conditions Temperature: 24.6  C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Jay Li Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Duty Cycle[%] Verdict BT LE 2440 100 PASS BT 2LE 2440 100 PASS #im grbble1hchnnav BT LE SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 2 of 34 #im grbble1hchnnav BT 2LE SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 3 of 34 A.2 Maximum Conducted Peak Output Power and e.i.r.p. Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 6.346 30 PASS BT LE MCH 6.301 30 PASS BT LE HCH 5.873 30 PASS BT 2LE LCH 6.411 30 PASS BT 2LE MCH 6.344 30 PASS BT 2LE HCH 5.89 30 PASS Mode Channel Conduct Peak Power[dBm] Gain [dBi] e.i.r.p. [dBm] Limit [dBm] Verdict BT LE LCH 6.346 1.82 8.17 36 PASS BT LE MCH 6.301 1.82 8.12 36 PASS BT LE HCH 5.873 1.82 7.69 36 PASS BT 2LE LCH 6.411 1.82 8.23 36 PASS BT 2LE MCH 6.344 1.82 8.16 36 PASS BT 2LE HCH 5.89 1.82 7.71 36 PASS Test Graphs_ BT LE LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 4 of 34 MCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 5 of 34 Test Graphs_ BT 2LE LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 6 of 34 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 7 of 34 A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -11.262 8 PASS BT LE MCH -11.231 8 PASS BT LE HCH -11.970 8 PASS BT 2LE LCH -13.348 8 PASS BT 2LE MCH -13.547 8 PASS BT 2LE HCH -14.042 8 PASS Test Graphs_ BT LE LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 8 of 34 MCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 9 of 34 Test Graphs_ BT 2LE LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 10 of 34 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 11 of 34 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6868 ≥0.5 PASS BT LE MCH 0.6868 ≥0.5 PASS BT LE HCH 0.6849 ≥0.5 PASS BT 2LE LCH 1.185 ≥0.5 PASS BT 2LE MCH 1.169 ≥0.5 PASS BT 2LE HCH 1.179 ≥0.5 PASS Test Graphs_ BT LE LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 12 of 34 MCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 13 of 34 Test Graphs_ BT 2LE LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 14 of 34 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 15 of 34 A.5 Occupied Bandwidth Mode Channel Occupied Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 1.0315 ≥0.5 PASS BT LE MCH 1.0342 ≥0.5 PASS BT LE HCH 1.0370 ≥0.5 PASS BT 2LE LCH 2.0499 ≥0.5 PASS BT 2LE MCH 2.0519 ≥0.5 PASS BT 2LE HCH 2.0541 ≥0.5 PASS Test Graphs_ BT LE LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 16 of 34 MCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 17 of 34 Test Graphs_ BT 2LE LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 18 of 34 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 19 of 34 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 6.211 -21.028 -13.789 PASS BT LE MCH 6.15 -24.607 -13.850 PASS BT LE HCH 5.731 -21.591 -14.269 PASS BT 2LE LCH 6.233 -22.329 -13.767 PASS BT 2LE MCH 6.162 -18.139 -13.838 PASS BT 2LE HCH 5.726 -20.120 -14.274 PASS BT LE_LCH_Graphs Pref/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 20 of 34 Puw/BT LE/LCH BT LE_MCH_Graphs Pref/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 21 of 34 Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 22 of 34 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 23 of 34 BT 2LE_LCH_Graphs Pref/BT 2LE/LCH Puw/BT 2LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 24 of 34 BT 2LE_MCH_Graphs Pref/BT 2LE/MCH Puw/BT 2LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 25 of 34 BT 2LE_HCH_Graphs Pref/BT 2LE/HCH Puw/BT 2LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 26 of 34 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 6.263 -49.455 -13.74 PASS BT LE HCH 5.910 -47.841 -14.09 PASS BT 2LE LCH 6.242 -49.851 -13.76 PASS BT 2LE HCH 5.882 -47.466 -14.12 PASS Test Graphs_ BT LE LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 27 of 34 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 28 of 34 Test Graphs_ BT 2LE LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 Page 29 of 34 A.8 Restrict-band band-edge measurements Test Mode Test Channel Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/m] Verdict BT LE 2402 2310.0 -43.13 2.0 0 54.10 PEAK 74 PASS 2310.0 -53.45 2.0 0 43.78 AV 54 PASS 2390.0 -43.28 2.0 0 53.95 PEAK 74 …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKH-LCA01 IC: 25015-LCA01 _______________________________________________________________________________________________ TEST SETUP PHOTOGRAPHS Radiated Emissions Fig. 1 Fig. 2
