User Manual © 2021 Phillips Connect Technologies LLC 1 / 10 Arrow-QG Arrow-VI 4-6340-17-12V 4-6340-10 4-6341-17 4-6341-10 Vehicle Tracking Device The information presented in this document is strictly confidential and contains trade secrets and other confidential information that are the exclusive property of Phillips Connect Technologies. User Manual © 2021 Phillips Connect Technologies LLC 2 / 10 Contents 1. Introduction 2. Design 3. Testing Mechanical Structure(mm) FCC Statement IC STATEMENT User Manual © 2021 Phillips Connect Technologies LLC 3 / 10 1 Introduction The Arrow-QG (Arrow-VI) is a self-Contained vehicle tracking device that combines GPS location with LTE and BLE connectivity. The Arrow-QG (Arrow-VI) appears to a user or a server application as a single endpoint device. It can be queried, updated and configured either through a serial connection, or an over the air LTE IP connection. The Arrow-QG (Arrow-VI) presents itself over these connections as an enhanced cellular modem with attached functional elements. These elements include: ⚫ GPS location engine ⚫ General Purpose Bidirectional I/O (GPIO) pins ⚫ Relay drive pin output ⚫ Serial UART port ⚫ CAN Communication (optional) ⚫ BLE5.0 Application scene: User Manual © 2021 Phillips Connect Technologies LLC 4 / 10 2 Design 2.1 Basic Hardware Items Requirement Baseband Chipset Qualcomm Cat.M1 RF Transceiver Qualcomm SDR Memory Internal Air Interface Support for LTE Cat.M1 Frequency 4G band support : Band2/4/5/12/13/25/26 BLE5.0 : 2.4GHz Antenna Internal Antenna / Chip Antenna GPS Antenna Dedicated high performance ceramic antenna Interface UART TX UART RX 12V DC Input（1A current） Relay Drive GPIO CAN(Option) Voltage Monitor Supported Watchdog Supported Motion Detect Supported LED 2 LED Supported Battery Built in battery for backup（< 90mAH） Power Cable connector type 8 pin Power Consumption < 5Watts The Arrow-QG (Arrow-VI) provides support for specialized hardware features through extended AT commands. The features supported include the following. GPS The major functionality of the GPS system is to compute the correlation results between the incoming signal and the selected PRN code based on certain Carrier Doppler Frequency, Code Doppler Frequency, code phase, carrier phase, and the particular satellite the system is tracking or acquiring. GPIO The GPIO pins are presented to the external environment on the main connector. They are general purpose bidirectional lines capable of providing system interrupts to generate a report or drive logic levels to external devices. These lines are 2.8V logic level and are 16V tolerant. LED’s Two LED status indicators are provided to verify correct installation and operation. User Manual © 2021 Phillips Connect Technologies LLC 5 / 10 UART A UART port is provided for AT command and data interaction and optionally for application specific control. Relay Driver A 500mA sink capable output pin is provided. This pin is meant to drive a relay coil intended to interrupt the starter solenoid relay for the ignition circuit to a car. Voltage Monitor The battery monitor is internal analog input scaled such that the DC value of the power input pin to the Arrow-QG (Arrow-VI) system is measured. Watchdog MDM9207-1 chipset provide internal software and hardware Watchdog. Motion Detect This function will work with firmware power down options to keep the Arrow-QG (Arrow-VI) in a very low power down state until motion is detected. Upon wakening, a report can then be generated. CAN This function is an option for watching the information of vehicle. 2.2 Basic RF Performance Items Requirements Remark TRP free space CTIA TRP free space TIS free space CTIA TIS free space Board RF Specification 4G LTE Cat.1 Band Band 2/4/5/12/13/25/26 Rx Spec Follow TS 36.521 Ch.7 Tx Spec Follow TS 36.521 Ch.6 BLE5.0 ISM Band 2.4GHz Rx Spec Follow chipset Tx Spec Follow chipset GPS Frequency Support L1-band (1.57542GHz) User Manual © 2021 Phillips Connect Technologies LLC 6 / 10 2.3 Certification and Safety Items Requirement Drop Design 0.8meter 6 direction standard drop test Temperature Range 0 to +60°C Operation -40 to +85°C Storage Humidity: 20% to 90% Operation 10% to 95% Storage Altitude: -500 to +18,000m FCC Certification FCC Part 15/22/24/27/90 IC Certification RSS-130/132/133/139/247 ESD Requirement 8KV non-Conductive User Manual © 2021 Phillips Connect Technologies LLC 7 / 10 3 Testing Test Item Description Baseband Function Test • Power Input Test • Power Consumption and Current Test • Heat Dissipation Test • UART Stability Test • GPIO Level Test • Drop Down Test • ESD Test • High/Low Temperature Test RF Test • LTE Performance Test • GPS Performance Test • BLE Performance Test • Antenna Performance Test User Manual © 2021 Phillips Connect Technologies LLC 8 / 10 Mechanical Structure(mm) User Manual © 2021 Phillips Connect Technologies LLC 9 / 10 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/T…

Text truncated - open the document above for the full version.

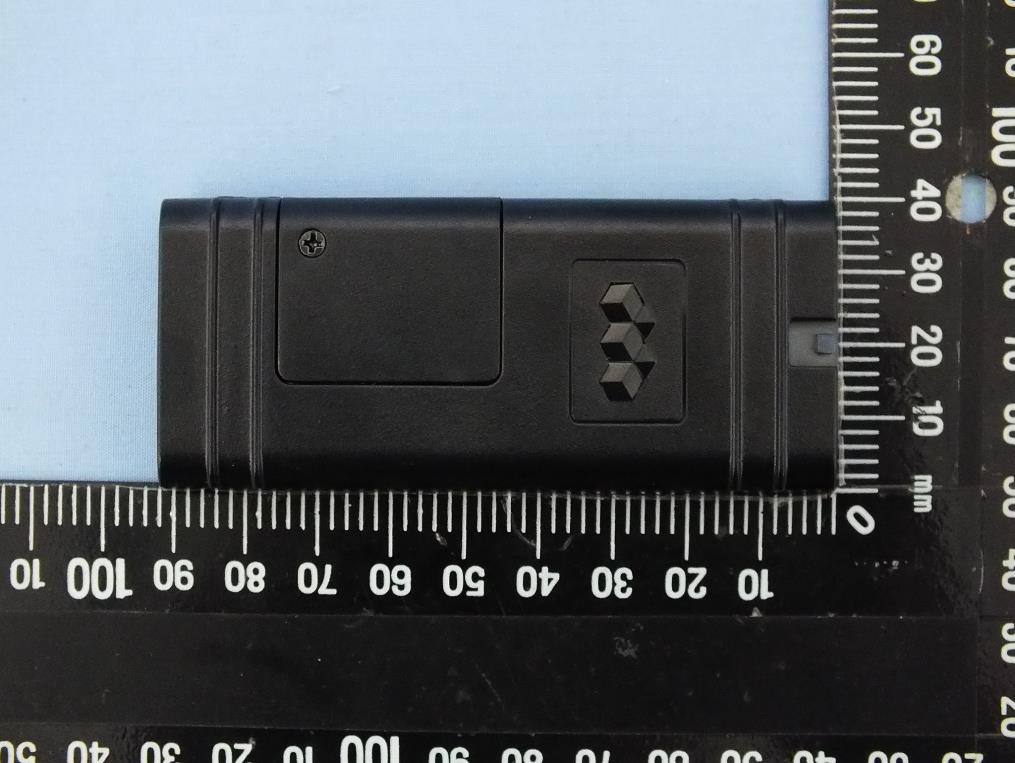

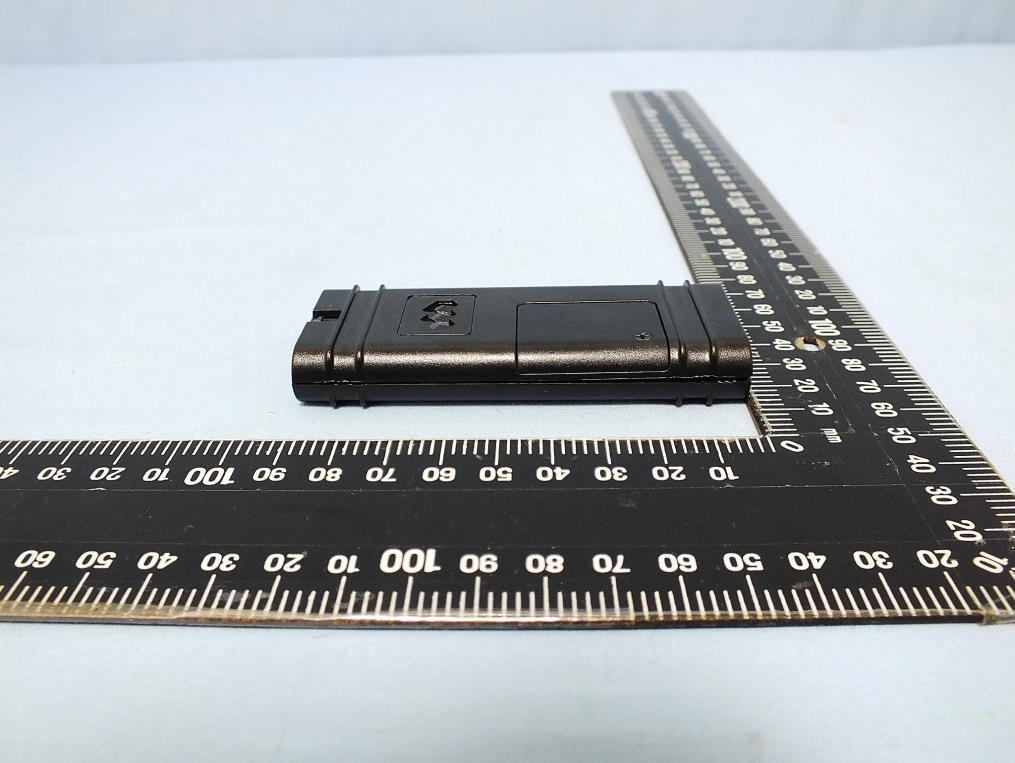

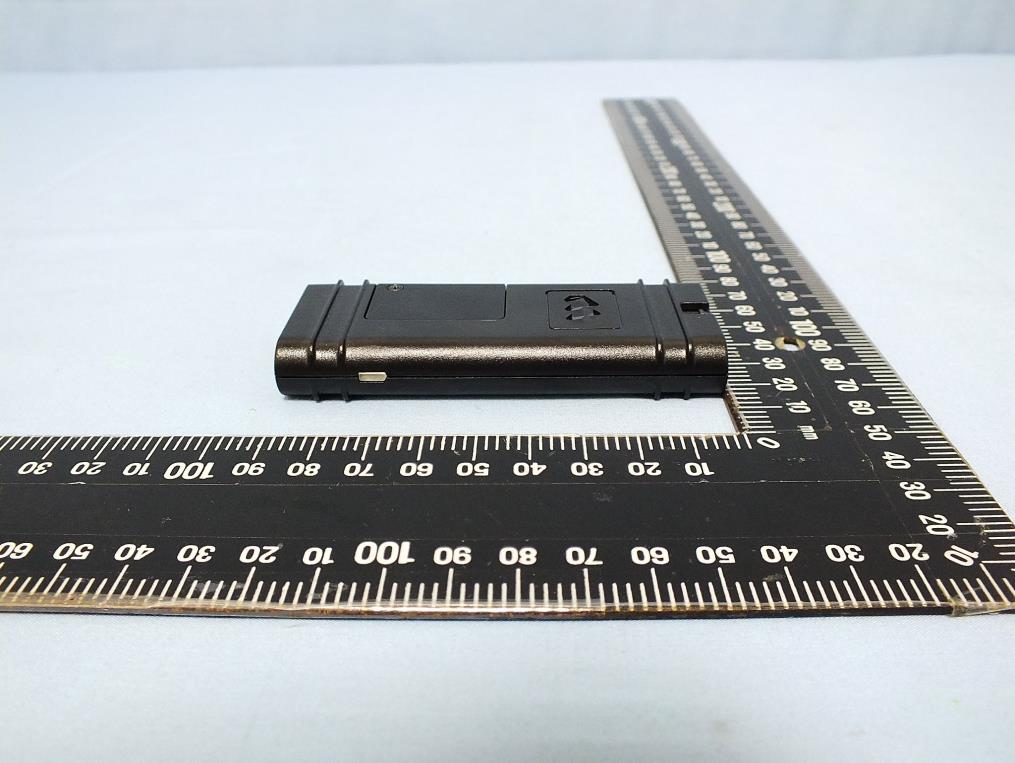

Project No.: EP110604 Page No. : 1 of 12 Photographs of EUT Project No.: EP110604 Page No. : 2 of 12 Project No.: EP110604 Page No. : 3 of 12

Back side

Project No.: EP110604 Page No. : 4 of 12 Project No.: EP110604 Page No. : 5 of 12 Project No.: EP110604 Page No. : 6 of 12 Antenna Project No.: EP110604 Page No. : 7 of 12 BT Antenna Project No.: EP110604 Page No. : 8 of 12 Project No.: EP110604 Page No. : 9 of 12 Project No.: EP110604 Page No. : 10 of 12 Project No.: EP110604 Page No. : 11 of 12 Project No.: EP110604 Page No. : 12 of 12

Report No.: FA110604 Page : 1 of 7 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : 2ASKHAQG01 Equipment : Arrow-VI Model No. : 4-6340-17 (Please refer to section 1.1.1 for more details) Brand Name : PHILLIPS CONNECT TECHNOLOGIES Applicant : PHILLIPS CONNECT TECHNOLOGIES LLC Address : 12012 Burke Street, SANTA FE SPRINGS, California, 90670-2676, United States Standard : 47 CFR FCC Part 2.1091 Received Date : Jan. 06, 2021 Tested Date : Jan. 08 ~ Jan. 18, 2021 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA110604 Page : 2 of 7 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 4 1.1 Information.............................................................................................................................................. 4 2 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 5 2.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 5 2.2 MPE EVALUATION FORMULA ............................................................................................................. 5 2.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 5 2.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 5 2.5 MPE EVALUATION RESULTS .............................................................................................................. 6 3 TEST LABORATORY INFORMATION ................................................................................................. 7 Report No.: FA110604 Page : 3 of 7 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA110604 Rev. 01 Initial issue Feb. 03, 2021 Report No.: FA110604 Page : 4 of 7 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description PHILLIPS CONNECT TECHNOLOGIES 4-6340-17 Arrow-VI LTE Cellular GPS Tracker 4-6340-10 4-6341-17 4-6341-10  All models are electrically identical, different model names are for marking purpose. Report No.: FA110604 Page : 5 of 7 Report Version: Rev. 01 2 MPE EVALUATION OF MOBILE DEVICES 2.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 2.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 2.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 2.4 MEASUREMENT UNCERTAINTY The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)). Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FA110604 Page : 6 of 7 Report Version: Rev. 01 2.5 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) *Ratio Pass / Fail 2402~2480 (BT-LE) 4.63 5 3.6 20 0.001 1 0.001 Pass 1850~1910 (LTE B2) 21.64 22 3 20 0.063 1 0.063 Pass 1710~1755 (LTE B4) 21.87 22 1.1 20 0.041 1 0.041 Pass 824~849 (LTE B5) 21.13 22 0.8 20 0.038 0.549 0.069 Pass 699~716 (LTE B12) 20.78 22 0.3 20 0.034 0.466 0.073 Pass 777~787 (LTE B13) 20.86 22 -0.6 20 0.027 0.518 0.053 Pass 1850~1915 (LTE B25) 21.69 22 3 20 0.063 1 0.063 Pass 814~849 (LTE B26) 21.15 22 0.8 20 0.038 0.543 0.070 Pass *Ratio = Power density / Limit. Report No.: FA110604 Page : 7 of 7 Report Version: Rev. 01 3 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp (EMC and Wireless Communication Laboratory), it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan District. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C.. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR110604AE Page : 1 of 43 Report Version: Rev. 01 FCC Test Report FCC ID : 2ASKHAQG01 Equipment : Arrow-VI Model No. : 4-6340-17 (Please refer to section 1.1.1 for more details) Brand Name : PHILLIPS CONNECT TECHNOLOGIES Applicant : PHILLIPS CONNECT TECHNOLOGIES LLC Address : 12012 Burke Street, SANTA FE SPRINGS, California, 90670-2676, United States Standard : 47 CFR FCC Part 15.247 Received Date : Jan. 06, 2021 Tested Date : Jan. 13 ~ Jan. 18, 2021 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR110604AE Page : 2 of 43 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 Test Equipment List and Calibration Data .............................................................................................. 8 1.5 Test Standards ....................................................................................................................................... 9 1.6 Reference Guidance .............................................................................................................................. 9 1.7 Deviation from Test Standard and Measurement Procedure ................................................................. 9 1.8 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Facility ..................................................................................................................................... 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TRANSMITTER TEST RESULTS ....................................................................................................... 11 3.1 6dB and Occupied Bandwidth .............................................................................................................. 11 3.2 RF Output Power .................................................................................................................................. 16 3.3 Power Spectral Density ........................................................................................................................ 18 3.4 Emissions in Restricted Frequency Bands ........................................................................................... 23 3.5 Emissions in non-restricted Frequency Bands ..................................................................................... 39 4 TEST LABORATORY INFORMATION ............................................................................................... 43 Report No.: FR110604AE Page : 3 of 43 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR110604AE Rev. 01 Initial issue Feb. 03, 2021 Report No.: FR110604AE Page : 4 of 43 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 AC Power Line Conducted Emissions Note N/A 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 4804.00MHz 44.90 (Margin -9.10dB) - AV Pass 15.247(b)(3) Maximum Output Power Power [dBm]: 4.77 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass N/A means Not Applicable. Note: The EUT consumes DC power from battery, so the test is not required. Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR110604AE Page : 5 of 43 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description PHILLIPS CONNECT TECHNOLOGIES 4-6340-17 Arrow-VI LTE Cellular GPS Tracker 4-6340-10 4-6341-17 4-6341-10  All models are electrically identical, different model names are for marking purpose. 1.1.2 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Freq. (MHz) Channel Number Data Rate 2400-2483.5 V5.1 LE 2402-2480 0-39 [40] 1 Mbps 2400-2483.5 V5.1 LE 2402-2480 0-39 [40] 2 Mbps Note: Bluetooth LE (Low energy) uses GFSK modulation. 1.1.3 Antenna Details Ant. No. Type Connector Gain (dBi) Remarks 1 Chip No 3.6 --- 1.1.4 Power Supply Type of Equipment under Test (EUT) Power Supply Type 12Vdc from battery 1.1.5 Accessories N/A Report No.: FR110604AE Page : 6 of 43 Report Version: Rev. 01 1.1.6 Channel List Frequency band (MHz)…
