DoorSense Manual BLE Wireless Sensor Installs on the outside for loaded trailer installation Works on Swing and Roll up doors 10-year life The wireless door sensor is a small, battery operated device to sense the door open/close status of a standard intermodal shipping container. The device incorporates a magnetic sensor, relying on a fixed magnet being placed outside the device. The magnet may be placed on either the opposing door or on the fixed door frame at the top of the container. Neither the device nor magnet should protrude in thickness further than a standard door open/close bar. The device wirelessly broadcasts status information as BLE 5 advertisements to inform a gateway receiver placed on the nose of the container of the door open/close status. FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. ISED Statement ‐ English: This device complies with Industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES‐3 (B)/NMB‐3(B). ‐ French: Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradioélec triquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement. This radio transmitter (ISED certification number: 25015-BT01) has been approved by Industry Canada to operate with the antenna types listed with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Le présent émetteur radio (ISED certification number: 25015-BT01) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal. Les types d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.

PHILLIPS CONNECT TECHNOLOGIES LLC Add: 12012 BURKE STREET SANTA FE SPRINGS, California 90670-2676, United States Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA <2020-07-09> Dear Sir/Madam, We, PHILLIPS CONNECT TECHNOLOGIES LLC Hereby declares the following statement for FCC, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product Name: DoorSense FCC ID: 2ASKHBT01 Model Number(s): DoorSense, TempSense Sincerely, Name: Dean Delbaugh/Electronics Manufacturing Manager Company: PHILLIPS CONNECT TECHNOLOGIES LLC Address: 12012 BURKE STREET SANTA FE SPRINGS, California 90670-2676, United States Phone: 5627812178 Fax: 5627811179 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-07-09> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ASKHBT01 DoorSense, TempSense For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Dean Delbaugh/Electronics Manufacturing Manager Company: PHILLIPS CONNECT TECHNOLOGIES LLC Address: 12012 BURKE STREET SANTA FE SPRINGS, California 90670-2676, United States Phone: 5627812178 Fax: 5627811179 E-Mail: [email protected]

PHILLIPS CONNECT TECHNOLOGIES LLC Add: 12012 BURKE STREET SANTA FE SPRINGS, California 90670-2676, United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/07/09 To whom it may concern: We, PHILLIPS CONNECT TECHNOLOGIES LLC the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ASKHBT01 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Dean Delbaugh/Electronics Manufacturing Manager Company: PHILLIPS CONNECT TECHNOLOGIES LLC Address: 12012 BURKE STREET SANTA FE SPRINGS, California 90670-2676, United States Phone: 5627812178 Fax: 5627811179 E-Mail: [email protected]

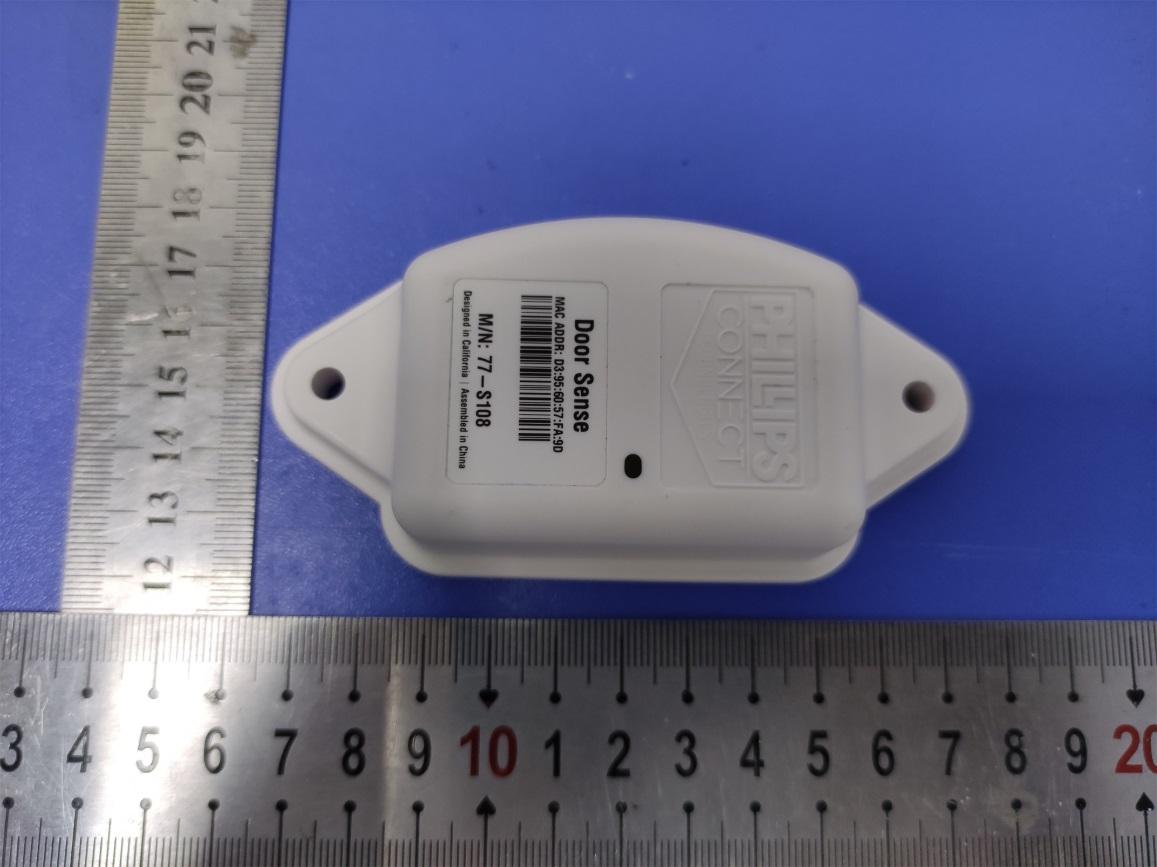

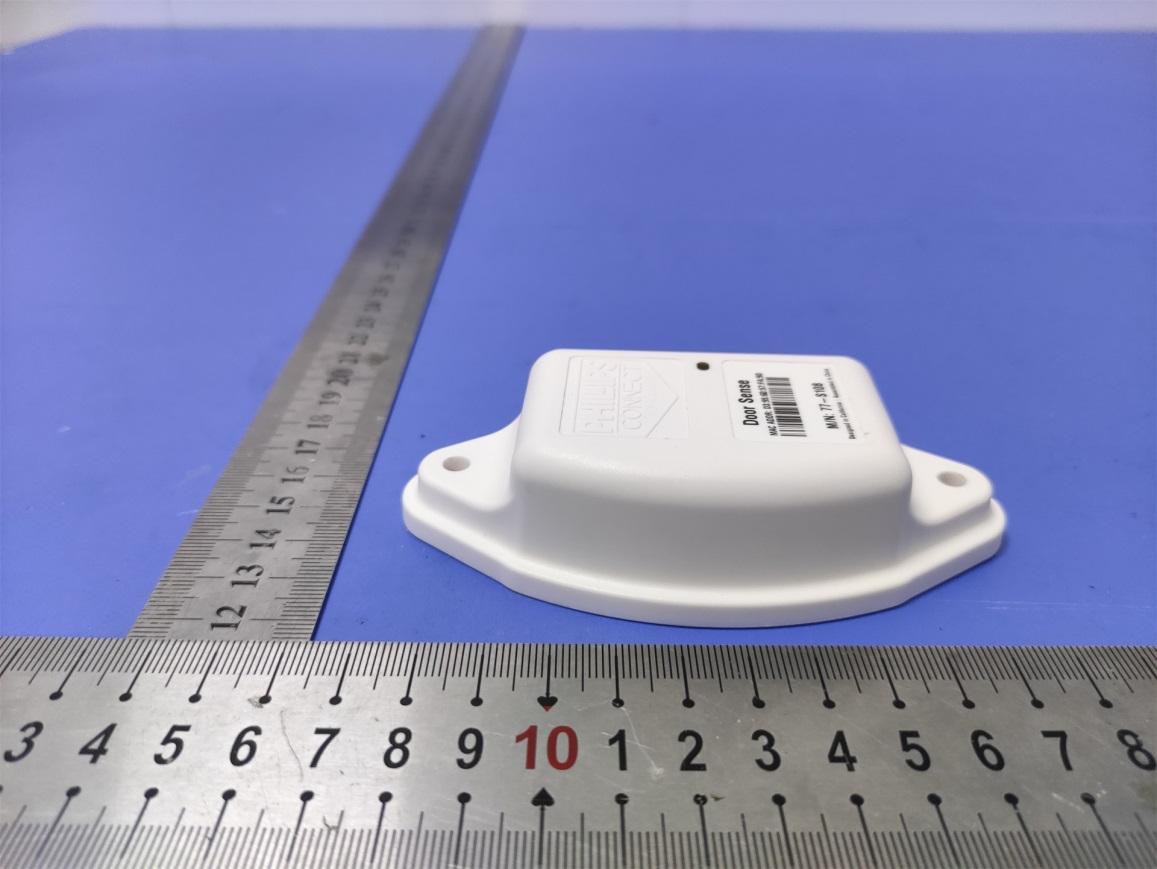

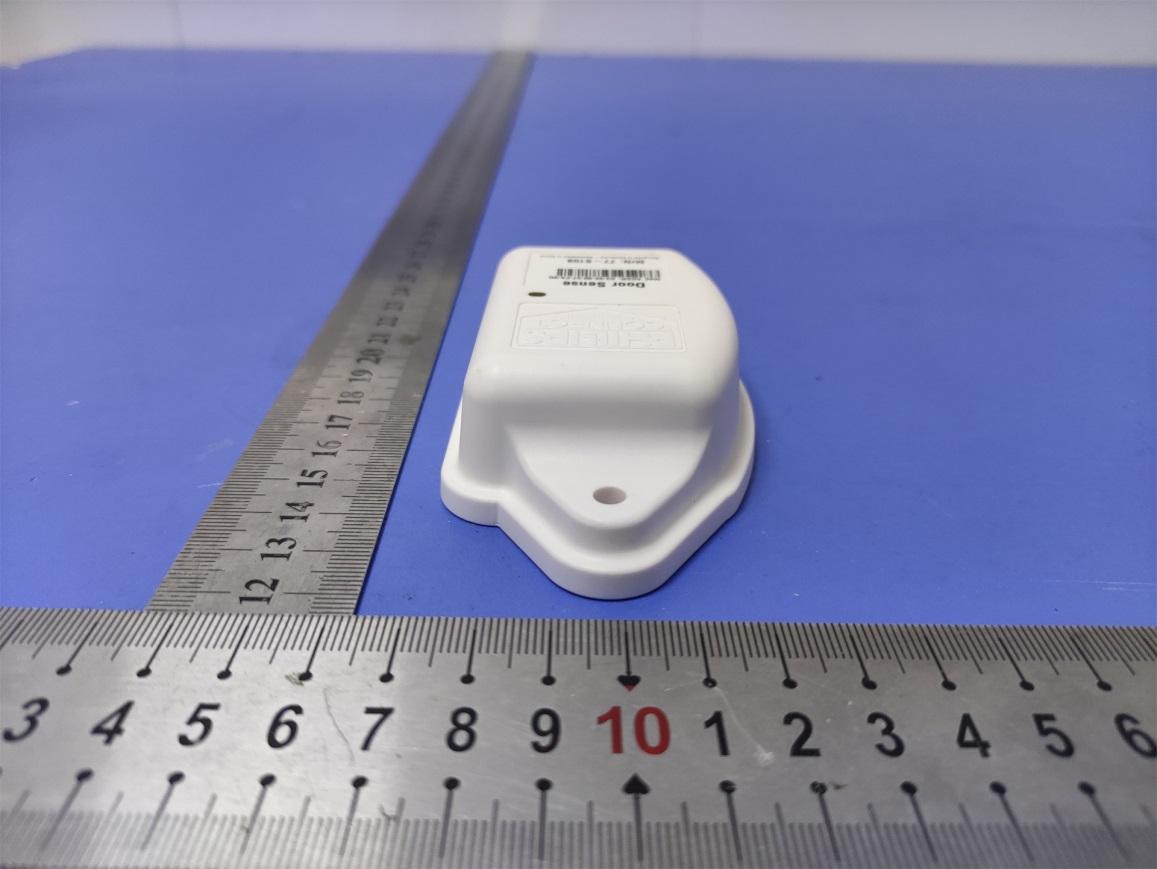

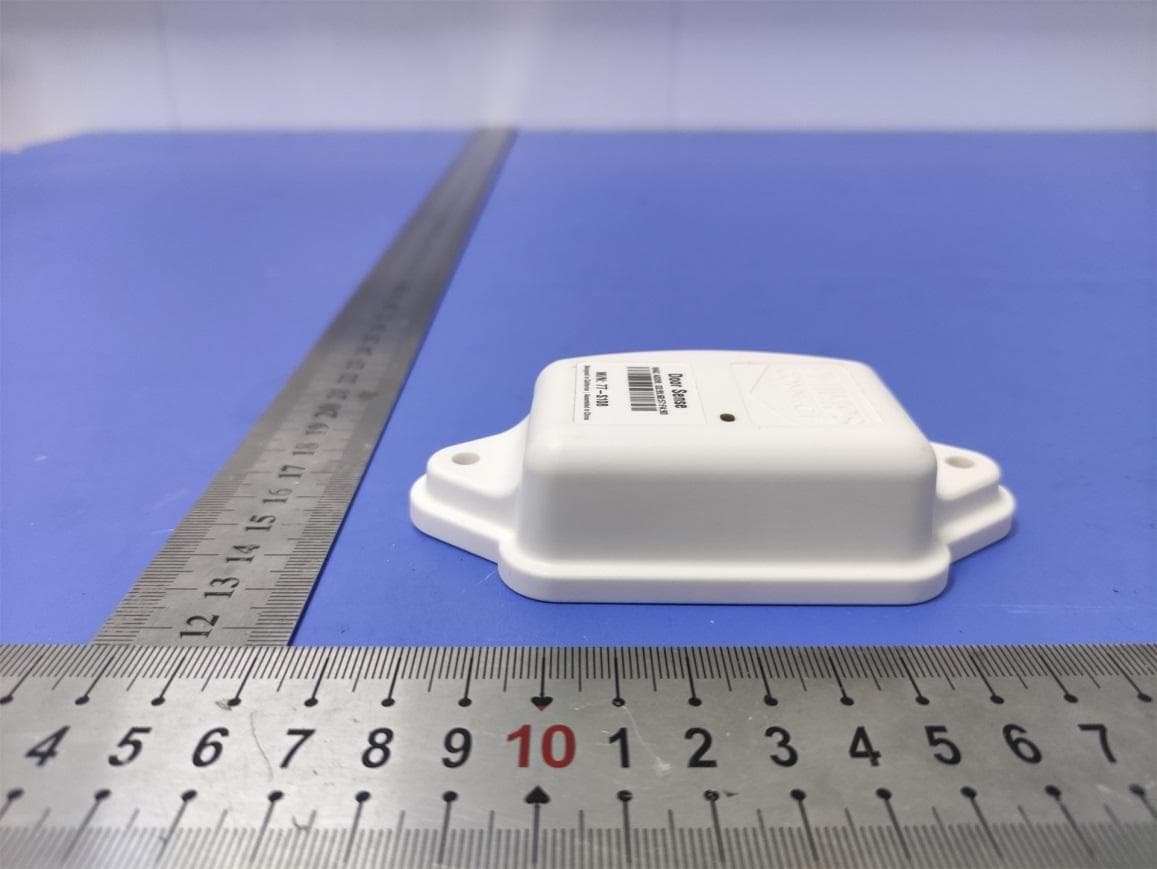

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location DoorSense Model: DoorSense HVIN: DoorSense FCC ID: 2ASKHBT01 IC : 25015-BT01 DoorSense Model: TempSense HVIN: TempSense FCC ID: 2ASKHBT01 IC : 25015-BT01 IC : 25015-BT01

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Fig.9 BT Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ASKHBT01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2ASKHBT01 Product name DoorSense Model number DoorSense, TempSense Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power supply DC 3.6V by NON-rechargeable battery, 2.7Ah Operation frequency 2402MHz-2480MHz Modulation Type GFSK for Bluetooth V5.0 (BT LE/ BT 2LE) Channel Number 40 channels for Bluetooth V5.0 (BT LE/ BT 2LE) Antenna Type Internal Antenna Antenna Gain 4.04dBi(Max.) Hardware version P1 Software version s132_nrf52_6.1.1_softdevice Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer evaluation method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ASKHBT01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ASKHBT01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information SML625BTBK can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna Identification in Internal photos Antenna type and antenna number Operate frequency band Maximum antenna gain Antenna Bluetooth internal Antenna 2.4GHz – 2.5 GHz 4.04 dBi 6. Conducted Power 6.1 Test Setup Block Diagram 6.2 Test Procedure 1) The EUT was directly connected to the Spectrum Analyzer and antenna output port as show in the Block diagram; 2) Reading peak power. 6.3 Conducted Power Results <BT LE> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 0.656 19 2440 0.244 39 2480 -0.358 <BT 2LE> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 0.644 19 2440 0.246 39 2480 -0.338 Spectrum Analyzer EUT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ASKHBT01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 7. Manufacturing Tolerance <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 0 0 0 Tolerance ±(dB) 1.0 1.0 1.0 <BT 2LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 0 0 0 Tolerance ±(dB) 1.0 1.0 1.0 8. Measurement Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT R…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 1 of 32 Appendix A RF Test Data for BT V5.0(BT LE) (Conducted Measurement) Product Name: Door Sense Trade Mark: Phillips Connect Technologies Test Model: DoorSense Environmental Conditions Temperature: 23.3  C Relative Humidity: 52.7% ATM Pressure: 100.0 kPa Test Engineer: SCOUT WU Supervised by: Li Huan A.1 Duty Cycle BT LE Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 2 of 32 BT 2LE Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 3 of 32 A.2 Maximum Conducted Peak Output Power BT LE Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 0.656 30 PASS BT LE MCH 0.244 30 PASS BT LE HCH -0.358 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 4 of 32 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 5 of 32 BT 2LE Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 0.644 30 PASS BT LE MCH 0.246 30 PASS BT LE HCH -0.338 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 6 of 32 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 7 of 32 A.3 Maximum Power Spectral Density BT LE Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -17.132 8 PASS BT LE MCH -17.358 8 PASS BT LE HCH -18.525 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 8 of 32 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 9 of 32 BT 2LE Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -19.037 8 PASS BT LE MCH -19.352 8 PASS BT LE HCH -20.066 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 10 of 32 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 11 of 32 A.4 6dB Bandwidth BT LE Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6870 ≥0.5 PASS BT LE MCH 0.6817 ≥0.5 PASS BT LE HCH 0.6811 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 12 of 32 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 13 of 32 BT 2LE Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 1.182 ≥0.5 PASS BT LE MCH 1.160 ≥0.5 PASS BT LE HCH 1.163 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 14 of 32 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 15 of 32 A.5 Occupied Bandwidth BT LE Mode Channel Occupied Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 1.0333 ≥0.5 PASS BT LE MCH 1.0384 ≥0.5 PASS BT LE HCH 1.0372 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 16 of 32 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 17 of 32 BT 2LE Mode Channel Occupied Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 2.0455 ≥0.5 PASS BT LE MCH 2.0493 ≥0.5 PASS BT LE HCH 2.0503 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 18 of 32 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 19 of 32 A.6 RF Conducted Spurious Emissions BT LE Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 0.472 -38.155 -19.528 PASS BT LE MCH 0.126 -36.779 -19.874 PASS BT LE HCH -0.352 -36.989 -20.352 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 20 of 32 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 21 of 32 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 22 of 32 BT 2LE Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 0.525 -36.860 -19.475 PASS BT LE MCH 0.13 -37.464 -19.870 PASS BT LE HCH -0.486 -35.843 -20.486 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 23 of 32 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 24 of 32 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 25 of 32 A.7 Band-edge for RF Conducted Emissions BT LE Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 0.264 -48.896 -19.74 PASS BT LE HCH -0.679 -48.808 -20.68 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 26 of 32 BT 2LE Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 0.652 -49.668 -19.35 PASS BT LE HCH -0.352 -49.162 -20.35 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 Page 27 of 32 A.8 Restrict-band band-edge measurements BT LE Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -42.48 4.04 0 56.82 PEAK 74 PASS Ant1 2310.0 -53.62 4.04 0 45.68 AV 54 PASS Ant1 2390.0 -42.57 4.04 0 56.73 PEAK 74 PASS Ant1 2390.0 -53.29 4.04 0 46.01 AV 54 PASS 2480 Ant1 2483.5 -42.67 4.04 0 56.63 PEAK 74 PASS Ant1 2483.5 -52.81 4.04 0 4…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 Report No.: LCS200518048AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 30 FCC TEST REPORT For PHILLIPS CONNECT TECHNOLOGIES LLC DoorSense Test Model: DoorSense Additional Model No.: TempSense Prepared for : PHILLIPS CONNECT TECHNOLOGIES LLC Address : 12012 BURKE STREET SANTA FE SPRINGS, California 90670-2676, United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 20, 2020 Number of tested samples : 2 Sample number : 200518047A-1, 200518047A-2 Number of tested samples : 1 Serial number : Prototype Date of Test : May 20, 2020 ~ May 23, 2020 Date of Report : May 26, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 Report No.: LCS200518048AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 30 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS200518048AEA Date of Issue ................................... : May 26, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : PHILLIPS CONNECT TECHNOLOGIES LLC Address ........................................... : 12012 BURKE STREET SANTA FE SPRINGS, California 90670-2676, United States Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : DoorSense Trade Mark .......................................................................................................................................... : Phillips Connect Technologies Test Model .......................................................................................................................................... : DoorSense Ratings ................................................................................................................................................ : DC 3.6V by NON-rechargeable battery, 2.7Ah Result ........................................... : Positive Compiled by: Supervised by: Approved by: Linda He/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 Report No.: LCS200518048AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 30 FCC -- TEST REPORT Test Model........................... : DoorSense EUT......................................... : DoorSense Applicant............................... : PHILLIPS CONNECT TECHNOLOGIES LLC Address.................................. : 12012 BURKE STREET SANTA FE SPRINGS, California 90670-2676, United States Telephone............................... : / Fax.......................................... : / Manufacturer........................ : PHILLIPS CONNECT TECHNOLOGIES LLC Address................................... : 12012 BURKE STREET SANTA FE SPRINGS, California 90670-2676, United States Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200518048AEA May 26, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 Report No.: LCS200518048AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 30 Revision History Revision Issue Date Revisions Revised By 000 May 26, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 Report No.: LCS200518048AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 30 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ASKHBT01 IC : 25015-BT01 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2
