2ASMH-PCB015-PCB018CHARGING PAD
SP United China
Click to zoom
Application Details
- Equipment Class
- DCD - Part 15 Low Power Transmitter Below 1705 kHz
- Date of Grant
- Jan 09, 2023
- Application Purpose
- Original Equipment
- Date of Application
- Jan 09, 2023
- Equipment Note
- CHARGING PAD
- Frequency Range
- 0.11100000 - 0.20500000
- Company
- SP United China
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
SP Connect is a registered trademark © 2022 SP United / PATENTED SYSTEM / All rights reserved CHARGING PAD EN / DE / FR / ES EN ATTENTION! • Avoid use in a humid or high temperature environment if possible. • Don’t hit, disassemble or re-assemble the product - this may lead to malfunction. • High Temperatures can reduce charge e ciency. • Smartphone power consumption can exceed charge power. Setup phone appropriately! DE ACHTUNG! • Einsatz in einer feuchten Umgebung oder bei hohen Temperaturen nach Möglichkeit vermeiden. • Nicht auf das Produkt einschlagen, zerlegen oder wieder zusammen- bauen - dies kann zu Fehlfunktionen führen. • Hohe Temperaturen können die Ladeleistung verringern. • Der Stromverbrauch des Smartphones kann die Ladeleistung übersteigen. Telefon entsprechend einstellen! FR ATTENTION! • Si possible, éviter d'utiliser le produit dans un environnement humide ou à des températures élevées. • Ne pas frapper, démonter ou remonter le produit - cela peut entraîner un dysfonctionnement. • Des températures élevées peuvent réduire la puissance de charge. • La consommation d'énergie du smartphone peut dépasser la puissance de charge. Régler le téléphone en conséquence! ES ¡ATENCIÓN! • Si es posible, evita utilizarlo en un entorno húmedo o a altas temperaturas. • No martillees, desmontes o vuelvas a montar el producto, ya que podrías provocar un mal funcionamiento. • Las altas temperaturas pueden reducir el rendimiento de la carga. • El consumo de energía del smartphone puede superar la potencia de carga. ¡Ajusta el teléfono en consecuencia! InputUSB-C: USB-PD USB-A: 5V/2A • 5V/3A QC 2.0/3.0 Wireless OutputMax 15W Charge power is variable and depends on power source, phone model, temperature, etc. Recommended Operating Temperature -10—40° C Charge performance will drop above ~40° C Power Consumption 8—20 mA (Standby) Technical Specifications FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications However. there is no quarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equioment into an outlet on a circuit di erent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equioment should be installed and operated with minimum distance 20cm between the radiator & your body. 21 USB-C Power Source Stromquelle Source de courant Fuente de energía 4 a b 3 REDReady / Bereit / Prêt / Listo BLUECharging / Lädt / Chargement / Cargando Error / Fehler / Erreur / Error RED FLASH SP Connect is a registered trademark © 2021 SP United / PATENTED SYSTEM / All rights reserved CHARGING ANTI VIBRATION MODULE EN / DE / FR / ES ! • Der Stromverbrauch des Smartphones kann die Ladeleistung übersteigen. Telefon entsprechend einstellen! Tipps zur Einrichtung für die Navigation im Freien • Navigation im Freien bei hohen Temperaturen verringert die Ladeleistung. • Verwende eine angepasste Bildschirm- helligkeit, erwäge den Nachtmodus und schalte den Bildschirm gelegentlich aus. • Verwende lokal gespeicherte Karten, um Datenverkehr und Stromverbrauch zu vermeiden. • Schalte den Datenverkehr aus, wenn er nicht benötigt wird. • Schalte unnötige Apps aus, die im Hintergrund laufen. • Schalte die Wi-Fi-Antenne aus, wenn du dich bewegst. FR ATTENTION! • Couper l'alimentation électrique lorsqu'il n'est pas utilisé. • Si possible, éviter d'utiliser le produit dans un environnement humide ou à des températures élevées. • Ne pas frapper, démonter ou remonter le produit • cela peut entraîner un dysfonctionnement. • Pour une connexion étanche, utiliser uniquement des câbles SP Connect™ compatibles. • Des températures élevées peuvent réduire la puissance de charge. • La consommation d'énergie du smartphone peut dépasser la puissance de charge. Régler le téléphone en conséquence! Conseils de configuration pour la navigation extérieure • La navigation en extérieur à température élevée réduit l'e cacité de la charge. • Utilisez une luminosité d'écran adaptative, pensez à utiliser le mode nuit, éteignez l'écran de temps en temps. • Utilisez des cartes stockées localement pour éviter le trafic de données et la consommation d'énergie. • Désactivez le trafic de données s'il n'est pas nécessaire. • Désactivez les applications inutiles fonctionnant en arrière-plan. • Éteignez l'antenne Wi-Fi lorsque vous vous déplacez. ES ¡ATENCIÓN! • Desconecta la fuente de alimentación cuando no la utilices. • Si es posible, evita utilizarlo en un entorno húmedo o a altas temperaturas. • No martillees, desmontes o vuelvas a montar el producto, ya que podrías provocar un mal funcionamiento. • Utiliza sólo cables SP Connect™ compatibles para una conexió…
Text truncated - open the document above for the full version.
Cover Letter(s)
Product Specifications sheet Specification No.20230106002 Effective date2023/1/6 Customer Name: Product Model DZ Part No. TX -DZ39.609.6010-K6.3 -L5开单槽 Customer item No 【 □ New issue , □ version revision】 【 This specification includes contents and 7 pages in total 】 【 RoHS Compliant Parts 】 organizeCheckApproval 钟建立 / 【Within 30 days after the customer receives this acknowledgement, please return it with your signature and seal. If it is overdue, it will be deemed that the production will be carried out according to the standards of this acknowledgement】. 【customer approval】 Date: Recognition status: □ full recognition □ conditional recognition □ refusal Approval Review Recheck Check remark: √ √ Product Specifications sheet Customer Name: Customer item No DZ Part No. TX -DZ39.609.6010-K6.3 -L5 开单槽 Specification No. 20230106002 Issue/Revision History VersionEffective dateChange content / reasonApproval 012023/1/6 New specification release organizecheckapproval 钟建立 / Product Specifications sheet Customer Name: Customer item No DZ Part No TX -DZ39.609.6010-K6.3 -L5开单槽Specification No.20230106002 Version 01 ♦、Overall dimensions (unit: mm) A39.6 ±0.5 B9.6 ±0.5 C39.6 ±1.0 D13.8 ±1.0 E5.0 ±1.0 F2.0 ±1.5 G2.6 ±0.5 (1)Wire diameter: 0.08 * 105p silk -covered wire (2)Number of windings: 12TS (3)Whether the starting and ending lines cross: Yes (4)Coil wrap 6mm wide high temperature tape (5)The coil and magnetic sheet shall be pasted in the center (6) Magnetic strap hole 3M glue ♦、Electrical characteristics:: parameterspecificationTest conditionsTest instrument L06.3±10%μH100KHz/1V■TH1816B Q>40 min100KHz/1V■TH1816B DCR<95mΩ@ 25°C■CH -502BC ♦、Temperature class: Operating temperature -40°C~ 125°C peak Gain：0dbi ♦、list of materials: Item Product Name Material specification SupplierRemark 1Magnetic sheet 39.6*9.6*1.0T 开单槽PC40 mengzinc 2 Copper wire0.08*105Psilk-covered wire 3 High temperature adhesive tape 6MMRosh tape 4 White glue 38.5*10.8 3M glue Rosh tape 5 tin107HROSH tin 6 glue黄胶yellow glueROSH glue organizecheckapproval 钟建立 /
External Photos

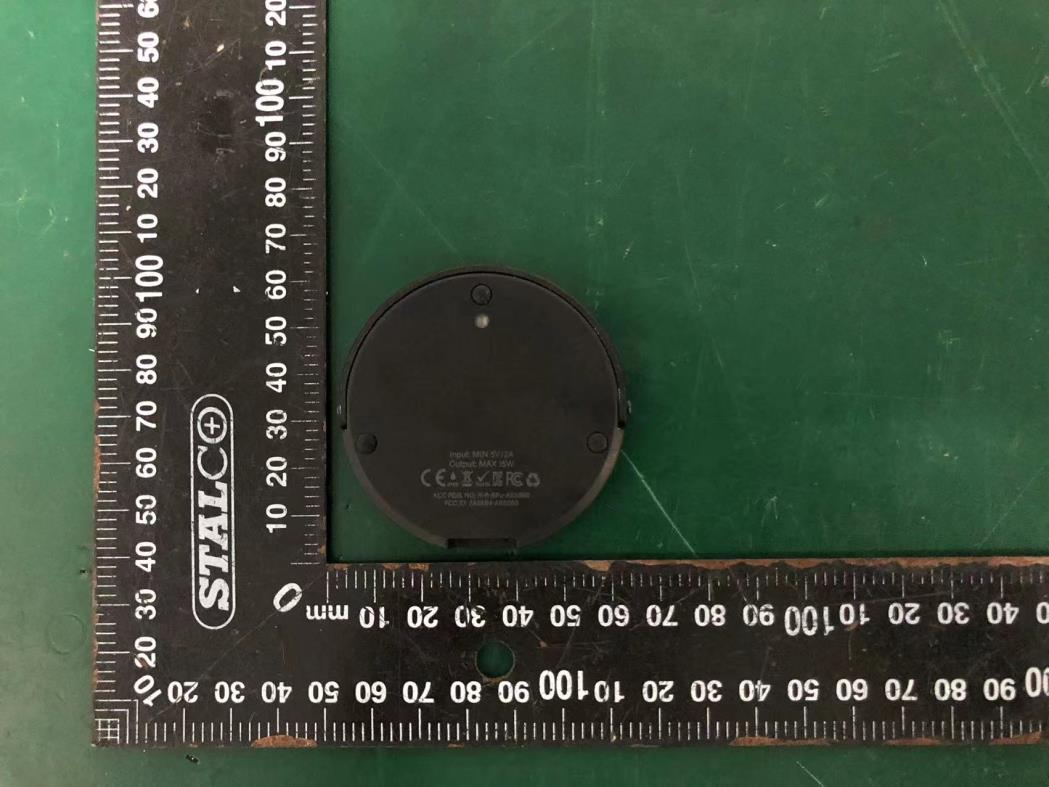

External Photos M/N: 52802 External Photos M/N: 52802 External Photos M/N: 52802 External Photos M/N: 52805+52812 External Photos M/N: 52807 External Photos M/N: 52803+52804+52808
ID Label/Location Info
7 mm centered 1 2 3 GEH175 housing lower part WCM2 Scale 1:1 Daniel 27.05.2022 FIGPART NUMBER, DESCRIPTIONQTY 1 SPEC PRINT GEH175PRT358 1 PRINT POSITIONING SP SP centered 1 2 3 GEH177 housing lower part WCM2 (Of cestand) Scale 1:1 Daniel 05.09.2022 FIGPART NUMBER, DESCRIPTIONQTY 1 SPEC PRINT GEH177PRT376 1 PRINT POSITIONING S P S P centered 1 2 3 GEH177 housing lower part WCM2 (Suctionmount) Scale 1:1 Daniel 05.09.2022 FIGPART NUMBER, DESCRIPTIONQTY 1 SPEC PRINT GEH177PRT359 1 PRINT POSITIONING S P S P 1 2 3 ABD153 cover clamplever WCM2 (Ventmount) Scale 1:1 Daniel 05.09.2022 FIGPART NUMBER, DESCRIPTIONQTY 1 Dataspecs ABD153PRT347 1 PRINTPRINT 2 POSITIONING centered S P S P S P
Internal Photos
Co An oil ntenna In nternal Pho M/N: 5280 otos 02
RF Exposure Info
FCC ID: 2ASMH-PCB015-PCB018 EST Technology Co., Ltd Report No. ESTE-R2209102 Page 1 of 11 RF EXPOSURE REPORT FOR CERTIFICATION On Behalf of SP United China SPC+ CHARGING PAD Model Number: 52802 Additional Model: 52803, 52804, 52805, 52807, 52808, 52812 FCC ID: 2ASMH-PCB015-PCB018 Applicant: SP United China Address: No. 3 LANE 19 QIAN RD KENGKOU VILLAGE TINGSHAN DIST HOUJIE TOWN DONGGUAN CITY GUANGDONG PROVINCE CHINA Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2209102 Date of Test: Aug. 08~Sep. 20, 2022 Date of Report: Sep. 22, 2022 FCC ID: 2ASMH-PCB015-PCB018 EST Technology Co., Ltd Report No. ESTE-R2209102 Page 2 of 11 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. SUMMARY OF TEST ......................................................................................................................... 4 1.1. Summary of test result ...................................................................................................................... 4 1.2. Test Mode ......................................................................................................................................... 4 1.3. Test Equipment List ......................................................................................................................... 4 1.4. Difference between Model Numbers ................................................................................................ 4 2. MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................... 5 2.1. Limit ................................................................................................................................................. 5 2.2. Test Setup A ..................................................................................................................................... 5 2.3. Test Procedure .................................................................................................................................. 6 2.4. Equipment Approval Considerations ............................................................................................... 7 2.5. Test Result for Test setup A: ............................................................................................................ 8 3. TEST SETUP PHOTO ................................................................................................................... 9 FCC ID: 2ASMH-PCB015-PCB018 EST Technology Co., Ltd Report No. ESTE-R2209102 Page 4 of 11 1. SUMMARY OF TEST 1.1. Summary of test result No. Description of Test Item FCC Standard Section Results 1 Maximum Permissible Exposure Part 1.1307(b)&1.1310 PASS 1.2. Test Mode 1.3. Test Equipment List Equipment Manufacturer Model No. Serial No. Last Cal. Next Cal. Electric and Magnetic Field Probe-Analyzer Narda S.T.S./PMM EHP-200A EST-E106 June 13,22 1 Year Simulated load / / EST-306 N/A N/A Simulated load / / EST-307 N/A N/A Test Software Narda EHP200-TS Rel 1.92 N/A N/A 1.4. Difference between Model Numbers Model No. Product name 52802 SPC+ CHARGING PAD 52803 SPC+ CHARGING OFFICE STAND 52804 SPC+ CHARGING SUCTION MOUNT 52805 SPC+ CHARGING VENT MOUNT 52812 SPC+ CHARGING CLAMP MOUNT 52807 SPC+ CHARGING MODULE 52808 SPC+ CHARGING ANTI VIBRATION MODULE Test Item Test Mode Maximum Permissible Exposure Wireless Charging with Empty Load Wireless Charging with Half Load Wireless Charging with Full Load Note： The worst Full Load status is recorded in the report FCC ID: 2ASMH-PCB015-PCB018 EST Technology Co., Ltd Report No. ESTE-R2209102 Page 5 of 11 2. MAXIMUM PERMISSIBLE EXPOSURE 2.1. Limit Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm2) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1,500 f/300 6 1,500-100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 Note: 1. f = frequency in MHz * = Plane-wave equivalent power density. 2. For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. 2.2. Test Setup A FCC ID: 2ASMH-PCB015-PCB018 EST Technology Co., Ltd Report No. ESTE-R2209102 Page 6 of 11 2.3. Test Procedure a. The test was performed on 360 degree turn table in anechoic chamber. b. The probe was placed at 15 cm surrounding the device and 20 cm above the top of the charger and the geometric centre of the probe, for test setup A. d. The highest emission level was recorded and compared with limit as soon as measurement of each point; A, B, C, D, E were completed. FCC ID: 2ASMH-PCB015-PCB018 EST Technology Co., Ltd Report No. ESTE-R2209102 Page 7 of 11 2.4. Equipment Approval Considerations Inductive wireless power transfer applications with supporting field strength results and meeting all of the following requirements are not required to submit a KDB inquiry for devices approved using SDoC or a PAG for equipment approved using certification to addre…
