2ASNSRB29Two Way Radio

RB29 5RRP)&=KRQJKDL[LQ6FLHQFH 7HFKQRORJ\3DUN1R*DQOLWK5RDG-LKXD6WUHHW/RQJJDQJ'LVWULFW6KHQ]KHQ&KLQD For downloading further resources: Brochures, Software/Firmware, Manual etc, Pls contact your direct reseller first OR go to website retevis.com and check “support”in the each product link to download it.EU Importer Germany Retevis Technology GmbH Address Uetzenacker 29,38176 wendeburg WarningPlease read this manual carefully before using this radio.• Please do not communicate or charge this radio in flammable, explosive and area which radio communication is prohibited (such as oil station, gas station, airport etc.)• Please do not operate this radio without license in govemment laws banned areas. • Please make sure this radio avoids the sunshine, and avoids to put it near any heating device.• Please make sure this radio avoids any dusty, humid and water splashed place, and also avoids to put it near any heating device. • If radio smells or smokes, please remove the battery pack from radio at once, and then please contact your nearest distributor. • The repair job of this radio is in the charge of professionals & technical's, self-disassembly is prohibited. Using tipsUnpacking and Checking the Equipment·Carefully unpack the radio.We recommend that you confirm the items in the following tablebefore discarding the packing material. If any item is missing or has been damaged duringshipment, please contact your first seller.Accessories list Item name Battery Belt Clip Hand strap Charger Screw Quantity User's Manual 2 2 2 2 1 4 Using the batteryThe battery is not completely charged at the factory, please charge it before using.After purchase or extended storage (more than two months), the first time to charge battery cannot make battery reach its normal operating capacity. After repeating charge /discharge it two or three times, the operating capacity will increase to its normal capacity.Notice: After fully charge the battery, please do not charge it again and should take it off from the charger. If not, it will short or damage the battery life for over charge.Installing / Removing the BatteryTo install the battery into the battery positioning hole of radio bottom, then press the battery, make the button completely to lock battery. To remove the battery, please turn off the radio, and then push up the battery button of radio top, finally take off the battery. (Install the battery) (Remove the battery) Installing Earphone /Programming JackUncover earphone lid, directly insert earphones into earphone holes (earphones need to be additionally purchased) You can use computer programming software to operate (please consult with local dealers about the information of computer programming software).Note: If your radio developed with VOX function, you should re-turn on radio power once to active VOX function. 01 Using tips01 Unpacking and Checking the Equipment01 Installing / Removing the Battery02 Installing the belt clip02 Getting Acquainted03 Basic opeartions04 Trouble shooting guide05 Specification06 CHANNEL AND FREQUENCIES Installing the belt clipIf necessary, attach the belt clip to the back of battery with the screws supplied carry conveniently. Getting Acquainted PTT switchSide-key You can customize it in the software Moni switch Speaker/Microphone Jack Battery Pack Battery release latch Antenna Channel-selecting knob Power/volume knob(Power on by rotating clockwise,Power off by rotating counter clockwise till hear the "kata" sound.VOL control by rotating.) LED indicator light(The indicator light turns red when transmit, turns green when receive.) Speaker Microphone Basic opeartionsLED indicatorIt lights red when transmitting, and lights green when receiving.Channel-selecting knobRotate it to select channel 1-16, clockwise rotation to increase, counter-clockwise rotation to decrease. An alert tone will sound when an empty channel is selected.Power/Volume knobRotate it by clockwise to power on the radio. To turn off the radio, rotate it by counterclockwise until a click sound is heard, VOL control by rotating.PTT switchPress PTT switch and then talk to the microphone, the indicator light turns red, if the channel does not have transmitting frequency, a "Du Du" tone sounds, and indicator light turns red. Release PTT switch to receive. It lights green when there is signal.Side-keyCan be defined in the software as null / VOX/ emergency alarm / scan / busy lock, the default definition is short press scan switch, long press VOX switch.Moni switchPress the button to monitor calls with different mute tones at the same frequency, and also press to listen when the signal strength does not reach the opening threshold.Squelch levelThe squelch level will determine the signal strength to open the speaker of the radio. If thesquelch level is lower, the background noise of opening the radio's speaker will be higher,and the corresponding communication range will be further, but the anti-interferenceability will be weaker. The default setting of squelch level is 3, you can adjust it throughthe menu "Squelch level" of the "Optional features" in the software, level 0 to 9 can beselected. 0 is the lowest level.Time out timer (TOT)The purpose of TOT is to prevent any radio from talking in one channel for too long, and to prevent the radio from being damaged due to continuous transmission. If the transmitting time exceeds the TOT pre-set time, the radio will stop transmission and an alert tone sounds.Release PTT switch to stop the alert tone, the radio resume to receiving mode.Scan On/OffWhen the radio is set as scan via software, rotate the channel-selecting knob to channel 16, it will start scanning. It will scan all scannable channels from channel 1 to 16. You can define as channel added or deleted in software. When there is signal in the scanning channel, it stops in the channel for talk.Note: a. The radio will stay in the channel which has signal, and 15 seconds after the signal …

Text truncated - open the document above for the full version.

2021-06-02 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FCC ID: 2ASNSRB29 Gentlemen: The scanner receiver equipment meets the requirements of the FCC Rules, 15.121(a) and (b). Compliance is achieved through the following methods: The scanner receiver in this equipment is incapable of tuning, or readily being altered, by the User to operate within the frequency bands allocated to the Domestic Public Cellular Telecommunications Service in Part 22. Blocking of the cellular frequencies is implemented in the firmware of the unit’s main control central processing unit (CPU). Coverage of 824 - 849 MHz and 869 - 894 MHz is completely blocked, since it is done in the microprocessor, and cannot be re-enabled by any user-accessible procedure, including diode, resistor, or jumper changes, nor by connection of any external device such as a personal computer, nor by installation of any “special” enabling semiconductor device. The scanning receiver is designed so that the tuning, control and filtering circuitry is inaccessible. The scanning receiver is reject any signals from the Cellular Radiotelephone Service frequency bands that are 38 dB or lower based upon a 12 dB SINAD measurement. Agency agreement expiration date: Jun.02, 2022 By: Weidong Shen Signature Printed Title: Manager On behalf of : Shenzhen Retevis Technology Co., Ltd. Telephone: +86-755-23481953

2021-06-02 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Shenzhen Retevis Technology Co., Ltd. / Room 700, 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China. Dated this Jun.02, 2021 Agency agreement expiration date: Jun.02, 2022 By: Weidong Shen Signature Printed Title: Manager On behalf of : Shenzhen Retevis Technology Co., Ltd. Telephone: +86-755-23481953

2021-06-02 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ASNSRB29 Product Name: Two Way Radio Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description • BOM • Tune up These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Jun.02, 2021 By: Weidong Shen Signature Printed Title: Manager On behalf of : Shenzhen Retevis Technology Co., Ltd. Telephone: +86-755-23481953

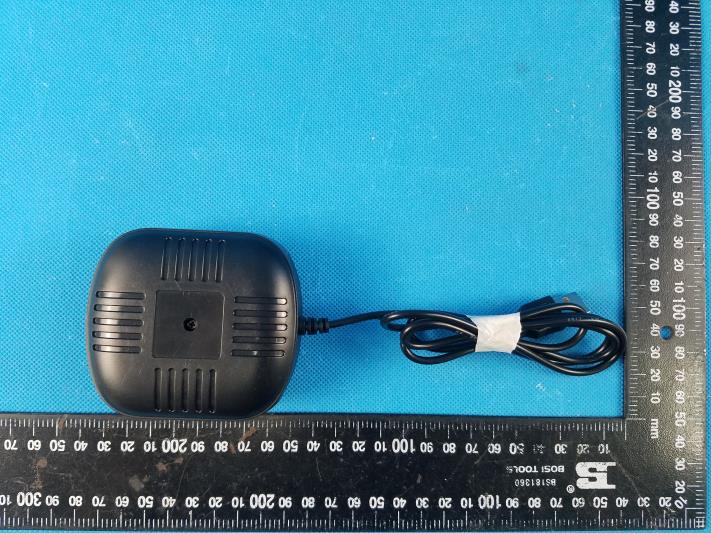

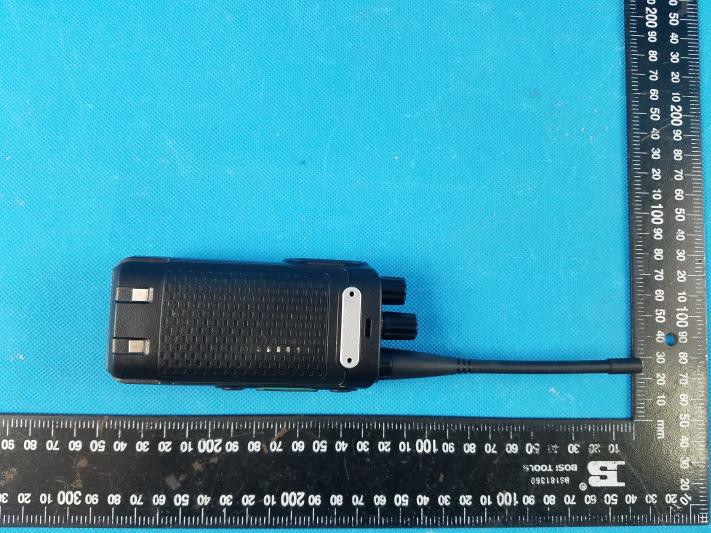

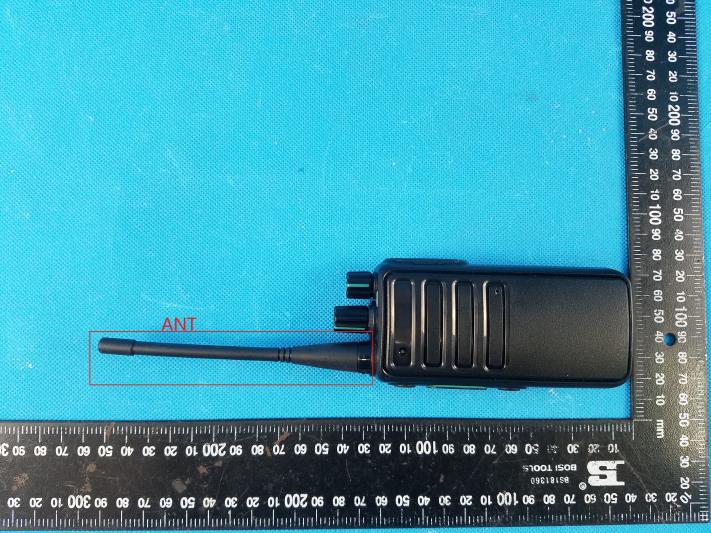

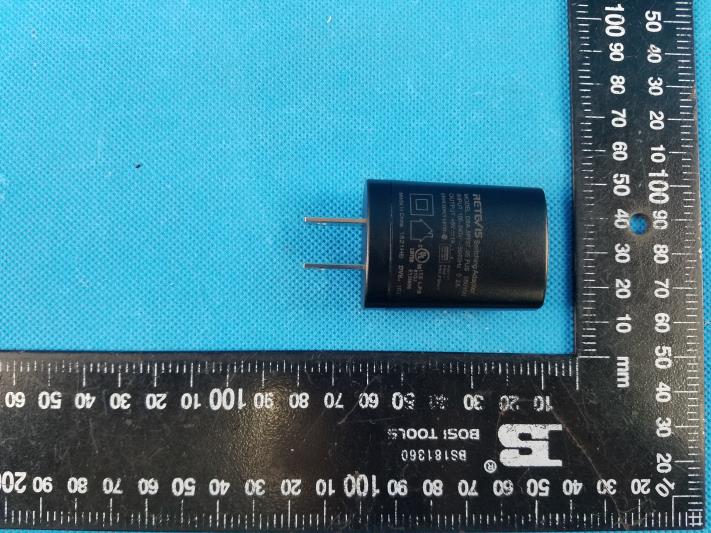

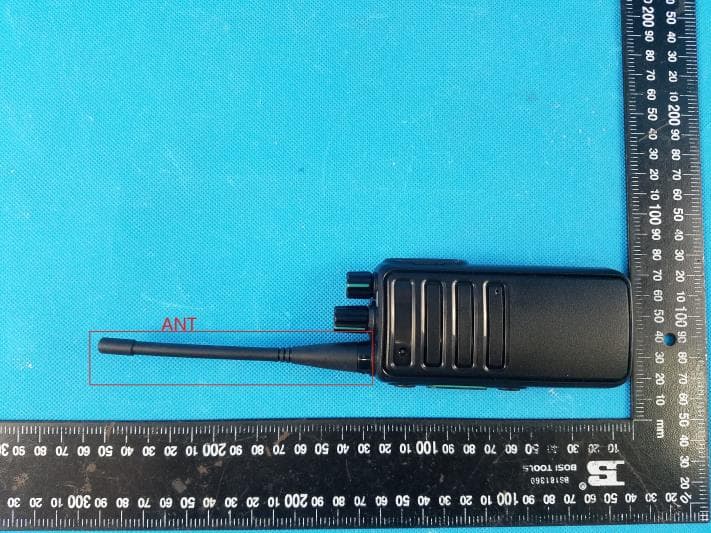

EXTERANAL PHOTOS

INTERNAL PHOTOS

Page: 1 of 20 TEST REPORT Report No..................................: CHTEW21050133 Report Verification: Project No.................................： SHT2104043004EW FCC ID ............................................. : 2ASNSRB29 Applicant’s name ........................... : Shenzhen Retevis Technology Co., Ltd. Address ............................................. : Room 700, 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China Test item description .................... : Two Way Radio Trade Mark ....................................... : RETEVIS Model/Type reference ....................... : RB29 Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart B Date of receipt of test sample...........: Apr.22, 2021 Date of testing..............................: Apr.22, 2021- May 21, 2021 Date of issue.................................: May 24, 2021 Result .................. ........................: PASS Compiled by ( position+printed name+signature) .. : File administrators Echo Wei Supervised by ( position+printed name+signature) .. : Project Engineer Cheng Xiao Approved by ( position+printed name+signature) .. : RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely corresponds to the test sample. Report No.: CHTEW21050133 Page: 2 of 20 Issued: 2021-05-24 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Contents 1. TEST STANDARDS AND REPORT VERSION ............................................ 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION ..................................................................... 4 3. SUMMARY ............................................................................... 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION ................................................................. 7 4.1. EUT operation mode 7 4.2. Support unit used in test configuration 7 4.3. Environmental conditions 7 4.4. Statement of the measurement uncertainty 7 4.5. Equipments Used during the Test 8 5. TEST CONDITIONS AND RESULTS ..................................................... 9 5.1. Conducted Emissions 9 5.2. Radiated Emissions 12 5.3. Antenna conducted power for reciver 16 5.4. Sanning receivers and frequency converters used with sanning receviers 18 6. TEST SETUP PHOTOS OF THE EUT ................................................... 19 7. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ................................... 20 Report No.: CHTEW21050133 Page: 3 of 20 Issued: 2021-05-24 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 1. TEST STANDARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: FCC CFR Title 47 Part 15 Subpart B - Unintentional Radiators ANSI C63.4: 2014 – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40GHz 1.2. Report version Revision No. Date of issue Description N/A 2021-05-24 Original Report No.: CHTEW21050133 Page: 4 of 20 Issued: 2021-05-24 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2. TEST DESCRIPTION Test Item Section in CFR 47 Result Test Engineer Conducted Emissions 15.107(a) Pass Quanhai Deng Radiated Emissions 15.109(a) Pass Hongtao Meng Antenna conducted power for reciver 15.111 Pass Zijian Li Scanning receviers and frequency converters used with scanning receivers 15.121(b) N/A #1 - Note: 1. The measurement uncertainty is not included in the test result. #1, The scanning recevie frequency range of this EUT is from 462.5500MHz to 462.7250MHz, not in the cellular radiotelephone service frequency bands, so this item is not applicable. Report No.: CHTEW21050133 Page: 5 of 20 Issued: 2021-05-24 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3. SUMMARY 3.1. Client Information Applicant: Shenzhen Retevis Technology Co., Ltd. Address: Room 700, 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China Manufacturer: Shenzhen Retevis Technology Co., Ltd. Address: Room 700, 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China 3.2. Product Description Main unit Name of EUT: Two Way Radio Trade Mark: RETEVIS Model/Type reference: RB29 Listed Model(s) - Power supply: Two Way Radio Hardware version: KA2U-2001-V1.1 Software version: S198_9V2A.hex Adapter information: Model: DSA-5PF07-05 FUS 050100 Input: 100-240Va.c.,50/60Hz 0.2A Output: 5Vd.c.,1A 3.3. Radio Specification Description Support Frequency Range: 462.5500MHz-462.7250MHz Modulation Type: FM Emission Designator: 11K0F3E Antenna Type: Integral Antenna Gain: 2.15dBi Report No.: CHTEW21050133 Page: 6 of 20 Issued: 2021-05-24 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3.4. Testing Laboratory I…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS OF THE EUT Conducted Emissions (AC Mains) Radiated Emissions
