2ASPY-ALD-L100PeriPage Mini Label Printer

FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

XiameniLead Tek Co., Ltd. Room01, Unit 2101, No.50ChengyiNorth Street,SoftwarePark PhaseIII, Xiamen,Fujian,China. Officeof EngineeringTechnology FederalCommunicationsCommission 7435 OaklandMills Road Columbia,MD 21046 USA Date: December 16, 2022 Subject; Request for Confidentiality FCC ID:2ASPY-ALD-L100 To WhomIt May Concern, Pursuantto the provisionsof the Commission’s rules Title 47 Sections§0.457 and §0.459,we are requestingthe Commissionto withholdthe followingattachment(s)as confidential documentsfrom publicdisclosureindefinitely. Thesedocumentscontaindetailedsystemand equipmentdescriptionsand are consideredas proprietaryinformationin operationof the equipment.The publicdisclosureof these documentsmight be harmfulto our companyand wouldgive competitorsan unfair advantage in the market. SchematicDiagram Block Diagram Parts List OperationalDescription Tune-upProcedure SoftwareSecurityRequirementsfor UNII devices In additionalto abovementioneddocuments,in order to complywith the marketingregulations in Title 47 CFR §2.803 and the importationrules in Title 47 CFR §2.1204,while ensuringthat businesssensitiveinformationremainsconfidentialuntil the actualmarketingof newly authorizeddevices,we requestShort Term Confidentialityof the followingattachment(s); ExternalPhotos Test SetupPhotos InternalPhotos User Manual For 45 days, pursuantto PublicNoticeDA 04-1705. OR For 180 days pursuantto KDB 726920D01. It is our understandingthat all measurementtest reports,FCC ID label formatand correspondenceduringthe certificationreviewprocesscannotbe grantedas confidential documentsand this informationwill be availablefor publicreviewonce the grant of equipment authorizationis issued. Sincerely, Signature: Name:WadeWang Title:N/A E-Mail:[email protected]

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 Xiamen iLead Tek Co., Ltd. Room 01, Unit 2101, No.50, Chengyi North Street, Software Park Phase III, XiaMen,Fujian, China Date：2022/12/16 Product Model Number: L1Plus FCC ID：2ASPY-ALD-L100 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: Testing Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: +86-4008 550 520 On behalf of: Xiamen iLead Tek Co., Ltd.

Xiamen iLead Tek Co., Ltd. Room 01, Unit 2101, No.50 Chengyi North Street, Software Park Phase III, Xiamen, Fujian, China. Series Models Description FCC ID: 2ASPY-ALD-L100 Date: Dec. 16, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: The device (Product Name: PeriPage Mini Label Printer) Models Name: L1Plus, L1, L1s, L1S, L1L, L1H, L1Pro, L1PRO, L1PLUS, L520, T1, T1s, T1S, T1L, T1H, T1Pro, T1PRO, T1Plus, T1PLUS, T520, T2, T2s, T2S, T2L, T2H, T2Pro, T2PRO, T2Plus, T2PLUS, T3, T3s, T3S, T3L, T3H, T3Pro, T3PRO, T3Plus, T3PLUS, G1, G1s, G1S, G1L, G1H, G1Pro, G1PRO, G1Plus, G1PLUS, X1, X1s, X1S, X1L, X1H, X1Pro, X1PRO, X1Plus, X1PLUS, ALD-L100, ALD-L101, ALD-L102, ALD-L103 have same electrical, PCB and BOM, only the colour and model’s names are different for marketing requirements. Sincerely, Wade Wang / Manager

NOTE:1.Thereportisinvalidwhenthereisnotheapproversignatureandthespecialstampfortestreport.2.Thetestreport shallnotbereproducedexceptinfullwithoutpriorwrittenpermissionofthecompany.3.Thereportcopyisinvalidwhenthereis nothespecialstampfortestrepor.4.Thealteredreportisinvalid.5.Theentrusttestisresponsibilityforthereceivedsample only Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 REPORTNo.：XM20060056W03 TESTREPORT MANUFACTURER:XiamenIleadTekCo.,Ltd. PRODUCTNAME:2.4G_IFA MODELNAME:ANT001 BRANDNAME:PeriPage STANDARD(S): IEEE-149-1979-R2003 RECEIPTDATE: 2020.7.20 TESTDATE:2020.7.20 ISSUEDATE:2020.7.20 Editedby: Pengfuwei(Testengineer) Reviewby: ElvisWang(Auditor) Approvedby: AnneLiu(Supervisor) Page 1 0f11 Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 REPORTNo.：XM20060056W03 DIRECTORY 1.Technicalinformation·····················································································3 1.1EquipmentUnderTest(EUT)Description························································3 1.2AntennalayoutandImplementation:······························································4 1.3TestingLaboratoryInformation·····································································5 1.4TestStandardandResults ············································································ 5 1.5TestEquipmentandSoftware ········································································ 6 1.6EnvironmentalConditions ············································································· 6 2.Testresults ···································································································· 7 2.1AntennaGain,Efficiency,Pattern ··································································· 7 AnnexAphotographsoftestsetup····································································11 ChangeHistory VersionDateReasonforchange 1.02020-07-20Firstedition Page20f11 Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 REPORTNo.：XM20060056W03 1.Technicalinformation 1.1EquipmentUnderTest(EUT)Description EUTType................................: N/A SampleNo.............................:N/A HardwareVersion.................:N/A SoftwareVersion..................:N/A Applicant................................:XiamenIleadTekCo.,Ltd. Manufacturer.........................:XiamenIleadTekCo.,Ltd. StandardandFrequency Band.........................................: 2400MHz-2483.5MHz TestChannel..........................:N/A ModulationType...................:N/A AntennaType........................:PCBon-board AntennaConnector.............:N/A PowerSupply........................:N/A Note1:Foramoredetaileddescription,pleaserefertoSpecificationorUser’sManualsuppliedby theapplicantand/ormanufacturer. Page30f11 Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 REPORTNo.：XM20060056W03 1.2AntennalayoutandImplementation: Figure1:AntennaDimensions L1 3.94mm L2 2.70mm L3 5.00mm L4 2.64mm L5 2.00mm L6 4.90mm W1 0.90mm W2 0.50mm D1 0.50mm D2 0.30mm D3 0.30mm D4 0.50mm D5 1.40mm D6 1.70mm Table1:AntennaDimensions Page40f11 Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 REPORTNo.：XM20060056W03 1.3TestingLaboratoryInformation 1.IdentificationoftheResponsibleTestingLaboratory LaboratoryName: Kehu-MorlabTestLaboratory LaboratoryAddress:Unit101,No.1732GangzhongRoad,XiamenArea,PilotFree TradeZone(Fujian)P.R.China Telephone: +865925612050 Facsimile: +865925612095 2.IdentificationoftheResponsibleTestingLocation 1.4TestStandardandResults Thereportistestedaccordingtothefollowingstandard: NoStandardNo.StandardName 1 IEEE-149-1979-R2003 StandardTestProceduresforAntennas Testitemsandtheresultsareasbellow: NoTestFrequencyBandTestItemResult 12400MHz ～ 2483.5MHzGainN/A 22400MHz ～ 2483.5MHzEfficiencyN/A 32400MHz ～ 2483.5MHzPatternN/A Name: Kehu-MorlabTestLaboratory Address: Unit101,No.1732GangzhongRoad,XiamenArea,PilotFree TradeZone(Fujian)P.R.China Page50f11 Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 REPORTNo.：XM20060056W03 1.5TestEquipmentandSoftware NoEquipmentType（Version）SupplierCal.DueDate 1 OTATestsystem EMQuest1.11Build 7570 ETS/U.S.A / 2 NetworkAnalyzerAglientE5071C keysight/U.S. A 2021-03-11 3 FullyAnechoic Chamber 4m×4m×4mETS/U.S.A2022-05-31 1.6EnvironmentalConditions Recordtherangeoftestenvironmentduringthetest: Ambienttemperature(°C):15-35 Relativehumidity(%):30-60 Atmospherepressure(kPa):86-106 Page60f11 Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 REPORTNo.：XM20060056W03 2.Testresults 2.1AntennaGain,Efficiency,Pattern 2.1.1TestProcedure： ThemeasuredEUTrotates0~180degreesaroundtheθaxis.Themeasured antennaissampledalongtheΦaxisof0~360from15degreestoameasuringstep,and themeasuredvalueisreadautomatically.Theantennagain,efficiency,patternis measured 2.1.2TestResult： MaxGain:-4.73dBi No. Test Frequency （MHz） GainTest Value （dBi） Efficiency testvalue （%） Antenna pattern Result 12400-4.8015.56 Phi=0 Phi=90 Theta=90 N/A 22402-4.8915.66N/A 32404-4.9015.52N/A 42406-4.7315.49N/A 52408-4.7915.44N/A Master computer PathSwitcher NetworkAnalyzer measured antenna Fully Anechoic Chamb…

Text truncated - open the document above for the full version.

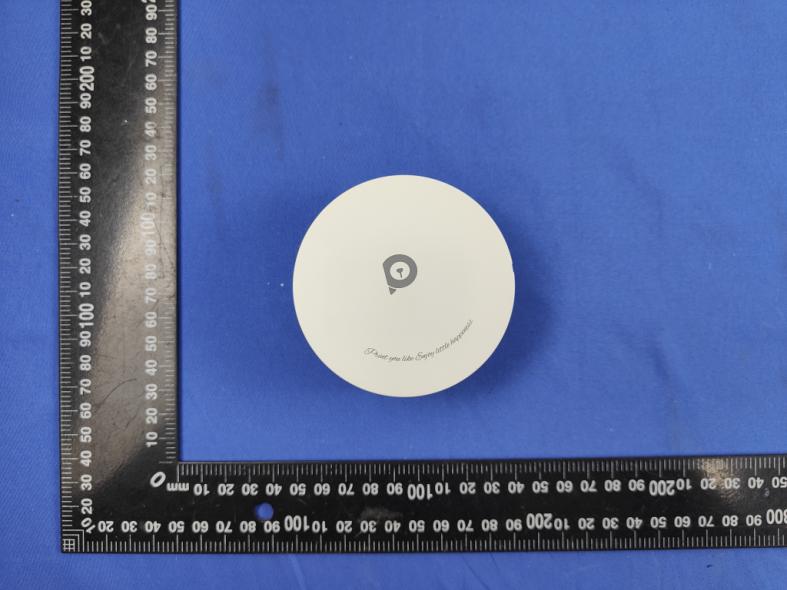

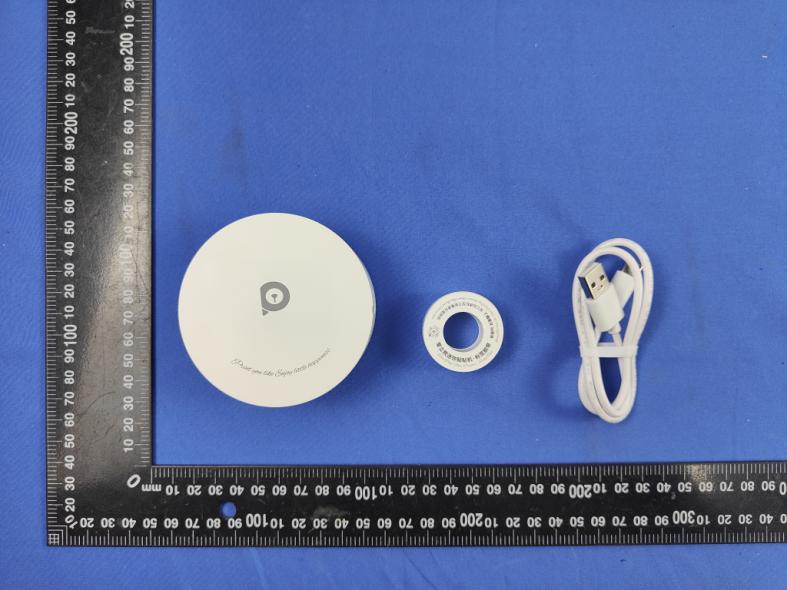

FCC ID: 2ASPY-ALD-L100 Page 1 of 3 Report No.: CTL2211162014-WF External Photos of EUT FCC ID: 2ASPY-ALD-L100 Page 2 of 3 Report No.: CTL2211162014-WF FCC ID: 2ASPY-ALD-L100 Page 3 of 3 Report No.: CTL2211162014-WF

FCC ID: 2ASPY-ALD-L100 Page 1 of 1 Report No.: CTL2211162014-WF FCC ID Label Information Label location: PeriPage Mini Label Printer Model: L1Plus FCC ID: 2ASPY-ALD-L100

FCC ID: 2ASPY-ALD-L100 Page 1 of 3 Report No.: CTL2211162014-WF Internal Photos of EUT FCC ID: 2ASPY-ALD-L100 Page 2 of 3 Report No.: CTL2211162014-WF Bluetooth Antenna FCC ID: 2ASPY-ALD-L100 Page 3 of 3 Report No.: CTL2211162014-WF

FCC ID: 2ASPY-ALD-L100 Page 1 of 1 Report No.: CTL2211162014-WF RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison For Bluetooth low Energy pt=4.40dBm=2.7542mW at 2441MHz So (2.7542mW/5mm)x √2.441GHz = 0.8606<3 Then SAR evaluation is not required/

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] 1. Bandwidth 1.1 OBW 1.1.1 Test Result Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result 1M SISO 2402 1 1.331 Pass 2440 1 1.314 Pass 2480 1 1.273 Pass V1.0 Page 2 of 19 Report No.: CTL2211162014-WF 1.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 3 of 19 Report No.: CTL2211162014-WF 1M_HCH_2480MHz_Ant1_NTNV V1.0 Page 4 of 19 Report No.: CTL2211162014-WF 1.2 6dB BW 1.2.1 Test Result Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.803 >=0.5 Pass 2440 1 0.812 >=0.5 Pass 2480 1 0.803 >=0.5 Pass V1.0 Page 5 of 19 Report No.: CTL2211162014-WF 1.2.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 6 of 19 Report No.: CTL2211162014-WF 1M_HCH_2480MHz_Ant1_NTNV V1.0 Page 7 of 19 Report No.: CTL2211162014-WF 2. Maximum Conducted Output Power 2.1 Power 2.1.1 Test Result Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 3.93 <=30 Pass 2440 4.28 <=30 Pass 2480 3.95 <=30 Pass Note1: Antenna Gain: Ant1: -4.73dBi; V1.0 Page 8 of 19 Report No.: CTL2211162014-WF 2.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 9 of 19 Report No.: CTL2211162014-WF 1M_HCH_2480MHz_Ant1_NTNV V1.0 Page 10 of 19 Report No.: CTL2211162014-WF 3. Maximum Power Spectral Density 3.1 PSD 3.1.1 Test Result Mode TX Type Frequency (MHz) Maximum PSD (dBm/3kHz) Verdict ANT1 Limit 1M SISO 2402 -12.45 <=8 Pass 2440 -13.00 <=8 Pass 2480 -12.67 <=8 Pass Note1: Antenna Gain: Ant1: -4.73dBi; V1.0 Page 11 of 19 Report No.: CTL2211162014-WF 3.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 12 of 19 Report No.: CTL2211162014-WF 1M_HCH_2480MHz_Ant1_NTNV V1.0 Page 13 of 19 Report No.: CTL2211162014-WF 4. Unwanted Emissions In Non-restricted Frequency Bands 4.1 Ref 4.1.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 2.78 2440 1 2.55 2480 1 2.32 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. V1.0 Page 14 of 19 Report No.: CTL2211162014-WF 4.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 15 of 19 Report No.: CTL2211162014-WF 1M_HCH_2480MHz_Ant1_NTNV V1.0 Page 16 of 19 Report No.: CTL2211162014-WF 4.2 CSE 4.2.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 2.78 -17.22 Pass 2440 1 2.78 -17.22 Pass 2480 1 2.78 -17.22 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. V1.0 Page 17 of 19 Report No.: CTL2211162014-WF 4.2.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV V1.0 Page 18 of 19 Report No.: CTL2211162014-WF 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV V1.0 Page 19 of 19 Report No.: CTL2211162014-WF 1M_HCH_2480MHz_Ant1_NTNV

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2211162014-WF02 Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Gary Gao (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : PeriPage Mini Label Printer Model/Type reference ................ : L1Plus List Model(s) ............................... : Refer to Page 2 Trade Mark .................................. : PeriPage FCC ID ......................................... : 2ASPY-ALD-L100 Applicant’s name ....................... : Xiamen iLead Tek Co., Ltd. Address of applicant ................. : Room 01, Unit 2101, No.50 Chengyi North Street, Software Park Phase III, Xiamen, Fujian, China. Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Nov. 28, 2022 Date of Test Date ........................ : Nov. 28, 2022-Dec. 08, 2022 Date of Issue .............................. : Dec. 09, 2022 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 28 Report No.: CTL2211162014-WF02 TEST REPORT Test Report No. : CTL2211162014-WF02 Dec. 09, 2022 Date of issue Equipment under Test : PeriPage Mini Label Printer Sample No : CTL221116201-1-S004 Model /Type : L1Plus Listed Models : L1, L1s, L1S, L1L, L1H, L1Pro, L1PRO, L1PLUS, L520, T1, T1s, T1S, T1L, T1H, T1Pro, T1PRO, T1Plus, T1PLUS, T520, T2, T2s, T2S, T2L, T2H, T2Pro, T2PRO, T2Plus, T2PLUS, T3, T3s, T3S, T3L, T3H, T3Pro, T3PRO, T3Plus, T3PLUS, G1, G1s, G1S, G1L, G1H, G1Pro, G1PRO, G1Plus, G1PLUS, X1, X1s, X1S, X1L, X1H, X1Pro, X1PRO, X1Plus, X1PLUS, ALD-L100, ALD-L101, ALD-L102, ALD-L103 Applicant : Xiamen iLead Tek Co., Ltd. Address : Room 01, Unit 2101, No.50 Chengyi North Street, Software Park Phase III, Xiamen, Fujian, China. Manufacturer : Xiamen iLead Tek Co., Ltd. Address : Room 01, Unit 2101, No.50 Chengyi North Street, Software Park Phase III, Xiamen, Fujian, China. Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. The device (Product Name:PeriPage Mini Label Printer) Models Name:L1Plus, L1, L1s, L1S, L1L, L1H, L1Pro, L1PRO, L1Plus, L1PLUS, L520, T1, T1s, T1S, T1L, T1H, T1Pro, T1PRO, T1Plus, T1PLUS, T520, T2, T2s, T2S, T2L, T2H, T2Pro, T2PRO, T2Plus, T2PLUS, T3, T3s, T3S, T3L, T3H, T3Pro, T3PRO, T3Plus, T3PLUS, G1, G1s, G1S, G1L, G1H, G1Pro, G1PRO, G1Plus, G1PLUS, X1, X1s, X1S, X1L, X1H, X1Pro, X1PRO, X1Plus, X1PLUS, ALD-L100, ALD-L101, ALD-L102, ALD-L103 have same electrical, PCB and BOM, only the model’s name and colour are different for marketing requirements. V1.0 Page 3 of 28 Report No.: CTL2211162014-WF02 ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2022-12-09 CTL2211162014-WF02 Tracy Qi V1.0 Page 4 of 28 Report No.: CTL2211162014-WF02 Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 9 2.4. EQUIPMENTS USED DURING THE TEST ............................................................................................................................ 10 2.5. RELATED SUBMITTAL(S) / GRANT (S) ..................................…

Text truncated - open the document above for the full version.

FCC ID: 2ASPY-ALD-L100 Page 1 of 2 Report No.: CTL2211162014-WF Test Setup Photos of the EUT FCC ID: 2ASPY-ALD-L100 Page 2 of 2 Report No.: CTL2211162014-WF
