2ASQI-362220Bluetooth remote

VL]H[PPJ䬒⡾㓮θ&щ6'4:54+)6'4 54+5XGTMK)θ伄⩪ᣎ享θ䗽ଇ㟒: Bluetooth Speaker + Bluetooth remote This device complies with RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. When operating the device, a minimum distance of 20cm should be maintained between the radiator of the Bluetooth speaker and the user's body, and a minimum distance of 0cm should be maintained between the radiator of the Bluetooth remote control and the user's body. This device complies with RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. When operating the device, a minimum distance of 20cm should be maintained between the radiator of the Bluetooth speaker and the user's body, and a minimum distance of 0cm should be maintained between the radiator of the Bluetooth remote control and the user's body. Cet appareil est conforme aux limites d'exposition aux rayonnements du Canada établies pour un environnement non contr?lé. Cet émetteur ne doit pasêtre co-localisé ou fonctionner en conjonction avec toute autre antenne ou émetteur. Lors de l'utilisation de l'appareil, une distance minimale de 20 cm doit être maintenue entre le radiateur du haut-parleur Bluetooth et le corps de l'utilisateur, et une distance minimale de 0 cm doit être maintenue entre le radiateur de la télécommande Bluetooth et le corps de l'utilisateur. Cet appareil est conforme aux limites d'exposition aux rayonnements du Canada établies pour un environnement non contr?lé. Cet émetteur ne doit pasêtre co-localisé ou fonctionner en conjonction avec toute autre antenne ou émetteur. Lors de l'utilisation de l'appareil, une distance minimale de 20 cm doit être maintenue entre le radiateur du haut-parleur Bluetooth et le corps de l'utilisateur, et une distance minimale de 0 cm doit être maintenue entre le radiateur de la télécommande Bluetooth et le corps de l'utilisateur.

Bushnell Holdings Inc. 9200 Cody, Overland Park, KS 66214 USA The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-2-27 To whom it may concern: We, Bushnell Holdings Inc., hereby certify that the equipment for which authorization is sought (FCC ID: 2ASQI-362220) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). Sincerely, Signature Julia Costello Certification Engineer Bushnell Holdings Inc. 62_[model] CoveredEqu_2.911(d )(5)(i) and (ii) - U, V02

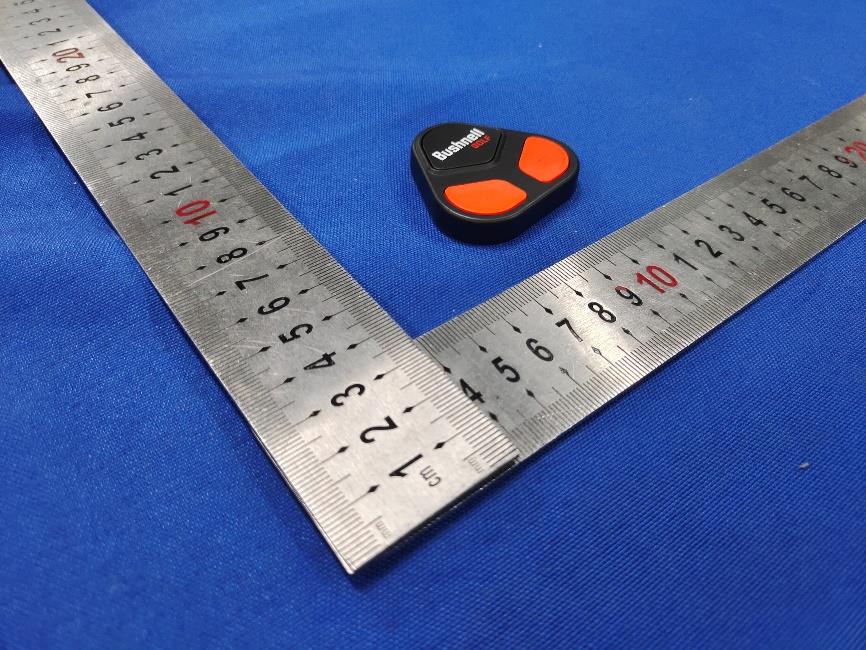

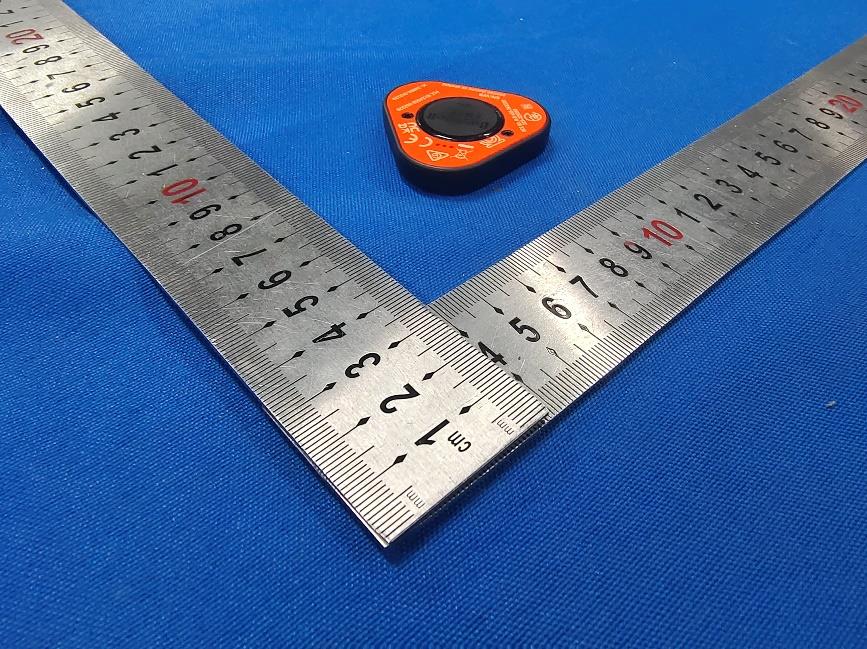

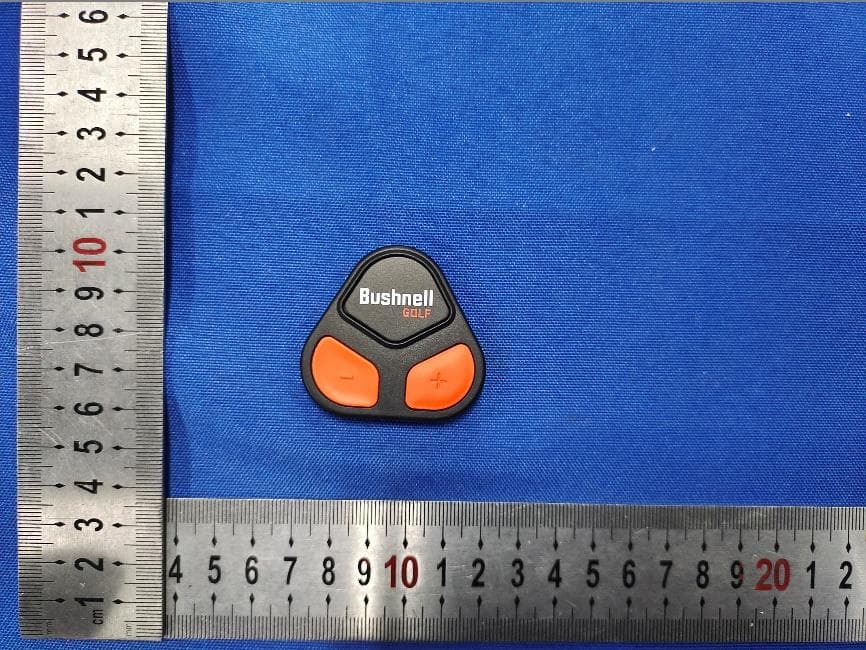

FCC ID: 2ASQI-362220 IC: 24886-362220

FCC ID: 2ASQI-362220 IC: 24886-362220 HVIN: 362220

FCC ID: 2ASQI-362220 IC: 24886-362220 Bluetooth antenna

RF Exposure evaluation FCC ID: 2ASQI-362220 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK 1Mbps Channel Channel 00 Channel 19 Channel 39 Target (dBm) -5.0 -5.0 -5.0 Tolerance ±(dB) 1.0 1.0 1.0 GFSK 2Mbps Channel Channel 00 Channel 19 Channel 39 Target (dBm) -5.0 -5.0 -5.0 Tolerance ±(dB) 1.0 1.0 1.0 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.402 5 -4 0.398 0.1<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06, No SAR is required. .....................End.........................

Antenna Describe Antenna PCB Antenna Gain 3.25dBi Frequency Range 2.4Ghz-2.483Ghz Connector Type Direct Location of mearement(company SHENZHENSHIXINZHONGXN name) TECHNOLOGY.CO.,LTD 2：External View Drawing Picture of antenna 3：Measurement Result 3.1 Return Loss (S11 ) 3.2 Smith Chart 3.3 Gain

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15 SUBPART C 15.247 & RSS-247 Report Reference No. ................ : CTL2211047021-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Gary Gao (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : Bluetooth remote Model/Type reference ................ : 362220 List Model(s) ............................... : N/A Trade Mark .................................. : Bushnell Golf FCC ID ......................................... : 2ASQI-362220 Applicant’s name ....................... : Bushnell Holdings, Inc. Address of applicant ................. : 9200 Cody St. Overland Park Kansas 66214 USA Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : 47 CFR FCC Part 15 Subpart C 15.247 RSS-247 Issue 2, February 2017 TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Dec. 07, 2022 Date of sampling ........................ : Dec. 07, 2022 Date of Test Date ........................ : Dec. 07, 2022 - Jan. 03, 2023 Date of Issue .............................. : Jan. 03, 2023 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 38 Report No.: CTL2211047021-WF TEST REPORT Test Report No. : CTL2211047021-WF Jan. 03, 2023 Date of issue Equipment under Test : Bluetooth remote Sample No. CTL221104702-1-S001 Model /Type : 362220 Listed Models : N/A Applicant : Bushnell Holdings, Inc. Address : 9200 Cody St. Overland Park Kansas 66214 USA Manufacturer : SHENZHEN WEIKING TECHNOLOGY CO., LTD Address : No.142 ZhangGe Road, ZhangGe Community, FuCheng Street, LongHua District, Shenzhen, GuangDong, China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 38 Report No.: CTL2211047021-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2023-01-03 CTL2211047021-WF Tracy Qi V1.0 Page 4 of 38 Report No.: CTL2211047021-WF Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 12 3.3. MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................................... 28 3.4. POWER SPECTRAL DENSITY .................................................…

Text truncated - open the document above for the full version.

FCC ID: 2ASQI-362220 IC: 24886-362220 Page 1 of 22 Annex for BLE Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1Mbps Ant1 2402 0.712 2401.664 2402.376 0.5 PASS 2440 0.704 2439.660 2440.364 0.5 PASS 2480 0.700 2479.660 2480.360 0.5 PASS BLE_2Mbps Ant1 2402 1.170 2401.442 2402.612 0.5 PASS 2440 1.164 2439.448 2440.612 0.5 PASS 2480 1.182 2479.424 2480.606 0.5 PASS FCC ID: 2ASQI-362220 IC: 24886-362220 Page 2 of 22 Test Graphs BLE_1Mbps_Ant1_2402 BLE_1Mbps_Ant1_2440 BLE_1Mbps_Ant1_2480 FCC ID: 2ASQI-362220 IC: 24886-362220 Page 3 of 22 BLE_2Mbps_Ant1_2402 BLE_2Mbps_Ant1_2440 BLE_2Mbps_Ant1_2480 FCC ID: 2ASQI-362220 IC: 24886-362220 Page 4 of 22 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1Mbps Ant1 2402 1.0353 2401.507 2402.542 --- PASS 2440 1.0345 2439.508 2440.543 --- PASS 2480 1.0338 2479.508 2480.542 --- PASS BLE_2Mbps Ant1 2402 2.0405 2401.021 2403.062 --- PASS 2440 2.0428 2439.021 2441.064 --- PASS 2480 2.0458 2479.020 2481.066 --- PASS FCC ID: 2ASQI-362220 IC: 24886-362220 Page 5 of 22 Test Graphs BLE_1Mbps_Ant1_2402 BLE_1Mbps_Ant1_2440 BLE_1Mbps_Ant1_2480 FCC ID: 2ASQI-362220 IC: 24886-362220 Page 6 of 22 BLE_2Mbps_Ant1_2402 BLE_2Mbps_Ant1_2440 BLE_2Mbps_Ant1_2480 FCC ID: 2ASQI-362220 IC: 24886-362220 Page 7 of 22 Appendix C: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1Mbps Ant1 2402 -5.18 ≤30 PASS 2440 -5.22 ≤30 PASS 2480 -5.72 ≤30 PASS BLE_2Mbps Ant1 2402 -5.24 ≤30 PASS 2440 -5.24 ≤30 PASS 2480 -5.8 ≤30 PASS TestMode Antenna Channel Conducted output power [dBm] Antenna gain(dBi) EIRP [dBm] EIRP Limit [dBm] Verdict BLE_1Mbps Ant1 2402 -5.18 3.25 -1.93 ≤36.02 PASS 2440 -5.22 3.25 -1.97 ≤36.02 PASS 2480 -5.72 3.25 -2.47 ≤36.02 PASS BLE_2Mbps Ant1 2402 -5.24 3.25 -1.99 ≤36.02 PASS 2440 -5.24 3.25 -1.99 ≤36.02 PASS 2480 -5.80 3.25 -2.55 ≤36.02 PASS FCC ID: 2ASQI-362220 IC: 24886-362220 Page 8 of 22 Test Graphs BLE_1Mbps_Ant1_2402 BLE_1Mbps_Ant1_2440 FCC ID: 2ASQI-362220 IC: 24886-362220 Page 9 of 22 BLE_1Mbps_Ant1_2480 BLE_2Mbps_Ant1_2402 BLE_2Mbps_Ant1_2440 BLE_2Mbps_Ant1_2480 FCC ID: 2ASQI-362220 IC: 24886-362220 Page 10 of 22 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_1Mbps Ant1 2402 -20.34 ≤8 PASS 2440 -19.91 ≤8 PASS 2480 -21.03 ≤8 PASS BLE_2Mbps Ant1 2402 -22.64 ≤8 PASS 2440 -22.46 ≤8 PASS 2480 -23.04 ≤8 PASS FCC ID: 2ASQI-362220 IC: 24886-362220 Page 11 of 22 Test Graphs BLE_1Mbps_Ant1_2402 BLE_1Mbps_Ant1_2440 FCC ID: 2ASQI-362220 IC: 24886-362220 Page 12 of 22 BLE_1Mbps_Ant1_2480 BLE_2Mbps_Ant1_2402 BLE_2Mbps_Ant1_2440 BLE_2Mbps_Ant1_2480 FCC ID: 2ASQI-362220 IC: 24886-362220 Page 13 of 22 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1Mbps Ant1 Low 2402 -5.36 -49.91 ≤-25.36 PASS High 2480 -5.86 -57.04 ≤-25.86 PASS BLE_2Mbps Ant1 Low 2402 -5.34 -38.07 ≤-25.34 PASS High 2480 -5.93 -57.3 ≤-25.93 PASS FCC ID: 2ASQI-362220 IC: 24886-362220 Page 14 of 22 Test Graphs BLE_1Mbps_Ant1_Low_2402 BLE_1Mbps_Ant1_High_2480 BLE_2Mbps_Ant1_Low_2402 FCC ID: 2ASQI-362220 IC: 24886-362220 Page 15 of 22 BLE_2Mbps_Ant1_High_2480 FCC ID: 2ASQI-362220 IC: 24886-362220 Page 16 of 22 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1Mbps Ant1 2402 Reference -5.61 -5.61 --- PASS 30~3000 -5.61 -56.67 ≤-25.61 PASS 3000~26500 -5.61 -45.61 ≤-25.61 PASS 2440 Reference -5.50 -5.50 --- PASS 30~3000 -5.50 -49.15 ≤-25.5 PASS 3000~26500 -5.50 -42.13 ≤-25.5 PASS 2480 Reference -6.01 -6.01 --- PASS 30~3000 -6.01 -55.85 ≤-26.01 PASS 3000~26500 -6.01 -43.33 ≤-26.01 PASS BLE_2Mbps Ant1 2402 Reference -5.60 -5.60 --- PASS 30~3000 -5.60 -42.31 ≤-25.6 PASS 3000~26500 -5.60 -42.38 ≤-25.6 PASS 2440 Reference -5.53 -5.53 --- PASS 30~3000 -5.53 -52.05 ≤-25.53 PASS 3000~26500 -5.53 -46.5 ≤-25.53 PASS 2480 Reference -6.20 -6.20 --- PASS 30~3000 -6.20 -56.62 ≤-26.2 PASS 3000~26500 -6.20 -40.42 ≤-26.2 PASS FCC ID: 2ASQI-362220 IC: 24886-362220 Page 17 of 22 Test Graphs BLE_1Mbps_Ant1_2402_0~Reference BLE_1Mbps_Ant1_2402_30~3000 BLE_1Mbps_Ant1_2402_3000~26500 FCC ID: 2ASQI-362220 IC: 24886-362220 Page 18 of 22 BLE_1Mbps_Ant1_2440_0~Reference BLE_1Mbps_Ant1_2440_30~3000 BLE_1Mbps_Ant1_2440_3000~26500 FCC ID: 2ASQI-362220 IC: 24886-362220 Page 19 of 22 BLE_1Mbps_Ant1_2480_0~Reference BLE_1Mbps_Ant1_2480_30~3000 BLE_1Mbps_Ant1_2480_3000~26500 FCC ID: 2ASQI-362220 IC: 24886-362220 Page 20 of 22 BLE_2Mbps_Ant1_2402_0~Reference BLE_2Mbps_Ant1_2402_30~3000 BLE_2Mbps_Ant1_2402_3000~26500 FCC ID: 2ASQI-362220 IC: 24886-362220 Page 21 of 22 BLE_2Mbps_Ant1_2440_0~Reference BLE_2Mbps_Ant1_2440_30~3000 BLE_2Mbps_Ant1_2440_3000~26500 FCC ID: 2ASQI-362220 IC: 24886-362220 Page 22 of 22 BLE_2Mbps_Ant1_2480_0~Reference BLE_2Mbps_Ant1_2480_30~3000 BLE_2Mbps_Ant1_2480_3000~26500 ********************** End **********************

FCC ID: 2ASQI-362220 IC: 24886-362220
