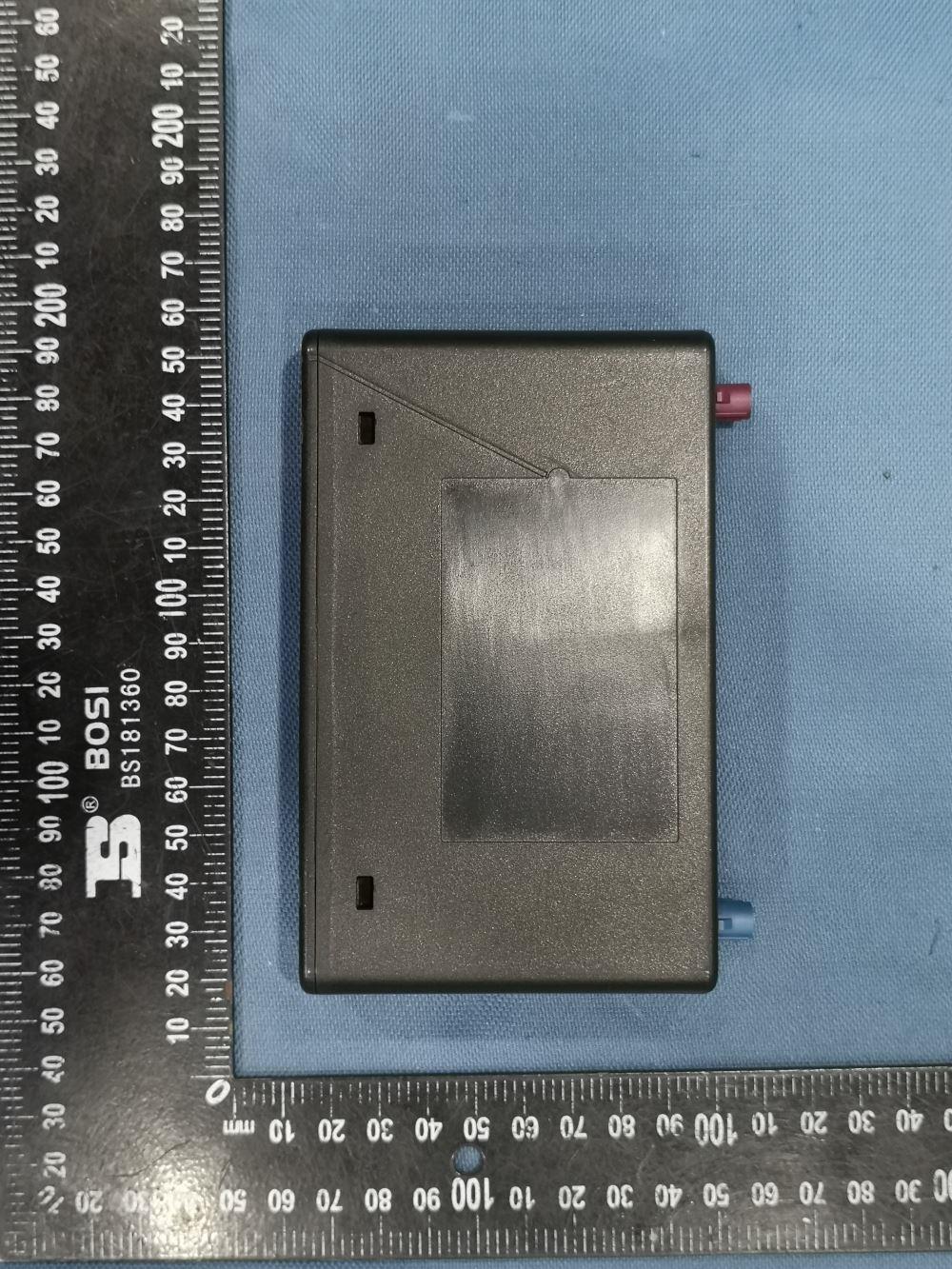

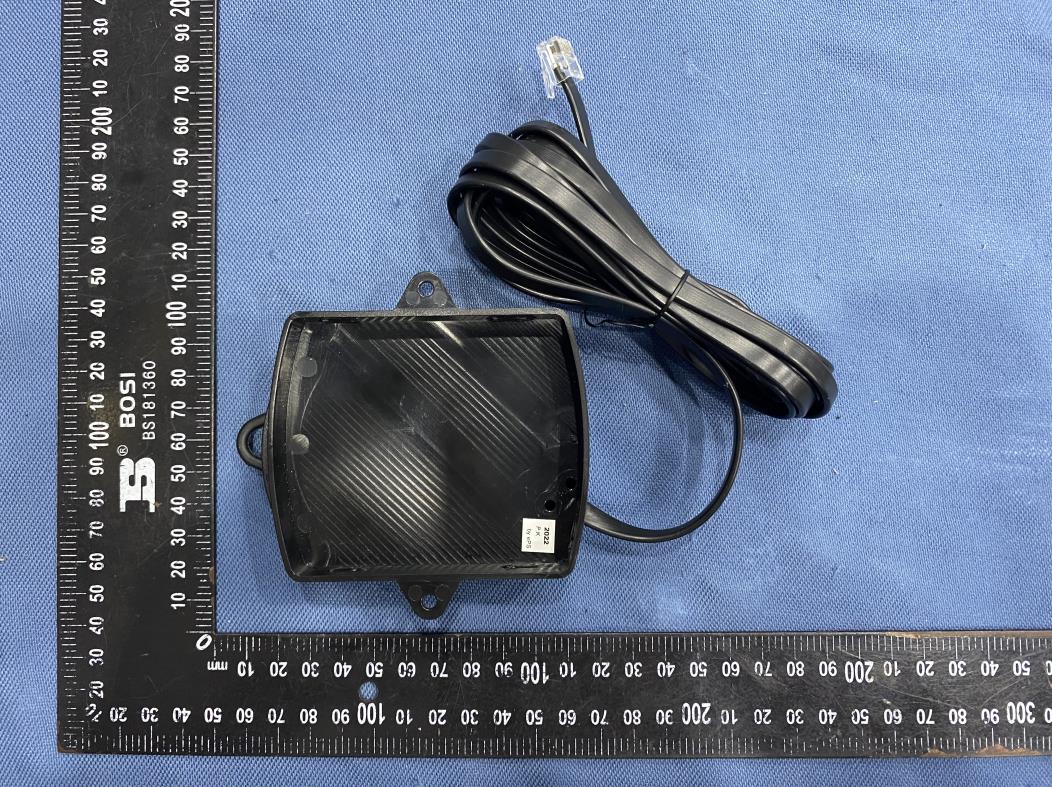

2ASRACB102001Telematic for vehicle sharing

1 User Manual CloudBoxx CB1020 Rev. 08.2023-01 2 Welcome to CloudBoxx Ecosystem The CloudBoxx should only be installed into a vehicle by a qualified individual. The CloudBoxx enables remote interaction between the user‘s app and the vehicle via Bluetooth (BLE) and cellular mobile data communication in order to make the vehicle shareable. With an app, shared mobility customers can locate, reserve, and access a vehicle to use. The CloudBoxx is the interface between the booking software and the vehicle. It controls access to the vehicle, reads data from the sensors, and transmits it to the booking software. For a detailed description of fea- tures and options, use your perso- nal login to the CloudBoxx-API-Do- cumentation found here: api.cloudboxx.invers.com/api CloudBoxx may only be installed and operated in vehicles. The respective operating model and its functional and safety features are the responsibility of the operator. Please note the following safety information! Please note the CloudBoxx must be installed into a vehicle only by a qualified staff member! 3 Welcome to CloudBoxx SHARED VEHICLE MOBILE INTERNET Internet IMMOBILIZER CONTROL LOCKING CONTROL CAN BUS 4 5 17 8 CARSHARING BOOKING SOFTWARE CLOUDBOXX API KEY HOLDER INVERS CLOUDBOXX OPTIONAL RFID READER 4 Power Supply7 to 56 V DC; max. Peak Current 300mA Digital and Analogue Inputsmax. 56V DC Operating Temperature-20 °C to +85 °C / -4 °F to + 185 °F Cable lengthsmax. 3 meters / CAN-Bus wires max. 1 meter (twisted) Minimum distance more than 20cm of CloudBoxx and antennas to human body and sensitive electronics Technical Data & Limits 5 RFID TX&RX: 125kHz, 11.81 dBμA/m@10 m Distance Bluetooth LETX&RX: 2402~2480MHz, 7 dBm 2.4GHz Band Wi-FiRX: 2412~2472MHz GSM 900TX: 880 MHz to 915 MHz, RX: 925 MHz to 960 MHz, 32.85 dBm DCS 1800TX: 1710 MHz to 1785 MHz, RX: 1805 MHz to 1880 MHz, 30.23 dBm LTE Band 1TX: 1920 MHz to 1980 MHz; RX: 2110 MHz to 2170 MHz, 23.26 dBm LTE Band 3TX: 1710 MHz to 1785 MHz; RX: 1805 MHz to 1880 MHz, 23.67 dBm LTE Band 8TX: 880 MHz to 915 MHz; RX: 925 MHz to 960 MHz, 23.79 dBm LTE Band 20TX: 832 MHz to 862 MHz; RX: 791 MHz to 821 MHz, 23.56 dBm LTE Band 28TX: 703 MHz to 748 MHz; RX: 758 MHz to 803 MHz, 23.67 dBm GPS/ Galileo/ GLONASS/ BDS RX: 1559 MHz to 1610 MHz RF Frequency Ranges 6 Safety Advice • To immobilize the car, only interrupt power circles not needed during driving. For security reasons, do not interrupt the ignition and fuel pump. • The CloudBoxx must not be installed where it obstructs the driver‘s view. Do not install the telematics within the collision area of the pass- engers (e.g. dashboard) or block the airbag system • Attention: Starting with CloudBoxx the Pins 22 and 23 of the main connector are used to enable the “write” functionality for both high speed CAN buses (CAN0 and CAN1).You must not connect any wires to these pins without specific instructions by INVERS support! Please contact [email protected] if you wish to utilize the CAN write functionality, or if you want to connect the CloudBoxx to a low speed CAN bus. • Do not reboot the device if you detect any potential damage or issue. Please contact the INVERS support team for further instructions. 7 Installation Important installation and safety remarks • Installation only by qualified staff • Installation staff is responsible for correct installation according to relevant regulations • Disconnect the vehicle battery before starting the installation • Use CloudBoxx standard harness or vehicle specific harness for the installation • Connection to the vehicle supply voltage only with suitable cables and appropriate fuse • Connection to CAN-Bus must be realized with twisted wires according to SAE J2284 • Install the wires to ensure they will not be damaged from sharp objects or ruptured • All cable connections to the vehicle electronics must be reliably plugged, crimped or soldered • Unused wires of the standard harness should be cut off and the ends must be insulated • All components and cables must be fixed in such a way that under no circumstances may they block moving parts of the vehicle (pedals, steering, wheels...) • To immobilize the vehicle, only interrupt power circles not needed during driving. For security reasons, do not interrupt the ignition and fuel pump. • No assembly of components in the crash-impact area of the passengers or in the airbag inflation area • For a good geo-position the Logo on the antenna should be aligned to the sky if possible and not be shielded by metal surfaces nearby (see instructions attached to the antenna) • The on-board unit is prepared for a 12-volt vehicle wiring (passenger car). If you intend to do the installation in a 24-volt vehicle (heavy truck), please contact the INVERS support team • Contact [email protected] if you wish to utilize the CAN write functionality, or if you want to connect the CloudBoxx to a low speed CAN bus • All work must be carried out professionally according to current technical regulations • Please respect the local legal obligations • Keep a record of all installation steps on the installation protocol 8 Installation Configuration and test For registered customers INVERS provides vehicle specific instructions for multiple vehicles, makes and models. Please contact [email protected]. If you intend to do the installation under different conditions, please contact the INVERS support team. After installation, please use the SmartControl App for configuration and test. The SmartControl App can be downloaded here: 9 Installation Connecting the CloudBoxx to the vehicle Connector overview Use CloudBoxx standard harness or vehicle specific harness for connecting the CloudBoxx to the vehicle. Please ask INVERS support for vehicle specific installation recommendations! 10 Installation Connecting the CloudBoxx to the vehicle Pin assignment Use CloudBoxx standard harness or vehicle specific harness for connecting the CloudBoxx to the vehicle. Please ask INVERS support for ve…
