User Manual Keyholder (HF) Tel.: +49 (271) 23888-0 Fax: +49 (271) 23888-29 eMail: [email protected] http://www.invers.com INVERS GmbH Untere Industriestraße 20 57250 Netphen GERMANY User Manual CloudBoxx Mini - Page 1 of 2 - 1 Introduction The INVERS Keyholder is an optional accessory, that can be used to monitor the presence of the vehicle key and/or up to two fuel cards. INVERS Keyholder is compatible with INVERS CloudBoxx only. Please note that the Keyholder must be installed into a vehicle only by qualified staff! The Keyholder is designed to be used only with INVERS Hardware. 2 Technical data Supply Voltage 12V VDC (supplied from the CloudBoxx) Frequencies & max. power 13.56MHz :57.74 dBμV/m 3 Installation advice • All components and cables must be fixed in such a way that under no circumstances may they block moving parts of the vehicle (pedals, wheels...). • Connect the cable of the keyholder to the keyholder port of the CloudBoxx. • Install the keyholder in a way that the driver cannot be distracted by the LEDs. The recommended installation position is in the gloves compartment. • For testing purposes, the Cloudboxx provides audible feedback when detecting or lossing a paired RFID tag. To prevent the driver to be distracted, this feedback must be deactivated. • When pairing more than one card with RFID sticker, choose different sticker positions for each card (i.e. one sticker next to the card edge and one in the center) User Manual CloudBoxx Mini - Page 2 of 2 - 4 Certifications Hereby, INVERS GmbH declares under our sole responsibility that the above described product is in conformity with the relevant Community harmonization: European Directive 2014/53/EU (RED) Link to the DoC: https://invers.com/user-manuals FCC WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a vehicle installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and so on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocation the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Notice: If necessary, consult a representative of INVERS GmbH or an experienced radio/television technician for additional suggestions. Industry Canada (IC) Compliance Notice This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions: • This device may not cause interference. • This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: • L’appareil ne doit pas produire de brouillage ; • L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

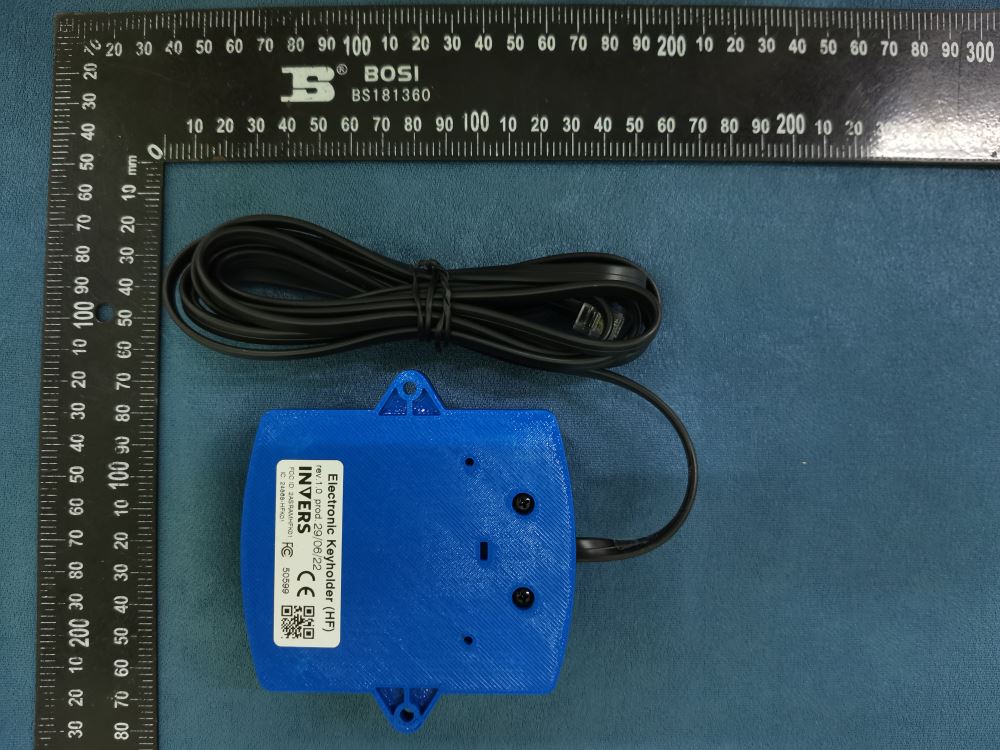

Page 1 of 3 FCC ID: 2ASRAMHFK01 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 3 FCC ID: 2ASRAMHFK01 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 3 FCC ID: 2ASRAMHFK01 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo
Label: Label location:
Page 1 of 2 FCC ID: 2ASRAMHFK01 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 2 FCC ID: 2ASRAMHFK01 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Antenna
Page 1 of 18 Report No.: 2208231168EMC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-EMC-FCCPART15B-V1.1 FCC TEST REPORT Product Name: Electronic Keyholder Trade Mark: N/A Model No.: Electronic Keyholder (HF) Add. Model No.: N/A Report Number: 2208231168EMC-1 Test Standards: FCC 47 CFR Part 15 Subpart B Test Result: PASS Date of Issue: November 11, 2022 Prepared for: INVERS GmbH Untere Industriestr.20, 57250 Netphen, Germany Prepared by: Shenzhen UnionTrust Quality and Technology Co., Ltd. Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China TEL: +86-755-2823 0888 FAX: +86-755-2823 0886 Prepared by: Reviewed by: Calvin Chen Henry Lu Senior Project Engineer Team Leader Approved by: Date: November 11, 2022 Kevin Liang Assistant Manager Page 2 of 18 Report No.: 2208231168EMC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-EMC-FCCPART15B-V1.1 Version Version No. Date Description V1.0 November 11, 2022 Original Page 3 of 18 Report No.: 2208231168EMC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-EMC-FCCPART15B-V1.1 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.2.1 GENERAL DESCRIPTION OF EUT ............................................................................................................ 4 1.2.2 DESCRIPTION OF ACCESSORIES ............................................................................................................. 4 1.3 DESCRIPTION OF SUPPORT UNITS ...................................................................................................................... 4 1.4 TEST LOCATION ................................................................................................................................................. 5 1.5 TEST FACILITY................................................................................................................................................... 5 1.6 DEVIATION FROM STANDARDS ............................................................................................................................ 5 1.7 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 5 1.8 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 5 1.9 MEASUREMENT UNCERTAINTY ........................................................................................................................... 6 2. TEST SUMMARY ...................................................................................................................................................... 7 3. EQUIPMENT LIST .................................................................................................................................................... 8 4. TEST CONFIGURATION .......................................................................................................................................... 9 4.1 ENVIRONMENTAL CONDITIONS FOR TESTING ........................................................................................................ 9 4.1.1 NORMAL OR EXTREME TEST CONDITIONS ............................................................................................... 9 4.1.2 RECORD OF NORMAL ENVIRONMENT AND TEST SAMPLE .......................................................................... 9 4.2 TEST MODES ..................................................................................................................................................... 9 4.3 TEST SETUP ...................................................................................................................................................... 9 4.3.1 FOR RADIATED EMISSIONS TEST SETUP .................................................................................................. 9 4.3.2 FOR CONDUCTED EMISSIONS TEST SETUP ............................................................................................ 10 4.4 SYSTEM TEST CONFIGURATION ........................................................................................................................ 10 5. REFERENCE DOCUMENTS FOR TESTING ......................................................................................................... 11 6. EMC REQUIREMENTS SPECIFICATION .............................................................................................................. 11 6.1 RADIATED EMISSION ........................................................................................................................................ 11 6.2 CONDUCTED EMISSION .................................................................................................................................... 16 APPENDIX 1 PHOTOS OF TEST SETUP ............................…
