2ASVQ-DONGLEF700 dongle

F700 Arcade Stick and Dongle Quick Start (Mode Switch) Quick Start 2.4g connection (*All F700 Compatible gaming consoles work with 2.4g connection) 1.Put the connection switch to 2.4G 2.Turn the mode switch to the gaming console you want to play. 3.Plug the receiver into the USB port on your gaming console. 4.Press and hold the HOME button for 1 second to turn on the arcade stick. 5.Press and hold the SYNC button for 3 seconds to enter its pairing mode. SYNC LED blinks quickly. 6.LEDs on both the arcade stick and receiver will become solid when connection is successful. *Press home button to continue to use the arcade stick when it’s already on PS3, PS4, PS5 mode. * Switch system needs to be 3.0.0 or above for 2.4g connection. Go to System Setting > Controller and Sensors > turn on Pro Controller Wired Communication. Bluetooth connection (* Switch, PC Xinput/Dinput, Android, iOS and macOS work with BT connection) 1. Put the connection switch to BT 2. Turn the mode switch to the gaming console you want to play. 3. Press and hold the HOME button for 1 second to turn on the arcade stick. 4. Press and hold the SYNC button for 3 seconds to enter its pairing mode. SYNC LED indicator blinks quickly. (This is required for the very first time only) 5. Go to your gaming console’s Bluetooth setting, pair with F700 Arcade Stick. (*Go to your Switch Home Page to click on Controllers, then click on Change Grip/Order if you use on Switch.) 6. LED becomes solid when connection is successful. * Press home button to continue to use the arcade stick when it’s already on PS3, PS4, PS5 mode. * F700 Arcade Stick will auto reconnect to your gaming console once it has been paired. Wired Connection (*All F700 Compatible gaming consoles work with wired connection) 1. Put the connection switch to USB 2. Turn the mode switch to the gaming console you want to play. 3. Connect the arcade stick to your gaming console by the USB cable on F700. 4. Wait till the arcade stick is successfully recognized by your gaming console to play. SYNC LED indicator becomes solid when connection is successful. * Press home button to continue to use the arcade stick when it’s already on PS3, PS4, PS5 mode. * Switch system needs to be 3.0.0 or above for 2.4g connection. Go to System Setting > Controller and Sensors > turn on Pro Controller Wired Communication. Battery Status HOME LED Indicator Low battery mode >>>>>>>>>>>>>>>>>>Red LED blinks Battery charging >>>>>>>>>>>>>>>>>>>Red LED stays solid Battery fully charged >>>>>>>>>>>>>>> Blue LED stays solid *Built-in 1000mAh Li-on battery with 18 hours of play time on 2.4g connection. *Rechargeable with 3.5 hours charging time TURBO - The 8 function buttons (A/X,B/○,X/□，Y/△，RB/R1，RT/R2，LB/L1，LT/L2) can be set for TURBO. - To set Turbo for individual buttons, press and hold the button that you wish to set TURBO for, and the button “TURBO” on the fighting stick. You’ll find that the TURBO LED will flash, and the setting is finished. - To remove the setting for that specific button, press and hold the button you previously set Turbo for and the TURBO button. To clear all Turbo settings for all buttons, quickly press the TURBO button twice within half of a second. How to Upgrade? 1.Double click on the firmware and leave the firmware window open on your screen. 2.Press and hold “Start" and "Select” button on the Arcade Stick 3.Connect the Arcade Stick directly to a USB interface on your PC, still holding “Start" and "Select" button at entire time. 4.As soon as the updater window indicates under “Device” that the Arcade stcik has been recognized, you may release “Start" and "Select" button. 5.Select “Update” 6.Do not disconnect the device until you are informed that the updated was completed successfully. PC(Xinput) Xbox360 ① A ② B ③ X ④ Y ⑤ LB ⑥ RB ⑦BAC K ⑧STR AT X/Y Axis Z Axis POV Z+ LT Z- RT HOME PC(Dinput) ② ③ ① ④ ⑤ ⑥ ⑨ ⑩ X/Y Axis Z Axis POV ⑦ ⑧ ○ 13 Android/iOS ① ② ④ ⑤ ⑦ ⑧ ○ 11 ○ 12 X/Y Z Axis POV ⑨ ⑩ ○ 13 PS3 Controller × ○ □ △ L1 R1 SELECT START LS RS DPAD L2 R2 PS PS4 Controller × ○ □ △ L1 R1 SHARE OPTION S LS RS DPAD L2 R2 PS TPAD Button PS5 Controller × ○ □ △ L1 R1 Create OPTION S LS RS DPAD L2 R2 PS TPAD Button Switch B A Y X L R - + LS RS DPAD ZL ZR HOME Capture Mac OS ② ③ ① ④ ⑤ ⑥ ⑨ ⑩ X/Y Axis Z Axis DPAD ⑦ ⑧ ○ 13 ○ 14 Mega drive mini A B X Y Z MODE START POV C Genesis mini A B START POV C Neogeo arcade stick B D A C Wh ite Up Gra y Up SELECT START JOYSTI CK Whit e Up Gray Dow n Option s Neogeo mini B D A C SELECT START JOYSTI CK *FCC Warning： Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —C…

Text truncated - open the document above for the full version.

MAYFLASH LIMITED 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: MAYFLASH LIMITED Address: 3/F,Buiding No.1,TingWei Industrial Park,LiuFang Rd, No.67, BaoAn, Shenzhen, China. Product Name: F700 dongle FCC ID: 2ASVQ-DONGLE Model(s): F700 dongle 2.911(d)(5)(i) Equipment Type We, [MAYFLASH LIMITED ] (“the applicant”) certify that the equipment for which authorization is sought through certification is not: Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Date: Aug. 31, 2023 Title and Company name: manager MAYFLASH LIMITED NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1)986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

MAYFLASH LIMITED 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: MAYFLASH LIMITED Address: 3/F,Buiding No.1,TingWei Industrial Park,LiuFang Rd, No.67, BaoAn, Shenzhen, China. Product Name: F700 dongle FCC ID: 2ASVQ-DONGLE Model(s): F700 dongle 2.911(d)(5)(ii) Applicant filing We, [MAYFLASH LIMITED] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of thi s chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Date: Aug. 31, 2023 Title and Company name: manager MAYFLASH LIMITED NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1)986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

MAYFLASH LIMITED 2.911 (d)(7)USA Agent v1.4 Section 2.911(d)(7) USA Agent for Service of Process Company name: MAYFLASH LIMITED Address: 3/F,Buiding No.1,TingWei Industrial Park,LiuFang Rd, No.67, BaoAn, Shenzhen, China. Product Name: F700 dongle FCC ID: 2ASVQ-DONGLE Model(s): F700 dongle 2.911(d)(7) USA Designated Agent for Service of Process We, MAYFLASH LIMITED (“the applicant”) designate Innex, Inc. NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: Innex, Inc. Address: 325 Enterprise Place, Pomona, CA 91768 FRN Number: 0034288886 Contact Name: Titi Ngoy Telephone No: 909-839-6091 x 104 Email: [email protected] Applicant Company name: MAYFLASH LIMITED Address: 3/F,Buiding No.1,TingWei Industrial Park,LiuFang Rd, No.67, BaoAn, Shenzhen, China. FRN Number: 0028357689 FCC Grantee Code: 2ASVQ Contact Name: Min Zheng Telephone No: 0755-23503706 Email: [email protected] Signature: Title: manager Signature: Title: manager MAYFLASH LIMITED 2.911 (d)(7)USA Agent v1.4 Date: 2023-9-22 Date: 2023-9-22 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against- national-security-threats-to-the-communications-supply-chain-through-the

MAYFLASH LIMITED Agent Authorization Company: MAYFLASH LIMITED Address: 3/F, Buiding No.1, TingWei Industrial Park, LiuFang Rd, No.67, BaoAn, Shenzhen,China Product Name: F700 dongle Model Number(s): F700 dongle We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Date: August 29, 2023 Signature: Name: Min Zheng Title: manager Company: MAYFLASH LIMITED

MAYFLASH LIMITED Date: Sep. 08, 2023 Offic e of Engineering Technology Federal Communications Commission 743 5 Oakland Mill s Road Columbia, MD 21046 USA Subject; Request for Confidentiality FCC ID: 2ASVQ-DONGLE To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Part s List Operational Description Tune -up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705 . OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Min Zheng Title: manager

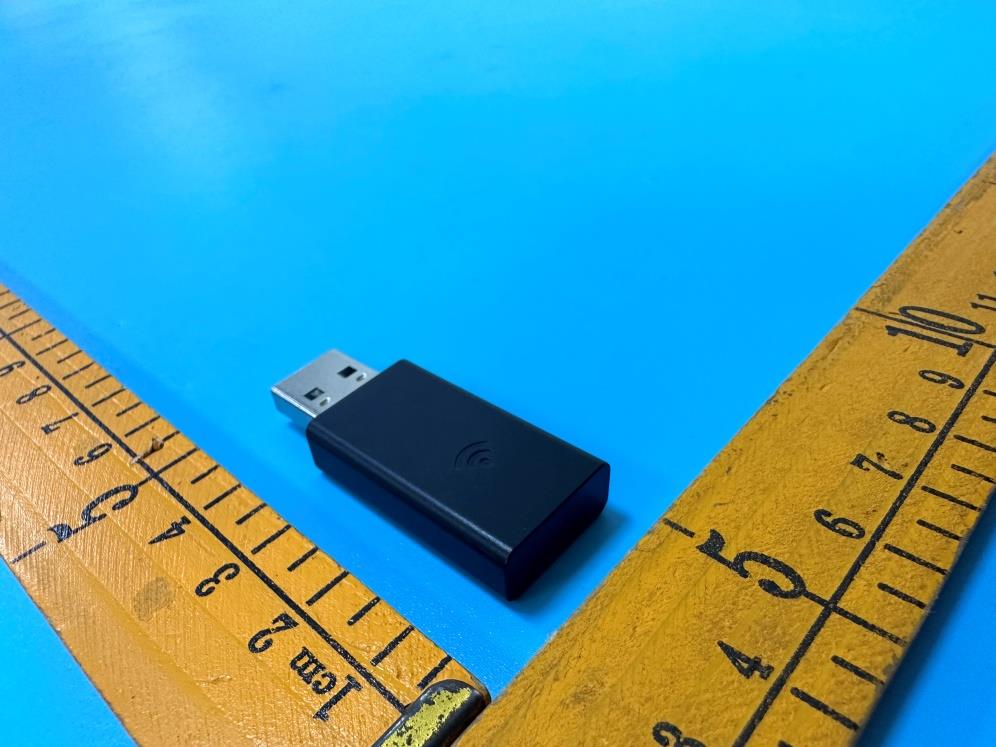

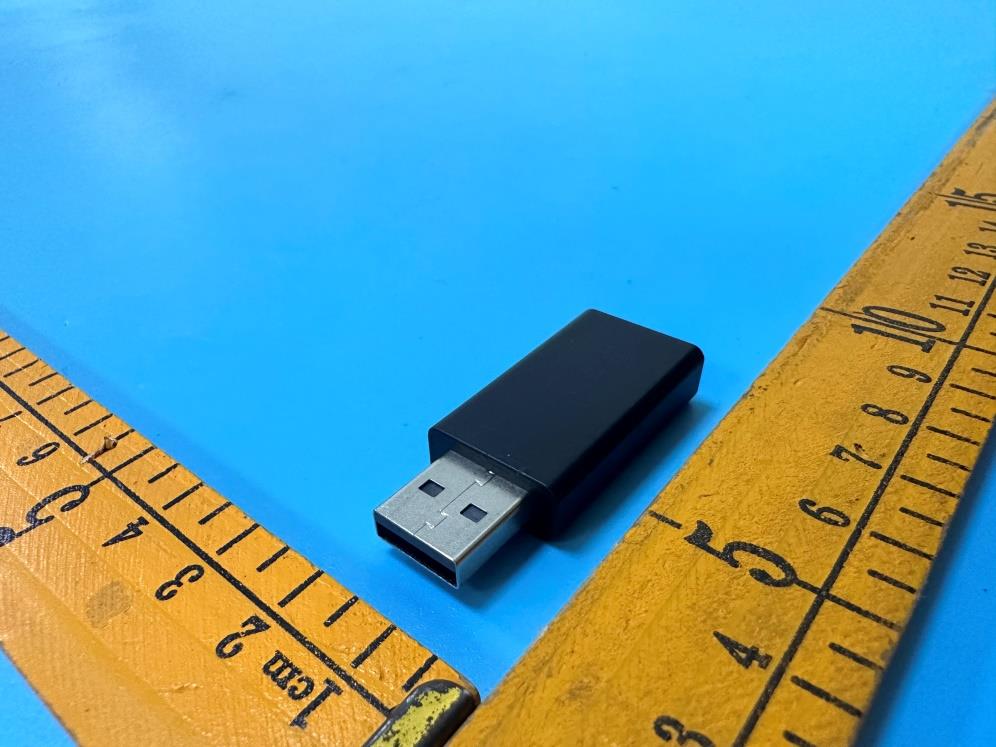

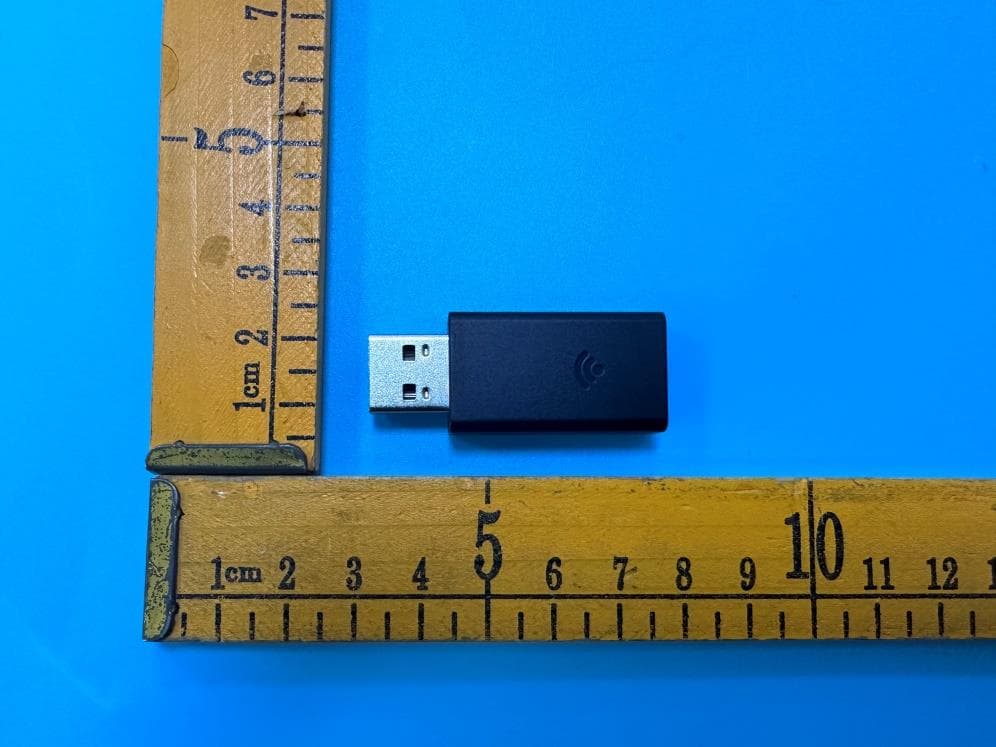

FCC ID: 2ASVQ-DONGLE External

Label place SIZE: 12*5mm F700 dongle FCC ID: 2ASVQ-DONGLE IC: 28945-XXXXXX

FCC ID: 2ASVQ-DONGLE Internal ANT

Page 1 of 1 RF Exposure Evaluation Report 1 RF EXPOSURE Product Name Model No. FCC ID F700 dongle F700 dongle 2ASVQ-DONGLE 1.1 LIMITS The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusio 1.2 EUT RF EXPOSURE EVALUATION Calculated value-0.623 < 3.0, So there is no require SAR test Operational Mode: GFSK Channel (MHz) Max. Conducted Power(dBm) Tune up tolerance (dB) Calculated value Limit (dBm) (mW) 24401.67 2±1 1.9950.623 3.0 Conclusion: the calculated value ≤3.0, SAR is exempted. 3 Maximum tune-up Power

Report No.: BL-EC2281147-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 18 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: SHENZHEN HJZ TECHNOLOGY C0., LTD. Address: Room 1403, Building 3, COFCO Business Park, Liuxian 2nd Road, Bao'an District, ShenZhen, China. Equipment Type: 2.4G RF ANT Model Name: MINI PCB ANT Brand Name: HJZ Test Standard: ANSI/IEEE Std 149-1979 Test Date Sep. 01, 2022 Date of Issue: Sep. 06, 2022 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Mai Jintian Checked by: Tolan Tu Approved by: Wei Yanquan (Chief Engineer) _______________ _______________ _______________ Report No.: BL-EC2281147-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 18 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Rev. 01 Sep. 06, 2022 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................... 3 1.1 Test Laboratory ..................................................................................................................... 3 1.2 Test Location ......................................................................................................................... 3 2 PRODUCT INFORMATION ......................................................................................................... 4 2.1 Applicant Information ............................................................................................................ 4 2.2 Manufacturer Information ...................................................................................................... 4 2.3 Factory Information ............................................................................................................... 4 2.4 General Description for Equipment under Test (EUT) .......................................................... 4 2.5 Ancillary Equipment .............................................................................................................. 4 2.6 Technical Information ............................................................................................................ 4 3 SUMMARY OF TEST RESULTS ................................................................................................. 5 3.1 Test Standards ...................................................................................................................... 5 3.2 Test Verdict ........................................................................................................................... 5 3.3 Test Uncertainty .................................................................................................................... 5 4 GENERAL TEST CONFIGURATIONS ........................................................................................ 6 4.1 Test Condition ....................................................................................................................... 6 4.2 Test Equipment List .............................................................................................................. 6 4.3 Test Setup ............................................................................................................................. 7 ANNEX A TEST RESULTS ............................................................................................................. 8 A.1 Gain and Efficiency ............................................................................................................... 8 ANNEX B RADIATION PATTERN .................................................................................................. 9 ANNEX C TEST SETUP PHOTO ................................................................................................. 15 ANNEX D EUT PHOTO ................................................................................................................ 17 Report No.: BL-EC2281147-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 18 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name Shenzhen BALUN Technology Co., Ltd. Location Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, No. 1008, Songbai Road, Yangguang Community, Xili Sub-district, Nanshan District, Shenzhen, Guangdong Province, P. R. China Report No.: BL-EC2281147-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 18 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant SHENZHEN HJZ TECHNOLOGY C0., LTD. Address Room 1403, Building 3, COFCO Business Park, Liuxian 2nd Road, Bao'an District, ShenZhen, China. Contact Person Blake Cao Telephone Number 86307650 Ext 8009 Fax Number (+86) 0755-86307651 E-mail Address [email protected] 2.2 Manufacturer Information Manufacturer N/A Address N/A 2.3 Factory Information Factory N/A Address N/A 2.4 General Description for Equipment under Test (EUT) EUT Name 2.4G RF ANT Model Name Under Test MINI PC…

Text truncated - open the document above for the full version.

V1.0 Report No.: POCE230818309HRW 102 Building H1 & 1/F., Building H, Hongfa Science & Technology Park, Tangtou, Shiyan, Bao'an District, Shenzhen, Guangdong, China Web:http://www. poce-cert.com Tel: 86-755-29113252 E-mail: [email protected] Page 1 of 50 RF TEST REPORT For MAYFLASH LIMITED Product Name: F700 dongle Model(s).: F700 dongle Report Reference No. : POCE230818309HRW FCC ID : 2ASVQ-DONGLE Applicant’s Name : MAYFLASH LIMITED Address : 3/F,Buiding No.1,TingWei Industrial Park,LiuFang Rd, No.67, BaoAn, Shenzhen, China. Testing Laboratory : Shenzhen POCE Technology Co., Ltd. Address : 102 Building H1 & 1/F., Building H, Hongfa Science & Technology Park, Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Test Specification Standard : 47 CFR Part 15.247 ANSI C63.10-2013 & KDB 558074 D01 Meas Guidance v05r02 Date of Receipt : August 09, 2023 Date of Test : August 09, 2023 to August 30, 2023 Data of Issue : August 30, 2023 Result : Pass Note: This report shall not be reproduced except in full, without the written approval of Shenzhen POCE Technology Co., Ltd. This document may be altered or revised by Shenzhen POCE Technology Co., Ltd. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample V1.0 Report No.: POCE230818309HRW 102 Building H1 & 1/F., Building H, Hongfa Science & Technology Park, Tangtou, Shiyan, Bao'an District, Shenzhen, Guangdong, China Web:http://www. poce-cert.com Tel: 86-755-29113252 E-mail: [email protected] Page 2 of 50 Revision History Of Report Version Description REPORT No. Issue Date V1.0 Original POCE230818309HRW August 30, 2023 NOTE1: The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Compiled by: Supervised by: Approved by: Stone Yin / File administrators Ben Tang / Technique principal Machael Mo/ Manager V1.0 Report No.: POCE230818309HRW 102 Building H1 & 1/F., Building H, Hongfa Science & Technology Park, Tangtou, Shiyan, Bao'an District, Shenzhen, Guangdong, China Web:http://www. poce-cert.com Tel: 86-755-29113252 E-mail: [email protected] Page 3 of 50 CONTENTS 1 TEST SUMMARY ........................................................................................................................................... 5 1.1 TEST STANDARDS .................................................................................................................................. 5 1.2 SUMMARY OF TEST RESULT .................................................................................................................... 5 2 GENERAL INFORMATION ............................................................................................................................ 6 2.1 CLIENT INFORMATION ............................................................................................................................. 6 2.2 DESCRIPTION OF DEVICE (EUT) .............................................................................................................. 6 2.3 DESCRIPTION OF TEST MODES ................................................................................................................ 7 2.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................................... 7 2.5 EQUIPMENTS USED DURING THE TEST .................................................................................................... 8 2.6 STATEMENT OF THE MEASUREMENT UNCERTAINTY ................................................................................. 9 2.7 IDENTIFICATION OF TESTING LABORATORY .............................................................................................. 9 2.8 ANNOUNCEMENT .................................................................................................................................... 9 3 EVALUATION RESULTS (EVALUATION) ................................................................................................... 10 3.1 ANTENNA REQUIREMENT ....................................................................................................................... 10 3.1.1 Conclusion: ............................................................................................................................. 10 4 RADIO SPECTRUM MATTER TEST RESULTS (RF) .................................................................................. 11 4.1 CONDUCTED EMISSION AT AC POWER LINE ............................................................................................ 11 4.1.1 E.U.T. Operation: ..................................................................................................................... 11 4.1.2 Test Setup Diagram: ................................................................................................................ 11 4.1.3 Test Data: ............................................................................................................................... 12 4.2 OCCUPIED BANDWIDTH ........................................................................................................................ 14 4.2.1 E.U.T. Operation: .................................................................................................................... 14 4.2.2 Test Setup Diagram: ............................................................................................................... 15 4.2.3 Test Data: ............................................................................................................................... 15 4.3 MAXIMUM CONDUCTED OUTPUT POWER ............................................................................................... 16 4.3.1 E.U…

Text truncated - open the document above for the full version.

FCC ID: 2ASVQ-DONGLE Emissions in restricted frequency bands (below 1GHz) Emissions in restricted frequency bands (above 1GHz) FCC ID: 2ASVQ-DONGLE Conducted Emission at AC power line
