2ASWVM17CAR DVR

Shenzhen LINGDU Auto Electronics Co., Ltd.

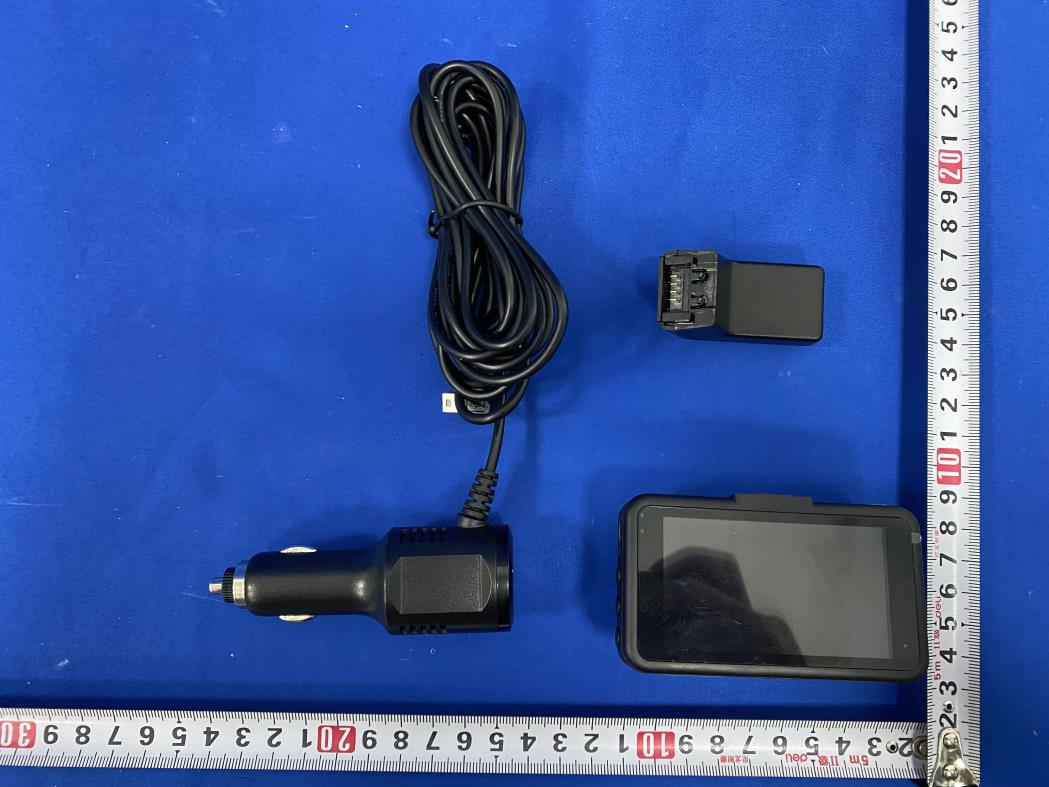

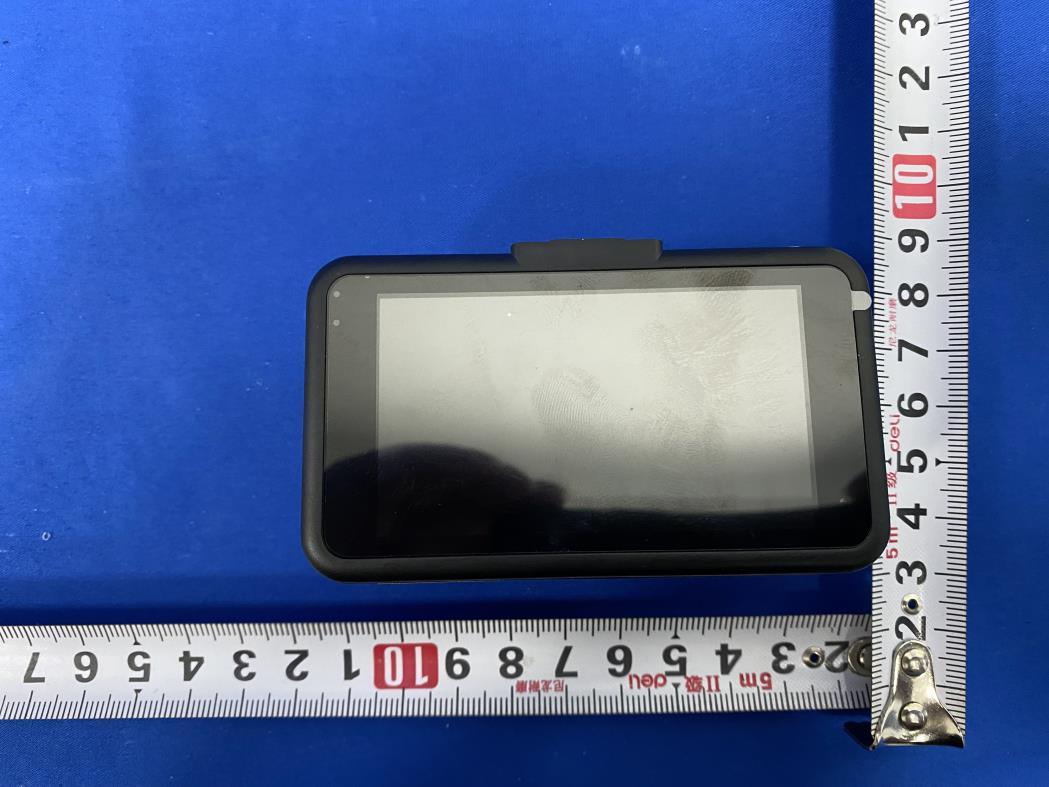

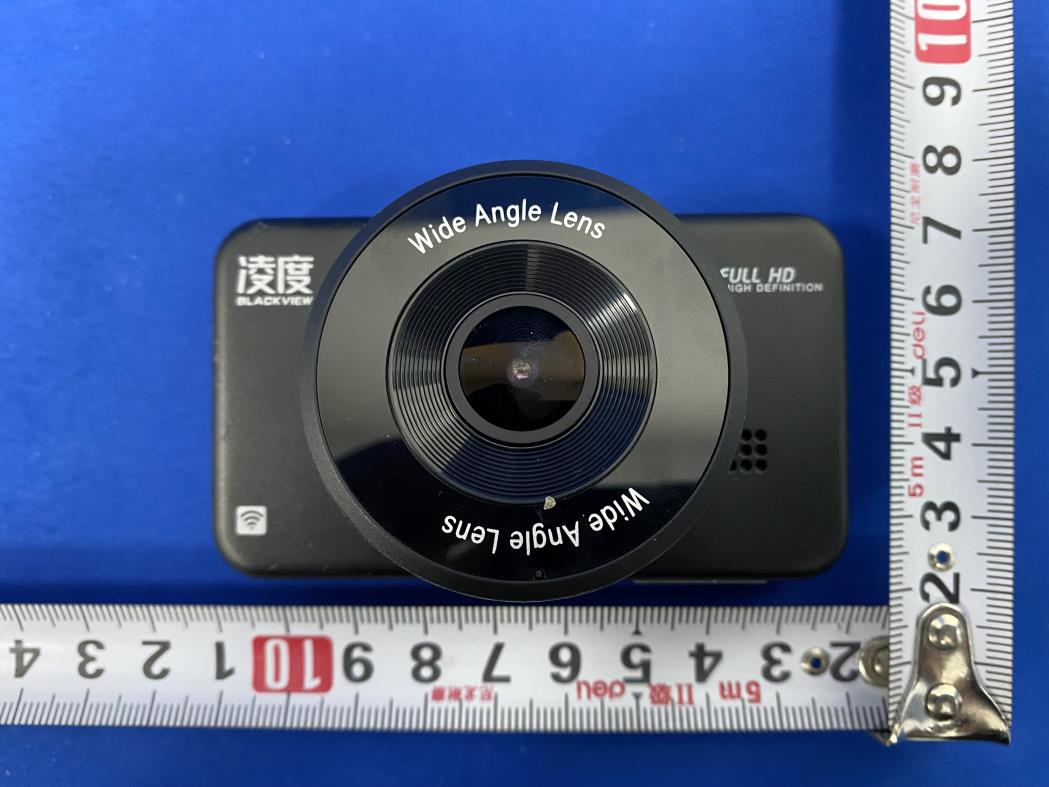

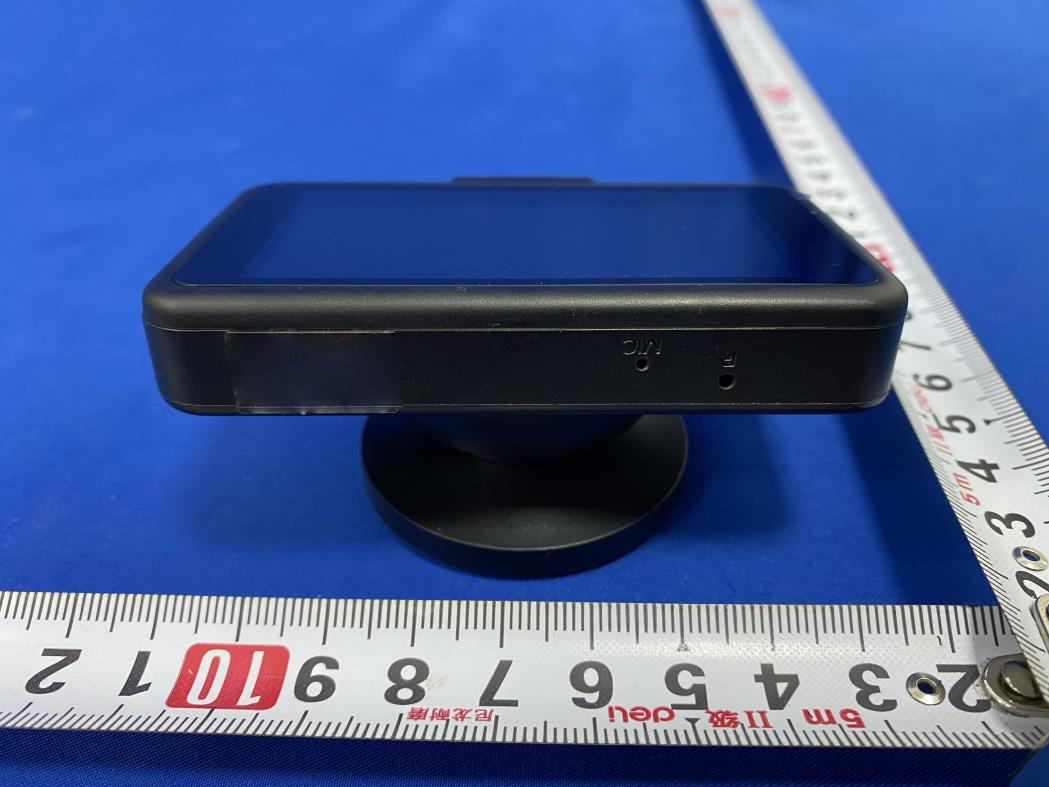

Click to zoom

Application Details

Equipment Class: JAB - Part 15 Class B Digital Device
Date of Grant: May 06, 2022
Application Purpose: Original Equipment
Date of Application: May 06, 2022
Equipment Note: CAR DVR
Company: Shenzhen LINGDU Auto Electronics Co., Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1. Warranty & Introduction We provide 12-Month of limited warranty for your product from the date of purchase to be free from defects in materials and craftsmanship.For questions, support, or warranty claims, contact us at [email protected] with you Order Number. *IMPORTANT: Proof of original purchase (Online order receipt is also accepted) is required for any warranty service. AZDOME can only provide after sales service for products purchased directly from AZDOME. If you have purchased from a different seller, please contact them directly for service or warranty issues. Experience Safety With AZDOME Car Camera The car camera is a small HD camera which is situated near the windscreen of the car and it records the road ahead of the driver. With an extensive increase in the number of vehicles, it is very important to have a vast idea of the vehicles around, in order to prevent any kind of mishap. AZDOME camera helps the driver in parking the vehicle by the motion sensor technology. The recording of the camera starts as soon as the engine roars to power and automatically gets switched off when the car stops. These car cameras not only help the driver by providing them with the side-lane views but also record throughout the journey, and this recording can be accessed anytime. AZDOME car camera comes with various advanced features which include having a high definition lens. This feature of the camera facilitates a better recording experience and also helps in providing videos with intricate details such as number plates of the other vehicles. Other than that, AZDOME cameras have loop recording which ensures that the old files are replaced by the new files without the memory space being clogged up. Moreover, it has a G-sensor system which locks specific files or data and these cannot be accessed without the user’s permission. This attribute tightens the security aspect and gives a sense of safety for both the user and the vehicle. AZDOME Camera - Giving a New Meaning To Security With the built-in Wi-Fi function and the free AZDOME app, you can view real-time videos on your iPhone or Android device while on the drive. Also, view and share recorded videos with friends and family in just a few clicks, via the AZDOME application. Moreover, any tampering activity can not only be recorded but can also be captured in still photography. The car cameras are competent enough to take qualitative pictures and these pictures can be extracted anyway with the help of memory card. 2. Product Sepcification Model M17 Screen Size 3.0 Inch Lens 150°wide angle lens Lens Aperture F=2.0 Video Code H.264, MOV Video Resolution 1080P 1920x1080/720P 1280x720 Video Effective Pixel 2 Mega Pixels Photo format JPG Photo resolution 2M/5M/8M/12M Photo Effective Pixel 12 Mega Pixels Language English, French, Deutsch, Spanish, Italian, Japanese, Russian, Dutch, Polish, Chinese Memory Card Micro SD Card Class 10 or Higher, Max Support 128 GB (Micro SD Card NOT Included – Required for camera operation) G-sensor Built-in 3-Axis Impact Accelerometer Gravitational Sensor to lock & protect current video. Frequency 60 Hz, 50 Hz WiFi Support, please download APP “AZDOME” Loop Recording Support Parking Mode Support Fatigue Driving Reminder Support Year/Month/Day/Hour/Minute Support Record Audio Support Mini-USB port Charging Power Interface 5V 1.5A Battery Built-in Li-ion Battery 200mAh Operating Temperature -20°C to 70°C (-4°F to 158°F) Working Humidity 10 ~ 90% 3. Product Diagram Micro AV IN (For Rear View Camera) USB Charging Port 1 USB Charging Port 2 ④Bracket ⑤TF Card Slot ⑥Up Button ⑦Menu Button ⑧Down Button ⑨Screen ⑩OK/Record Button ⑪Mode Button ⑫Lock Button ⑬Power Button ⑭Lens ⑮Speaker ⑯Microphone ⑰Reset Button ⑱Charging/Working Indicator 4.Button Controls Button Operation and Function 1.Select function options in setup mode 2.Select previous video in playback mode Press once to enter menu setting (Disabled in recording mode) 1.Select function options in setup mode 2.Select next video in playback mode 1.In recording mode, press once to start recording, press one more time to stop recording. 2.Long press once to shoot photos when recording. 3.Press once to confirm your setting in settings mode. 1.Press once to shift between Video / Photo / Lock Video playback mode. 2.Press once to return to previous page in playback mode. In recording mode, press once to lock the video as an emergency one. 1.Press once to turn on the device 2.Press once to lock the screen 3.Press and hold to turn off the device Reset Reboot the device and default settings 6. Using Your Dash Cam 1. Auto Power ON/OFF: ①Connect the car charger and Dash Cam by using the charging cable. ②Plug the other end of the car charger to your vehicle's cigarette lighter socket. ③When the car engine is on, dash cam will turns ON and start recording automatically. When the car key is turned to LOCK position, Dash Cam automatically saves the recording and turns OFF within few seconds. Note: Some trucks/car’s 12V cigarette outlet is always HOT, which means it provides constant power even when the car is turned OFF and LOCKED. If this is the case for your vehicle, then the auto ON/OFF feature will not work. And If you leave the camera continuously recording when the car is turned off, then it will drain your car/truck’s battery and you might not have enough power to start your car for next time. To Remedy this situation, you can do one of the two option. *Hardwire your dash cam to your car’s fuse box with AZDOME’S 2-Lead Auto Trigger Hardwire Kit. *Change the connection in the fuse box for your 12V outlet to socket which only supplies power when car key is turned to ACC or ON position. 2. Manual Power ON/OF • To Manually Turn ON: Press the power button once. • To Manually Turn OFF: Press and hold the power button for at least 2 seconds. 3.Format The Memory Card 1.Press to enter setting interface. 2.Press / to locate Micro SD card set up, press to enter Micro SD card format. 3.P…

Text truncated - open the document above for the full version.
