2ASWWCORNG60Smart Phone

2022-04-15 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with XINCHUANGXIN INTERNATIONAL CO.,LTD / ROOM 605 6/F, FA YUEN COMMERCIAL BUILDING, 75-77 FA YUEN STREET MONGKOK KL Agency agreement expiration date: Apr. 14, 2023 By: Lyra lv Signature Printed Title: sales On behalf of : XINCHUANGXIN INTERNATIONAL CO.,LTD Telephone: 18721759223

2022-04-15 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ASWWCORNG60 Product Name: Smart Phone Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description  BOM  Tune up These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. By: Lyra lv Signature Printed Title: sales On behalf of : XINCHUANGXIN INTERNATIONAL CO.,LTD Telephone: 18721759223

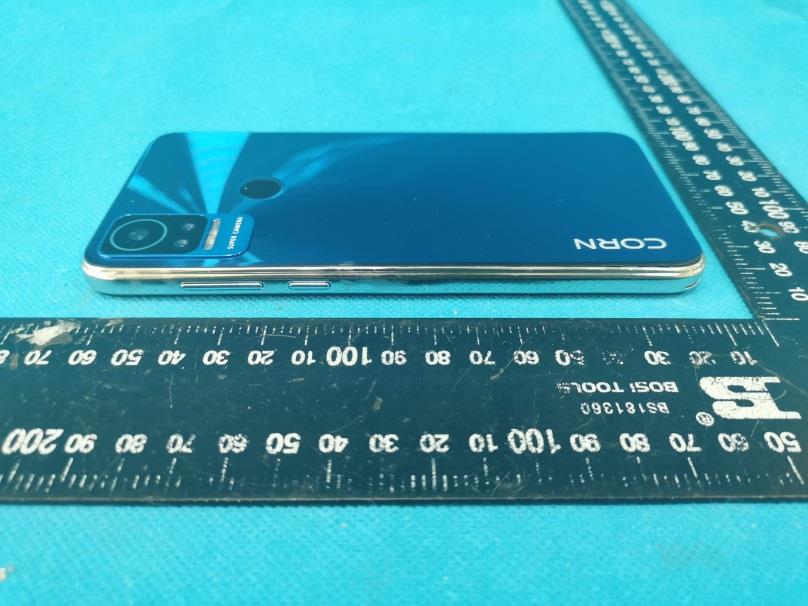

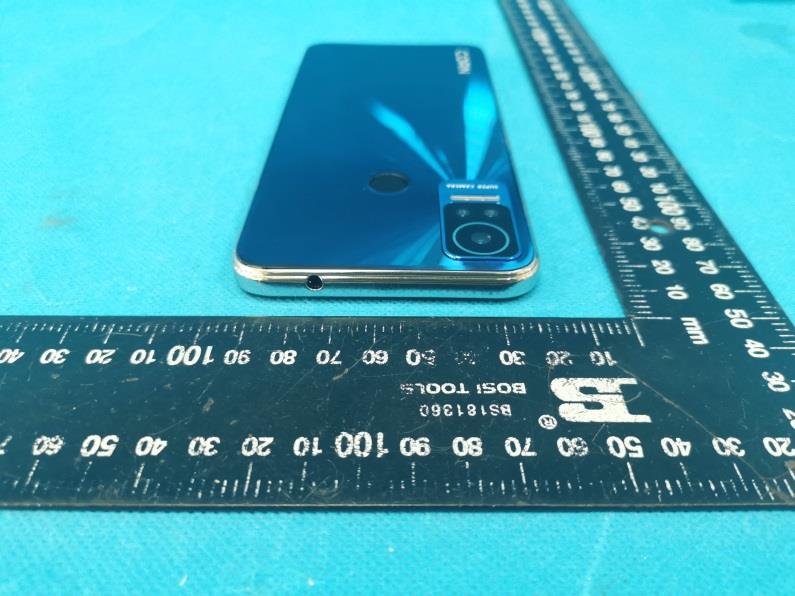

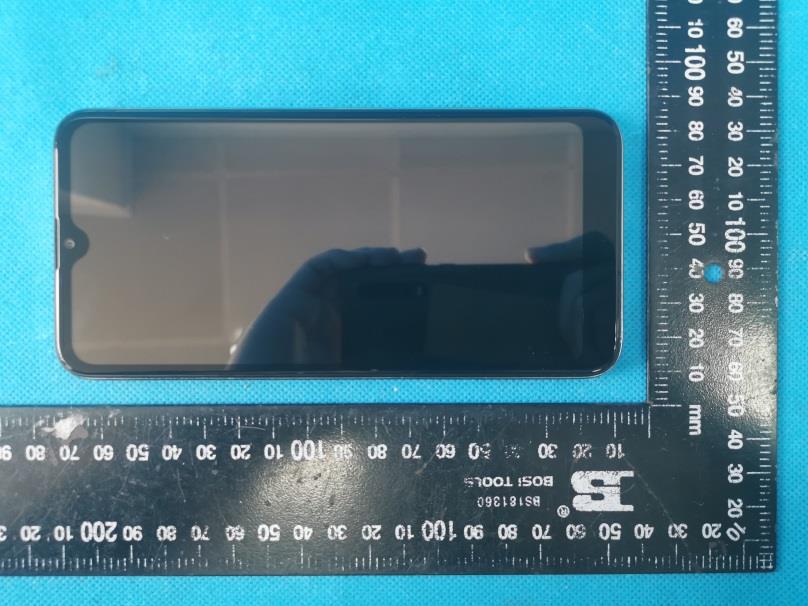

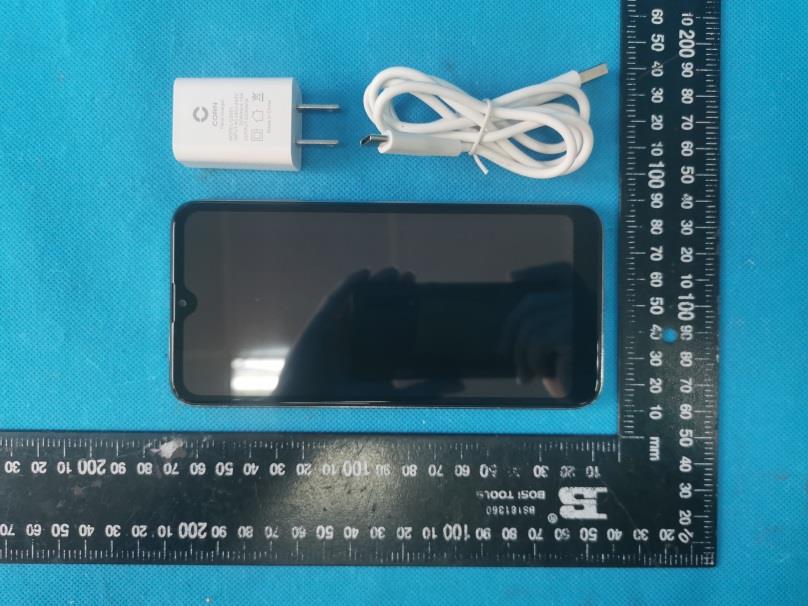

7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT 7.1. External photos M odel:G60

7.2. Internal photos Model:G60

Page: 1 of 37 TEST REPORT For SAR Report No. ...................................... : CHTEW22040083 Report verificaiton: Project No. ...................................... : SHT2203104802EW FCC ID ............................................. : 2ASWWCORNG60 Applicant’s name ........................... : XINCHUANGXIN INTERNATIONAL CO.,LTD Address ............................................. : ROOM 605 6/F, FA YUEN COMMERCIAL BUILDING, 75-77 FA YUEN STREET MONGKOK KL Test item description .................... : Smart Phone Trade Mark ....................................... : CORN Model/Type reference ....................... : G60 Listed Model(s) ................................. : - Standard ......................................... : FCC 47 CFR Part2.1093 IEEE Std C95.1: 1999 Edition IEEE Std 1528: 2013 Date of receipt of test sample..........: Mar. 28, 2022 Date of testing..............................: Apr. 01, 2022- Apr. 11, 2022 Date of issue...............................: Apr. 12, 2022 Result .................. ........................: PASS Compiled by ( position+printedname+signature) ... : File administrators: Silvia Li Supervised by ( position+printedname+signature) ... : Test Engineer: Patrick Qiu Approved by ( position+printedname+signature) ... : Manager: Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW22040083 Page: 2 of 37 Issued: 2022-04-12 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2021-12) Contents 1. Statement of Compliance 3 2. Test Standards and Report version 4 2.1. Test Standards 4 2.2. Report version 4 3. Summary 5 3.1. Client Information 5 3.2. Product Description 5 3.3. RF Specification Description 6 3.4. Testing Laboratory Information 7 3.5. Environmental conditions 7 4. Equipments Used during the Test 8 5. Measurement Uncertainty 9 6. SAR Measurement System Configuration 10 6.1. SAR Measurement Set-up 10 6.2. DASY5 E-field Probe System 11 6.3. Phantoms 12 6.4. Device Holder 12 7. SAR Test Procedure 13 7.1. Scanning Procedure 13 7.2. Data Storage and Evaluation 15 8. Position of the wireless device in relation to the phantom 17 8.1. Head Position 17 8.2. Body Position 18 8.3. Hotspot Mode Exposure conditions 18 9. Dielectric Property Measurements & System Check 19 9.1. Tissue Dielectric Parameters 19 9.2. System Check 20 10. SAR Exposure Limits 25 11. Conducted Power Measurement Results and Tune-up 26 12. Antenna Location 28 13. Measured and Reported SAR Results 30 14. SAR Measurement Variability 33 15. Simultaneous Transmission analysis 34 16. TestSetup Photos 35 17. External and Internal Photos of the EUT 37 Report No.: CHTEW22040083 Page: 3 of 37 Issued: 2022-04-12 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2021-12) 1. Statement of Compliance Maximum Reported SAR (W/kg @1g) Type Test setting PCE DTS BT Simultaneous TX Head Cheek 0.458 0.061 0.079 0.537 Body-worn Dist.= 10mm 0.859 0.018 0.017 0.877 Hotspot Dist.= 10mm 0.859 0.018 - 0.877 Note: 1. This device is in compliance with Specific Absorption Rate (SAR) for general population/uncontrolled exposure limits (1.6 W/kg@1g) specified in FCC 47 CFR part 2 (2.1093) and IEEE Std C95.1, 2. This device had been tested in accordance with the measurement methods and procedures specified in IEEE 1528 and FCC KDB publications. Report No.: CHTEW22040083 Page: 4 of 37 Issued: 2022-04-12 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2021-12) 2. Test Standards and Report version 2.1. Test Standards The tests were performed according to following standards: FCC 47 Part 2.1093: Radiofrequency radiation exposure evaluation: portable devices. IEEE Std C95.1, 1999 Edition: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz IEEE Std 1528™-2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. FCC published RF exposure KDB procedures: 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04: SAR Measurement Requirements for 100 MHz to 6 GHz 865664 D02 RF Exposure Reporting v01r02: RF Exposure Compliance Reporting and Documentation Considerations 447498 D04 Interim General RF Exposure Guidance v01: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies 248227 D01 802 11 Wi-Fi SAR v02r02: SAR Measurement Proceduresfor802.11 a/b/g Transmitters 648474 D04 Handset SAR v01r03: SAR Evaluation Considerations for Wireless Handsets 941225 D01 3G SAR Procedures v03r01: SAR Measurement Procedures for 3G Devices 941225 D06 Hotspot Mode v02r01: SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities TCB workshop April, 2019; Page 19, Tissue Simulating Liquids (TSL) 2.2. Report version Revision No. Date of issue Description N/A 2022-04-12 Original Report No.: CHTEW22040083 Page: 5 of 37 Issued: 2022-04-12 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2021-12) 3. Summary 3.1. Client Information Applicant: XINCHUANGXIN INTERNATIONAL CO.,LTD Address: ROOM 605 6/…

Text truncated - open the document above for the full version.

Appendix Report Appendix clause Result APASS BPASS CPASS SAR Measurement Results Simultaneous Transmission analysis Test EngineerBoWangAuditor Test Item Conducted Power Measurement Results Start test date 2022/3/30 Finish date 2022/4/2 Temperature 22.5°C Humidity 44% Project No. SHT2203104802EW Test sample No. YPHT22031048003 Model No. G60 Appendix:1 of 14 Project No.:SHT2203104802EW Appendix A:Conducted Power Measurement Results-GSM CH128CH190CH251CH128CH190CH251 824.2MHz836.6MHz848.8MHz824.2MHz836.6MHz848.8MHz 34.3434.3633.9834.50-9.0325.3125.3324.9525.47 1Tx slot34.3934.3234.0034.50-9.0325.3625.2924.9725.47 2Tx slots33.1633.2732.7133.50-6.0227.1427.2526.6927.48 3Tx slots31.5631.5231.1032.00-4.2627.3027.2626.8427.74 4Tx slots29.7229.6829.2230.00-3.0126.7126.6726.2126.99 CH512CH661CH810CH512CH661CH810 1850.2MHz1880MHz1909.8MHz1850.2MHz1880.0MHz1909.8MHz 30.7430.9631.3231.50-9.0321.7121.9322.2922.47 1Tx slot31.0731.1931.5832.00-9.0322.0422.1622.5522.97 2Tx slots29.0929.2029.7330.00-6.0223.0723.1823.7123.98 3Tx slots27.0827.7228.0428.50-4.2622.8223.4623.7824.24 4Tx slots25.0125.5026.1626.50-3.0122.0022.4923.1523.49 Tune-up limit (dBm) GSM GPRS (GMSK) Burst Average Power (dBm) Tune-up limit (dBm) GSM GPRS (GMSK) GSM1900 Division Factors Frame-Average Power (dBm) Tune-up limit (dBm) GSM850 Burst Average Power (dBm) Tune-up limit (dBm) Division Factors Frame-Average Power (dBm) Appendix: 2/14 Project No.:SHT2203104802EW Appendix A:Conducted Power Measurement Results-WCDMA CH9262CH9400CH9538 1852.4MHz1880MHz1907.6MHz 23.4124.0523.4824.50 23.4524.0923.5224.50 Subtest-122.7923.8923.1124.00 Subtest-222.6623.5222.7524.00 Subtest-322.3423.1722.4423.50 Subtest-422.1623.0122.3323.50 Subtest-120.2920.7120.2821.00 Subtest-220.4020.8220.4521.00 Subtest-320.1720.5320.1721.00 Subtest-420.4820.8720.5221.00 Subtest-523.4223.9823.3424.00 CH4132CH4183CH4233 826.4MHz836.6MHz846.6MHz 24.9325.2425.4125.50 24.9725.2825.4525.50 Subtest-122.6822.7922.8823.00 Subtest-222.9823.1023.1523.50 Subtest-322.2722.3222.3622.50 Subtest-422.3322.3622.4422.50 Subtest-119.4819.3519.5620.00 Subtest-219.7419.6119.7820.00 Subtest-319.9119.8219.9520.00 Subtest-419.8519.6519.8620.00 Subtest-523.2923.2023.4523.50 HSUPA WCDMA Band V Conducted Power (dBm) Tune-up limit (dBm) AMR 12.2K RMC 12.2K HSDPA HSUPA WCDMA Band II Conducted Power (dBm) Tune-up limit (dBm) AMR 12.2K RMC 12.2K HSDPA Appendix: 3/14 Project No.:SHT2203104802EW Appendix A:Conducted Power Measurement Results-WIFI/Bluetooth ModeChannelFrequency (MHz)Peak Power (dBm)Average Power (dBm)Tune-up limit (dBm) 1241215.4913.2713.50 6243714.7712.6213.00 11246214.1511.8812.00 1241216.3912.5213.00 6243715.9312.1212.50 11246215.4811.6812.00 1241215.9512.6013.00 6243716.0812.8413.00 11246215.3312.2812.50 ChannelFrequency (MHz)Peak Power (dBm)Average Power (dBm)Tune-up limit (dBm) 024023.783.704.00 3924413.233.083.50 7824803.493.393.50 024025.604.154.50 3924415.594.104.50 7824805.594.214.50 024025.974.474.50 3924415.974.134.50 7824805.864.294.50 Mode EDR GFSK π/4QPSK 8DPSK Bluetooth WIFI 2.4G 802.11b 802.11g 802.11n (HT20) Appendix: 4/14 Project No.:SHT2203104802EW Appendix B:SAR Measurement Results-Head Measured SAR(1g) Report SAR(1g) CHMHz(W/kg)(W/kg) 128824.231.5632.001.107-0.140.2940.3251 190836.631.5232.001.117---- 251848.831.1032.001.230---- 128824.231.5632.001.1070.190.2490.276- 190836.631.5232.001.117---- 251848.831.1032.001.230---- 128824.231.5632.001.1070.080.2830.313- 190836.631.5232.001.117---- 251848.831.1032.001.230---- 128824.231.5632.001.107-0.100.2370.263- 190836.631.5232.001.117---- 251848.831.1032.001.230---- Measured SAR(1g) Report SAR(1g) CHMHz(W/kg)(W/kg) 5121850.227.0828.501.387---- 6611880.027.7228.501.197---- 8101909.828.0428.501.112-0.060.3140.3492 5121850.227.0828.501.387---- 6611880.027.7228.501.197---- 8101909.828.0428.501.112-0.040.2530.281- 5121850.227.0828.501.387---- 6611880.027.7228.501.197---- 8101909.828.0428.501.1120.030.3020.336- 5121850.227.0828.501.387---- 6611880.027.7228.501.197---- 8101909.828.0428.501.1120.040.2370.263- GSM1900 GSM850 Plot No. GPRS 3Tx slots Left-Cheek Left-Tilt Right-Cheek Right-Tilt Mode Test Position Frequency Conducted Power (dBm) Tune-up limit (dBm) Tune-up scaling factor Power Drift(dB) Tune-up limit (dBm) Plot No. GPRS 3Tx slots Tune-up scaling factor Power Drift(dB) Left-Cheek Left-Tilt Right-Cheek Right-Tilt Mode Test Position Frequency Conducted Power (dBm) Appendix: 5/14 Project No.:SHT2203104802EW Measured SAR(1g) Report SAR(1g) CHMHz(W/kg)(W/kg) 92621852.423.4524.501.274---- 94001880.024.0924.501.0990.060.4170.4583 95381907.623.5224.501.253---- 92621852.423.4524.501.274---- 94001880.024.0924.501.0990.050.3430.377- 95381907.623.5224.501.253---- 92621852.423.4524.501.274---- 94001880.024.0924.501.0990.080.3980.437- 95381907.623.5224.501.253---- 92621852.423.4524.501.274---- 94001880.024.0924.501.099-0.030.3190.351- 95381907.623.5224.501.253---- Measured SAR(1g) Report SAR(1g) CHMHz(W/kg)(W/kg) 4132826.424.9725.501.130---- 4183836.625.2825.501.052---- 4233846.625.4525.501.012-0.110.2400.2434 4132826.424.9725.501.130---- 4183836.625.2825.501.052---- 4233846.625.4525.501.0120.120.1840.186- 4132826.424.9725.501.130---- 4183836.625.2825.501.052---- 4233846.625.4525.501.0120.050.2230.226- 4132826.424.9725.501.130---- 4183836.625.2825.501.052---- 4233846.625.4525.501.012-0.060.1690.171- Plot No. RMC 12.2Kbps Left-Cheek Left-Tilt Right-Cheek Right-Tilt Mode Test Position Frequency Conducted Power (dBm) Tune-up limit (dBm) Tune-up scaling factor Power Drift(dB) WCDMA Band V Plot No. RMC 12.2Kbps Left-Cheek Left-Tilt Right-Cheek Right-Tilt Mode Test Position Frequency Conducted Power (dBm) Tune-up limit (dBm) Tune-up scaling factor Power Drift(dB) WCDMA Band II Appendix: 6/14 Project No.:SHT2203104802EW Measured SAR(1g) Report SAR(1g) CHMHz(W/kg)(W/kg) 1241213.2713.501.05499.50%1.005-0.180.0580.0615 6243712.6213.001.09199.50%1.005---- 11246211.8812.001.02899.50%1.005---- 1241213.2713.501.05499.50%1.0050.240.0490.052- 62437…

Text truncated - open the document above for the full version.

Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 3/30 /2022 GSM 850-L-Head Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2) (0); Frequency: 824.2 MHz;Duty Cycle: 1:2.66993 Medium parameters used: f = 825 MHz; σ = 0.9 S/m; ε r = 40.965; ρ = 1000 kg/m 3 Phantom section: Left Section Ambient Temperature:22.4°C;Liquid Temperature:22.1°C; DASY Configuration: l Probe: EX3DV4 - SN7494; ConvF(10.41, 10.41, 10.41) @ 824.2 MHz; Calibrated: 4/9/2021 l Sensor-Surface: 1.4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn540; Calibrated: 2/22/2022 l Phantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 l DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Left Cheek/CH 128/Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.315 W/kg Left Cheek/CH 128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.996 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 0.365 W/kg SAR(1 g) = 0.294 W/kg; SAR(10 g) = 0.222 W/kg Maximum value of SAR (measured) = 0.323 W/kg 0 dB = 0.323 W/kg = -4.91 dBW/kg Appendix D:SAR Test Data Plots Plot No.1 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 3/31/2022 GSM 1900-H-Head Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2) (0); Frequency: 1909.8 MHz;Duty Cycle: 1:2.66993 Medium parameters used: f = 1910 MHz; σ = 1.417 S/m; ε r = 38.861; ρ = 1000 kg/m 3 Phantom section: Left Section Ambient Temperature:22.5°C;Liquid Temperature:22.3°C; DASY Configuration: l Probe: EX3DV4 - SN7494; ConvF(8.55, 8.55, 8.55) @ 1909.8 MHz; Calibrated: 4/9/2021 l Sensor-Surface: 1.4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn540; Calibrated: 2/22/2022 l Phantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 l DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Left Cheek/CH 810/Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.372 W/kg Left Cheek/CH 810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.186 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.468 W/kg SAR(1 g) = 0.314 W/kg; SAR(10 g) = 0.200 W/kg Maximum value of SAR (measured) = 0.362 W/kg 0 dB = 0.362 W/kg = -4.41 dBW/kg Appendix D:SAR Test Data Plots Plot No.2 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 3/31/2022 WCDMA Band II-M-Head Communication System: UID 0, Generic UMTS (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.434 S/m; ε r = 38.883; ρ = 1000 kg/m 3 Phantom section: Left Section Ambient Temperature:22.5°C;Liquid Temperature:22.3°C; DASY Configuration: l Probe: EX3DV4 - SN7494; ConvF(8.55, 8.55, 8.55) @ 1880 MHz; Calibrated: 4/9/2021 l Sensor-Surface: 1.4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn540; Calibrated: 2/22/2022 l Phantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 l DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Left Cheek/CH 9400/Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.508 W/kg Left Cheek/CH 9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.751 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.642 W/kg SAR(1 g) = 0.417 W/kg; SAR(10 g) = 0.256 W/kg Maximum value of SAR (measured) = 0.496 W/kg 0 dB = 0.496 W/kg = -3.05 dBW/kg Appendix D:SAR Test Data Plots Plot No.3 Date: 3/30/2022Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WCDMA Band V-H-Head Communication System: UID 0, Generic UMTS (0); Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.907 S/m; ε r = 40.958; ρ = 1000 kg/m 3 Phantom section: Left Section Ambient Temperature:22.0°C;Liquid Temperature:21.8°C; DASY Configuration: l Probe: EX3DV4 - SN7494; ConvF(10.41, 10.41, 10.41) @ 846.6 MHz; Calibrated: 4/9/2021 l Sensor-Surface: 1.4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn540; Calibrated: 2/22/2022 l Phantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 l DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Left Cheek/CH 4233/Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.253 W/kg Left Cheek/CH 423 3/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.484 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.287 W/kg SAR(1 g) = 0.240 W/kg; SAR(10 g) = 0.187 W/kg Maximum value of SAR (measured) = 0.260 W/kg 0 dB = 0.260 W/kg = -5.85 dBW/kg Appendix D:SAR Test Data Plots Plot No.4 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 4/1/2022 Wifi 2.4G-L-Head Communication System: UID 0, Generic WIFI (0); Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.79 S/m; ε r = 37.723; ρ = 1000 kg/m 3 Phantom section: Left Section Ambient Temperature:22.8°C;Liquid Temperature:22.5°C; DASY Configuration: l Probe: EX3DV4 - SN7494 ; ConvF(7 . 97, 7.97, 7.97) @ 2412 MHz; Calibrated: 4/9/2021 l Sensor-Surface: 1.4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn540; Calibrated: 2/22/2022 l Phantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 l DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Left Cheek/CH 1/Area Scan (91x151x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.110 W/kg Left Cheek/CH 1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.574 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 0.102 W/kg SAR(1 g) = 0.058 W/kg; SAR(10 g) = 0.024 W/kg Maximum value of SAR (measured) = 0.0740 W/kg 0 dB = 0.0740 W/kg = -11.31 dBW/kg Appendix D:SAR Test Data Plots Plot No.5 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 4/1/2022 Bluetooth-L-Head Communication System: UID 0, Generic BT (0); Frequency: 2402 MHz;Duty Cycle: 1:1 Mediu…

Text truncated - open the document above for the full version.

Appendix E: DAE and Probe Calibration Certificate 1 of 12 1.1.1. DAE4 Calibration Certificate Appendix E: DAE and Probe Calibration Certificate 2 of 12 Appendix E: DAE and Probe Calibration Certificate 3 of 12 Appendix E: DAE and Probe Calibration Certificate 4 of 12 1.2. Probe Calibration Certificate Appendix E: DAE and Probe Calibration Certificate 5 of 12 Appendix E: DAE and Probe Calibration Certificate 6 of 12 Appendix E: DAE and Probe Calibration Certificate 7 of 12 Appendix E: DAE and Probe Calibration Certificate 8 of 12 Appendix E: DAE and Probe Calibration Certificate 9 of 12 Appendix E: DAE and Probe Calibration Certificate 10 of 12 Appendix E: DAE and Probe Calibration Certificate 11 of 12 Appendix E: DAE and Probe Calibration Certificate 12 of 12

Appendix F: Dipole Calibration Certificate 1 of 18 1.1. D835V2 Dipole Calibration Certificate Appendix F: Dipole Calibration Certificate 2 of 18 Appendix F: Dipole Calibration Certificate 3 of 18 Appendix F: Dipole Calibration Certificate 4 of 18 Appendix F: Dipole Calibration Certificate 5 of 18 Appendix F: Dipole Calibration Certificate 6 of 18 Appendix F: Dipole Calibration Certificate 7 of 18 1.2. D1900V2 Dipole Calibration Certificate Appendix F: Dipole Calibration Certificate 8 of 18 Appendix F: Dipole Calibration Certificate 9 of 18 Appendix F: Dipole Calibration Certificate 10 of 18 Appendix F: Dipole Calibration Certificate 11 of 18 Appendix F: Dipole Calibration Certificate 12 of 18 Appendix F: Dipole Calibration Certificate 13 of 18 1.3. D2450V2 Dipole Calibration Certificate Appendix F: Dipole Calibration Certificate 14 of 18 Appendix F: Dipole Calibration Certificate 15 of 18 Appendix F: Dipole Calibration Certificate 16 of 18 Appendix F: Dipole Calibration Certificate 17 of 18 Appendix F: Dipole Calibration Certificate 18 of 18

Page: 1 of 33 TEST REPORT For WiFi-2.4GHz Band Report No. ...................................... : CHTEW22040064 Report Verification: Project No.................................： SHT2203104801EW FCC ID ............................................. : 2ASWWCORNG60 Applicant’s name ........................... : XINCHUANGXIN INTERNATIONAL CO.,LTD Address ............................................. : ROOM 605 6/F, FA YUEN COMMERCIAL BUILDING, 75-77 FA YUEN STREET MONGKOK KL Product Name ................................ : Smart Phone Trade Mark ....................................... : CORN Model No. ......................................... : G60 Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample..........: Mar. 28, 2022 Date of testing.............................: Apr. 01, 2022- Apr. 11, 2022 Date of issue...............................: Apr. 12, 2022 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Silvia Li Supervised by (Position+Printed name+Signature): Project Engineer Aaron Fang Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW22040064 Page: 2 of 33 Date of issue: 2022-04-12 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) ` Contents 1. TEST S T AN D AR D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test mode 7 4.4. Test sample information 8 4.5. Support unit used in test configuration and system 8 4.6. Testing environmental condition 8 4.7. Statement of the measurement uncertainty 8 4.8. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Peak Output Power 15 5.4. Power Spectral Density 16 5.5. 6dB bandwidth 17 5.6. 99% Occupied Bandwidth 18 5.7. Duty Cycle 19 5.8. Conducted Band edge and Spurious Emission 20 5.9. Radiated Band edge Emission 22 5.10. Radiated Spurious Emission 26 6. TEST SETUP PHOTOS 32 7. EXTERANAL AND INTERNAL PHOTOS 33 8. APPENDIX REPORT 33 Report No.: CHTEW22040064 Page: 3 of 33 Date of issue: 2022-04-12 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) ` 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2022-04-12 Original Report No.: CHTEW22040064 Page: 4 of 33 Date of issue: 2022-04-12 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) ` 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result Test Engineer 5.1 Antenna Requirement 15.203/15.247(c) PASS Xiaoqin Li 5.2 AC Conducted Emission 15.207 PASS Xiaoqin Li 5.3 Peak Output Power 15.247(b)(3) PASS Xiaoqin Li 5.4 Power Spectral Density 15.247(e) PASS Xiaoqin Li 5.5 6dB Bandwidth 15.247(a)(2) PASS Xiaoqin Li 5.6 99% Occupied Bandwidth - PASS *1 Xiaoqin Li 5.7 Duty cycle - PASS *1 Xiaoqin Li 5.8 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS Xiaoqin Li 5.9 Radiated Band Edge Emission 15.205/15.209 PASS Pan Xie 5.10 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Pan Xie Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW22040064 Page: 5 of 33 Date of issue: 2022-04-12 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) ` 3. SUMMARY 3.1. Client Information Applicant: XINCHUANGXIN INTERNATIONAL CO.,LTD Address: ROOM 605 6/F, FA YUEN COMMERCIAL BUILDING, 75-77 FA YUEN STREET MONGKOK KL Manufacturer: Shenzhen Chiteng Technology Co.,LTD Address: Second Floor,Area A, Building 4, Huiye Technology Workshop, Guanguang Road, Tangjia Community, Gongming Street, Guangming New District, Shenzhen, Guangdong 3.2. Product Description Main unit information: Product Name: Smart Phone Trade Mark: CORN Model No.: G60 Listed Model(s): - Power supply: DC 3.85V from battery Hardware version: J527B_31ED3EFM12_D31R Software version: CORN_G60_S62301_V01 Accessory unit information: Battery information: DC 3.85V,4000mAh Adapter information: Model:CS001 Input: AC100-240V, 50/60Hz, 0.15A Output: 5.0Vdc, 1.0A 3.3…

Text truncated - open the document above for the full version.

ProjectNo.: SHT2203104801EW RadioSpecification:WIFI2.4G ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage:1of28 APPENDIXREPORT ProjectNo. SHT2203104801EWRadioSpecificationWIFI2.4G TestsampleNo. YPHT22031048004ModelNo.G60 Starttestdate 2022-03-30Finishdate2022-03-31 Temperature24.5°CHumidity45% TestEngineerXiaoqinLiAuditor Appendix clause TestitemResult AConductedPeakOutputPowerPASS BPowerSpectralDensityPASS C6dBBandwidthPASS D99%OccupiedBandwidthPASS EDutyCyclePASS FBandedgeandSpuriousEmissions(conducted)PASS ProjectNo.: SHT2203104801EW RadioSpecification:WIFI2.4G ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage:2of28 AppendixA：ConductedPeakOutputPower TypeChannel PeakOutputpower (dBm) AverageOutput power(dBm) Limit(dBm)Result 802.11b 01 15.4913.27 ≤30.00Pass 06 14.7712.62 11 14.1511.88 802.11g 01 16.3912.52 ≤30.00Pass 06 15.9312.12 11 15.4811.68 802.11n (HT20) 01 15.9512.60 ≤30.00Pass 06 16.0812.84 11 15.3312.28 ProjectNo.: SHT2203104801EW RadioSpecification:WIFI2.4G ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage:3of28 AppendixB：PowerSpectralDensity TypeChannel PowerSpectralDensity (dBm/30KHz) Limit(dBm/3KHz)Result 802.11b 01 1.66 ≤8.00Pass 06 1.69 11 1.08 802.11g 01 -6.58 ≤8.00Pass 06 -7.06 11 -8.24 802.11n(HT20) 01 -7.57 ≤8.00Pass 06 -7.37 11 -8.28 ProjectNo.: SHT2203104801EW RadioSpecification:WIFI2.4G ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage:4of28 Type:802.11b CH01 Date: 30.MAR.2022 15:56:42 CH06 Date: 30.MAR.2022 15:58:48 CH11 Date: 30.MAR.2022 15:54:26 ProjectNo.: SHT2203104801EW RadioSpecification:WIFI2.4G ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage:5of28 Type:802.11g CH01 Date: 30.MAR.2022 16:08:31 CH06 Date: 30.MAR.2022 16:06:12 CH11 Date: 30.MAR.2022 16:04:28 ProjectNo.: SHT2203104801EW RadioSpecification:WIFI2.4G ShenzhenHuatongweiInternationalInspectionCo.,Ltd.Appendixreportpage:6of28 Type:802.11n(HT20) CH01 Date: 30.MAR.2022 16:17:20 CH06 Date: 30.MAR.2022 16:15:59 CH11 Date: 30.MAR.2…
