2AT3M010232DynaLogger

Dynamox SA

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: May 16, 2021
Application Purpose: Original Equipment
Date of Application: May 16, 2021
Equipment Note: DynaLogger
Frequency Range: 2402.00000000 - 2480.00000000
Company: Dynamox SA
Country: Brazil

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

DynaPredict - Application DESCRIPTIVE MANUAL DynaLogger - Bluetooth Low Energy (BLE) DynaPredict Application Descriptive Manual - Version 3.0 (16/04/2021) RMP - Publication controlled by SGI 1 2 3 3.1 3.2 3.2.1 3.2.2 3.3 3.4 3.4.1 3.4.2 3.4.2.1 3.4.2.2 4 5 Introduction _________________________________________ Installation __________________________________________ Screens ______________________________________________ Login ________________________________________________ Initial Screen ________________________________________ Side Menu ___________________________________________ Machine List _________________________________________ New Machine ________________________________________ Spot List _____________________________________________ New Spot ____________________________________________ Spot Data ____________________________________________ Temp, Vel & Acc _____________________________________ Spectrum ____________________________________________ Settings ______________________________________________ Syncronization ______________________________________ 03 04 05 05 06 06 07 08 09 10 11 13 14 15 16 02 Contents DynaPredict Application Descriptive Manual - Version 3.0 (16/04/2021) RMP - Publication controlled by SGI This document provides a guide for using the DynaPredict App, an application developed to interact and communicate with DynaLoggers. A DynaLogger is an idustrial data logger that monitors the health of a machine by storing temperature and vibration data in its internal memory. The application allows users to perform the initial registration and con- figuration of the DynaLoggers, as well as readings and manual data collection via Bluetooth. The data can then be sent to the Dynamox Web Platform via an internet connection (3G, 4G or Wi-Fi). Initially, this document describes the installation of the DynaPredict App and, later, details of the different displays and general functionality. 1 Introduction 03 DynaPredict Application Descriptive Manual - Version 3.0 (16/04/2021) RMP - Publication controlled by SGI Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 20mm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body- worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. 04 2 Installation The DynaPredict app is available to download from the Google Play Store and is compatible with all devices running Android 5.0 or higher and Bluetooth technology. A basic version of the app is also available for iOS devices and can be downloaded from the Apple Store. DynaPredict Application Descriptive Manual - Version 3.0 (16/04/2021) RMP - Publication controlled by SGI The following sections describe in detail the different screens and func- tionality of the DynaPredict application. 3 Screens 05 When the app is first accessed, or after user logout, the login screen will be shown (Figure 1). The fields shown in Figure 1 should be filled in with the previ - ously obtained user credentials (e-mail and password). New users can obtain credentials by contacting our Technical Support team via e-mail: [email protected] . When logging into the app, the user should choose the work- space for desired access. The list of available work- spaces takes into account the per- missions previously assigned to the user on the Web Platform. For more details, please consult the Web Plat- form Manual. 3.1 Login Figure 1 - App login screen Figure 2 - Workspace selection DynaPredict Application Descriptive Manual - Version 3.0 (16/04/2021) RMP - Publication controlled by SGI 06 3.2 Initial Screen Once the icon ( ) has been selected, the side menu will expand (Figure 4) and the user will have access to 5 functions within the app, described below: • Scan Spots: search for DynaLoggers that are already registered and are within the Bluetooth range of the app. • Synchronize: Initiate the synchronization process of the data collected from the DynaLoggers via the app, sending the data to the Dynamox Web Platform. Internet access is necessary to perform this operation. • Settings: allows the user to change the settings of the app. 3.2.1 Side Menu After logging in, a list of machines registered to the com- pany will be shown on the initial screen (Figure 3) and it will be possible to access the side menu by touching the icon ( ). Both features will be explained in the following sec- tions. Figure 4 - Side Menu [email protected] Figure 3 - Initial Screen Dynamox Menu List of Machines DynaPredict Application Descriptive Manual - Version 3.0 (16/04/2021) RMP - Publication controlled by SGI 07 • Change context: allow changes to the workspace. • Logout: disconnect the user from the current session and return to the login screen. This screen, shown in Figure 5, displays the registered machines available to the user. 3.2.2 Machine List Search and Filter Machine status Creation date New machine Machine name Workspace Figure 5 - Machine list New machines can be created using the icon ( ), located in the bottom right corner of the screen. Machine creation will be covered in the next section. This screen shows the names of the machines and their respec- tive creation dates, as well as the workspace to which they belong. In addition, there is an icon showing the machine status. The user is able to search for a specific machine or even filter according to the machine status, as described in the following table: DynaPredict Application Descriptive Manual - Version 3.0 (16/04/2021) RMP - Publication controlled by SGI 3.3 New Machine 08 By touching the icon ( ), the screen on Figure 6 will be displayed. On this screen, it is possible to register a new machine. To do this…

Text truncated - open the document above for the full version.

Cover Letter(s)

Dynamox SA Company: Dynamox SA Address: Rodovia Jose Carlos Daux, n 600 KM 01 Modulo05, Parque Tec. Alfa CEP 88030-090, Florianopolis, SC Brazil Product Name: Dynalogger Model Number(s): Dynalogger HF，Dynalogger TcA+ Product Description: Dynalogger We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton,California 94566, USA, to act on our behalf on all matters concerning thecertification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forwardall information related to the approval and certification of equipment to the regulatoryagencies as required and to discuss any issues concerning the approval application.Any and all acts carried out by MiCOM Labs on our behalf shall have the same effectas acts of our own. Signature:Date: 2021-4-13 Name: Alexandre Ferreira Title: CTO Company: Dynamox SA

Cover Letter(s)

Dynamox SA Date:2021-4-13 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Request for Confidentiality FCC ID: 2AT3M010232 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. ☒ Schematic Diagram ☒ Block Diagram ☒ Parts List ☒ Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); ☐External Photos ☐Test Setup Photos ☐Internal Photos ☐User Manual ☐For 45 days, pursuant to Public Notice DA 04-1705. OR ☐For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name:Alexandre Ferreira Title:CTO

Cover Letter(s)

Declaration Letter We, Dynamox SA declared that our product Dynalogger item No.: Dynalogger HF, Dynalogger TcA+ were identical inside, BT circuit design, layout, IC, crystal, antenna, components and internal wiring, the only difference is the model name, appearance and peripheral circuit. Sincerely your Signature: Name/Title: Alexandre Ferreira/CTO Tel. No.: +55 48 3024 5858 E-Mail: [email protected] Company: Dynamox SA Date：2021-4-13

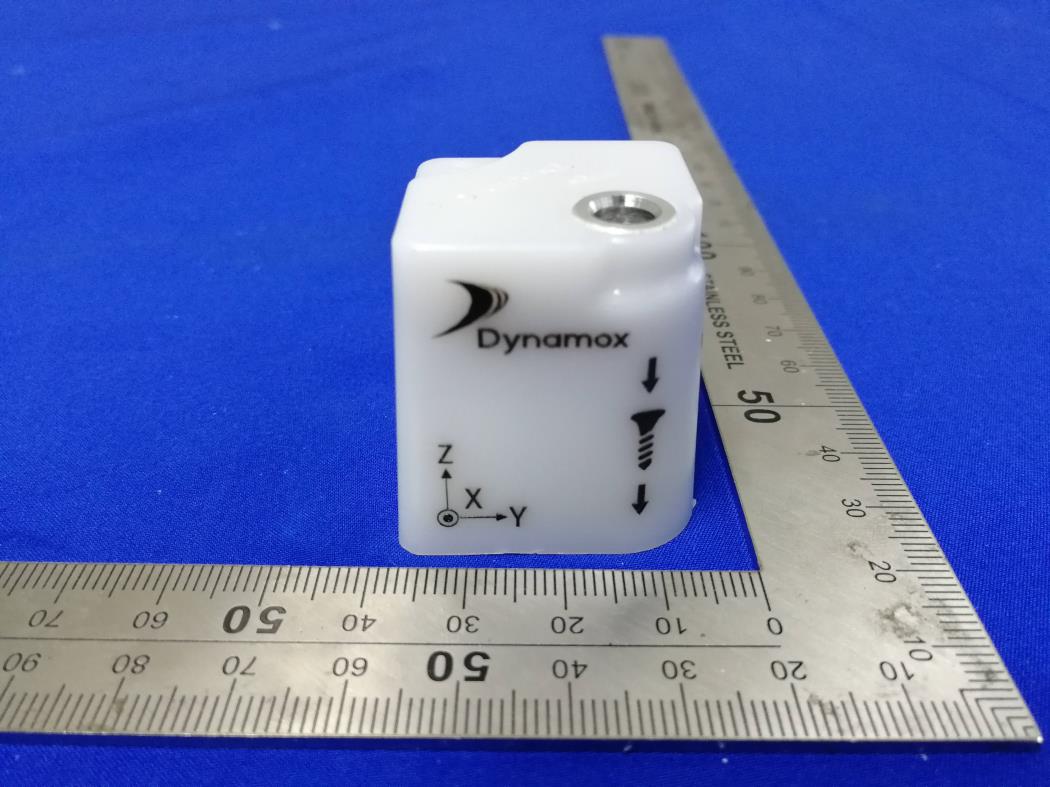

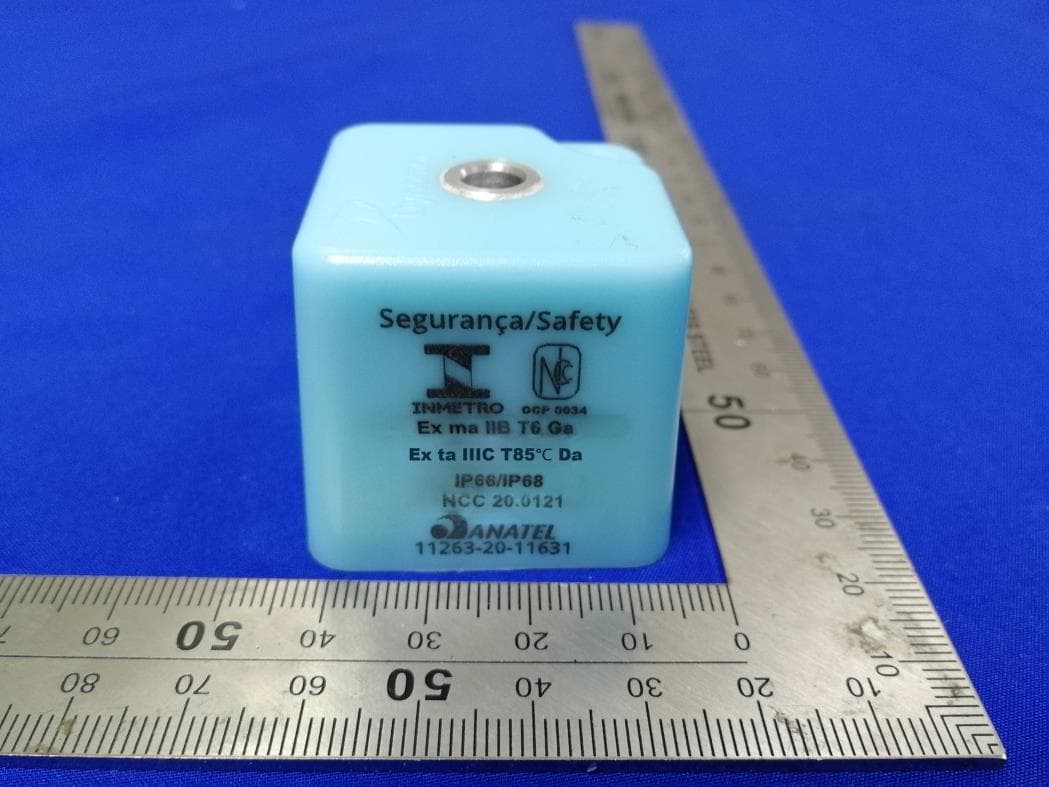

External Photos

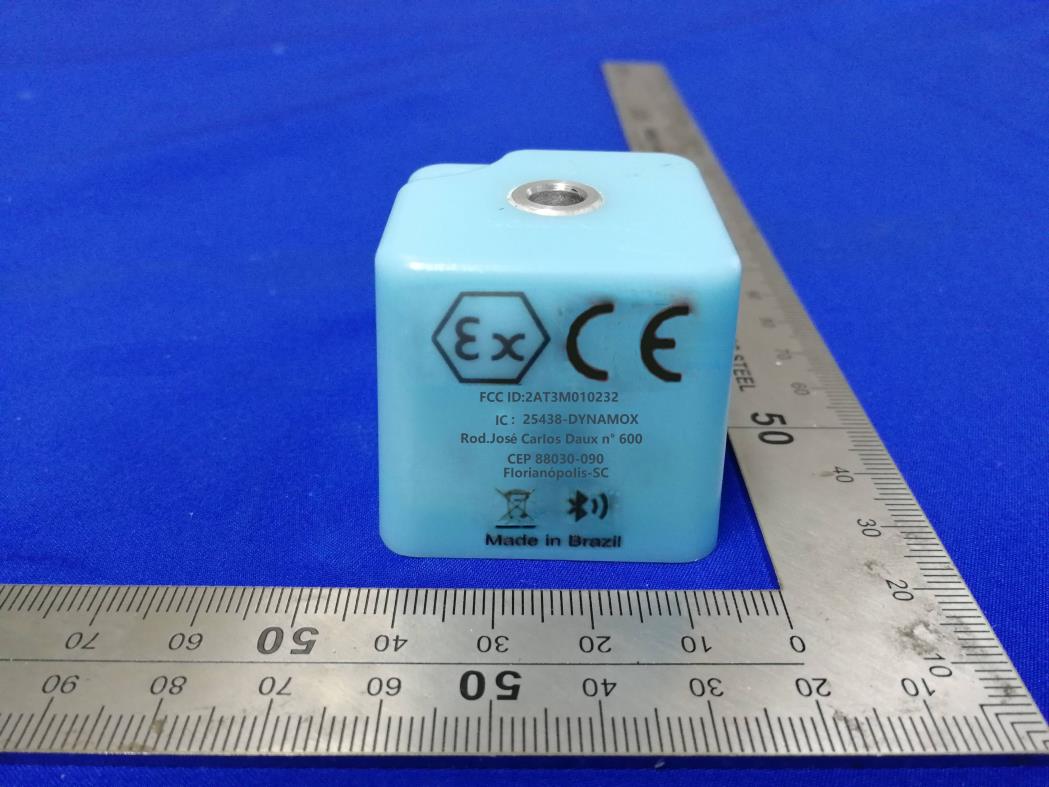

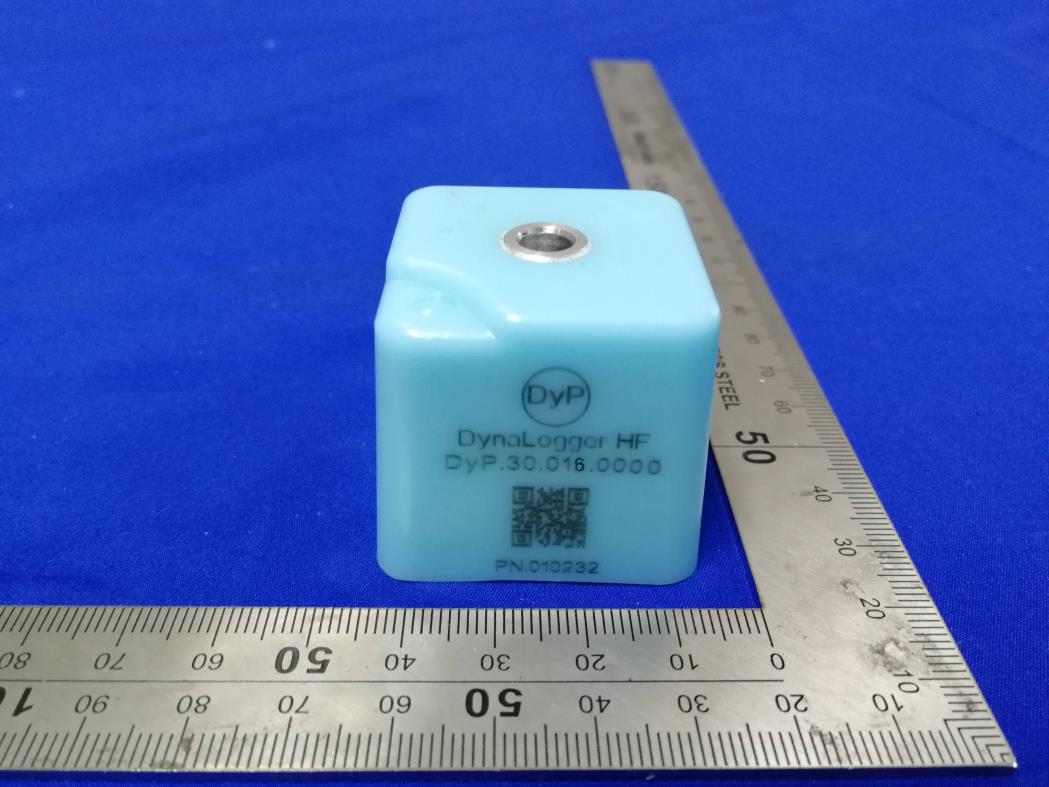

ID Label/Location Info
