2AT72-UFO3LEDPersonal handheld facial massager

FOREO UFO™ 3 LED DEEP HYDRATION FACIAL DEVICE With Near-Infrared LED [insert image] ------------------------------------------------------------------------------------------------------------------ -------- FULL USER MANUAL GETTING STARTED Congratulations on taking the first step toward out-of-this-world skincare by acquiring UFO™ 3 LED. Before you begin to enjoy all the benefits of sophisticated spa technology in the comfort of your home, please take a few moments to carefully read the instructions in this manual. Please READ ALL INSTRUCTIONS BEFORE USE and utilize this product only for its intended use as described in this manual. WARNING: NO MODIFICATION OF THIS EQUIPMENT IS ALLOWED. ------------------------------------------------------------------------------------------------------------------ -------- UFO™ 3 LED OVERVIEW Deeply hydrates with a heated mask, while treating signs of aging on the skin with concentrated NIR+red LED light therapy - for an instantly radiant, healthy-looking complexion. Clinically proven to increase skin moisture levels by 126% in just 2 mins. ------------------------------------------------------------------------------------------------------------------ -------- GETTING TO KNOW YOUR UFO™ 3 LED [insert diagram of device front, back, and mask - then a picture of app] FEATURES FULL-SPECTRUM LED LIGHT Helps skin look visibly rejuvenated for a naturally refined complexion T-SONIC™ PULSATIONS Gentle pulsations deliver a soothing facial massage to boost skin’s radiance. ULTRA-HYGIENIC SILICONE Bacteria-resistant and super soft. NIR + RED LED LIGHT Improves signs of aging while gently warming to soften skin, so mask ingredients can infuse into the deepest layers. ATTACHMENT RING Secures UFO™ Activated Mask in place. UNIVERSAL BUTTON Turns device on / off, puts device in Bluetooth pairing mode & allows you to switch between different treatments. CHARGING PORT Up to 60 mins of use per full charge. [insert diagrams along bottom] UFO™ ACTIVATED MASKS Luxuriously soft masks exclusively formulated for use with UFO™ devices. FOREO APP Allows you to access pre-set guided mask treatments, and more settings. USB CHARGING CABLE Charge anytime, anywhere with USB cable. SLEEK & STYLISH STAND Protects and displays your UFO™ 3 LED, while helping it to dry quickly. ------------------------------------------------------------------------------------------------------------------ -------- UNLOCK YOUR DEVICE Before first use, download the FOREO For You mobile app to unlock and register your device. Follow these simple steps; 1. Download the FOREO For You app on your mobile phone. 2. Log in to your account or sign up for a new one. 3. Add device (on the top of your screen). 4. Choose device series. 5. Press and hold the universal button to connect your device to the mobile app. 6. Secure mask on device by clipping the attachment ring in place, with FOREO logo facing up. 7. Fill in the purchase information. And your device is ready to use! HOW TO USE: [ layout should be similar to final version of UFO 2 online manual here] UFO™ ACTIVATED MASKS [ how to use section images****] Image 1: Remove the attachment ring from UFO™ 3 LED. Image 2: Remove UFO™ Activated Mask from the sachet. Image 3: Secure mask on device by clipping the attachment ring in place, with FOREO logo facing up. Image 4: Enjoy your deep facial hydration treatment! Start with clean, dry skin. We recommend cleansing with LUNA™ first for best results. 1. Turn on UFO™ 3 LED by pressing the universal button. Press the universal button again to access your preferred treatment. [Insert an image of instructions from slide 7 of UFO 3 Product Announcement PPT, on the side of this how to use section. Please adjust to UFO 3 LED so that 1 time (press) triggers NIR & RED LED + HEAT + T-SONIC™ ] 2. With a mask secured to your device, gently glide UFO™ 3 LED across your skin, distributing the mask essence evenly. 3. Using the UFO™ 3 LED device, massage the formula into your skin with a circular motion. Move the device in a clockwise circle around the face, starting on the chin, then moving up to the right cheek and the forehead. Continue down the left cheek to the chin and neck. Repeat this movement until the treatment ends. 4. Gently pat any remaining essence into your skin. We recommend following with FOREO SUPERCHARGED™ moisturizer. * For the eye mask, gently glide around the entire eye contour, alternating between the left and right eye until the treatment ends. ------------------------------------------------------------------------------------------------------------------ -------- FOREO SHEET MASKS 1. Gently unfold your FOREO sheet mask and place it on your face, adjusting around the eyes and mouth. 2. Using the UFO™ 3 LED device, massage the formula into your skin with a circular motion. Move the device in a clockwise circle around the face, starting on the chin, then moving up to the right cheek and the forehead. Continue down the left cheek to the chin. Repeat this movement until the treatment ends. 3. Leave the FOREO sheet mask on for another 10 minutes, or dispose of it as you prefer. Gently pat any remaining essence into your skin. We recommend following with FOREO SUPERCHARGED™ moisturizer. ------------------------------------------------------------------------------------------------------------------ -------- FOREO FOR YOU MOBILE APP [ app section images****] FOREO For You mobile app offers instructions on how to use and take care of your UFO™ 3 LED, control settings, access guided treatments, and find your device in case you’ve misplaced it. TREATMENTS Choose between 14 pre-programmed mask treatments that correspond with each UFO mask. Treatments last for 90 seconds or 2 minutes, depending on the mask you choose. All you need to do is relax and enjoy while the App guides you through the treatment explaining the benefits of each technology. If one UFO™ 3 LED treatment wasn’t enough, press the universal button aga…

Text truncated - open the document above for the full version.

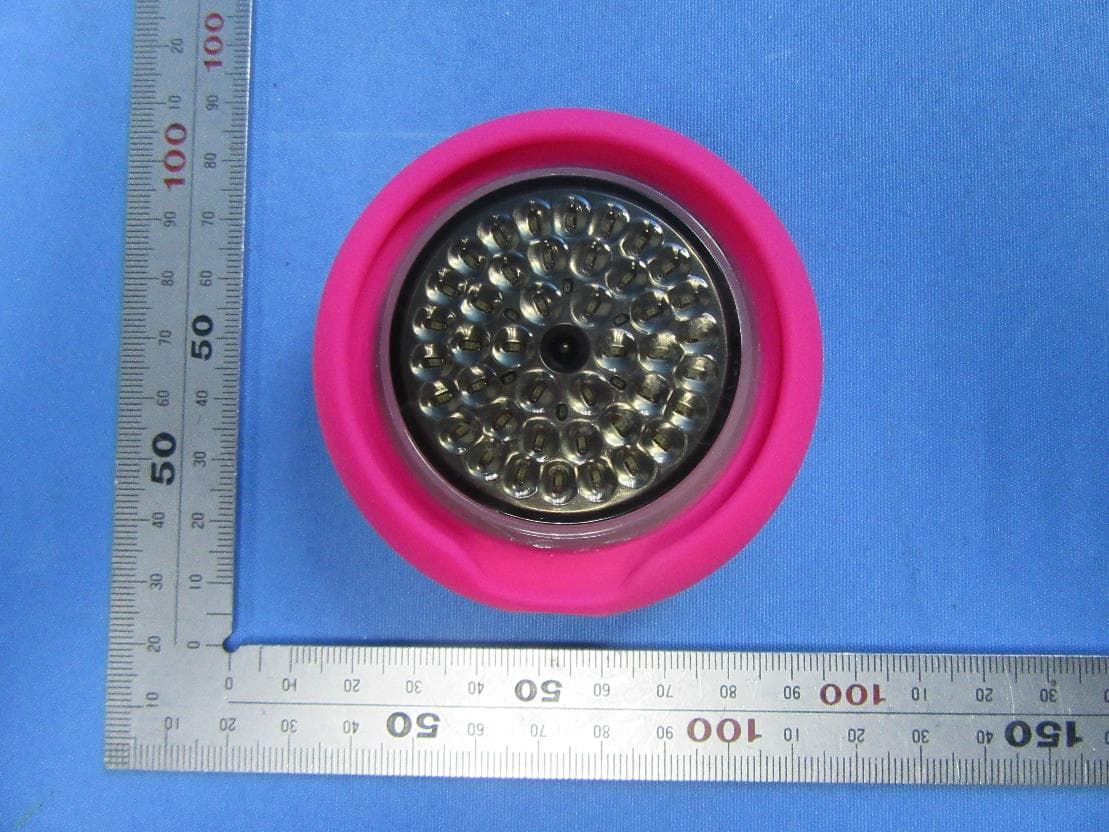

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 4 External Photos for SHCR2304000729HS SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 4 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 4 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 4

Remark: It' s hard to put FCC statement on the product due to device' s irregular appearance. FCC statement will be placed in the user manual which the device is marketed. TM

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 4 Internal Photos for SHCR2304000729HS SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 4 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 4 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 4

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230400072902 Page: 1 of 10 Parlam Zhan Laboratory Manager 1 Cover Page RF Exposure Evaluation Report Application No.: SHCR2304000729HS FCC ID: 2AT72-UFO3LED IC: 25565-UFO3LED Applicant: VIS (Shanghai) Technology Limited Address of Applicant: No.58 Linsheng Road,Tinglin Town,Jinshan District, Shanghai, China Manufacturer: FOREO AB Address of Manufacturer: KARLAVÄGEN 41, 114 31 STOCKHOLM, SWEDEN Factory: VIS (Shanghai) Technology Limited Address of Factory: No.58 Linsheng Road,Tinglin Town,Jinshan District, Shanghai, China Equipment Under Test (EUT): EUT Name: Personal handheld facial massager Model No.: UFO™ 3 LED Trade Mark: FOREO Standard(s) : FCC Rules 47 CFR §2.1093 KDB 447498 D04 interim General RF Exposure Guidance v01 RSS-102 Issue 5 Amendment 1 (February 2, 2021) Date of Receipt: 2023-04-11 Date of Test: 2023-04-14 to 2023-04-20 Date of Issue: 2023-04-21 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230400072902 Page: 2 of 10 Revision Record Version Description Date Remark 00 Original 2023-04-21 / Authorized for issue by: Bill Wu / Project Engineer Parlam Zhan /Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230400072902 Page: 3 of 10 2 Contents Page 1 COVER PAGE .............................................................................................................................. 1 2 CONTENTS .................................................................................................................................. 3 3 GENERAL INFORMATION ........................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T. ............................................................................................ 4 3.2 DETAILS OF E.U.T. .................................................................................................................. 4 3.3 SEPARATION DISTANCE............................................................................................................ 4 3.4 TEST LOCATION ...................................................................................................................... 5 3.5 TEST FACILITY ........................................................................................................................ 5 4 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS ........................................................ 6 4.1 BLANKET 1 MW BLANKET EXEMPTION........................................................................................ 6 4.2 MPE-BASED EXEMPTION.......................................................................................................... 6 4.3 SAR-BASED EXEMPTION .......................................................................................................... 7 5 IC RADIOFREQUENCY RADIATION EXPOSURE LIMITS ........................................................... 9 6 MEASUREMENT AND CALCULATION ...................................................................................... 10 6.1 MAXIMUM TRANSMIT POWER ................................................................................................... 10 6.2 RF EXPOSURE CALCULATION ................................................................................................. 10 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230400072902 Page: 4 of 10 3 General Information 3.1 General Description of E.U.T. Power supply: DC 3.7V 520mAh Rechargeable battery S/N: 5rtg4kKg4NrBSH Firmware Version: UFO3led F.REV.A Product Type: Portable device Mobile device Fixed device 3.2 Details of E.U.T. Operation Frequency: 2402MHz to 2480MHz Bluetooth Version: 4.2 LE Modulation Type: GFSK Number of Channels: 40 Channel Spacing: 2MHz Antenna Type: PCB Antenna Antenna Gain: 0dBi (Provided by manufacturer) 3.3 Separation Distance Separation distance between the antenna to person (R): ＜5mm Remark: This minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230400072902 Page: 5 of 10 3.4 Test Location All tests were performed at: SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. E&E Lab 588 West Jindu Road, Xinqiao, Songjiang, 201612 Shanghai, China. Tel: +86 21 6191 5666 Fax: +86 21 6191 5678 No tests were sub-contracted. Note: 1. SGS is not responsible for wrong test results due to incorrect information (e.g. max. clock frequency, highest internal frequency, antenna gain, cable loss, etc ) is provided by the applicant. (if applicable). 2. SGS is not responsible for the authenticity, integrity and the validity of the conclusion based on results of the data provided by applicant. (if applicable). 3.5 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 6332.01) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. is accredited by the American Association for Laboratory Accreditation(A2LA). • FCC (Designation Number: CN1301) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. has been recognized as an accredited testing laboratory. • ISED (CAB Identifier: CN0020) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. EMC Laboratory has been recognized by Innovation, Science and Economic Development Canada (ISED) as an accredited testing laboratory. Company Number: 8617A • VCCI (Member No.: 3061) The 3m Semi-anechoic chamber and Shielded Room of SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. has been registered…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230400072901 Page: 1 of 55 Parlam Zhan Laboratory Manager TEST REPORT Application No.: SHCR2304000729HS FCC ID: 2AT72-UFO3LED IC: 25565-UFO3LED Applicant: VIS (Shanghai) Technology Limited Address of Applicant: No.58 Linsheng Road,Tinglin Town,Jinshan District, Shanghai, China Manufacturer: FOREO AB Address of Manufacturer: KARLAVÄGEN 41, 114 31 STOCKHOLM, SWEDEN Factory: VIS (Shanghai) Technology Limited Address of Factory: No.58 Linsheng Road,Tinglin Town,Jinshan District, Shanghai, China Equipment Under Test (EUT): EUT Name: Personal handheld facial massager Model No.: UFO™ 3 LED Trade Mark: FOREO Standard(s) : 47 CFR Part 15, Subpart C 15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5 April 2018 Amendment 2 Date of Receipt: 2023-04-11 Date of Test: 2023-04-14 to 2023-04-20 Date of Issue: 2023-04-21 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230400072901 Page: 2 of 55 Revision Record Version Description Date Remark 00 Original 2023-04-21 / Authorized for issue by: Bill Wu/Project Engineer Parlam Zhan/Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230400072901 Page: 3 of 55 2 Test Summary Radio Spectrum Technical Requirement Item FCC Requirement IC Requirement Method Result Antenna Requirement 47 CFR Part 15, Subpart C 15.203 & 15.247(c) RSS-Gen Clause 6.8 N/A Customer Declaration N/A: Not applicable Radio Spectrum Matter Part Item FCC Requirement IC Requirement Method Result Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247a(2) RSS-247 Clause 5.2(a) ANSI C63.10 (2013) Section 11.8.1 Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247(b)(3) RSS-247 Clause 5.4(d) ANSI C63.10 (2013) Section 11.9.1 Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247(e) RSS-247 Clause 5.2(b) ANSI C63.10 (2013) Section 11.10.2 Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247(d) RSS-247 Clause 5.5 ANSI C63.10 (2013) Section 11.13.3.2 Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247(d) RSS-247 Clause 5.5 ANSI C63.10 (2013) Section 11.11 Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.209 & 15.247(d) RSS-247 Section 3.3 & RSS-Gen Section 8.9 ANSI C63.10 (2013) Section 6.10.5 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.209 & 15.247(d) RSS-247 Section 3.3 & RSS-Gen Section 8.9 ANSI C63.10 (2013) Section 6.4,6.5,6.6 Pass 99% Bandwidth - RSS-Gen Section 6.7 ANSI C63.10 Section 6.9.3 Pass SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230400072901 Page: 4 of 55 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................. 3 3 CONTENTS ......................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................. 6 4.1 DETAILS OF E.U.T. ......................................................................................................................... 6 4.2 DESCRIPTION OF SUPPORT UNITS .................................................................................................... 6 4.3 POWER LEVEL SETTING USING IN TEST: ............................................................................................. 6 4.4 MEASUREMENT UNCERTAINTY & DECISION RULE............................................................................... 7 4.5 TEST LOCATION ............................................................................................................................. 7 4.6 TEST FACILITY ............................................................................................................................... 8 4.7 DEVIATION FROM STANDARDS ......................................................................................................... 8 4.8 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................. 8 5 EQUIPMENT LIST ............................................................................................................................... 9 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................10 6.1 ANTENNA REQUIREMENT ................................................................................................................10 6.1.1 Test Requirement: ..................................................................................................................10 6.1.2 Conclusion ..............................................................................................................................10 7 RADIO SPECTRUM MATTER TEST RESULTS .................................................................................11 7.1 CONDUCTED PEAK OUTPUT POWER ................................................................................................11 7.1.1 E.U.T. Operation .....................................................................................................................11 7.1.2 Test Mode Description ............................................................................................................11 7.1.3 Test Setup Diagram ................................................................................................................11 7.1.4 Measurement Procedure and Data .........................................................................................12 7.2 MINIMUM 6DB BANDWID…

Text truncated - open the document above for the full version.

Specification Description Operation Frequency : BLE:2402-2480MHz Output power: 3mW Radio Channels Description: 40 channels Antenna Gain: 0 dBi Antenna Type: PCB Antenna Brand: N/A Antenna Model No.: N/A Antenna Connect Type: wiring Polarization: Linear, Vertical Antenna Manufacturer: VIS (SHANGHAI) TECHNOLOGY LIMITED Manufacturer Address: No.58 Linsheng Road,Tinglin Town,Jinshan District,Shanghai,China Power Supply: DC 3.7 V from battery Antenn a Size(Dimension) or Photo: 2.Radiation Pattern Page: 3 of 4 Radiation pattern: Antenna 1. XZ Plane at f = 2.400GHz 0 4513 5 180 22 5 270 31 5 Radiation pattern: Antenna 1. XY Plane at f = 2.450GHz 0 4513 5 180 22 5 270 31 5 1 -1 -2 -3 -3 -2 -1 1 1 -1 -2 -3 -3 -2 -1 1 Page: 4 of 4 Radiation pattern: Antenna 1. XZ Plane at f = 2.500GHz 0 4513 5 180 22 5 270 31 5 Freq. [MHz] Gain[ dBi]Beam PeakBeam Null Value Phi Theta Value Phi Theta 2400 2450 2500 0 -0.2 -0.05 \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ 1 -1 -2 - 3 -3 -2 -1 1

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 3 Appendix Photographs of Test Setup for SHCR2304000729HS Test Model No.: UFO™ 3 LED SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 3 Test Setup Photo RF Conducted Radiated Spurious Emissions Below 1GHz SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 3 Radiated Spurious Emissions Above 1GHz The EUT Details of Zoom
