2ATCK-TMSS6C4TPMS SENSOR

1 OPERATION MANUAL OF TPMS SENSOR MODEL: TMSS6C4 Thank you for choosing our TPMS. This guide instructs the technician how to properly mount and dismount a Baolong Huf TPMS snap-in sensor. Introduction of TMSS6C4 TMSS6C4 is the transmitting module in TPMS. Its working frequency is 433.92MHz; Receiver Low frequency：125KHz; -15dBm≥transmitting power@3m. supply: Battery; Radio frequency uses the FSK modulation and Machester encoding mode; Antenna type: Monopole antenna, antenna Gain:-3.7dB~-3.4dB; cable loss：3.12dB.The communication mode between WARDKS and receiving module is RF wireless communication. The module detects pressure and temperature inner the tire periodically and sends these information via RF output circuit to the receiving module. One can manually detect data inner tire by LF wake-up tools. Install it on the rim together with cycle valve. PART ONE MOUNTING AND DISMOUNTING OF TRANSMITTER 1. Mounting of Transmitter 1.1 Identify Transmitter Check whether the prepared sensor is the same with the image below. Note: Only plastic or aluminum caps, aluminum valves and nickel plated valve cores can be used when replaced. ①Self-lock Screw ②Electronal Module 2 1.2 Before the transmitter is installed, the rim around the hole must be cleaned with a cloth. 1.3 Remove the Self-lock Screw ① , insert the valve stem through the rim hole from inside. 1.4 Place the Self-lock Screw ① on the valve stem, and tighten with 5 Nm (44 inch pounds) torque. 1.5 Lock the rim on the tyre changer. (If the mounting head of the tyre changer is positioned at 12 o’clock, then the valve should be at the 7 o’clock position.) Apply lubricant on both the tyre bead and rim. Mount the lower tyre bead on the rim. Ensure that the tyre bead does not touch the electronic module during mounting. 1.6 Mount the upper tyre bead the same way. (If the mounting head of the tyre changer is positioned at 12 o’clock, then the valve should be at the 5 o’clock position.) Inflate the tyre to nominal pressure. 1.7 Apply soapsuds on the valve tip. If no leakage is found, put on the valve cap○ 6 . If unsuccessful, try again. Inside the tyre Outside the tyre 3 1.8 Dynamically balance the wheel before it is placed back on the vehicle. 2. Dismounting of Transmitter 2.1 Deflate the tyre and remove the wheel weights from the rim. Push the tyre bead away from the rim. Make sure to always set the bead breaker at least 90 degrees from the valve stem to avoid damaging the electronic module. 2.2 Firmly fix the wheel on the turntable clamps. (If the mounting head of the tyre changer is positioned at 12 o’clock, then the valves stem should be at the 11 o’clock position.) Apply lubricant to both tyre bead and rim, and then remove the upper tyre bead. 2.3 Use the same procedure to dismount the lower tyre bead. (If the mounting head of the tyre changer is at the 12 o’clock position, then the valves stem should also be at the 12 o’clock position.) 2.4 Final inspection: Visually inspect the rim, valve stem and electronic module to ensure no damage has occurred. 4 PART TWO FCC’s Authentication Announcements Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. PART THREE IC’s Authentication Announcements CAN ICES-3(B)/NMB-3(B) PART FOUR WARRANTY This warranty covers substantial manufacturer’s defects in workmanship and materials. It does not cover any unit that is damaged beyond normal use, not properly installed, subject to chemical contact, or other acts not sanctioned by the Owner’s Manual. All components are covered for one year following the date of purchase. If the warranty period specified in local law exceeds the period provided by Baolong Huf, the former will supersede the latter. The warranty will be honored by any authorized Baolong Huf dealer. The owner is required to provide date of proof of purchase. The authorized dealer will determine if there is a warranty condition associated with materials and/or manufacturing workmanship. If a warranty condition exists, the component will be replaced free of charge and shipping 5 prepaid. The owner is responsible for any labor and installation charges. The warranty does not include any further obligation whatsoever, including but not limited to actual installation of the replacement unit on the customer’s vehicle. All other Warranties, expressed or implied, are disclaimed. All collateral agreements, which purport to modify this limited warranty, are of no effect. The absolute limit of liability is the purchase price of the unit. This equipment complies with FCC radiation exposure lim…

Text truncated - open the document above for the full version.

FRN: 0028481653

Applicant Declaration QSF27-14-04 Rev 1.1 Jan 17, 2024 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Baolong Huf Shanghai Electronics Co., Ltd. Address 1st Floor, Building 5, 5500 Shenzhuan Rd, Songjiang, Shanghai China FRN 0028481653 Grantee Code 2ATCK FCC ID 2ATCK-TMSS6C4 Authorized Contact Name Howard Shi Contact Email [email protected] Contact Phone +86-21-31273333 Extension:6549 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1)labeling the equipment with the exact FCC ID as specified in this application, (2)compliance statement labeling pursuant to the applicable rules, (3)compliance of the equipment with the applicable technical rules, c)if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1)the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2)the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3)the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List Baolong Huf Shanghai Electronics Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Baolong Huf Shanghai Electronics Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Applicant Signature: Date: 2024/03/12 Print Name: Howard Shi Title: General manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Baolong Huf Shanghai Electronics Co., Ltd. Date: 2024/3/12 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2ATCK-TMSS6C4 To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Baolong Huf Shanghai Electronics Co., Ltd. This authorization is valid until further written notice from the applicant. Name (Printed): Howard Shi Title: General manager Signature: On behalf of Company: Baolong Huf Shanghai Electronics Co., Ltd. Telephone: +86-21-31273333 Extension: 6549

Baolong Huf Shanghai Electronics Co., Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Company Name: Baolong Huf Shanghai Electronics Co., Ltd. Address: 1st Floor, Building 5, 5500 Shenzhuan Rd, Songjiang, Shanghai China Regarding: Confidentiality Request regarding application for FCC ID: 2ATCK-TMSS6C4 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code): Howard Shi Title: General manager Company Name: Baolong Huf Shanghai Electronics Co., Ltd.

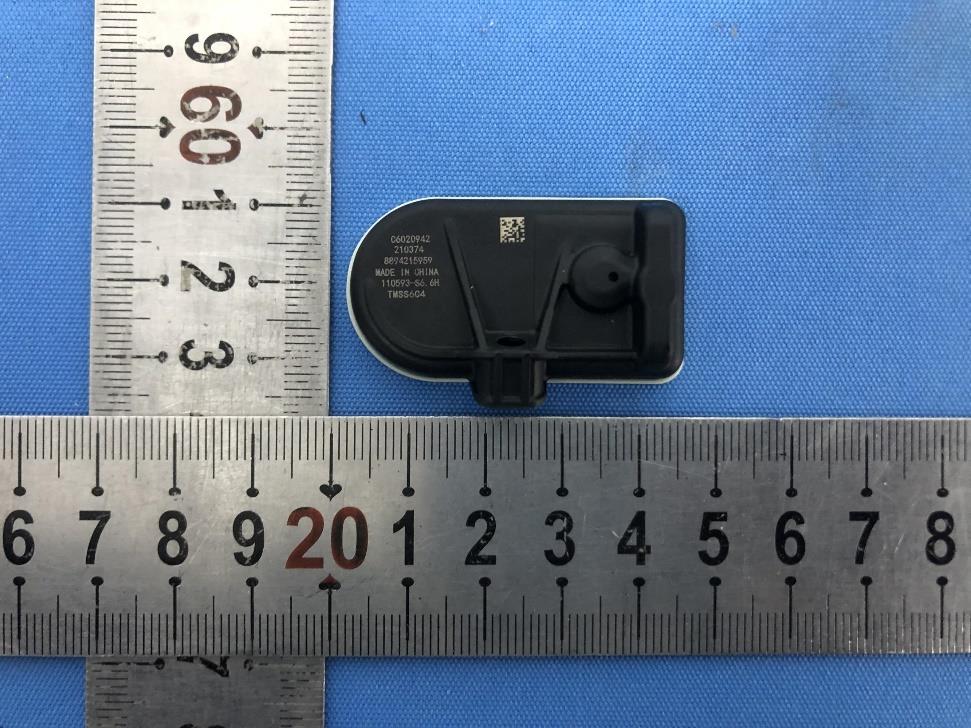

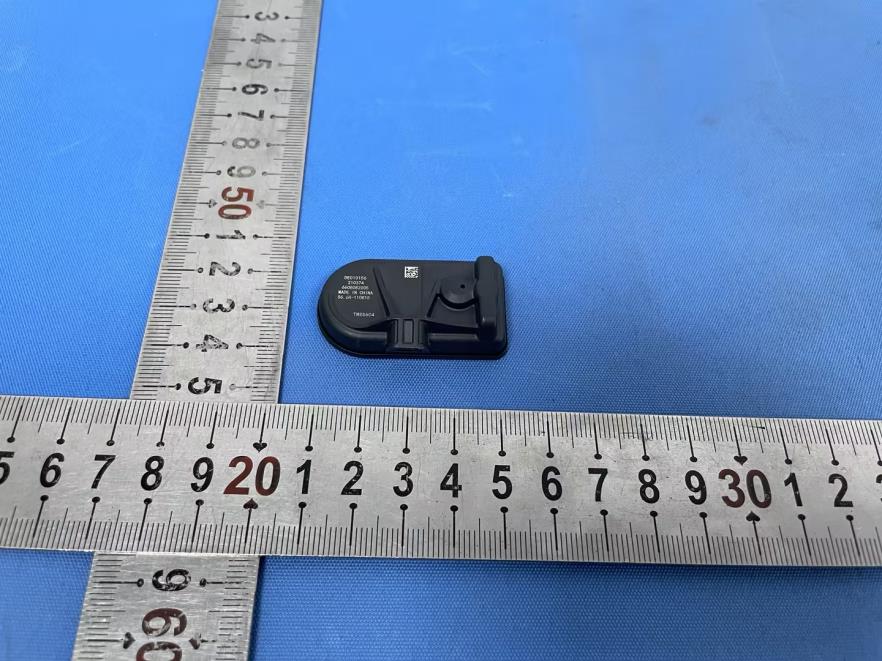

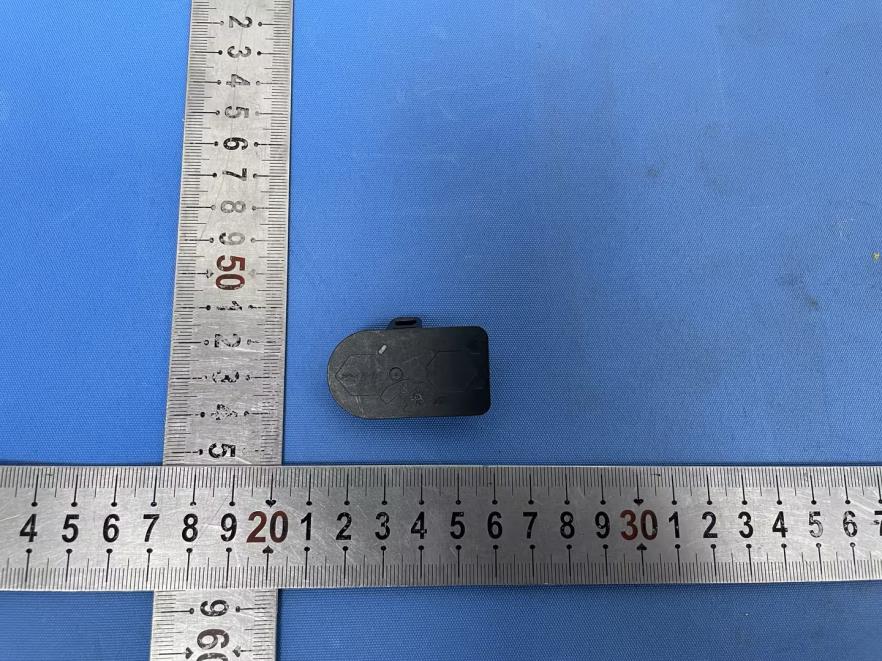

Compliance Certification Services (Kunshan) Inc. Page: 1 of 7 External Photos for KSCR2402000226AT Test Model No.: TMSS6C4 Compliance Certification Services (Kunshan) Inc. Page: 2 of 7 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 7 Compliance Certification Services (Kunshan) Inc. Page: 4 of 7 Compliance Certification Services (Kunshan) Inc. Page: 5 of 7 Compliance Certification Services (Kunshan) Inc. Page: 6 of 7 Compliance Certification Services (Kunshan) Inc. Page: 7 of 7
