2ATCK-TMSS6D4TPMS SENSOR

1 OPERATION MANUAL OF TPMS SENSOR MODEL: TMSS6D4 Thank you for choosing our TPMS. This guide instructs the technician how to properly mount and dismount a Baolong Huf TPMS snap-in sensor. Introduction of TMSS6D4 TMSS6D4 is the transmitting module in TPMS. Its working frequency is 433.92MHz; Receiver Low frequency：125KHz; supply:Battery;Radio frequency uses the FSK modulation and Machester encoding mode;Antenna type:Monopole antenna,antenna Gain:-3.7dB~-3.4dB;cable loss：3.12dB.The communication mode between WARDKS and receiving module is RF wireless communication. The module detects pressure and temperature inner the tire periodically and sends these information via RF output circuit to the receiving module. One can manually detect data inner tire by LF wake-up tools. Install it on the rim together with cycle valve. PART ONE MOUNTING AND DISMOUNTING OF TRANSMITTER 1. Mounting of Transmitter 1.1 Identify Transmitter Check whether the prepared sensor is the same with the image below. Note: Only plastic or aluminum caps, aluminum valves and nickel plated valve cores can be used when replaced. ①Self-lock Screw ②Electronal Module 2 1.2 Before the transmitter is installed, the rim around the hole must be cleaned with a cloth. 1.3 Remove the Self-lock Screw ① , insert the valve stem through the rim hole from inside. 1.4 Place the Self-lock Screw ① on the valve stem, and tighten with 5 Nm (44 inch pounds) torque. 1.5 Lock the rim on the tyre changer. (If the mounting head of the tyre changer is positioned at 12 o’clock, then the valve should be at the 7 o’clock position.) Apply lubricant on both the tyre bead and rim. Mount the lower tyre bead on the rim. Ensure that the tyre bead does not touch the electronic module during mounting. 1.6 Mount the upper tyre bead the same way. (If the mounting head of the tyre changer is positioned at 12 o’clock, then the valve should be at the 5 o’clock position.) Inflate the tyre to nominal pressure. 1.7 Apply soapsuds on the valve tip. If no leakage is found, put on the valve cap○ 6 . If unsuccessful, try again. Inside the tyre Outside the tyre 3 1.8 Dynamically balance the wheel before it is placed back on the vehicle. 2. Dismounting of Transmitter 2.1 Deflate the tyre and remove the wheel weights from the rim. Push the tyre bead away from the rim. Make sure to always set the bead breaker at least 90 degrees from the valve stem to avoid damaging the electronic module. 2.2 Firmly fix the wheel on the turntable clamps. (If the mounting head of the tyre changer is positioned at 12 o’clock, then the valves stem should be at the 11 o’clock position.) Apply lubricant to both tyre bead and rim, and then remove the upper tyre bead. 2.3 Use the same procedure to dismount the lower tyre bead. (If the mounting head of the tyre changer is at the 12 o’clock position, then the valves stem should also be at the 12 o’clock position.) 2.4 Final inspection: Visually inspect the rim, valve stem and electronic module to ensure no damage has occurred. 4 PART TWO FCC’s Authentication Announcements Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. PART THREE IC’s Authentication Announcements CAN ICES-3(B)/NMB-3(B) PART FOUR WARRANTY This warranty covers substantial manufacturer’s defects in workmanship and materials. It does not cover any unit that is damaged beyond normal use, not properly installed, subject to chemical contact, or other acts not sanctioned by the Owner’s Manual. All components are covered for one year following the date of purchase. If the warranty period specified in local law exceeds the period provided by Baolong Huf, the former will supersede the latter. The warranty will be honored by any authorized Baolong Huf dealer. The owner is required to provide date of proof of purchase. The authorized dealer will determine if there is a warranty condition associated with materials and/or manufacturing workmanship. If a warranty condition exists, the component will be replaced free of charge and shipping 5 prepaid. The owner is responsible for any labor and installation charges. The warranty does not include any further obligation whatsoever, including but not limited to actual installation of the replacement unit on the customer’s vehicle. All other Warranties, expressed or implied, are disclaimed. All collateral agreements, which purport to modify this limited warranty, are of no effect. The absolute limit of liability is the purchase price of the unit. EU Conformity Statement This product and - if applicable - the supplied accessories too are…

Text truncated - open the document above for the full version.

Applicant Declaration QSF27-14-04 Rev 1.0 Rev. Feb 6, 2023 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Baolong Huf Shanghai Electronics Co., Ltd. Address 1st Floor, Building 5, 5500 Shenzhuan Rd, Songjiang, Shanghai China Grantee Code 2ATCK FCC ID 2ATCK-TMSS6D4 Authorized Contact Name Howard Shi Contact Email [email protected] Contact Phone +86-21-31273333 Extension:6549 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1)labeling the equipment with the exact FCC ID as specified in this application, (2)compliance statement labeling pursuant to the applicable rules, (3)compliance of the equipment with the applicable technical rules, c)if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1)the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2)the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3)the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List Baolong Huf Shanghai Electronics Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Baolong Huf Shanghai Electronics Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Applicant Signature: Date:2023-11-01 Print Name: Howard Shi Title: General manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Baolong Huf Shanghai Electronics Co., Ltd. Date: 2023/11/01 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2ATCK-TMSS6D4 To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Baolong Huf Shanghai Electronics Co., Ltd. This authorization is valid until further written notice from the applicant. Name (Printed): Howard Shi Title: General manager Signature: On behalf of Company: Baolong Huf Shanghai Electronics Co., Ltd. Telephone:+86-21-312733336549 Extension: 6549

Baolong Huf Shanghai Electronics Co., Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Company Name：Baolong Huf Shanghai Electronics Co., Ltd. Address 1st Floor, Building 5, 5500 Shenzhuan Rd, Songjiang, Shanghai China Regarding: Confidentiality Request regarding application for FCC ID: 2ATCK-TMSS6D4 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code): Howard Shi Title: General manager Company Name：Baolong Huf Shanghai Electronics Co., Ltd.

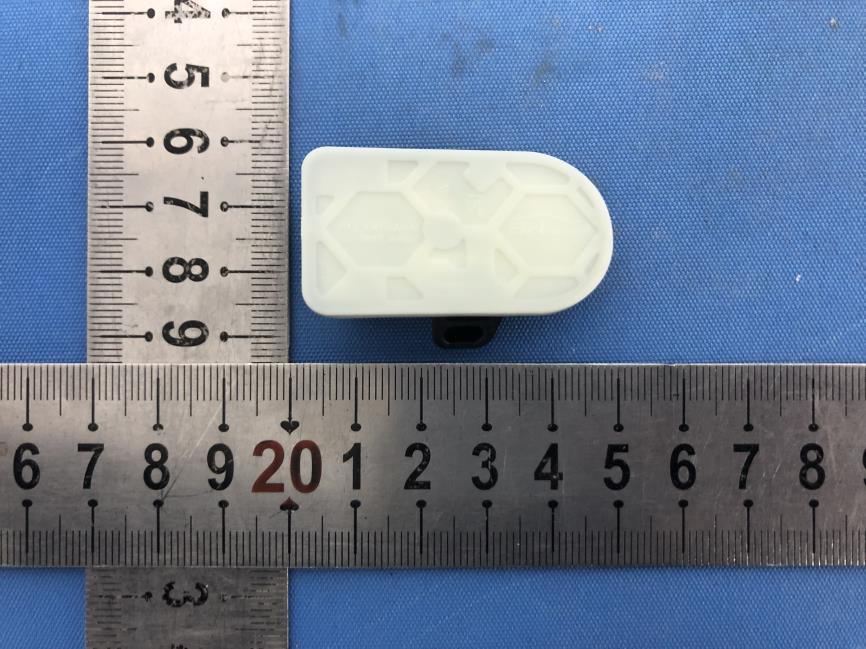

Compliance Certification Services (Kunshan) Inc. Page: 1 of 4 External Photos for KSCR2309001586AT Test Model No.: TMSS6D4 Compliance Certification Services (Kunshan) Inc. Page: 2 of 4 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 4 Compliance Certification Services (Kunshan) Inc. Page: 4 of 4

Compliance Certification Services (Kunshan) Inc. Page: 1 of 3 Internal Photos for KSCR2309001586AT Test Model No.: TMSS6D4 Compliance Certification Services (Kunshan) Inc. Page: 2 of 3 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 3

Compliance Certification Services (Kunshan) Inc. Report No.: KSCR230900158603 Page: 1 of 9 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. Member of the SGS Group (SGS SA) 1 Cover Page RF Exposure Evaluation Report Application No.: KSCR2309001586AT FCC ID: 2ATCK-TMSS6D4 Applicant: Baolong Huf Shanghai Electronics Co., Ltd. Address of Applicant: 1st Floor, Building 5, 5500 Shenzhuan Rd, Songjiang, Shanghai Manufacturer: Baolong Huf Shanghai Electronics Co., Ltd. Address of Manufacturer: 1st Floor, Building 5, 5500 Shenzhuan Rd, Songjiang, Shanghai Factory: Baolong Huf Shanghai Electronics Co., Ltd. Address of Factory: 1st Floor, Building 5, 5500 Shenzhuan Rd, Songjiang, Shanghai Equipment Under Test (EUT): EUT Name: TPMS SENSOR Model No.: TMSS6D4 Trade Mark: BH SENS Standard(s) : FCC Rules 47 CFR §2.1091 KDB 447498 D04 interim General RF Exposure Guidance v01 Date of Receipt: 2023-09-11 Date of Test: 2023-10-12 to 2023-10-12 Date of Issue: 2023-10-17 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Compliance Certification Services (Kunshan) Inc. Report No.: KSCR230900158603 Page: 2 of 9 Revision Record Version Description Date Remark 00 Original 2023-10-17 / Authorized for issue by: Damon_Zhou/Project Engineer Terry Hou /Reviewer Compliance Certification Services (Kunshan) Inc. Report No.: KSCR230900158603 Page: 3 of 9 2 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 CONTENTS ............................................................................................................................................... 3 3 GENERAL INFORMATION ..................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T. ..................................................................................................... 4 3.2 DETAILS OF E.U.T. ............................................................................................................................. 4 3.3 TEST LOCATION.................................................................................................................................. 5 3.4 TEST FACILITY .................................................................................................................................... 5 4 TEST STANDARDS AND LIMITS .......................................................................................................... 6 5 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS ............................................................. 6 5.1 BLANKET 1 MW BLANKET EXEMPTION ..................................................................................................... 6 5.2 MPE-BASED EXEMPTION ......................................................................................................................... 6 5.3 SAR-BASED EXEMPTION .......................................................................................................................... 7 6 MEASUREMENT AND CALCULATION ................................................................................................ 9 6.1 MAXIMUM TRANSMIT POWER ............................................................................................................... 9 6.2 RF EXPOSURE CALCULATION ................................................................................................................... 9 Compliance Certification Services (Kunshan) Inc. Report No.: KSCR230900158603 Page: 4 of 9 3 General Information 3.1 General Description of E.U.T. Power supply: DC 3V by Battey Battery Model: CR2032HT Output:DC 3V 3.2 Details of E.U.T. Operation Frequency 433.92MHz Channel Numbers: 1 Modulation Type: FSK Antenna Type: Monopole antenna Test Voltage: DC 3V Software version: V1.1 Firmware version: V02 Serial Number: F0010999 Compliance Certification Services (Kunshan) Inc. Report No.: KSCR230900158603 Page: 5 of 9 3.3 Test Location All tests were performed at: Compliance Certification Services (Kunshan) Inc. No.10 Weiye Rd, Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China. Tel: +86 512 5735 5888 Fax: +86 512 5737 0818 No tests were sub-contracted. Note: 1.SGS is not responsible for wrong test results due to incorrect information (e.g. max. clock frequency, highest internal frequency, antenna gain, cable loss, etc ) is provided by the applicant. (if applicable). 2.SGS is not responsible for the authenticity, integrity and the validity of the conclusion based on results of the data provided by applicant. (if applicable). 3. Sample source: sent by customer. 3.4 Test Facility The t…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. CCSEM-TRF-001 Rev. 02 Sep 01, 2023 Report No.: KSCR230900158601 Page: 1 of 27 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. Member of the SGS Group (SGS SA) TEST REPORT Application No.: KSCR2309001586AT FCC ID: 2ATCK-TMSS6D4 IC: 25126-TMSS6D4 Applicant: Baolong Huf Shanghai Electronics Co., Ltd. Address of Applicant: 1st Floor, Building 5, 5500 Shenzhuan Rd, Songjiang, Shanghai Manufacturer: Baolong Huf Shanghai Electronics Co., Ltd. Address of Manufacturer: 1st Floor, Building 5, 5500 Shenzhuan Rd, Songjiang, Shanghai Factory: Baolong Huf Shanghai Electronics Co., Ltd. Address of Factory: 1st Floor, Building 5, 5500 Shenzhuan Rd, Songjiang, Shanghai Equipment Under Test (EUT): EUT Name: TPMS SENSOR Model No.: TMSS6D4 Trade Mark: BH SENS Standard(s) : 47 CFR Part 15, Subpart C 15.231 RSS-210 issue 10 Amendment 1 RSS-Gen Issue5 Amendment 2 (February 2021) Date of Receipt: 2023-09-11 Date of Test: 2023-10-12 to 2023-10-12 Date of Issue: 2023-10-17 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Compliance Certification Services (Kunshan) Inc. CCSEM-TRF-001 Rev. 02 Sep 01, 2023 Report No.: KSCR230900158601 Page: 2 of 27 Revision Record Version Description Date Remark 00 Original 2023-10-17 / Authorized for issue by: Tested By Damon_Zhou/Project Engineer Approved By Terry Hou /Reviewer Compliance Certification Services (Kunshan) Inc. CCSEM-TRF-001 Rev. 02 Sep 01, 2023 Report No.: KSCR230900158601 Page: 3 of 27 2 Test Summary Radio Spectrum Technical Requirement Item FCC Requirement IC Requirement Method Result Antenna Requirement 47 CFR Part 15, Subpart C 15.203 RSS-Gen Section 8.1.3 N/A Pass N/A: Not applicable Radio Spectrum Matter Part Item FCC Requirement IC Requirement Method Result 20dB Bandwidth 47 CFR Part 15, Subpart C 15.231(c) RSS-210 A1.3 ANSI C63.10 (2020) Section 6.9 Pass Dwell Time (15.231(e)) 47 CFR Part 15, Subpart C 15.231(e) RSS-210 A1.4. ANSI C63.10 (2020) Section 7.8.4 Pass Field Strength of the Fundamental Signal (15.231(e)) 47 CFR Part 15, Subpart C 15.231(e) RSS-210 A1.4 ANSI C63.10 (2020) Section 6.5 Pass Radiated Emissions below 1GHz 47 CFR Part 15, Subpart C 15.231(e) and 15.209 RSS-210 A1.4 ANSI C63.10 (2020) Section 6.4&6.5&6.6 Pass Radiated Emissions above 1GHz 47 CFR Part 15, Subpart C 15.231(e) and 15.209 RSS-210 A1.4 ANSI C63.10 (2020) Section 6.6 Pass 99% Bandwidth N/A RSS-210 A1.3 RSS-Gen Section 6.7 Pass Frequency Stability N/A RSS-Gen Section 8.11 RSS-Gen Section 6.11 Note 1 Note 1: Frequency stability requested in RSS GEN S8.11 has been complied since the result of occupied bandwidth can demonstrate. Compliance Certification Services (Kunshan) Inc. CCSEM-TRF-001 Rev. 02 Sep 01, 2023 Report No.: KSCR230900158601 Page: 4 of 27 3 Contents Page 1 COVER PAGE ...................................................................................................................................... 1 2 Test Summary ........................................................................................................................................... 3 3 Contents .................................................................................................................................................... 4 4 General Information .................................................................................................................................. 5 4.1 Details of E.U.T. ................................................................................................................................. 5 4.2 Description of Support Units ............................................................................................................... 5 4.3 Measurement Uncertainty ................................................................................................................... 6 4.4 Test Location ...................................................................................................................................... 7 4.5 Test Facility ........................................................................................................................................ 7 4.6 Deviation from Standards ................................................................................................................... 7 4.7 Abnormalities from Standard Conditions ............................................................................................. 7 5 Equipment List .......................................................................................................................................... 8 6 Radio Spectrum Technical Requirement .............................................................................…

Text truncated - open the document above for the full version.

Justification statement for Antenna To: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2ATCK-TMSS6D4 Dear Sir/Madam, Only radiated measurements are used for EUT with FCC ID: 2ATCK-TMSS6D4 to show compliance with FCC limits for fundamental and spurious emissions. All measurements were performed radiated and therefore additional antenna gain documentation is not required. The detailed information for antenna as below shows: Design Specifications Typical Antenna Type monopole antenna Working Frequency 433.92MHz Overall Dimensions As below

Compliance Certification Services (Kunshan) Inc. Page: 1 of 2 Appendix Photographs of Test Setup for KSCR2309001586AT Test Model No.: TMSS6D4 Compliance Certification Services (Kunshan) Inc. Page: 2 of 2 Test Setup Photo Radiated Emissions below 1GHz Radiated Emissions above 1GHz
