2ATEO-DT520remote dog training collar

2. With your dog standing in front of you, place the collar-receiv- er around its neck so the receiver box and probes are on the underside of your dog's neck, making direct contact with the skin. You may need to trim the fur to ensure good contact. (3B) DT520 Pls read this entire manual before using this product. area. If redness or sores are detected, discontinue use until the skin has fully healed Thank you for choosing our product! You and your pet deserve a companionship that includes memorable moments and a shared understanding together. Our mission is to ensure your pet's safety by providing you the tools and techniques to successfully train your pet. Should you have any queries, please contact our customer service. 4. Weak Shock Button: when it is pressed, the collar-receiver will issue the shock. 5. Static Shock Button: when it is pressed, the collar-receiver will issue the strong shock(about 1.1 times than the normal shock). 6. Channel Button: When it is pressed, you can sync the collar-receiver and the .transmitter via different channel (if encoded at the public channel of "A+B", can control the collar-receiver at any of channels). 7. Vibration Level Button: Press and hold the Vibration Level Button B,at the same time, rotating the Level Regulator A of the remote to set the Vibration level of correction you wish to administer. 8. Static Level Button: Press and hold the Static Level Button C, at the same time, rotating the Level Regulator A of the remote to set the Static Shock level of correction you wish to administer. 9. Digital Color Display: Display the channel,intensity and battery fuel Gauge. 10. Type-c Charging Port: For the remote transmitter charging. 1.Contact Points: Deliver vibration and static shock. 3.LED Breathing Light ON/OFF Button: Switch on/off linear breath light. 4.Magnetic Charging Port: For collar-receiver charging. 5.Conductive Silicone Jacket: Avoid the injury to the dogs skin because of the friction of metal contact point. 1. Connect the charger connector to the charging hole 5V-Output charger only. 2. Plug the charger into a standard outlet. 3. If the red indicator of the transmitter light on, it indicates that the transmitter is being charged. 4. Charge the transmitter at least 3 hours for first charge or until indication that charging is complete. 5. When charging is complete,the red light will turn green, Also the Battery Capacity Indicator will not flash any more. 1. Press any button to turn on the transmitter. 2.Adjust the vibration/static intensity you need 3. Channel button indicates either channel A, channel B or channel A+B on the transmitter. Select one channel for use with one collar-receiver, if encoded at the public channel of "A+B", you can control the collar-receiver 4. If no operation is performed within 60 seconds, the remote transmitter will go into STANDY MODE; If not operated for five minutes, the remote transmitter will go into sleep mode. It can be activated by pressing any function button or the channel button. 1. Connect the charger connector to the charging port (5V-Output charger only). 2. Plug the charger into a standard outlet. 3. The red LED light in the collar-receiver will turn on. (A) 4. Charge the collar-receiver for at least 3 hours for the first charge or until indication that charging is complete. 5. After the receiver has been fully charged, the LED light will turn green. (B) 1. Press any button on the transmitter to activate it. 2. Select channel AB or A+B. 3. Power off the Receiver Collar by press the ON/OFF button on collar, (a beep power on, two beeps power off). 4. Press ON/OFF button afresh and hold it for 3 seconds, and then the LED light will start to flash green quickly for 10 seconds. 5. Now you can hear the first beep from the collar-receiver and then press any of the command button(tone ,shock or vibration) of the transmitter before the green light on the receiver stop flashing quickly. 6. When battery capacity " "Indicator is empty, please charge it asap. 6.Linear LED indicator: 2.ON/OFF/Encde Button: 3. Vibration Button: When the vibration key is pressed, the neckline receiver will vibrate. 2. Static Shock Lock Switch: you can lock/unlock the Static Shock function to avoid the accidentally shock. Important Safety Information WARNING: NOTE: Please charge before using the product. NOT FOR AGGRESSIVE DOGS: Do not use this product if your dog is aggressive, or if your dog is prone to aggressive behavior, aggressive dogs can cause severe injury and even death to their owner and others. If you are unsure whether this product is appropriate for your dog, please consult your veterinarian or certified trainer. Risk of skin damage: Please read and follow the instructions carefully in this guide, proper fit of the collars is important because a loose collar may cause inconsistent performance. A collar worn for too long or made too tight on the pet's neck may cause skin damage, ranging from redness to pressure ulcers (commonly known as bedsores). These collars can cause pressure necrosis if used incorrectly and is often misidentified as burns. These steps will help your pet safe and comfortable. Millions of pets are comfortable while wearing stainless steel contacts. Some pets are sensitive to contact pressure. You may find after some time that your pet is very tolerant of the collar. If so you may relax some of these precautions, it is important to continue daily checks of the contact Note: If wanting to test the shock function on yourself, please ensure your finger or hand is across both contact points to ensure the connection is complete. Otherwise, user will feel no stimulation. Avoid leaving the collar on the dog for more than 12 hours per day. When possible reposition the collar on the pet's neck every 1 to 2 hours. When charging, the LED flash red, will turn green when full charged. Check the metal probes for tightness on a weekly basis. Rinse the metal probes with alcohol on a weekly basis. (NB: Please tu…

Text truncated - open the document above for the full version.

Dongguan Dogreat Electronic Technology Co., Ltd Room 201, Building 3, Chongji Industrial Park, No.121 Fusheng Road, Dalang Town, Dongguan, Guangdong, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/08/31 U.S. Agent Designation Dongguan Dogreat Electronic Technology Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2ATEO-DT520): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Dongguan Dogreat Electronic Technology Co., Ltd Dongguan Dogreat Electronic Technology Co., Ltd with the FRN [0028497477] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Xianjiang Xiong Manager Dongguan Dogreat Electronic Technology Co., Ltd Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Xianjiang Xiong/Manager Company: Dongguan Dogreat Electronic Technology Co., Ltd Address: Room 201, Building 3, Chongji Industrial Park, No. 121 Fusheng Road, Dalang Town, Dongguan, Guangdong Phone: 13129517604 Fax: 0796-62236602 E-Mail: [email protected]

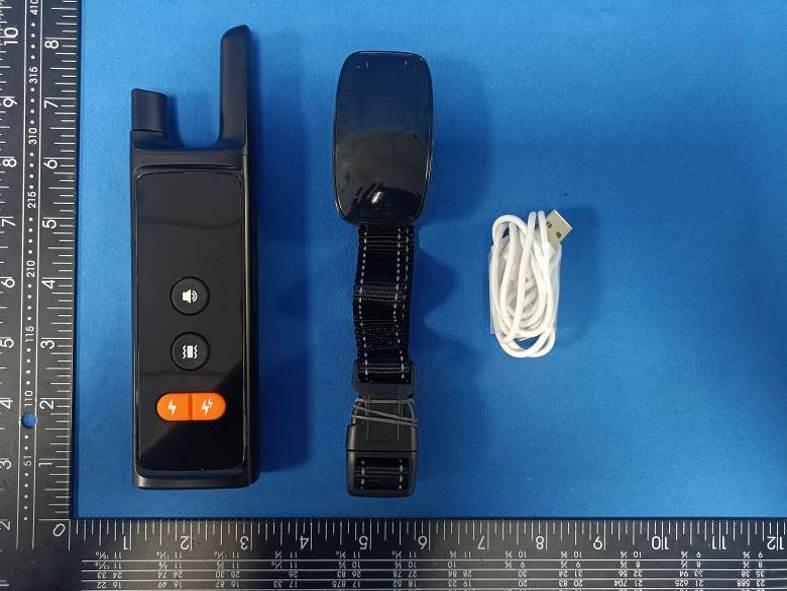

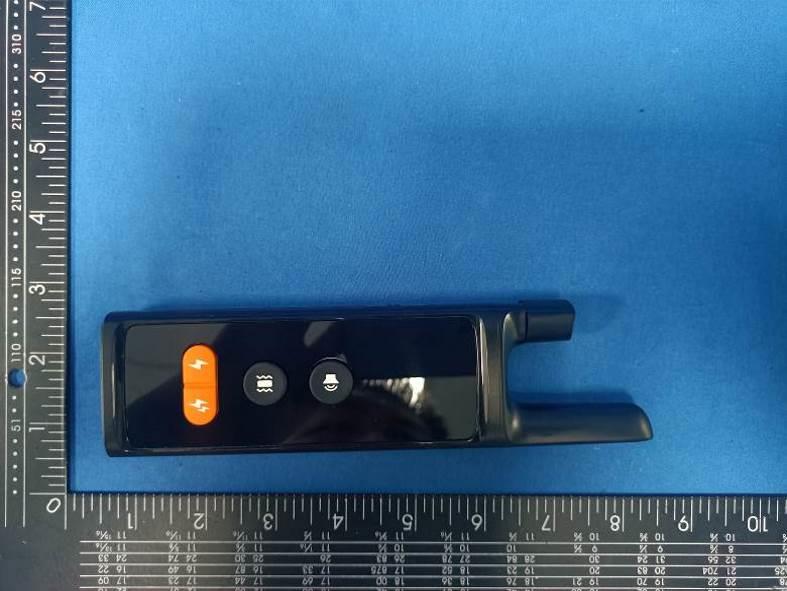

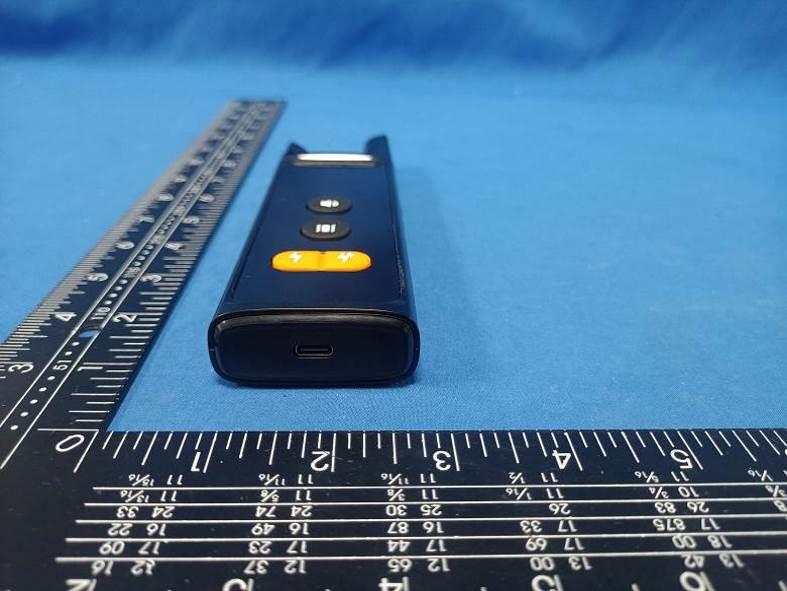

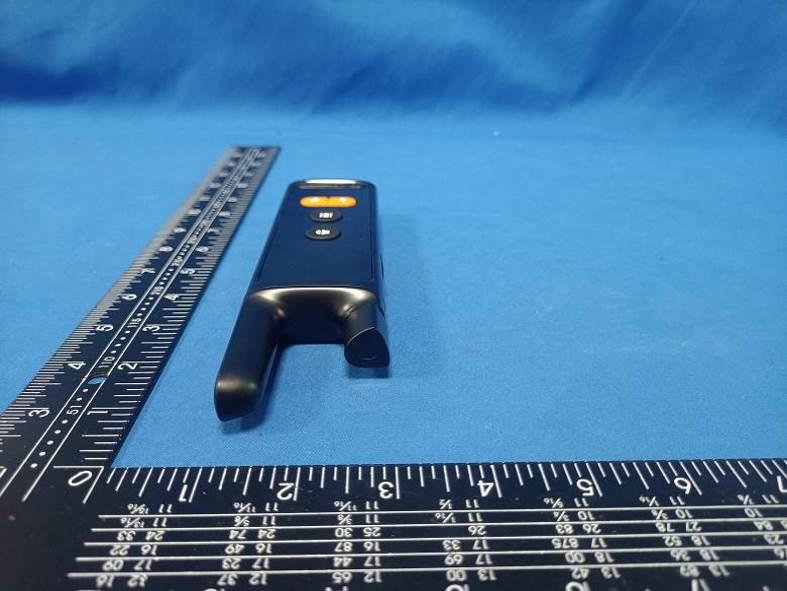

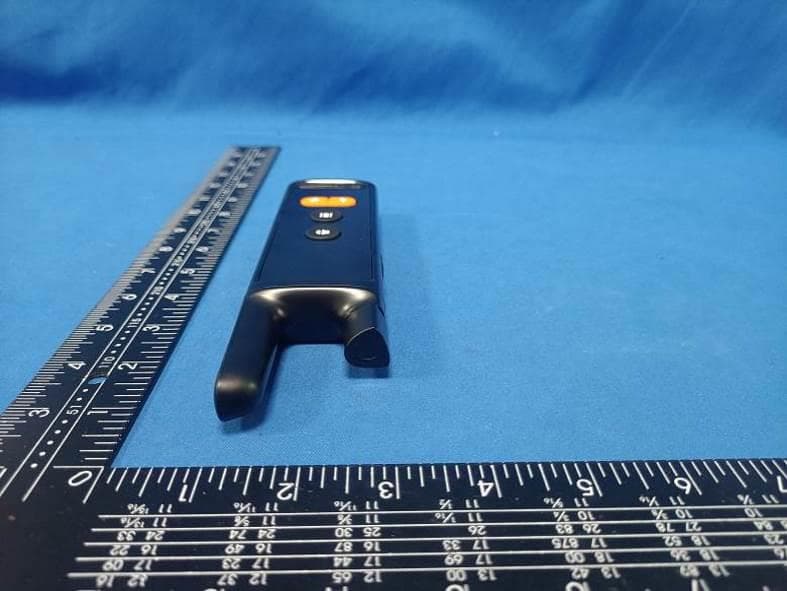

FCC ID: 2ATEO-DT520 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2ATEO-DT520 Photo 4 Photo 5 Photo 6 FCC ID: 2ATEO-DT520 Photo 7

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location Model No.: DT520 FCC ID : 2ATEO-DT520

FCC ID: 2ATEO-DT520 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 Spring Antenna FCC ID: 2ATEO-DT520 Photo 4 Photo 5 Photo 6 FCC ID: 2ATEO-DT520 Photo 7 Photo 8

RF Exposure evaluation FCC ID: 2ATEO-DT520 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance Freq. (MHz) Field strength(max)(dBuV/m) EIRP (max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] 433.92MHz 74.75 -20.51 -20.0±1 -19.0 Note: EIRP=E-104.8+20logD, D=3 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW SRD 0.433 5 -19.0 0.0126 0.0017<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type Spring antenna Model DT520 Frequency range 433.92MHz Manufacturer Dongguan Dogreat Electronic Technology Co., Ltd Gain 0.00 dBi 2. Antenna Photo: Length: 32.29mm diameter: 5.55mm

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.231 Report Reference No. ..................... : FCC ID. ............................................ : CTA23081600701 2ATEO-DT520 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Aug. 21, 2023 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Dongguan Dogreat Electronic Technology Co., Ltd Address ............................................ : Room 201, Building 3, Chongji Industrial Park, No.121 Fusheng Road, Dalang Town, Dongguan, Guangdong, China Test specification ...........................: Standard ........................................... : FCC Part 15.231 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: remote dog training collar Trade Mark ....................................... : N/A Manufacturer .................................... : Dongguan Dogreat Electronic Technology Co., Ltd Model/Type reference....................... : DT520 Listed Models .................................. : DT510, DT530, DT540, DT740, DT750, DT760, AT868, AT888, AT908 Modulation ....................................... : FSK Frequency .......................................... 433.92MHz Ratings ............................................. : DC 3.7V From Battery and DC 5.0V From external circuit Result................................................ : PASS Report No.: CTA23081600701 Page 2 of 24 T E S T R E P O R T Equipment under Test : remote dog training collar Model /Type : DT520 Listed Models : DT510, DT530, DT540, DT740, DT750, DT760, AT868, AT888, AT908 Applicant : Dongguan Dogreat Electronic Technology Co., Ltd Address : Room 201, Building 3, Chongji Industrial Park, No.121 Fusheng Road, Dalang Town, Dongguan, Guangdong, China Manufacturer : Dongguan Dogreat Electronic Technology Co., Ltd Address : Room 201, Building 3, Chongji Industrial Park, No.121 Fusheng Road, Dalang Town, Dongguan, Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23081600701 Page 3 of 24 Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 Block Diagram of Test Setup 5 2.6 Special Accessories 5 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 20dB Bandwidth 16 4.4 Deactivation Time 17 4.5 Antenna Requirement 18 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 19 6 P H O T O S O F T H E E U T ........................................................... 20 Report No.: CTA23081600701 Page 4 of 24 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.231:Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. ANSI C63.10:2013 : American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA23081600701 Page 5 of 24 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Aug. 14, 2023 Testing commenced on : Aug. 14, 2023 Testing concluded on : Aug. 21, 2023 2.2 Product Description Product Name: remote dog training collar Model/Type reference: DT520 Power supply: DC 3.7V from battery and DC 5.0V From external circuit Adapter information (Auxiliary test supplied by test Lab） : Model: EP-TA20CBC Input: AC 100-240V 50/60Hz Output: DC 5V 2A Testing sample ID： CTA230816007-1# (Engineer sample), CTA230816007-2#(Normal sample) SRD: Modulation: FSK Operation frequency: 433.92MHz Channel number: 1 Antenna type: Spring antenna Antenna gain: 0.00 dBi 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 3.7V From Battery and DC 5.0V From external circuit 2.4 Short description of the Equipment under Test (EUT) This is a remote dog training collar. For more details, refer to the user’s manual of the EUT. 2.5 Block Diagram of Test Setup 2.6 Special Accessories Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: EUT DC 5.0V From adapter Report No.: CTA23081600701 Page 6 of 24 Description…
