2ATEV-BL3420-PBT Module

World’sLeadingSmartHomeSolutionProvider BL3420-PBTModuleDatasheet ModuleFeatures MCU:32-bit,OTP:16KB GPIO:15pins,PWM:8channels OperatingVoltage:1.8V~3.6V  RFFeatures: FrequencyRange:2.400GHz~2.480GHz DataRate:1Mbps  Modulation:GFSK  OutputPower:8dBm±2dBm  ReceiverSensitivity:-95±2dBm@1M  On-boardPCBAntenna  Peripherals: 15xGPIO 8xPWM 4xADC 1xUART OperatingTemperature:-10°Cto+105°C Package:Half-holesurfacemount,supportsSMTplacement ModuleDimensions:(13.3±0.2)mm*(21±0.2)mm*(3.4±10%)mm(with shield) Applications IntelligentTransportation  SmartHome/Appliances Instrumentation Healthcare IndustrialAutomation SmartSecurity SmartEnergy ModuleModel:BL3420-P ModelAntennaNote BL3420-PBuilt-in World’sLeadingSmartHomeSolutionProvider TableofContents 1.ProductOverview.................................................................................................................................3 2.ElectricalParameters...........................................................................................................................3 2.1PowerConsumptionParameters.............................................................................................3 2.2OperatingEnvironment...............................................................................................................3 3.RFParameters........................................................................................................................................4 3.1BasicRFParameters......................................................................................................................4 4.BasicInformationofBL3420-P........................................................................................................5 4.1PinLayout.........................................................................................................................................5 4.2PinDefinitions.................................................................................................................................5 4.3MechanicalDimensions..............................................................................................................7 4.5UsageInstructions.........................................................................................................................7 VersionHistory...........................................................................................................................................8 CopyrightNotice.......................................................................................................................................8 ContactUs..............................................................................................................................................9 World’sLeadingSmartHomeSolutionProvider 1.ProductOverview TheBL3420-PisaBLEmodulelaunchedbyBroadLink,featuringa32-bitMCUwith15 GPIOs,8PWMchannels,and4ADCinterface,utilizingastampholeinterface,and poweredbya3.3Vsinglepowersupply.ThemoduleintegratesanRFtransceiver,MAC, andbasebandprocessing,supportingdatapass-throughandcanformself-organizing networksbasedonBLE.Itiswidelyapplicableinsmarthomedevices,medical instruments,andmore. 2.ElectricalParameters 2.1PowerConsumptionParameters PowerconsumptionparametersaredetailedinTable1. Table1:BL3420-PPowerConsumptionParameters SpecificationsMin.Typ.Max.Units VDD1.83.33.6V VIL(inputlowvoltage)VSS-0.3VDDV VIH(inputhighvoltage)0.7VDD-V VOL(outputlowvoltage)--0.5V VOH(outputhighvoltage)2.5--V RPU(pull-upresistor)-69-KΩ RPD(pull-downresistor)---KΩ Io(outputcurrent)-10-mA Receivingmode@1M-12-mA Sleepcurrent-2-uA *Note:Actualfirmwaretestingresultsmayvary. 2.2OperatingEnvironment OperatingenvironmentparametersaredetailedinTable2. Table2:BL3420-POperatingEnvironment SymbolDescriptionMin.Max.Units TsStoragetemperature-40125 °C World’sLeadingSmartHomeSolutionProvider SymbolDescriptionMin.Max.Units TAAmbientoperatingtemperature-10105 °C VddSupplyvoltage1.83.6V VioVoltageonIOpin03.3V 3.RFParameters 3.1BasicRFParameters RFparametersaredetailedinTable3. Table3:BL3420-PRFParameters NormalRFCondition Normal RF Condition ParameterMin.DefaultMax.Units Reference Value FOPFrequencyrange2400-2480MHz2400~2480 SpecificationBLE5.2 TXCharacteristics PRFRFoutputpower-8-dBmNote(1) RXCharacteristics SEN RXSensitivity @PER30.8%1Mbps --95-dBm≤-70 FETFrequencyoffsetrange-250-250KHz- CarrierFrequencyOffset FOFCenterfrequencyoffset-150-150KHz FDFrequencydrift-50-50KHz FDRMaximumdriftrate-20-20KHz20KHz/50us ModulationCharacteristics DeltaF1Avg225-275KHz225~275KHz [email protected]%≥185--KHz≥185 DeltaF2Avg/DeltaF1Avg≥0.8---≥0.8 Note:Theoutputpowerlevelisdeterminedbytherelevantregisterconfigurationinthe software. World’sLeadingSmartHomeSolutionProvider 4.BasicInformationofBL3420-P 4.1PinLayout RefertoFigure1forpinlayout. Figure1:BL3420-PPinLayout 4.2PinDefinitions RefertoTable4forpindefinitions. Table4:BL3420-PPinDefinitionNotes PINFunction1Function2Function3* 1 P9UART_TXTX_LOG 2 P8UART_RXRELAY4 3 P1PWM1KEY3 4 P0PWM0KEY4 5 P7PWM7KEY1 6 P6PWM6DD(backlight) World’sLeadingSmartHomeSolutionProvider Note: 1.(Panel)Function3ismainlyapplicabletothepindefinitionofBroadlinkown single-zero-firepanel; 2.ThedefaultistouseP5_1(i.e.P5),locatedatthePIN21position; 3.ThepinsatPIN2(UART_RX/P8)andPIN15(P8)arethesamepinandcanbeused interchangeably.Onlyonefunctiondefinitioncanbeselectedatbothends. 4.RF_OUTindicatesthattheexternalantennaofthemoduleisinuse.WhenthePCB antennaiscurrentlyinuse,thisportbecomesinvalid. 7 P21ADC7/PWM5ZERO 8 VDD 9 GND 10 NC 11 P20PWM4RELAY1 12 P18PWM2RELAY2 13 P19ADC6/PWM3RELAY3 14 P15ADC4RELAY4 15 P8KEY8 16 NC------ 17 P23PWM7KEY2 18 GND 19 P2PWM2KEY5 20 P4PWM4KEY6 21 P5_1PWM5KEY7 22 NC World’sLeadingSmartHomeSolutionProvider 4.3MechanicalDimensions RefertoFigure2formoduledimensions.Unit:mm. Figure2:BL3420-PModuleDimensions Dimensions:(13.3±0.2)mmx(21±0.2)mmx(3.4±10%)mm(withshield) 4.5UsageInstructions 1.Ensuretherearenometalsorcomponentswithin30mm…

Text truncated - open the document above for the full version.

HangzhouBroadLinkTechnologyCo.,Ltd. BuildingC,57Jiang'erRoad,Binjiang,HangzhouZhejiang,China Date:2026-07-31 FEDERALCOMMUNICATIONSCOMMISSION AUTHORIZATIONANDEVALUATIONDIVISION 7435OAKLANDMILLSROAD COLUMBIA,MD21046 SUBJECT:FCCApplicationforFCCID:2ATEV-BL3420-P ConfidentialityRequest Towhomitmayconcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,wearerequestingthe Commissiontowithholdthefollowingattachment(s)asconfidentialdocumentsfrompublicdisclosureindefinitely. ☒ BlockDiagram ☐ Tune-UpInformation ☒ OperationalDescription,SBOM ☐ SecurityInformation ☒ Schematics ☐ SoftwareDefinedRadio(SDR)Information ☐ PartsList Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedtothepublic.The publicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovideunjustifiedbenefitstoits competitors. Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulationsinTitle47CFR §2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthatbusinesssensitiveinformation remainsconfidentialuntiltheactualmarketingofnewlyauthorizeddevices,werequestShortTermConfidentiality ofthefollowingattachment(s); ☐ ExternalPhotos ☐ TestSetupPhotos ☐ InternalPhotos ☐ UserManual ☐For45days,pursuanttoPublicNoticeDA04-1705. or ☐For180dayspursuanttoKDB726920D01. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthisapplicationandall accompanyingdocumentationwillnotbemadebeforethedateoftheGrantforthisapplication. Sincerely, Signatory [MengjiaoYan,PM]

ReferenceNo.:WTX26X06173680WPage2of9 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EXHIBIT2-EUTEXTERNALPHOTOGRAPHS EUTView1 EUTView2

ReferenceNo.:WTX26X06173680WPage1of9 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT1-PRODUCTLABELING ProposedFCCIDLabelFormat Specifications:Thelabelshallbesecurelyaffixedtoapermanentlyattachedpartofthedevice,inalocation whereitisvisibleoreasilyaccessibletotheuser,andshallnotbereadilydetachable.Thelabelshallbe sufficientlydurabletoremainfullylegibleandintactonthedeviceinallnormalconditionsofusethroughout thedevice’sexpectedlifetime. ProposedLabelLocationonEUT FCCIDLabel Location

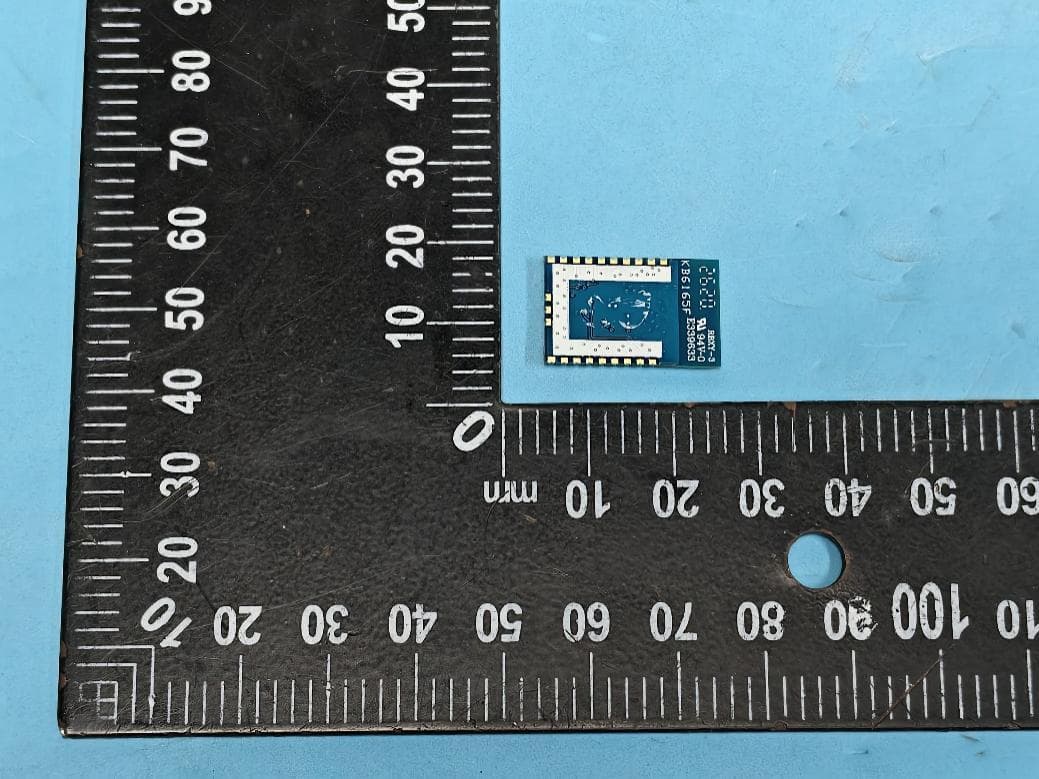

ReferenceNo.:WTX26X06173680WPage3of9 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EXHIBIT3-EUTINTERNALPHOTOGRAPHS Solder Board-Component View1 Solder Board-Component View2 ReferenceNo.:WTX26X06173680WPage4of9 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn Solder Board-Component View3 AntennaView BluetoothAntenna

1.RFExposureRequirements 1.1GeneralInformation ClientInformation Applicant:HangzhouBroadLinkTechnologyCo.,Ltd. Addressofapplicant: BuildingC,57Jiang’erRoad,BinjiangHangzhouZhejiang310052 China Manufacturer:HangzhouBroadLinkTechnologyCo.,Ltd. Addressofmanufacturer: BuildingC,57Jiang’erRoad,BinjiangHangzhouZhejiang310052 China GeneralDescriptionofEUT: ProductName:BTModule TradeName/ ModelNo.:BL3420-P AddingModel(s):/ RatedVoltage:DC3.3V PowerAdapter:/ FCCID:2ATEV-BL3420-P EquipmentType:Mobiledevice TechnicalCharacteristicsofEUT: Bluetooth BluetoothVersion:V5.2(LEmode) FrequencyRange:2402-2480MHz RFOutputPower:7.86dBm(Conducted) DataRate:1Mbps Modulation:GFSK QuantityofChannels:40 ChannelSeparation:2MHz TypeofAntenna:PCBAntenna AntennaGain:-0.02dBi 1.2RFExposureExemption Accordingto§1.1307(b)(3)andKDB447498D04InterimGeneralRFExposureGuidancev01,system operatingundertheprovisionsofthissectionshallbeoperatinginamannerthatthepublicisnotexposedto radiofrequencyenergylevelinexcesslimitformaximumpermissibleexposure. OptionA:FCCRulePart1.1307(b)(3)(i)(A):Theavailablemaximumtime-averagedpowerisnomorethan 1mW,regardlessofseparationdistance. OptionB:FCCRulePart1.1307(b)(3)(i)(B):Theavailablemaximumtime-averagedpoweroreffective radiatedpower(ERP),whicheverisgreater,islessthanorequaltothethresholdP th (mW)describedinthe followingformula.P th isgivenby: OptionC:FCCRulePart1.1307(b)(3)(i)(C):Theminimumseparationdistance(Rinmeters)fromthebodyof anearbypersonforthefrequency(finMHz)atwhichthesourceoperates,theERP(watts)isnomorethanthe calculatedvalueprescribedforthatfrequency.Rmustbeatleastλ/2π,whereλisthefree-spaceoperating wavelengthinmeters. SingleRFSourcesSubjecttoRoutineEnvironmentalEvaluation RFSourcefrequency(MHz)ThresholdERP(watts) 0.3-1.341,920R 2 1.34-303,450R 2 /f 2 30-3003.83R 2 300-1,5000.0128R 2 f 1,500-100,00019.2R 2 ForMultipleRFsources:FCCRulePart1.1307(b)(3)(ii): (A)Theavailablemaximumtime-averagedpowerofeachsourceisnomorethan1mWandthereisa separationdistanceoftwocentimetersbetweenanyportionofaradiatingstructureoperatingandthe nearestportionofanyotherradiatingstructureinthesamedevice,exceptifthesumofmultiplesourcesis lessthan1mWduringthetime-averagingperiod,inwhichcasetheymaybetreatedasasinglesource (separationisnotrequired). (B)InthecaseoffixedRFsourcesoperatinginthesametime-averagingperiod,orofmultiplemobileor portableRFsourceswithinadeviceoperatinginthesametimeaveragingperiod,ifthesumofthe fractionalcontributionstotheapplicablethresholdsislessthanorequalto1asindicatedinthefollowing equation. 1.3CalculatedResult Radio Access Technology Prediction Frequency Output Power Antenna Gain Duty Cycle Tune-Up Time-AveragedPower ERP (MHz)(dBm)(dBi)(%)(dBm)(dBm) Bluetooth 24027.86-0.02 100 8.005.83 Frequency Option Min.DistanceMax.PowerExposureLimit Ratio Result (MHz)(cm)(dBm)(mW)(mW)Pass/Fail 2402C20.005.833.83768.000.01Pass Note:1.Time-AveragedPower=OutputPower*DutyCycle;ERP=Time-AveragedPower+Antenna gain-2.15dB 2.OptionA,BandCrefersasclause1.2. 3.ForoptionB,Max(time-averagedpower,effectiveradiatedpower(ERP))convertstoMax.Power.For optionC,ERPconvertstoMax.Power; 4.ForoptionB,P th (mW)convertstoExposureLimit(mW);ForoptionC,ERP(W)convertstoExposure Limit(mW). 5.Ratio=Tune-UpERP(mW)/ExposureLimit(mW) ModeforSimultaneousMulti-bandTransmission: RadioAccess Technology Ratio1Ratio2 Simultaneous Ratio Limit Result Pass/Fail ------------ Result:Pass

WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 1 of 45 TESTREPORT ReferenceNo.......................:WTX26X06173680W FCCID....................................:2ATEV-BL3420-P Applicant...............................:HangzhouBroadLinkTechnologyCo.,Ltd. Address.................................:BuildingC,57Jiang’erRoad,BinjiangHangzhouZhejiang310052China Manufacturer........................:ThesameasApplicant Address.................................:ThesameasApplicant ProductName......................:BTModule ModelNo...............................:BL3420-P Standards..............................:FCCPart15.247 DateofReceiptsample .....: 2026-06-15 DateofTest...........................:2026-06-18to2026-07-02 DateofIssue ........................: 2026-07-27 TestReportFormNo.......... : WTX_Part15_247W TestResult............................:Pass Remarks: Theresultsshowninthistestreportreferonlytothesample(s)tested,thistestreportcannotbe reproduced,exceptinfull,withoutpriorwrittenpermissionofthecompany.Thereportwouldbeinvalidwithout specificstampoftestinstituteandthesignaturesofapprover. PreparedBy: WaltekTestingGroup(Shenzhen)Co.,Ltd. Address:1/F.,Room101,Building1,HongweiIndustrialPark,Liuxian2ndRoad, Block70Bao'anDistrict,Shenzhen,Guangdong,China Tel.:+86-755-33663308Fax.:+86-755-33663309Email:[email protected] Testedby:Approvedby: TrisLi/ProjectEngineerJasonSu/Manager ReferenceNo.:WTX26X06173680W WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 2 of 45 TABLEOFCONTENTS 1.GENERALINFORMATION.....................................................................................................................................4 1.1PRODUCTDESCRIPTIONFOREQUIPMENTUNDERTEST(EUT)........................................................................4 1.2TESTSTANDARDS.................................................................................................................................................5 1.3TESTMETHODOLOGY...........................................................................................................................................5 1.4TESTFACILITY.......................................................................................................................................................5 1.5EUTSETUPANDTESTMODE..............................................................................................................................6 1.6MEASUREMENTUNCERTAINTY.............................................................................................................................7 1.7TESTEQUIPMENTLISTANDDETAILS..................................................................................................................8 2.SUMMARYOFTESTRESULTS.........................................................................................................................12 3.ANTENNAREQUIREMENT.................................................................................................................................13 3.1STANDARDAPPLICABLE......................................................................................................................................13 3.2EVALUATIONINFORMATION................................................................................................................................13 4.POWERSPECTRALDENSITY...........................................................................................................................14 4.1STANDARDAPPLICABLE......................................................................................................................................14 4.2TESTSETUPBLOCKDIAGRAM...........................................................................................................................14 4.3TESTPROCEDURE..............................................................................................................................................14 4.4SUMMARYOFTESTRESULTS/PLOTS................................................................................................................14 5.DTSBANDWIDTH..................................................................................................................................................15 5.1STANDARDAPPLICABLE......................................................................................................................................15 5.2TESTSETUPBLOCKDIAGRAM...........................................................................................................................15 5.3TESTPROCEDURE..............................................................................................................................................15 5.4SUMMARYOFTESTRESULTS/PLOTS................................................................................................................15 6.RFOUTPUTPOWER............................................................................................................................................16 6.1STANDARDAPPLICABLE......................................................................................................................................16 6.2TESTSETUPBLOCKDIAGRAM...........................................................................................................................16 6.3TESTPROCEDURE..............................................................................................................................................16 6.4SUMMARYOFTESTRESULTS/PLOTS................................................................................................................16 7.FIELDSTRENGTHOFSPURIOUSEMISSIONS.............................................................................................17 7.1STANDARDAPPLICABLE......................................................................................................................................17 7.2TESTPROCEDURE......................................…
