2ATEV-BL5026-PWiFI/BT Module

World's leading smart home solution provider Features 100MHz 32-bit MCU 256KB SRAM / 4MB pSRAM External 2MB FLASH Support AES, MD5 and SHA1 Support XIP Working voltage: DC5.0V Support BLE (BT4.2) Wi-Fi Features Support 802.11 b/g/n standards Support station and softAP SupportSmartConfig and AP configuration Support WEP/WPA2 Support multiple cloud services Integrated balun/PA/LNA TCP/IP stack optimized for IoT application PCB antenna Peripherals: 1x UART Working environmental temperature: 0~ 85 °C Applications  Smart transportation Smart home / appliances Instruments Health care Industrial automation Intelligent security Smart energy Model Model Antenna type Note BL5026-P PCB antenna Default Embedded WiFI/BT Module Version: 1.1 Release date: 6/1/2022 BL5026-P Product Manual BroadLink - 2 - Content 1. Overview ............................................................................................................................ - 3 - 2. Basic Specifications ............................................................................................................ - 3 - 2.1. Power Consumption ................................................................................................... - 3 - 2.2. Working Environment ................................................................................................ - 4 - 3. Radio Specifications ........................................................................................................... - 4 - 3.1. Basic Radio Specification ............................................................................................ - 4 - 3.2. Radio Performance ..................................................................................................... - 5 - 3.2.1. IEEE802.11b ......................................................................................................... - 5 - 3.2.2. IEEE 802.11g ........................................................................................................ - 6 - 3.2.3 IEEE802.11n .................................................................................................... - 7 - 4. BL5026-P Hardware Information ....................................................................................... - 8 - 4.1. PIN Sequence .............................................................................................................. - 8 - 4.2. PIN Definitions ............................................................................................................ - 8 - 4.3 Recommendations ....................................................................................................... - 9 - 4.4. Mechanical Dimensions .............................................................................................. - 9 - 4.5. Connector Dimensions ............................................................................................... - 9 - 4.6 Certifications (To be Added) ...................................................................................... - 10 - 4.7. Label ......................................................................................................................... - 10 - 4.7. Shielding Case Dimensions ....................................................................................... - 10 - 4.8. Packaging .................................................................................................................. - 11 - 5. Reference Design ............................................................................................................. - 12 - 5.1. UART Interface Design .............................................................................................. - 12 - 5.2. Power Supply Requirement ...................................................................................... - 12 - Revision History ................................................................................................................... - 13 - Copyrights ............................................................................................................................ - 14 - Contact Us ........................................................................................................................... - 14 - BroadLink - 3 - 1. Overview BL5026-P is a cost-effective embedded Wi-Fi module designed by BroadLink, highly integrated with 32-bit MCU speed up to 100MHz, 256KBSRAM, 4MB pSRAM and 2MB external flash, with 5V power supply. The module integrates radio transceiver, MAC, baseband, all Wi-Fi protocols, configurations and network stack. It can be widely used in applications like smart home devices, remote monitoring devices and medical care instruments. 2. Basic Specifications 2.1. Power Consumption Please refer to Table 1 for power consumption data. Table 1: BL5026-P Power Consumption Data Specifications Min. Typ. Max. Units VDD 4.5 5 5.5 V VIL(input low voltage) 0.8 V VIH(input high voltage) 4 VDD V VOL(output low voltage) 0.4 V VOH(output high voltage) 4 VDD V Standby (RX) 70 mA pulse current @TX 11b @17dBm 11Mbps 280 mA pulse current @TX 11g @15dBm 54Mbps 260 mA pulse current @TX 255 mA BroadLink -4 - 11n @14.5dBm 65Mbps BLE @6dBm 180 mA 2.2. Working Environment Please refer to Table 2 for working environment data. Table 2: BL3372-P Working Environment Data Symbol Description Min. Max. Units Ts Storage temperature -40125 °C TA Ambient operating temperature 0 85 °C Vdd Supply voltage 4.5 5.5 V Vio Voltage on IO pin 0 5.5 V 3.Radio Specifications 3.1. Basic Radio Specification Please refer to Table 3 for radio specification. Table 3: BL5026-P Radio Specification Radio range 2.412GHz - 2.462GHz Wireless standards IEEE 802.11 b/g/n Radio output (conductive) 802.11b:15±1.5dBm@11Mbps 802.11g:14.5±1.5dBm@54Mbps 802.11n:13.5±1.5dBm@MCS7/HT20 BLE:5±2.5dBm Antenna type Internal: PCB antenna External: Not supported Receiving sensitivity 802.11b≦-90dBm@11Mbps 802.11g≦-76dBm@54Mbps 802.11n/HT20≦-7…

Text truncated - open the document above for the full version.

HangzhouBroadLinkTechnologyCo.,Ltd. BuildingC,57Jiang'erRoad,Binjiang,Hangzhou,China Date:2023-10-27 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing SUBJECT:FCCApplicationforFCCID:2ATEV-BL5026-P ToWhomItMayConcern: HangzhouBroadLinkTechnologyCo.,Ltd.certifiesthattheequipmentforwhichauthorizationissoughtisnot “covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuanttosection2.903ofthe FCCrules. Sincerely, Signatory [MengjiaoYan,PM]

HangzhouBroadLinkTechnologyCo.,Ltd. BuildingC,57Jiang'erRoad,Binjiang,Hangzhou,China Date:2023-10-27 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing SUBJECT:FCCApplicationforFCCID:2ATEV-BL5026-P ToWhomItMayConcern: HangzhouBroadLinkTechnologyCo.,Ltd.certifiesthat,asofthedateofthefilingoftheapplication,the applicantisnotidentifiedontheCoveredList(asaspecificallynamedentityoranyofitssubsidiariesor affiliates)asanentityproducing“covered”equipment. Sincerely, Signatory [MengjiaoYan,PM]

HangzhouBroadLinkTechnologyCo.,Ltd. BuildingC,57Jiang'erRoad,Binjiang,Hangzhou,China Date:2023-10-27 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA FCCID:2ATEV-BL5026-P ApplicantFRN:0028494466 USAgent–AttestationStatement/Part2.911(d)(7) HangzhouBroadLinkTechnologyCo.,Ltd.certifiesthat,asof2023-10-27,wehavedesignated FCCUSAgent,LLCtoacceptserviceofprocessonourbehalfforFCCID:2ATEV-BL5026-P. HangzhouBroadLinkTechnologyCo.,Ltd.,acceptstomaintainanagentofserviceofprocess intheUnitedStatesfornolessthanoneyearaftereitherthegranteehaspermanently terminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,orthe conclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingthe equipment,whicheverislater. FCCUSAgent,LLC,acceptsasofthedateofthefilingofthisapplication,theobligationof beingthedesignatedagentforthepurposeofacceptingserviceofprocessonbehalfof HangzhouBroadLinkTechnologyCo.,Ltd.forFCCID:2ATEV-BL5026-P. DesignatedAgentInformation: CompanyName:FCCUSAgent,LLC U.S.AgentFRN:0033402884 Address:3722IllinoisAvenue,SaintCharles,IL,60174,USA ContactPerson:TimPayne Phone:708-571-3148 Email:[email protected] Sincerely, Company:HangzhouBroadLinkTechnology Co.,Ltd. DesignatedAgent:FCCUSAgent,LLC CompanyRepresentative:MengjiaoYanDesignatedAgentRepresentative:TimPayne Signature:Signature:

HangzhouBroadLinkTechnologyCo.,Ltd. BuildingC,57Jiang'erRoad,Binjiang,Hangzhou,China Date:2023-10-27 FEDERALCOMMUNICATIONSCOMMISSION AUTHORIZATIONANDEVALUATIONDIVISION 7435OAKLANDMILLSROAD COLUMBIA,MD21046 SUBJECT:FCCApplicationforFCCID:2ATEV-BL5026-P ConfidentialityRequest Towhomitmayconcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,wearerequestingthe Commissiontowithholdthefollowingattachment(s)asconfidentialdocumentsfrompublicdisclosureindefinitely. ☒ BlockDiagram ☐ Tune-UpInformation ☒ OperationalDescription ☐ SecurityInformation ☒ Schematics ☐ SoftwareDefinedRadio(SDR)Information ☐ PartsList Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedtothepublic.The publicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovideunjustifiedbenefitstoits competitors. Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulationsinTitle47CFR §2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthatbusinesssensitiveinformation remainsconfidentialuntiltheactualmarketingofnewlyauthorizeddevices,werequestShortTermConfidentiality ofthefollowingattachment(s); ☐ ExternalPhotos ☐ TestSetupPhotos ☐ InternalPhotos ☐ UserManual ☐For45days,pursuanttoPublicNoticeDA04-1705. or ☐For180dayspursuanttoKDB726920D01. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthisapplicationandall accompanyingdocumentationwillnotbemadebeforethedateoftheGrantforthisapplication. Sincerely, Signatory [MengjiaoYan,PM]

HangzhouBroadLinkTechnologyCo.,Ltd. BuildingC,57Jiang'erRoad,Binjiang,Hangzhou,China Date:2023-10-27 FEDERALCOMMUNICATIONSCOMMISSION AUTHORIZATIONANDEVALUATIONDIVISION 7435OAKLANDMILLSROAD COLUMBIA,MD21046 SUBJECT:FCCApplicationforFCCID:2ATEV-BL5026-P MODULARAPPROVALLETTER RegardingtotheFCC15.212,HangzhouBroadLinkTechnologyCo.,Ltd.wouldliketorequestmodular approvalforthesubmissionFCCID:2ATEV-BL5026-P.HangzhouBroadLinkTechnologyCo.,Ltd.confirms thattheproductcomplieswithnumberedrequirementsidentifiedbelow: 1.“ThemodulartransmittermusthaveitsownRFShielding” ThisEUThasitsownshielding,pleasereferstoexternalphotosofthereport. “Themodulartransmittermusthavebufferedmodulation/datainputs” TheEUThasbuffereddatainputs;itisintegratedinchipRTL8720CM_QFN40. 2.“Themodulartransmittermusthaveitsownpowersupplyregulation” TheEUTinterfaceprovides3.3VDC,andhasitsownVCOinside. 3.“Themodulartransmittermustcomplywiththeantennaandtransmissionsystem requirementsofSections15.203,15.204(b)and15.204(c)” TheEUTmeetstheantennarequirements.IthasaPCBantenna.Refertothephotoofantennasare shownintheinternalphotos. 4.“Themodulartransmittermustbetestedinastand-aloneconfiguration.” TheEUTistestedinanaccesspointconfigurationviaDCpower. 5.“ThemodulartransmittermustbelabeledwithitsownFCCIDnumber.” TheEUThasitsownFCCIDandthelabelisvisible. 6.“Themodulartransmittermustcomplywithanyspecificruleoroperatingrequirements applicabletothetransmitterandthemanufacturemustprovideadequateinstructionsalong withmoduletoexplainanysuchrequirement.” TheEUTcomplywithallapplicableFCCRules.Warningdetailrefertotheusermanual. 7.“ThemodulartransmittermustcomplywithanyapplicableRFexposurerequirements.” TheEUTcomplywithallapplicableRFexposurerequirements.SeethisRFexposurereport. Sincerely, Signatory [MengjiaoYan,PM]

HangzhouBroadLinkTechnologyCo.,Ltd. BuildingC,57Jiang'erRoad,Binjiang,Hangzhou,China Date:2023-10-27 FEDERALCOMMUNICATIONSCOMMISSION AUTHORIZATIONANDEVALUATIONDIVISION 7435OAKLANDMILLSROAD COLUMBIA,MD21046 SUBJECT:FCCApplicationforFCCID:2ATEV-BL5026-P POWEROFATTORNEY ToWhomItMayConcern: We,theundersigned,herebyauthorizeWaltekTestingGroup(Shenzhen)Co.,Ltd.JandySoonourbehalf,to applytotheFederalCommunicationsCommissiononourequipment.AnyandallactscarriedoutbyWaltek TestingGroup(Shenzhen)Co.,Ltd.JandySoonourbehalfshallhavethesameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,HangzhouBroadLink TechnologyCo.,Ltd.arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301oftheAnti-Drug Actof1988,21USC853a,andnopartytotheapplicationissubjecttoadenialoffederalbenefitspursuantto thatsection. Sincerely, Signatory [MengjiaoYan,PM]

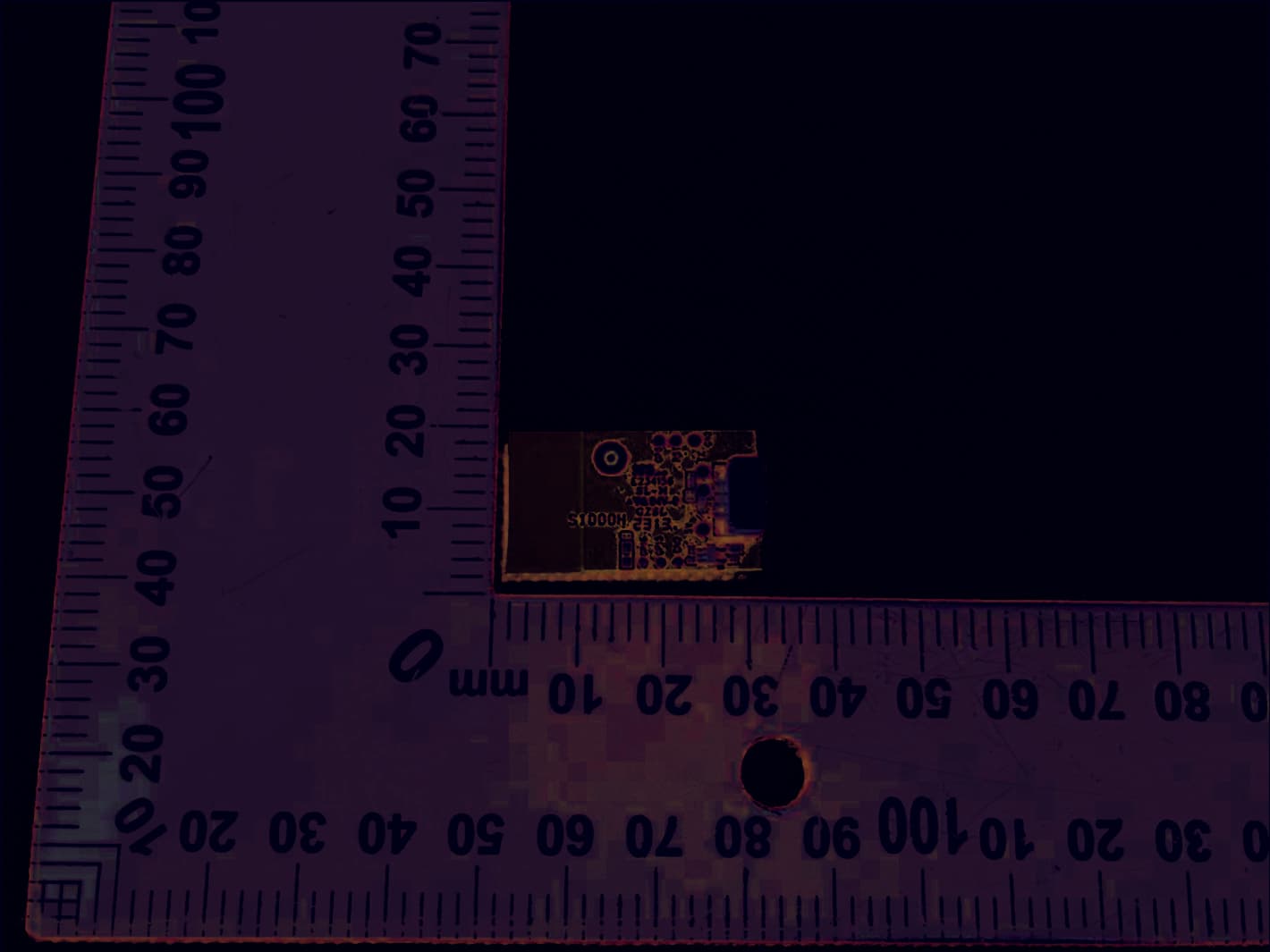

Reference No.: WTX23X10215809W Page 2 of 6 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

Reference No.: WTX23X10215809W Page 1 of 6 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX23X10215809W Page 3 of 6 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS Solder Board-Component View 1 Antenna View WIFI/BT Antenna

1. RF Exposure Requirements 1.1 General Information Client Information Applicant: Hangzhou BroadLink Technology Co., Ltd. Address of applicant: Building C, 57 Jiang'er Road, Binjiang, Hangzhou, China Manufacturer: Hangzhou BroadLink Technology Co., Ltd. Address of manufacturer: Building C, 57 Jiang'er Road, Binjiang, Hangzhou, China General Description of EUT: Product Name: WiFI/BT Module Trade Name / Model No.: BL5026-P Adding Model(s): / Rated Voltage: DC 5V Power Adapter: / FCC ID: 2ATEV-BL5026-P Equipment Type: Mobile device Technical Characteristics of EUT: Bluetooth Bluetooth Version: V4.2 (BLE mode) Frequency Range: 2402-2480MHz RF Output Power: 7.28dBm (Conducted) Data Rate: 1Mbps Modulation: GFSK Quantity of Channels: 40 Channel Separation: 2MHz Type of Antenna: PCB Antenna Antenna Gain: 2.02dBi Wi-Fi Support Standards: 802.11b, 802.11g, 802.11n Frequency Range: 2412-2462MHz for 802.11b/g/n(HT20) RF Output Power: 16.34dBm (Conducted) Type of Modulation: CCK, OFDM, QPSK, BPSK, 16QAM, 64QAM Quantity of Channels: 11 for 802.11b/g/n(HT20) Channel Separation: 5MHz Type of Antenna: PCB Antenna Antenna Gain: 1.94dBi 1.2 RF Exposure Exemption According to §1.1307(b)(3) and KDB 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Output Power Antenna Gain Duty Cycle Tune-Up Time-Averaged Power ERP (MHz) (dBm) (dBi) (%) (dBm) (dBm) Bluetooth 2402 7.28 2.02 100 8.00 7.87 Wi-Fi 2412 16.34 1.94 100 17.00 16.79 Frequency Option Min. Distance Max. Power Exposure Limit Ratio Result (MHz) (cm) (dBm) (mW) (mW) Pass/Fail 2402 C 20.00 7.87 6.12 768.00 0.01 Pass 2412 C 20.00 16.79 47.75 768.00 0.06 Pass Note: 1. Time-Averaged Power=Output Power * Duty Cycle; ERP= Time-Averaged Power+ Antenna gain-2.15dB 2. Option A, B and C refers as clause 1.2. 3. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 4. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 5. Ratio= Tune-Up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Simultaneous Ratio Limit Result Pass/Fail -- -- -- -- -- -- Note: BT and Wi-Fi can’t transmit at the same time. Result: Pass

ReportNo.:RFI-LAB-RF-202310-JJ03-1 QP030-E41 Page1of10 TestingReport CustomerName:HangzhouBroadLinkTechnologyCo.,Ltd ProductName:RFmodule SampleModel:BL5026-P ReferenceStandard:GB/T9410-2008;ANSI/IEEEStd149-1979 IssueDate:2023.10.9 Engineer:Date: Auditor:Date: Approver:Date: ReportNo.:RFI-LAB-RF-202310-JJ03-1 QP030-E41 Page2of10 Version VersionNo.DateDescriptionFormulateApproval A02023.10.9Forthefirsttime,formulateZkrisEason Contents 1.GeneralInformation.........................................................................................................................3 1.1Generalinformationoftestinginstitutions...........................................................................3 1.2Testingprinciple...................................................................................................................3 1.3Testequipment......................................................................................................................4 1.4Testenvironment...................................................................................................................4 1.5Statement..............................................................................................................................4 2.SampleInformation.........................................................................................................................5 2.1Clientinformation.................................................................................................................5 2.2DescriptionofEUT(S)..........................................................................................................5 2.3EUTappearance....................................................................................................................6 2.4EUTsetupphotooffreespaceOTAtesting.........................................................................6 3.TestResults.....................................................................................................................................7 3.1Teststandard.........................................................................................................................7 3.2Testuncertainty.....................................................................................................................7 3.3Testdata................................................................................................................................8 3.3.1VSWRparameters.....................................................................................................8 3.3.2VSWRdata................................................................................................................8 3.3.3Typicalfreespaceefficiencyandgain......................................................................8 3.3.4Typicalfreespaceradiationpattern...........................................................................9 （Thefollowingisblank）..............................................................................................................10 ReportNo.:RFI-LAB-RF-202310-JJ03-1 QP030-E41 Page3of10 1.GeneralInformation 1.1Generalinformationoftestinginstitutions Name ShenzhenRFI-LABCommunicationTechnologyCo.,Ltd. Address 10/FA,LingyunBld,LiufangRd,BaoanDistrict,SZ Tel 13682621346 E-mail [email protected] Equipment AlltheequipmentusedinthereportisfixedinZoneB,WestSideof1/F,Building1, TingweiIndustrialPark,No.6LiufangRoad,Bao'anDistrict,Shenzhen 1.2Testingprinciple ReportNo.:RFI-LAB-RF-202310-JJ03-1 QP030-E41 Page4of10 1.3Testequipment EquipmentModelNo.SerialNo.Manufacturer Calibration date Next calibration date OTATest System RayZone-5000 RFI-LAB-RF -D00 GTS2023.3.142025.3.13 Network Analyzer E5071C RFI-LAB-RF -D01 KEYSIGHT2023.5.112024.5.10 Network Analyzer E5071C RFI-LAB-RF -C02 KEYSIGHT2023.5.112024.5.10 1.4Testenvironment Temperature 23.9°C Humidity 57%RH Pressure 100.19kPa 1.5Statement (1)Thetestresultsinthereportareonlyapplicabletothetestedsamplesandthetestedsamples workundertheenvironmentdescribedinthereport. (2)OnlyShenzhenRFI-LABCommunicationTechnologyCo.,Ltd.havetherighttomodifythe report,andthemodificationinformationshallbeannotatedintherevisionform. (3)Anyobjectiontothisreportshallberaisedwithin30daysafterformalconfirmationofthe report. (4)Thisreportisinvalidifthereisanyevidencethatthesampleinformationprovidedisfalsified. (5)Thereportisinvalidwithoutthesignatureoftheauditorandapprover. ReportNo.:RFI-LAB-RF-202310-JJ03-1 QP030-E41 Page5of10 2.SampleInformation 2.1Clientinformation Name HangzhouBroadLinkTechnologyCo.,Ltd Address BuildingC,ArtificialIntelligenceIndustrialPark,No.57,JiangerRoad, BinjiangDistrict,Hangzhou Contacts Mengjiao.yan Tel 18058715209 E-mail [email protected] Manufacturer / 2.2DescriptionofEUT(S) ProductName RFmodule SampleModel BL5026-P AntennaSize / SerialNo. / AntennaType PCBAntenna TestItem VSWR;Antennagain;Efficiency;Radiationpattern FrequencyRange 2400-2500MHz ReceivedDate 2023.10.9 TestDate 2023.10.9 Remark / ReportNo.:RFI-LAB-RF-202310-JJ03-1 QP030-E41 Page6of10 2.3EUTappearance 2.4EUTsetupphotooffreespaceOTAtesting Planform Frontview ReportNo.:RFI-LAB-RF-202310-JJ03-1 QP030-E41 Page7of10 3.TestResults 3.1Teststandard NameParameterMethodStandardno. Mobile communication antenna Antennagain Genericspecification forantennasusedinthe mobilecommunications GB/T 9410-2008 Radiationpattern VSWR Antenna Radiationefficiency IEEEStandardTest ProceduresforAntennas ANSI/IEEEStd 149-1979 Gainanddirectivity 3.2Testuncertainty TheuncertaintywascalculatedonthebasisoftheGUMpublishedbyISO,usingthe inclusionfactorofK=2andthe95%confidenceleveltoexpresstheextended uncertainty. ItemUncertainty VSWR±0.3 Antennagain±0.72dB Radiationefficiency±0.72dB ReportNo.:RFI-LAB-RF-202310-JJ03-1 QP030-E41 Page8of10 3.3Testdata 3.3.1VSWRparameters 3.3.2VSWRdata 3.3.3Typicalfreespaceefficiencyandgain Frequency/MHz 240024502500 VSWR 2.21731.41801.1782 Frequency/MHz 240024102420243024402450246024702480249…

Text truncated - open the document above for the full version.

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 36 TEST REPORT Reference No. ....................: WTX23X10215809W002 FCC ID ............................... .: 2ATEV-BL5026-P Applicant .......................... .: Hangzhou BroadLink Technology Co., Ltd. Address ............................ .: Building C, 57 Jiang'er Road, Binjiang, Hangzhou, China Manufacturer .................... .: The same as Applicant Address ............................ .: The same as Applicant Product Name .................. .: WiFI/BT Module Model No.. ......................... .: BL5026-P Standards ......................... .: FCC Part 15.247 Date of Receipt sample ... .: 2023-10-09 Date of Test....................... .: 2023-10-09 to 2023-10-26 Date of Issue .................... .: 2023-10-26 Test Report Form No. ...... . : WTX_Part 15_247W Test Result ........................ .: Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Mike Shi Silin Chen Reference No.: WTX23X10215809W002 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 36 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ......................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................. 5 1.3 TEST METHODOLOGY ........................................................................................................................................... 5 1.4 TEST FACILITY ...................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE .............................................................................................................................. 6 1.6 MEASUREMENT UNCERTAINTY ............................................................................................................................. 7 1.7 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 8 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 11 3. ANTENNA REQUIREMENT ................................................................................................................................. 12 3.1 STANDARD APPLICABLE ..................................................................................................................................... 12 3.2 EVALUATION INFORMATION ................................................................................................................................ 12 4. POWER SPECTRAL DENSITY ........................................................................................................................... 13 4.1 STANDARD APPLICABLE ..................................................................................................................................... 13 4.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 13 4.3 TEST PROCEDURE .............................................................................................................................................. 13 4.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 13 5. DTS BANDWIDTH ................................................................................................................................................. 14 5.1 STANDARD APPLICABLE ..................................................................................................................................... 14 5.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 14 5.3 TEST PROCEDURE .............................................................................................................................................. 14 5.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 14 6. RF OUTPUT POWER ............................................................................................................................................ 15 6.1 STANDARD APPLICABLE ..................................................................................................................................... 15 6.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 15 6.3 TEST PROCEDURE .............................................................................................................................................. 15 6.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 15 7. FIELD STRENGTH OF SPURIOUS EMISSIONS .................................................................…

Text truncated - open the document above for the full version.
