2ATFT-F-506Projector

Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Shenzhen Kejinming Electronic Co., Ltd Add: 1-6F,Block B7,Yintian Industrial Park Xixiang Street,Bao'an Dist.Shenzhen China Date: 2021-5-1 FCC ID: 2ATFT-F-506 Dear Sir/Madam, We, Shenzhen Kejinming Electronic Co., Ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Projector Model no.: F-506, F-501, F-506PRO, JK-502, F-509, KJM-506, KJM-502, KJM-508, KJM-509 Sincerely, Name/Title： Ruiqi Chen/Sales Director Company: Shenzhen Kejinming Electronic Co., Ltd Address: 1-6F,Block B7,Yintian Industrial Park Xixiang Street,Bao'an Dist.Shenzhen China Phone: 0755-27489177 Fax: 0755-27489373 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-5-1> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ATFT-F-506 F-506 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Ruiqi Chen/Sales Director Company: Shenzhen Kejinming Electronic Co., Ltd Address: 1-6F,Block B7,Yintian Industrial Park Xixiang Street,Bao'an Dist.Shenzhen China Phone: 0755-27489177 Fax: 0755-27489373 E-Mail: [email protected]

Shenzhen Kejinming Electronic Co., Ltd 1-6F,Block B7,Yintian Industrial Park Xixiang Street,Bao'an Dist.Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-5-1 To whom it may concern: We, Shenzhen Kejinming Electronic Co., Ltd the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ATFT-F-506 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Ruiqi Chen/Sales Director Company: Shenzhen Kejinming Electronic Co., Ltd Address: 1-6F,Block B7,Yintian Industrial Park Xixiang Street,Bao'an Dist.Shenzhen China Phone: 0755-27489177 Fax: 0755-27489373 E-Mail: [email protected]

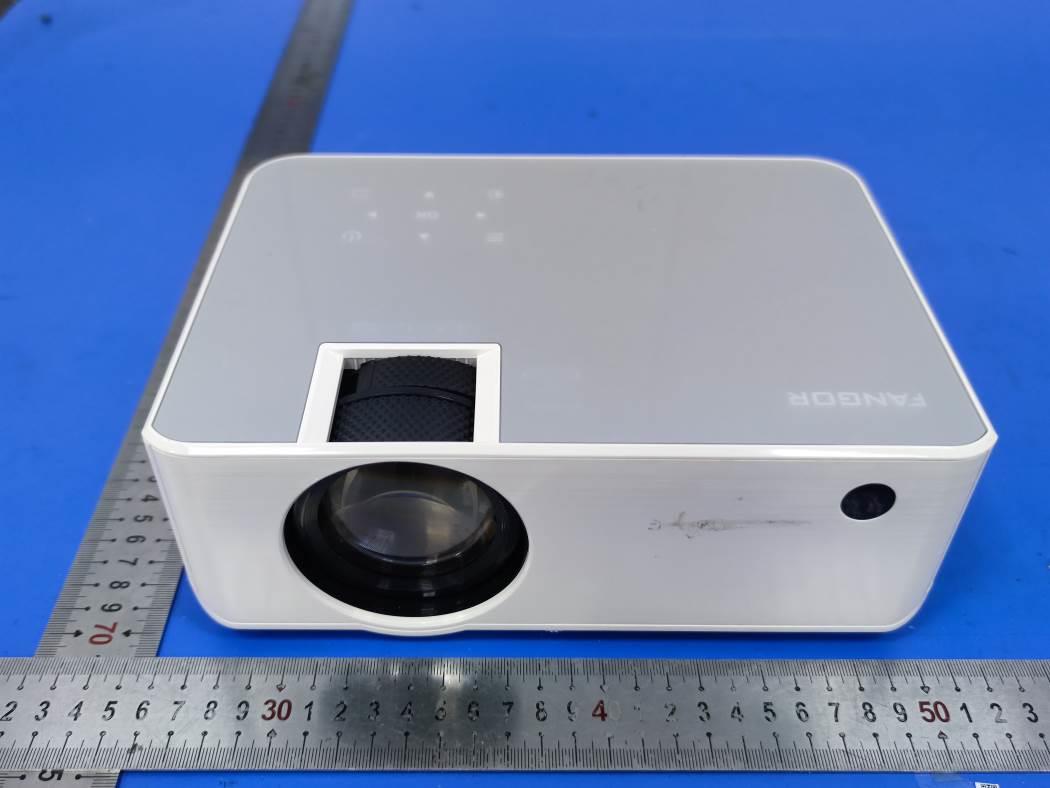

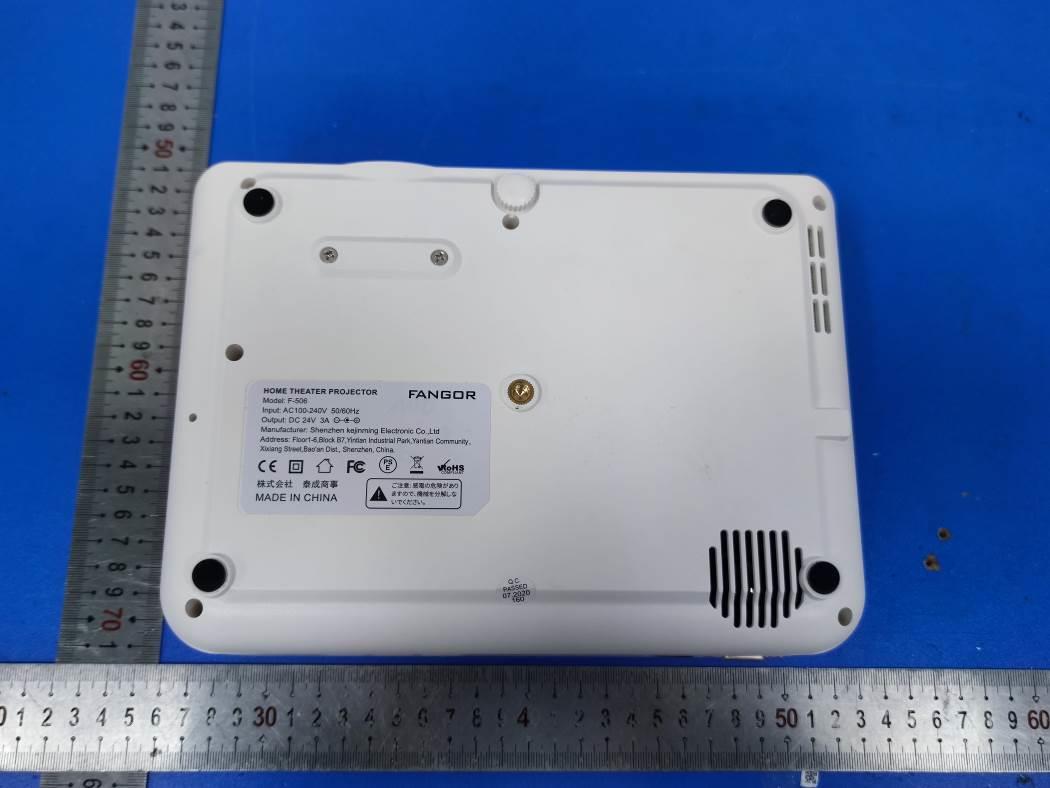

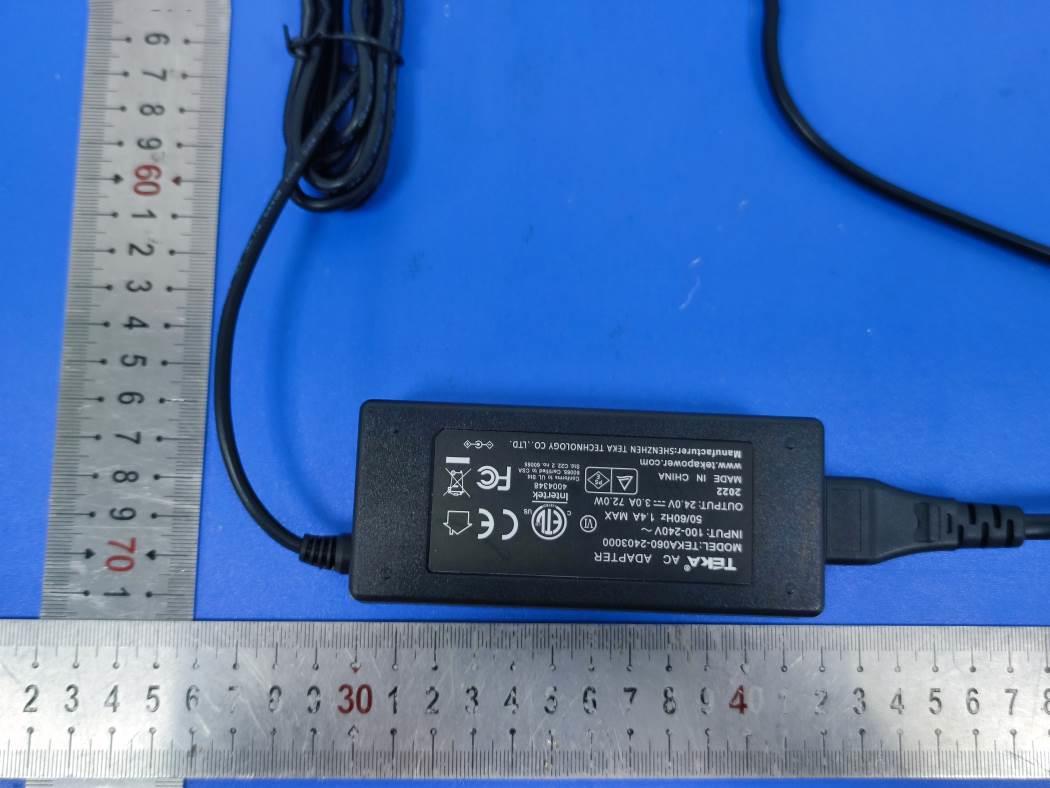

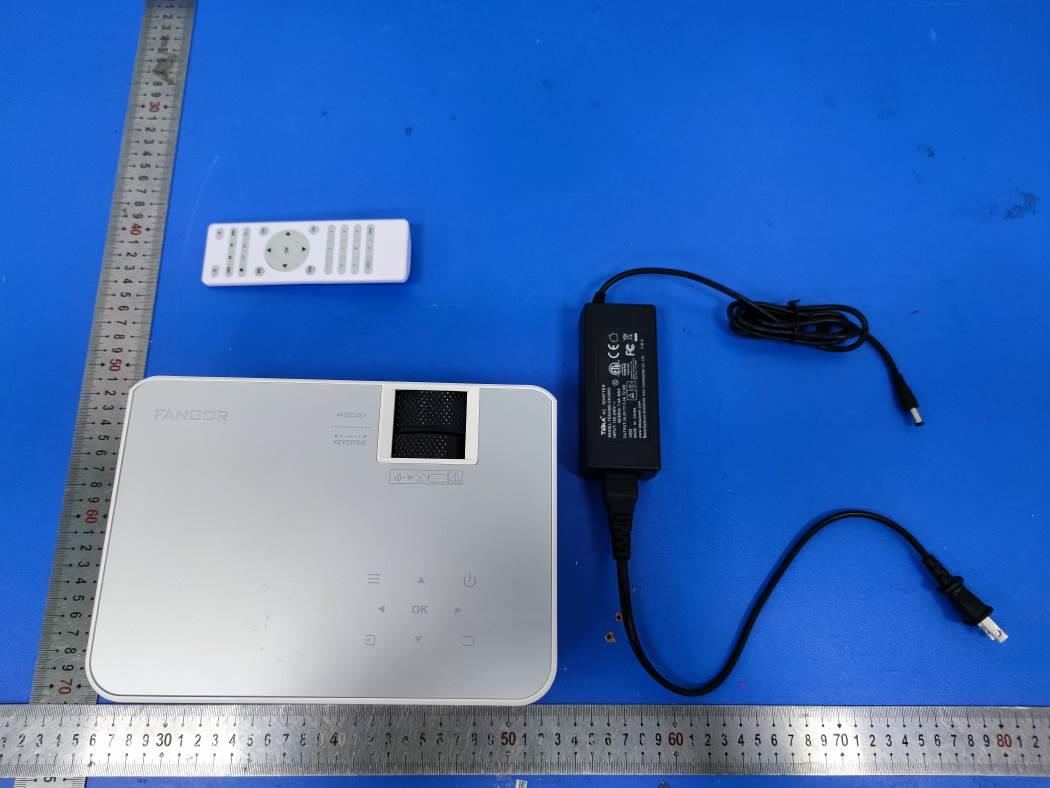

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 5 Fig.9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION Size: L6.5cm*W4.5cm Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location Projector Model No.: F-506 FCC ID: 2ATFT-F-506 Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 Internal Photos of the EUT Fig.1 Fig.2 WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 Fig.7 Fig.8 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 5 Fig.9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 FCC RF Exposure Evaluation 1. Product Information FCC ID 2ATFT-F-506 Product name Projector Model number F-506 Additional Model No. F-501, F-506PRO, JK-502, F-509, KJM-506, KJM-502, KJM-508, KJM-509 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power supply For Adapter Model: TEKA060-2403000 Input: AC 100-240V, 50/60Hz, 1.4A MAX Output: DC 24.0V, 3.0A, 72.0W Modulation Type GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V4.0(DSS) IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK); IEEE 802.11g/n: OFDM(64QAM, 16QAM, QPSK, BPSK) Bluetooth Antenna Description PCB Antenna; 0dBi(Max.) 2.4G WLAN Antenna Description FPC Antenna; 0dBi(Max.) Hardware version ZY-3A019-MAIN-V Software version / FCC Operation frequency 2402MHz ~ 2480MHz 2412MHz-2462MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Artemis Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna PCB Antenna 2402MHz ~ 2480MHz 0dBi BT Antenna Antenna FPC Antenna 2412MHz-2462MHz 0dBi WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 6. Conducted Power < BT Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) GFSK 0 2402 -1.935 39 2441 -0.356 78 2480 -0.321 π/4DQPSK 0 2402 0.139 39 2441 1.985 78 2480 1.787 8DPSK 0 2402 0.594 39 2441 2.334 78 2480 2.519 <2.4GWLAN Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) IEEE 802.11b 1 2412 15.97 6 2437 16.06 11 2462 15.67 IEEE 802.11g 1 2412 15.77 6 2437 15.59 11 2462 15.22 IEEE 802.11n HT20 1 2412 15.98 6 2437 15.88 11 2462 15.30 IEEE 802.11n HT40 3 2422 16.49 6 2437 16.13 9 2452 15.98 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 7. Manufacturing Tolerance <BT> GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 0 0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Cha…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 1 of 47 Appendix A RF Test Data for BT V4.0(BDR/EDR) (Conducted Measurement) Product Name: Projector Trade Mark: N/A Test Model: F-506 Environmental Conditions Temperature: 24.6 C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Diamond Lu Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH -1.935 21 PASS MCH -0.356 21 PASS HCH -0.321 21 PASS π/4DQPSK LCH 0.139 21 PASS MCH 1.985 21 PASS HCH 1.787 21 PASS 8DPSK LCH 0.594 21 PASS MCH 2.334 21 PASS HCH 2.519 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9440 Not Specified PASS MCH 0.9386 Not Specified PASS HCH 0.9393 Not Specified PASS π/4DQPSK LCH 1.318 Not Specified PASS MCH 1.313 Not Specified PASS HCH 1.316 Not Specified PASS 8DPSK LCH 1.311 Not Specified PASS MCH 1.309 Not Specified PASS HCH 1.308 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.066 0.629 PASS MCH 1.162 0.629 PASS HCH 0.970 0.629 PASS π/4DQPSK LCH 1.038 0.879 PASS MCH 0.976 0.879 PASS HCH 1.006 0.879 PASS 8DPSK LCH 0.978 0.874 PASS MCH 0.928 0.874 PASS HCH 0.970 0.874 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.307 0.4 PASS 2DH5 MCH 2.88 106.7 0.307 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS 8DPSK 3DH5 LCH 2.88 106.7 0.307 0.4 PASS 3DH5 MCH 2.88 106.7 0.307 0.4 PASS 3DH5 HCH 2.88 106.7 0.307 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -2.84 -37.350 -22.840 PASS MCH -1.184 -37.762 -21.184 PASS HCH -0.756 -37.325 -20.756 PASS π/4DQPSK LCH -2.752 -38.140 -22.752 PASS MCH -0.914 -37.591 -20.914 PASS HCH -1.775 -37.948 -21.775 PASS 8DPSK LCH -2.674 -36.779 -22.674 PASS MCH -1.331 -38.006 -21.331 PASS HCH -1.162 -37.618 -21.162 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-5…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 37 FCC TEST REPORT FOR Shenzhen Kejinming Electronic Co., Ltd Projector Test Model: F-506 Additional Model No.: Please Refer to Page 6 Prepared for : Shenzhen Kejinming Electronic Co., Ltd Address : 1~6F, Block B7, Yintian Industrial Park, Xixiang Street, Bao’an Dist., Shenzhen, P.R.C. Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : March 19, 2021 Number of tested samples : 2 Sample No. : 210315169A-1, 210315169A-2 Serial number : Prototype Date of Test : March 19, 2021 ~ March 27, 2021 Date of Report : March 30, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 37 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS210315169AEA Date of Issue ................................... : March 30, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Shenzhen Kejinming Electronic Co., Ltd Address ........................................... : 1~6F, Block B7, Yintian Industrial Park, Xixiang Street, Bao’an Dist., Shenzhen, P.R.C. Test Specification Standard.......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Projector Trade Mark ...................................... : N/A Test Model ...................................... : F-506 Ratings ............................................ : For Adapter Model: TEKA060-2403000 Input: AC 100-240V, 50/60Hz, 1.4A MAX Output: DC 24.0V, 3.0A, 72.0W Result ........................................... : Positive Compiled by: Supervised by: Approved by: Linda He/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 37 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210315169AEA March 30, 2021 Date of issue Test Model........................... : F-506 EUT......................................... : Projector Applicant............................... : Shenzhen Kejinming Electronic Co., Ltd Address.................................. : 1~6F, Block B7, Yintian Industrial Park, Xixiang Street, Bao’an Dist., Shenzhen, P.R.C. Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Kejinming Electronic Co., Ltd Address................................... : 1~6F, Block B7, Yintian Industrial Park, Xixiang Street, Bao’an Dist., Shenzhen, P.R.C. Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Kejinming Electronic Co., Ltd Address................................... : 1~6F, Block B7, Yintian Industrial Park, Xixiang Street, Bao’an Dist., Shenzhen, P.R.C. Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 37 Revision History Revision Issue Date Revisions Revised By 000 March 30, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-F-506 Report No.: LCS210315169AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 37 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION ......................................................................................... 6 1.1 Description of Device (EUT) ............................................................................................. 6 1.2 Support equipment List .................................................................................................... 7 1.3 External I/O Cable ...........…
