2ATFT-PDB1077BPORTABLE DVD PLAYER

Shenzhen Kejinming Electronic Co.,Ltd Add: 1-6F,Block B7,Yintian Industrial Park Xixiang Street,Bao'an Dist.Shenzhen China Date: 2021-5-26 FCC ID: 2ATFT-PDB1077B Dear Sir/Madam, We, Shenzhen Kejinming Electronic Co.,Ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: PORTABLE DVD PLAYER Model no.: PDB1077B, KJM-1038 Sincerely, Name/Title： Ruiqi Chen/Sales Director Company: Shenzhen Kejinming Electronic Co.,Ltd Address: 1-6F,Block B7,Yintian Industrial Park Xixiang Street,Bao'an Dist.Shenzhen China Phone: 0755-27489177 Fax: 0755-27489373 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-5-26> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ATFT-PDB1077B PDB1077B For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Ruiqi Chen/Sales Director Company: Shenzhen Kejinming Electronic Co.,Ltd Address: 1-6F,Block B7,Yintian Industrial Park Xixiang Street,Bao'an Dist.Shenzhen China Phone: 0755-27489177 Fax: 0755-27489373 E-Mail: [email protected]

Shenzhen Kejinming Electronic Co.,Ltd 1-6F,Block B7,Yintian Industrial Park Xixiang Street,Bao'an Dist.Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-5-26 To whom it may concern: We, Shenzhen Kejinming Electronic Co.,Ltd the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ATFT-PDB1077B including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Ruiqi Chen/Sales Director Company: Shenzhen Kejinming Electronic Co.,Ltd Address: 1-6F,Block B7,Yintian Industrial Park Xixiang Street,Bao'an Dist.Shenzhen China Phone: 0755-27489177 Fax: 0755-27489373 E-Mail: [email protected]

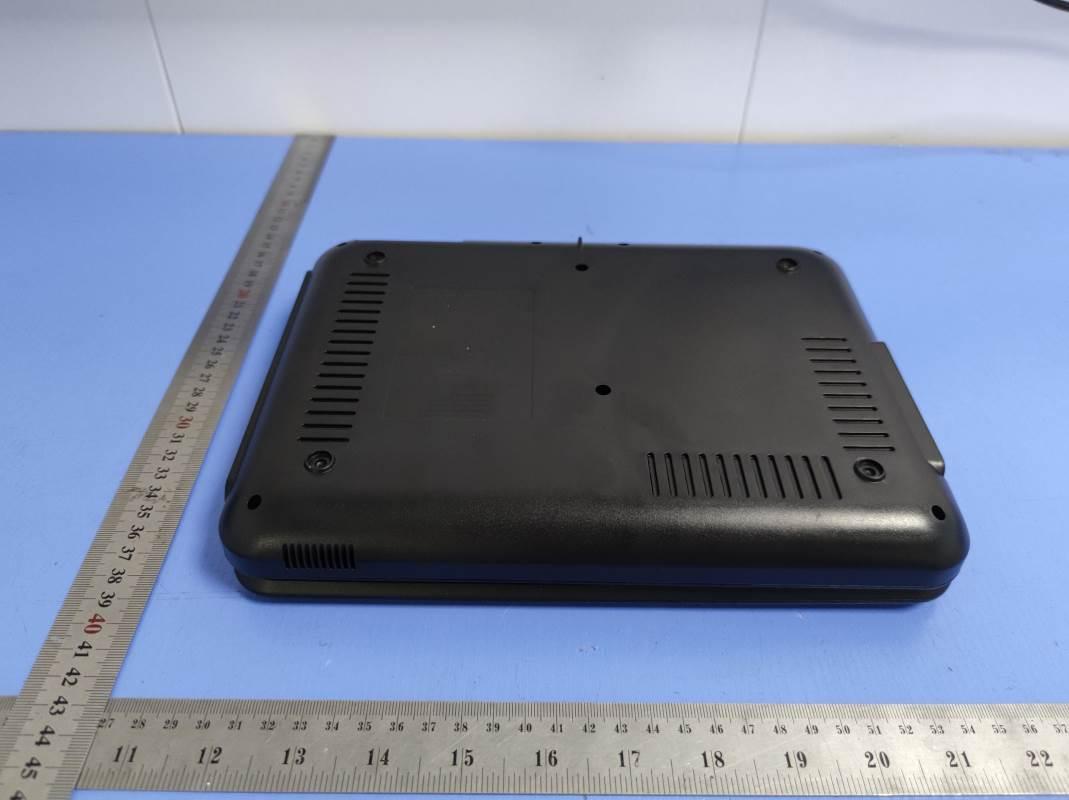

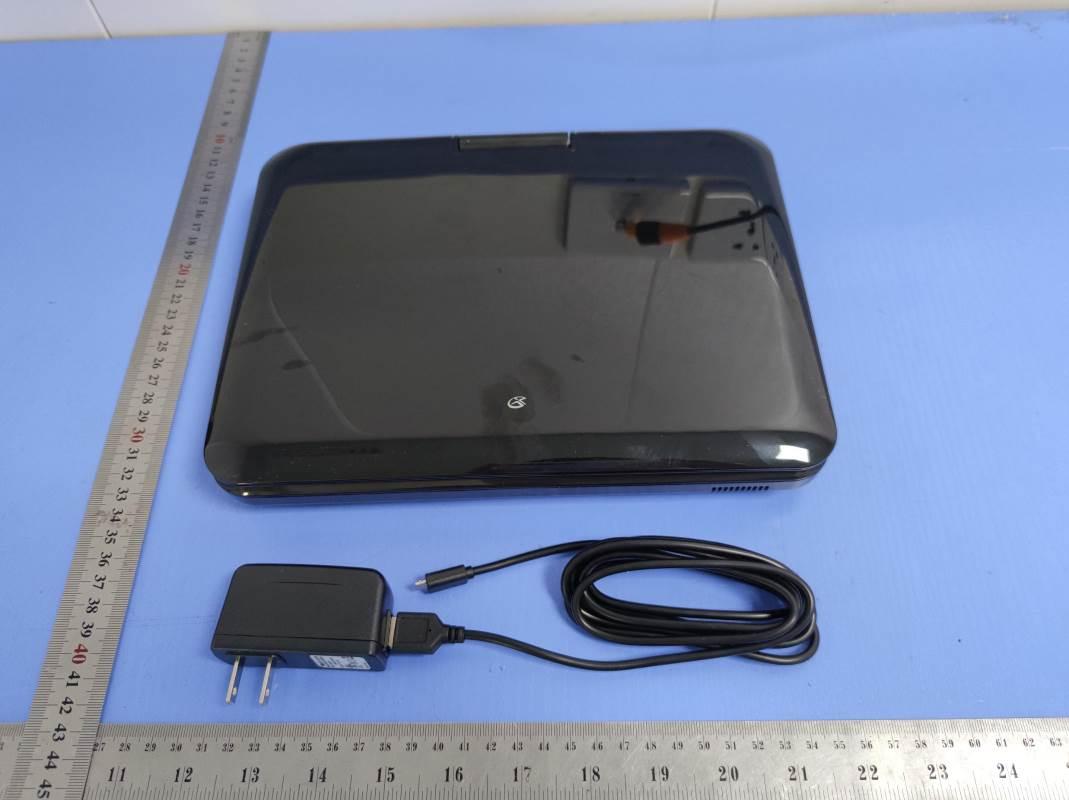

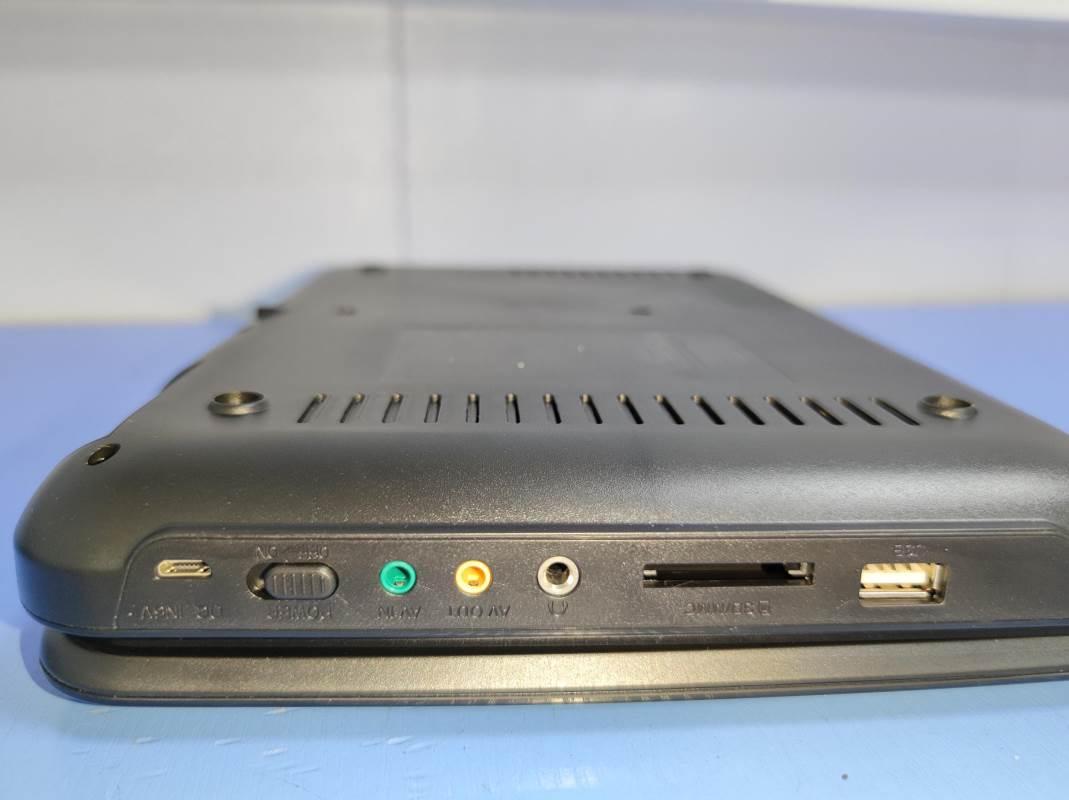

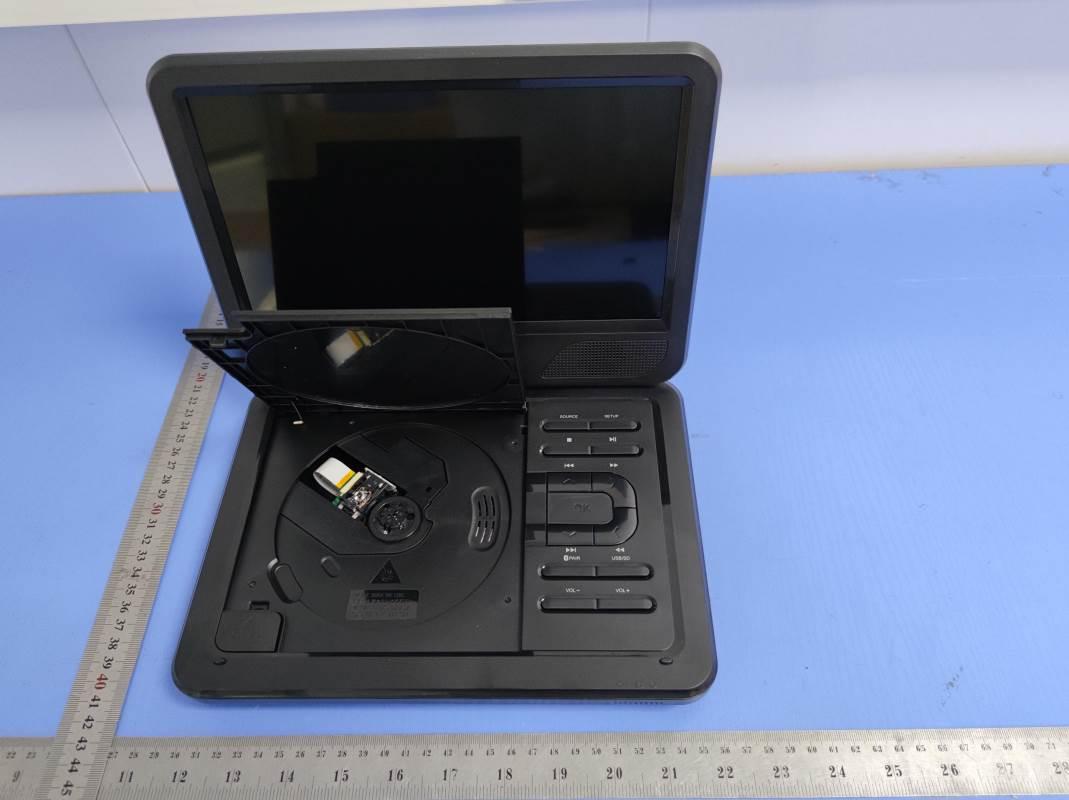

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Fig. 11 Fig. 12

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L5.5cm*W10.0cm Label Location PORTABLE DVD PLAYER Model No.: PDB1077B FCC ID: 2ATFT-PDB1077B Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Fig. 5 Fig. 6 BT Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2ATFT-PDB1077B Product name PORTABLE DVD PLAYER Test Model PDB1077B Additional Model No. KJM-1038 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power supply DC 3.7V by Rechargeable Li-ion Battery, 4600mAh For Adapter Model: TEKA-UCA20US Input: AC 100-240V, 50/60Hz, 0.35A MAX Output: DC 5V, 2A Modulation Type GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V5.0 (DSS) Antenna Type PCB Antenna Antenna Gain 0dBi (maximum) Hardware version V2.1 Software version / Bluetooth Operation frequency 2402MHz-2480MHz Bluetooth Version V5.0 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 4. Conducted Power Results [BT Classics] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 0.914 39 2441 1.060 78 2480 2.220 π/4DQPSK 0 2402 3.449 39 2441 3.929 78 2480 4.213 8-DPSK 0 2402 4.033 39 2441 4.000 78 2480 4.792 5. Manufacturing Tolerance [BT Classics] GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0 1.0 2.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3.0 3.0 4.0 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 4.0 4.0 4.0 Toleran…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 1 of 47 Appendix A RF Test Data for BT V2.1(DSS) (Conducted Measurement) Product Name: PORTABLE DVD PLAYER Trade Mark: GPX Test Model: PDB1077B Environmental Conditions Temperature: 22.3  C Relative Humidity: 51.5% ATM Pressure: 100.0 kPa Test Engineer: Carl Fu Supervised by: Li Huan A.1 Maximum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 0.914 21 PASS MCH 1.060 21 PASS HCH 2.220 21 PASS π/4DQPSK LCH 3.449 21 PASS MCH 3.929 21 PASS HCH 4.213 21 PASS 8DPSK LCH 4.033 21 PASS MCH 4.000 21 PASS HCH 4.792 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9624 Not Specified PASS MCH 0.9623 Not Specified PASS HCH 0.9600 Not Specified PASS π/4DQPSK LCH 1.281 Not Specified PASS MCH 1.281 Not Specified PASS HCH 1.282 Not Specified PASS 8DPSK LCH 1.301 Not Specified PASS MCH 1.300 Not Specified PASS HCH 1.299 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.103 0.642 PASS MCH 0.966 0.642 PASS HCH 0.836 0.642 PASS π/4DQPSK LCH 1.254 0.855 PASS MCH 1.056 0.855 PASS HCH 0.862 0.855 PASS 8DPSK LCH 1.252 0.867 PASS MCH 1.030 0.867 PASS HCH 1.098 0.867 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.308 0.4 PASS 2DH5 MCH 2.88 106.7 0.308 0.4 PASS 2DH5 HCH 2.88 106.7 0.015 0.4 PASS 8DPSK 3DH5 LCH 2.88 106.7 0.015 0.4 PASS 3DH5 MCH 2.88 106.7 0.015 0.4 PASS 3DH5 HCH 2.88 106.7 0.015 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 0.671 -37.599 -19.329 PASS MCH 0.822 -37.780 -19.178 PASS HCH 1.955 -38.041 -18.045 PASS π/4DQPSK LCH 1.757 -37.340 -18.243 PASS MCH 2.206 -37.829 -17.794 PASS HCH 2.928 -38.276 -17.072 PASS 8DPSK LCH 1.817 -28.546 -18.183 PASS MCH 1.737 -37.796 -18.263 PASS HCH 2.942 -38.017 -17.058 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA Page 28 of 47 π/4DQPSK_LCH_…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 37 FCC TEST REPORT For Shenzhen Kejinming Electronic Co., Ltd PORTABLE DVD PLAYER Test Model: PDB1077B Additional Model No.: Please Refer to Page 6 Prepared for : Shenzhen Kejinming Electronic Co., Ltd Address : 1~6F, Block B7, Yintian Industrial Park, Xixiang Street, Bao’an Dist., Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 07, 2021 Number of tested samples : 2 Sample No. : 210428075A-1, 210428075A-2 Serial number : Prototype Date of Test : May 07, 2021 ~ May 24, 2021 Date of Report : May 26, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 37 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ...................... : LCS210428075AEA Date of Issue ........................................ : May 26, 2021 Testing Laboratory Name ................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ................................................ : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ................ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ............................... : Shenzhen Kejinming Electronic Co., Ltd Address ................................................ : 1~6F, Block B7, Yintian Industrial Park, Xixiang Street, Bao’an Dist., Shenzhen, China Test Specification Standard ............................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ........................ : LCSEMC-1.0 TRF Originator .................................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .......................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ............................... : PORTABLE DVD PLAYER Trade Mark .......................................... : GPX Test Model ........................................... : PDB1077B Ratings ................................................. : DC 3.7V by Rechargeable Li-ion Battery, 4600mAh For Adapter Model: TEKA-UCA20US Input: AC 100-240V, 50/60Hz, 0.35A MAX Output: DC 5V, 2A Result ................................................. : Positive Compiled by: Supervised by: Approved by: Vera Deng/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 37 FCC -- TEST REPORT Test Model............................... : PDB1077B EUT......................................... : PORTABLE DVD PLAYER Applicant............................... : Shenzhen Kejinming Electronic Co., Ltd Address.................................. : 1~6F, Block B7, Yintian Industrial Park, Xixiang Street, Bao’an Dist., Shenzhen, China Telephone............................... : Fax.......................................... : Manufacturer........................ : Shenzhen Kejinming Electronic Co., Ltd Address................................... : 1~6F, Block B7, Yintian Industrial Park, Xixiang Street, Bao’an Dist., Shenzhen, China Telephone............................... : Fax.......................................... : Factory................................... : Shenzhen Kejinming Electronic Co., Ltd Address................................... : 1~6F, Block B7, Yintian Industrial Park, Xixiang Street, Bao’an Dist., Shenzhen, China Telephone............................... : Fax.......................................... : Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210428075AEA May 26, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 37 Revision History Revision Issue Date Revisions Revised By 000 May 26, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B Report No.: LCS210428075AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 37 TABLE OF CONTENTS Description ................................................................................................................................................ Page 1. GENERAL INFORMATION ..............................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B _______________________________________________________________________________________________ TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATFT-PDB1077B _______________________________________________________________________________________________ Photo of Conducted Emissions Measurement Fig. 3
