2ATFT-T800VIDEO PROJECTOR

Shenzhen Kejinming Electronic Co.,Ltd

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jul 22, 2024
Application Purpose: Original Equipment
Date of Application: Jul 22, 2024
Equipment Note: VIDEO PROJECTOR
Frequency Range: 2412.00000000 - 2462.00000000
Company: Shenzhen Kejinming Electronic Co.,Ltd
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

Shenzhen Kejinming Electronic Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/16/2024 U.S. Agent Designation Shenzhen Kejinming Electronic Co.,Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2ATFT-T800): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of Shenzhen Kejinming Electronic Co.,Ltd.. Shenzhen Kejinming Electronic Co.,Ltd. with the FRN 0028509735 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. S incerely, Signature Ruiqi Chen Sales Director Shenzhen Kejinming Electronic Co.,Ltd. Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

Attestation Statements

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: Shenzhen Kejinming Electronic Co., Ltd Address: 1-6F, Block B7, Yintian Industrial Park, Xixiang Street, Bao'an Dist. Shenzhen 518000, China Phone: +86-755-27489177 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-07-16 Name / Title: Ruiqi Chen / Sales Director Company: Shenzhen Kejinming Electronic Co., Ltd Address: 1-6F, Block B7, Yintian Industrial Park, Xixiang Street, Bao'an Dist. Shenzhen 518000, China Phone: +86-755-27489177 Fax: +86-755-27489373 E-Mail: [email protected]

Attestation Statements

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2ATFT-T800 T800, T800 Plus, T800 Mini, T900, T08, T09, T808 We, applicant Company Name: Shenzhen Kejinming Electronic Co., Ltd Address: 1-6F, Block B7, Yintian Industrial Park, Xixiang Street, Bao'an Dist. Shenzhen 518000, China Phone: +86-755-27489177 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-07-16 Name / Title: Ruiqi Chen / Sales Director Company: Shenzhen Kejinming Electronic Co., Ltd Address: 1-6F, Block B7, Yintian Industrial Park, Xixiang Street, Bao'an Dist. Shenzhen 518000, China Phone: +86-755-27489177 Fax: +86-755-27489373 E-Mail: [email protected]

Cover Letter(s)

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2ATFT-T800 T800, T800 Plus, T800 Mini, T900, T08, T09, T808 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-07-16 Name / Title: Ruiqi Chen / Sales Director Company: Shenzhen Kejinming Electronic Co., Ltd Address: 1-6F, Block B7, Yintian Industrial Park, Xixiang Street, Bao'an Dist. Shenzhen 518000, China Phone: +86-755-27489177 Fax: +86-755-27489373 E-Mail: [email protected]

Cover Letter(s)

Page 1 of 1 Rev.2.0 Shenzhen Kejinming Electronic Co., Ltd WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2ATFT-T800 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo- location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Ruiqi Chen / Sales Director Signature: Phone: +86-755-27489177 Email: [email protected] Date: 2024-07-16

Cover Letter(s)

Shenzhen Kejinming Electronic Co., Ltd 1-6F, Block B7, Yintian Industrial Park, Xixiang Street, Bao'an Dist. Shenzhen 518000, China Date: July 16, 2024 FCC ID: 2ATFT-T800 Model Number: T800, T800 Plus, T800 Mini, T900, T08, T09, T808 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Shenzhen Kejinming Electronic Co., Ltd hereby declare that our product (VIDEO PROJECTOR) Model Number: T800, T800 Plus, T800 Mini, T900, T08, T09, T808 board, Schematic, Hardware version, Software version, structure and internal photos are same, named and appearance differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Ruiqi Chen / Sales Director Company: Shenzhen Kejinming Electronic Co., Ltd Address: 1-6F, Block B7, Yintian Industrial Park, Xixiang Street, Bao'an Dist. Shenzhen 518000, China Phone: +86-755-27489177 Fax: +86-755-27489373 E-Mail: [email protected]

External Photos

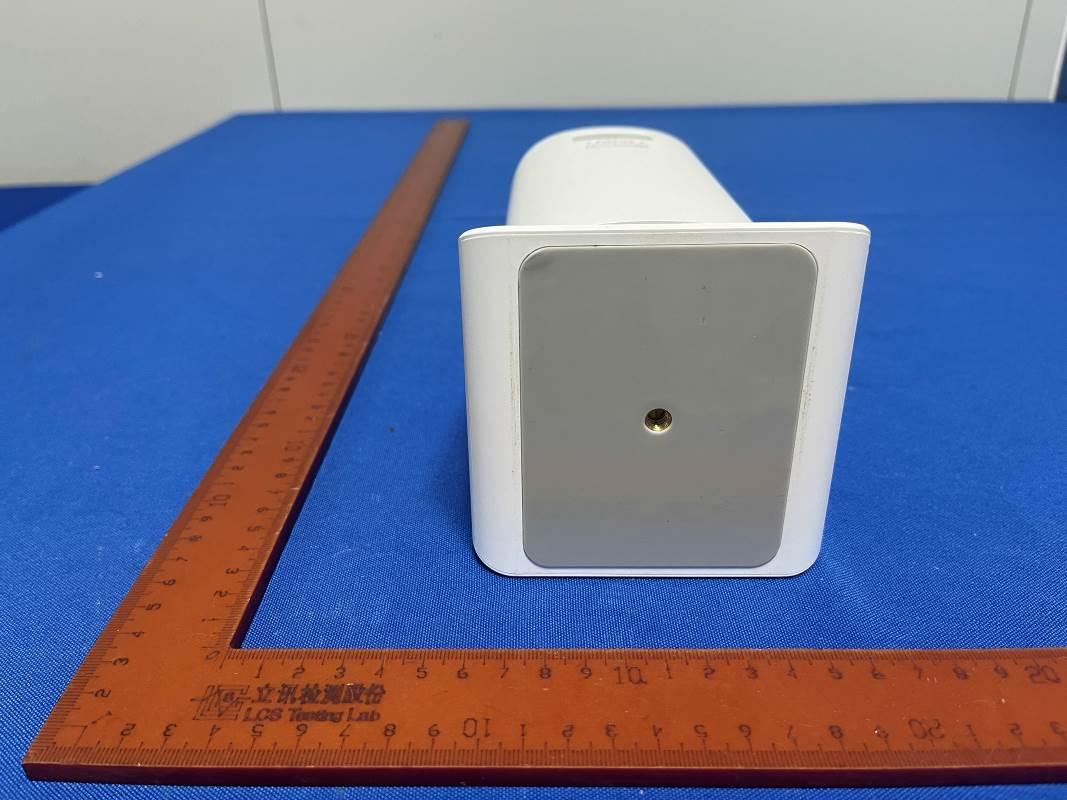

Page1of4FCCID:2ATFT-T800 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of4FCCID:2ATFT-T800 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of4FCCID:2ATFT-T800 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of4FCCID:2ATFT-T800 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8

ID Label/Location Info

Page1of1FCCID:2ATFT-T800 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L3.0cmxW2.0cm) LabelLocation VIDEOPROJECTOR Model:T800 FCCID:2ATFT-T800

Internal Photos

Page1of6FCCID:2ATFT-T800 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity InternalPhotosoftheEUT Fig.1 Fig.2 Page2of6FCCID:2ATFT-T800 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of6FCCID:2ATFT-T800 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 WIFIAntenna Page4of6FCCID:2ATFT-T800 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8 BluetoothAntenna Page5of6FCCID:2ATFT-T800 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.9 Fig.10 Page6of6FCCID:2ATFT-T800 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.11

RF Exposure Info

Page1of7FCCID:2ATFT-T800 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity MaximumPermissibleExposureReport 1.ProductInformation EUT:VIDEOPROJECTOR TestModel:T800 AdditionalModelNo. :T800Plus,T800Mini,T900,T08,T09,T808 ModelDeclaration : PCBboard,structureandinternalofthesemodel(s)arethesame,So noadditionalmodelsweretested PowerSupply:Input:AC100-240V,50/60Hz,42W HardwareVersion:V1.0 SoftwareVersion:/ Bluetooth FrequencyRange:2402MHz~2480MHz ChannelNumber:79channelsforBluetoothV5.3(DSS) 40channelsforBluetoothV5.3(DTS) ChannelSpacing:1MHzforBluetoothV5.3(DSS) 2MHzforBluetoothV5.3(DTS) ModulationType:GFSK,π/4-DQPSK,8-DPSKforBluetoothV5.3(DSS) GFSKforBluetoothV5.3(DTS) BluetoothVersion:V5.3 AntennaDescription:Antenna0:PCBAntenna,3.24dBi(Max.) WIFI(2.4GBand) FrequencyRange:2412MHz~2462MHz ChannelNumber:11Channelsfor20MHzbandwidth(2412~2462MHz) ChannelSpacing:5MHz ModulationType:IEEE802.11b:DSSS(CCK,DQPSK,DBPSK) IEEE802.11g:OFDM(64QAM,16QAM,QPSK,BPSK) IEEE802.11n:OFDM(64QAM,16QAM,QPSK,BPSK) AntennaDescription:Antenna1:PIFAAntenna,2.66dBi(Max.) WIFI(5.2GBand) FrequencyRange:5180MHz~5240MHz ChannelNumber:4channelsfor20MHzbandwidth(5180MHz~5240MHz) ModulationType:IEEE802.11a:OFDM(64QAM,16QAM,QPSK,BPSK) IEEE802.11n:OFDM(64QAM,16QAM,QPSK,BPSK) IEEE802.11ac:OFDM(256QAM,64QAM,16QAM,QPSK,BPSK) AntennaDescription:Antenna1:PIFAAntenna,2.95dBi(Max.) WIFI(5.8GBand) FrequencyRange:5745MHz~5825MHz ChannelNumber:5channelsfor20MHzbandwidth(5745MHz~5825MHz) ModulationType:IEEE802.11a:OFDM(64QAM,16QAM,QPSK,BPSK) IEEE802.11n:OFDM(64QAM,16QAM,QPSK,BPSK) IEEE802.11ac:OFDM(256QAM,64QAM,16QAM,QPSK,BPSK) Page2of7FCCID:2ATFT-T800 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity AntennaDescription:Antenna1:PIFAAntenna,2.95dBi(Max.) Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:MobileDevices 2.EvaluationMethod SystemsoperatingundertheprovisionsofFCC47CFRsectionshallbeoperatedinamannerthatensures thatthepublicisnotexposedtoradiofrequencyenergylevelinexcessoftheCommission’sguidelines. Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeendefinedasmobile devicewherebyadistanceof0.2mnormallycanbemaintainedbetweentheuserandthedevice,andbelow RFPermissibleExposurelimitshallcomplywith. InaccordancewithKDB447498D01forSimultaneoustransmissionMPEtestexclusionapplieswhenthe sumoftheMPEratiosforallsimultaneoustransmittingantennasincorporatedinahostdevice,basedonthe calculated/estimated,numericallymodelledormeasuredfieldstrengthsorpowerdensity,is≤1.0.TheMPE ratioofeachantennaisdeterminedattheminimumtestseparationdistancerequiredbytheoperating configurationsandexposureconditionsofthehostdevice,accordingtotheratiooffieldstrengthsorpower densitytoMPElimit,atthetestfrequency.Eitherthemaximumpeakorspatiallyaveragedresultsfrom measurementsornumericalsimulationsmaybeusedtodeterminetheMPEratios.Spatialaveragingdoes notapplywhenMPEisestimatedusingsimplecalculationsbasedonfar-fieldplane-waveequivalent conditions.Theantennainstallationandoperatingrequirementsforthehostdevicemustmeettheminimum testseparationdistancesrequiredbyallantennas,inbothstandaloneandsimultaneoustransmission operations,tosatisfycompliance. 3.Limit 3.1ReferEvaluationMethod ANSIC95.1–2019:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoElectric,Magnetic, andElectromagneticFields,0Hzto300GHz FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortableDevicesRF ExposureProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices. 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/UncontrolledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity Page3of7FCCID:2ATFT-T800 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 4.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 5.AntennaInformation EUTcanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; Internal/External Identification Antennatypeand antennanumber Operatefrequency band Maximum antennagain Notes Antenna0PCBAntenna2400-2500MHz2.66dBiBTAntenna Antenna1PIFAAntenna 5180~5240MHz2.95dBi WIFIAntenna 5745~5825MHz2.95dBi 6.ConductedPower [BTAnt0] ModeChannelFrequency(MHz) PeakConductedOutput Power(dBm) GFSK 02402 -0.89 392441 -0.27 792480 0.03 π/4-DQPSK 002402 0.4 392441 -0.48 792480 -0.17 8-DPSK 002402 0.46 392441 -0.42 792480 -0.09 [BLEAnt0] ModeChannelFrequency(MHz) PeakConductedOutput Power(dBm) BLE_1M 024020.31 1924400.9 392480-0.29 [2.4GWIFIA…

Text truncated - open the document above for the full version.

Test Report

1 规格承认书客户 CUSTOMER 客户料号 CUSTOMER NO. 供方品名 PARTNAME 规格名称 SUPPLIERNO. 客户确认 CUSTOMERAPPROVEDBY 检验 APPROVAL 检验 APPROVAL 检验 APPROVAL 设计 DESIGN 审核 CHECK 批准 APPROVAL LuoRobertSHANG Date:January5,2023 Shenzhen Xuhang Communication Technology Co., Ltd. 213-214, 2nd Floor, No.1 Chenghede Industrial Zone, Henglang Community, Dalang Street, Longhua District, Shenzhen, China 2 DIRECTORY NO.ContentsNumber ofPage PageCode 1SpecCover11 2SpecItem12 3TestReports13 4TestData14 3 电性测试报告 TESTREPORTS 频率 Frequency BT(2400~2500MHz) 阻抗 Impedance 500hmNominal 驻波比 V.S.W.R ≤2.0 回波损耗 ReturnLoss -10dBMax 辐射 Radiation Omni-directional 增益 Gain(Peak) 3.24dBi 极化方式 Polarization Linear,Vertical 功率 AdmittedPower 1W 连接器 Connector PhysicalProperties 天线材质 AntennaMaterial / 线材类型 CableType / 工作温度 OperatingTemp. -10-+60 °C 存储温度 StorageTemp. -10-+70°C 线材颜色 CableColor 4 测试数据 TestData 5 6 7

Test Report

The Holy bond Electronics Co., Ltd. Antenna Test Report Customer: 科金明 Project: T800 Product: WIFI Antenna—FPC Report date: 2024.06.07 Prepared by : 范新竹 Checked by : Eason Huang Approved by : 深圳市亿圣邦科技有限公司深圳市亿圣邦科技有限公司 1 Shenzhen Yi Sheng Bang technology Co., LTD 101, Building C, Shenzhen Qianwan Hard Science and Technology Industrial Park, Bao 'an District, Shenzhen, China Purpose This report is to measure the performance of SLK for Master Antenna on 科金明. All measure data are showed below. Content 1. Product Overview 2.Test Result 2.1 VSWR/S11 2.2 Antenna Parameters 2.3 WIFI Antenna TRP/TIS 2.4 WIFI Antenna Gain/Efficiency/3D DATA 3. Conclusions 深圳市亿圣邦科技有限公司 2 1. Product Overview 深圳市亿圣邦科技有限公司 3 2. Test Result 2.1 VSWR/S11 深圳市亿圣邦科技有限公司 4 2. Test Result 2.2 Antenna Parameters 深圳市亿圣邦科技有限公司 5 深圳市亿圣邦科技有限公司 6 2. Test Result 2.3 WIFI Antenna TRP/TIS WIFI CH功率(54M) 灵敏度 (54M) 802.11a 3610.89-74.04 14914.09-74.6 16513.98-74.26 WIFI CH功率(11M) 灵敏度 (11M) 802.11b 116.26-78.38 616.95-78.92 1117.11-78.12 WIFI CH功率(54M) 灵敏度 (54M) 802.11g 115.24-65.08 615.52-64.21 1115.48-64.59 WIFI CH功率(MCS7) 灵敏度 (MCS7) 802.11n 115.05-60.85 615.17-60.09 1115.46-60.37 深圳市亿圣邦科技有限公司 7 2. Test Result 2.4 WIFI Antenna Gain/Efficiency/3D DATA Frequency (MHz)2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500 5150 5350 5500 5650 5850 Efficiency (dBi)-3.03 -2.88 -2.55 -2.57 -2.68 -2.74 -2.56 -2.84 -2.75 -2.68 -2.84 -2.61 -2.52 -2.71 -2.62 -2.74 Gain (dBi)1.91 1.99 2.21 2.19 1.96 1.87 2.22 2.13 2.33 2.63 2.66 2.49 2.44 2.16 2.27 2.95 Efficiency (%)49.77 51.52 55.64 55.31 54.00 53.23 55.41 52.05 53.05 53.91 51.97 54.81 55.94 53.52 54.60 53.16 3. Conclusions 深圳市亿圣邦科技有限公司 8 Thank you

Test Report

Page 1 of 23 FCCID:2ATFT-T800ReportNo.:LCSA05204168EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity AppendixB RFTestDataforBTLE(ConductedMeasurement) ProductName:VIDEOPROJECTOR TestModel:T800 EnvironmentalConditions Temperature: 23.8  C RelativeHumidity: 52.1% ATMPressure: 100.0kPa TestEngineer: JayLuo Supervisedby: NickPeng Page 2 of 23 FCCID:2ATFT-T800ReportNo.:LCSA05204168EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity B.1-6dBBandwidth ConditionModeFrequency(MHz)Antenna-6dBBandwidth(MHz)Limit-6dBBandwidth(MHz)Verdict NVNTBLE1M2402Ant00.71>=0.5Pass NVNTBLE1M2440Ant00.702>=0.5Pass NVNTBLE1M2480Ant00.707>=0.5Pass Page 3 of 23 FCCID:2ATFT-T800ReportNo.:LCSA05204168EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs -6dBBandwidthNVNTBLE1M2402MHzAnt0 -6dBBandwidthNVNTBLE1M2440MHzAnt0 Page 4 of 23 FCCID:2ATFT-T800ReportNo.:LCSA05204168EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -6dBBandwidthNVNTBLE1M2480MHzAnt0 Page 5 of 23 FCCID:2ATFT-T800ReportNo.:LCSA05204168EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity B.2MaximumConductedOutputPower ConditionModeFrequency(MHz)AntennaConductedPower(dBm)Limit(dBm)Verdict NVNTBLE1M2402Ant00.3130Pass NVNTBLE1M2440Ant00.930Pass NVNTBLE1M2480Ant0-0.2930Pass Page 6 of 23 FCCID:2ATFT-T800ReportNo.:LCSA05204168EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs PowerNVNTBLE1M2402MHzAnt0 PowerNVNTBLE1M2440MHzAnt0 Page 7 of 23 FCCID:2ATFT-T800ReportNo.:LCSA05204168EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PowerNVNTBLE1M2480MHzAnt0 Page 8 of 23 FCCID:2ATFT-T800ReportNo.:LCSA05204168EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity B.3MaximumPowerSpectralDensityLevel ConditionModeFrequency(MHz)AntennaConductedPSD(dBm/3kHz)Limit(dBm/3kHz)Verdict NVNTBLE1M2402Ant0-15.048Pass NVNTBLE1M2440Ant0-15.488Pass NVNTBLE1M2480Ant0-15.458Pass Page 9 of 23 FCCID:2ATFT-T800ReportNo.:LCSA05204168EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs PSDNVNTBLE1M2402MHzAnt0 PSDNVNTBLE1M2440MHzAnt0 Page 10 of 23 FCCID:2ATFT-T800ReportNo.:LCSA05204168EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PSDNVNTBLE1M2480MHzAnt0 Page 11 of 23 FCCID:2ATFT-T800ReportNo.:LCSA05204168EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity B.4BandEdge ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant0-47.16-20Pass NVNTBLE1M2480Ant0-51.42-20Pass Page 12 of 23 FCCID:2ATFT-T800ReportNo.:LCSA05204168EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs BandEdgeNVNTBLE1M2402MHzAnt0Ref BandEdgeNVNTBLE1M2402MHzAnt0Emission Page 13 of 23 FCCID:2ATFT-T800ReportNo.:LCSA05204168EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity BandEdgeNVNTBLE1M2480MHzAnt0Ref BandEdgeNVNTBLE1M2480MHzAnt0Emission Page 14 of 23 FCCID:2ATFT-T800ReportNo.:LCSA05204168EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity B.5ConductedRFSpuriousEmission ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant0-54.7-20Pass NVNTBLE1M2440Ant0-46.65-20Pass NVNTBLE1M2480Ant0-54.36-20Pass Page 15 of 23 FCCID:2ATFT-T800ReportNo.:LCSA05204168EB ShenzhenLCSComplianceTestingLaboratoryLtd.…

Text truncated - open the document above for the full version.

Test Report

Page1of44FCCID:2ATFT-T800ReportNo.:LCSA05204168EC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity AppendixC RFTestDatafor2.4GWIFI(ConductedMeasurement) ProductName:VIDEOPROJECTOR TestModel:T800 EnvironmentalConditions Temperature: 23.8  C RelativeHumidity: 52.1% ATMPressure: 100.0kPa TestEngineer: JayLuo Supervisedby:NickPeng Page2of44FCCID:2ATFT-T800ReportNo.:LCSA05204168EC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity C.1-6dBBandwidth ConditionModeFrequency(MHz)Antenna-6dBBandwidth(MHz)Limit-6dBBandwidth(MHz)Verdict NVNTb2412Ant18.195>=0.5Pass NVNTb2437Ant19.039>=0.5Pass NVNTb2462Ant19.045>=0.5Pass NVNTg2412Ant116.359>=0.5Pass NVNTg2437Ant116.34>=0.5Pass NVNTg2462Ant116.303>=0.5Pass NVNTn202412Ant117.571>=0.5Pass NVNTn202437Ant117.579>=0.5Pass NVNTn202462Ant117.71>=0.5Pass Page3of44FCCID:2ATFT-T800ReportNo.:LCSA05204168EC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs -6dBBandwidthNVNTb2412MHzAnt1 -6dBBandwidthNVNTb2437MHzAnt1 Page4of44FCCID:2ATFT-T800ReportNo.:LCSA05204168EC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -6dBBandwidthNVNTb2462MHzAnt1 -6dBBandwidthNVNTg2412MHzAnt1 Page5of44FCCID:2ATFT-T800ReportNo.:LCSA05204168EC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -6dBBandwidthNVNTg2437MHzAnt1 -6dBBandwidthNVNTg2462MHzAnt1 Page6of44FCCID:2ATFT-T800ReportNo.:LCSA05204168EC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -6dBBandwidthNVNTn202412MHzAnt1 -6dBBandwidthNVNTn202437MHzAnt1 Page7of44FCCID:2ATFT-T800ReportNo.:LCSA05204168EC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -6dBBandwidthNVNTn202462MHzAnt1 Page8of44FCCID:2ATFT-T800ReportNo.:LCSA05204168EC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity C.2MaximumConductedOutputPower ConditionModeFrequency(MHz)AntennaConductedPower(dBm)Limit(dBm)Verdict NVNTb2412Ant114.5630Pass NVNTb2437Ant114.7230Pass NVNTb2462Ant114.1730Pass NVNTg2412Ant113.430Pass NVNTg2437Ant113.5830Pass NVNTg2462Ant113.3830Pass NVNTn202412Ant112.530Pass NVNTn202437Ant112.6130Pass NVNTn202462Ant112.1830Pass Page9of44FCCID:2ATFT-T800ReportNo.:LCSA05204168EC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauth…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Ruiqi Chen(Sales Director)

[email protected]0755-27489177Fax: 0755-27489373

Test Firm

Shenzhen LCS Compliance Testing Laboratory Ltd.Gavin Liang

[email protected]0755-82591330Fax: 0755-82591132

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.41 GHz - 2.46 GHz	29.60 mW

Confidentiality

Long Term

Grant Notes

Power listed is maximum peak conducted output power. The device supports 20 MHz bandwidth modes as described in this filing. The product must be installed such that its antenna(s) can provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other transmitter, except in accordance with FCC multi-transmitter product procedures or as described in this filing. Device is a client only device containing a 802.11b/g/n modes configuration, enabled for either 2.4 or 5 GHz band operations as described in this filing. The device also supports 5GHz WLAN and Bluetooth transmitters.
