2ATIZCAMIAIR PURIFIER

Rev11/20/07 GuangdongInvitopTechnologyCo.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationof FCCID: 2ATIZCAMI PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram,Schematics,Operational Description, BlockDiagram, Schematics, Operational Description, Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. Client’sname/title：TomChen/QCmanager Contactinformation/address:GuangdongInvitopTechnologyCo.,Ltd./MinsenInformation TechnologyIndustrialPark,EastofJinsanAvenue,Sanjiao,Zhongshan,Guangdong,China

GuangdongInvitopTechnologyCo.,Ltd. Declarationonmodeldifference Wetheundersignedherebyconfirmthatanyofourproductionunitsbearingthefollowingmodel numbersareidenticalincircuitryandelectrical,mechanicalandphysicalconstruction;onlyindicates fordifferentmarketpurposes; FCCID:2ATIZCAMI ProductionnameTradenameModelno. AIRPURIFIER N/A Cami，Zoeplus，Filloplus,zoroplus， Camila，Amor，Mars，JupiterPlus Confirmedby GuangdongInvitopTechnologyCo.,Ltd. Client’sname/title：TomChen/QCmanager Contactinformation/address:GuangdongInvitopTechnologyCo.,Ltd./MinsenInformationTechnologyIndustrial Park,EastofJinsanAvenue,Sanjiao,Zhongshan,Guangdong,China Date:2022-8-9

GuangdongInvitopTechnologyCo.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Date:2022-8-9 SUBJECT:FCCApplicationforFCCID:2ATIZCAMI ToWhomItMayConcern: We,theundersigned,herebyauthorizeLisaWangatEMTEK(SHENZHEN)CO.,LTD.on ourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment.Any andallactscarriedoutbyEMTEK(SHENZHEN)CO.,LTD.onourbehalfshallhavethe sameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. Regards, Client’sname/title ： TomChen/QCmanager Contactinformation/address:GuangdongInvitopTechnologyCo.,Ltd./MinsenInformationTechnology IndustrialPark,EastofJinsanAvenue,Sanjiao,Zhongshan,Guangdong,China

Guangdong Invitop Technology Co., Ltd. Date: 2022-8- 9 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: 2ATIZCAMI To Whom It May Concern: This letter is to ascertain thatGuangdong Invitop Technology Co., Ltd./Minsen Information Technology Industrial Park, East of Jinsan Avenue, Sanjiao, Zhongshan, Guangdong, China EUT：AIR PURIFIER MODEL No.: Cami, Zoe plus, Fillo plus, zoro plus, Camila, Amor, Mars , Jupiter Plus Has been the units used for conducting FCC compliance testing, the SDoC part Have be tested by EMTEK (SHENZHEN) CO., LTD. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature ： Client’s name / title ：Tom Chen/QC manager Contact information / address: Guangdong Invitop Technology Co., Ltd. /Minsen Information Technology Industrial Park, East of Jinsan Avenue, Sanjiao, Zhongshan, Guangdong, China

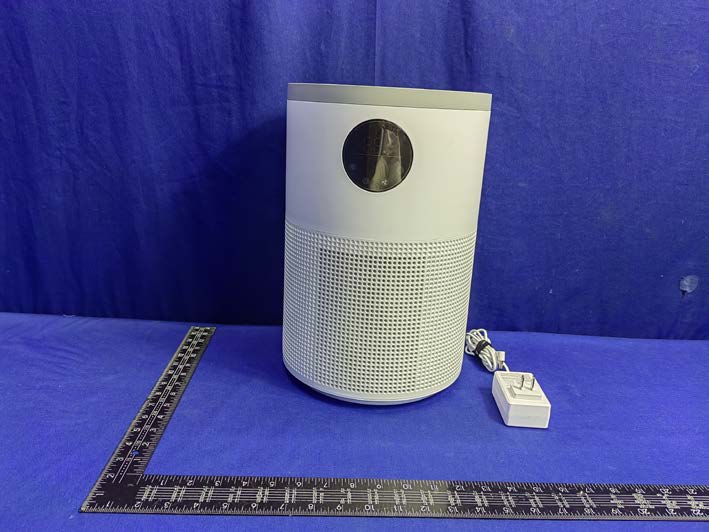

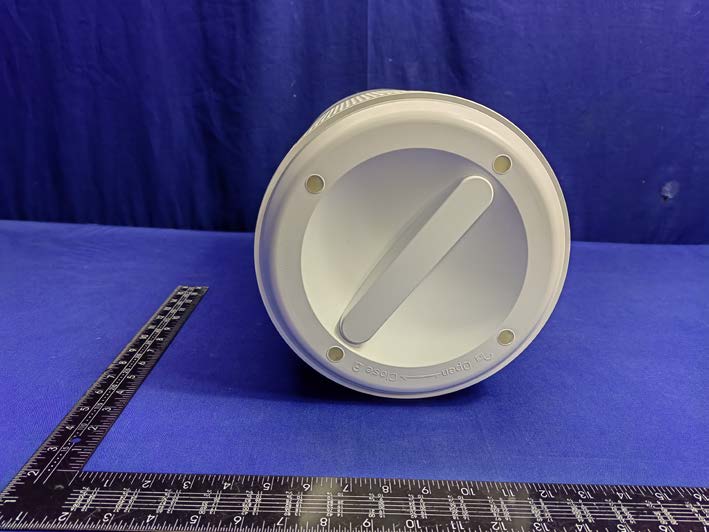

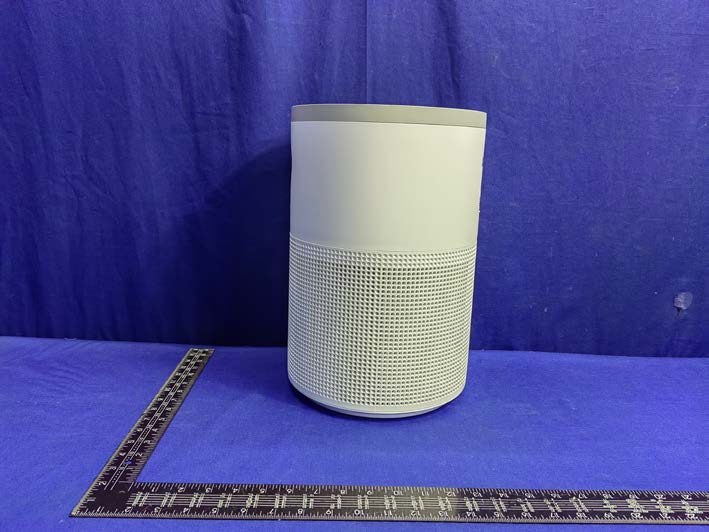

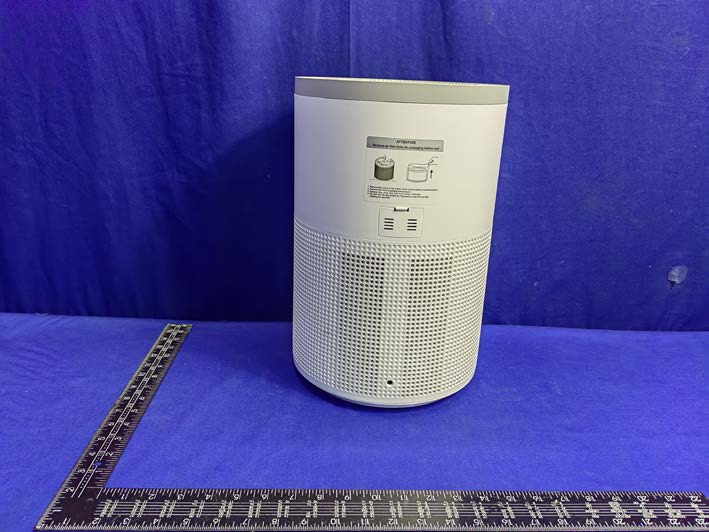

EUT EXTERNAL PHOTOGRAPHS ----------------The end----------------

PCB ant ----------------The end----------------

EUT INTERNAL PHOTOGRAPHS

FCC ID :2ATIZCAMI RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 1.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in 20cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 1.2 Measurement Result Antenna Gain: 2.5 dBi Mode Max Measured power (dBm) Max tune-up power (dBm) Antenna gain Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 2.4G WIF 15.17 16 2.5 1.78 0.01408 1 BLE 7.65 8 2.5 1.78 0.00223 1 MAX RF EXPOSURE EVALUATION Wifi 2.4G BT Summation of Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 0.01408 0.00223 0.01631 <1 ----------------THE END OF REPORT---------------

Report No. ENS2207060082W00301R Page 1 of 55 Ver.1.0 $印章$ TEST REPORT Product Name ： AIR PURIFIER Model Number ： Cami, zoe plus, Fillo plus, zoro plus, Camila, Amor, Mars, Jupiter Plus FCC ID ： 2ATIZCAMI Prepared for : Guangdong Invitop Technology Co., Ltd. Address : Minsen Information Technology Industrial Park, East of Jinsan Avenue, Sanjiao, Zhongshan, Guangdong, China Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2207060082W00301R Date(s) of Tests : August 1, 2022 to August 8, 2022 Date of issue : August 8, 2022 $二维码$ Report No. ENS2207060082W00301R Page 2 of 55 Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICATION ....................................................................................................... 3 2 EUT TECHNICAL DESCRIPTION ..................................................................................................... 5 3 SUMMARY OF TEST RESULT .......................................................................................................... 6 4 TEST METHODOLOGY ..................................................................................................................... 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................ 7 4.2 MEASUREMENT EQUIPMENT USED ....................................................................................... 7 4.3 DESCRIPTION OF TEST MODES ............................................................................................. 9 5 FACILITIES AND ACCREDITATIONS ............................................................................................. 10 5.1 FACILITIES ............................................................................................................................... 10 5.2 EQUIPMENT ............................................................................................................................. 10 5.3 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................ 10 6 TEST SYSTEM UNCERTAINTY ...................................................................................................... 11 7 SETUP OF EQUIPMENT UNDER TEST ......................................................................................... 12 7.1 RADIO FREQUENCY TEST SETUP 1 ..................................................................................... 12 7.2 RADIO FREQUENCY TEST SETUP 2 ..................................................................................... 12 7.3 CONDUCTED EMISSION TEST SETUP ................................................................................. 15 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................... 16 7.5 SUPPORT EQUIPMENT .......................................................................................................... 16 8 TEST REQUIREMENTS ................................................................................................................... 17 8.1 DTS 6DB BANDWIDTH ............................................................................................................ 17 8.2 DTS 99% BANDWIDTH ............................................................................................................ 20 8.3 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................... 23 8.4 MAXIMUM POWER SPECTRAL DENSITY ............................................................................. 27 8.5 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS ............................. 30 8.6 RADIATED SPURIOUS EMISSION ......................................................................................... 39 8.7 CONDUCTED EMISSIONS TEST ............................................................................................ 51 8.8 ANTENNA APPLICATION ......................................................................................................... 54 Report No. ENS2207060082W00301R Page 3 of 55 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Guangdong Invitop Technology Co., Ltd. Address : Minsen Information Technology Industrial Park, East of Jinsan Avenue, Sanjiao, Zhongshan, Guangdong, China Manufacturer : Guangdong Invitop Technology Co., Ltd. Address : Minsen Information Technology Industrial Park, East of Jinsan Avenue, Sanjiao, Zhongshan, Guangdong, China EUT : AIR PURIFIER Model Name : Cami, zoe plus, Fillo plus, zoro plus, Camila, Amor, Mars, Jupiter Plus Trademark : N/A Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS IC RSS-GEN, Issue 5(04-2018)+A1(03-2019)+A2(02-2021) IC RSS-247 Issue 2(02-2017) PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2, Part 15.247, IC RSS-247 Issue 2 and IC RSS-GEN, Issue 5. The test results of this report relate only to the tested sample identified in this report. Date of Test : August 1, 2022 to August 8, 2022 Prepared by : Luo peiye /Editor Reviewer : Joe Xia /Supervisor Approve & Authorized Signer : Lisa Wang/Manager Report No. ENS2207060082W00301R Page 4 of 55 Ver.1.0 Modified History Version Report No. Revision Date Summary V1.0 ENS2207060082W00301R / Original Report Report No. ENS2207060082W00301R Page 5 of 55 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Characteristics Description Product: AIR PURIFIER Model Number: Cami, zoe plus, Fillo plus, zoro plus, Camila, Amor, Mars, Jupiter Plus (These models are identical in circuitry and electrical, mechani…

Text truncated - open the document above for the full version.

Report No. ENS2207060082W00302R Page 1 of 80 Ver.1.0 $印章$ TEST REPORT Product Name ： AIR PURIFIER Model Number ： Cami, zoe plus, Fillo plus, zoro plus, Camila, Amor, Mars, Jupiter Plus FCC ID ： 2ATIZCAMI Prepared for : Guangdong Invitop Technology Co., Ltd. Address : Minsen Information Technology Industrial Park, East of Jinsan Avenue, Sanjiao, Zhongshan, Guangdong, China Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone,Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2207060082W00302R Date(s) of Tests : August 1, 2022 to August 8, 2022 Date of issue : August 8, 2022 $二维码$ Report No. ENS2207060082W00302R Page 2 of 80 Ver.1.0 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ........................................................................................................ 3 2 EUT TECHNICAL DESCRIPTION ...................................................................................................... 5 3 SUMMARY OF TEST RESULT ........................................................................................................... 6 4 TEST METHODOLOGY ...................................................................................................................... 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................................. 7 4.2 MEASUREMENT EQUIPMENT USED ........................................................................................ 7 4.3 DESCRIPTION OF TEST MODES ............................................................................................... 8 5 FACILITIES AND ACCREDITATIONS ................................................................................................ 9 5.1 FACILITIES .................................................................................................................................. 9 5.2 EQUIPMENT ................................................................................................................................ 9 5.3 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................... 9 6 TEST SYSTEM UNCERTAINTY ....................................................................................................... 10 7 SETUP OF EQUIPMENT UNDER TEST ........................................................................................... 11 7.1 RADIO FREQUENCY TEST SETUP 1 ........................................................................................ 11 7.2 RADIO FREQUENCY TEST SETUP 2 ........................................................................................ 11 7.3 CONDUCTED EMISSION TEST SETUP ................................................................................... 14 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................... 15 7.5 SUPPORT EQUIPMENT ............................................................................................................ 15 8 TEST REQUIREMENTS .................................................................................................................... 16 8.1 DTS 6DB BANDWIDTH .............................................................................................................. 16 8.2 DTS 99% BANDWIDTH ............................................................................................................. 23 8.3 MAXIMUM PEAK CONDUCTED OUTPUT POWER ................................................................. 30 8.4 MAXIMUM POWER SPECTRAL DENSITY ............................................................................... 37 8.5 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS ............................... 44 8.6 RADIATED SPURIOUS EMISSION ........................................................................................... 64 8.7 CONDUCTED EMISSION TEST ................................................................................................ 76 8.8 ANTENNA APPLICATION .......................................................................................................... 79 Report No. ENS2207060082W00302R Page 3 of 80 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Guangdong Invitop Technology Co., Ltd. Address : Minsen Information Technology Industrial Park, East of Jinsan Avenue, Sanjiao, Zhongshan, Guangdong, China Manufacturer : Guangdong Invitop Technology Co., Ltd. Address : Minsen Information Technology Industrial Park, East of Jinsan Avenue, Sanjiao, Zhongshan, Guangdong, China EUT : AIR PURIFIER Model Name : Cami, zoe plus, Fillo plus, zoro plus, Camila, Amor, Mars, Jupiter Plus Trademark : N/A Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS IC RSS-GEN, Issue 5(04-2018)+A1(03-2019)+A2(02-2021) IC RSS-247 Issue 2(02-2017) PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2, Part 15.247, IC RSS-247 Issue 2 and IC RSS-GEN, Issue 5. The test results of this report relate only to the tested sample identified in this report. Date of Test : August 1, 2022 to August 8, 2022 Prepared by : Luo peiye /Editor Reviewer : Joe Xia /Supervisor Approve & Authorized Signer : Lisa Wang/Manager Report No. ENS2207060082W00302R Page 4 of 80 Ver.1.0 Modified History Version Report No. Revision Date Summary V1.0 ENS2207060082W00302R / Original Report Report No. ENS2207060082W00302R Page 5 of 80 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Note: for more details, please refer to the User’s manual of the EUT. Characteristics Description Product: AIR PURIFIER Model Number: Cami, zoe plus, Fil…

Text truncated - open the document above for the full version.

Report No. ENS2207060082W00302R Page 53 of 80 Ver.1.0 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 Report No. ENS2207060082W00302R Page 54 of 80 Ver.1.0 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference Report No. ENS2207060082W00302R Page 55 of 80 Ver.1.0 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 Report No. ENS2207060082W00302R Page 56 of 80 Ver.1.0 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 Report No. ENS2207060082W00302R Page 57 of 80 Ver.1.0 11G_Ant1_2437_1000~26500 11G_Ant1_2462_0~Reference Report No. ENS2207060082W00302R Page 58 of 80 Ver.1.0 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 Report No. ENS2207060082W00302R Page 59 of 80 Ver.1.0 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 Report No. ENS2207060082W00302R Page 60 of 80 Ver.1.0 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference Report No. ENS2207060082W00302R Page 61 of 80 Ver.1.0 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 Report No. ENS2207060082W00302R Page 62 of 80 Ver.1.0 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 Report No. ENS2207060082W00302R Page 63 of 80 Ver.1.0 11N20SISO_Ant1_2462_1000~26500 Report No. ENS2207060082W00302R Page 64 of 80 Ver.1.0 8.6 RADIATED SPURIOUS EMISSION 8.6.1 Applicable Standard According to FCC Part 15.247(d),15.205, 15.209 and KDB 558074 D01 15.247 Meas Guidancev05r02 According to IC RSS-Gen and RSS-247 8.6.2 Conformance Limit According to FCC Part 15.247(d): radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)). According to FCC Part15.205, Restricted bands MHz MHz MHz GHz 0.090-0.110 16.42-16.423 399.9-410 4.5-5.15 10.495-0.505 16.69475-16.69525 608-614 5.35-5.46 2.1735-2.1905 16.80425-16.80475 960-1240 7.25-7.75 4.125-4.128 25.5-25.67 1300-1427 8.025-8.5 4.17725-4.17775 37.5-38.25 1435-1626.5 9.0-9.2 4.20725-4.20775 73-74.6 1645.5-1646.5 9.3-9.5 6.215-6.218 74.8-75.2 1660-1710 10.6-12.7 6.26775-6.26825 123-138 2200-2300 14.47-14.5 8.291-8.294 149.9-150.05 2310-2390 15.35-16.2 8.362-8.366 156.52475-156.52525 2483.5-2500 17.7-21.4 8.37625-8.38675 156.7-156.9 2690-2900 22.01-23.12 8.41425-8.41475 162.0125-167.17 3260-3267 23.6-24.0 12.29-12.293 167.72-173.2 3332-3339 31.2-31.8 12.51975-12.52025 240-285 3345.8-3358 36.43-36.5 12.57675-12.57725 322-335.4 3600-4400 (2) 13.36-13.41 According toFCC Part15.205the level of any transmitter spurious emission in Restricted bands shall not exceed the level of the emission specified in the following table Restricted Frequency(MHz) Field Strength (μV/m) Field Strength (dBμV/m) Measurement Distance 0.009-0.490 2400/F(KHz) 20 log (uV/m) 300 0.490-1.705 24000/F(KHz) 20 log (uV/m) 30 1.705-30 30 29.5 30 30-88 100 40 3 88-216 150 43.5 3 216-960 200 46 3 Above 960 500 54 3 8.6.3 Test Configuration Test according to clause 6.2 radio frequency test setup 8.6.4 Test Procedure This test is required for any spurious emission that falls in a Restricted Band, as defined in Section 15.205. It must be performed with the highest gain of each type of antenna proposed for use with the EUT. Use the following spectrum analyzer settings: For Above 1GHz: The EUT was placed on a turn table which is 1.5m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 1 MHz VBW ≥ RBW Sweep = auto Detector function = peak Trace = max hold Report No. ENS2207060082W00302R Page 65 of 80 Ver.1.0 For Below 1GHz: The EUT was placed on a turn table which is 0.8m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 100 kHz for VBW ≥ RBW Sweep = auto Detector function = peak Trace = max hold For Below 30MHz: The EUT was placed on a turn table which is 0.8m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 9kHz VBW ≥ RBW Sweep = auto Detector function = peak Trace = max hold For Below 150KHz: The EUT was placed on a turn table which is 0.8m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 200Hz VBW ≥ RBW Sweep = auto Detector function = peak Trace = max hold Follow the guidelines in ANSI C63.10 with respect to maximizing the emission by rotating the EUT, measuring the emission while the EUT is situated in three orthogonal planes (if appropriate), adjusting the measurement antenna height and polarization, etc. A pre-amp and a high pass filter are required for this test, in order to provide the measuring system with sufficient sensitivity. Allow the trace to stabilize. The peak reading of the emission, after being corrected by the antenna factor, cable loss, pre-amp gain, etc., is the peak field strength, which must comply with the limit. Submit this data. Now set the VBW to 10 Hz, while maintaining all of the other instrument settings. This peak level, once corrected, must comply with the limit. If the dwell time per channel of the hopping signal is less than 100 ms, then the reading obtained with the 10 Hz VBW may be further adjusted by a “duty cycle correction factor”, derived from 20log(dwell time/100 ms), in an effort to demonstrate compliance with the limit. Submit this data. Repeat above procedures until all frequency measured was complete. 8.6.5 Test Results Temperature: 26° C Relative Humidity: 54% ATM Pressure: 1011 mbar  Spurious Emission below 30MHz(9KHz to 30MHz) Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit 3m(dBuV/m) Over(dB) H/V PK AV PK AV PK AV -- -- -- -- -- -- -- -- Note: the amplitude of spurious emission that is attenuated by more than 20dB below the permissible limit has no need to be reported. Distance …

Text truncated - open the document above for the full version.

1.1. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) Conducted Emission Measurement ----------------The end----------------
