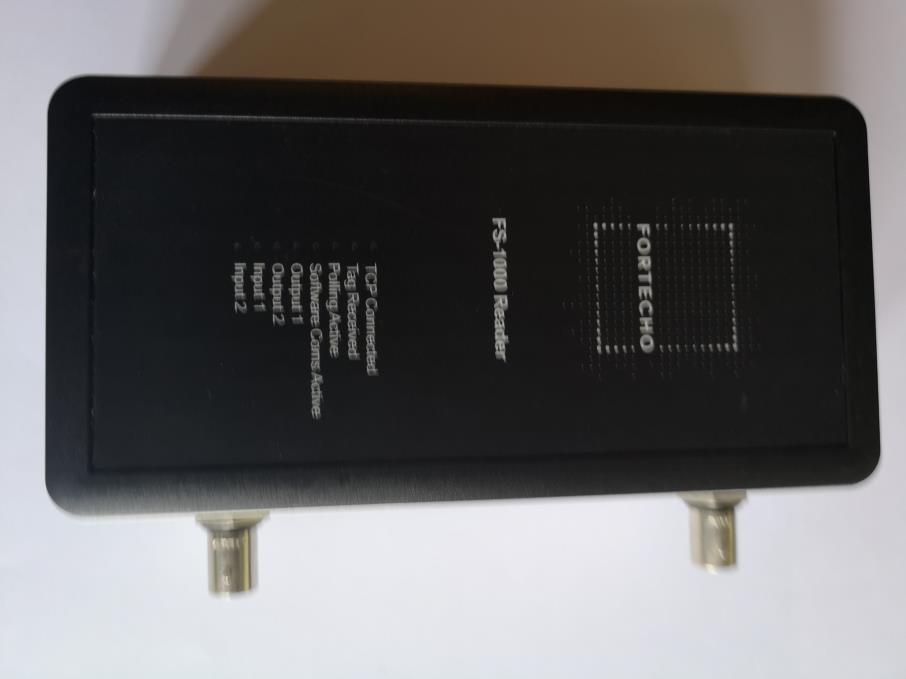

2ATM6-FS1000RFID Reader - RX only - operating on ISM band 433 MHz

Fortecho Solutions FS1000 IP Reader User Manual Authors Will Damerell Revision 1.1 Date 25/03/2020 Table of Contents Manual Content ...................................................................................................................................... 3 Powering and Connections ..................................................................................................................... 3 Terminal Block..................................................................................................................................... 3 Protection ........................................................................................................................................... 3 Antenna Connections .......................................................................................................................... 4 Ethernet Setup ........................................................................................................................................ 4 Test Harness ............................................................................................................................................ 6 Updating FS1000 Firmware ..................................................................................................................... 9 Contact Details .............................................................................................................................. 11 Fitting Instructions ........................................................................................................................ 11 Installation .................................................................................................................................... 11 Maintenance ................................................................................................................................. 11 Cleaning ......................................................................................................................................... 11 End of Life ..................................................................................................................................... 12 Environmental ............................................................................................................................... 12 FCC Statement............................................................................................................................... 12 FCC WARNING ............................................................................................................................... 12 Manual Content This manual provides the operational detail and overview for the Fortecho FS1000 RFID Reader. Powering and Connections The FS1000 can be powered by 12V via the 2.5mm Jack plug or by USB, these ports are shown in figure 1. Figure 1, FS1000 Connections When powering over the 12V The RS232 port can be used to connect to a Fortecho RX210 reader. The RS232 port is not powered when the FS1000 is connected over USB. Terminal Block The terminal pin outs are shown in Table 1, terminal 1 (T1) is the terminal closest to the USB port. Figure 2, Terminal block detail Terminal Function 1 Input 1 2 Input 0 3 Output 1 – NO – Voltage Free 4 Output 1 – NO – Voltage Free 5 Output 0 – NO – Voltage Free 6 Output 0 – NO – Voltage Free 7 Ground 8 +12VDC Regulated Output The default states for Inputs 1&2 is high VCC 12V, they are switched by pulling them to GN Protection The FS1000 has a suitable level of protection in the event of connections errors. Connecting RS232 or Ethernet in the wrong RJ45 is not advisable but will not damage the unit. Ethernet 12V Micro USB RS232 Terminal Block Power LED Antenna Connections The 2 RF antenna are connected to the 50 ohm BNC connectors as shown in Figure 3. Figure 3 Ethernet Setup In order to configure the Network settings of the FS1000 the Lantronixs device manager should be used, this can be downloaded using the following link:- https://www.lantronix.com/products/deviceinstaller/ If prompted for a Password and Username the default settings for the FS1000 reader are for these field to be blank, figure 4. Figure 4, Login Screen To change the Ethernet setting use the device installer to identify the FS1000 on your network, if the IP address on the reader is on a different subnet to the host PC then the host PC’s subnet must be changed to match that of the readers. With the reader and the host both on the same subnet, the Ethernet settings can be viewed through the web browser, figure 5. Figure 5, Network Configuration Test Harness The FS-1000 reader is provided with a test harness piece of software written in VB.Net, which allows the user to operate and configure the reader’s full functionality. The harness allows the user to connect via either the USB port or the Ethernet port, these can be selected from the Connection Type tab, figure 6. Figure 6, Connection Tab With the reader connected the user can exercise the FS1000 Commands via the command tab. It should be noted that the FX commands are those topmost in the menu with the Wavetrend reader commands prefixed RX210, Figure 7. Figure 7, Command tab With the FS1000 poling rate set, raw tag packets will be shown in the Tag window, figure 8. Figure 8, FS Tag Packets The FS tag messages are formatted as below:- <RTPP>2017-08-07 12:23:23;111;2000;5;33;0;8;6;6;3B00;641C;907C;3.0;0;0;0.3;2;0;-66</RTPP> Figure 9, FS Tag packet Field Value Description 1 <RTPP> Header 2 2017-08-07 12:23:23 Time Stamp 3 111 Tag ID 4 2000 Site Code 5 5 Beacon Rate 6 33 Age Counter 7 0 Tamper count 8 8 Motion Count 9 6 Motion Threshold 10 6 Light Setting 11 3B00 Ambient Light in Lux Raw Hex Data 12 641C Temperature Raw Hex Data 13 907C Humidity Raw Hex Data 14 3.0 Voltage 15 0 Alarm Bits 16 0 Status 17 0.3 SW Version 18 2 HW Version 19 0 Antenna Number 20 -66 RSSI 21 </RTPP> Footer To program the tag, a magnet should be placed over the reed switch, afte…
