2ATOY-RT62TRUE WIRELESS EARBUDS

TRUE WIRELESS EARBUDS USER GUIDE TURNING ON YOUR EARBUDS METHOD 1: Remove your earbuds from the charging case. METHOD 2: If the earbuds are not inside the charging case or are turned off, touch and hold the RIGHT or LEFT earbud for 4 seconds until the blue LEDs flicker and you hear battery percentage. TURNING OFF YOUR EARBUDS METHOD 1: Place your earbuds back in the charging case. METHOD 2: Touch and hold your earbuds for 5 seconds until you hear “Power OFF.” BLUETOOTH PAIRING INSTRUCTIONS FIRST: Remove both earbuds from the charging case. They will auto-pair to each other. SECOND: Keep the earbuds within 10m of your smart device (for Bluetooth pairing only). Enable your device’s Bluetooth function from its Settings menu. Select “RT62” from the Bluetooth device list to pair the earbuds to your device. Once paired, you will hear “Device Connected.” Your RT62 earbuds are now ready to use! SINGLE EARBUD USAGE Each earbud can be used independently. CALLING/MUSIC ANSWER/END CALLS Touch the RIGHT or LEFT earbud 2 times. REJECTING A CALL Touch and hold the RIGHT or LEFT earbud for 2 seconds or until you hear a prompt sound. PLAY/PAUSE Touch the RIGHT or LEFT earbud 2 times. NEXT SONG Touch the RIGHT earbud 3 times. REWIND/PREVIOUS SONG Touch the LEFT earbud 3 times. VOICE ASSISTANT Touch and hold the RIGHT or LEFT earbud for 2 seconds or until you hear a prompt sound to active the Voice Assistant/Siri function. This function may not work for all devices. CHARGING THE RT62 Make sure to fully charge the earbuds prior to the first use. CHARGING THE CASE Plug the standard USB-C charging cable into the port on the case, and connect the USB head to a USB power source, such as an AC wall adapter or a computer. The LED indicator will flash green while the case is charging. Once the case is fully charged, the LED will illuminate solid green. CHARGING THE EARBUDS When the earbuds are low in power, you will hear “Battery Low.” Place the earbuds into their respective slots in the charging case. They will automatically begin to charge. The LEDs will turn solid red while charging. The LED on the bottom of the case will turn white then turn off after 4 seconds. Once the earbuds are fully charged, the LEDs on the earbuds will turn off. IMPORTANT SAFEGUARDS  Do not use this unit for anything other than its intended use.  Keep the unit away from heat sources, direct sunlight, humidity, water or any other liquid.  Do not expose the device to extremely high or low temperatures, as it may damage the battery.  Do not operate the unit if it has been wet or moist to prevent against electric shock and/or injury to yourself and damage to the unit.  Do not use this unit if it has been dropped or damaged in any way.  Repairs to electrical equipment should only be performed by a qualified electrician. Improper repairs may place the user at serious risk.  Keep this unit out of reach of children.  This unit is not a toy. SPECIFICATIONS Bluetooth Technology: Version 5.3 Battery (Earbuds): 35mAh (x2); 3.7V Battery (Charging Case): 500mAh; 3.7V Input Power Supply: 5V/0.4A Earbuds Charging Time: approx. 1.5 hr. Charging Case Time: approx. 2 hrs. Music Playback Time: approx. 6 hrs. Frequency: 20Hz – 20KHz This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement in portable exposure condition without restriction.

Dongguan Fulun Electronics Co.,Limited 4-8/F, Building B, Xinbosheng Industrial Park, No.5 Xinyuan S Rd,Tangxia,Dongguan.CN Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 4/23/2023 u.S. Aqent Desiqnation Dongguan Fulun Electronics Co.,Limited acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2ATOY-RT62): Name and company of U.S. agent: TZUMI Electronics,LLC Physical U.S. address of agent: 16 EAST 34TH STREET 16TH FLOOR NEW YORK, NY 10016 United States FRN of U.S. agent: 0027104157 Email address of U.S. agent: [email protected] FCC US Agent Inc. acknowledges their obligation to accept service of process on behalf of Dongguan Fulun Elect「onicsCo.,Limited. Dongguan Fulun Electronics Co.,Limited with the 0028509180 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under§ 2.911(d)(7). Sincerely , 艺/\ 11 ， 已 (-J} ＿＿ 6rJ _ ＿ -i 品 V , ． ， I- 『－ mu 二 8' Signature Bessie Luo Sales Manager Dongguan Fulun Electronics Co. , Limited Signature Ezra Azar Sales Manager TZUMI Electronics,LLC The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as wel1 as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB

Sincerely, Name/Title： Bessie Luo/Sales Manager Company: Dongguan Fulun Electronics Co.,Limited Address: 4-8/F, Building B, Xinbosheng Industrial Park, No.5 Xinyuan S Rd,Tangxia, Dongguan China Phone: +86 0755-25835499 Fax: +86 0755-25835499 E-Mail: [email protected]

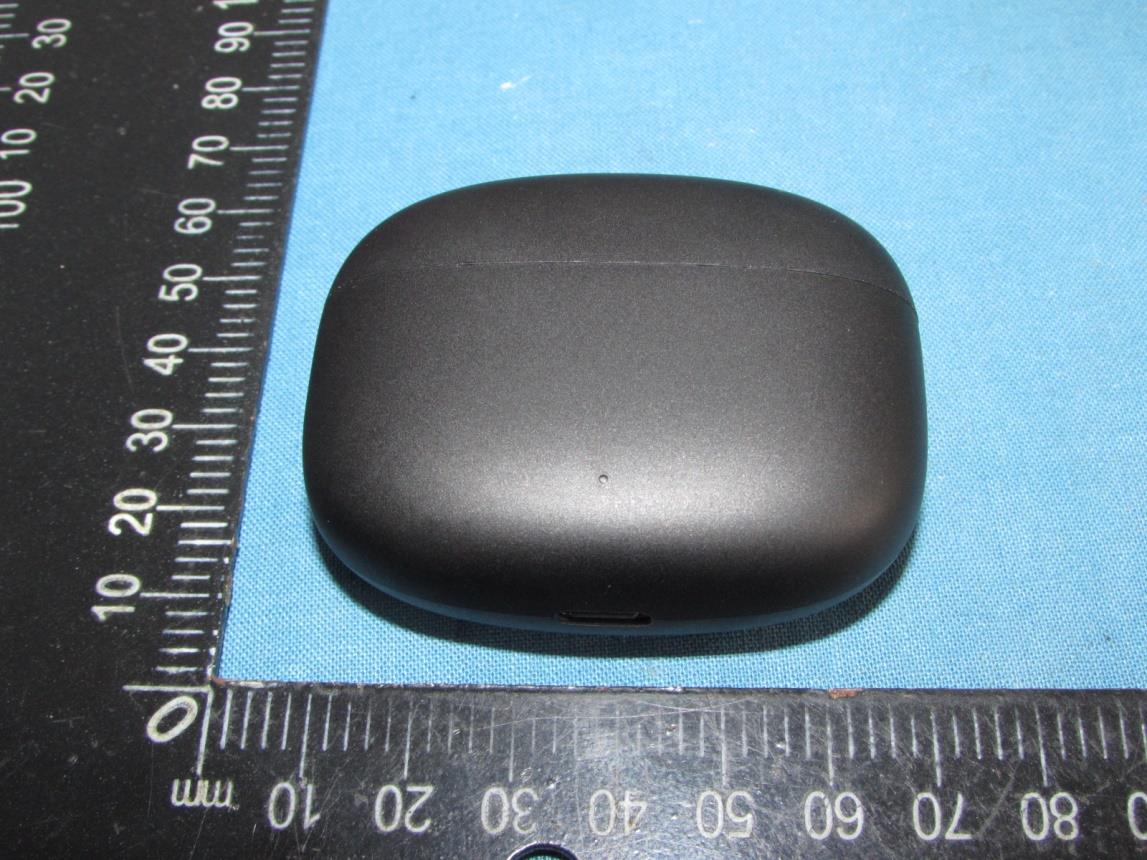

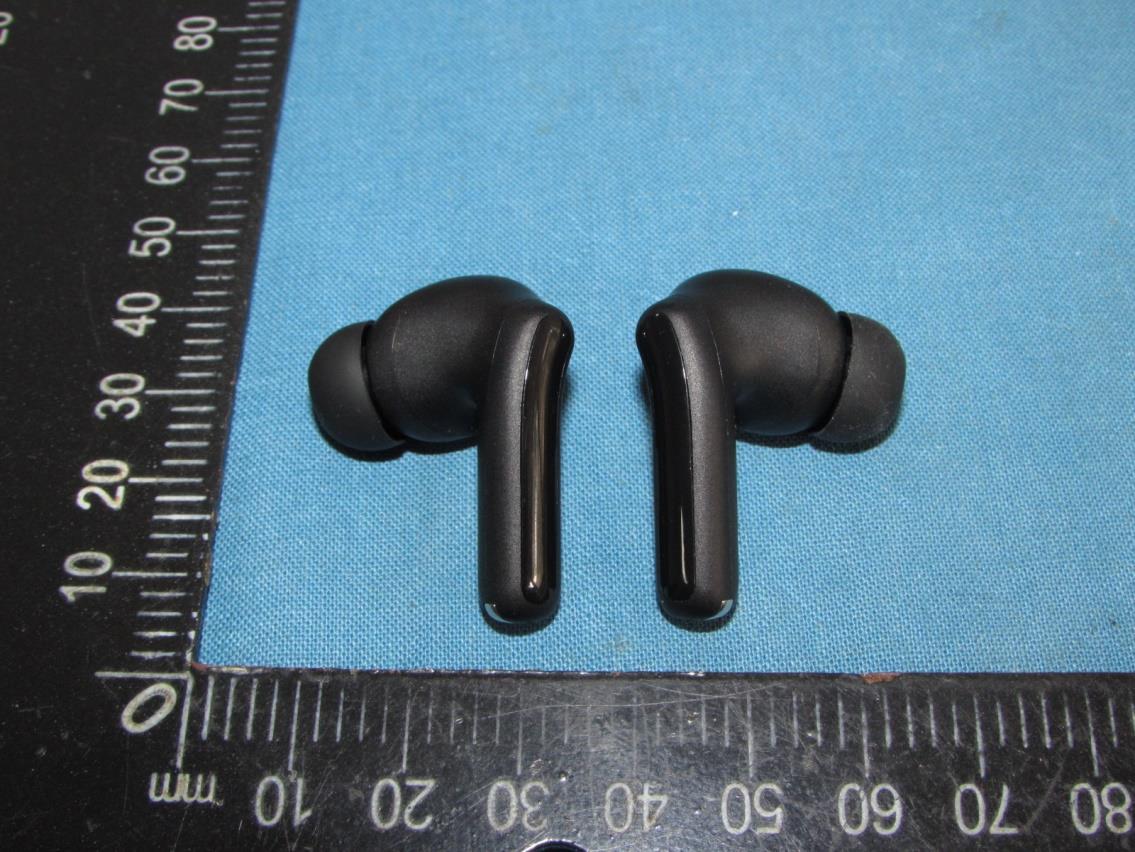

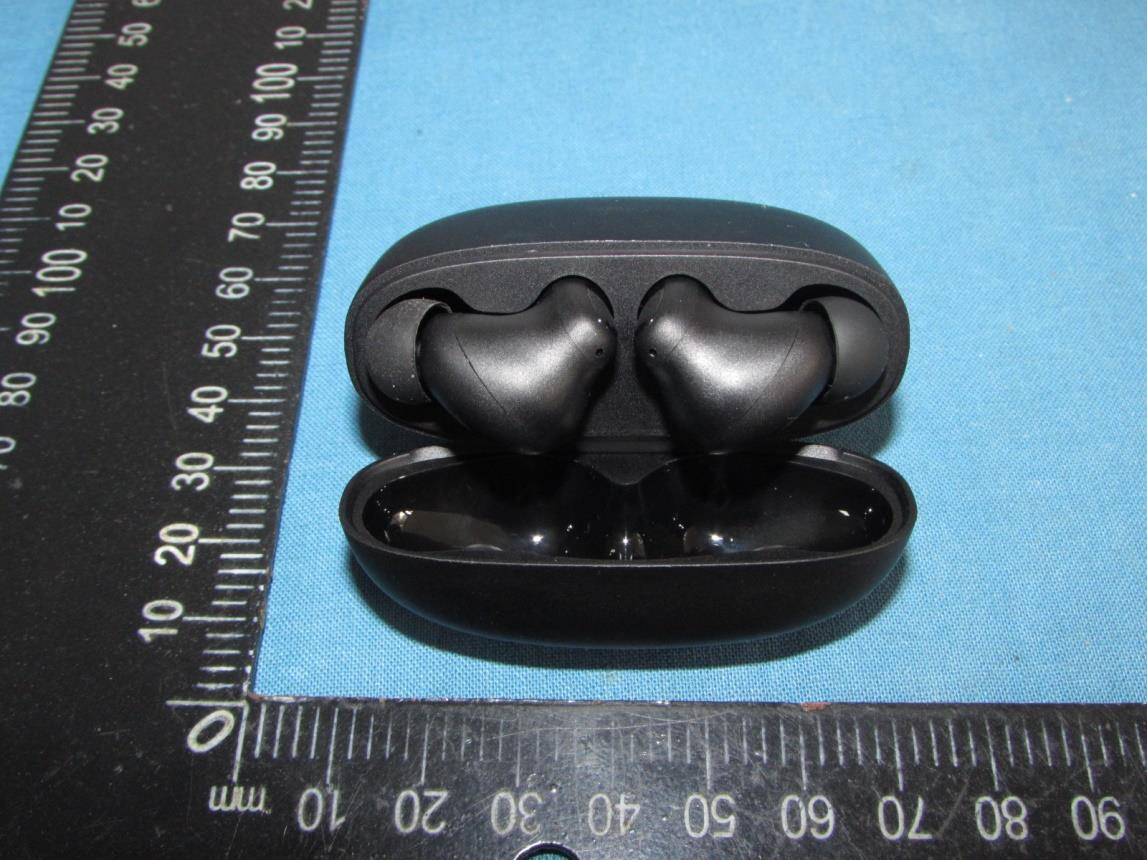

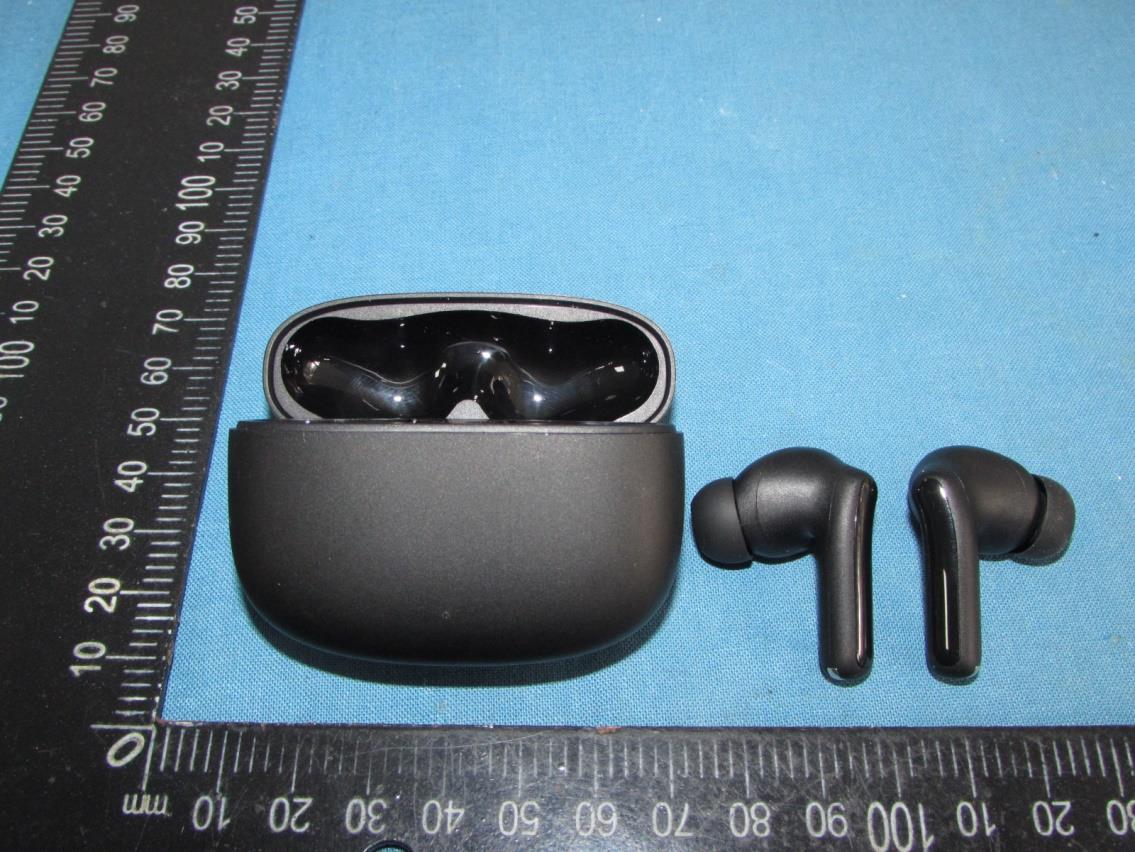

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Fig.8 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Fig.9

Label Location: FCC ID: 2ATOY-RT62

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK 00 2402 -2.65 39 2441 -2.09 78 2480 -1.86 π/4-DQPSK 00 2402 -2.41 39 2441 -1.88 78 2480 -1.45 8-DPSK 00 2402 -2.24 39 2441 -1.54 78 2480 -1.2 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -3.0 -2.5 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.5 -2.0 -1.5 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.5 -2.0 -1.5 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK 2402 -2.0 1.5 1.41 3 2441 -1.5 2.0 1.58 3 2480 -1.0 2.5 1.78 3 π/4-DQPSK 2402 -1.5 2.0 1.58 3 2441 -1.0 2.5 1.78 3 2480 -0.5 3.0 2.00 3 8-DPSK 2402 -1.5 2.0 1.58 3 2441 -1.0 2.5 1.78 3 2480 -0.5 3.0 2.00 3 The antenna gain of the EUT for BT is 3.5dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

詠業科技股份有限公司 Unictron Technologies Corporation Website:www.unictron.com THIS DRAW INGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Xenia Designed by : Mike Checked by : Mike Approved by：Herbert TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (AA055) Engineering Specification DOCUMENT H2U34WGTQW0100 REV. NO. O PAGE 1 OF 10 H2G4WTW10U30Q0 3.2 x 1.6 x 0.5 (mm) WiFi/Bluetooth Ceramic Chip Antenna (AA055) Engineering Specification 1. Product Number 2. Features *Stable and reliable in performances *Low temperature coefficient of frequency *Low profile, compact size *RoHS compliance *SMT processes compatible 3. Applications *Bluetooth earphone systems *Hand-held devices when WiFi /Bluetooth functions are needed, e.g., Smart phone. *IEEE802.11 b/g/n *ZigBee *Wireless PCMCIA cards or USB dongle 詠業科技股份有限公司 Unictron Technologies Corporation Website:www.unictron.com THIS DRAW INGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Xenia Designed by : Mike Checked by : Mike Approved by：Herbert TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (AA055) Engineering Specification DOCUMENT H2U34WGTQW0100 REV. NO. O PAGE 2 OF 10 4. Description Unictron’s chip antenna series are specially designed for WiFi/Bluetooth applications. Based on Unictron’s proprietary design and processes, this chip antenna has excellent stability and sensitivity to consistently provide high signal reception efficiency. 5. Electrical Specifications (80 x 40 mm 2 ground plane) 5-1. Electrical Table Characteristics Specifications Unit Outline Dimensions 3.2x1.6x0.5 mm Working Frequency 2400~2500 MHz VSWR 2 Max. Impedance 50  Polarization Linear Polarization Gain Peak 2.5 (typical) dBi Efficiency 84 (typical) % 5-2. Return Loss & VSWR Return Loss (S 11 ) VSWR(S 11 ) 詠業科技股份有限公司 Unictron Technologies Corporation Website:www.unictron.com THIS DRAW INGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Xenia Designed by : Mike Checked by : Mike Approved by：Herbert TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (AA055) Engineering Specification DOCUMENT H2U34WGTQW0100 REV. NO. O PAGE 3 OF 10 6. Antenna Dimensions & Test Board (unit: mm) a. Antenna Dimensions 詠業科技股份有限公司 Unictron Technologies Corporation Website:www.unictron.com THIS DRAW INGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Xenia Designed by : Mike Checked by : Mike Approved by：Herbert TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (AA055) Engineering Specification DOCUMENT H2U34WGTQW0100 REV. NO. O PAGE 4 OF 10 b. Test Board with Antenna 80 40 Unit: mm 詠業科技股份有限公司 Unictron Technologies Corporation Website:www.unictron.com THIS DRAW INGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Xenia Designed by : Mike Checked by : Mike Approved by：Herbert TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (AA055) Engineering Specification DOCUMENT H2U34WGTQW0100 REV. NO. O PAGE 5 OF 10 7. Radiation Pattern (80 x 40 mm 2 ground plane) 7-1. 3D Gain Pattern @ 2442 MHz Z Y X Z X Y Y X X Y Z 詠業科技股份有限公司 Unictron Technologies Corporation Website:www.unictron.com THIS DRAW INGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Xenia Designed by : Mike Checked by : Mike Approved by：Herbert TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (AA055) Engineering Specification DOCUMENT H2U34WGTQW0100 REV. NO. O PAGE 6 OF 10 7-2. 3D Efficiency Table Frequency( MHz) 2400 2410 2420 2430 2442 2450 2460 2470 2480 2490 2500 Efficiency (dB) -1.4 -1.0 -0.9 -0.7 -0.7 -0.8 -0.9 -1.1 -1.2 -1.3 -1.4 Efficiency (%) 72.8 78.7 82.3 84.4 84.5 84.0 82.0 78.6 76.1 74.6 72.5 Gain (dBi) 2.5 2.8 3.1 3.4 3.5 3.5 3.4 2.8 2.7 2.6 2.4 7-3. 3D Efficiency vs. Frequency Efficiency vs. Frequency 50 60 70 80 90 100 24002410242024302442245024602470248024902500 Frequency(MHz) Efficiency(%) 詠業科技股份有限公司 Unictron Technologies Corporation Website:www.unictron.com THIS DRAW INGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Xenia Designed by : Mike Checked by : Mike Approved by：Herbert TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (AA055) Engineering Specification DOCUMENT H2U34WGTQW0100 REV. NO. O PAGE 7 OF 10 8. Layout Guide a. Solder Land Pattern: Land pattern for soldering (gray marking areas) is as shown below. Depending on Customer’s requirement, matching circuit as shown below is also recommended. Top View Bottom View Unit： mm 9. Frequency tuning a. Chip antenna tuning scenario： Matching circuit Feed 4. Fine tuning element 1 2 3 詠業科技股份有限公司 Unictron Technologies Corporation Website:www.unictron.com THIS DRAW INGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Xenia Designed by : Mike Checked by : Mike Approved by：Herbert TITLE：3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 37 of 43 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 38 of 43 3DH5_Ant1_2441 3DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 39 of 43 Appendix J: Emissions in Restricted Bands Test Result TestMode Antenna ChName Channel Detector Freq(MHz) Result(dBm) Limit(dBm) Verdict DH5 Ant1 Low 2402 AV 2310.000 -47.48 ≤-41.20 PASS AV 2384.210 -47.04 ≤-41.20 PASS AV 2390.000 -47.11 ≤-41.20 PASS Peak 2310.000 -41.34 ≤-21.20 PASS Peak 2315.750 -36.91 ≤-21.20 PASS Peak 2390.000 -37.98 ≤-21.20 PASS High 2480 AV 2483.500 -46.12 ≤-41.20 PASS AV 2483.600 -46.1 ≤-41.20 PASS AV 2500.000 -46.52 ≤-41.20 PASS Peak 2483.500 -38.11 ≤-21.20 PASS Peak 2496.720 -35.82 ≤-21.20 PASS Peak 2500.000 -39.41 ≤-21.20 PASS 2DH5 Ant1 Low 2402 AV 2310.000 -47.59 ≤-41.20 PASS AV 2388.935 -47.16 ≤-41.20 PASS AV 2390.000 -47.18 ≤-41.20 PASS Peak 2310.000 -40.38 ≤-21.20 PASS Peak 2379.905 -37.26 ≤-21.20 PASS Peak 2390.000 -40.61 ≤-21.20 PASS High 2480 AV 2483.500 -46.21 ≤-41.20 PASS AV 2483.520 -46.21 ≤-41.20 PASS AV 2500.000 -46.65 ≤-41.20 PASS Peak 2483.500 -38.03 ≤-21.20 PASS Peak 2493.440 -37.25 ≤-21.20 PASS Peak 2500.000 -40.71 ≤-21.20 PASS 3DH5 Ant1 Low 2402 AV 2310.000 -47.53 ≤-41.20 PASS AV 2389.355 -47.17 ≤-41.20 PASS AV 2390.000 -47.33 ≤-41.20 PASS Peak 2310.000 -40.02 ≤-21.20 PASS Peak 2387.255 -37.49 ≤-21.20 PASS Peak 2390.000 -38.7 ≤-21.20 PASS High 2480 AV 2483.500 -46.09 ≤-41.20 PASS AV 2483.520 -46.08 ≤-41.20 PASS AV 2500.000 -46.62 ≤-41.20 PASS Peak 2483.500 -39.15 ≤-21.20 PASS Peak 2499.600 -37.19 ≤-21.20 PASS Peak 2500.000 -39.2 ≤-21.20 PASS Note： 1. The Antenna Gain is compensated in the graph with 2dBi and Antenna Gain which is Higher. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 40 of 43 Test Graphs DH5_Ant1_Low_2402_AV DH5_Ant1_Low_2402_Peak DH5_Ant1_High_2480_AV DH5_Ant1_High_2480_Peak Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 41 of 43 2DH5_Ant1_Low_2402_AV 2DH5_Ant1_Low_2402_Peak 2DH5_Ant1_High_2480_AV Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 42 of 43 2DH5_Ant1_High_2480_Peak 3DH5_Ant1_Low_2402_AV 3DH5_Ant1_Low_2402_Peak Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 43 of 43 3DH5_Ant1_High_2480_AV 3DH5_Ant1_High_2480_Peak

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 1 of 43 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: TRUE WIRELESS EARBUDS Trade Mark: N/A Test Model: RT62 FCC ID: 2ATOY-RT62 Environmental Conditions Temperature: 25.5C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.864 2401.541 2402.405 --- --- 2441 0.906 2440.538 2441.444 --- --- 2480 0.885 2479.544 2480.429 --- --- 2DH5 Ant1 2402 1.233 2401.376 2402.609 --- --- 2441 1.284 2440.367 2441.651 --- --- 2480 1.314 2479.340 2480.654 --- --- 3DH5 Ant1 2402 1.287 2401.349 2402.636 --- --- 2441 1.260 2440.355 2441.615 --- --- 2480 1.245 2479.367 2480.612 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 2 of 43 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 3 of 43 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 4 of 43 3DH5_Ant1_2441 3DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 5 of 43 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.85435 2401.5682 2402.4225 --- --- 2441 0.85603 2440.5661 2441.4221 --- --- 2480 0.85772 2479.5659 2480.4237 --- --- 2DH5 Ant1 2402 1.1678 2401.4126 2402.5804 --- --- 2441 1.1724 2440.4098 2441.5822 --- --- 2480 1.1606 2479.4161 2480.5767 --- --- 3DH5 Ant1 2402 1.1811 2401.4003 2402.5814 --- --- 2441 1.1808 2440.4038 2441.5846 --- --- 2480 1.1780 2479.4054 2480.5834 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 6 of 43 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 7 of 43 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 8 of 43 3DH5_Ant1_2441 3DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 9 of 43 Appendix C: Maximum Peak conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH5 Ant1 2402 -2.65 ≤30 PASS 2441 -2.09 ≤30 PASS 2480 -1.86 ≤30 PASS 2DH5 Ant1 2402 -2.41 ≤20.97 PASS 2441 -1.88 ≤20.97 PASS 2480 -1.45 ≤20.97 PASS 3DH5 Ant1 2402 -2.24 ≤20.97 PASS 2441 -1.54 ≤20.97 PASS 2480 -1.2 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 10 of 43 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 11 of 43 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 12 of 43 3DH5_Ant1_2441 3DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 13 of 43 Appendix D: Carrier frequency separation Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.992 ≥0.906 PASS 2DH5 Ant1 Hop 0.972 ≥0.876 PASS 3DH5 Ant1 Hop 1.002 ≥0.858 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 14 of 43 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 15 of 43 Appendix E: Time of occupancy Test Result TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.912 110 0.32 ≤0.4 PASS 2DH5 Ant1 Hop 2.917 120 0.35 ≤0.4 PASS 3DH5 Ant1 Hop 2.917 90 0.263 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 16 of 43 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 17 of 43 3DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 18 of 43 Appendix F: Number of hopping channels Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 19 of 43 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 20 of 43 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -3.58 -48.64 ≤-23.58 PASS High 2480 -2.45 -48.74 ≤-22.45 PASS Low Hop_2402 -5.61 -49.91 ≤-25.61 PASS High Hop_2480 -3.69 -49.34 ≤-23.69 PASS 2DH5 Ant1 Low 2402 -4.86 -50.01 ≤-24.86 PASS High 2480 -2.77 -48.52 ≤-22.77 PASS Low Hop_2402 -8.76 -50.17 ≤-28.76 PASS High Hop_2480 -5.20 -48.45 ≤-25.2 PASS 3DH5 Ant1 Low 2402 -3.53 -49.65 ≤-23.53 PASS High 2480 -3.32 -49.65 ≤-23.32 PASS Low Hop_2402 -9.05 -49.96 ≤-29.05 PASS High Hop_2480 -3.34 -48.9 ≤-23.34 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 21 of 43 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 DH5_Ant1_High_Hop_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 22 of 43 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 23 of 43 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT62 Report No.: TZ230404243-E Page 24 of 43 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATOY-RT6…

Text truncated - open the document above for the full version.

Report No.: TZ230404243-E Page 1 of 38 FCC TEST REPORT Test report On Behalf of Dongguan Fulun Electronics Co.,Limited For TRUE WIRELESS EARBUDS Model No: RT62, 8650HD, RT62s, 8650, 8700ST, 8701ST, 8702ST, 8700, 8701, 8702 FCC ID: 2ATOY-RT62 Prepared for : Dongguan Fulun Electronics Co.,Limited 4-8/F, Building B, Xinbosheng Industrial Park, No.5 Xinyuan S Rd,Tangxia, Dongguan.CN Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2023/4/17 – 2023/4/24 Date of Report: 2023/4/25 Report Number: TZ230404243-E The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ230404243-E Page 2 of 38 TEST RESULT CERTIFICATION Applicant’s name ................. : Dongguan Fulun Electronics Co.,Limited Address .................................. : 4-8/F, Building B, Xinbosheng Industrial Park, No.5 Xinyuan S Rd,Tangxia, Dongguan.CN Manufacture's Name ............ : Dongguan Fulun Electronics Co.,Limited Address .................................. : 4-8/F, Building B, Xinbosheng Industrial Park, No.5 Xinyuan S Rd,Tangxia, Dongguan.CN Product description Trade Mark ............................. : N/A Product name ........................... : TRUE WIRELESS EARBUDS Model No ................................ : RT62, 8650HD, RT62s, 8650, 8700ST, 8701ST, 8702ST, 8700, 8701, 8702 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................. ........... : Date (s) of performance of tests ........... : 2023/4/17-2023/4/24 Date of Issue ......................................... : 2023/4/25 Test Result ............................................ : PASS Testing Engineer : (Nancy Li) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ230404243-E Page 3 of 38 Revision History Revision …
