Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device mustaccept any interference received, including interference that maycause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment The devices has been evaluated to meet general RF exposure requirement the device can be used in portable exposure condition without restriction
LocalRepresentativeLetter ForCertificationServiceintheUSA FederalCommunicationsCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoSection2.911(d)(7),oftheCommission’sRules(47C.F.R.)weattestasfollowsfor theproductlistedbelow: FCCIDModelname 2ATPS-SC-B03SC-B03,SC-B01,QH-S01 Weherebyacknowledgeasfollows: i.bothsigneesconfirmthatthepointofcontactacceptsresponsibilitytoactasaUS- AmericanRepresentativeonbehalfoftheapplicant ii.thepointofcontactprovidesthephysicalU.S.addressandemailaslistedbelow iii.bothpartiesmaintaintherequirementsofthisagreementfornolessthanoneyear afterthegranteehasterminatedallmarketingandimportationortheconclusionof anyCommission-relatedproceedinginvolvingtheequipment. iv.Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,the granteeisobligatedtonotifytheFCCwithin30daysviathegrantingTCB. US-AmericanPointofContactApplicant/ApprovalHolder SignatureDate:2026-01-13SignatureDate:2026-01-13 CompanyName:GLOCERTSTECHNOLOGYINCDongguanShineconIndustrial Co.,Ltd FRN:00363397370028581742 ContactName:HuiyingFanKeqiangYang Address:19784SUNKISSEDRIDGEDR, RIVERSIDE,CA92507 NO.9SHIBEIROADTANGLI DISTRICT,FENGGANG DONGGUAN,China Phone:(626)588-803913528577662 Email:[email protected]@126.com

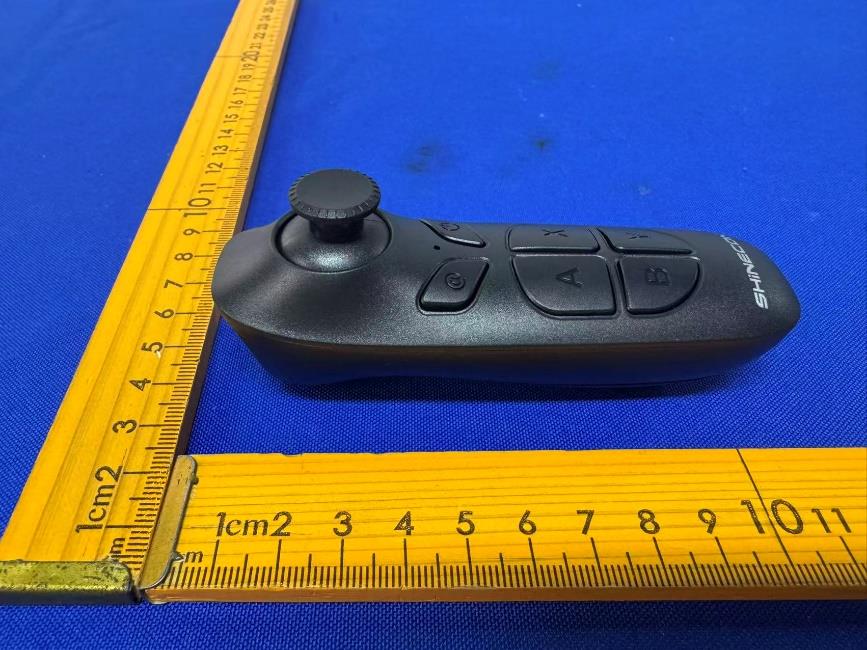

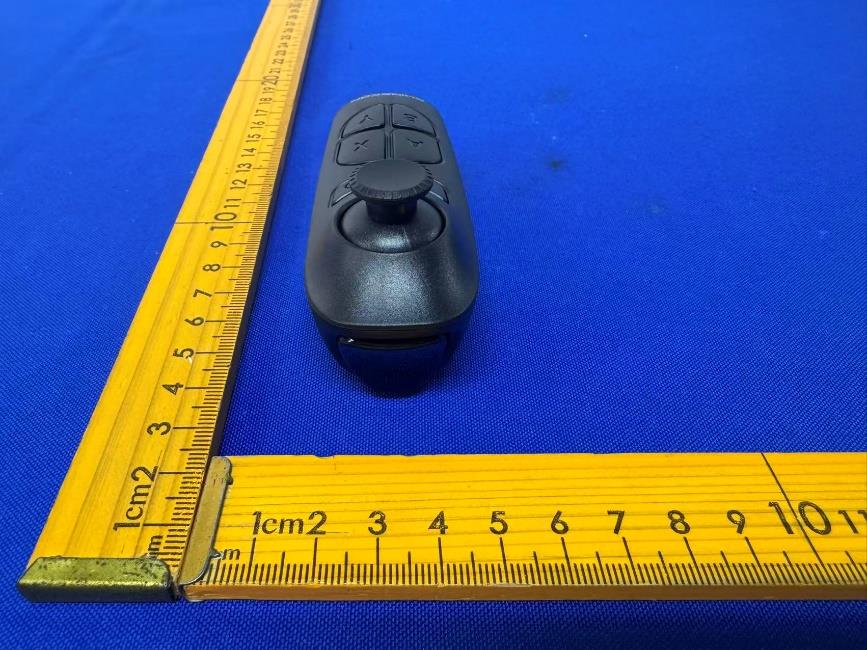

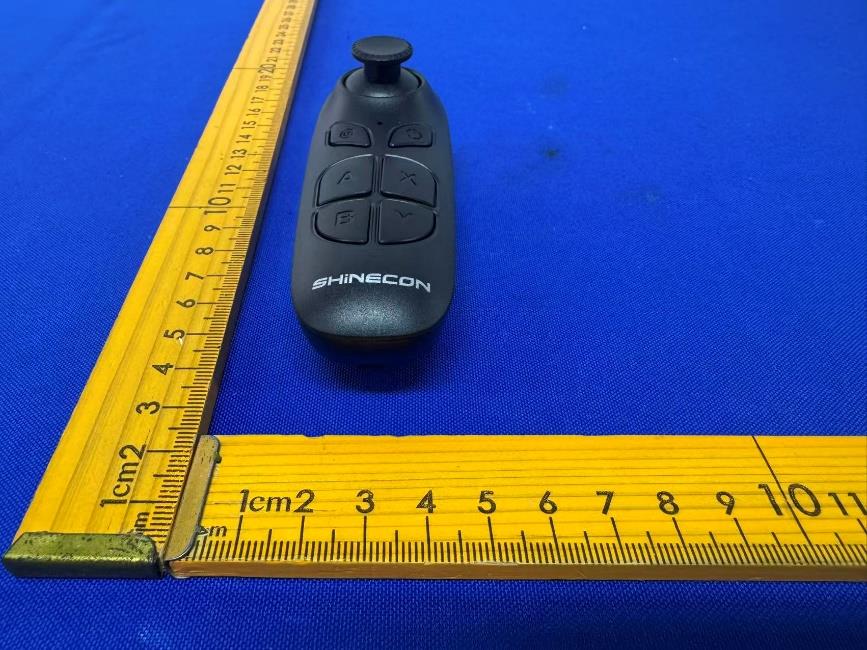

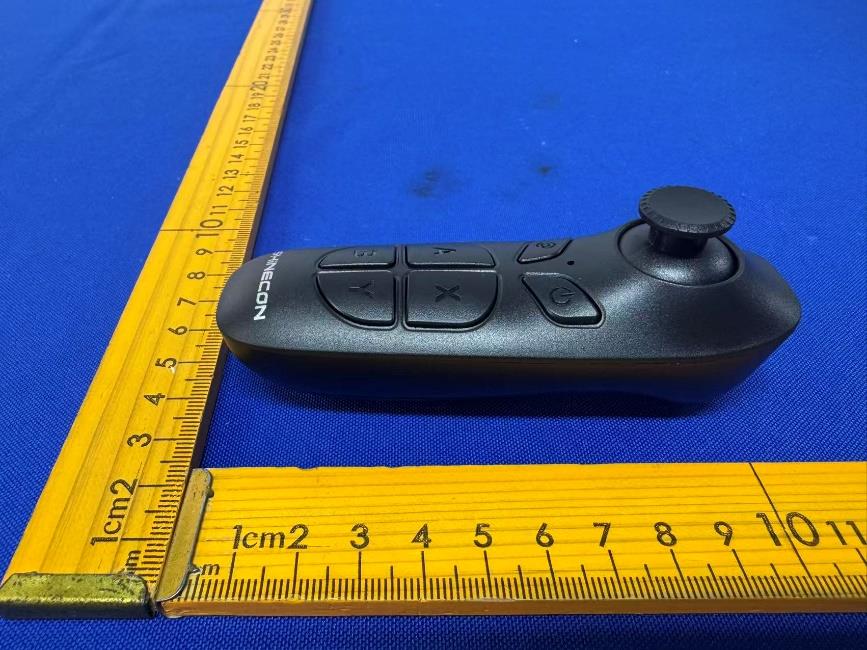

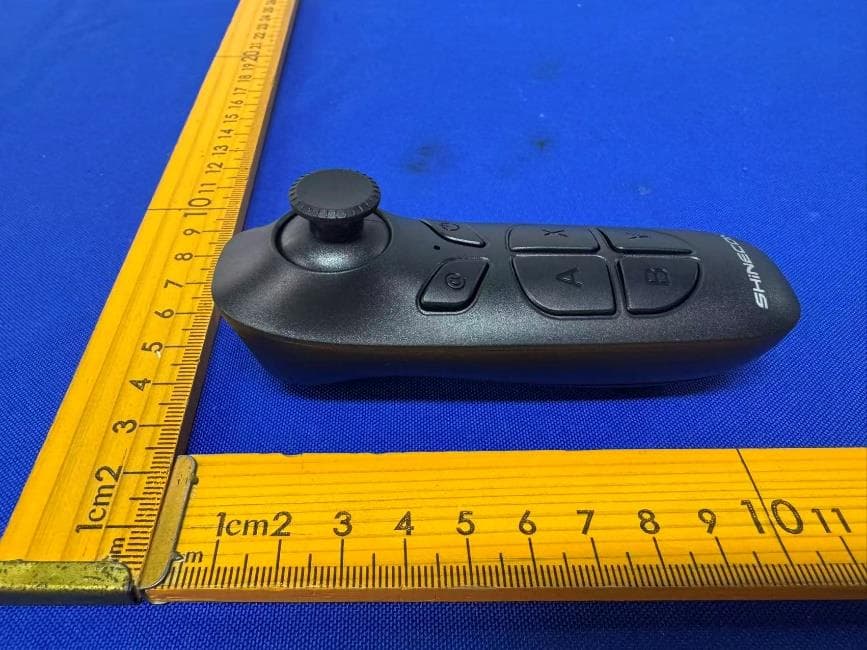

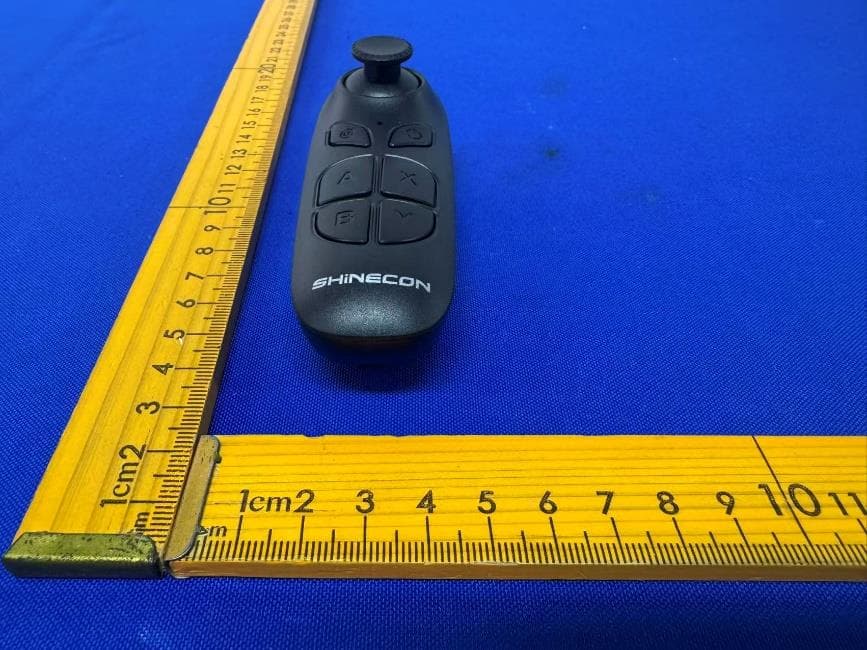

Page 1 of 3 FCC ID: 2ATPS-SC-B03 External Photos Page 2 of 3 FCC ID: 2ATPS-SC-B03 Page 3 of 3 FCC ID: 2ATPS-SC-B03
Label FCC ID: 2ATPS-SC-B03
Page 1 of 2 FCC ID: 2ATPS-SC-B03 Internal photos PCB ANT Page 2 of 2 FCC ID: 2ATPS-SC-B03
Page 1 of 7 Report No.: AiTSZ-260104009FW2 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. RF Exposure evaluation Product Name : WIRELESS REMOTE CONTROL Brand Name : N/A Model : SC-B03 Series Model : SC-B01,QH-S01 FCC ID : 2ATPS-SC-B03 Applicant : Dongguan Shinecon Industrial Co., LTD Address : NO.9 SHIBEI ROAD TANGLI DISTRICT, FENGGANG DONGGUAN,China Manufacturer : Dongguan Shinecon Technology Co., LTD Address : NO.33 Shibei Road Tangli Fenggang Town, Dongguan City, Guangdong China Standard(s) : 47CFR §1.1310, 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt : Jan. 04, 2026 Date of Test : Jan. 04, 2026~ Jan. 13, 2026 Issued Date : Jan. 13, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 7 Report No.: AiTSZ-260104009FW2 Report Revise Record Report Version Issued Date Notes M0 Jan. 13, 2026 Initial Release Page 3 of 7 Report No.: AiTSZ-260104009FW2 Contents 1 GENERAL INFORMATION ....................................................................................................................................... 4 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 4 1.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 METHOD OF MEASUREMENT ................................................................................................................................ 6 2.1 APPLICABLE STANDARD .................................................................................................................................................. 6 2.2 EVALUATION METHOD AND LIMIT .................................................................................................................................... 6 2.3 MANUFACTURING TOLERANCE ........................................................................................................................................ 7 2.4 EVALUATION RESULT ..................................................................................................................................................... 7 2.5 CONCLUSION ............................................................................................................................................................... 7 Page 4 of 7 Report No.: AiTSZ-260104009FW2 1 GENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C Relative Humidity: 55 % Air Pressure: 101 kPa 1.2 General Description of EUT Product Name: WIRELESS REMOTE CONTROL Model/Type reference: SC-B03 Serial Model: SC-B01,QH-S01 Model difference: All models are same as the samples except model name, all the models are electrical identical same mechanical structure and design. Power Supply: DC 3V from DC 1.5V*2 dry batteries Hardware Version: N/A Software Version: N/A Sample(s) Status: AiTSZ-260104009-1(Normal sample) AiTSZ-260104009-2(Engineer sample) Bluetooth LE: Supported type: Bluetooth LE 1M Modulation: GFSK Operation frequency: 2402MHz~2480MHz Channel number: 40 Channel separation: 2MHz Antenna type: PCB antenna Antenna gain: -0.58dBi Remark: The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual.. Page 5 of 7 Report No.: AiTSZ-260104009FW2 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for t…
Text truncated - open the document above for the full version.
Page 1 of 30 Report No.: AiTSZ-260104009FW1 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : WIRELESS REMOTE CONTROL Brand Name : N/A Model : SC-B03 Series Model : SC-B01,QH-S01 FCC ID : 2ATPS-SC-B03 Applicant : Dongguan Shinecon Industrial Co., LTD Address : NO.9 SHIBEI ROAD TANGLI DISTRICT, FENGGANG DONGGUAN,China Manufacturer : Dongguan Shinecon Technology Co., LTD Address : NO.33 Shibei Road Tangli Fenggang Town, Dongguan City, Guangdong China Standard(s) : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt : Jan. 04, 2026 Date of Test : Jan. 04, 2026~ Jan. 09, 2026 Issued Date : Jan. 13, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 30 Report No.: AiTSZ-260104009FW1 Report Revise Record Report Version Issued Date Notes M0 Jan. 13, 2026 Initial Release Page 3 of 30 Report No.: AiTSZ-260104009FW1 Contents 1 TEST SUMMARY .................................................................................................................................................... 4 1.1 TEST STANDARDS ......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENERAL INFORMATION ....................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 8 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS ......................................................................................................................... 10 3.1 CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 12 3.3 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 19 3.4 POWER SPECTRAL DENSITY .......................................................................................................................................... 20 3.5 6DB BANDWIDTH ....................................................................................................................................................... 21 3.6 OUT-OF-BAND EMISSIONS ........................................................................................................................................... 22 3.7 ANTENNA REQUIREMENT ............................................................................................................................................. 24 4 TEST SETUP PHOTOGRAPHS OF EUT .................................................................................................................... 25 5 PHOTOS OF EUT .................................................................................................................................................. 26 Page 4 of 30 Report No.: AiTSZ-260104009FW1 1 TEST SUMMARY 1.1 Test Standards The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ANSI C63.10: 2020: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spreda Spectrum System, and Hybrid System Devices Operating Under Sect…
Text truncated - open the document above for the full version.
Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Horizontal Vertical 2400MHz 2450MHz2500MHz2400MHz2450MHz 2500MHz Center Frequency -1.26dBi -0.76dBi -0.58dBi -5.25dBi -2.46dBi -1.86dBi MAX. Gain -0.58dBi Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD No. 333, Kexing Road, Xiangzhou District, Zhuhai City Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs:Attestation of Global Compliance Co., Ltd.
Page 1 of 21 Report No.: AiTSZ-260104009FW1 Appendix RF test data for BLE Page 2 of 21 Report No.: AiTSZ-260104009FW1 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 0.095 0.625 15.20 8.18 0.00 2440 0.094 0.625 15.04 8.23 0.00 2480 0.094 0.625 15.04 8.23 0.00 Page 3 of 21 Report No.: AiTSZ-260104009FW1 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 4 of 21 Report No.: AiTSZ-260104009FW1 1M_HCH_2480MHz_Ant1_NTNV Page 5 of 21 Report No.: AiTSZ-260104009FW1 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.017 / Pass 2440 1 1.017 / Pass 2480 1 1.017 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.505 >=0.5 Pass 2440 1 0.506 >=0.5 Pass 2480 1 0.501 >=0.5 Pass Page 6 of 21 Report No.: AiTSZ-260104009FW1 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 7 of 21 Report No.: AiTSZ-260104009FW1 1M_HCH_2480MHz_Ant1_NTNV Page 8 of 21 Report No.: AiTSZ-260104009FW1 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 9 of 21 Report No.: AiTSZ-260104009FW1 1M_HCH_2480MHz_Ant1_NTNV Page 10 of 21 Report No.: AiTSZ-260104009FW1 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 1.33 <=30 Pass 2440 1.82 <=30 Pass 2480 2.56 <=30 Pass Note1: Antenna Gain: Ant1: -0.58dBi; Page 11 of 21 Report No.: AiTSZ-260104009FW1 3.2 Test Graph 3.2.1 Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 12 of 21 Report No.: AiTSZ-260104009FW1 1M_HCH_2480MHz_Ant1_NTNV Page 13 of 21 Report No.: AiTSZ-260104009FW1 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit 1M SISO 2402 1.32 <=8 Pass 2440 1.82 <=8 Pass 2480 2.57 <=8 Pass Note1: Antenna Gain: Ant1: -0.58dBi; Page 14 of 21 Report No.: AiTSZ-260104009FW1 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 15 of 21 Report No.: AiTSZ-260104009FW1 1M_HCH_2480MHz_Ant1_NTNV Page 16 of 21 Report No.: AiTSZ-260104009FW1 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 1.32 2440 1 1.82 2480 1 2.55 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 2.55 -17.45 Pass 2440 1 2.55 -17.45 Pass 2480 1 2.55 -17.45 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. Page 17 of 21 Report No.: AiTSZ-260104009FW1 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 18 of 21 Report No.: AiTSZ-260104009FW1 1M_HCH_2480MHz_Ant1_NTNV Page 19 of 21 Report No.: AiTSZ-260104009FW1 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Page 20 of 21 Report No.: AiTSZ-260104009FW1 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Page 21 of 21 Report No.: AiTSZ-260104009FW1 1M_HCH_2480MHz_Ant1_NTNV ********************** End of Report **********************
Page 1 of 1 FCC ID: 2ATPS-SC-B03
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 1.80 mW |
