2ATQ2-CEBEA02Location Beacon

34ED, LLC

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Jul 10, 2023
Application Purpose: Original Equipment
Date of Application: Jul 10, 2023
Equipment Note: Location Beacon
Frequency Range: 902.30000000 - 914.90000000
Company: 34ED, LLC
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

CENTEGIX™ EVERY.SECOND.MATTERS. Badge 1.CentegixBadgepackagingremoval a.Takethebadgeoutofbox 2.AssigningtheCentegixBadge a.UseabarcodescannerandscantheQRcodeintotheCentegixsystem i.Thebadgeisnowassignedtothatuser 3.Howtousethebadge a.Pressthebuttononthebadge3timesforastaffalert b.Pressthebuttononthebadge8timesforalockdownevent Strobe 1.CentegixStrobepackagingremoval a.RemovetheStrobefromthebox 2.AssigningtheStrobe a.WalktowhereyouwanttoinstalltheCentegixStrobe b.PressandholdthebuttononthebackoftheStrobefor3Seconds c.IntheCentegixinstallerapplicationuseyourphonetoscantheQRcodeonthe backoftheCentegixStrobe d.Assignthestrobetothelocationatwhichyouarelocated 3.InstallStrobe a.Putthewireleaderovertheceilingtileandattachtheconnectortothewireso thestrobedoesnotfall b.Withthemagnetplacethestrobeontheceilingtile Beacon 1.CentegixBeaconpackagingremoval a.RemovetheBeaconfromthebox 2.AssigningtheBeacon a.WalktowhereyouwanttoinstalltheCentegixBeacon b.PressandholdthebuttononthebackoftheBeaconfor3Seconds c.IntheCentegixinstallerapplicationuseyourphonetoscantheQRcodeonthe backoftheCentegixBeacon d.AssigntheBeacontothelocationatwhichyouarelocated 3.InstallBeacon a.Putthewireleaderovertheceilingtileandattachtheconnectortothewireso thebeacondoesnotfall b.Withthemagnetplacethebeaconontheceilingtile FCCStatement ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovide reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipment generates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedin accordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications. However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.If thisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbe determinedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe interferencebyoneormoreofthefollowingmeasures: •Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. •Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Caution:Anychangesormodificationstothisdevicenotexplicitlyapprovedbymanufacturer couldvoidyourauthoritytooperatethisequipment. Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemust acceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. RFExposureInformation TomaintaincompliancewithFCC’sRFExposureguidelines,Thisequipmentshouldbe installedandoperatedwithminimumdistancebetween20cmtheradiatoryourbody:Use onlythesuppliedantenna. FCCID:2ATQ2-CEBEA02

Attestation Statements

34ED, LLC Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 6/25/2023 U.S. Agent Designation 34ED, LLC acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2ATQ2-CEBEA02): Name and company of U.S. agent: 34ED, LLC Physical U.S. address of agent: 2500 Cumberland Parkway, Ste 300, Atlanta, GA 30339, United States FRN of U.S. agent: 0028589364 Email address of U.S. agent: [email protected] 34ED, LLC acknowledges their obligation to accept service of process on behalf of 34ED, LLC. 34ED, LLC with the FRN 0028589364 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Adam Williams VP, Engineering 34ED, LLC Signature Adam Williams VP, Engineering 34ED, LLC 48_[mo del] US_Agent_2.911(d)(7) - U, V05

Attestation Statements

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: 34ED, LLC Address: 2500 Cumberland Parkway, Ste 300, Atlanta, GA 30339, United States Phone: +1-800-950-9202 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. FCC ID: 2ATIH-SW1P If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-06-28 Name / Title: Adam Williams / VP, Engineering Company: 34ED, LLC Address: 2500 Cumberland Parkway, Ste 300, Atlanta, GA 30339, United States Phone: +1-800-950-9202 Fax: +1-800-950-9202 E-Mail: [email protected]

Attestation Statements

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2ATQ2-CEBEA02 CE-BEA-02 We, applicant Company Name: 34ED, LLC Address: 2500 Cumberland Parkway, Ste 300, Atlanta, GA 30339, United States Phone: +1-800-950-9202 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-06-28 Name / Title: Adam Williams / VP, Engineering Company: 34ED, LLC Address: 2500 Cumberland Parkway, Ste 300, Atlanta, GA 30339, United States Phone: +1-800-950-9202 Fax: +1-800-950-9202 E-Mail: [email protected]

Cover Letter(s)

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2ATQ2-CEBEA02 CE-BEA-02 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-06-28 Name / Title: Adam Williams / VP, Engineering Company: 34ED, LLC Address: 2500 Cumberland Parkway, Ste 300, Atlanta, GA 30339, United States Phone: +1-800-950-9202 Fax: +1-800-950-9202 E-Mail: [email protected]

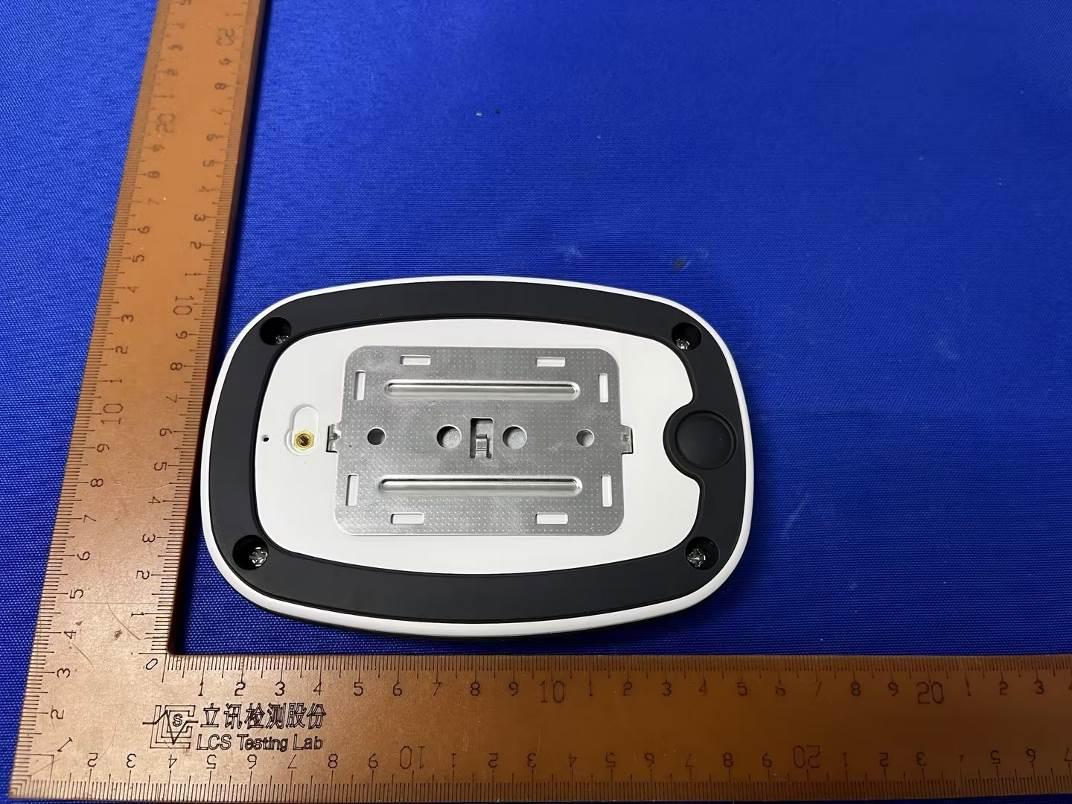

External Photos

ID Label/Location Info

Page1of1FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L:2.0cmxW:1.0cm) LabelLocation LocationBeacon Model:CE-BEA-02 FCCID:2ATQ2-CEBEA02

Internal Photos

RF Exposure Info

Page1of3FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCRFExposureEvaluation 1.ProductInformation FCCID:2ATQ2-CEBEA02 Productname:LocationBeacon TestModel:CE-BEA-02 Powersupply:DC3.6VbyRechargeableLi-ionBattery,16200mAh HardwareVersion:/ SoftwareVersion:/ BluetoothFrequencyRange:2402MHz~2480MHz ChannelNumber:40channelsforBluetoothV5.0(DTS) ChannelSpacing:2MHzforBluetoothV5.0(DTS) ModulationType:GFSKforBluetoothV5.0(DTS) BluetoothVersion:V5.0 AntennaDescription:PCBAntenna,1.08dBi(Max.) Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:StationaryDevice RoLa FrequencyRange:915.0MHz ChannelNumber:64channels ModulationType:GFSK AntennaDescription:PCBAntenna,-0.51dBi(Max.) 2.EvaluationmethodandLimit SystemsoperatingundertheprovisionsofFCC47CFRsectionshallbeoperatedinamannerthatensuresthat thepublicisnotexposedtoradiofrequencyenergylevelinexcessoftheCommission’sguidelines. Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeendefinedasmobiledevice wherebyadistanceof0.2mnormallycanbemaintainedbetweentheuserandthedevice,andbelowRF PermissibleExposurelimitshallcomplywith. InaccordancewithKDB447498D01forSimultaneoustransmissionMPEtestexclusionapplieswhenthesum oftheMPEratiosforallsimultaneoustransmittingantennasincorporatedinahostdevice,basedonthe calculated/estimated,numericallymodelledormeasuredfieldstrengthsorpowerdensity,is≤1.0.TheMPE ratioofeachantennaisdeterminedattheminimumtestseparationdistancerequiredbytheoperating configurationsandexposureconditionsofthehostdevice,accordingtotheratiooffieldstrengthsorpower densitytoMPElimit,atthetestfrequency.Eitherthemaximumpeakorspatiallyaveragedresultsfrom measurementsornumericalsimulationsmaybeusedtodeterminetheMPEratios.Spatialaveragingdoes notapplywhenMPEisestimatedusingsimplecalculationsbasedonfar-fieldplane-waveequivalent conditions.Theantennainstallationandoperatingrequirementsforthehostdevicemustmeettheminimum testseparationdistancesrequiredbyallantennas,inbothstandaloneandsimultaneoustransmission operations,tosatisfycompliance. Page2of3FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 3.ReferEvaluationMethod ANSIC95.1–2019:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoElectric,Magnetic, andElectromagneticFields,0Hzto300GHz FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortableDevicesRF ExposureProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices. 4.Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/UncontrolledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 5.ConductedPowerResults ModeChannelFrequency(MHz) PeakConductedOutput Power(dBm) BLE1M 02402 1.24 192440 1.33 3924801.69 LoRa 0902.3 18.54 31908.518.97 63914.9 18.89 TXfrequencyrange:915MHz Devicecategory:ImmobilizationDevices(Distance:20cm)Max.FieldStrength:109.55dBuV/m@3m EIRP=E-104.7+20logD=109.55-104.7+20log3=14.39dBm Page3of3FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 6.ManufacturingTolerance [BLE] BLE1M(Peak) ChannelChannel0Channel19Channel39 Target(dBm)1.01.01.0 Tolerance±(dB)1.01.01.0 [LoRa] LoRa(Peak) ChannelChannel0Channel31Channel63 Target(dBm)181818 Tolerance±(dB)1.01.01.0 7.EvaluationResults 7.1StandaloneEvaluation AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,atleast20cmfromanybody partoftheuserornearbypersons;fromthemaximumEUTRFoutputpower,theminimumseparationdistance,r =20cm,aswellasthegainoftheusedantennarefertoantennainformation,theRFpowerdensitycanbe obtained. 7.2SimultaneousTransmissionforSARExclusion ThesamplesupportoneBTmodularandoneLoRamodular.needconsidersimultaneoustransmission. AccordingtoKDB447498forTransmittersusedinmobileexposureconditionsforsimultaneoustransmission operations; ∑∑ofMPEratios≤1.0 SimultaneousTransmission BLEMPEratiosRoLaMPEratios∑MPEratiosLimitResults 0.0004050.02310.0235051.0Pass Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1091fortheuncontrolledRFExposureof Stationarydevice. ----------------THEENDOFREPORT--------------- Band/Mode RFoutputpower AntennaGain (dBi) MPE (mW/cm2) MPE Limits (mW/cm2) dBmmW BLE2 1.5849 1.08 0.000405 1.0 LoRa1979.43282-0.51 0.0231 1.0

Test Report

Antenna Study Client Name:34ED LLC, DBA Centegix Project Name:CE-BEA-02 Debugging frequency band:915/2400/2500MHz Valuation date：2023.06.1408 1 PCB Antenna 2 Testing 3D microwave darkroom(6m*6m*6m) Testing environment PCB Antenna 3 Antenna •Antenna name: 2.4G/LoRa •Antenna Type：PCB Antenna •Covers ：915/2400/2500MHz 4 S Parameter_Return Loss&VSWR（2.4G） 5 Efficiency and Gain-Smith（2.4G） Frequency ID1 2 3 4 5 6 7 8 9 10 11 Frequency (MHz)2400.02410.02420.02430.02440.02450.02460.02470.02480.02490.02500.0 Gain (dBi)1.080.52-0.03-0.70-0.74-1.16-0.90-1.16-1.78-2.01-2.16 Efficiency (%)35.3833.9932.5831.4229.5428.1627.8626.8324.8423.7422.47 6 S Parameter_Return Loss&VSWR（LoRa） 7 Efficiency and Gain-Smith（LoRa） Frequency ID1 2 3 4 5 6 7 8 9 10 11 Frequency (MHz)910.0911.0912.0913.0914.0915.0916.0917.0918.0919.0920.0 Gain (dBi)-0.67-0.65-0.62-0.58-0.55-0.51-0.45-0.41-0.37-0.34-0.32 Efficiency (%)26.2126.0225.8725.8025.7225.5825.5625.4425.2525.0124.74 910.0MHz H+V, Eff: 26.2%Back View910.0MHz Total(E1-XZ), Max= -2.18dBi910.0MHz Total(E2-YZ), Max= -0.67dBiTotal(H-XY), Max= -3.60dBi, CirD=23.75 -0.67 -2.51 -4.35 -6.19 -8.03 -9.88 -11.72 -13.56 911.0MHz H+V, Eff: 26.0%Back View911.0MHz Total(E1-XZ), Max= -2.23dBi911.0MHz Total(E2-YZ), Max= -0.66dBiTotal(H-XY), Max= -3.63dBi, CirD=23.52 -0.65 -2.49 -4.33 -6.17 -8.01 -9.86 -11.7 -13.54 912.0MHz H+V, Eff: 25.9%Back View912.0MHz Total(E1-XZ), Max= -2.27dBi912.0MHz Total(E2-YZ), Max= -0.64dBiTotal(H-XY), Max= -3.66dBi, CirD=23.14 -0.62 -2.47 -4.31 -6.15 -7.99 -9.83 -11.68 -13.52 913.0MHz H+V, Eff: 25.8%Back View913.0MHz Total(E1-XZ), Max= -2.29dBi913.0MHz Total(E2-YZ), Max= -0.61dBiTotal(H-XY), Max= -3.68dBi, CirD=22.84 -0.58 -2.43 -4.27 -6.11 -7.95 -9.79 -11.64 -13.48 914.0MHz H+V, Eff: 25.7%Back View914.0MHz Total(E1-XZ), Max= -2.32dBi914.0MHz Total(E2-YZ), Max= -0.59dBiTotal(H-XY), Max= -3.69dBi, CirD=22.45 -0.55 -2.39 -4.23 -6.07 -7.92 -9.76 -11.6 -13.44 915.0MHz H+V, Eff: 25.6%Back View915.0MHz Total(E1-XZ), Max= -2.36dBi915.0MHz Total(E2-YZ), Max= -0.56dBiTotal(H-XY), Max= -3.71dBi, CirD=22.10 -0.51 -2.35 -4.19 -6.03 -7.87 -9.72 -11.56 -13.4 916.0MHz H+V, Eff: 25.6%Back View916.0MHz Total(E1-XZ), Max= -2.35dBi916.0MHz Total(E2-YZ), Max= -0.51dBiTotal(H-XY), Max= -3.74dBi, CirD=21.74 -0.45 -2.29 -4.13 -5.98 -7.82 -9.66 -11.5 -13.34 917.0MHz H+V, Eff: 25.4%Back View917.0MHz Total(E1-XZ), Max= -2.37dBi917.0MHz Total(E2-YZ), Max= -0.47dBiTotal(H-XY), Max= -3.77dBi, CirD=21.35 -0.41 -2.25 -4.09 -5.93 -7.78 -9.62 -11.46 -13.3 918.0MHz H+V, Eff: 25.3%Back View918.0MHz Total(E1-XZ), Max= -2.38dBi918.0MHz Total(E2-YZ), Max= -0.44dBiTotal(H-XY), Max= -3.80dBi, CirD=20.97 -0.37 -2.21 -4.05 -5.89 -7.74 -9.58 -11.42 -13.26 919.0MHz H+V, Eff: 25.0%Back View919.0MHz Total(E1-XZ), Max= -2.43dBi919.0MHz Total(E2-YZ), Max= -0.42dBiTotal(H-XY), Max= -3.82dBi, CirD=20.61 -0.34 -2.18 -4.03 -5.87 -7.71 -9.55 -11.39 -13.24 920.0MHz H+V, Eff: 24.7%Back View920.0MHz Total(E1-XZ), Max= -2.49dBi920.0MHz Total(E2-YZ), Max= -0.41dBiTotal(H-XY), Max= -3.85dBi, CirD=20.21 -0.32 -2.16 -4.01 -5.85 -7.69 -9.53 -11.37 -13.22 2400.0MHz H+V, Eff: 35.4%Back View2400.0MHz Total(E1-XZ), Max= -0.81dBi2400.0MHz Total(E2-YZ), Max= -2.25dBiTotal(H-XY), Max= -0.63dBi, CirD=13.38 1.08 -0.76 -2.6 -4.45 -6.29 -8.13 -9.97 -11.81 2410.0MHz H+V, Eff: 34.0%Back View2410.0MHz Total(E1-XZ), Max= -0.83dBi2410.0MHz Total(E2-YZ), Max= -2.12dBiTotal(H-XY), Max= -0.80dBi, CirD=13.04 0.52 -1.33 -3.17 -5.01 -6.85 -8.69 -10.54 -12.38 2420.0MHz H+V, Eff: 32.6%Back View2420.0MHz Total(E1-XZ), Max= -1.26dBi2420.0MHz Total(E2-YZ), Max= -2.54dBiTotal(H-XY), Max= -1.37dBi, CirD=13.01 -0.03 -1.88 -3.72 -5.56 -7.4 -9.24 -11.09 -12.93 2430.0MHz H+V, Eff: 31.4%Back View2430.0MHz Total(E1-XZ), Max= -1.78dBi2430.0MHz Total(E2-YZ), Max= -3.11dBiTotal(H-XY), Max= -2.03dBi, CirD=13.30 -0.7 -2.54 -4.38 -6.22 -8.06 -9.91 -11.75 -13.59 2440.0MHz H+V, Eff: 29.5%Back View2440.0MHz Total(E1-XZ), Max= -2.26dBi2440.0MHz Total(E2-YZ), Max= -3.40dBiTotal(H-XY), Max= -2.27dBi, CirD=13.50 -0.74 -2.59 -4.43 -6.27 -8.11 -9.95 -11.8 -13.64 2450.0MHz H+V, Eff: 28.2%Back View2450.0MHz Total(E1-XZ), Max= -2.52dBi2450.0MHz Total(E2-YZ), Max= -3.24dBiTotal(H-XY), Max= -2.09dBi, CirD=14.28 -1.16 -3 -4.85 -6.69 -8.53 -10.37 -12.21 -14.06 2460.0MHz H+V, Eff: 27.9%Back View2460.0MHz Total(E1-XZ), Max= -2.42dBi2460.0MHz Total(E2-YZ), Max= -3.01dBiTotal(H-XY), Max= -1.91dBi, CirD=15.19 -0.9 -2.74 -4.58 -6.42 -8.27 -10.11 -11.95 -13.79 2470.0MHz H+V, Eff: 26.8%Back View2470.0MHz Total(E1-XZ), Max= -2.59dBi2470.0MHz Total(E2-YZ), Max= -3.19dBiTotal(H-XY), Max= -1.98dBi, CirD=16.36 -1.16 -3 -4.85 -6.69 -8.53 -10.37 -12.21 -14.06 2480.0MHz H+V, Eff: 24.8%Back View2480.0MHz Total(E1-XZ), Max= -3.06dBi2480.0MHz Total(E2-YZ), Max= -3.43dBiTotal(H-XY), Max= -2.32dBi, CirD=16.42 -1.78 -3.62 -5.46 -7.31 -9.15 -10.99 -12.83 -14.68 2490.0MHz H+V, Eff: 23.7%Back View2490.0MHz Total(E1-XZ), Max= -3.65dBi2490.0MHz Total(E2-YZ), Max= -3.75dBiTotal(H-XY), Max= -2.47dBi, CirD=16.62 -2.01 -3.85 -5.69 -7.53 -9.38 -11.22 -13.06 -14.9 2500.0MHz H+V, Eff: 22.5%Back View2500.0MHz Total(E1-XZ), Max= -3.83dBi2500.0MHz Total(E2-YZ), Max= -3.85dBiTotal(H-XY), Max= -2.57dBi, CirD=17.14 -2.16 -4 -5.84 -7.68 -9.53 -11.37 -13.21 -15.05

Test Report

Page 1 of 19 FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity AppendixB RFTestDataforRoLa(ConductedMeasurement) ProductName:LocationBeacon TestModel:CE-BEA-02 EnvironmentalConditions Temperature: 23.8  C RelativeHumidity:52.1% ATMPressure:100.0kPa TestEngineer:JokerHu Supervisedby:LingZhu Page 2 of 19 FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity B.1-20dBBandwidth ConditionModeFrequency(MHz)Antenna-20dBBandwidth(MHz)Limit-20dBBandwidth(MHz)Verdict NVNTLoRa902.3Ant10.16N/APass NVNTLoRa908.5Ant10.16N/APass NVNTLoRa914.9Ant10.161N/APass Page 3 of 19 FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs -20dBBandwidthNVNT902.3MHzAnt1 -20dBBandwidthNVNT908.5MHzAnt1 Page 4 of 19 FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -20dBBandwidthNVNT914.9MHzAnt1 Page 5 of 19 FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity B.2MaximumConductedOutputPower ConditionModeFrequency (MHz) AntennaTotalPower (dBm) Limit(dBm)Verdict NVNTLoRa902.3Ant118.5421Pass NVNTLoRa908.5Ant118.9721Pass NVNTLoRa914.9Ant118.8921Pass TestGraphs PowerNVNT902.3MHzAnt1 Page 6 of 19 FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PowerNVNT908.5MHzAnt1 PowerNVNT914.9MHzAnt1 Page 7 of 19 FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity B.3CarrierFrequenciesSeparation ConditionModeAntennaHFS(kHz)Limit(kHz)Verdict NVNTLoRaAnt1202161Pass TestGraphs CFSNVNT902.3MHzAnt1 Page 8 of 19 FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity B.4DwellTime ConditionModeFrequency(MHz)AntennaTotalDwellTime(ms)Limit(ms)Verdict NVNTLoRa902.3Ant1280.0400Pass TestGraphs Page 9 of 19 FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity B.5NumberofHoppingChannel ConditionModeAntennaHoppingNumberLimitVerdict NVNTLoRaAnt16450Pass TestGraphs HoppingNo.NVNT902.3MHzAnt1 Page 10 of 19 FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity B.6BandEdge ConditionModeFrequency(MHz)AntennaHoppingModeMaxValue(dBc)Limit(dBc)Verdict NVNTLoRa902.3Ant1No-Hopping-39.89-20Pass NVNTLoRa914.9Ant1No-Hopping-71.23-20Pass Page 11 of 19 FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs BandEdgeNVNT902.3MHzAnt1No-HoppingRef BandEdgeNVNT902.3MHzAnt1No-HoppingEmission Page 12 of 19 FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity BandEdgeNVNT914.9MHzAnt1No-HoppingRef BandEdgeNVNT914.9MHzAnt1No-HoppingEmission Page 13 of 19 FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity (Hopping) ConditionModeFrequency(MHz)AntennaHoppingModeMaxValue(dBc)Limit(dBc)Verdict NVNTLoRa902.3Ant1Hopping-62.21-20Pass NVNTLoRa914.9Ant1Hopping-66.72-20Pass Page 14 of 19 FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs BandEdge(Hopping)NVNT902.3MHzAnt1HoppingRef BandEdge(Hopping)NVNT902.3MHzAnt1HoppingEmission Page 15 of 19 FCCID:2ATQ2-CEBEA02 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 5180…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 33 FCCID:2ATQ2-CEBEA02ReportNo.:LCSA050623118EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FOR 34ED,LLC LocationBeacon TestModel:CE-BEA-02 Preparedfor:34ED,LLC Address: 2500CumberlandParkway,Ste300,Atlanta,GA30339,United States Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address: 101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample: May22,2023 Numberoftestedsamples: 2 SampleNo.: A050623117-1,A050623117-2 Serialnumber:Prototype DateofTest: May22,2023~July10,2023 DateofReport: July10,2023 Page 2 of 33 FCCID:2ATQ2-CEBEA02ReportNo.:LCSA050623118EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCSA050623118EB DateofIssue.......................................:July10,2023 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................: 101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure............ : FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................: 34ED,LLC Address................................................: 2500CumberlandParkway,Ste300,Atlanta,GA30339,United States TestSpecification Standard..............................................:FCCCFR47PART15C(15.247) TestReportFormNo.........................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. TestItemDescription.....................: LocationBeacon TradeMark..........................................: Centegix TestModel...........................................: CE-BEA-02 Ratings.................................................: DC3.6VbyRechargeableLi-ionBattery,16200mAh Result..................................................:Positive Compiledby:Supervisedby:Approvedby: RoryHuang/AdministratorCaryLuo/TechniqueprincipalGavinLiang/Manager Page 3 of 33 FCCID:2ATQ2-CEBEA02ReportNo.:LCSA050623118EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,Sha…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Adam Williams

[email protected]800-950-9202Fax: 800-950-9202

Test Firm

Shenzhen LCS Compliance Testing Laboratory Ltd.Gavin Liang

[email protected]0755-82591330Fax: 0755-82591132

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	902.3 MHz - 914.9 MHz	78.90 mW

Confidentiality

Long Term

Grant Notes

Power listed is maximum peak conducted output power. The product must be installed such that its antenna(s) can provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other transmitter, except in accordance with FCC multi-transmitter product procedures or as described in this filing. The device also contains BLE transmitters.
