2ATQI-WSE01Bluetooth earphone

WSE-01 instruction manual 1. Overview Neck mounted Bluetooth headset, metal earcase, dual battery design, magnetic suction, convenient storage, fashionable appearance 2. Product pictures 3. spec. Product name Bluetooth earphone Product model WSE-01 Bluetooth device name Bluetooth earphone Music transmission mode A2DP Voice call transmission mode HFP texture of material ABS + TPE + aluminum alloy Bluetooth transmission distance ≥ 10m (open and barrier free) Bluetooth version Bluetooth.5 Bluetooth protocol HSP/HFP/A2DP/AVRCP Wireless transmission frequency 2400-2483.5MHz Bluetooth audio decoding format SBC/AAC Headphone battery capacity 100mAh Battery charging time 1-2 hour >6 hours (test condition: iPhone 6S, pink noise Duration of continuous music playing 50% volume) 4. Electrical performance parameters Headphone output voltage / current 4.2V-20mA（max） Headphone charging current 90mA Overcharge protection voltage 4.3±0.1V Over discharge protection voltage 3.1±0.1V Short circuit protection Yes working voltage 3.0V-4.2V 1KHZ 0db（iPhone 6s） 105dB Call power consumption 12mA±5mA standby power 1mA±0.5mA Power consumption of shutdown <6uA±2uA Bluetooth transmitting power 3dBm Output power (1kHz 0dB) 2.6mW/16Ω frequency range 20Hz-20KHz Audio signal to noise ratio (PCBA) >85D, rated power Audio output distortion rate (PCBA) <0.3%, microphone sensitivity -41dB±2dB Horn sensitivity 101±3dB at 1KHz Continuous call duration >About 6 hours Weight (headset) 33.2g 5. Function description (UI) UI operation instructions Key category effect current state operation Power on Shut down Press and hold "FMB" key for 3 seconds Shut down Power on Press and hold "FMB" key for 3 seconds many Work Enter pairing state Shut down Press and hold "FMB" key for 5 seconds can key play Connected Short press "FMB" key once suspend Music playing Short press "FMB" key once Answer The first call came in Short press "FMB" key once refuse The first call came in Press and hold "FMB" key for 2 seconds How much Hang up Both sides are on the phone Short press "FMB" key once Bond work Increase the volume by one step Increase the volume by one step Press the "+" key for 1 second Volume up Next song Next song Press and hold the "+" key for 2 seconds Minus key Reduce the volume by one step Reduce the volume by one step Short press the "- key for 1 second Last song Last song Long press the "- key twice Key combination Switch between Chinese and English mode Not connected or connected mode Press and hold [volume up + volume down] for 5 seconds When there is no connection / disconnection, it will shut down automatically in 5 minutes Description of LED indicator state LED light indication Power on When the blue light flashes three times, the red and blue lights flash at the same time Shut down The red light flashes three times Pairing status Red and blue lights flash alternately Connected The blue light flashes every 4 seconds Not connected Red and blue lights flash alternately Restore factory settings Red and blue lights flash three times at the same time Charging The red light is always on Fully charged The blue light is always on Play music The blue light flashes every 4 seconds Low power state Turn to red light flashing (10% power starts to remind), only once (do not remind repeatedly) Description of voice prompt Power on Voice prompt "power on" Shut down Voice prompt "power off" Enter pairing state Voice prompt "pairing" FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits ar e designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a par ticular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the r eceiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Oper ation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement.

Wings Mobile Telecom SL Agent Authorization Company: Wings Mobile Telecom SL Address: c/Beethoven 15, piso 4, Barcelona, 08021 Spain Product Name: Bluetooth earphone Model Number(s): WSE-01, WSE-02, WSE-03, WSE-04, WSE-05 Product Description: Bluetooth earphone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan. 13, 2021 Name: Antonio Milio Title: Manager Company: Wings Mobile Telecom SL

Wings Mobile Telecom SL Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jan. 13, 2021 Subject; Request for Confidentiality FCC ID: 2ATQI-WSE01 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Antonio Milio Title: Manager

Model Difference Declaration To Whom It May Concern, We, Wings Mobile Telecom SL(Bluetooth earphone) Trademark: Wings Mobile; Model Number: WSE-01, WSE-02, WSE-03, WSE-04, WSE-05 All model’s the func tion, software and electric circuit are the same, but the model and product color are different. Tes t sample model: WSE-01 Please contact me if you have any question. Name: Antonio Milio Date: Jan. 13, 2021 Title: Manager Signature of applicant:

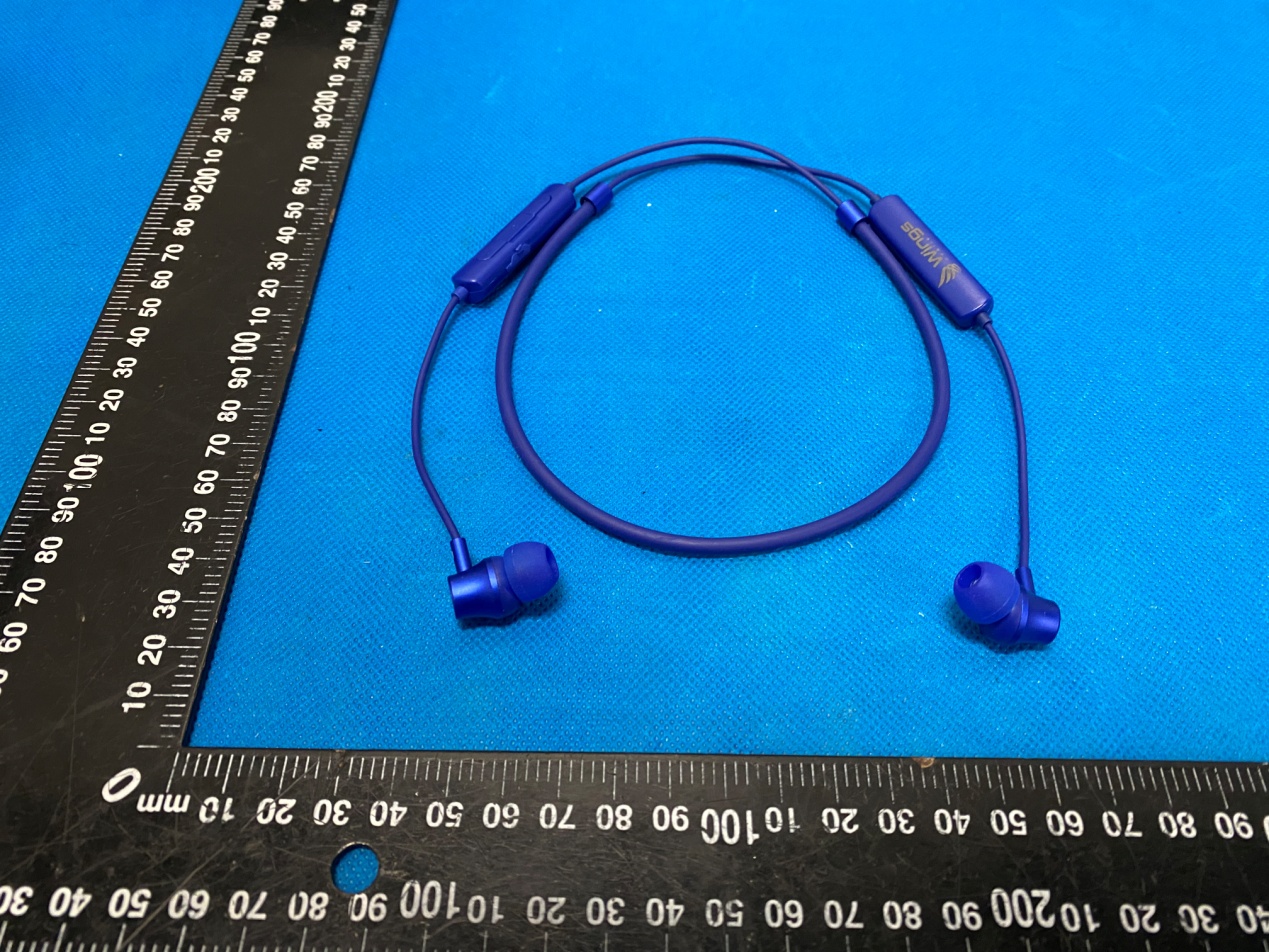

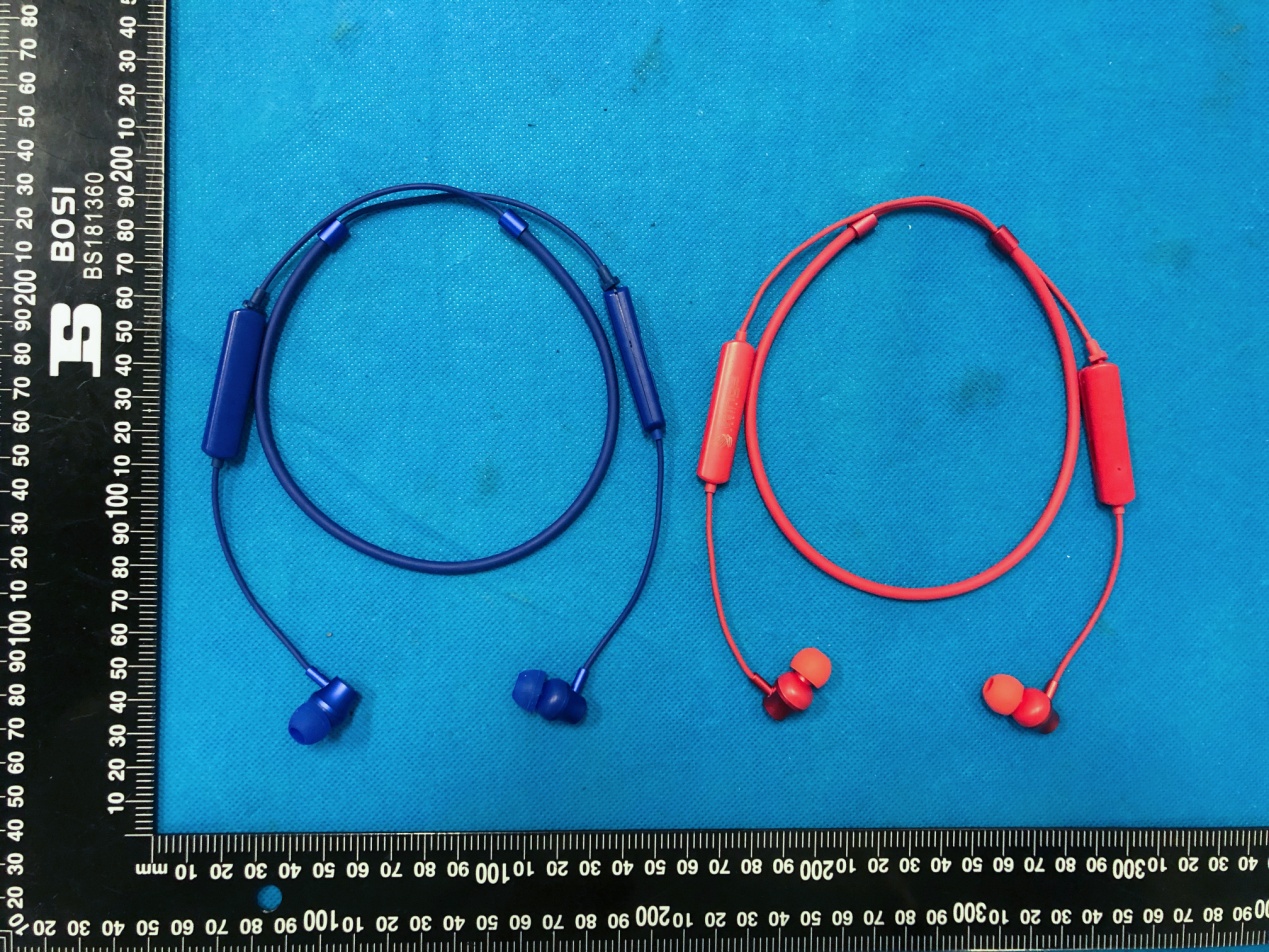

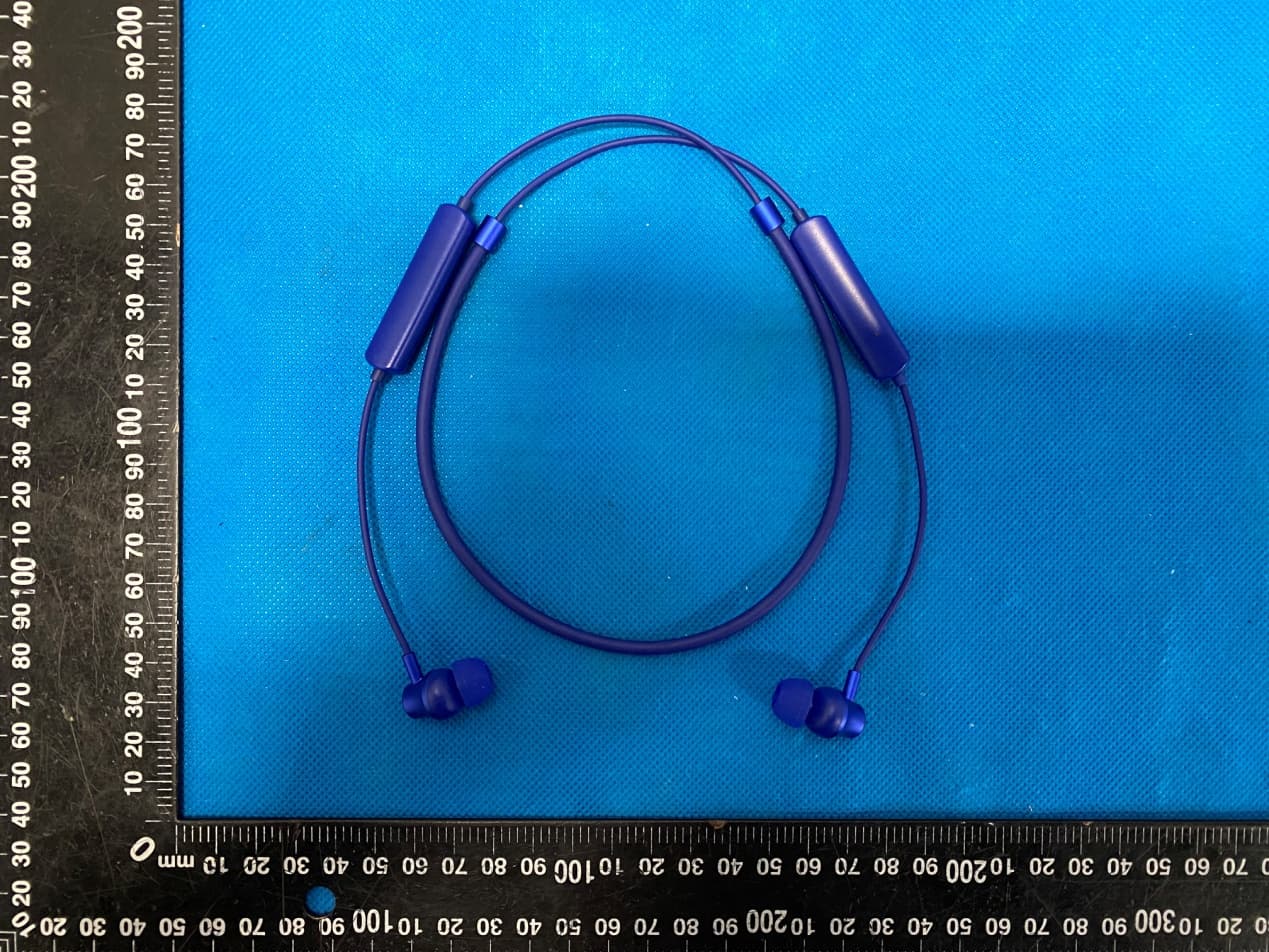

Annex A External Photos Model: WSE-01 Page 1 of 4 Model: WSE-01 Page 2 of 4 Model: WSE-01 Page 3 of 4 Model: WSE-01 Page 4 of 4

FCC ID LABEL: Ca. 8mm x 10mm Label Location FCC ID: 2ATQI-WSE01

Annex B Internal Photo Model: WSE-01 Page 1 of 3 Model: WSE-01 Page 2 of 3 Antenna Model: WSE-01 Page 3 of 3

FCC RF Exposure EUT Description: Bluetooth earphone Model No.: WSE‐01 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]· [√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation 2.4G Output power （dBm ） Tune Up Power （dBm） Max Tune Up power dBm/mW Min test separatio n distance mm Result Limit SAR Test Exclusion EDR ‐5.142 ‐6±1 ‐5/0.32 5 0.09919 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2012304047‐E, antenna gain=0.5dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.09919 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 48 Report No.: HK2012304047-E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of Wings Mobile Telecom SL For Bluetooth earphone Model No.: WSE-01, WSE-02, WSE-03, WSE-04, WSE-05 FCC ID: 2ATQI-WSE01 Prepared for : Wings Mobile Telecom SL c/Beethoven 15, piso 4, Barcelona, 08021 Spain Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Jan. 04, 2021 ~ Jan. 11, 2021 Date of Report: Jan. 11, 2021 Report Number: HK2012304047-E Page 2 of 48 Report No.: HK2012304047-E TEST RESULT CERTIFICATION Applicant’s name ................. : Wings Mobile Telecom SL Address ................................. : c/Beethoven 15, piso 4, Barcelona, 08021 Spain Manufacture's Name ............ : HUIZHOU NANRUI ELECTRONIC TECHNOLOGY CO.,LTD. Address ................................. : No.97 West Road, Shiwan town, Boluoxian, Huizhou, Guangdong, China Product description Trade Mark: Wings Mobile Product name ........................... : Bluetooth earphone Model and/or type reference : WSE-01, WSE-02, WSE-03, WSE-04, WSE-05 Standards ............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Jan. 04, 2021 ~ Jan. 11, 2021 Date of Issue ........................................... : Jan. 11, 2021 Test Result ............................................... : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Jasou Zhou Page 3 of 48 Report No.: HK2012304047-E Table of Contents Page 1. SUMMARY............................................................................................................................................................ 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 2.7. DESCRIPTION OF TEST SETUP ................................................................................................................................ 10 3. TEST CONDITIONS AND RESULTS ......................................................................................................................... 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 25 3.4. 20DB BANDWIDTH ..................................................................................................................................................... 26 3.5 FREQUENCY SEPARATION ..................................................................................................................................................... 30 3.5. NUMBER OF HOPPING FREQUENCY ................................................................................................................................. 32 3.6. TIME OF OCCUPANCY (DWELL TIME) .............................................................................................................................. 34 3.7. OUT‐OF‐BAND EMISSIONS ............................................................................................................................................ 38 3.8. PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .......................................................................................................... 44 3.9. ANTENNA REQUIREMENT......................................…
