2ATV8SP80XELED Controller

SP801E LED Controller 1. Features: 1.APP controlled via WiFi, compatible with multiple Art-Net computer software ; 2. BluFi configuration using dual mode chip(WIFI&BT); 3. SupportAP mode and STAmode; 4. Two layout setting method: regular rectangle layout setting and importing DXF files ; 5. Support two layers overlay, built-in multiple types of effect layers: text layer, music effect layer...; 6. The effect layers support a variety of custom parameters: direction, width, color, length, shape...; 7. Real-time preview, support recording the current scene to the controller storage; 8. Support change device name ,reorder the RGB order, and OTAupdate. 2. App control: Both IOS version andAndroid OS version are available. •Requires IOS version 10.0 or later, requiresAndroid OS version 4.4 or later; •Search“BanlanX”on theApp Store or Google Play or scan this QR code to download and install the App: 3. functions: •Button: 1.Click on the button: SwitchAP/STAmode; 2.Press and hold the button: Enter the BluFi network configuration mode; •LED Indicator： 1.Blue static: AP(Access Point) mode; 2.Green static: STA(Station) mode; 3.Green flashing: BluFi configuration mode; •Working Modes： 1.AP(Access Point) mode:Controller and Phone connect directly, controller works as an access point. 1> Go to your phone Settings page, connect the controller(SSID likeSP801E_XXX, the default password is 12345678); 2> Open theBanlanXApp ,Click “+” button to configure the new SP801E controller，then the controller will be showed on the device list; 2.STA(Station) mode:Controller and phone are in one same WiFi network, in this network, users can operate the controller. There are two ways to configure the controller into the local WiFi network: 1> Connect your phone or tablet to a 2.4G Wi-Fi network.(Doesn't support 5.0G Wi-Fi network) 2> Open theApp and click“+” button to scan devices, clickAdd manually and select SP801E controller in the device category; 3> Input your Wi-Fi network password; 4> BluFi config andAP config: •BluFi config: Press and hold device’s “STA/AP” button until the green led indicator flashes,then the d evice enters the network configuration state, click next and selcet the device you want to add; •AP config:Switching the device to the AP mode, click next and connect your phone’s WIFI to the named likeSP801E_XXXhotspot, password is 12345678,and return to theAPP; 5> Pressing next step to wait for the configure processing finish; 6>After the configuration finished, the LED indicator will turn into solid green, the controller will be showed on the device list. •Note:1.Users can get more help and detailed information about SP801E on the Help&FAQ page. 2.Please keep your phone, the Wi-Fi router and the controller closer together to maintain a better signal connection during configuration. 4. Specifications: Working temperature : -20°C~60°C; Working Voltage : DC5V~24V; Working Current : 25mA~130mA; Flash Capacity : 128M; Output signal: 4-port TTL signals; Maximum pixel number : 1024 / port; Dimension: 80mm*41mm*20mm; LED driver IC: Normal one-wire RZ code LED driver IC . FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Shenzhen Sperll Optoelectronic Technology Co., Ltd. Agent Authorization Company: Shenzhen Sperll Optoelectronic Technology Co., Ltd. Address: 4th Floor, Building 3, NO.1059 Songbai Road, Nanshan District, Shenzhen, China Product Name: LED Controller Trade Mark: SPERLL Model Number(s): SP801E,SP802E,SP803E,SP804E,SP805E,SP806E,SP807E, SP808E,SP809E FCC ID: 2ATV8SP80XE We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-01-17 Name: Derek Xie Title: Engineer Company: Shenzhen Sperll Optoelectronic Technology Co., Ltd.

Shenzhen Sperll Optoelectronic Technology Co., Ltd. Address: 4th Floor, Building 3, NO.1059 Songbai Road, Nanshan District, Shenzhen, China Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Dear Sir/Madam, We, Hyundai Technology Group, Inc. Hereby declares the following statement: PCB board, structure and internal of these model(s) are the same, Only models name is different for these models: Product Name: LED Controller Trade Mark: SPERLL Model Number(s): SP801E,SP802E,SP803E,SP804E,SP805E,SP806E,SP807E, SP808E,SP809E FCC ID: 2ATV8SP80XE Signature: Date: 2022-01-17 Name: Derek Xie Title: Engineer Company: Shenzhen Sperll Optoelectronic Technology Co., Ltd.

Shenzhen Sperll Optoelectronic Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date:2022-01-17 Subject; Request for Confidentiality FCC ID: 2ATV8SP80XE To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Declaration of Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Derek Xie Title: Engineer

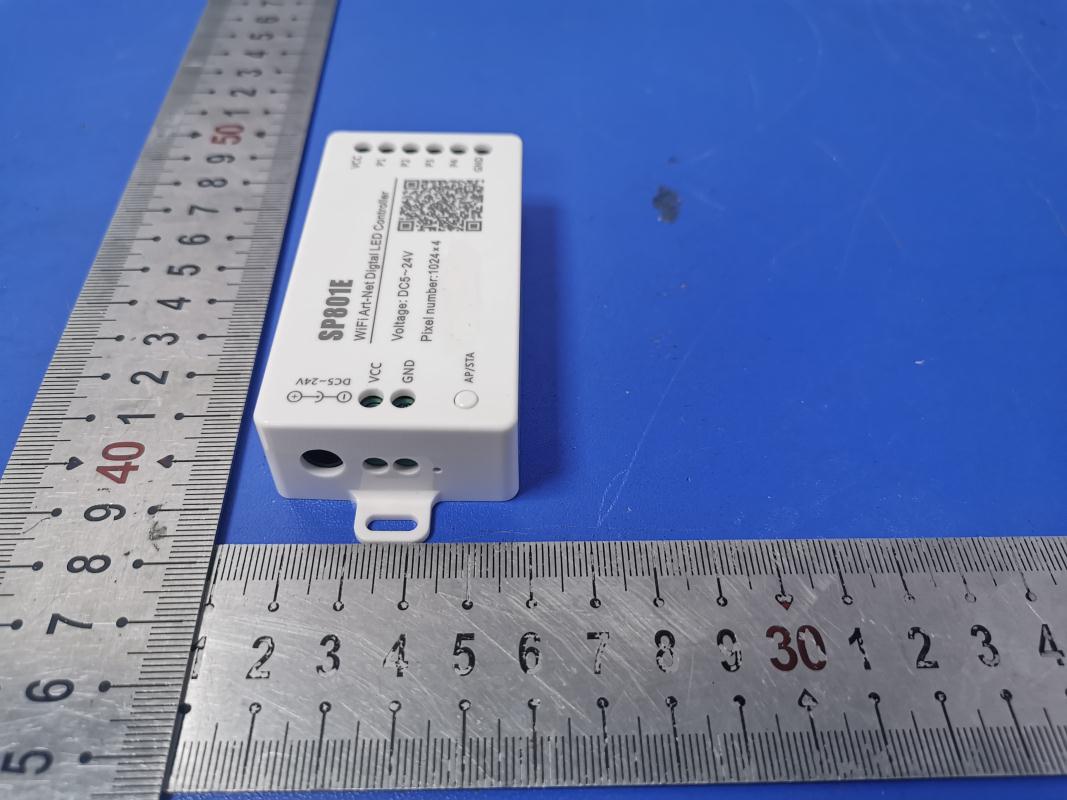

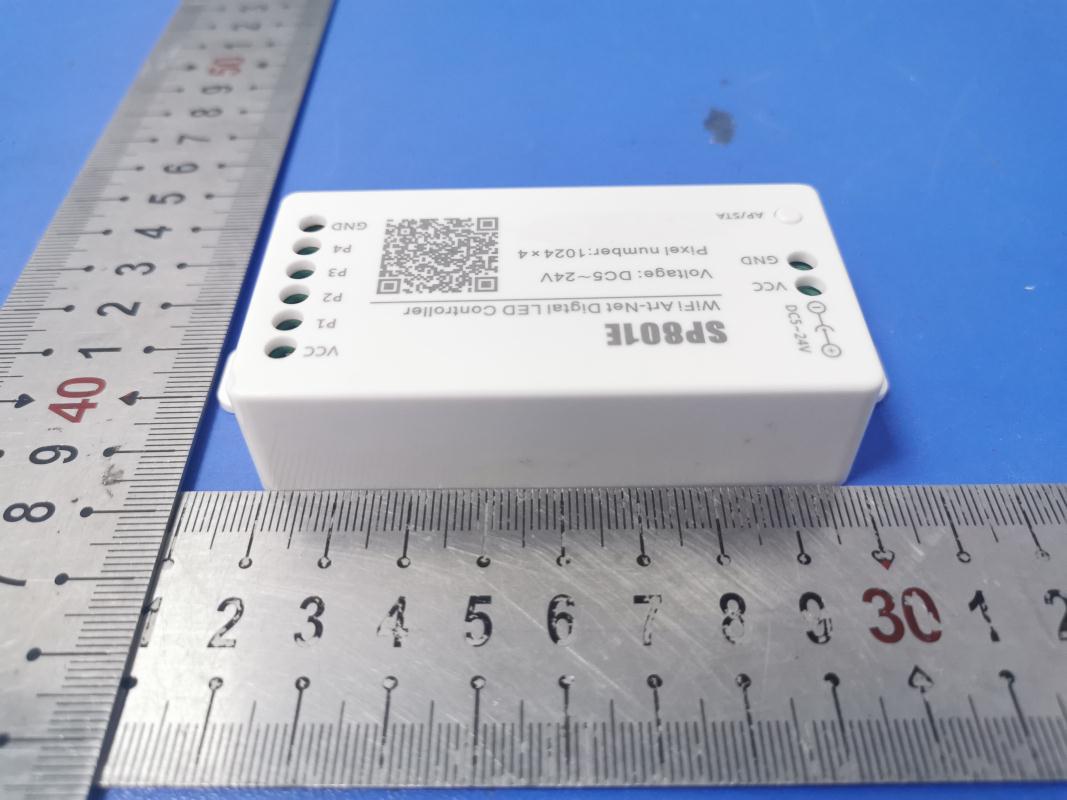

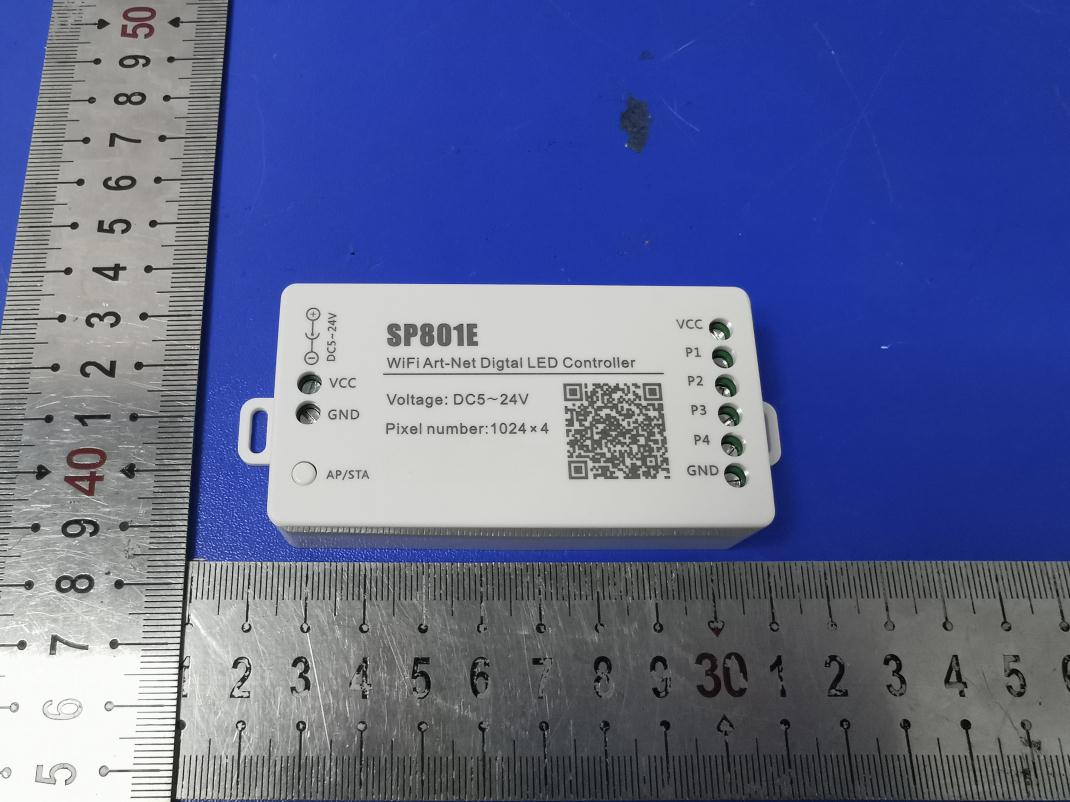

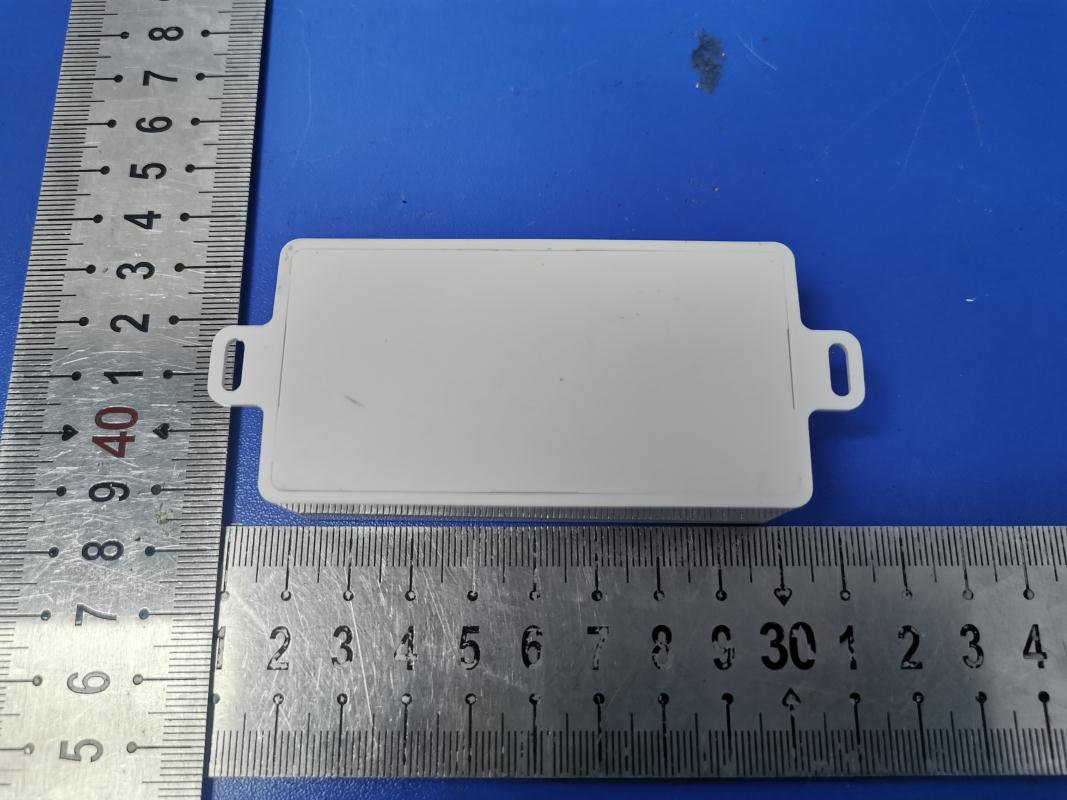

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 External Photos of the EUT Fig. 1 Fig. 2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:2ATV8SP80XE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location LED Controller Model No.: SP801E FCC ID: 2ATV8SP80XE

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 Internal Photos of the EUT Fig. 1 Fig. 2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig. 3 Fig. 4 BT/WIFI ANT Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig. 5 Fig. 6

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID 2ATV8SP80XE Product name LED Controller Model number SP801E Additional Model SP802E,SP803E,SP804E,SP805E,SP806E,SP807E,SP808E,SP809E Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power supply Input: DC 5-24V, 15mA Modulation Type GFSK for Bluetooth V4.2(DTS) IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Type PCB Antenna Antenna Gain 3.4dBi(Max.) Hardware version V1.1 Software version V1.1 FCC Operation frequency 2402MHz-2480MHz 2412MHz-2462MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna PCB Antenna 2402MHz-2480MHz 2400MHz-2500MHz 3.4dBi BT/WIFI Antenna Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 6. Conducted Power < BT LE Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) GFSK 0 2402 0.94 19 2440 2.29 39 2480 0.76 <2.4GWLAN Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) IEEE 802.11b 1 2412 15.18 6 2437 15.11 11 2462 14.18 IEEE 802.11g 1 2412 12.25 6 2437 12.39 11 2462 12.53 IEEE 802.11n HT20 1 2412 11.35 6 2437 11.49 11 2462 11.28 IEEE 802.11n HT40 3 2422 11.50 6 2437 11.44 9 2452 11.41 7. Manufacturing Tolerance <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 0 2.0 0 Tolerance ±(dB) 1.0 1.0 1.0 <2.4G WIFI> 11B (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 15.0 15.0 14.0 Tolerance ±(dB) 1.0 1.0 1.0 11G (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 12.0 12.0 12.0 Tolerance ±(dB) 1.0 1.0 1.0 11N20SISO (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 11.0 11.0 11.0 Tolerance ±(dB) 1.0 1.0 1.0 11N40SISO (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 11.0 11.0 11.0 Tolerance ±(dB) 1.0 1.0 1.0 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AT…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA 1 / 17 Appendix A RF Test Data for BLE (Conducted Measurement) Product Name: LED Controller Test Model: SP801E Environmental Conditions Temperature: 23.7 C Relative Humidity: 52.3% ATM Pressure: 100.0 kPa Test Engineer: Supervised by: Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA 2 / 17 A.1 6dB Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.664 2401.668 2402.332 0.5 PASS 2440 0.668 2439.664 2440.332 0.5 PASS 2480 0.664 2479.664 2480.328 0.5 PASS Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA 3 / 17 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA 4 / 17 A.2 Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 0.94 ≤30 PASS 2440 2.29 ≤30 PASS 2480 0.76 ≤30 PASS Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA 5 / 17 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA 6 / 17 A.3 Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -14.03 ≤8.00 PASS 2440 -12.41 ≤8.00 PASS 2480 -14.05 ≤8.00 PASS Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA 7 / 17 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA 8 / 17 A.4 Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 0.39 -48.27 ≤-19.61 PASS High 2480 0.34 -47.73 ≤-19.66 PASS Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA 9 / 17 A.5 Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference 0.39 0.39 --- PASS 30~1000 0.39 -59.94 ≤-19.61 PASS 1000~26500 0.39 -45.74 ≤-19.61 PASS 2440 Reference 1.77 1.77 --- PASS 30~1000 1.77 -60.61 ≤-18.23 PASS 1000~26500 1.77 -45.59 ≤-18.23 PASS 2480 Reference 0.21 0.21 --- PASS 30~1000 0.21 -59.98 ≤-19.79 PASS 1000~26500 0.21 -44.36 ≤-19.79 PASS Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA 10 / 17 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA 11 / 17 BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA 12 / 17 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA 13 / 17 A.6 Duty Cycle Test Result TestMode Antenna Channel ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.39 0.63 0.6190 61.90 2.08 --- --- 2440 0.38 0.63 0.6032 60.32 2.20 --- --- 2480 0.38 0.63 0.6032 60.32 2.20 --- --- Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA 14 / 17 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA 15 / 17 A.7 Emissions in Restricted Bands Test Result TestMode Antenna ChName Channel Detector Freq. [MHz] Result [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -47.22 47.98 ≤54 PASS AV 2366.360 -46.63 48.57 ≤54 PASS AV 2390.000 -47.03 48.17 ≤54 PASS Peak 2310.000 -37.84 57.36 ≤74 PASS Peak 2384.420 -35.93 59.27 ≤74 PASS Peak 2390.000 -38.13 57.07 ≤74 PASS High 2480 AV 2483.500 -46.26 48.94 ≤54 PASS AV 2489.120 -46.17 49.03 ≤54 PASS AV 2500.000 -46.38 48.82 ≤54 PASS Peak 2483.500 -38.55 56.65 ≤74 PASS Peak 2497.360 -36.27 58.93 ≤74 PASS Peak 2500.000 -37.64 57.56 ≤74 PASS Note： 1. The Antenna Gain is compensated in the graph. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA 16 / 17 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA 17 / 17 BLE_1M_Ant1_High_2480_Peak

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 1 / 50 Appendix B RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: LED Controller Test Model: SP801E Environmental Conditions Temperature: 23.7 C Relative Humidity: 52.3% ATM Pressure: 100.0 kPa Test Engineer: Supervised by: Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 2 / 50 B.1 6dB Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.040 2408.480 2416.520 0.5 PASS 2437 9.560 2432.480 2442.040 0.5 PASS 2462 7.080 2458.480 2465.560 0.5 PASS 11G Ant1 2412 15.320 2404.440 2419.760 0.5 PASS 2437 15.120 2429.440 2444.560 0.5 PASS 2462 15.280 2454.280 2469.560 0.5 PASS 11N20SISO Ant1 2412 15.120 2404.440 2419.560 0.5 PASS 2437 15.120 2429.440 2444.560 0.5 PASS 2462 15.440 2454.120 2469.560 0.5 PASS 11N40SISO Ant1 2422 35.040 2404.480 2439.520 0.5 PASS 2437 35.040 2419.480 2454.520 0.5 PASS 2452 35.040 2434.480 2469.520 0.5 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 3 / 50 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 4 / 50 11G_Ant1_2412 11G_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 5 / 50 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 6 / 50 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 7 / 50 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 8 / 50 B.2 Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 15.18 ≤30.00 PASS 2437 15.11 ≤30.00 PASS 2462 14.18 ≤30.00 PASS 11G Ant1 2412 12.25 ≤30.00 PASS 2437 12.39 ≤30.00 PASS 2462 12.53 ≤30.00 PASS 11N20SISO Ant1 2412 11.35 ≤30.00 PASS 2437 11.49 ≤30.00 PASS 2462 11.28 ≤30.00 PASS 11N40SISO Ant1 2422 11.50 ≤30.00 PASS 2437 11.44 ≤30.00 PASS 2452 11.41 ≤30.00 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 9 / 50 B.3 Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -12.59 ≤8.00 PASS 2437 -11.08 ≤8.00 PASS 2462 -13.55 ≤8.00 PASS 11G Ant1 2412 -22.68 ≤8.00 PASS 2437 -21.34 ≤8.00 PASS 2462 -22.16 ≤8.00 PASS 11N20SISO Ant1 2412 -23.6 ≤8.00 PASS 2437 -22.79 ≤8.00 PASS 2462 -23.19 ≤8.00 PASS 11N40SISO Ant1 2422 -25.14 ≤8.00 PASS 2437 -25.27 ≤8.00 PASS 2452 -25.9 ≤8.00 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 10 / 50 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 11 / 50 11G_Ant1_2412 11G_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 12 / 50 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 13 / 50 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 14 / 50 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 15 / 50 B.4 Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 1.05 -45.75 ≤-18.96 PASS High 2462 4.27 -47.77 ≤-15.73 PASS 11G Ant1 Low 2412 -5.83 -47.87 ≤-25.83 PASS High 2462 -6.34 -48.29 ≤-26.34 PASS 11N20SISO Ant1 Low 2412 -6.46 -48.77 ≤-26.46 PASS High 2462 -7.22 -47.94 ≤-27.22 PASS 11N40SISO Ant1 Low 2422 -9.83 -47.09 ≤-29.83 PASS High 2452 -9.68 -47.47 ≤-29.68 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 16 / 50 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 17 / 50 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 18 / 50 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 19 / 50 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEB 20 / 50 B.5 Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 1.27 1.27 --- PASS 30~1000 1.27 -60.89 ≤-18.73 PASS 1000~26500 1.27 -46.05 ≤-18.73 PASS 2437 Reference 3.10 3.10 --- PASS 30~1000 3.10 -61.35 ≤-16.9 PASS 1000~26500 3.10 -46.47 ≤-16.9 PASS 2462 Reference 4.20 4.20 --- PASS 30~1000 4.20 -56.4 ≤-15.8 PASS 1000~26500 4.20 -42.39 ≤-15.8 PASS 11G Ant1 2412 Reference -5.68 -5.68 --- PASS 30~1000 -5.68 -56.06 ≤-25.68 PASS 1000~26500 -5.68 -46.73 ≤-25.68 PASS 2437 Reference -5.52 -5.52 --- PASS 30~1000 -5.52 -36.16 ≤-25.52 PASS 1000~26500 -5.52 -46.52 ≤-25.52 PASS 2462 Reference -6.03 -6.03 --- PASS 30~1000 -6.03 -55.59 ≤-26.03 PASS 1000~26500 -6.03 -45.89 ≤-26.03 PASS 11N20SISO Ant1 2412 Reference -7.26 -7.26 --- PASS 30~1000 -7.26 -56.94 ≤-27.26 PASS 1000~26500 -7.26 -45.76 ≤-27.26 PASS 2437 Reference -6.82 -6.82 --- PASS 30~1000 -6.82 -56.61 ≤-26.82 PASS 1000~26500 -6.82 -46.08 ≤-26.82 PASS 2462 Reference -6.59 -6.59 --- PASS 30~1000 -6.59 -56.1 ≤-26.59 PASS 1000~26500 -6.59 -46.4 ≤-26.59 PASS 11N40SISO Ant1 2422 Reference -9.76 -9.76 --…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 31 FCC TEST REPORT For Shenzhen Sperll Optoelectronic Technology Co., Ltd. LED Controller Test Model: SP801E Additional Model No.: Please Refer to Page 6 Prepared for : Shenzhen Sperll Optoelectronic Technology Co., Ltd. Address : 4th Floor, Building 3, NO.1059 Songbai Road, Nanshan District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : December 29, 2021 Number of tested samples : 2 Sample No. : 211230001A-1, 211230001A-2 Serial number : Prototype Date of Test : December 29, 2021 ~ January 14, 2022 Date of Report : January 15, 2022 Scan code to check authenticity Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ATV8SP80XE Report No.: LCS211230001AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 31 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ...................... : LCS211230001AEA Date of Issue ........................................ : January 15, 2022 Testing Laboratory Name ................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ................................................ : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ................ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ............................... : Shenzhen Sperll Optoelectronic Technology Co., Ltd. Address ................................................ : 4th Floor, Building 3, NO.1059 Songbai Road, Nanshan District, Shenzhen, China Test Specification Standard ............................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ........................ : LCSEMC-1.0 TRF Originator .................................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .......................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-com…
