2ATVI-P105GWWireless pico projector

Wireless Pico Projector Wireless Pico Projector Q uick Operation Guide -2- ........................................................................................... 3-5 ...................................................................................................................... 3 ...................................................................................................................... 4 .......................................................................................................... 5 ................................................................................................ 6-16 ......................................................................................................... 6 ............................................................................................................. 6 ........................................................................................................... 7 ............................................................................................................. 8 .................................................................................................... 9 .................................................................................................................... 10-13 .......................................................................................................... 14 ...................................................................................... 15 ............................................................................................. 16 CATALOG Projector Brief Introduction 1.1 Package 1.2 Appearance design 1.3 Remote control introduction Projector Using Guide 2.1 Power on / Power off 2.2 Adjust focus / lightness 2.3 Bluetooth controller pairing 2.4 Connect Wi-Fi network 2.5 Operation of the main interface 2.6 Projection screen 3.1 Other function 3.2How to update firmware (local update) Product Reference -4- -3- Focusing OFF/ON Projector Adapter Manual+Warranty Card Remote Control Quick Operation Guide wireless Pico Projector Projector Brief IntroductionProjector Brief Introduction 1.2 Appearance design Direction Confirm Power Supply HDMI USB Open right side strip Projector Right side Vents Projector Left side Projector Bottom Standard threaded port Homepage Volume- Volume + Return Menu Projector Positive Projector Back -5--6- P1 P2 2.1 Power on / Power off 1. Power on Press and hold the white button on the left side of the projector for 3 seconds, waiting for the device to boot.(P1)。 2. Power off Press and hold the white button on the left side of the back of the projector for 3 seconds to turn off the device (P1) / Press the remote control's power button to turn it off. 2.2 Adjust focus / lightness 1. Adjust focus Slide the gear to adjust the projection screen definition (P2). Projector Brief Introduction 1.3 Remote control introduction OK Confirm (Keyboard show when inputting) Indicator light MutePower HomepageReturn Mouse Volume－Volume＋ Electric focusing Direction navigation Bluetooth pairing mode Hold "OK" and "Volume" button five seconds to start remote control pairing mode Mouse mode Start: click mouse button Close: click navigation button Indicator light status Slow flash: unpaired mode Quick flash: enter pairing mode Flash: in infrared / Bluetooth mode press each button will flash once Projector Using Guide -8- -7- Projector Using Guide 2.3 Bluetooth controller pairing Pairing method: After enter remote controller pairing page, hold "OK" button and "volume- " five seconds then loose and wait it till connect success. Or: Enter into setting → Bluetooth Setting, according to the tips to connect the bluetooth controller or other bluetooth device. Press "back button" to skip this step Hold "OK" and "Volume-" 5 seconds at the same time, then release. Note: Controller should be worked within 15 feet. ConnectingReadySucceed Projector Using Guide 2.4 Connect Wi-Fi network Press the Back key to skip this step Or: Enter into setting → WiFi Setting → WiFi Setting, Searching and connecting. -9- -10- Projector Using Guide 2.5 Operation of the main interface Projector Using Guide 2.6 Projection screen 1. ① In WiFi environment:Enter iPhone's "Setting" --- "Wi-Fi", then connect your phone to the same network with projector‘s； ② No WiFi environment:Enter iPhone's "Setting" --- "Personal Hotspot", Open "Hotspot", then connect projector to it; Or enter the projector's "Settings" - "Network Settings" - "Network Hotspot", open the hotspot and connect iPhone to the hotspot; 2.Back toward the phone home page, slide up to open the control panel, then click Airplay； 3.Choose "XXX-XXXXXX-XXX", then open "Mirroring" and done. 1. Airplay → iPhone -11- -12- TP-link_5G 360wifi-8527 AndroidAP xiaomi_7427_5G FileFinderEditViewGoWindowHelp Tue 12:00 PM97% Projector Using Guide 2.7. Airplay → Mac 1. ① Projector Networked: Click " ", Connect it to Projector through the same network . 2. Click " ", choose "XXX-XXXXXX-XXX" and be done Projector Using Guide 2.8. Miracast (Android's Phone) （(1) The machine opens and connects to WIFI, and enters the interface of “Android with the screen”; (2) Open the WIFI of the Android phone. Under the phone "Settings - Display - Projection Screen", search for and connect; (3) Most Android phones can be found and connected under the menu of “quick operation bar--screen sharing/screen mirroring/projection screen/WLAN display/wireless display/multi-screen interaction”, or contact customer service. P3 -14--13- Projector Using Guide 2.9. Wired Mirror (iPhone / iPad) 1. . Please connect the iphone and projector as shown (P3). 2. Click the "Trust" button on the phone (P4). Tip: Connection takes about 45 seconds for the first time, please be patient. iPhone/iPad Mini Projector Trust This Computer TrustDon't Trust Your settings and data will be accessible from this computer when connected. (P4) Projector Using Guide 3.0 Other function 1. How to read the U disk conten…

Text truncated - open the document above for the full version.

FCC Software Configuration Control Declaration Rev1.0.docx Shenzhen Suichen Technology Co. Ltd. FCC Software Configuration Control Declaration Date: Jan. 16, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product: Wireless pico projector Model No.: P105GW Regarding FCC Country Code Selection guidelines identified in KDB 594280 D02 v01r03. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Date: Jan. 16, 2020 Name: Shumin Yang Title: Manager Signature of applicant

Shenzhen Suichen Technology Co. Ltd. Agent Authorization Company: Shenzhen Suichen Technology Co. Ltd. Address: 12A01, Yunsong building, No.33, Tairan 8, Tian’an community, Shatou street, Futian District, Shenzhen, China Product Name: Wireless pico projector Model Number(s): P105GW Product Description: Wireless pico projector We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan. 16, 2020 Name: Shumin Yang Title: Manager Company: Shenzhen Suichen Technology Co. Ltd.

Shenzhen Suichen Technology Co. Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jan. 16, 2020 Subject; Request for Confidentiality FCC ID: 2ATVI-P105GW To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure software security requirement It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Shumin Yang Title: Manager

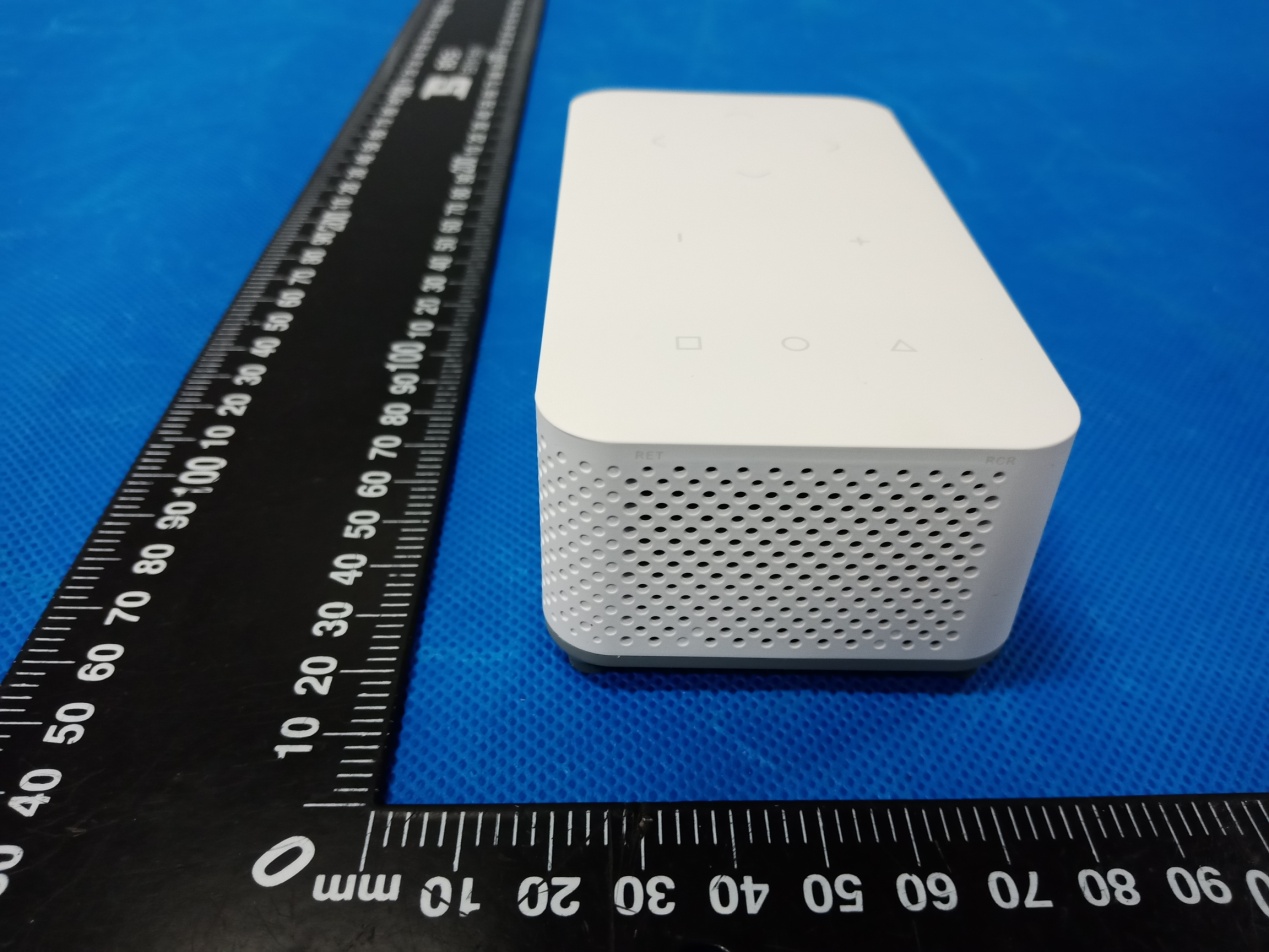

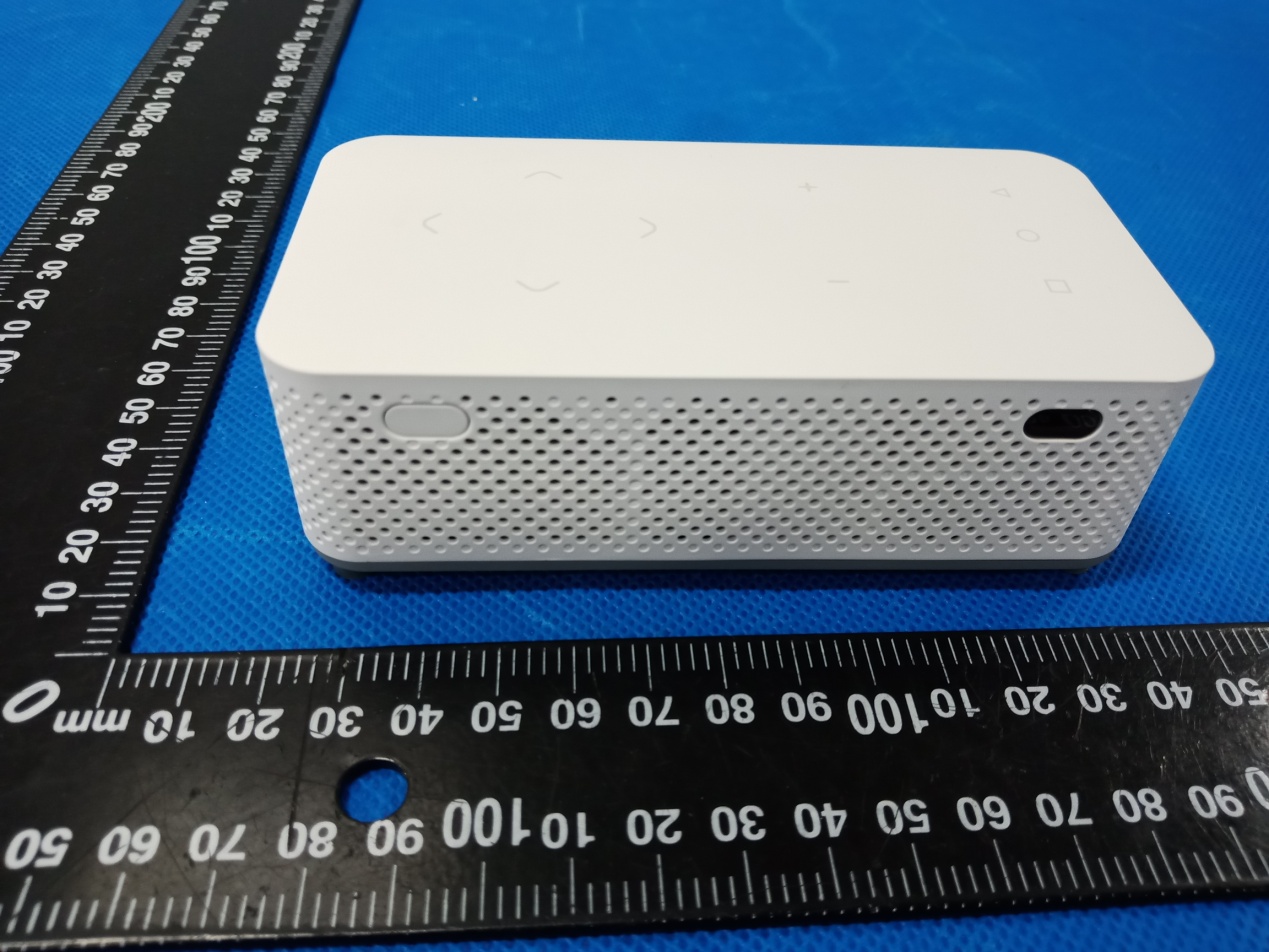

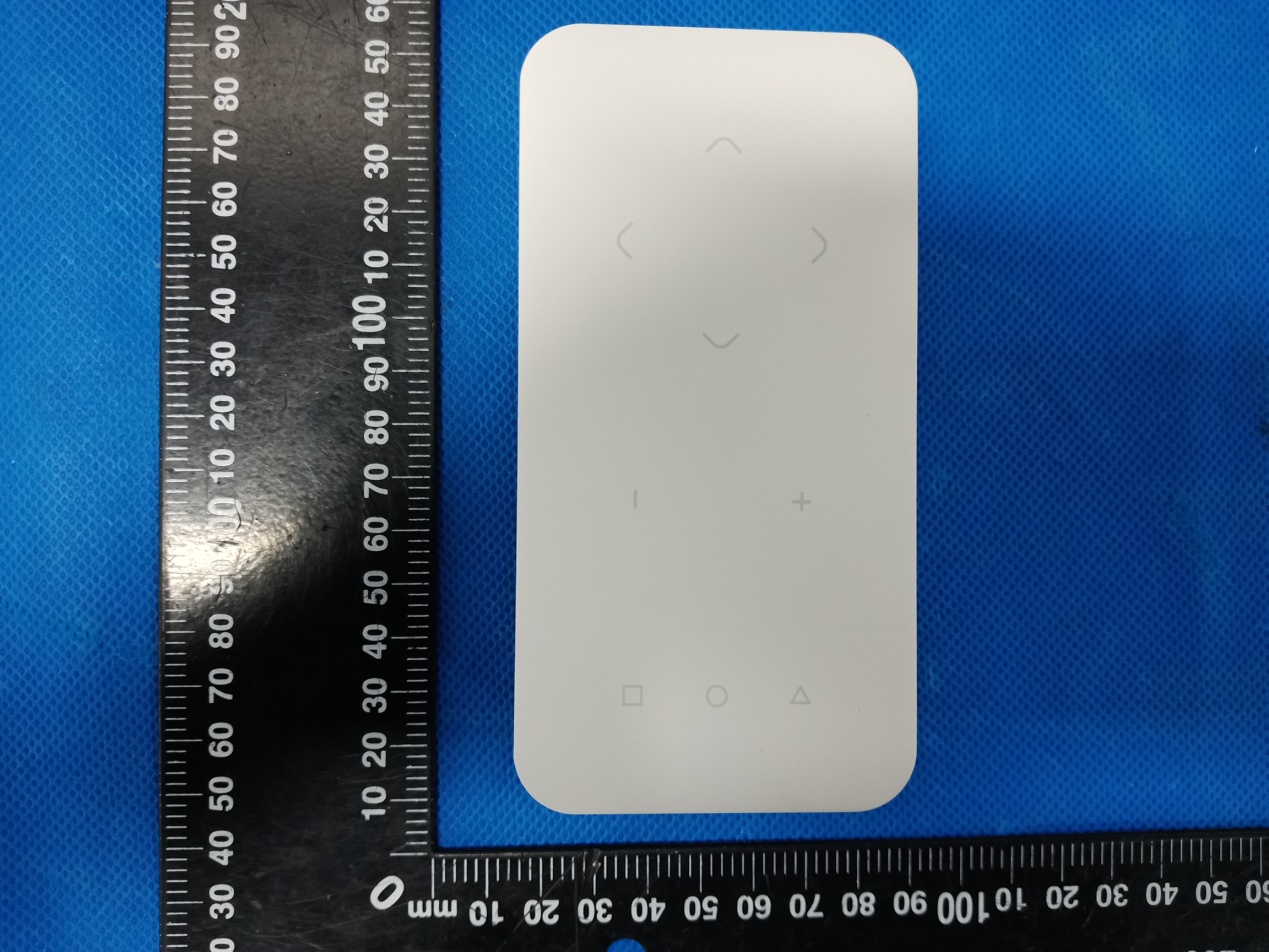

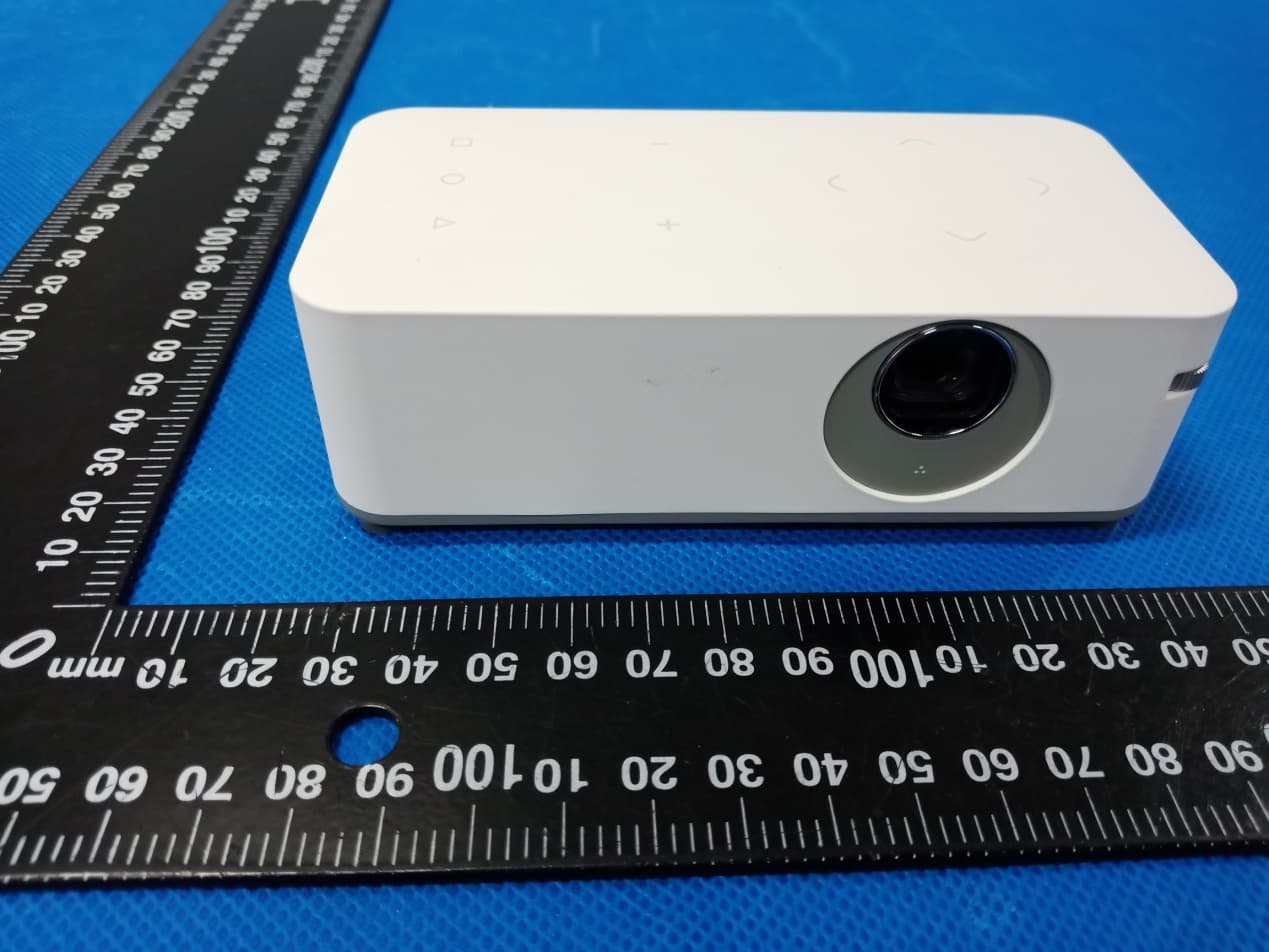

Annex A External Photos Report No.: HK1908162016‐1E/HK1908162016‐2E/ HK1908162016‐3E/HK1908162016‐4E Page 1 of 4 Report No.: HK1908162016‐1E/HK1908162016‐2E/ HK1908162016‐3E/HK1908162016‐4E Page 2 of 4 Report No.: HK1908162016‐1E/HK1908162016‐2E/ HK1908162016‐3E/HK1908162016‐4E Page 3 of 4 Report No.: HK1908162016‐1E/HK1908162016‐2E/ HK1908162016‐3E/HK1908162016‐4E Page 4 of 4

FCC ID LABEL: Ca. 1cm x 0.5cm Include in manual: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location FCC ID: 2ATVI-P105GW

Annex B Internal Photos Report No.: HK1908162016‐1E/HK1908162016‐2E/ HK1908162016‐3E/HK1908162016‐4E Page 1 of 6 Report No.: HK1908162016‐1E/HK1908162016‐2E/ HK1908162016‐3E/HK1908162016‐4E Page 2 of 6 Report No.: HK1908162016‐1E/HK1908162016‐2E/ HK1908162016‐3E/HK1908162016‐4E Page 3 of 6 2.4G/5G WiFi ANT. BT ANT. Report No.: HK1908162016‐1E/HK1908162016‐2E/ HK1908162016‐3E/HK1908162016‐4E Page 4 of 6 Report No.: HK1908162016‐1E/HK1908162016‐2E/ HK1908162016‐3E/HK1908162016‐4E Page 5 of 6 Report No.: HK1908162016‐1E/HK1908162016‐2E/ HK1908162016‐3E/HK1908162016‐4E Page 6 of 6

MPE ESTIMATION FCC ID: 2ATVI-P105GW 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Note: F= Frequency in MHz 2, Estimation Result For antenna 1: 2.4G WIFI Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) 11b 14.42 14±1(15)31.62 1 1.2589 0.00792 11g 13.04 13 ±1(14)25.12 1 1.2589 0.00629 11n/HT20 10.75 10 ±1(11) 12.59 1 1.2589 0.00315 11n/HT40 9.45 10 ±1(11) 12.59 1 1.2589 0.00315 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1908162016-3E, antenna port 1 gain=1dBi, antenna port 2 gain=1dBi,MIMO gain=4.01dBi 5.2G WIFI Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) 11a 10.45 10±1(11) 12.59 1 1.2589 0.00315 11n(HT20) 9.89 10±1(11) 12.59 1 1.2589 0.00315 11n(HT40) 9.80 9±1(10) 10.00 1 1.2589 0.00251 11ac(HT20) 9.60 10±1(11) 12.59 1 1.2589 0.00315 11ac(HT40) 8.13 9±1(10) 10.00 1 1.2589 0.00251 11ac(HT80) 8.00 8±1(9) 7.94 1 1.2589 0.00199 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1908162016-1E, antenna port 1 gain=1dBi, antenna port 2 gain=1dBi,MIMO gain=4.01dBi 5.8G WIFI Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) 11a 9.88 9±1(10) 10.00 1 1.2589 0.00251 11n(HT20) 9.70 9±1(10) 10.00 1 1.2589 0.00251 11n(HT40) 9.44 9±1(10) 10.00 1 1.2589 0.00251 11ac(HT20) 8.92 9±1(10) 10.00 1 1.2589 0.00251 11ac(HT40) 8.79 9±1(10) 10.00 1 1.2589 0.00251 11ac(HT80) 8.49 9±1(10) 10.00 1 1.2589 0.00251 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1908162016-2E, antenna port 1 gain=1dBi, antenna port 2 gain=1dBi,MIMO gain=4.01dBi For antenna 2: 2.4G WIFI Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) 11b 14.75 14±1(15) 31.62 1 1.2589 0.00792 11g 12.52 12±1(13) 19.95 1 1.2589 0.00500 11n/HT20 10.53 10±1(11) 12.59 1 1.2589 0.00315 11n/HT40 10.25 10±1(11) 12.59 1 1.2589 0.00315 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1908162016-3E, antenna port 1 gain=1dBi, antenna port 2 gain=1dBi,MIMO gain=4.01dBi 5.2G WIFI Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) 11a 10.71 10±1(11) 12.59 1 1.2589 0.00315 11n(HT20) 9.90 9±1(10) 10.00 1 1.2589 0.00251 11n(HT40) 9.76 9±1(10) 10.00 1 1.2589 0.00251 11ac(HT20) 9.76 9±1(10) 10.00 1 1.2589 0.00251 11ac(HT40) 8.85 8±1(9) 7.94 1 1.2589 0.00199 11ac(HT80) 8.64 8±1(9) 7.94 1 1.2589 0.00199 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1908162016-1E, antenna port 1 gain=1dBi, antenna port 2 gain=1dBi,MIMO gain=4.01dBi 5.8G WIFI Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) 11a 9.71 9±1(10) 10.00 1 1.2589 0.00251 11n(HT20) 9.64 9±1(10) 10.00 1 1.2589 0.00251 11n(HT40) 9.50 9±1(10) 10.00 1 1.2589 0.00251 11ac(HT20) 8.91 9±1(10) 10.00 1 1.2589 0.00251 11ac(HT40) 8.69 9±1(10) 10.00 1 1.2589 0.00251 11ac(HT80) 8.55 9±1(10) 10.00 1 1.2589 0.00251 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1908162016-2E, antenna port 1 gain=1dBi, antenna port 2 gain=1dBi,MIMO gain=4.01dBi For MIMO: 2.4G WIFI Mode MPE ( mW/cm²) 11n/HT20 0.0063 11n/HT40 0.0063 Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1908162016-3E, The MIMO mode power is max, so only calculate max power mode and antenna port 1 gain=1dBi, antenna port 2 gain=1dBi. 5.2G WIFI Mode MPE ( mW/cm²) 11n(HT20) 0.00566 11n(HT40) 0.00502 11ac(HT20) 0.00566 11ac(HT40) 0.0045 Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1908162016-1E, The MIMO mode power is max, so only calculate max power mode and antenna port 1 gain=1dBi, antenna port 2 gain=1dBi. 5.8G WIFI Mode MPE ( mW/cm²) 11n(HT20) 0.00502 11n(HT40) 0.00502 11ac(HT20) 0.00502 11ac(HT40) 0.00502 Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1908162016-2E, The MIMO mode power is max, so only calculate max power mode and antenna port 1 gain=1dBi, antenna port 2 gain=1dBi. when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine SAR test exclusion. The test exclusion threshold is 0.00792mW/cm² which is< 1.0mW/cm², SAR testing is not required. -------The End-------

Report No.: HK1908162016-1E FCC TEST REPORT Test report On Behalf of Shenzhen Suichen Technology Co. Ltd. For Wireless pico projector Model No.: P105GW FCC ID: 2ATVI-P105GW Prepared for : Shenzhen Suichen Technology Co. Ltd. 12A01, Yunsong building, No.33, Tairan 8, Tian’an community, Shatou street, Futian District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Aug. 20, 2019 ~ Aug. 27, 2019 Date of Report: Aug. 27, 2019 Report Number: HK1908162016-1E Report No.: HK1908162016-1E Page 2 of 93 TEST RESULT CERTIFICATION Applicant’s name .................. : Shenzhen Suichen Technology Co. Ltd. Address .................................. : 12A01, Yunsong building, No.33, Tairan 8, Tian’an community, Shatou street, Futian District, Shenzhen, China Manufacture's Name ............. : Shenzhen Suichen Technology Co. Ltd. Address .................................. : 12A01, Yunsong building, No.33, Tairan 8, Tian’an community, Shatou street, Futian District, Shenzhen, China Product description Trade Mark: / Product name ............................ : Wireless pico projector Model and/or type reference . : P105GW Standards .............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.407 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Aug. 20, 2019 ~ Aug. 27, 2019 Date of Issue ........................................... : Aug. 27, 2019 Test Result ............................................... : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Report No.: HK1908162016-1E Page 3 of 93 TABLE OF CONTENTS 1. Test Result Summary ............................................................................... 4 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 4 1.2. TEST FACILITY .................................................................................................................................. 4 1.3. MEASUREMENT UNCERTAINTY ............................................................................................................... 5 2. EUT Description ........................................................................................ 6 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 6 2.2. OPERATION FREQUENCY EACH OF CHANNEL ........................................................................................... 7 2.3. OPERATION OF EUT DURING TESTING .................................................................................................... 7 2.4. DESCRIPTION OF TEST SETUP ....................................................................................................... 8 3. Genera Information ................................................................................... 9 3.1. TEST ENVIRONMENT AND MODE .............................................................................................................. 9 3.2. DESCRIPTION OF SUPPORT UNITS ........................................................................................................ 10 4. Test Results and Measurement Data .................................................... 11 4.1. CONDUCTED EMISSION ........................................................................................................................ 11 4.2. MAXIMUM CONDUCTED OUTPUT POWER .............................................................................................. 15 4.3. 6DB EMISSION BANDWIDTH ................................................................................................................. 18 4.4. 26DB BANDWIDTH AND 99% OCCUPIED BANDWIDTH ............................................................................ 19 4.5. POWER SPECTRAL DENSITY ................................................................................................................ 36 4.6. BAND EDGE ......................................................................................................................................... 54 4.7. SPURIOUS EMISSION ........................................................................................................................... 81 4.8. FREQUENCY STABILITY MEASUREMENT ................................................................................................ 88 4.9. ANTENNA REQUIREMENT ............................................................................................................. 90 4.10. PHOTOGRAPHS OF TEST SETUP ........................................................................................................... 91 4.11. PHOTOS OF THE EUT ..................................................................................................................... 93 Report No.: HK1908162016-1E Page 4 of 93 1. Test Result Summary 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203 PASS AC Power Line Conducted Emission §15.207 PASS Maximum Conducted Output Power §15.407(a) PASS 6dB Emission Bandwidth §15.407(e) PASS 26dB Emission Bandwidth& 99% Occupied Bandwidth §15.407(a) PASS Power Spectral Density §15.407(a) PASS Band edge §15.407(a) PASS Radiated Emission §15.407(a) PASS Frequency Stability §15.407(g) PASS Note: 1. PASS: Test…

Text truncated - open the document above for the full version.

Report No.: HK1908162016-2E FCC TEST REPORT Test report On Behalf of Shenzhen Suichen Technology Co. Ltd. For Wireless pico projector Model No.: P105GW FCC ID: 2ATVI-P105GW Prepared for : Shenzhen Suichen Technology Co. Ltd. 12A01, Yunsong building, No.33, Tairan 8, Tian’an community, Shatou street, Futian District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Aug. 20, 2019 ~ Aug. 27, 2019 Date of Report: Aug. 27, 2019 Report Number: HK1908162016-2E Report No.: HK1908162016-2E Page 2 of 85 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Suichen Technology Co. Ltd. Address .................................. : 12A01, Yunsong building, No.33, Tairan 8, Tian’an community, Shatou street, Futian District, Shenzhen, China Manufacture's Name ............ : Shenzhen Suichen Technology Co. Ltd. Address .................................. : 12A01, Yunsong building, No.33, Tairan 8, Tian’an community, Shatou street, Futian District, Shenzhen, China Product description Trade Mark: / Product name ............................ : Wireless pico projector Model and/or type reference : P105GW Standards.............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.407 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests .............. : Aug. 20, 2019 ~ Aug. 27, 2019 Date of Issue ........................................... : Aug. 27, 2019 Test Result ............................................... : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Report No.: HK1908162016-2E Page 3 of 85 TABLE OF CONTENTS 1. Test Result Summary ............................................................................... 4 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 4 1.2. TEST FACILITY .................................................................................................................................. 4 1.3. MEASUREMENT UNCERTAINTY ............................................................................................................... 5 2. EUT Description ........................................................................................ 6 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 6 2.2. OPERATION FREQUENCY EACH OF CHANNEL ........................................................................................... 7 2.3. OPERATION OF EUT DURING TESTING .................................................................................................... 7 2.4. DESCRIPTION OF TEST SETUP ....................................................................................................... 8 3. Genera Information ................................................................................... 9 3.1. TEST ENVIRONMENT AND MODE .............................................................................................................. 9 3.2. DESCRIPTION OF SUPPORT UNITS ........................................................................................................ 10 4. Test Results and Measurement Data .................................................... 11 4.1. CONDUCTED EMISSION ........................................................................................................................ 11 4.2. MAXIMUM CONDUCTED OUTPUT POWER .............................................................................................. 15 4.3. 6DB EMISSION BANDWIDTH ................................................................................................................. 18 4.4. 26DB BANDWIDTH AND 99% OCCUPIED BANDWIDTH ............................................................................ 31 4.5. POWER SPECTRAL DENSITY ................................................................................................................ 32 4.6. BAND EDGE ......................................................................................................................................... 46 4.7. SPURIOUS EMISSION ........................................................................................................................... 73 4.8. FREQUENCY STABILITY MEASUREMENT ................................................................................................ 80 4.9. ANTENNA REQUIREMENT ............................................................................................................. 82 4.10. PHOTOGRAPHS OF TEST SETUP ........................................................................................................... 83 4.11. PHOTOS OF THE EUT ..................................................................................................................... 85 Report No.: HK1908162016-2E Page 4 of 85 1. Test Result Summary 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203 PASS AC Power Line Conducted Emission §15.207 PASS Maximum Conducted Output Power §15.407(a) PASS 6dB Emission Bandwidth §15.407(e) PASS 26dB Emission Bandwidth& 99% Occupied Bandwidth §15.407(a) N/A Power Spectral Density §15.407(a) PASS Band edge §15.407(a) PASS Radiated Emission §15.407(a) PASS Frequency Stability §15.407(g) PASS Note: 1. PASS: Test i…

Text truncated - open the document above for the full version.

Test Model：P105GW
