2ATWZ-V5X2GReal-time temperature logger

1 User manual （V5H(2G-60)） Content 1 LED instruction. ................................................................................................................................................ 2 2 Key function instruction .................................................................................................................................. 2 3 User experience instruction. ........................................................................................................................ 3 4.Usage scenarios ............................................................................................................................................... 4 2 1 LED instruction. NO Test item Instruction Result 1 LED in Idle Mode Press start button for 1 second when the power of the logger is normal LED toggle red/blue twice 2 Press start button for 1 second when the power of the logger is low No LED light under any condition 3 Press and hold Flight button for 5 seconds No LED light and logger can not enter Flight Mode 4 Press and hold start button for 5 seconds then logger from Idle mode to Recording mode The status LED flash Blue every 10 seconds for 30 minutes to indicate it has started properly After 30 minutes this flash sequence will stop NO Test item Instruction Result 5 LED in Recording Mode Press start button for 1 second when the power of the logger is normal Blue flash indicates logger is recording 6 Press start button for 1 second when the power of the logger is low No flash means low battery (no LED) Battery is dead 7 press Flight button for 1 second No Flash means logger is not enable Flight Mode NO Test item Instruction Result 8 LED in Flight Mode Press and hold Flight button for 5 seconds then logger from Recording Mode to Flight Mode Flight Mode LED blink Red LED 5 times to indicate logger has entered Flight Mode 9 Singlepress Flight button for 1 second and a Red LED light indicates Red LED light indicates it is in flight mode 10 Press and hold flight mode button for 5 seconds Red LED go solid for 5 seconds and exit Flight Mode 2 Key function instruction NO Test item Instruction Result 3 1 Start Press and hold start button for 5 seconds enable logger to record data Logger data upload to platform，read interval is 10mins and report interval is 60mins NO Test item Instruction Result 2 Flight Mode In Recording Mode，Press and hold Flight button for 5 seconds enable logger to Flight Mode Logger continue to record data but will stop uploading data to platform until it exit Flight Mode 3 press and hold Flight button for 5 seconds exit Flight Mode after logger in Flight Mode for 12 hours platform and device data are not lost NO Test item Instruction Result 4 Stop In recording mode， connect usb cable to logger logger stop then user can view PDF or export PDF to PC 5 In Flight Mode， Connect usb cable to logger logger will stop then user can view PDF or export PDF to PC 3 User experience instruction. NO Test item Instruction Result 1 Capacity display Check whether the Capacity display match with real battery capacity. The Capacity display match with real battery capacity. 2 Reporting stable Check the Reporting performance in different environment. Reporting normally in different environment. 3 PDF function Stop logger then export PDF PDF content is displayed correctly and data is not lost 4 Power consumption Enble logger then set the report interval to 20min Meet company quality standard 4 4. Usage scenarios Put the device in the container with goods together. FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance of 20cm from your body.

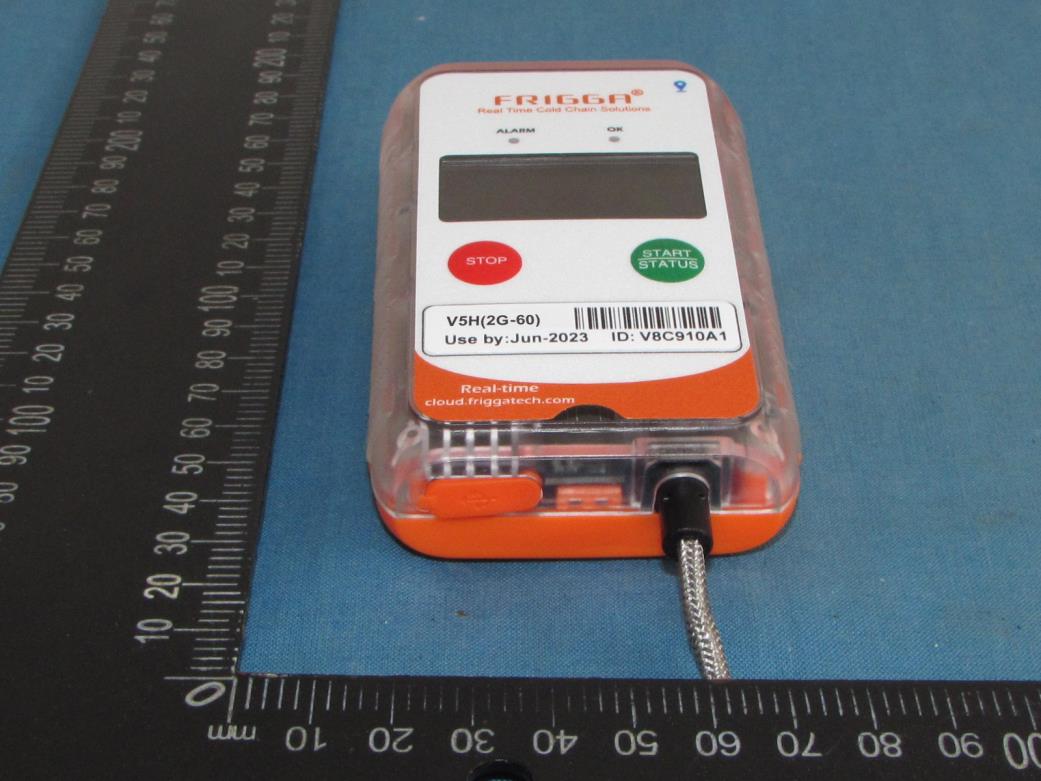

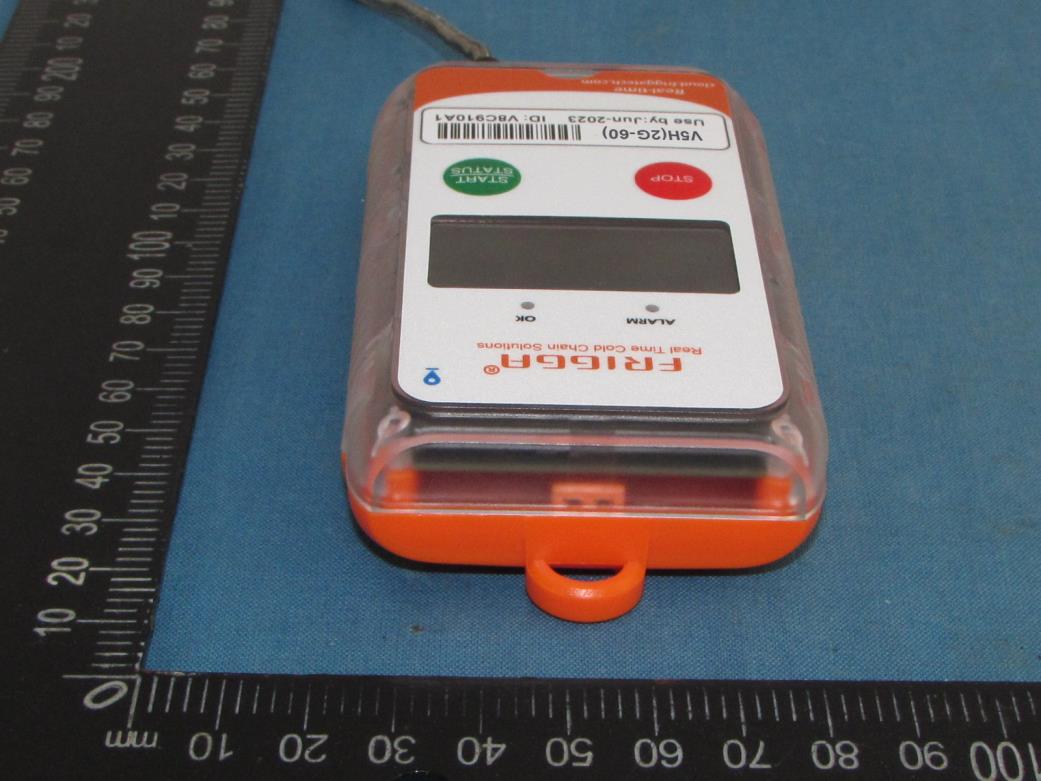

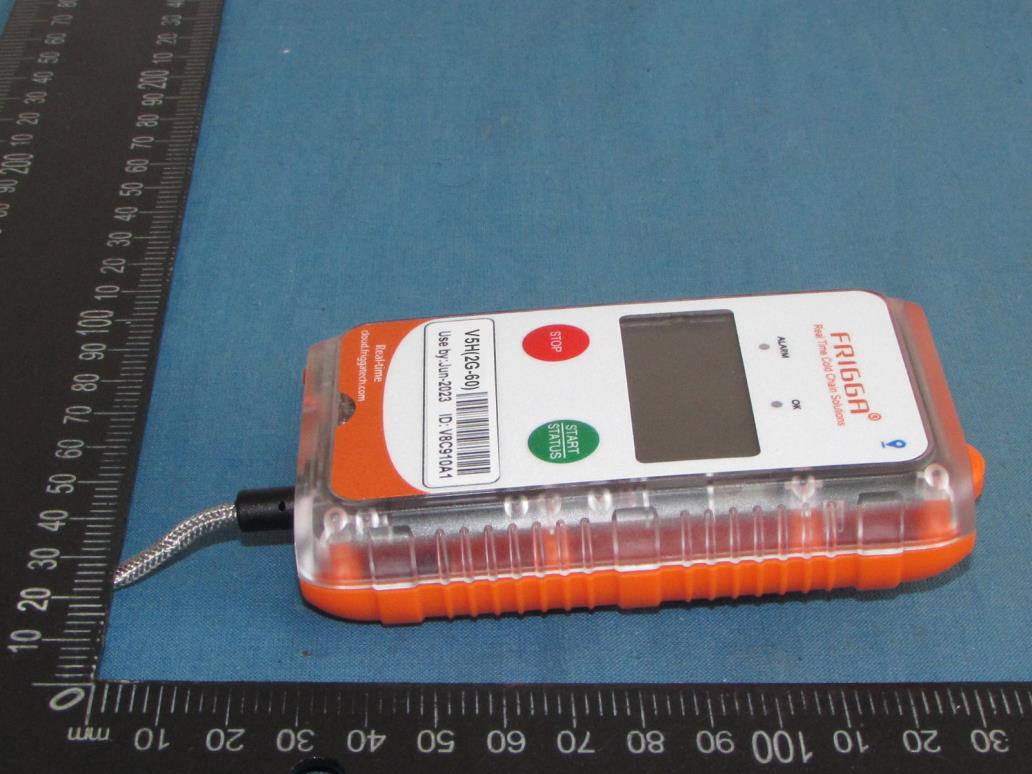

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X2G This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 EXTERIOR PHOTOGRAPHS OF EUT External Photos Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X2G This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X2G This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3

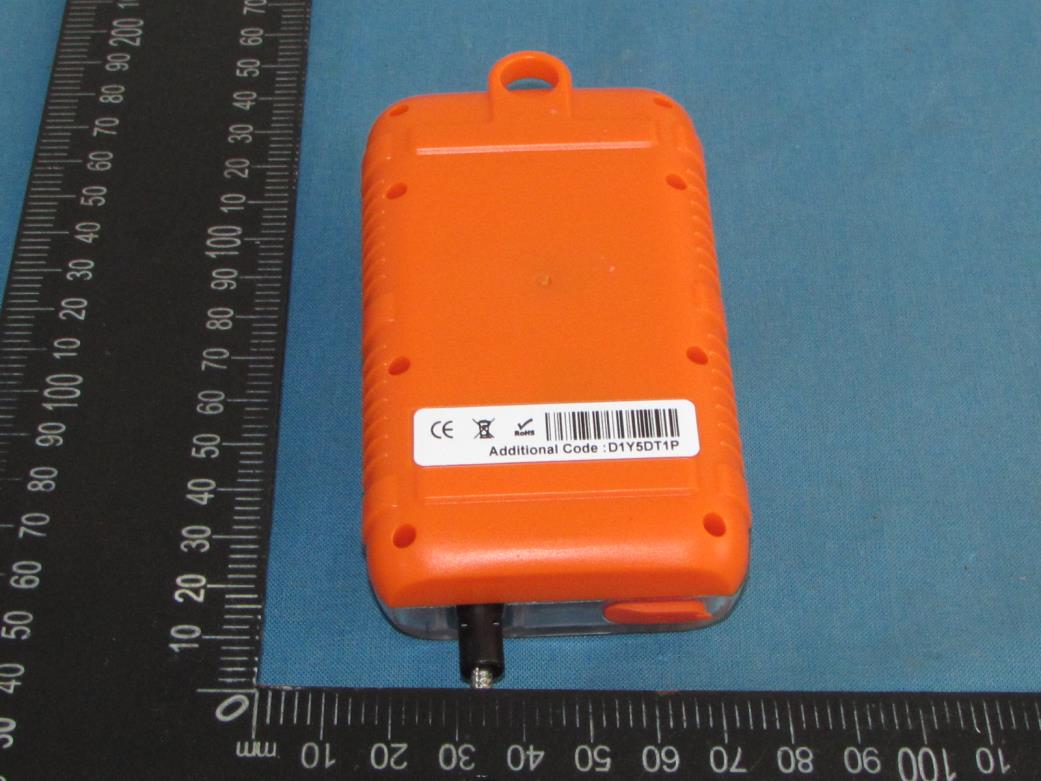

Label Location: FCC ID: 2ATWZ-V5X2G

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X2G This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 INTERIOR PHOTOGRAPHS OF EUT Internal Photos Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X2G This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X2G This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X2G This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 GSM antenna

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X2G This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 Maximum Permissible Exposure Report 1. Product Information EUT : Real-time temperature logger Model Number : B9Z(2G-60), V5L(2G-60), V5L(2G-120), V5D(2G-60), V5D(2G-120), V5A(2G-60), V5A(2G-120), V5H(2G-60), V5H(2G-120) Test Model : V5H(2G-60) Power Supply : 1,DC 3.7V by battery 2,DC 5.0V charged by adapter Hardware version : V50MR41C Software version : V5A_GD_L07 Sample ID : TZ220603348–1# & TZ220603348–2# GSM GSM FCC Operation Frequency : GSM850(UL: 824 – 849 MHz/DL: 869 – 894 MHz) GSM1900(UL: 1850 –1910 MHz/DL: 1930 – 1990 MHz) Channel Separation : 0.2MHz Modulation Technology : GMSK Antenna Type And Gain : Internal Antenna GSM850: -0.9 dBi PCS1900: -0.8 dBi Note: Antenna position refer to EUT Photos. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X2G This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 2. Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X2G This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 3. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information This Product can only use antennas certificated as follows provided by manufacturer; Note: The Antenna gain shows in section 1 of this file Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X2G This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 6. Max Conducted Power According to test report: TZ220603348-E. 7. Manufacturing Tolerance <GPRS> Band Mode The Tune-up Maximum Power (Customer Declared)(dBm) GSM 850 GPRS(GMSK, 1 Tx slot) 31.5+/-1 GPRS(GMSK, 2 Tx slot) 30.0+/-1 GPRS(GMSK, 3 Tx slot) 29.0+/-1 GPRS(GMSK, 4 Tx slot) 27.0+/-1 GSM 1900 GPRS(GMSK, 1 Tx slot) 29.5+/-1 GPRS(GMSK, 2 Tx slot) 27.5+/-1 GPRS(GMSK, 3 Tx slot) 26.5+/-1 GPRS(GMSK, 4 Tx slot) 25.5+/-1 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X2G This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 8. Measurement Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. GSM850: Frequency(MHz) Max Output power Antenna Gain (dBi) Antenna Gain (linear) Duty Cycle MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 824.2 32.5 1778.2794 -0.9 0.8128 100% 0.3540 0.5495 836.6 32.5 1778.2794 -0.9 0.8128 100% 0.3540 0.5577 848.8 32.5 1778.2794 -0.9 0.8128 100% 0.3540 0.5659 GSM1900: Frequency(MHz) Max Output power Antenna Gain (dBi) Antenna Gain (linear) Duty Cycle MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 1850.2 30.5 1122.0185 -0.8 0.8318 100% 0.2233 1.0000 1880 30.5 1122.0185 -0.8 0.8318 100% 0.2233 1.0000 1909.8 30.5 1122.0185 -0.8 0.8318 100% 0.2233 1.0000 Remark: 1. Output power including tune-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer; 8.2 Simultaneous Transmission MPE N/A 9. Conclusion Compliance ----------------THE END OF REPORT---------------

Report No.: TZ220603348-E Page 1 of 46 FCC TEST REPORT Test report On Behalf of Shanghai Dewav IoT Technology Co.,Ltd. For Real-time temperature logger Model No.: B9Z(2G-60), V5L(2G-60), V5L(2G-120), V5D(2G-60), V5D(2G-90), V5D(2G-120), V5A(2G-60), V5A(2G-120), V5H(2G-60), V5H(2G-120) FCC ID: 2ATWZ-V5X2G Prepared for : Shanghai Dewav IoT Technology Co.,Ltd. 5th Floor,C8-30 of Lane 3188,Xiupu Road,Pudong New District,Shanghai,201315,P.R.China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2022/3/10 - 2022/3/24 Date of Report: 2022/6/23 Report Number: TZ220603348-E The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ220603348-E Page 2 of 46 TEST RESULT CERTIFICATION Applicant’s name ................. : Shanghai Dewav IoT Technology Co.,Ltd. Address .................................. : 5th Floor,C8-30 of Lane 3188,Xiupu Road,Pudong New District,Shanghai,201315,P.R.China Manufacture's Name ............ : Shanghai Dewav IoT Technology Co.,Ltd. Address .................................. : 5th Floor,C8-30 of Lane 3188,Xiupu Road,Pudong New District,Shanghai,201315,P.R.China Product description Trade Mark ................................ : Frigga Product name ............................ : Real-time temperature logger Model and/or type reference . : B9Z(2G-60), V5L(2G-60), V5L(2G-120), V5D(2G-60), V5D(2G-90), V5D(2G-120), V5A(2G-60), V5A(2G-120), V5H(2G-60), V5H(2G- 120) Standards ............................. : FCC Rules and Regulations Part 22 & Part 24 ANSI C63.26:2015 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2022/3/10 - 2022/3/24 Date of Issue .......................................... : 2022/6/23 Test Result .............................................. : Pass Testing Engineer : (Anna Hu) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ220603348-E Page 3 of 46 Revision History Revision Issue Date Revisions Revised By 000 2022/6/23 Initial Issue Andy Zhang Report No.: TZ220603348-E Page 4 of 46 Contents 1 TEST STANDARDS ........................................................................................................................................ 5 2 SUMMARY ...................................................................................................................................................... 6 2.1 PRODUCT DESCRIPTION .............................................................................................................................................. 6 2.2 DIFFERENCE OF MODELS ............................................................................................................................................ 8 2.3 HOST SYSTEM CONFIGURATION LIST AND DETAILS ...................................................................................................... 9 2.4 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) ...................................................................................... 9 2.4.1 GENERAL DESCRIPTION ....................................................................................................................................... 9 2.5 NORMAL ACCESSORY SETTING .................................................................................................................................... 9 2.6 EUT CONFIGURATION ................................................................................................................................................. 9 2.7 RELATED SUBMITTAL(S) / GRANT (S) ........................................................................................................................... 9 2.8 MODIFICATIONS .......................................................................................................................................................... 9 3 TEST ENVIRONMENT .................................................................................................................................. 10 3.1 TEST FACILITY .......................................................................................................................................................... 10 3.2 ENVIRONMENTAL CONDITIONS ................................................................................................................................... 10 3.3 TEST DESCRIPTION ................................................................................................................................................... 11 3.4 EQUIPMENT USED DURING THE TEST ......................................................................................................................... 12 3.5 MEASUREMENT UNCERTAINTY ................................................................................................................................... 13 4 DESCRIPTION OF TEST MODES ................................................................................................................ 14 5 TEST CONDITIONS AND RESULTS............................................................................................................ 14 5.1 OUTPUT POWER................................................................................................................................................... 14 5.1.1 CONDUCTED OUTPUT POWER .....................…
