2ATWZ-V5X4GReal-time temperature logger

1 User manual Display Instruction 1. Start Long press "Start/stop" button till “REC” has been showed on the LCD interface, device is ready to monitor. At the same time, the record quantity also will be showed on the LCD interface. 2. Stop Long press “Start/Stop” button till “REC” disappear from LCD interface, the device has been stopped. 3. Check data Short press “Data” button, to show some information: MAX temperature value MIN temperature value 4. Mode Switch ⚫ Long press “Mode” button, to enter flight mode: In flight mode, the logger only records data and doesn’t send data to platform. LCD will be shut down, display nothing. ⚫ Long press “Mode” button again, to quit flight mode: Data report, LCD show, everything back to normal 6. Usage scenarios Put the device in the container with goods together. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance of 20cm from your body.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:< 2022/6/28> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ATWZ-V5X4G V5C Non-Li(4G-60) For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Signature Kevin Zhang Director Shanghai Dewav IoT Technology Co.,Ltd.

Shanghai Dewav IoT Technology Co.,Ltd. 5th Floor,C8-30 of Lane 3188,Xiupu Road,Pudong New District,Shanghai,201315,P.R.China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2022/6/28 To whom it may concern: We, Shanghai Dewav IoT Technology Co.,Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ATWZ-V5X4G including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Kevin Zhang Director Shanghai Dewav IoT Technology Co.,Ltd.

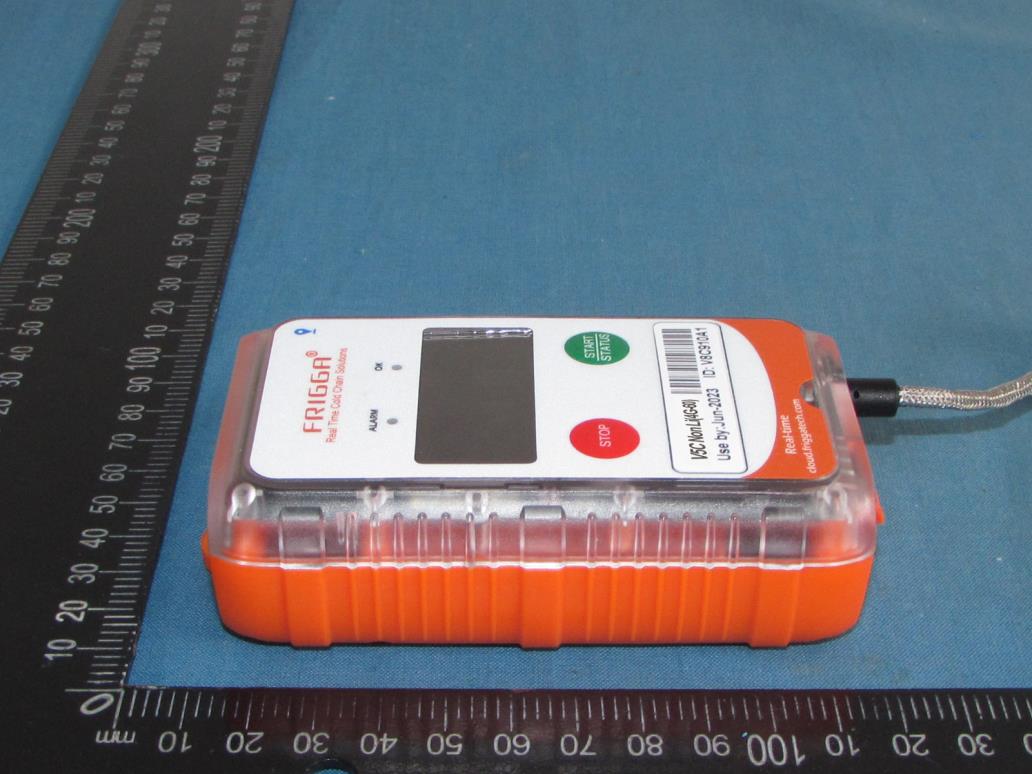

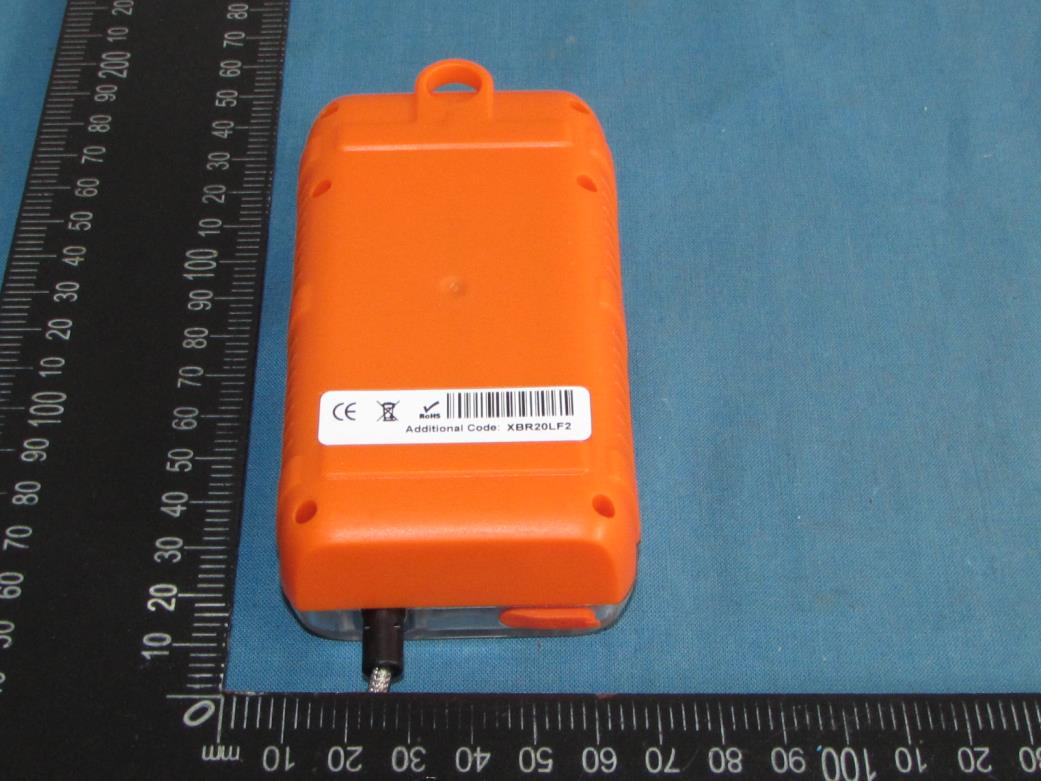

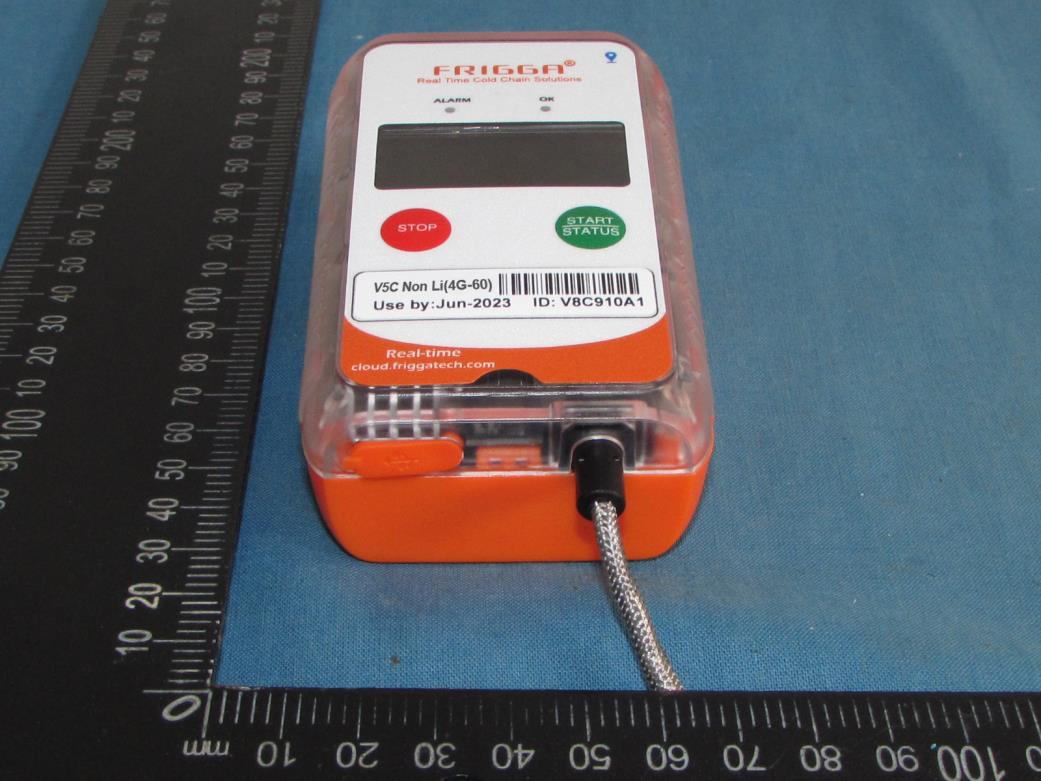

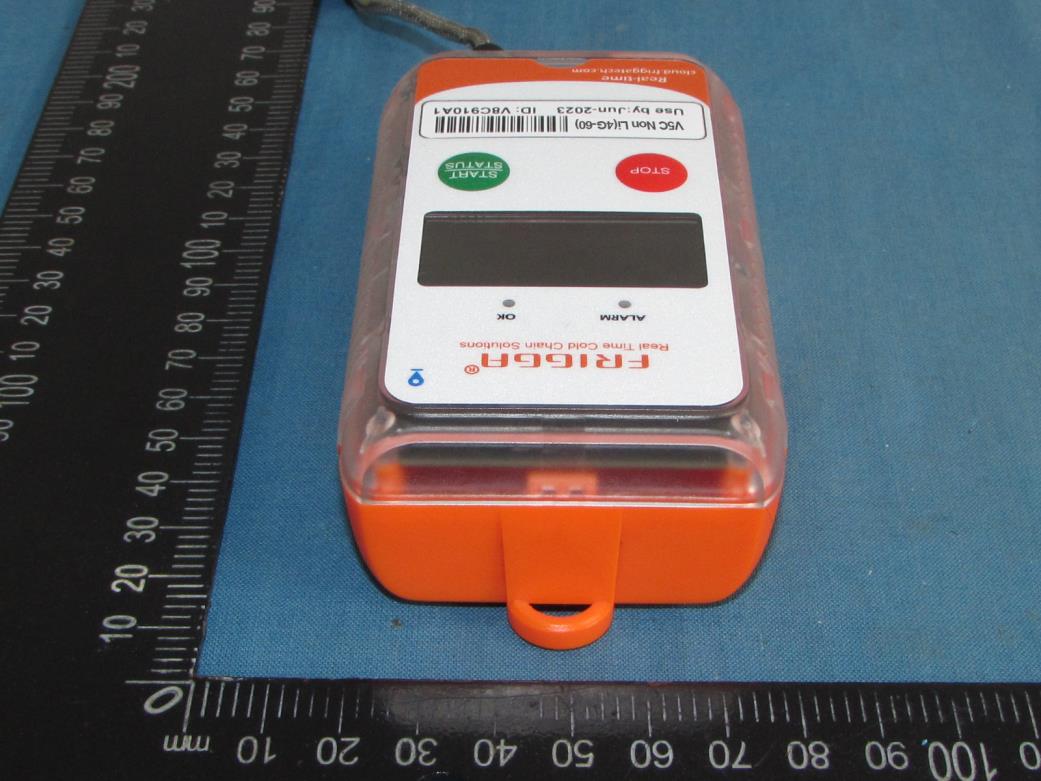

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X4G This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 EXTERIOR PHOTOGRAPHS OF EUT External Photos Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X4G This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X4G This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3

Label Location: FCC ID: 2ATWZ-V5X4G

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X4G Page 1 of 4 INTERIOR PHOTOGRAPHS OF EUT Internal Photos Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X4G Page 2 of 4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X4G Page 3 of 4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X4G Page 4 of 4 GSM/LTE antenna

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X4G This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 6 Maximum Permissible Exposure Report 1. Product Information EUT : Real-time temperature logger Model Number : B9Z(4G-30), B9Z(4G-60), B9Z(4G-120), V5L(4G-30), V5L(4G-60), V5L(4G-120),V5B(4G-60), V5B(4G-90), V5B(4G-120), V5C(4G-60), V5C(4G-90), V5C(4G-120), V5Y(4G-60), V5Y(4G-120), V5J(4G-60), V5J(4G-120), V5B Non -Li(4G-60), V5B Non-Li(4G-120), V5C Non-Li(4G-60), V5C Non-Li(4G-120), V57(4G), V56(4G), V55(4G), V58(4G), V59(4G) Test Model : V5C Non-Li(4G-60) Power Supply : 1,DC 3.7V/3.6V by battery 2,DC 5.0V charged by adapter Hardware version : V56MR41B Software version : V5C_4L_L107 Sample ID : TZ220603347–1# & TZ220603347–2# GSM GSM FCC Operation Frequency : GSM850(UL: 824 – 849 MHz/DL: 869 – 894 MHz) GSM1900(UL: 1850 –1910 MHz/DL: 1930 – 1990 MHz) Channel Separation : 0.2MHz Modulation Technology : GMSK, 8PSK Antenna Type And Gain : Internal Antenna GSM850: 0.3 dBi PCS1900: 0.12 dBi E-UTRA E-UTRA FCC Operation Frequency : FDD Band 2 (UL: 1850 – 1910 MHz/DL: 1930 – 1990 MHz) FDD Band 4 (UL: 1710 – 1755 MHz/DL: 2110 – 2155 MHz) FDD Band 5 (UL: 824 – 849 MHz/DL: 869 – 894 MHz) FDD Band 7(UL: 2500 MHz - 2570 MHz/DL: 2620 - 2690 MHz) FDD Band 66 (UL: 1710 – 1780 MHz/DL: 2110 – 2180 MHz) Channel Separation : 0.1 MHz Modulation Technology : OFDM (16QAM, QPSK) Antenna Type And Gain : Internal Antenna FDD Band 2: -1.01 dBi, FDD Band 4: -0.9 dBi, FDD Band 5: -0.89 dBi, FDD Band 7: 0.28 dBi, FDD Band 66: 0.17 dBi Note: Antenna position refer to EUT Photos. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X4G This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 6 2. Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X4G This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 6 3. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information This Product can only use antennas certificated as follows provided by manufacturer; Note: The Antenna gain shows in section 1 of this file Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X4G This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 6 6. Max Conducted Power According to test report: TZ220603348-E1 & TZ220603348-E2. 7. Manufacturing Tolerance <GPRS/EGPRS > Band Mode The Tune-up Maximum Power (Customer Declared)(dBm) GSM 850 GPRS(GMSK, 1 Tx slot) 31.0+/-1 GPRS(GMSK, 2 Tx slot) 30.0+/-1 GPRS(GMSK, 3 Tx slot) 29.0+/-1 GPRS(GMSK, 4 Tx slot) 27.0+/-1 EDGE (8PSK, 1 Tx slot) 26.0+/-1 EDGE (8PSK, 2 Tx slot) 25.0+/-1 EDGE (8PSK, 3 Tx slot) 23.0+/-1 EDGE (8PSK, 4 Tx slot) 21.5+/-1 GSM 1900 GPRS(GMSK, 1 Tx slot) 29.5+/-1 GPRS(GMSK, 2 Tx slot) 27.0+/-1 GPRS(GMSK, 3 Tx slot) 26.5+/-1 GPRS(GMSK, 4 Tx slot) 25.5+/-1 EDGE (8PSK, 1 Tx slot) 25.0+/-1 EDGE (8PSK, 2 Tx slot) 24.5+/-1 EDGE (8PSK, 3 Tx slot) 23.5+/-1 EDGE (8PSK, 4 Tx slot) 21.5+/-1 < LTE > Band The Tune-up Maximum Power (Customer Declared)(dBm) LTE Band 2 QPSK 21.5 ± 2 16QAM 21.5 ± 2 LTE Band 4 QPSK 21.5 ± 2 16QAM 21.5 ± 2 LTE Band 5 QPSK 21.5 ± 2 16QAM 21.5 ± 2 LTE Band 7 QPSK 22.5 ± 2 16QAM 22.5 ± 2 LTE Band 66 QPSK 21.5 ± 2 16QAM 21.5 ± 2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ATWZ-V5X4G This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 6 8. Measurement Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. GSM850: Frequency(MHz) Max Output power Antenna Gain (dBi) Antenna Gain (linear) Duty Cycle MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 824.2 32 1584.8932 0.3 1.0715 100% 0.0135 0.5495 836.6 32 1584.8932 0.3 1.0715 100% 0.0135 0.5577 848.8 32 1584.8932 0.3 1.0715 100% 0.0135 0.5659 GSM1900: Frequency(MHz) Max Output power Antenna Gain (dBi) Antenna Gain (linear) Duty Cycle MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 1850.2 30.5 1122.0185 0.12 1.0280 100% 0.2296 1.0000 1880 30.5 1122.0185 0.12 1.0280 100% 0.2296 1.0000 1909.8 30.5 1122.0185 0.12 1…
