FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC ID: 2ATYD-1014 IC Caution: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class [B] digital apparatus complies with Canadian ICE-003. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada. L'appareil a été évalué pour répondre aux exigences générales d'exposition RF.

Kano Computing Limited Family models difference declaration Kano Headphones Model: 1014, 1014J 1014B 1014C Difference declaration: All models are the same circuit and RF module, except the model name. Regards, Signature Name: Li Jingjing Date: 2020-10-21

Letter of Authorization Company: Kano Computing Limited Address: 77 Leadenhall Street London EC3A 3DE United Kingdom Product Name: Kano Headphones Model Number: 1014, 1014J 1014B 1014C FCC Identifier: 2ATYD-1014 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Li Jingjing Date: Oct. 22.2020 Title: Manager Signature of applicant:

Kano Computing Limited Date: Oct 22, 2020 FCC ID: 2ATYD-1014 Model Number: 1014, 1014J 1014B 1014C To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Kano Computing Limited declare that this EUT (FCC ID: 2ATYD-1014) will conduct FCC compliance testing, the SDOC part recognized test lab(Shenzhen NTEK Testing Technology Co., Ltd.( ShenZhen Lab.). 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China) Please contact me if you have any question. Sincerely,
(Signed) Name / Title: Li Jingjing/ Manager Company: Kano Computing Limited Address: 77 Leadenhall Street London EC3A 3DE United Kingdom

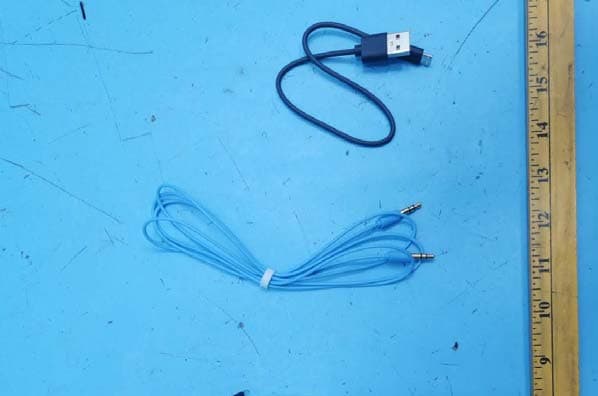

S20101201102 Model: 1014 ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 S20101201102 Model: 1014 Photo 3 Photo 4 S20101201102 Model: 1014 Photo 5 Photo 6

Headphones compliance logos 20.08.20

S20101201102 Model: 1014 Photo 7 Photo 8 BT Ant S20101201102 Model: 1014 Photo 9 Photo 10 S20101201102 Model: 1014 Photo 11 Photo 12 S20101201102 Model: 1014 Photo 13 Photo 14

FCC ID: 2ATYD-1014 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BR+EDR: Antenna Type :PCB Antenna Antenna Gain: 0.5 dBi Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n 1g SAR Exclusion threshold SAR test exclusion 2.402 8.183 6.5818±1 9 7.943<52.462163.00YES 2.441 8.437 6.9788±1 9 7.943<52.482073.00YES 2.480 7.293 5.3628±1 9 7.943<52.501823.00YES 2.402 6.784 4.7696±1 7 5.012<51.553523.00YES 2.441 5.965 3.9496±1 7 5.012<51.566083.00YES 2.480 6.552 4.5216±1 7 5.012<51.578543.00YES 2.402 6.918 4.9186±1 7 5.012<51.553523.00YES 2.441 6.266 4.2336±1 7 5.012<51.566083.00YES 2.480 6.645 4.6186±1 7 5.012<51.578543.00YES GFSK π/4- DQPSK 8DPSK Conclusion: For the max result : 2.50182≤ 3.0 for 1-g SAR, No SAR is required. Signature: Date: 2020-10-22 NAME AND TITLE (Please print or type): Alex Li /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China

Report No.: S20101201102001 Version.1.3 Page 1 of 83 RADIO TEST REPORT FCC ID: 2ATYD-1014 Product: Kano Headphones Trade Mark: Kano Model No.: 1014 Family Model: 1014J,1014B,1014C Report No.: S20101201102001 Issue Date: 15 Oct. 2020 Prepared for Kano Computing Limited 77 Leadenhall Street London EC3A 3DE United Kingdom Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel.: 400-800-6106, 0755-3699 5508 Website:http://www.ntek.org.cn Report No.: S20101201102001 Version.1.3 Page 2 of 83 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 25 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 26 7.5 AV E R A G E TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 27 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 29 7.7 PEAK OUTPUT POWER .............................................................................................................................. 30 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 32 7.10 ANTENNA APPLICATION .......................................................................................................................... 33 7.11 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS .............................................. 34 8 TEST RESULTS ................................................................................................................................................... 35 8.1 DWELL TIME ................................................................................................................................................... 35 8.2 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 40 8.3 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 45 8.4 CARRIER FREQUENCIES SEPARATION .............................................................................................................. 55 8.5 NUMBER OF HOPPING CHANNEL ..................................................................................................................... 60 8.6 BAND EDGE .................................................................................................................................................... 61 8.7 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 74 Report No.: S20101201102001 Version.1.3 Page 3 of 83 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Kano Computing Limited Address ....................................... : 77 Leadenhall Street London EC3A 3DE United Kingdom Manufacturer's Name .................. : Kano Computing Limited Address ....................................... : 77 Leadenhall Street London EC3A 3DE United Kingdom Product description Product name .............................. : Kano Headphones Model and/or type reference ..... : 1014 Family Model ............................... : 1014J,1014B,1014C Measurement Procedure Used: APPLICABLE STANDARDS STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpa…
