2ATYD-1016STEM PLAYER

(c)(tm) WEIL:\973691 67\4\55492.0003 1 FCC compliance statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Important: Changes or modifications to this product not authorized by Kano Computing Limited could void the electromagnetic compatibility (EMC) and wireless compliance and negate your authority to operate the product. This product has demonstrated EMC compliance under conditions that included the use of compliant peripheral devices and shielded cables between system components. It is important that you use compliant peripheral devices and shielded cables between system components to reduce the possibility of causing interference to radios, televisions, and other electronic devices. RF Exposure Statement: This STEM PLAYER meets the FCC government's requirements for exposure to radio waves. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Use only the supplied or an approved antenna. FCC ID: 2ATYD-1016 Canadian regulatory statement This device complies with Innovation, Science, and Economic Development Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 2 (1)this device may not cause interference, and (2)this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR dʼInnovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. Lʼexploitation est autorisée aux deux conditions suivantes : (1) lʼappareil ne doit pas produire de brouillage, et (2) lʼutilisateur de lʼappareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible dʼen compromettre le fonctionnement. CAN ICES-3 (B)/NMB-3(B) RF Exposure Statement: This STEM PLAYER meets the Canada government's requirements for exposure to radio waves. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Use only the supplied or an approved antenna. IC: 25240-1016

Kano Computing Limited Agent Authorization Company: Kano Computing Limited Address: UNIT 12.1 - 12.2, 11-29 FASHION STREET, LONDON, E1 6PX, United Kingdom Product Name: STEM PLAYER Model Number(s): 1016 Product Description: STEM PLAYER with Bluetooth We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021.07.17 Name: Li Jingjing Title: Manager Company: Kano Computing Limited

Kano Computing Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 07/17/2021 Subject; Request for Confidentiality FCC ID: 2ATYD-1016 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Li Jingjing Title: Manager

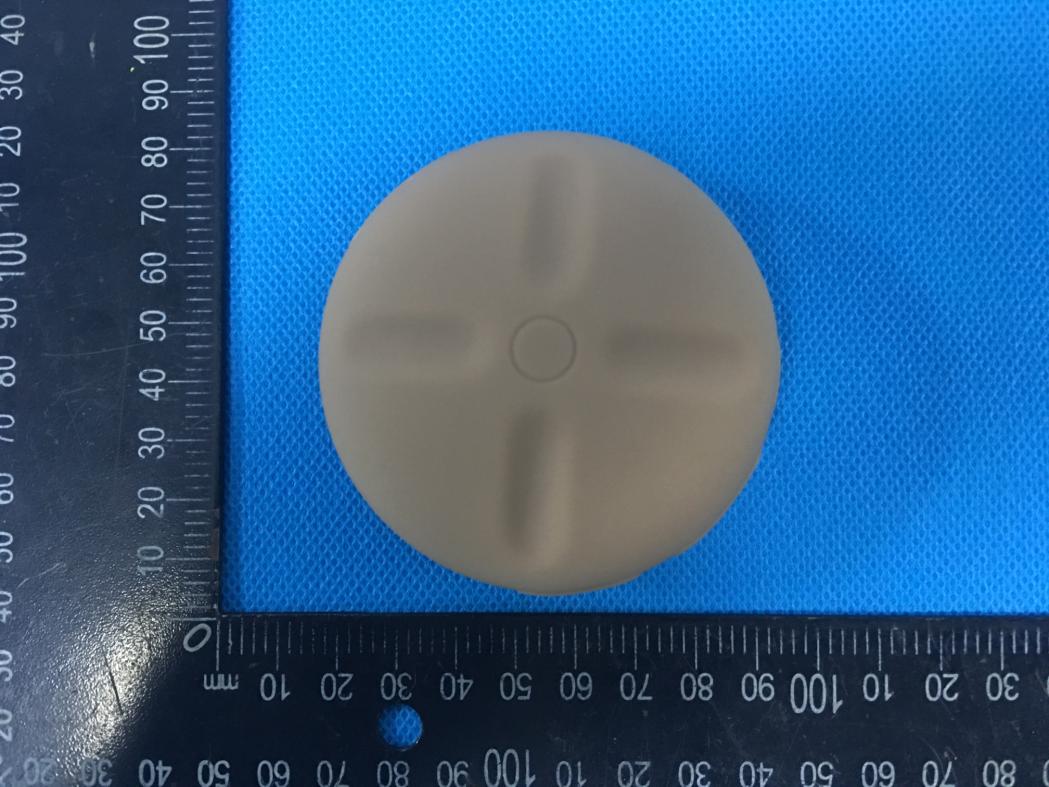

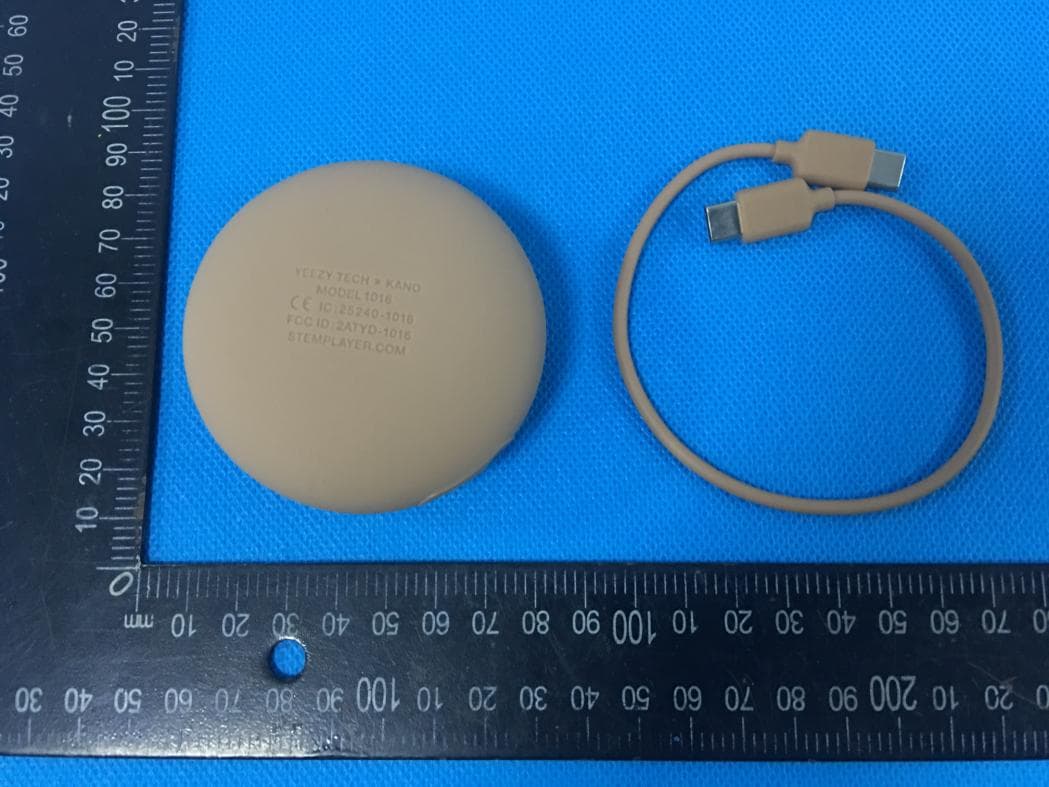

S21030302901 Model: 1016 N20190309V1 External Photographs Photo 1 Photo 2 S21030302901 Model: 1016 N20190309V1 Photo 3 Photo 4

Label Sample and Label Location

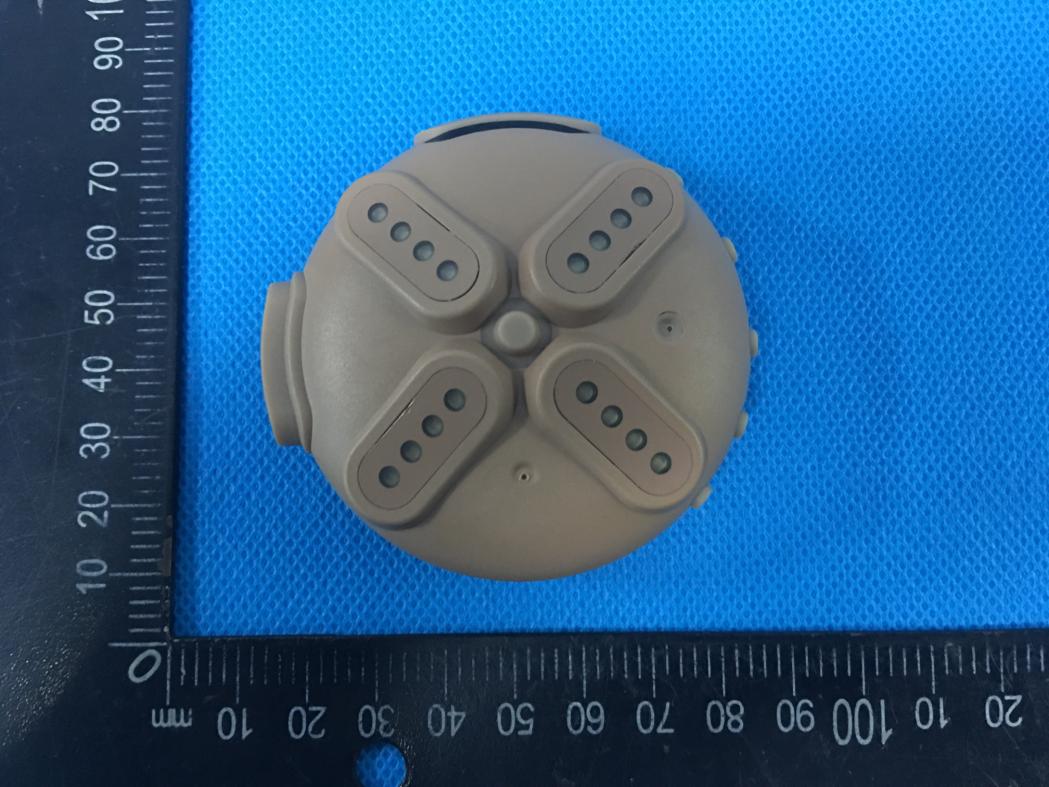

S21030302901 Model: 1016 N20190309V1 Internal Photographs Photo 1 Photo 2 S21030302901 Model: 1016 N20190309V1 Photo 3 Photo 4 S21030302901 Model: 1016 N20190309V1 Photo 5 Photo 6 BT Ant S21030302901 Model: 1016 N20190309V1 Photo 7 Photo 8 S21030302901 Model: 1016 N20190309V1 Photo 9

FCC ID: 2ATYD-1016 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BR+EDR: Antenna Type :FPC Antenna Antenna Gain: -2.3dBi Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculation 1g SAR Exclusion threshold SAR test exclusion 2.4025.1663.2854.8±15.83.802<51.178463.00YES 2.4413.6862.3374.8±15.83.802<51.187993.00YES 2.4805.5423.5834.8±15.83.802<51.197453.00YES 2.4025.7653.7714.8±15.83.802<51.178463.00YES 2.4414.4162.7644.8±15.83.802<51.187993.00YES 2.4805.2363.3394.8±15.83.802<51.197453.00YES 2.4025.6573.6794.8±15.83.802<51.178463.00YES 2.4414.6122.8924.8±15.83.802<51.187993.00YES 2.4805.6533.6754.8±15.83.802<51.197453.00YES GFSK π/4- DQPSK 8DPSK Conclusion: For the max result : 1.19745≤ 3.0 for 1-g SAR, the SAR is not required. Signature: Date: 2021-07-19 NAME AND TITLE (Please print or type): Alex Li /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China

Report No.: S21030302901001 Version.1.3 Page 1 of 83 RADIO TEST REPORT FCC ID: 2ATYD-1016 Product: STEM PLAYER Trade Mark: KANO Model No.: 1016 Family Model: N/A Report No.: S21030302901001 Issue Date: 02 Jul. 2021 Prepared for Kano Computing Limited UNIT 12.1 - 12.2, 11-29 FASHION STREET, LONDON, E1 6PX, United Kingdom Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel:400-800-6106,0755-2320 0050 / 2320 0090 Website:http://www.ntek.org.cn Report No.: S21030302901001 Version.1.3 Page 2 of 83 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 25 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 26 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 27 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 29 7.7 PEAK OUTPUT POWER .............................................................................................................................. 30 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 32 7.10 ANTENNA APPLICATION .......................................................................................................................... 33 7.11 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS ......................................... 34 8 TEST RESULTS ................................................................................................................................................... 35 8.1 DWELL TIME ............................................................................................................................................... 35 8.2 MAXIMUM CONDUCTED OUTPUT POWER ........................................................................................... 40 8.3 OCCUPIED CHANNEL BANDWIDTH ....................................................................................................... 45 8.4 CARRIER FREQUENCIES SEPARATION .................................................................................................. 55 8.5 NUMBER OF HOPPING CHANNEL ........................................................................................................... 60 8.6 BAND EDGE ................................................................................................................................................. 61 8.7 CONDUCTED RF SPURIOUS EMISSION .................................................................................................. 74 Report No.: S21030302901001 Version.1.3 Page 3 of 83 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Kano Computing Limited Address ....................................... : UNIT 12.1 - 12.2, 11-29 FASHION STREET, LONDON, E1 6PX, United Kingdom Manufacturer's Name .................. : Kano Computing Limited Address ....................................... : UNIT 12.1 - 12.2, 11-29 FASHION STREET, LONDON, E1 6PX, United Kingdom Product description Product name .............................. : STEM PLAYER Model and/or type reference ...... : 1016 Family Model ............................... : N/A Measurement Procedure Used: APPLICABLE STANDARDS STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 Complied This device…

Text truncated - open the document above for the full version.

Report No.: S21030302901001 Version.1.3 Page 61 of 83 8.6 BAND EDGE Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant 1 No-Hopping -45.56 -20 Pass NVNT 1-DH5 2402 Ant 1 Hopping -45.62 -20 Pass NVNT 1-DH5 2480 Ant 1 No-Hopping -48.01 -20 Pass NVNT 1-DH5 2480 Ant 1 Hopping -46.85 -20 Pass NVNT 2-DH5 2402 Ant 1 No-Hopping -44.79 -20 Pass NVNT 2-DH5 2402 Ant 1 Hopping -45.51 -20 Pass NVNT 2-DH5 2480 Ant 1 No-Hopping -46.4 -20 Pass NVNT 2-DH5 2480 Ant 1 Hopping -47.1 -20 Pass NVNT 3-DH5 2402 Ant 1 No-Hopping -45.06 -20 Pass NVNT 3-DH5 2402 Ant 1 Hopping -45.12 -20 Pass NVNT 3-DH5 2480 Ant 1 No-Hopping -47.54 -20 Pass NVNT 3-DH5 2480 Ant 1 Hopping -48.15 -20 Pass Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Emission Report No.: S21030302901001 Version.1.3 Page 62 of 83 Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Emission Report No.: S21030302901001 Version.1.3 Page 63 of 83 Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Emission Report No.: S21030302901001 Version.1.3 Page 64 of 83 Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Emission Report No.: S21030302901001 Version.1.3 Page 65 of 83 Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Emission Report No.: S21030302901001 Version.1.3 Page 66 of 83 Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Emission Report No.: S21030302901001 Version.1.3 Page 67 of 83 Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Emission Report No.: S21030302901001 Version.1.3 Page 68 of 83 Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Emission Report No.: S21030302901001 Version.1.3 Page 69 of 83 Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Emission Report No.: S21030302901001 Version.1.3 Page 70 of 83 Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Emission Report No.: S21030302901001 Version.1.3 Page 71 of 83 Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Emission Report No.: S21030302901001 Version.1.3 Page 72 of 83 Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Emission Report No.: S21030302901001 Version.1.3 Page 73 of 83 Report No.: S21030302901001 Version.1.3 Page 74 of 83 8.7 CONDUCTED RF SPURIOUS EMISSION Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant 1 -37.11 -20 Pass NVNT 1-DH5 2441 Ant 1 -33.61 -20 Pass NVNT 1-DH5 2480 Ant 1 -37.4 -20 Pass NVNT 2-DH5 2402 Ant 1 -37.14 -20 Pass NVNT 2-DH5 2441 Ant 1 -39.05 -20 Pass NVNT 2-DH5 2480 Ant 1 -38.15 -20 Pass NVNT 3-DH5 2402 Ant 1 -40.66 -20 Pass NVNT 3-DH5 2441 Ant 1 -34.25 -20 Pass NVNT 3-DH5 2480 Ant 1 -40.63 -20 Pass Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Emission Report No.: S21030302901001 Version.1.3 Page 75 of 83 Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Emission Report No.: S21030302901001 Version.1.3 Page 76 of 83 Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Emission Report No.: S21030302901001 Version.1.3 Page 77 of 83 Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Emission Report No.: S21030302901001 Version.1.3 Page 78 of 83 Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Emission Report No.: S21030302901001 Version.1.3 Page 79 of 83 Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Emission Report No.: S21030302901001 Version.1.3 Page 80 of 83 Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Emission Report No.: S21030302901001 Version.1.3 Page 81 of 83 Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Emission Report No.: S21030302901001 Version.1.3 Page 82 of 83 Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Emission Report No.: S21030302901001 Version.1.3 Page 83 of 83 END OF REPORT

FCC ID: 2ATYD-1016 Radiated Measurement Photos FCC ID: 2ATYD-1016 Conducted Measurement Photos
