2ATZ4-TG79PA15Smart Tablet Computer

(SAR) information The device has been tested and comply with FCC/ISED SAR limits. L'appareil a été testé et est conforme aux limites SAR de la FCC/ISED.

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] Date: 2024-06-05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD21046 Dear Sir/Madam, Our product Smart Tablet Computer, model: TG4FBG9TA, TG4HBG9PA, TG4FBG7TA, FCC ID: 2ATZ4-TG79PA15, for marketing purpose, this product only supports GSM/GPRS/EDGE: 850/1900; WCDMA Band 2/5; LTE band 2/5/7/12/41 (2535-2655MHz); BDR (GFSK), EDR (π/4-DQPSK, 8DPSK); BLE 1M/2M, 2.4G Wi-Fi (2412-2462MHz, 802.11b/g/n20/n40 mode), 5G Wi-Fi(5150-5250MHz; 5725-5850MHz, 802.11a/n20/n40/ac20/ac40/ac80 mode), GNSS and FM, the other functions and bands were disabled to use by manufacture in the software, the end user has no capability to activate it. Signature: Wang Kun Manager

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2024-06-05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2ATZ4-TG79PA15 Shenzhen Youmi Intelligent Technology Co., Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Contact Person:Wang Kun Title:Manager

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 2024-06-05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2ATZ4-TG79PA15 Shenzhen Youmi Intelligent Technology Co., Ltd. certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Contact Person:Wang Kun Title:Manager

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2024-06-05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Shenzhen Youmi Intelligent Technology Co., Ltd., the undersigned, hereby authorizes Bay Area Compliance Laboratories Corp. (Shenzhen) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Shenzhen) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Wang Kun Manager

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] FCC Confidential Authorization Date: 2024-06-05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ATZ4-TG79PA15 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Shenzhen Youmi Intelligent Technology Co., Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Parts List/Tune up procedure (for licensed devices)  Software Security Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Wang Kun Manager

Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Tel: 86-075583220991; Fax: 86-075583220991 Email: [email protected] Product Similarity Declaration Date: 2024-06-13 To: Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 Dear Sir/Madam, We, Shenzhen Youmi Intelligent Technology Co., Ltd. hereby declare that we have a product named as Smart Tablet Computer, FCC ID: 2ATZ4-TG79PA15, Meanwhile, due to different sales channels (online/offline physical store sales), we would like to list three models (TG4FBG9TA, TG4HBG9PA, TG4FBG7TA) on reports and certificate, all the models are identical in electrically, Only the model name and sales channels are different, there is no other difference. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Wang Kun Manager

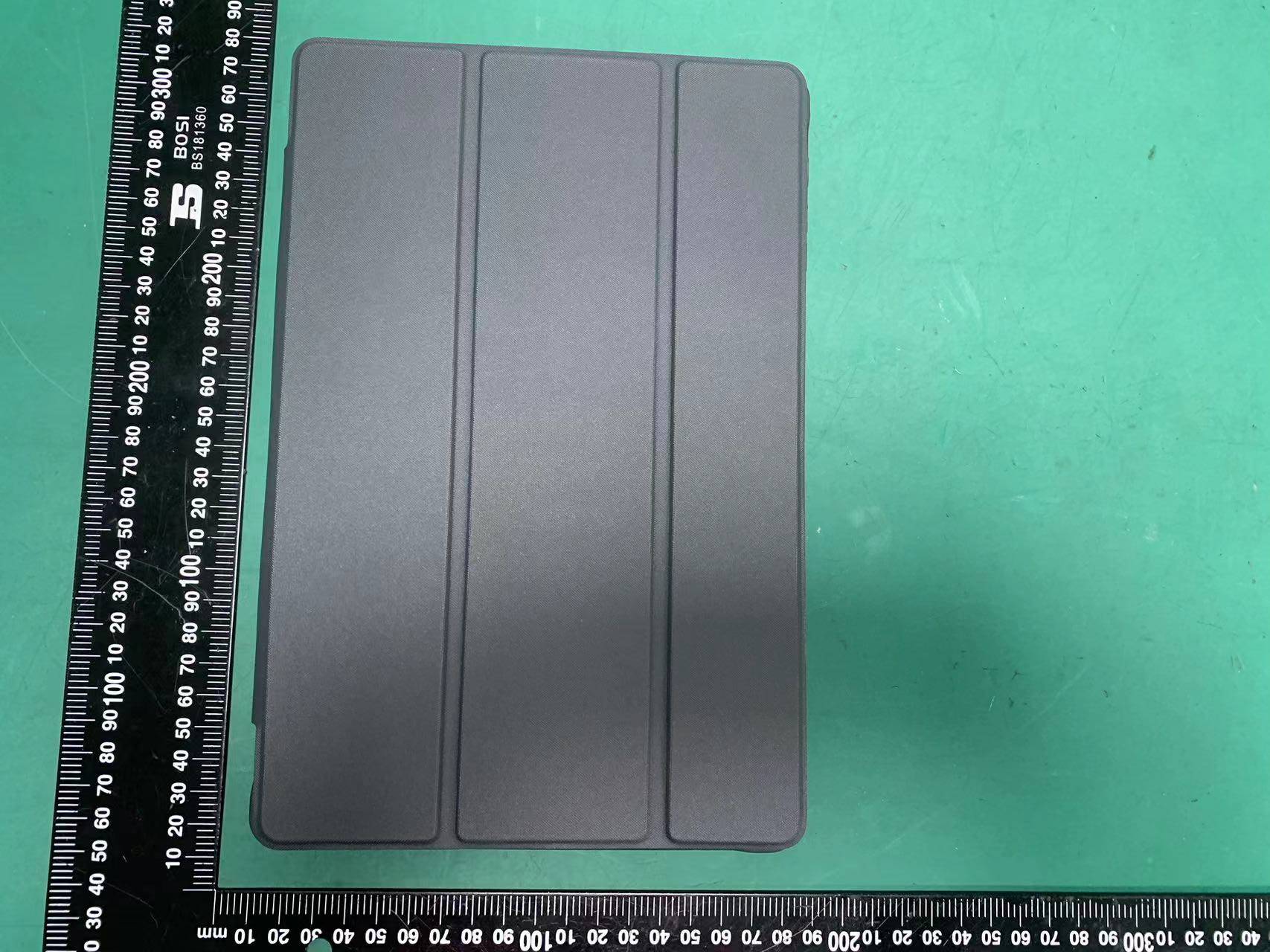

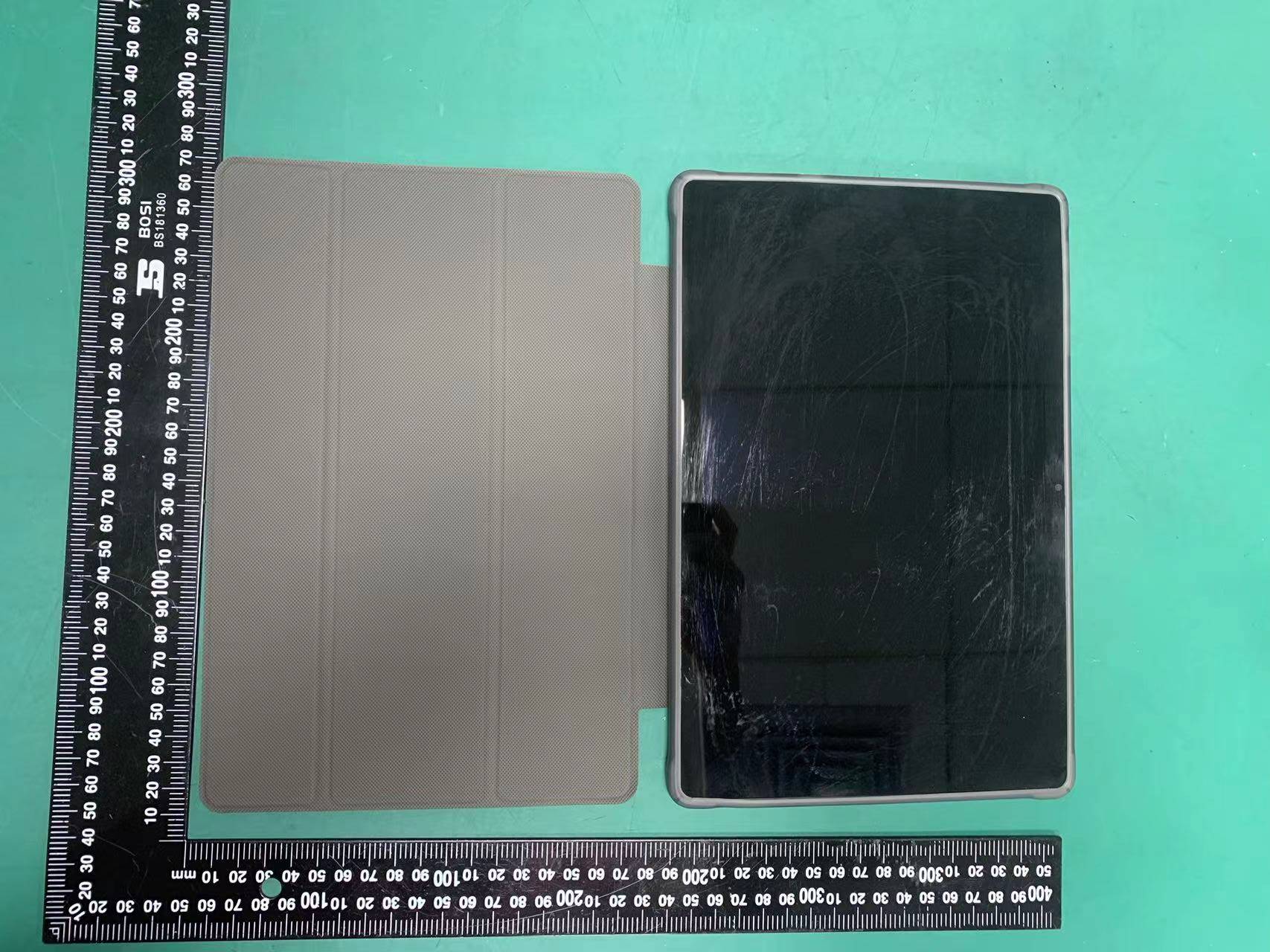

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T76732E-RF Page 1 of 7 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T76732E-RF Page 2 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T76732E-RF Page 3 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T76732E-RF Page 4 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T76732E-RF Page 5 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T76732E-RF Page 6 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T76732E-RF Page 7 of 7

IC:26074-TG79PA15 HVIN:T30-G99-MT6789-(UM-G7TP) FCC ID:2ATZ4-TG79PA15 5GHz band(W52)Indoor use 36.00 mm 50 . 0 m 0 m TG4FBG7TA UMIDIGI G7 Tab 211-230610 AD230015211 Made in China IMEI 1:35282151XXXXXXX IMEI 2:35282151XXXXXXX S/N:G7TP23Q40000001 Label Label location IC:26074-TG79PA15 HVIN:T30-G99-MT6789-(UM-G7TP) FCC ID:2ATZ4-TG79PA15 5GHz band(W52)Indoor use TG4FBG7TA UMIDIGI G7 Tab 211-230610 AD230015211 Made in China IMEI 1:35282151XXXXXXX IMEI 2:35282151XXXXXXX S/N:G7TP23Q40000001

IC:26074-TG79PA15 HVIN:P6011-T606-(UM-G9T) FCC ID:2ATZ4-TG79PA15 5GHz band(W52)Indoor use 36.00 mm 50 . 0 m 0 m TG4FBG9TA UMIDIGI G9 Tab 211-230610 ADF230015211 Made in China IMEI 1:35414308XXXXXX IMEI 2:35414308XXXXXX S/N:G9T24Q20000001 Label Label location IC:26074-TG79PA15 HVIN:P6011-T606-(UM-G9T) FCC ID:2ATZ4-TG79PA15 5GHz band(W52)Indoor use TG4FBG9TA UMIDIGI G9 Tab 211-230610 ADF230015211 Made in China IMEI 1:35414308XXXXXX IMEI 2:35414308XXXXXX S/N:G9T24Q20000001

IC:26074-TG79PA15 HVIN:M169-MT8781-(UM-G9TP) FCC ID:2ATZ4-TG79PA15 5GHz band(W52)Indoor use 36.00 mm 50 . 0 m 0 m TG4HBG9PA UMIDIGI G9 Tab Pro 211-230610 ADF230015211 Made in China IMEI 1:35414308XXXXXX IMEI 2:35414308XXXXXX S/N:G9TP24Q20000001 Label Label location IC:26074-TG79PA15 HVIN:M169-MT8781-(UM-G9TP) FCC ID:2ATZ4-TG79PA15 5GHz band(W52)Indoor use TG4HBG9PA UMIDIGI G9 Tab Pro 211-230610 ADF230015211 Made in China IMEI 1:35414308XXXXXX IMEI 2:35414308XXXXXX S/N:G9TP24Q20000001

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T76732E-RF Page 1 of 10 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS BT/Wi-Fi ANT Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T76732E-RF Page 2 of 10 2G/3G/4G MAIN ANT DIV ANT Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T76732E-RF Page 3 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T76732E-RF Page 4 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T76732E-RF Page 5 of 10

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T76732E-RF Page 6 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T76732E-RF Page 7 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T76732E-RF Page 8 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T76732E-RF Page 9 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T76732E-RF Page 10 of 10

Report No.: 2402T76732E-20A Page 1 of 3 APPENDIX C - EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Report No.: 2402T76732E-20A Page 2 of 3 Body (Worn) Front Setup Photo(0mm) Body (Worn) Back Setup Photo(0mm) Report No.: 2402T76732E-20A Page 3 of 3 Body Left Setup Photo(0mm) Body Bottom Setup Photo(0mm)

APPENDIX E - DIPOLE CALIBRATION CERTIFICATES D750V3 - SN:1167 Extended Dipole Calibrations Referring to KDB865664 D01, if dipoles are verified in return loss(< -20dB, within 20% of prior calibration), and in impedance(within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Justification of the extended calibration D750V3 - SN:1167 750MHz Head Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 2022/10/31 (Cal. Report) -26.709 / 52.987 / -3.7065 / 2023/10/30 (Extended) -26.572 -0.5154.922 1.935 -0.12796 3.57854 Th e return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data> D750V3 - SN:1167 (Date of Measurement: 2023/10/30) 750MHz - Head D835V2 - SN:453 Extended Dipole Calibrations Referring to KDB865664 D01, if dipoles are verified in return loss(< -20dB, within 20% of prior calibration), and in impedance(within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Justification of the extended calibration D835V2 - SN:453 835MHz Head Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 2021/8/31 (Cal. Report) -21.342 / 56.153 / -6.7227 / 2022/8/30 (Extended) -20.192 -5.3952.246 -3.91 -9.7923 -3.07 2023/8/30 (Extended) -20.110 -5.7753.060 -3.09 -9.1625 -2.44 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data> D835V2 - SN:453 (Date of Measurement: 2022/8/30) 835MHz - Head Dipole Verification Data> D835V2 - SN:453 (Date of Measurement: 2023/8/30) 835MHz - Head D1900V2 - SN:543 Extended Dipole Calibrations Referring to KDB865664 D01, if dipoles are verified in return loss(< -20dB, within 20% of prior calibration), and in impedance(within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Justification of the extended calibration D1900V2 - SN:543 1900MHz Head Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 2022/11/2 (Cal. Report) -28.189 / 49 .908/3 .8 937/ 2023/11/1 (Extended) -29.552 4.84 48.632 -1.2762.9874 -0.9063 Th e return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data> D1900V2 - SN:543 (Date of Measurement: 2023/11/1) 1900MHz - Head D2600V2 - SN:1132 Extended Dipole Calibrations Referring to KDB 865664 D01, if dipoles are verified in return loss(< -20dB, within 20% of prior calibration), and in impedance(within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Justification of the extended calibration D2600V2 - SN:1132 2600MHz Head Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 2022/11/1 (Cal. Report) -22.741 / 47.028 / -6.4392 / 2023/10/31 (Extended) -24.494 7.71 49.797 2.769 -5.9560 0.4832 Th e return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data> D2600V2 - SN:1132 (Date of Measurement: 2023/10/31) 2600MHz - Head D5GHzV2 - SN:1246 Extended Dipole Calibrations Referring to KDB865664 D01, if dipoles are verified in return loss(< -20dB, within 20% of prior calibration), and in impedance(within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Justification of the extended calibration D5GHzV2 - SN:1246 5250MHz Head Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 2022/11/1 (Cal. Report) -29.797 / 49.124 / -3.0884 / 2023/10/31 (Extended) -24.478 -17.8544.921 -4.203-2.4867 0.6017 5600MHz Head Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 2022/11/1 (Cal. Report) -26.903 / 51.979 / 4.1641 / 2023/10/31 (Extended) -23.693 -11.9355.429 3.45 4.2531 0.089 5750MHz Head Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 2022/11/1 (Cal. Report) -27.590 / 53.547 / 2.4705 / 2023/10/31 (Extended) -22.325 -19.0854.178 0.631 4.2594 1.7889 Th e return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verific ation Data> D5GHzV2 - SN:1246 (Date of Measurement: 2023/10/31) 5250MHz/5600MHz/5750MHz - Head

APPENDIX D PROBE CALIBRATION CERTIFICATES

FCC SAR TEST REPORT Applicant: Shenzhen Youmi Intelligent Technology Co., Ltd. Address: 406-407 Jinqi Zhigu Building, 4/F, 1 Tangling Road, Nanshan District, Shenzhen City, China Product Name: Smart Tablet Computer FCC ID: 2ATZ4-TG79PA15 Standard(s): 47 CFR Part 2(2.1093) Report Number: 2402T76732E-20A Report Date: 2024/08/22 The above device has been tested and found compliant with the requirement of the relative standards by Bay Area Compliance Laboratories Corp. (Dongguan). Reviewed By: Mark Dong Approved By: Brave Lu Title: SAR Engineer Title: SAR Engineer Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Note: The information marked ▲ is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with ★.This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2402T76732E-20A Report Template Version: FCC SAR-V1.0 Page 2 of 74 SAR TEST RESULTS SUMMARY Mode Max. Reported SAR Level(s) (W/kg) Limit (W/kg) GSM 850 1 g Body SAR 0.51 1.6 GSM 1900 1 g Body SAR 1.18 WCDMA Band 2 1 g Body SAR 0.87 WCDMA Band 5 1 g Body SAR 1.02 LTE Band 2 1 g Body SAR 1.16 LTE Band 5 1 g Body SAR 0.28 LTE Band 7 1 g Body SAR 1.02 LTE Band 12 1 g Body SAR 0.97 LTE Band 41 1 g Body SAR 0.78 WIFI 2.4G 1 g Body SAR 0.43 WIFI 5.2G 1 g Body SAR 0.38 WIFI 5.8G 1 g Body SAR 0.35 BT 1 g Body SAR 0.06 Simultaneous 1g Body SAR 1.59 1g Body SAR 1.59(Hotspot) Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-2:2010 Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Human models, instrumentation, and procedures-Part 2: Procedure to determine the specific absorption rate (SAR) for wireless communication devices used in close proximity to the human body (frequency range of 30 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 616217 D04 SAR for laptop and tablets v01r02 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 941225 D06 Hotspot Mode v02r01 KDB 248227 D01 802.11 Wi-Fi SAR v02r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2402T76732E-20A Report Template Version: FCC SAR-V1.0 Page 3 of 74 CONTENTS SAR TEST RESULTS SUMMARY ·································································· 2 DOCUMENT REVISION HISTORY ································································ 5 1. GENERAL INFORMATION ········································································ 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ······································ 6 2. REFERENCE, STANDARDS, AND GUIDELINES ··········································· 7 2.1 SAR LIMITS ···································································································· 7 2.2 TEST FACILITY ································································································ 8 3. DESCRIPTION OF TEST SYSTEM ······························································ 9 4. EQUIPMENT LIST AND CALIBRATION ··················································· 14 4.1 EQUIPMENTS LIST & CALIBRATION INFORMATION ················································· 14 5. SAR MEASUREMENT SYSTEM VERIFICATION ········································ 15 5.1 LIQUID VERIFICATION ····················································································· 15 5.2 LIQUID VERIFICATION RESULTS ········································································ 15 5.3 SYSTEM ACCURACY VERIFICATION ···································································· 18 5.4 SYSTEM ACCURACY CHECK RESULTS ·································································· 18 5.5 SAR SYSTEM VALIDATION DATA ································································· 19 6. EUT TEST STRATEGY AND METHODOLOGY ·········································· 27 6.1TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ································ 27 6.2TEST DISTANCE FOR SAR EVALUATION ································································ 27 6.3 SAR EVALUATION PROCEDURE ········································································· 28 7. CONDUCTED OUTPUT POWER MEASUREMENT ······································ 29 7.1 TEST PROCEDURE ·························································································· 29 7.2 RADIO CONFIGURATION ·················································…
