2AU3D-TCW01A1SMART EYEWEAR

FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits ar e designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a par ticular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the r eceiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Oper ation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement.

United Creation Technology Corp., Ltd Agent Authorization Company: United Creation Technology Corp., Ltd Address: Room 201, Block A, Science and Technology Buliding Phase-2,Nanhai Road 1057,Shekou, Nanshan District, Shenzhen, China Product Name: SMART EYEWEAR Model Number(s): TCW01-A1, TCW01-A2, TCW01-C, TCW01-D, TCW01-B1, TCW01-B2 Product Description: SMART EYEWEAR We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Nov. 30, 2020 Name: quanrong hu Title: Manager Company: United Creation Technology Corp., Ltd

United Creation Technology Corp., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Nov. 30, 2020 Subject; Request for Confidentiality FCC ID: 2AU3D-TCW01A1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: quanrong hu Title: Manager

Model Difference Declaration To Whom It May Concern, We,United Creation Technology Corp., Ltd(SMART EYEWEAR) Trademark: YUHO , VOUGH, 8ightstella; Model Number: TCW01-A1, TCW01-A2, TCW01-C, TCW01-D, TCW01-B1, TCW01-B2 All models have the same functionality, software and circ uitry, except for the model name, the shape and frame of the lenses, and the trademark.Test sample model :TCW01-A1 Please contact me if you have any question. Name: quanrong hu Date: Nov. 30, 2020 Title: Manager Signature of applicant:

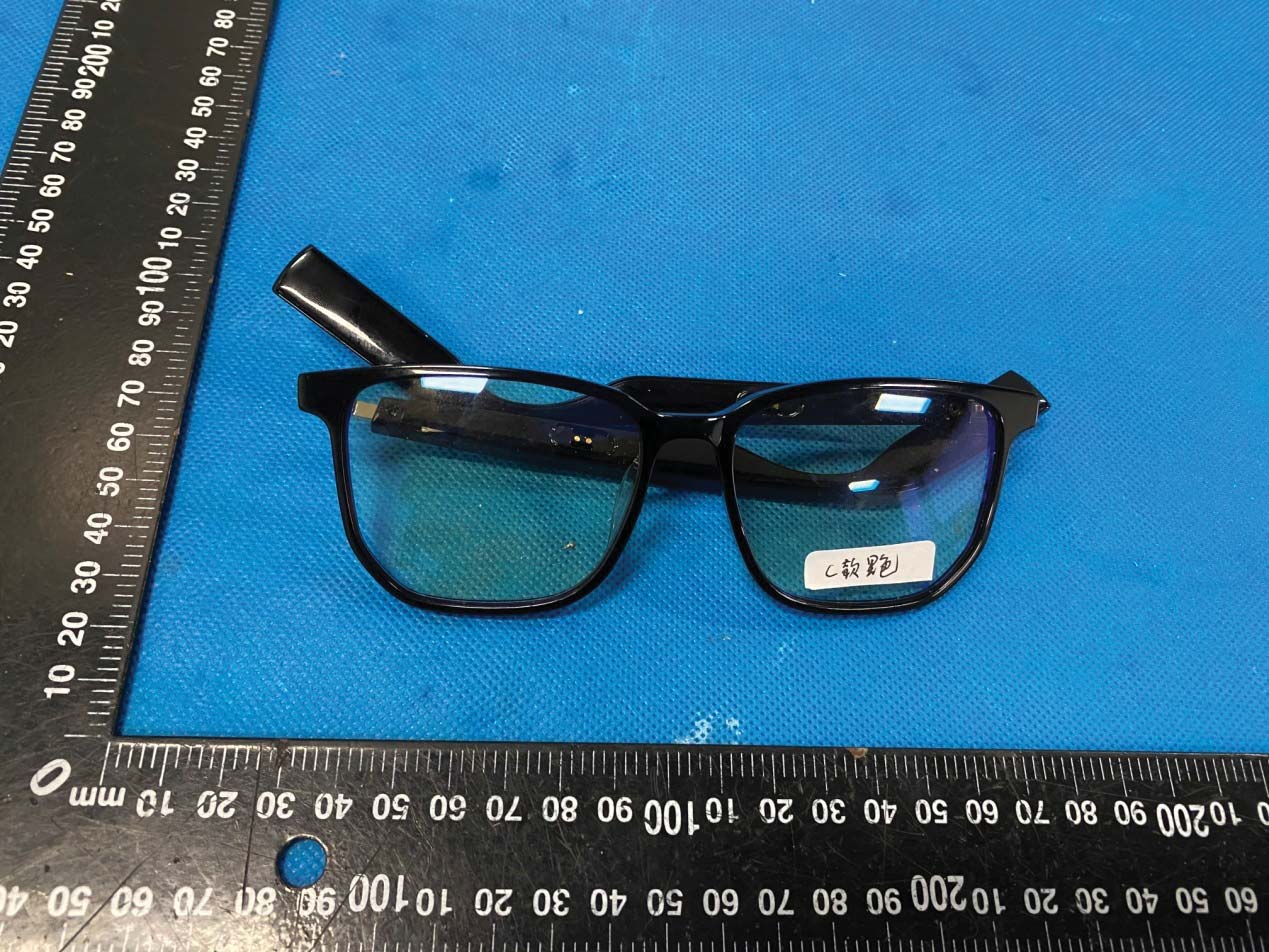

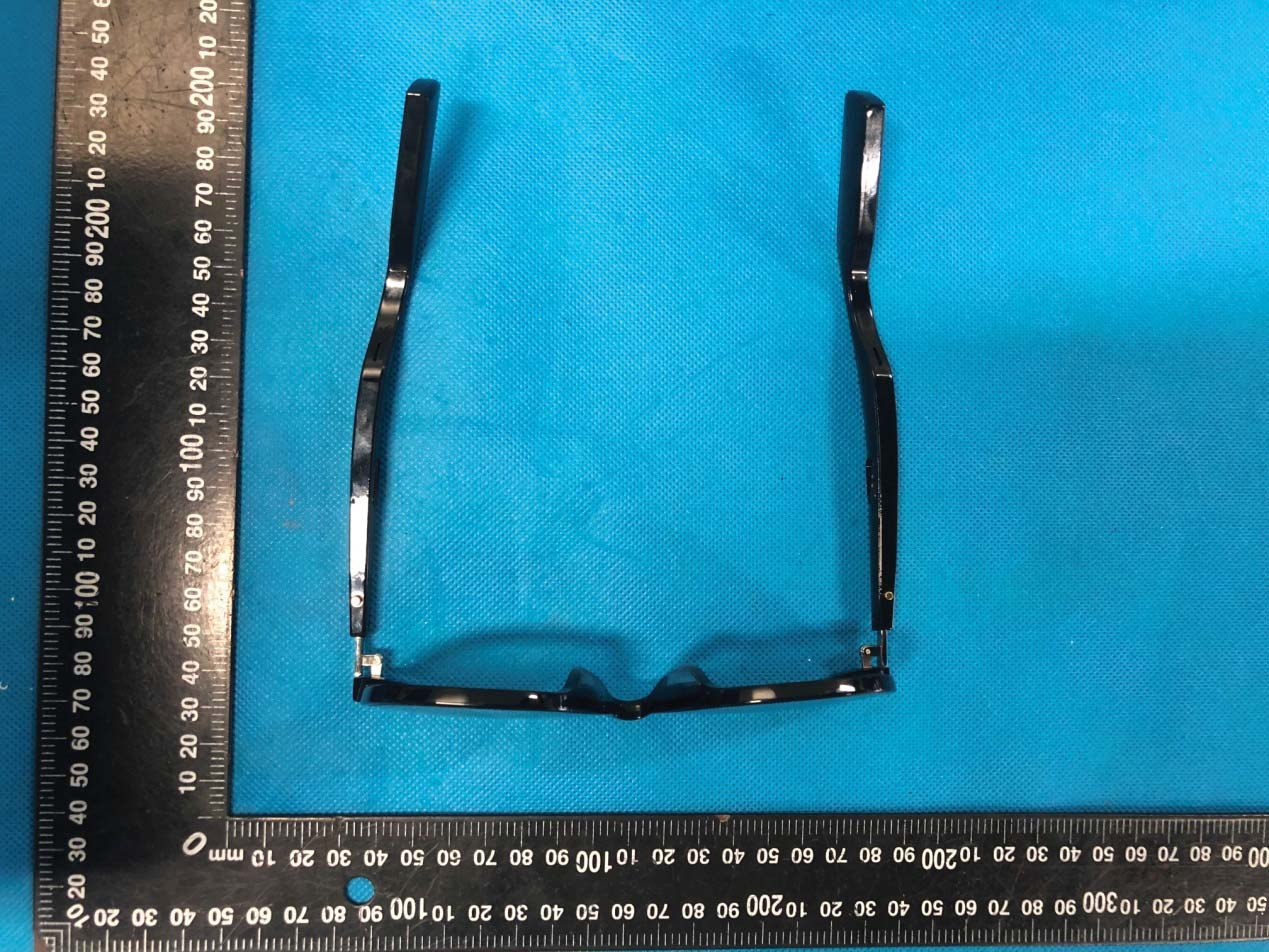

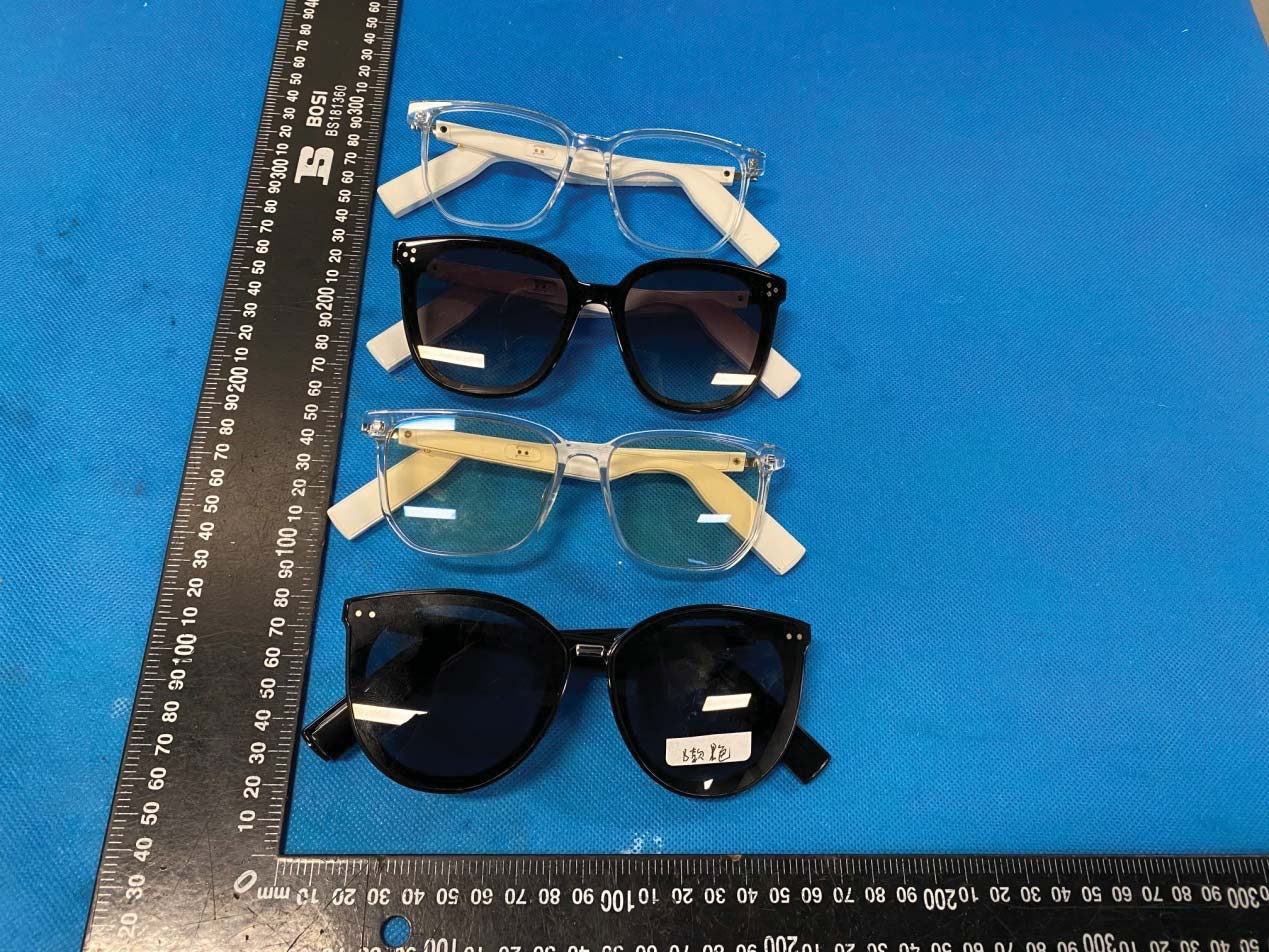

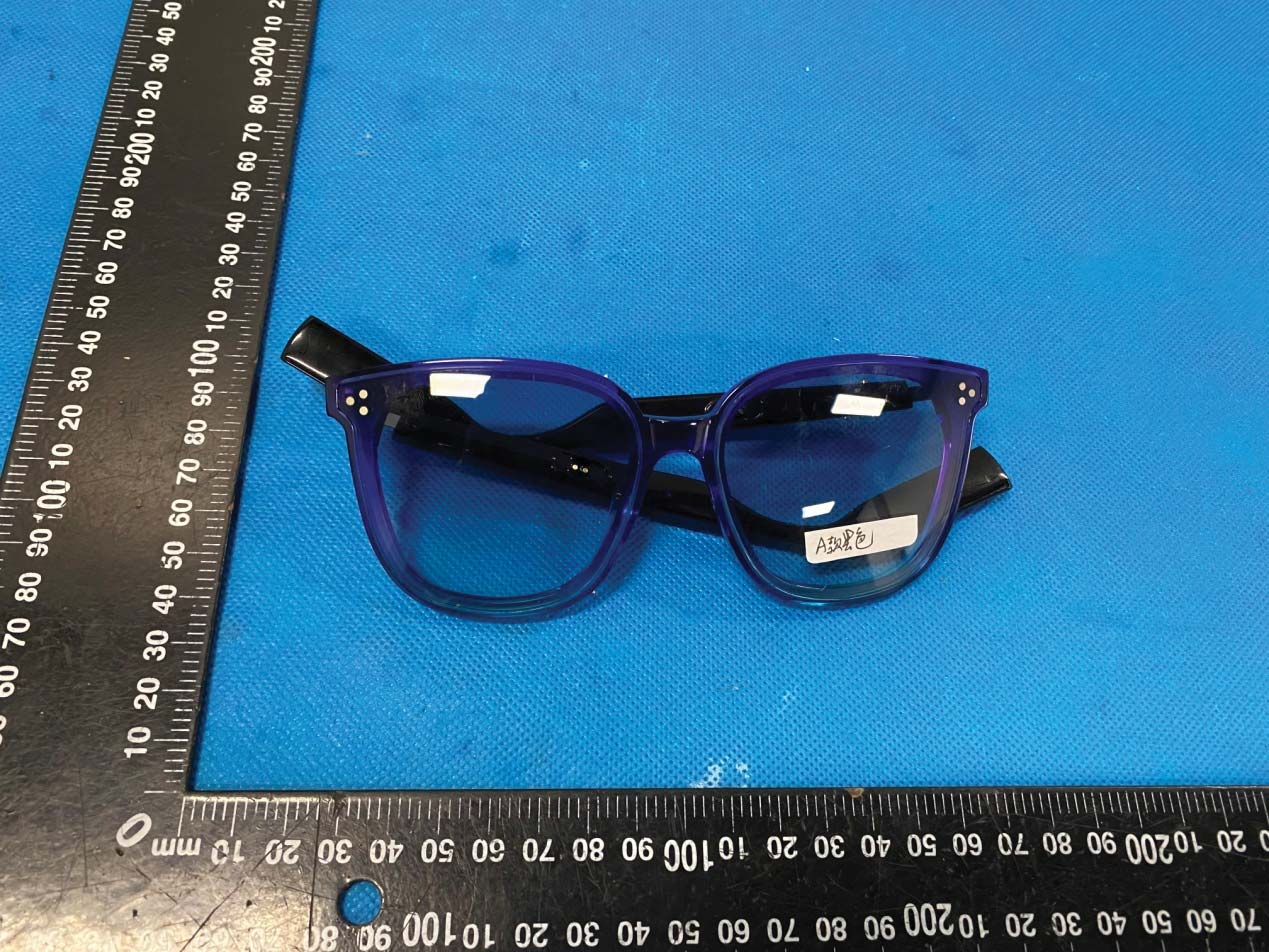

Annex A External Photos Test Model No.: TCW01-A1 Page 1 of 7 Test Model No.: TCW01-A1 Page 2 of 7 Test Model No.: TCW01-A1 Page 3 of 7 Test Model No.: TCW01-A1 Page 4 of 7 Series models Page 5 of 7 Page 6 of 7 Page 7 of 7

FCC ID LABEL: Ca. 8mm x 10mm Label Location FCC ID: 2AU3D-TCW01A1

Annex B Internal Photo Test Model No.: TCW01-A1 Page 1 of 3 Test Model No.: TCW01-A1 Page 2 of 3 Antenna Test Model No.: TCW01-A1 Page 3 of 3

FCC RF Exposure EUT Description: SMART EYEWEAR Model No.: TCW01‐A1, TCW01‐A2, TCW01‐C, TCW01‐D, TCW01‐B1, TCW01‐B2 FCC ID : 2AU3D‐TCW01A1 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]· [√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation 2.4G Output power （dBm ） Tune Up Power （dBm） Max Tune Up power dBm/mW Min test separatio n distance mm Result Limit SAR Test Exclusion EDR ‐3.299 ‐4±1 ‐3/ 0.5 5 0.15748 3.0 Pass BLE ‐3.259 ‐4±1 ‐3/ 0.5 5 0.15748 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2009242789‐1E/2E, antenna gain=‐0dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.15748 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 45 Report No.: HK2009242789-1E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of United Creation Technology Corp., Ltd For SMART EYEWEAR Model No.: TCW01-A1, TCW01-A2, TCW01-C, TCW01-D, TCW01-B1, TCW01-B2 FCC ID: 2AU3D-TCW01A1 Prepared for : United Creation Technology Corp., Ltd Room 201, Block A, Science and Technology Buliding Phase-2,Nanhai Road 1057,Shekou, Nanshan District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Sep. 22, 2020 ~ Sep. 29, 2020 Date of Report: Sep. 29, 2020 Report Number: HK2009242789-1E Page 2 of 45 Report No.: HK2009242789-1E TEST RESULT CERTIFICATION Applicant’s name ................. : United Creation Technology Corp., Ltd Address ................................. : Room 201, Block A, Science and Technology Buliding Phase-2,Nanhai Road 1057,Shekou, Nanshan District, Shenzhen, China Manufacture's Name ............ : United Creation Technology Corp., Ltd Address ................................. : Room 201, Block A, Science and Technology Buliding Phase-2,Nanhai Road 1057,Shekou, Nanshan District, Shenzhen, China Product description Trade Mark: YUHO , VOUGH, 8ightstella Product name ........................... : SMART EYEWEAR Model and/or type reference : TCW01-A1, TCW01-A2, TCW01-C, TCW01-D, TCW01-B1, TCW01-B2 Standards ............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Sep. 22, 2020 ~ Sep. 29, 2020 Date of Issue ........................................... : Sep. 29, 2020 Test Result ............................................... : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 45 Report No.: HK2009242789-1E Table of Contents Page 1. SUMMARY............................................................................................................................................................ 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 2.7. DESCRIPTION OF TEST SETUP ................................................................................................................................ 10 3. TEST CONDITIONS AND RESULTS ......................................................................................................................... 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 25 3.4. 20DB BANDWIDTH ..................................................................................................................................................... 26 3.5. FREQUENCY SEPARATION ............................................................................................................................................. 29 3.6. NUMBER OF HOPPING FREQUENCY ................................................................................................................................. 31 3.7. TIME OF OCCUPANCY (DWELL TIME) .............................................................................................................................. 33 3.8. OUT‐OF‐BAND EMISSIONS ........................................................................................…

Text truncated - open the document above for the full version.

Test Model：TCW01-A1 Radiated Emission Conduction Emission
