2AU6N-VO8161WI VOKKERO GUARDIAN US CAN

VOKKERO VOKKERO VOGO 101, place Pierre Duhem, Immeuble Les Centuries II, 34000 Montpellier, France www.vokkero.com VOGO NA (North America) 25 Main Street, 3rd Floor Tuckahoe, NY 10707 www.vokkerousa.com VOKKERO GUARDIAN US User Guide Version 1.0.0 210858A Wireless Interface (WI) for GUARDIAN US VOKKERO GUARDIAN US Wireless Interface (WI) - User Guide V1.0.0 2Page/ 18 PRÉAMBULE / PREAMBLE • Ce guide décrit les fonctionnalités du produit Vokkero® Guardian WI, ses options et ses accessoires. Il explique comment le configurer pour permettre une extension du système de conférence vers un réseau filaire. • This guide describes the functionality of the Vokkero® Guardian WI product, options and accessories. It explains how to configure it to allow an extension of the conference system to a wired network. • Aucun extrait de ce document ne pourra être reproduit ou transmis (sous format électronique ou papier, ou par photocopie) sans l’accord de VOGO. Ce document pourra être modifié sans préavis. Toutes les marques citées dans ce guide font l’objet d’un droit de propriété intel- lectuelle. • No part of this document may be reproduced or transmitted (in electronic or paper, or photocopying) without the agreement of VOGO. This document may be changed without notice. All trademarks mentioned in this guide are the subject of intellectual property rights. VOGO NA (North America) 25 Main Street, 3rd Floor Tuckahoe, NY 10707 www.vokkerousa.com VOGO (Headquarters) 101, place Pierre Duhem, Immeuble Les Centuries II, 34000 Montpellier, France www.vokkero.com VOKKERO GUARDIAN US Wireless Interface (WI) - User Guide V1.0.0 3Page/ 18 PRÉAMBULE / PREAMBLE 2 INFORMATIONS 4 DISCLAIMER 4 TECHNICAL SUPPORT 4 COMPLIANCE TO FCC US/CAN 5 INTRODUCTION 7 ENVIRONMENTAL RECOMMENDATIONS 8 WARNINGS 8 RECOMMANDATIONS REGARDING USE 9 DISPOSAL OF WASTE BY USERS IN PRIVATE HOUSEHOLDS 9 INTRODUCTION 10 1. SYSTEM DESCRIPTION 11 1.1. VOKKERO® Guardian WI interface 11 1.1.1. Device interface description 11 1.1.2. General features 11 2. STARTING THE INTERFACE 12 2.1. Description of screen icons (default) 12 2.2. How the interface works 12 2.3. CHANNEL/GROUP selection 12 2.4. “CALL” BUTTON 12 2.5. SETTINGS BUTTON 13 3. RADIO CONFIGURATION 14 3.1. Connection 14 3.2. Configuration with the VOKKERO® Guardian conference system 14 3.3. Antenna requirements 14 4. AUDIO CONFIGURATION 15 4.1. Configuration with 4-wire Intercom systems 15 4.1.1. Clearcom 4-wire interface 15 4.1.2. GreenGo 4-wire interface 16 4.2. Configuration with 2-wire Intercom systems 16 4.2.1. Using with the ClearCOM MS-702 2-wire intercom 17 4.2.2. Using with the ALTAIR EF-200 2-wire intercom 17 4.2.3. Using with the ASL BS-127 2-wire intercom 17 4.2.4. Using with the RTS MS-2002 2-wire intercom 17 VOKKERO GUARDIAN US Wireless Interface (WI) - User Guide V1.0.0 4Page/ 18 GB INFORMATIONS Document Information Title VOKKERO GUARDIAN US Subtitle Wireless Interface (WI) Document type User Guide Version Version 1.0.0 This document applies to the following products: NomRéférence VOKKERO GUARDIAN US - Wireless Interface (WI) Up to: VO8161B DISCLAIMER This document and the use of any information contained therein, is subject to the acceptance of the VOK- KERO terms and conditions. They can be downloaded from www.vokkerousa.com VOKKERO makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. VOKKERO reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. Copyright © 2016, VOKKERO. VOKKERO is a registered trademark in the EU and other countries. TECHNICAL SUPPORT Website Our website contains a lot of useful information: information on modules and wireless modems, user guides, and configuration software and technical documents which can be accessed 24 hours a day. If you have technical problems or cannot find the required information in the provided documents, contact our Technical Support on our website: www.vokkerousa.com. This ensures that your request will be pro- cessed as soon as possible. Helpful Information when Contacting Technical Support When contacting Technical Support, please have the following information ready: • Product type (for example Guardian) • Firmware version (for example V1.0) • A clear description of your question or the problem • A short description of the application 5Page/ 18 VOKKERO GUARDIAN US Wireless Interface (WI) - User Guide V1.0.0 GB COMPLIANCE TO FCC US/CAN • This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause Harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tion, may cause harmful interference to radiocommunication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician fo…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-02-26> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AU6N-VO8161 VO8161B For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name / Title: Pascal SAGUIN / Senior Vice President Company: Vogo Address: 101, place Pierre Duhem, Immeuble Les Centuries II, 34000 Montpellier, France Tel: +33643787685 Fax: +33411930849 E-Mail: [email protected]

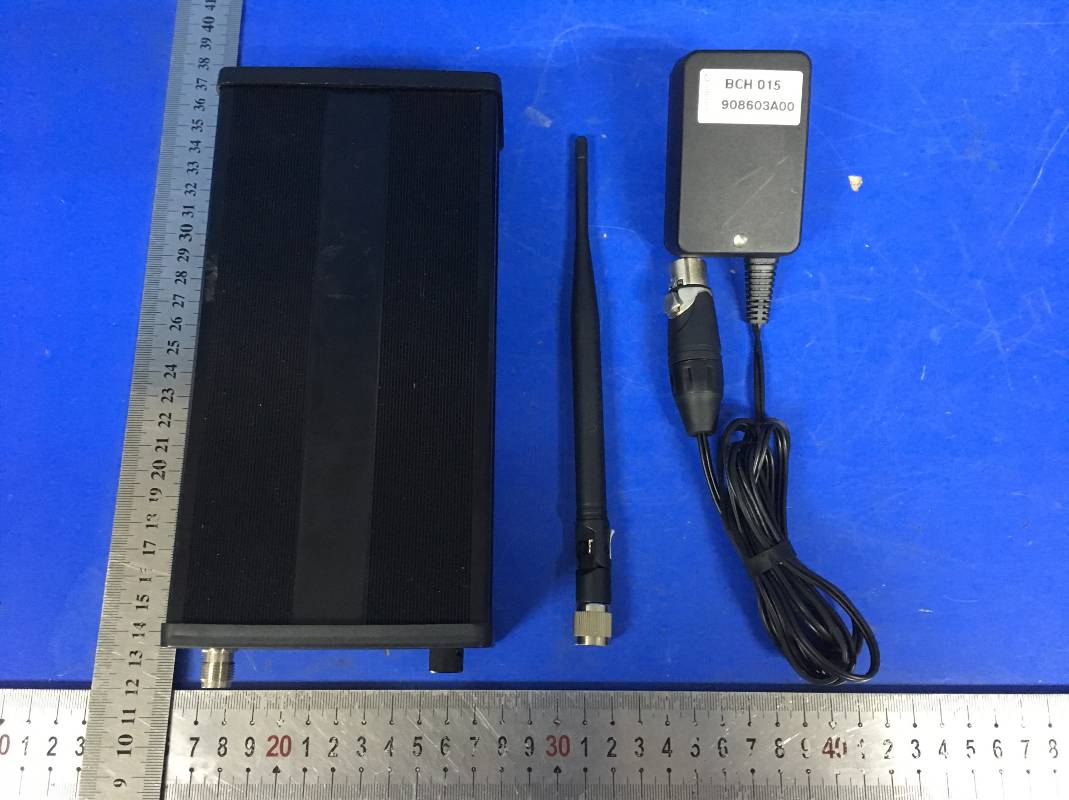

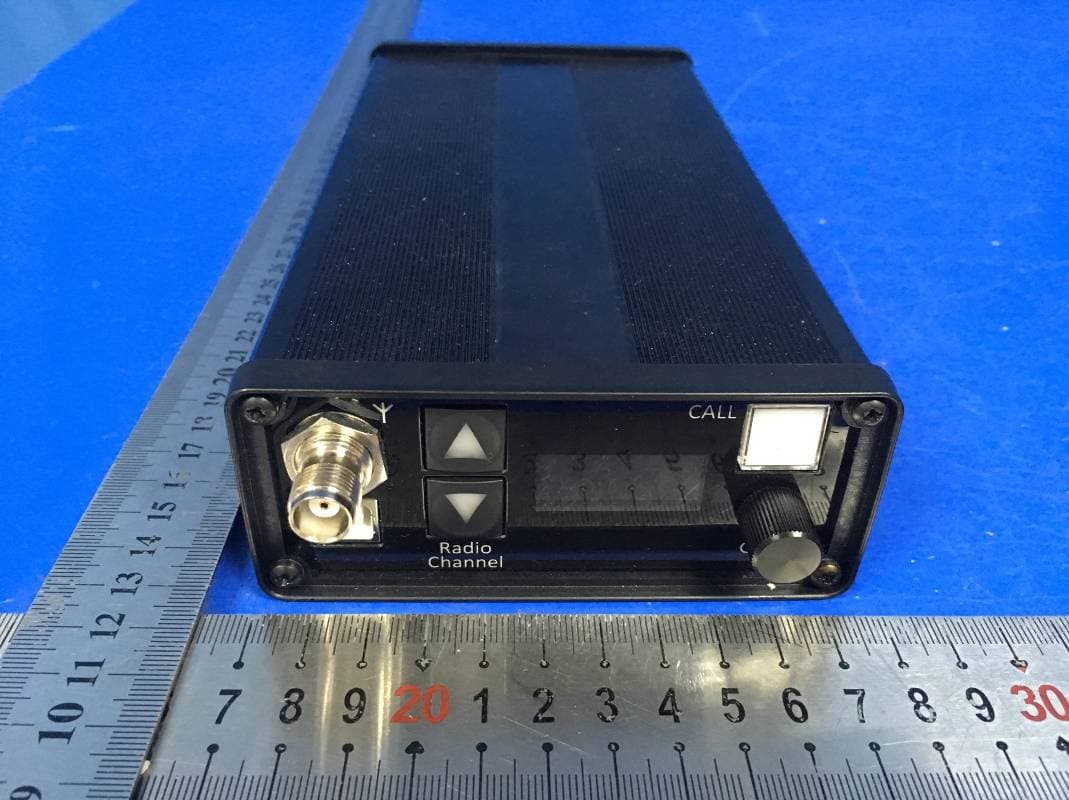

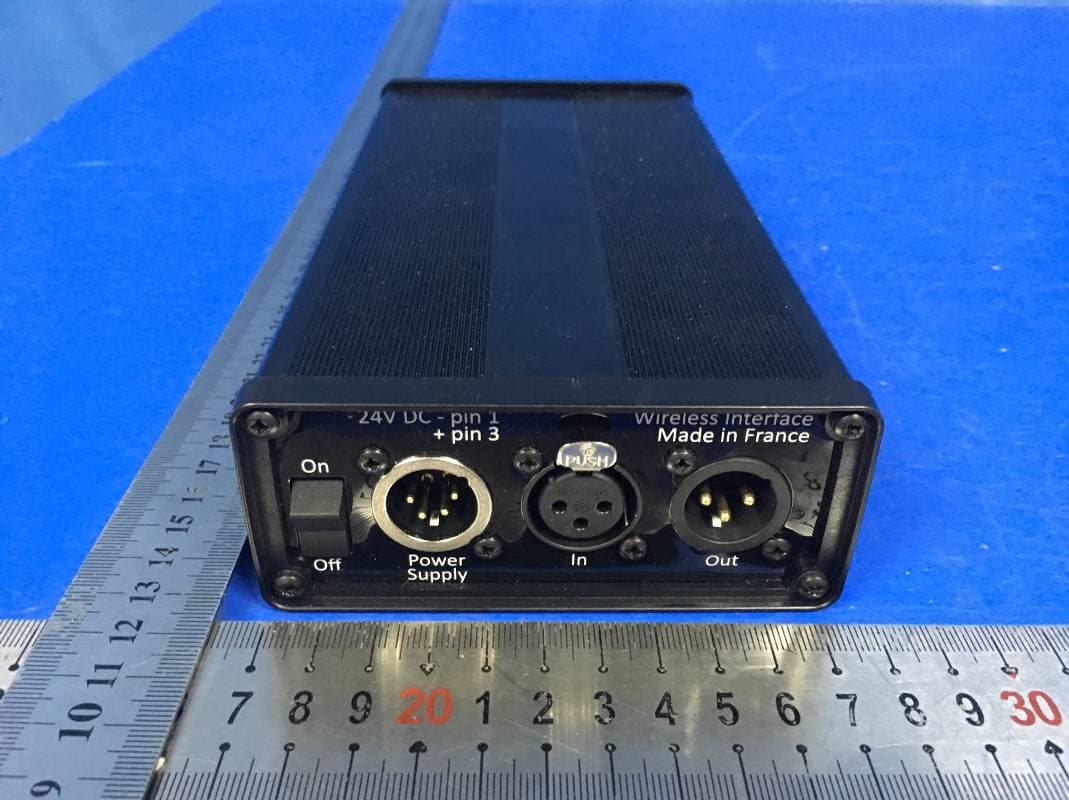

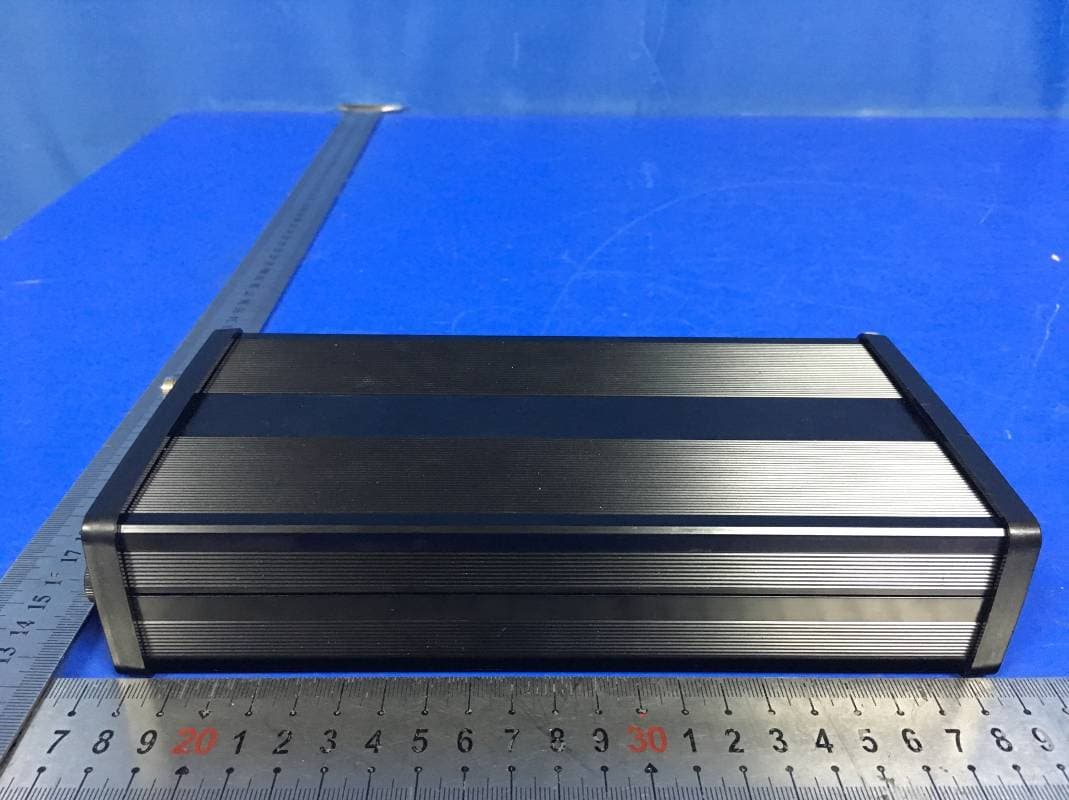

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU6N-VO8161 IC: 25704-VO8161 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 External Photos of the EUT Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU6N-VO8161 IC: 25704-VO8161 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 Antenna Port SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU6N-VO8161 IC: 25704-VO8161 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU6N-VO8161 IC: 25704-VO8161 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU6N-VO8161 IC: 25704-VO8161 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 3.0cm*W: 3.0cm Label Location Model: VO8161B Input: 100-240V~50/60Hz 400-200mA Output: 24V750mA FCC ID: 2AU6N-VO8161 IC: 25704-VO8161 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU6N-VO8161 IC: 25704-VO8161 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 7 Internal Photos of the EUT Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU6N-VO8161 IC: 25704-VO8161 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 7 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU6N-VO8161 IC: 25704-VO8161 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 7 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU6N-VO8161 IC: 25704-VO8161 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 7 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU6N-VO8161 IC: 25704-VO8161 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 7 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU6N-VO8161 IC: 25704-VO8161 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 7 Fig. 11 Fig. 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU6N-VO8161 IC: 25704-VO8161 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 7 of 7 Fig. 13

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU6N-VO8161 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 Maximum Permissible Exposure Report 1. Product Information FCC ID 2AU6N-VO8161 Product name WI VOKKERO GUARDIAN US CAN Model Number VO8161B Power supply Input:100-240V~50/60Hz 400-200mA Output:24V750mA Modulation Type GFSK Spacing channel 375kHz Antenna Type Dipole Antenna Antenna Gain 2.3 dBi (maximum) Hardware version V1 Software version V02.05.11 Operation frequency 902-928MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Fixed Equipment 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU6N-VO8161 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information VO8161B can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Antenna 0 Dipole Antenna 902 MHz – 928 MHz 2.3dBi 6. Conducted Power Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK Low 902.188 21.61 Mid 912.313 21.12 High 927.688 20.46 7. Manufacturing Tolerance GFSK (Peak) Channel Low Channel Middle Channel High Channel Target (dBm) 21.0 21.0 20.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU6N-VO8161 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 8. Measurement Results 8.1 Standalone MPE Evaluation As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW GFSK 22.00 158.4893 2.30 1.6982 0.053574 1.0000 Remark: 1. Output power including tune-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 8.2 Simultaneous Transmission MPE The sample support one modular and one antenna, no need consider simultaneous transmission; 9. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AU6N-VO8161ReportNo.:LCS190730055AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page1of56 FCCTESTREPORT For Vogo WIVOKKEROGUARDIANUSCAN TestModel:VO8161B ListModelNo.:N/A Preparedfor: Vogo Address: 101,placePierreDuhem,ImmeubleLesCenturiesII,34000 Montpellier,France Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address: 1/F.,XingyuanIndustrialPark,TongdaRoad,Bao'anAvenue,Bao'an District,Shenzhen,Guangdong,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample: Aug05,2019 Numberoftestedsamples: 1 Serialnumber: Prototype DateofTest: Aug05,2019~March23,2020 DateofReport: March24,2020 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AU6N-VO8161ReportNo.:LCS190730055AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page2of56 FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCS190730055AEA DateofIssue.......................................: March24,2020 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................: 1/F.,XingyuanIndustrialPark,TongdaRoad,Bao'anAvenue, Bao'anDistrict,Shenzhen,Guangdong,China TestingLocation/Procedure............ : FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................: Vogo Address................................................: 101,placePierreDuhem,ImmeubleLesCenturiesII,34000 Montpellier,France TestSpecification Standard..............................................: FCCCFR47PART15C(15.247) TestReportFormNo......................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................: WIVOKKEROGUARDIANUSCAN TradeMark..........................................: VOKKERO TestModel...........................................: VO8161B Ratings.................................................~ Input:100-240V~50/60Hz400-200mA Output:24V 750mA Result...................................................:Positive Compiledby:Supervisedby:Approvedby: JackLiu /FileadministratorsAkingJin/TechniqueprincipalGavinLiang/Manager SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AU6N-VO8161ReportNo.:LCS190730055AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of56 FCC--TESTREPORT TestModel...............................: VO8161B EUT.........................................: WIVOKKEROGUARDIANUSCAN Applicant...............................: Vogo Address..................................: 101,placePierreDuhem,ImmeubleLesCenturiesII,34000 Montpellier,France Telephone...............................: Fax..........................................: Manufacturer........................: Vogo Address...................................: 101,placePierreDuhem,ImmeubleLesCenturiesII,34000 Montpellier,France Telephone...............................: Fax..........................................: Factory...................................: / Address...................................: / Telephone...............................: Fax..........................................: TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCS190730055AEA March24,2020 Dateofissue SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AU6N-VO8161ReportNo.:LCS190730055AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page4of56 RevisionHistory RevisionIssueDateRevisionsRevisedBy 000March24,2020InitialIssueGavinLiang SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AU6N-VO8161ReportNo.:LCS190730055AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page5of56 TABLEOFCONTENTS Description................................................................................................................................................Page 1.GENERALINFORMATION ..................................................................................................................................... 6 1.1.DESCRIPTIONOFDEVICE(EUT) ......................................................................................................................... 6 1.2.HOSTSYSTEMCONFIGURATIONLISTANDDETAILS .......................................................................................... 7 1.3.EXTERNALI/OCABLE .......................................................................................................................................... 7 1.4.DESCRIPTIONOFTESTFACILITY ......................................................................................................................... 7 1.5.STATEMENTOFTHEMEASUREMENTUNCERTAINTY .......................................................................................... 7 1.6.MEASUREMENTUNCERTAINTY ............................................................................................................................ 7 1.7.DESCRIPTIONOFTESTMODES .......................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU6N-VO8161 IC: 25704-VO8161 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU6N-VO8161 IC: 25704-VO8161 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Test Setup Photo(s) of Photo of Conducted Emissions Measurement Fig. 3
