2AU7V-035-7330-010W 3-in-1 Wireless Charging Mount

10 W 3-in-1 Wireless Charging Mount User manual Model No. 035-7330-0 This charging mount allows you enjoy fast wireless charging easily. Please read the user manual before using and keep it for future reference. Specifications: Input: DC 5 V 2A, 9 V/1.67 A Output: 10 W/7.5 W/5 W Frequency: 114.48KHz - 146.47KHz Charge e ciency: 70% Charging distance: 8 mm Installation instructions: a: Vent mounting 1. Loosen the socket on the back of the charging mount. Firmly snap in the ball and tighten the socket. 2. Snap the clamp onto the air vent and adjust to your preferred viewing angle. b: Windshield mounting 1. Clean the windshield where the suction cup will be applied. 2. Loosen the socket on the back of the charging mount. Firmly snap in the ball and tighten the socket. 3. Push suction cup rmly against windshield and press lever to lock b: Dashboard mounting 1. Clean the dashboard where the disc will be applied. 2. Apply the holder to the disc, then remove adhesive backing from the bottom of disc. 3. Use adhesive tape to mount the disc to the dashboard. Connecting to power supply: 1. Connect USB 2.0 port to the car charger, and micro USB port to the wireless car charger. 2. The LED indicator will turn to red, entering into standby mode. Wireless Charging function: 1. Make sure the mount is connected to a power supply, and is in standby status. 2. Press the release button to open the clamp. Place the phone inside the mount, close the clamp to lock the device with your nger. The indicator light will turn to blue and start charging. Note: To activate fast wireless charging mode, please use QC 2.0/QC 3.0 car charger. You are recommended to use the USB cable featured in product package. Warning: 1. Do not squeeze or collisions. 2. Do not disassemble or throw into re or water to avoid causing short circuit leakage. 3. Do not use wireless charger in hot, humid or corrosive environments to avoid damage. 4. Do not place wireless charger close to magnetic stripe or chip card(ID card, bank card, etc.) to avoid magnetic failure. 5. Please keep the wireless charger at least 20 cm (7 7/8") from the implantable medical devices (heart pacemakers, implantable cochlea, etc.) to avoid potential interference of the medical devices. 6. It is normal for the product to be warm after charging. Charging in high temperatures will reduce the charging eciency. Charge in cool temperatures. This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: 1. This device may not cause harmful interference. Product must be recycled or disposed of properly. Dispose of as per the requirements of your local municipality The ‘Qi ’ symbol is a trademark of the Wireless Power Consortium. ® Note: If the phone case is metal, please take o the phone case before charging. Do not use phone cases thicker than 5 mm (3/16") for wireless charging. Made in China Imported by Trileaf Distribution Toronto, Canada M4S 2B8 FCC Statement Changes or modi cations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit di erent from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body

Shenzhen Xinjiawei Technology Co.Ltd 1st Floor, Office Building, No.17, Hongbai Indu.Zone, No. 1 Chuangye Road, Shilongzi, Baoan District, Shenzhen, 518000 China Statement Product: 10W 3-in-1 Wireless Charging Mount Model: 035-7330-0 Additional Model: MP085 Trademark: blue hive We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2020/08/24 Name: Juno Li Company Name : Shenzhen Xinjiawei Technology Co.Ltd Address: 1st Floor, Office Building, No.17, Hongbai Indu.Zone, No. 1 Chuangye Road, Shilongzi, Baoan District, Shenzhen, 518000 China Tel / Fax: 86-15302677830/86-0755-23096962 E-Mail: [email protected]

Shenzhen Xinjiawei Technology Co.Ltd 2020-08-24 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen Tongce Testing Lab. / 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen Xinjiawei Technology Co.Ltd / 1st Floor, Office Building, No.17, Hongbai Indu.Zone, No. 1 Chuangye Road, Shilongzi, Baoan District, Shenzhen, 518000 China (Applicant Name and address) <Signature> Name: Juno Li Title: Account Manager Applicant Company: Shenzhen Xinjiawei Technology Co.Ltd

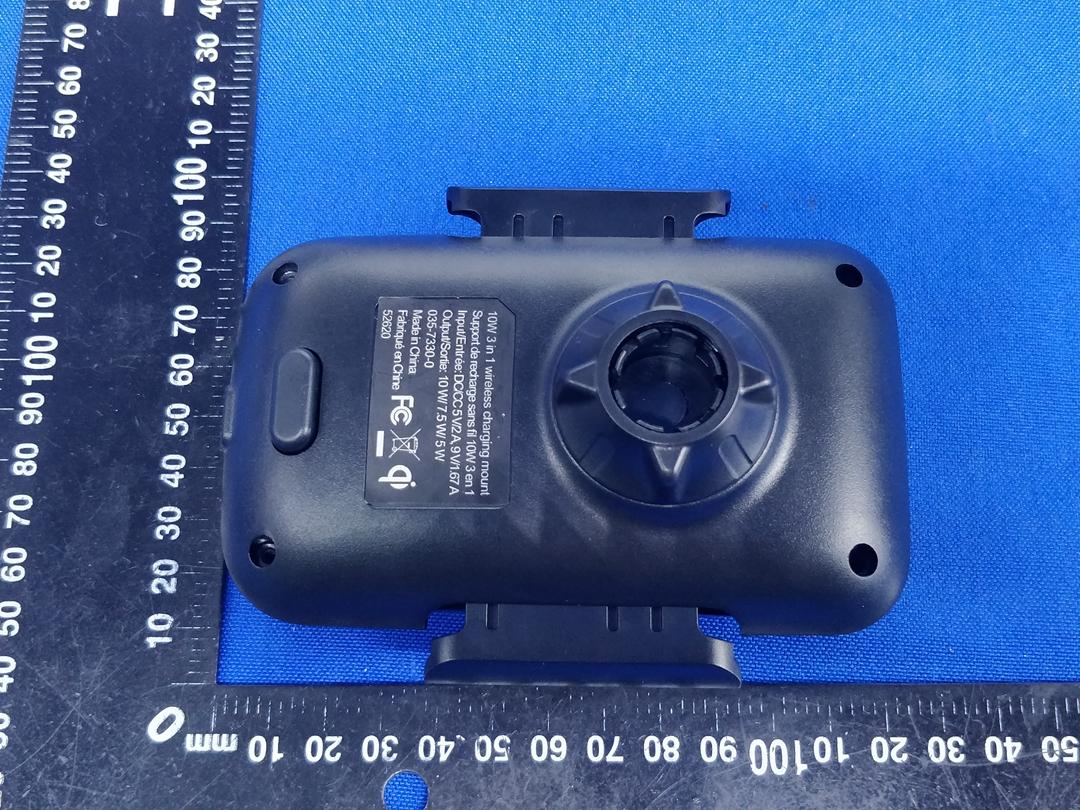

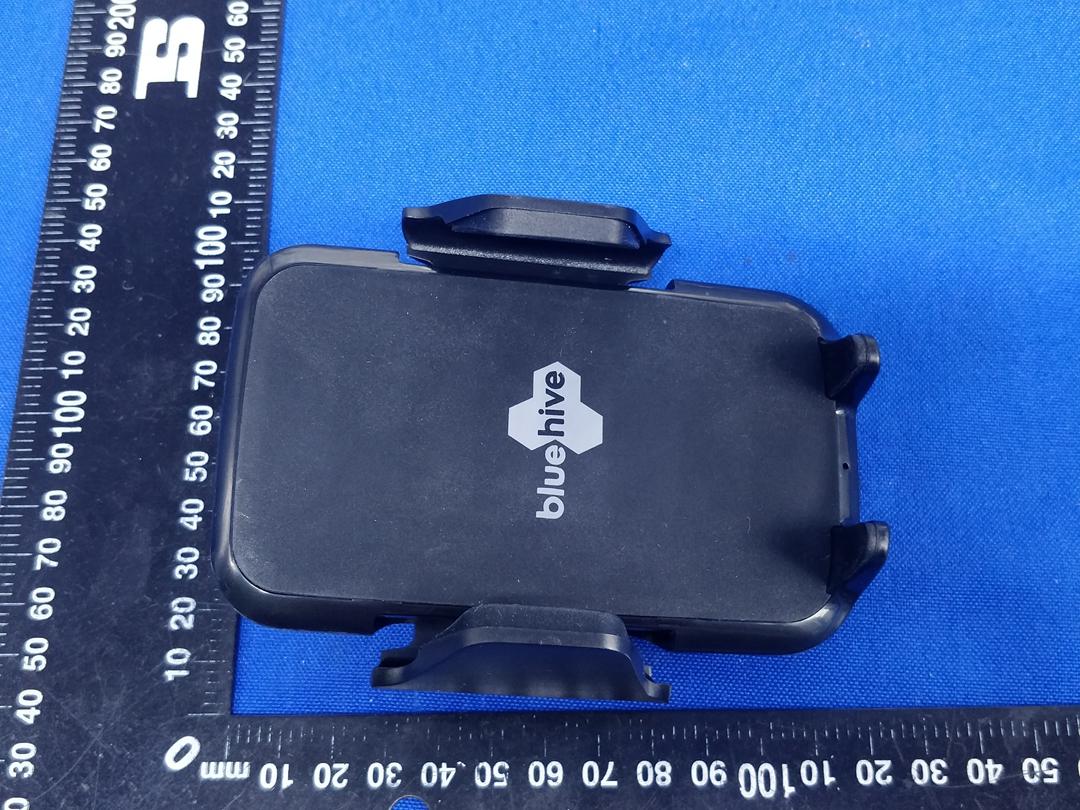

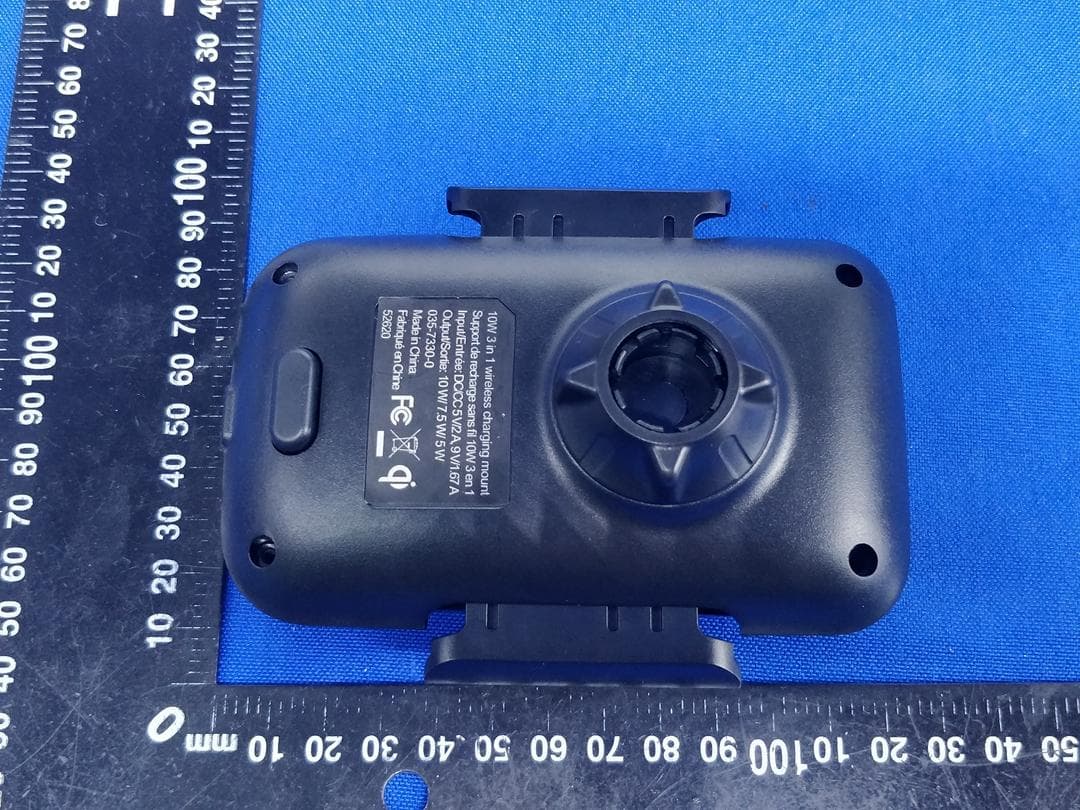

Page 1 of 4 Appendix B: Photographs of EUT Product: 10W 3-in-1 Wireless Charging Mount Model: 035-7330-0 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Label Artwork and Location Model: 035-7330-0 Label: Size: L*W=35*23mm Location

Page 1 of 3 Appendix B: Photographs of EUT Product: 10W 3-in-1 Wireless Charging Mount Model: 035-7330-0 Internal Photos Page 2 of 3 Antenna Page 3 of 3

RF Exposure Considerations 1. Measuring Standard KDB 680106 D01 RF Exposure Wireless Charging Apps v03 2. Requirements According to the item 5.b of KDB 680106 D01v03: Inductive wireless power transfer applications with supporting field strength results and meeting all of the following requirements are not required to submit a KDB inquiry for devices approved using SDoC or a PAG for equipment approved using certification to address RF exposure compliance. However, the responsible party is required to keep a copy of the test report in accordance with KDB 865664 D02. A copy of the test report is to be submitted with the application if the device is approved using certification. (1) Power transfer frequency is less than 1 MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Limits For Maximum Permissible Exposure (MPE) 3. Test Setup Note: Measurements should be made from all sides and the top of the primary/client pair, with the 15cm measured from the center of the probe(s) to the edge of the device. 4.Test Procedure 1)The RF exposure test was performed in anechoic chamber. 2)The worst mode (charging(9V/1.67A) and discharging(10w) at the same time )should be used. 3)The measurement probe was placed at 15 cm surrounding the device and 20 cm above the top surface of the charger and the geometric center of probe. 4)The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 5)The EUT was measured according to the dictates of KDB 680106 D01 v03. Remark; The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 5. Test Equipment List EquipmentManufacturerModel No.Calibration Due Magnetic field meterNARDAELT-400Jul. 27, 2021 6. Test Result E-Filed Strength 15 cm surrounding the device and 20 cm above the top surface of the EUT (V/m) Frequency Range (KHz) Operation condition Test Position A Test Position B Test Position C Test Position D Test Position E Reference Limits Test (V/m) Limits Test (V/m) 114.48~146.47 Full load1.411.631.551.781.44307614 114.48~146.47 Half load1.251.381.271.421.29307614 114.48~146.47 No load0.740.820.880.710.85307614 H-Filed Strength 15 cm surrounding the device and 20 cm above the top surface of the EUT (A/m) Frequency Range (KHz) Operation condition Test Position A Test Position B Test Position C Test Position D Test Position E Reference Limits Test (A/m) Limits Test ((A/m) 114.48~146.47 Full load0.2020.1850.1940.1970.1880.8151.63 114.48~146.47 Half load0.1770.1620.1550.1680.1590.8151.63 114.48~146.47 No load0.1130.1190.1080.1160.1050.8151.63 According to KDB 680106 D01 v03 section 5, b, satisfy the following conditions. Requirement of KDB 680106 D01Yes/NoDescription Power transfer frequency is less than 1MHzYes The device operate in the frequency range 114.48KHz -146.47KHz Output power from each primary coil is less than or equal to 15 watts Yes The maximum output power of the primary coil is 10W. The transfer system includes only single primary and secondary coils.This includes charging system that may have multiple primary coils and clients that are able to detect and allow coupling only betmeen individual pairs of coils. Yes The transfer system includes single coil that is able to detect receiver device. Client device is placed directly in contact with the transmitter. Yes Client device is placed directly in contact with the transmitter. Mobile exposure conditions only(portable exposure conditions are not covered by this exclusion). YesMobile exposure conditions only The aggregate H-field strengths at 15 cm surrounding the device and 20cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes The EUT H-filed strengths at 15 cm surrounding the device and 20cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. 7. Test Set-up Photo

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AU7V-035-7330-0 Product: 10W 3-in-1 Wireless Charging Mount Model No.: 035-7330-0 Additional Model No.: MP085 Trade Mark: blue hive Report No.: TCT200806E023 Issued Date: Aug. 24, 2020 Issued for: Shenzhen Xinjiawei Technology Co.Ltd 1st Floor, Office Building, No.17, Hongbai Indu.Zone, No. 1 Chuangye Road, Shilongzi, Baoan District, Shenzhen, 518000 China Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200806E023 Page 2 of 29 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ................................................................................................... 3 2. Test Result Summary ........................................................................................... 4 3. EUT Description .................................................................................................... 5 4. General Information ............................................................................................. 6 4.1. Test environment and mode ........................................................................................... 6 4.2. Description of Support Units .......................................................................................... 6 5. Facilities and Accreditations ............................................................................. 7 5.1. Facilities...............................................................................................................................7 5.2. Location................................................................................................................................7 5.3. Measurement Uncertainty...............................................................................................7 6. Test Results and Measurement Data .............................................................. 8 6.1. Antenna requirement ........................................................................................................ 8 6.2. Conducted Emission ......................................................................................................... 9 6.3. Radiated Spurious Emission Measurement ............................................................. 13 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT200806E023 Page 3 of 29 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product:10W 3-in-1 Wireless Charging Mount Model No.:035-7330-0 Additional Model No.: MP085 Trade Mark: blue hive Applicant:Shenzhen Xinjiawei Technology Co.Ltd Address: 1st Floor, Office Building, No.17, Hongbai Indu.Zone, No. 1 Chuangye Road, Shilongzi, Baoan District, Shenzhen, 518000 China Manufacturer:Shenzhen Xinjiawei Technology Co.Ltd Address: 1st Floor, Office Building, No.17, Hongbai Indu.Zone, No. 1 Chuangye Road, Shilongzi, Baoan District, Shenzhen, 518000 China Date of Test:Aug. 07, 2020 – Aug. 21, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C The above equipment has been tested by Shenzhen Tongce Testing Lab . and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By:Date:Aug. 21, 2020 Rleo Reviewed By: Date:Aug. 24, 2020 Beryl Zhao Approved By: Date:Aug. 24, 2020 Tomsin Report No.: TCT200806E023 Page 4 of 29 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary RequirementCFR 47 SectionResult Antenna requirement§15.203PASS AC Power Line Conducted Emission §15.207PASS Spurious Emission§15.209(a)(f)PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT200806E023 Page 5 of 29 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product:10W 3-in-1 Wireless Charging Mount Model No.:035-7330-0 Additional Model No.:MP085 Trade Mark:blue hive Operation Frequency:114.48KHz - 146.47KHz Modulation Technology: Load modulation Antenna Type:Inductive loop coil Antenna Power Supply: AC 120V/60Hz Input: DC 5V2A,9V/1.67A Output: 10W/7.5W/5W Remark: All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Report No.: TCT200806E023 Page 6 of 29 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 4. General Information 4.1. Test environment and mode Operating Environment: ConditionConducted EmissionRadiated Emission Temperature: 25.0  C25.0  C Humidity:55 % RH55 % RH Atmospheric Pressure: 1010 mbar1010 mbar Test Mode: Engineering mode:Keep the EUT in continuous transmitting by select channel and modulations. The sample was placed 0.8m & 1.5m for the measurement below & above 1GHz above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously worki…

Text truncated - open the document above for the full version.

Page 1 of 2 Appendix A: Photographs of Test Setup Product: 10W 3-in-1 Wireless Charging Mount Model: 035-7330-0 Radiated Emission Page 2 of 2 Conducted Emission
