SCALA Digital Technology(Ningbo) Co., Ltd. Version：V1.0 RK3399 R PLAYER User Manual 2019 September SCALA Digital Technology(Ningbo) Co., Ltd. Version：V1.0 1、Product Overview R PLAYERIis a smart player box that supports Android and Linux operating systems. Customers can develop their own under this system. (for detailed configuration, please refer to the product configuration parameter table of R player Playbox). Customers can use the playback box to provide multimedia content of the display through documents or network Figure 1、Product interface diagram： 2、Boot up 1）、Connecting power supply Connect the 12V / 2A power adapter of the accessory to the power socket, connect the DC anti disconnection connector of the adapter to the DC12V socket of the equipment, and tighten the nut; 2）、Key switch and status indication Press the power button to turn on the device, and the power and status lights green. In sleep mode, power is always on green and status is always on red. Press and hold the power button for 8 ~ 10s, the power is always bright red, and the status is off。 3、Instructions SCALA Digital Technology(Ningbo) Co., Ltd. Version：V1.0 1）、External display： The playback box HDMI out is connected with the external display HDMI in through the HDMI cable to realize the display interface output; The external device can input interface data through the playback box HDMI in, and the playback box can synchronously output the display interface from the HDMI out to the external display. Figure 2: display desktop 2）. External USB device: In the state of connected external display device, USB mouse and USB keyboard can be connected through USB2.0 and USB3.0 ports to realize interface switching, data input and output and other functions. The function of copying or loading data files of external storage devices such as USB flash disk can be realized. Figure 3: USB insertion display in Explorer SCALA Digital Technology(Ningbo) Co., Ltd. Version：V1.0 3）. Wired, wireless networking and WiFi functions: The playback box can be connected to the network through RJ45 port and wifi antenna for network data transmission. Figure 4: wired and wireless networking setting interface entrance Figure 5: Bluetooth setting interface entry SCALA Digital Technology(Ningbo) Co., Ltd. Version：V1.0 4）. Audio transmission: The playback box can transmit audio with external playback equipment through aux port. Figure 6: sound adjustmen 5）. Infrared remote control: The playback box is equipped with IR infrared sensor. Through the infrared remote control, you can switch on and off, return to the desktop, mute, move the cursor, switch the interface, return, increase or decrease the output volume, and switch the mouse mode. 6）. Serial communication: The external equipment can realize the RS232 serial communication function through the COM port of the playback box. SCALA Digital Technology(Ningbo) Co., Ltd. Version：V1.0 7）. Extended infrared remote control: (it needs to be modified professionally, temporarily omitted, you can contact the manufacturer) 8). Extended switch machine: (it needs to be refitted professionally, temporarily omitted, you can contact the manufacturer) 9). Equipment reset: in case of equipment crash, the device can be forced to restart by pressing reset hidden button. 10). Device upgrade: the recovery hidden button is used for device upgrade and firmware burning. The customer cannot operate it by himself. 4. firmware upgrade: The player box is equipped with the best firmware at the factory. Customers need to contact skylard if they have firmware requirements. 5. packing configuration 1. Player box host, 1pcs; 2. Infrared remote control, 1pcs; 3. 12V / 2A adapter, 1pcs; 4. HDMI transfer line, 1pcs; 5. Install screw pack, 1pcs; 6. Type transfer line, 1pcs. SCALA Digital Technology(Ningbo) Co., Ltd. Address: No. 7 Hong Da Road , Jiang Bei District, Ning Bo,Zhe Jiang Tel: +1 610 363 3350 Fax: +1 610 363 4010 Website:https://scala-china.com/ SCALA Digital Technology(Ningbo) Co., Ltd. Version：V1.0 R PLAYER Product configuration parameters Spec Date: 10th September, 2019 Product Descriptions Scala RK3399 R Player Hardware & OS Soc Rockchip RK3399 ( 28nm HKMG Process ) CPU Six-Core ARM 64-bit processor, up to 2.0GHz Based on Big.Little architecture, Dual-Core Cortex-A72 and Quad-Core Cortex-A53 with separate NEON coprocessor GPU ARM Mali-T860 MP4 Quad-Core GPU Support OpenGL ES1.1/2.0/3.0/3.1, OpenCL and DirectX 11 Support AFBC VPU Support 4K VP9 and 4K 10bits H265/H264 video decoding, up to 60fps 1080P multi-format video decoding (WMV, mpeg-1/2/4, VP8) 1080P video encoding, which supports h.264, VP8 format Video post-processor: anti-cross, de-noising, edge/detail/color optimization RAM Dual-Channel DDR3 -1600 (800MHz) ( 2GB Standard/4GB Optional ) Flash High-Speed eMMC 5.1 ( 32GB Standard/8GB/16GB/64GB/128GB Optional 256GB in testing) OS SUPPORT ANDROID/LINUX I/O Ports 1 x DC input[with anti-loose mechanism], 1 x RJ45, 1 x Power button,1 x LED Status, 1 x Power Extension Cable Port, 1 x IR Receiver, 1 x IR Extension Cable Port, 1 x Reset,1 x Recovery, 1 x Wi-fi Antenna, 1 x HDMI Input (HDMI 2.0，up to 1080P@60fps , support HDCP 1.4a), 1 x HDMI Output (HDMI 2.0，up to 4K@60fps , support HDCP 1.4/2.2), 1 x AUX, 1 x USB 2.0, 1 x USB 3.0, 1 x USB 3.0/Service [Type C],1 x DB9[Male] Power Power input by adapter DC12V, 2A Power input by PoE(Optional) IEEE802 3at(25.5W) / Network cable requirement: CAT-5e or better Remote Control Remote control Support Yes Connectivity RJ45(PoE) Ethernet 10/100/1000, support 802.1Q tagging IEEE802 3at(25.5W) / Network cable requirement: CAT-5e or better WIFI WiFi 2.4GHz/5GHz Dual-Band Support 802.11a/b/g/n/ac Bluetooth Built-in BLE 4.0 Beacon General Case Material Top case - Aluminum / Bottom case - ABS SCALA Digital Technology(Ningbo) Co., Ltd. Version：V1.0 information Storage Temp (-15 -- 65 degree) Working Temp (0 -- 50 degree) Storage/Working Humidity (10 -- 90﹪ ) Dimension 156*106*25.5 MM Net …

Text truncated - open the document above for the full version.

SCALA Digital Technology(Ningbo) Co., LTD Add: No. 7 Hong Da Road, Hong Tang Industrial Zone A, Jiang Bei District, Ning Bo City, China Tel: 0574-55869282 Fax: 0574-55869289 Date: 2020-03-12 Dear Sir/Madam, We, SCALA Digital Technology(Ningbo) Co., LTD Hereby declares the following statement , PCB board of these models are the same, just the memory, trade mark and appearance are different for these models, Product name: RK3399 R Player The memory is RAM 2GB, Flash 32GB, the trade mark is SCALA, with POE Port. Models No.: SMPR-RK3399-S-POE, SMPR-RK3399-L-POE The memory is RAM 2GB, Flash 32GB, the trade mark is SCALA, without POE Port. Models No.: SMPR-RK3399-S, SMPR-RK3399-L The memory is RAM 2GB, Flash 32GB, the trade mark is STRATATACHE, with POE Port. Models No.: SMPR-RK3399-S-POE-NL, SMPR-RK3399-S-POE-CL, SMPR-RK3399-L-POE-NL, SMPR-RK3399-L-POE-CL The memory is RAM 2GB, Flash 32GB, the trade mark is STRATATACHE, without POE Port. Models No.: SMPR-RK3399-S-NL, SMPR-RK3399-S-CL, SMPR-RK3399-L-CL, SMPR-RK3399-L-NL The memory is RAM 4GB, Flash 64GB, the trade mark is SCALA, with POE Port. Models No.: SMPR, SMPR-RK3399-P-POE, SMPR-RK3399-C264-POE, SMPR-RK3399-C432-POE The memory is RAM 4GB, Flash 64GB, the trade mark is SCALA, without POE Port. Models No.: SMPR-RK3399-S-4G, SMPR-RK3399-P, SMPR-RK3399-P-4G, SMPR-RK3399-L-4G, SMPR-RK3399-C264, SMPR-RK3399-C264-4G, SMPR-RK3399-C432, SMPR-RK3399-C432-4G, The memory is RAM 4GB, Flash 64GB, the trade mark is STRATATACHE, with POE Port. Models No.: SMPR-RK3399-P-POE-NL, SMPR-RK3399-P-POE-CL, SMPR-RK3399-C264-POE-NL, SMPR-RK3399-C264-POE-CL, SMPR-RK3399-C432-POE-NL, SMPR-RK3399-C432-POE-CL, The memory is RAM 4GB, Flash 64GB, the trade mark is STRATATACHE, without POE Port. Models No.: SMPR-RK3399-S-4G-NL, SMPR-RK3399-S-4G-CL, SMPR-RK3399-L-4G-NL, SMPR- RK3399-L-4G-CL, SMPR-RK3399-P-NL, SMPR-RK3399-P-CL, SMPR-RK3399-P-4G-NL, SMPR- RK3399-P-4G-CL, SMPR-RK3399-C264-NL, SMPR-RK3399-C264-CL, SMPR-RK3399-C264-4G- NL, SMPR-RK3399-C264-4G-CL, SMPR-RK3399-C432-NL, SMPR-RK3399-C432-CL, SMPR- RK3399-C432-4G-NL, SMPR-RK3399-C432-4G-CL, Sincerely, Signature: Client’s name / title : Lingling Liu / Coo Assistant Contact information / address : No. 7 Hong Da Road, Hong Tang Industrial Zone A, Jiang Bei District, Ning Bo City, China Tel: 0574-55869282 Fax: 0574-55869289 E-Mail: [email protected]

Declaration of Software Security Requirements For U-NII Devices

FCC Software Configuration Control Declaration Rev1.1 SCALA Digital Technology(Ningbo) Co., LTD FCC Software Configuration Control Declaration Date: March 20, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product: RK3399 R Player Models No.: SMPR, SMPR-RK3399-S, SMPR-RK3399-S-NL, SMPR-RK3399-S-CL, SMPR- RK3399-S-4G, SMPR-RK3399-S-4G-NL, SMPR-RK3399-S-4G-CL, SMPR-RK3399-S-POE, SMPR- RK3399-S-POE-NL, SMPR-RK3399-S-POE-CL, SMPR-RK3399-P, SMPR-RK3399-P-NL, SMPR- RK3399-P-CL, SMPR-RK3399-P-4G, SMPR-RK3399-P-4G-NL, SMPR-RK3399-P-4G-CL, SMPR- RK3399-P-POE, SMPR-RK3399-P-POE-NL, SMPR-RK3399-P-POE-CL, SMPR-RK3399-C264, SMPR-RK3399-C264-NL, SMPR-RK3399-C264-CL, SMPR-RK3399-C264-4G, SMPR-RK3399- C264-4G-NL, SMPR-RK3399-C264-4G-CL, SMPR-RK3399-C264-POE, SMPR-RK3399-C264-POE- NL, SMPR-RK3399-C264-POE-CL, SMPR-RK3399-C432, SMPR-RK3399-C432-NL, SMPR- RK3399-C432-CL, SMPR-RK3399-C432-4G, SMPR-RK3399-C432-4G-NL, SMPR-RK3399-C432- 4G-CL, SMPR-RK3399-C432-POE, SMPR-RK3399-C432-POE-NL, SMPR-RK3399-C432-POE-CL, SMPR-RK3399-L, SMPR-RK3399-L-NL, SMPR-RK3399-L-CL, SMPR-RK3399-L-4G, SMPR- RK3399-L-4G-NL, SMPR-RK3399-L-4G-CL, SMPR-RK3399-L-POE, SMPR-RK3399-L-POE-NL, SMPR-RK3399-L-POE-CL Regarding FCC Country Code Selection guidelines identified in KDB 594280 D02 v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. FCC Software Configuration Control Declaration Rev1.1 Name: Lingling Liu Date: 2020-03-12 Title: Coo Assistant Signature of applicant

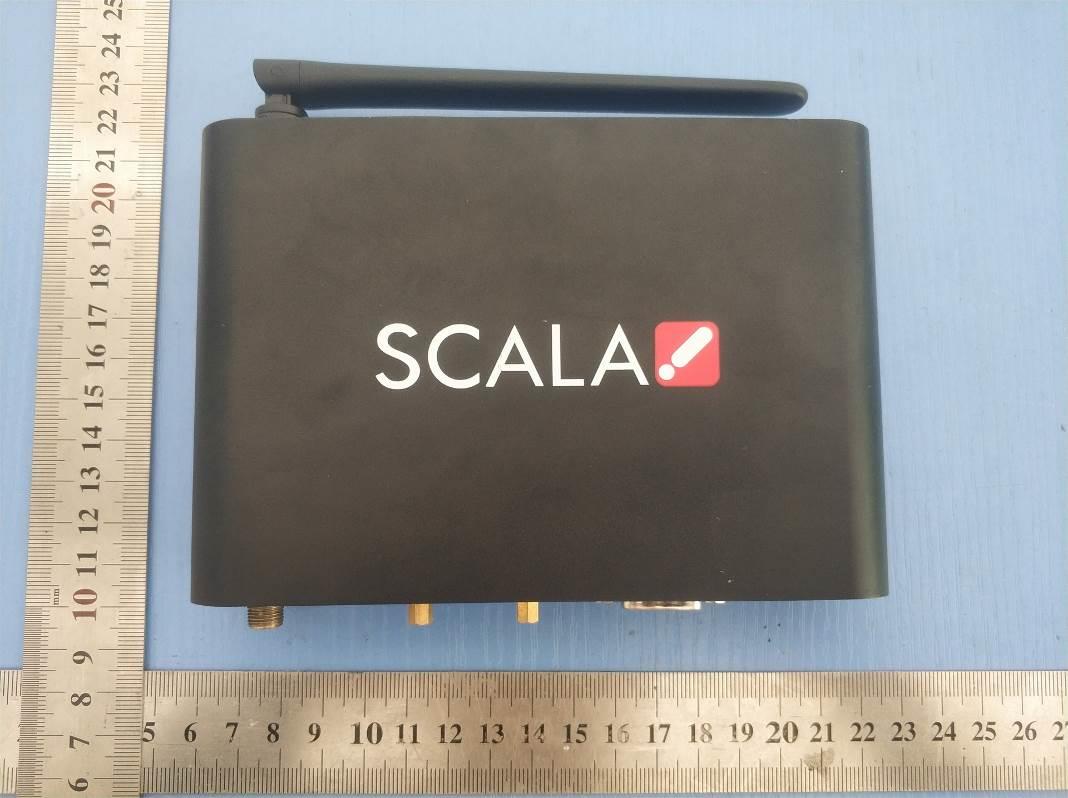

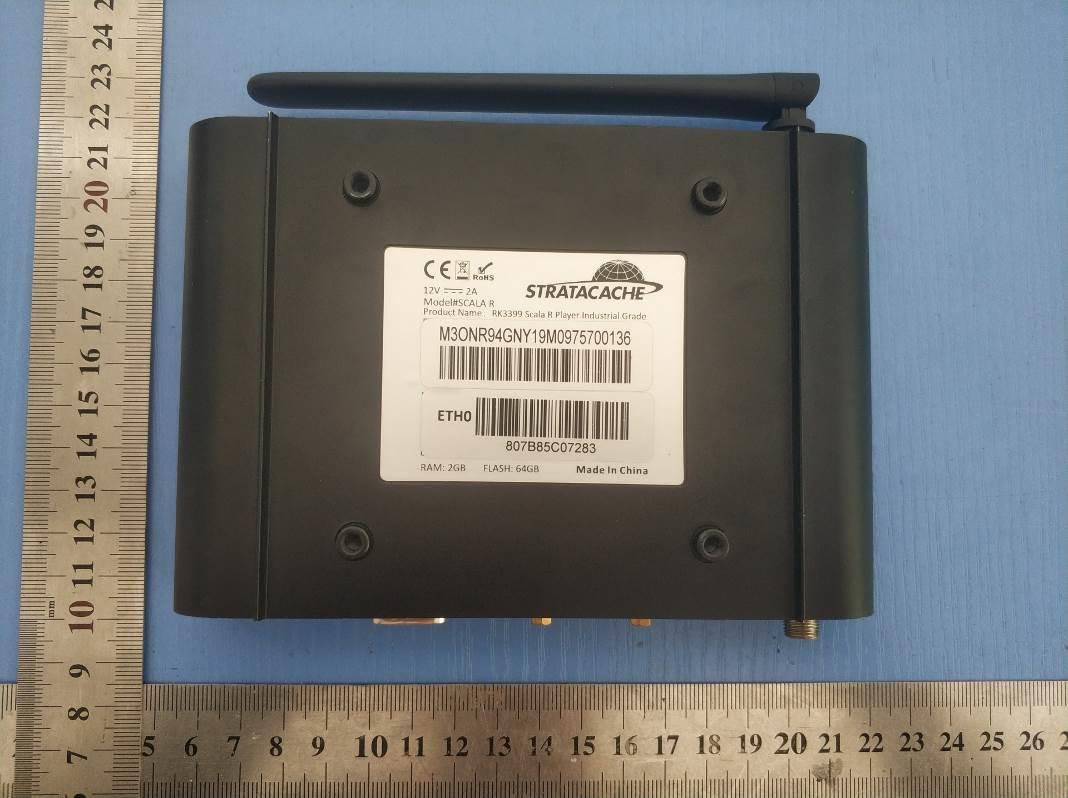

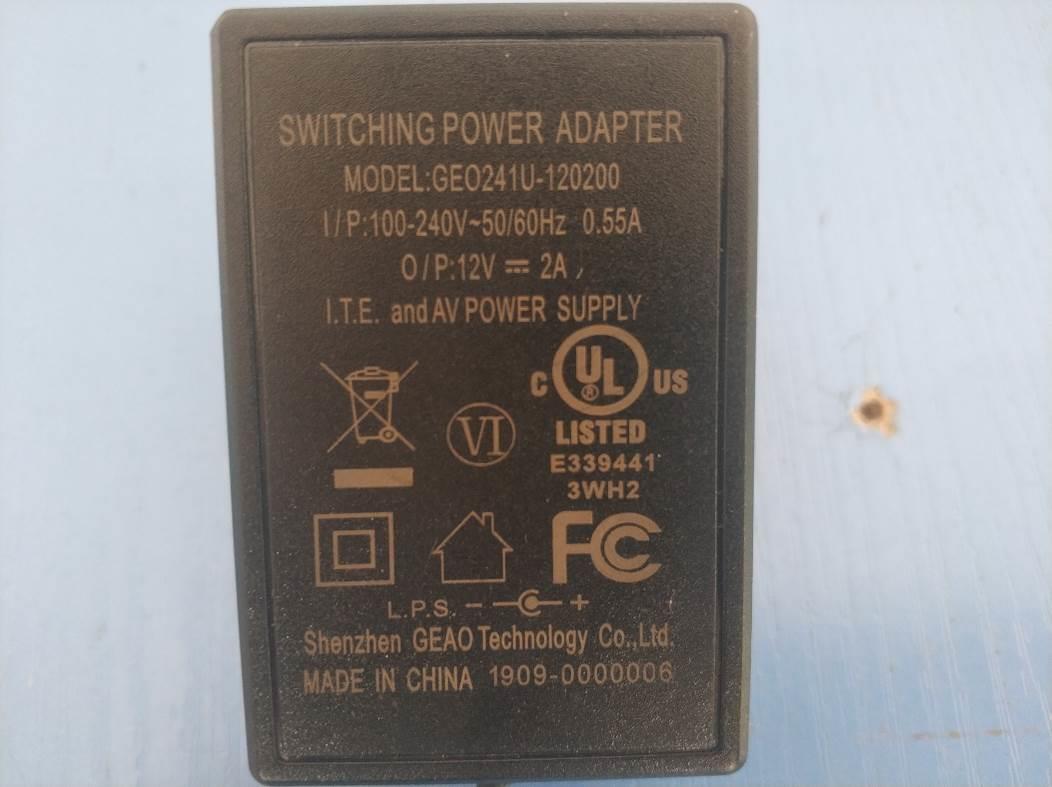

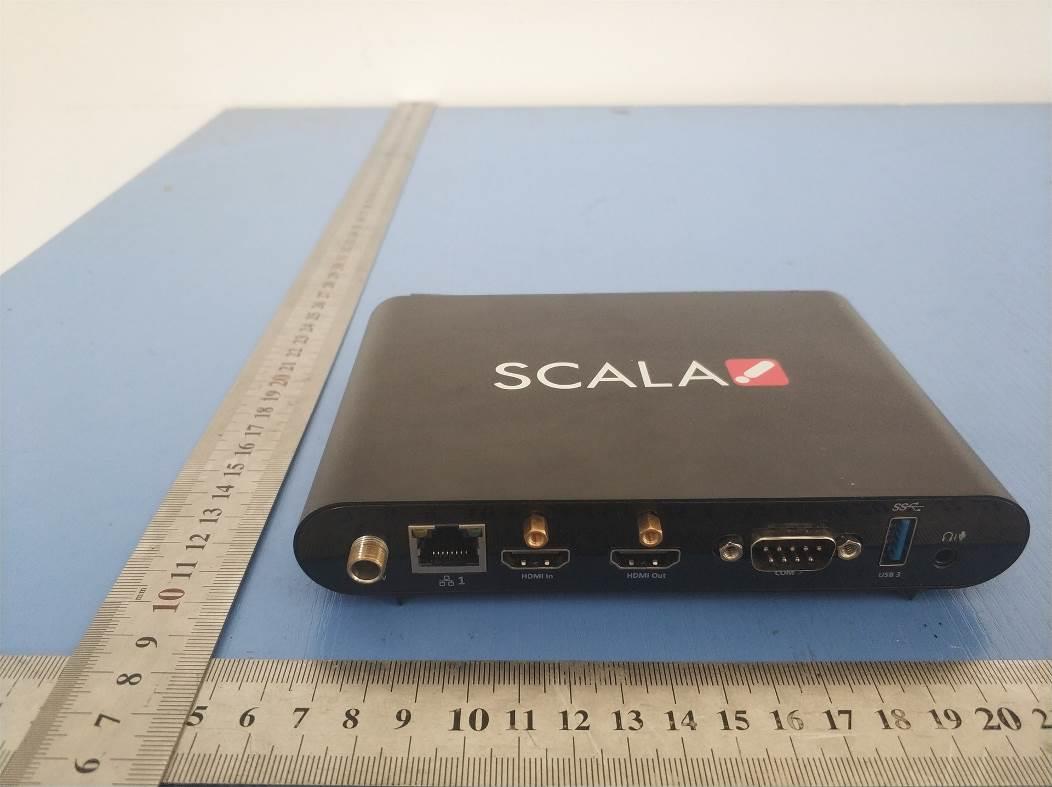

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L3.0cm*W2.0cm Label Location RK3399 R Player Model No.: SMPR FCC ID: 2AU8XSMPR This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Fig. 11 Fig. 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Fig. 13 Fig. 14 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Fig. 15 Fig. 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Fig. 17 Fig. 18 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Fig. 19 Fig. 20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Fig. 21 Fig. 22 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Fig. 23 Fig. 24 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Fig. 25 Fig. 26 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Fig. 27

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 8 FCC RF Exposure Evaluation 1. Product Information FCC ID 2AU8XSMPR Product name RK3399 R Player Test Model SMPR Power supply DC 12V2A from adapter Modulation Type GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V4.0 (BDR/EDR) GFSK for Bluetooth V4.0(BT LE) IEEE 802.11b: DSSS(CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM(64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) IEEE 802.11a/n/ac: OFDM(64QAM, 16QAM, QPSK, BPSK) Antenna Type External Antenna Antenna Gain 2dBi Hardware version V1.X Software version 20190909.012310 FCC Operation frequency BT&BLE: 2402MHz-2480MHz 2.4G WIFI: 2412MHz-2462MHz 5G WIFI: 5180MHz-5240MHz, 5260MHz-5320MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 8 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Artemis Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna External Antenna 2402MHz-2480MHz 2412MHz-2462MHz 5180MHz-5240MHz, 5260MHz-5320MHz 2dBi BT&WLAN Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 8 6. Conducted Power [BT Max Conducted Power] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 0.215 39 2441 -2.017 78 2480 -0.841 π/4DQPSK 0 2402 -0.532 39 2441 -2.605 78 2480 -1.559 8DPSK 0 2402 -0.376 19 2440 -2.382 39 2480 -1.238 [BLE Max Conducted Power] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) BT LE 0 2402 0.093 19 2440 -2.141 39 2480 -0.849 [2.4GWIFI Max Conducted Power] Mode Channel Frequency(MHz) Max Conducted Power (dBm) 11B 1 2412 10.36 6 2437 10.13 11 2462 10.67 11G 1 2412 13.28 6 2437 13.33 11 2462 13.62 11N20SISO 1 2412 12.19 6 2437 12.49 11 2462 12.86 11N40SISO 3 2422 11.71 6 2437 11.88 9 2452 12.09 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 8 [5.2GWIFI Max Conducted Power] Mode Channel Frequency(MHz) Max Conducted Power (dBm) 11A 36 5180 10.91 40 5200 10.24 48 5240 8.96 11N20 SISO 36 5180 9.65 40 5200 9.2 48 5240 7.93 11N40 SISO 38 5190 9.47 46 52…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEB Page 1 of 14 Appendix B RF Test Data for BT V4.0(BT LE) (Conducted Measurement) Product Name: RK3399 R Player Trade Mark: STRATATACHE/SCALA Test Model: SMPR Environmental Conditions Temperature: 24.5C Relative Humidity: 53.1% ATM Pressure: 100.0 kPa Test Engineer: Scout Wu Supervised by: Tom.Liu B.1 Duty Cycle Test Mode Test Channel Duty Cycle[%] Verdict BT LE 2440 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEB Page 2 of 14 B.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 0.093 30 PASS BT LE MCH -2.141 30 PASS BT LE HCH -0.849 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEB Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEB Page 4 of 14 B.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -14.915 8 PASS BT LE MCH -17.138 8 PASS BT LE HCH -15.797 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEB Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEB Page 6 of 14 B.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6929 ≥0.5 PASS BT LE MCH 0.7023 ≥0.5 PASS BT LE HCH 0.7032 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEB Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEB Page 8 of 14 B.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH -0.706 -36.525 -20.706 PASS BT LE MCH -2.908 -36.110 -22.908 PASS BT LE HCH -1.622 -37.277 -21.622 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEB Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEB Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEB Page 11 of 14 B.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max. Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH -0.479 -49.734 -20.48 PASS BT LE HCH -1.549 -49.571 -21.55 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEB Page 12 of 14 B.7 Restrict-band band-edge measurements Test Mode Test Channel Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/m] Verdict BT LE 2402 2310.0 -43.54 2.0 0 53.71 PEAK 74 PASS 2310.0 -53.41 2.0 0 43.85 AV 54 PASS 2390.0 -43.61 2.0 0 53.65 PEAK 74 PASS 2390.0 -53.00 2.0 0 44.26 AV 54 PASS 2480 2483.5 -42.74 2.0 0 54.52 PEAK 74 PASS 2483.5 -52.66 2.0 0 44.60 AV 54 PASS 2500.0 -42.58 2.0 0 54.68 PEAK 74 PASS 2500.0 -52.43 2.0 0 44.83 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEB Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_ PEAK Restrict-band band-edge measurements_BT LE_2402_ AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEB Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_ PEAK Restrict-band band-edge measurements_BT LE_2480_ AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 1 of 52 Appendix C RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: RK3399 R Player Trade Mark: STRATATACHE/SCALA Test Model: SMPR Environmental Conditions Temperature: 25.1 C Relative Humidity: 53.6% ATM Pressure: 100.0 kPa Test Engineer: Scout Wu Supervised by: Tom.Liu C.1 Duty Cycle Test Mode Test Channel Duty Cycle[%] Verdict 11B 2437 100 PASS 11G 2437 100 PASS 11N20SISO 2437 100 PASS 11N40SISO 2437 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 2 of 52 Duty Cycle_11B_2437 Duty Cycle_11G_2437 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 3 of 52 Duty Cycle_11N20SISO_2437 Duty Cycle_11N40SISO_2437 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 4 of 52 C.2 Maximum Conducted Output Power Mode Channel Meas. Level [dBm] Limit [dBm] Verdict 11B LCH 10.36 30 PASS MCH 10.13 30 PASS HCH 10.67 30 PASS 11G LCH 13.28 30 PASS MCH 13.33 30 PASS HCH 13.62 30 PASS 11N20SISO LCH 12.19 30 PASS MCH 12.49 30 PASS HCH 12.86 30 PASS 11N40SISO LCH 11.71 30 PASS MCH 11.88 30 PASS HCH 12.09 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 5 of 52 Test Graphs 11B/LCH 11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 6 of 52 11B/HCH 11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 7 of 52 11G/MCH 11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 8 of 52 11N20SISO/LCH 11N20SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 9 of 52 11N20SISO/HCH 11N40SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 10 of 52 11N40SISO/MCH 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 11 of 52 C.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/30KHz] Convert Factor Result [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -6.179 -10 -16.179 8 PASS MCH -0.581 -10 -10.581 8 PASS HCH -6.443 -10 -16.443 8 PASS 11G LCH -10.519 -10 -20.519 8 PASS MCH -10.205 -10 -20.205 8 PASS HCH -10.256 -10 -20.256 8 PASS 11N20SISO LCH -10.750 -10 -20.75 8 PASS MCH -10.245 -10 -20.245 8 PASS HCH -10.361 -10 -20.361 8 PASS 11N40SISO LCH -15.016 -10 -25.016 8 PASS MCH -15.262 -10 -25.262 8 PASS HCH -14.534 -10 -24.534 8 PASS ***Note: The Convert Factor = 10*log(3KHz/30KHz) = -10 Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 12 of 52 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 13 of 52 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 14 of 52 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 15 of 52 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 16 of 52 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 17 of 52 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 18 of 52 C.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 8.548 ≥0.5 PASS MCH 8.105 ≥0.5 PASS HCH 9.051 ≥0.5 PASS 11G LCH 15.50 ≥0.5 PASS MCH 15.72 ≥0.5 PASS HCH 15.50 ≥0.5 PASS 11N20SISO LCH 15.94 ≥0.5 PASS MCH 15.99 ≥0.5 PASS HCH 15.97 ≥0.5 PASS 11N40SISO LCH 35.75 ≥0.5 PASS MCH 35.62 ≥0.5 PASS HCH 35.19 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 19 of 52 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 20 of 52 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 21 of 52 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 22 of 52 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 23 of 52 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 24 of 52 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 25 of 52 C.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict 11B LCH -0.787 -38.871 -20.787 PASS MCH -0.348 -36.997 -20.348 PASS HCH -0.059 -38.406 -20.059 PASS 11G LCH -5.559 -38.490 -25.559 PASS MCH -5.626 -37.989 -25.626 PASS HCH -4.977 -37.241 -24.977 PASS 11N20 SISO LCH -5.368 -38.113 -25.368 PASS MCH -5.33 -37.965 -25.330 PASS HCH -5.639 -37.465 -25.639 PASS 11N40 SISO LCH -9.37 -37.126 -29.370 PASS MCH -9.471 -37.309 -29.471 PASS HCH -8.70 -38.155 -28.700 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 26 of 52 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 27 of 52 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 28 of 52 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEC Page 29 of 52 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LC…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 33 FCC TEST REPORT For SCALA Digital Technology(Ningbo) Co., LTD RK3399 R Player Test Model: SMPR Additional Model No.: Please refer to page 6 Prepared for : SCALA Digital Technology(Ningbo) Co., LTD Address : No. 7 Hong Da Road, Hong Tang Industrial Zone A, Jiang Bei District, Ning Bo City, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : November 15, 2019 Number of tested samples : 1 Serial number : Prototype Date of Test : November 15, 2019 ~ January 04, 2020 Date of Report : January 14, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AU8XSMPR Report No.: LCS191025032AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 33 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS191025032AEB Date of Issue ................................... : January 14, 2020 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Oth…
