2AUARSCANPLUSTHINKSCAN PLUS

EN I www.mythinkcar.com THINKSCAN Plus Content 1 Quick Start Manual ..........................................................................................................1 1.1 Initial Use ........................................................................................................................1 1.1.1 Turn on the Machine ...............................................................................................1 1.1.2 Language Setting ....................................................................................................1 1.1.3 Connect Wi-Fi .........................................................................................................2 1.1.4 Choose Time Zone ..................................................................................................2 1.1.5 User Agreement ......................................................................................................3 2 Functions Descriptions ...................................................................................................6 2.1 Choose the diagnostic function ......................................................................................6 2.2 Maintenance & Reset .....................................................................................................9 2.2.1 Maintenance light reset ...........................................................................................9 2.2.2 Steering angle reset ................................................................................................9 2.2.3 Battery matching .....................................................................................................9 2.2.4 ABS exhaust .........................................................................................................10 2.2.5 Throttle matching ..................................................................................................10 2.2.6 Brake pad reset .....................................................................................................10 2.2.7 DPF regeneration ..................................................................................................10 2.2.8 Anti-theft matching ................................................................................................11 2.2.9 Nozzle coding .......................................................................................................11 2.2.10 Tire pressure reset ..............................................................................................11 2.2.11 Suspension level calibration ................................................................................11 2.2.12 Headlight matching .............................................................................................11 2.2.13 Gearbox matching ...............................................................................................12 2.2.14 Sunroof initialization ............................................................................................12 2.2.15 EGR Adaption .....................................................................................................12 2.2.16 Gear Learning .....................................................................................................12 2.2.17 ODO Reset .........................................................................................................12 2.2.18 Airbag Reset .......................................................................................................12 2.2.19 Transport Mode ...................................................................................................13 2.2.20 A/F Reset ............................................................................................................13 2.2.21 Stop/Start Reset ..................................................................................................13 2.2.22 NOx Sensor Reset ..............................................................................................13 2.2.23 AdBlue Reset (Diesel Engine Exhaust Gas Filter) ..............................................13 2.5.24 Seat Calibration ..................................................................................................13 2.2.25 Coolant Bleeding .................................................................................................13 2.2.26 Tyre Reset ...........................................................................................................13 2.2.27 Windows Calibration ...........................................................................................14 2.2.28 Language Change ..............................................................................................14 2.3 ThinkFile .......................................................................................................................14 THINKSCAN PLUS TKPS6 EN II www.mythinkcar.com THINKSCAN Plus 2.4 Repair Info ....................................................................................................................14 2.5 Software update ...........................................................................................................14 2.6 Settings.........................................................................................................................15 2.6.1 Account information ..............................................................................................15 2.6.2 Customer management ........................................................................................15 2.6.3 Business information .............................................................................................16 2.6.4 Network .................................................................................................................16 2.6.5 Firmware upgrade .................................................................................................16 3 Q&A .........…

Text truncated - open the document above for the full version.

THINKCAR TECH CO., LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-11-16 Subject; Request for Long Term Confidentiality FCC ID: 2AUARSCANPLUS To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Huineng Deng Title: Marketing specialist

THINKCAR TECH CO., LTD. 2606, building 4, phase II, TiananYungu, Gangtou community, Bantian, Longgang District, Shenzhen, China Statement Pr oduct: THINKSCAN PLUS Model: TKPS6 Additional Model: TKPS2, TKPS4, TKPS5, TKPS7, TKPS9 Trademark: THINKCAR We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2021/11/16 Name: Huineng Deng Company Name : THINKCAR TECH CO., LTD. Address: 2606, building 4, phase II, TiananYungu, Gangtou community, Bantian, Longgang District, Shenzhen, China Tel / Fax: 15870662519/15870662519 E-Mail: [email protected]

THINKCAR TECH CO., LTD. Agent Authorization Company: THINKCAR TECH CO., LTD. Address: 2606, building 4, phase II, TiananYungu, Gangtou community, Bantian, Longgang District, Shenzhen, China Product Name: THINKSCAN PLUS Model Number(s): TKPS6, TKPS2, TKPS4, TKPS5, TKPS7, TKPS9 Product Description: THINKSCAN PLUS We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-11-16 Name: Huineng Deng Title: Marketing specialist Company: THINKCAR TECH CO., LTD.

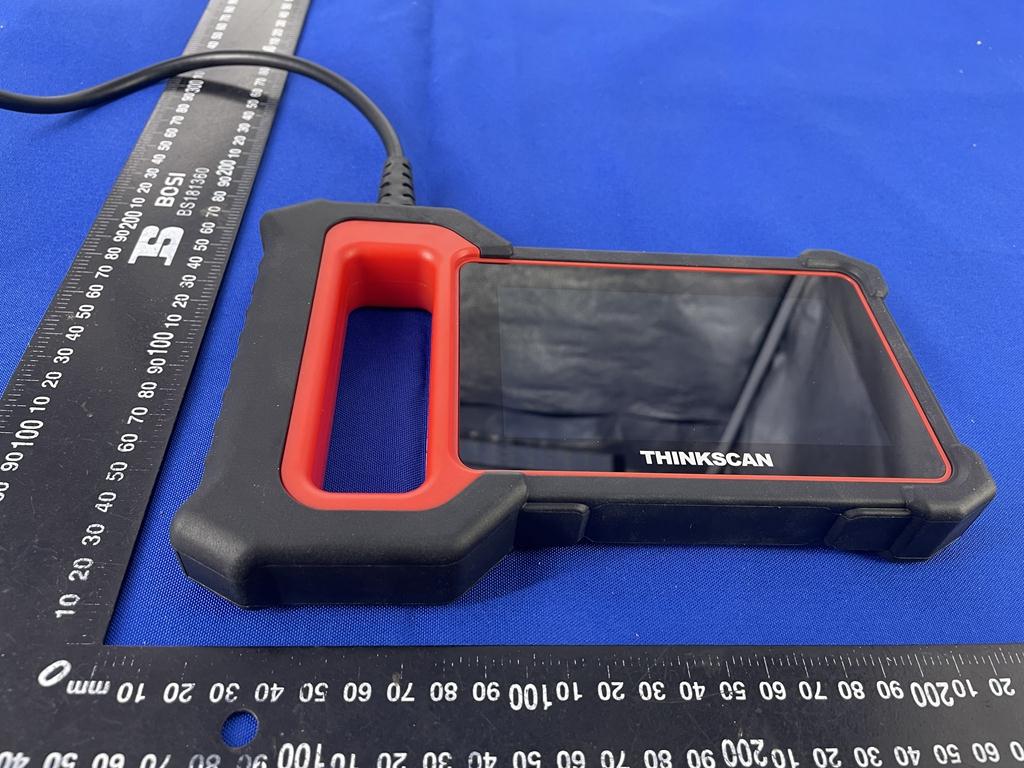

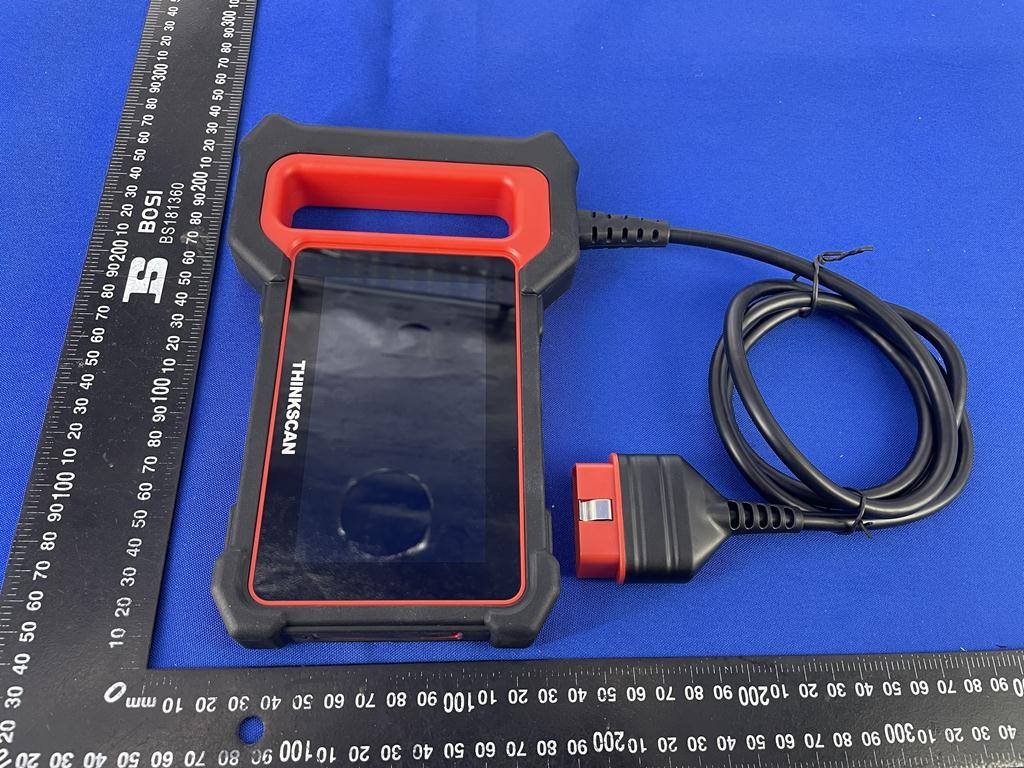

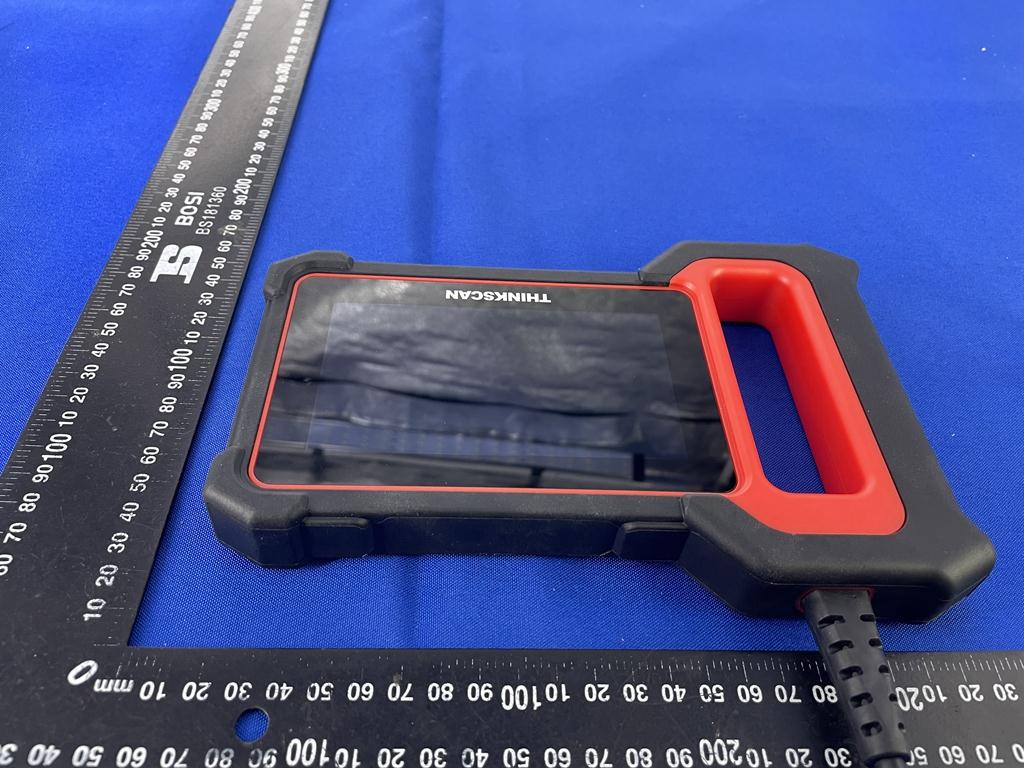

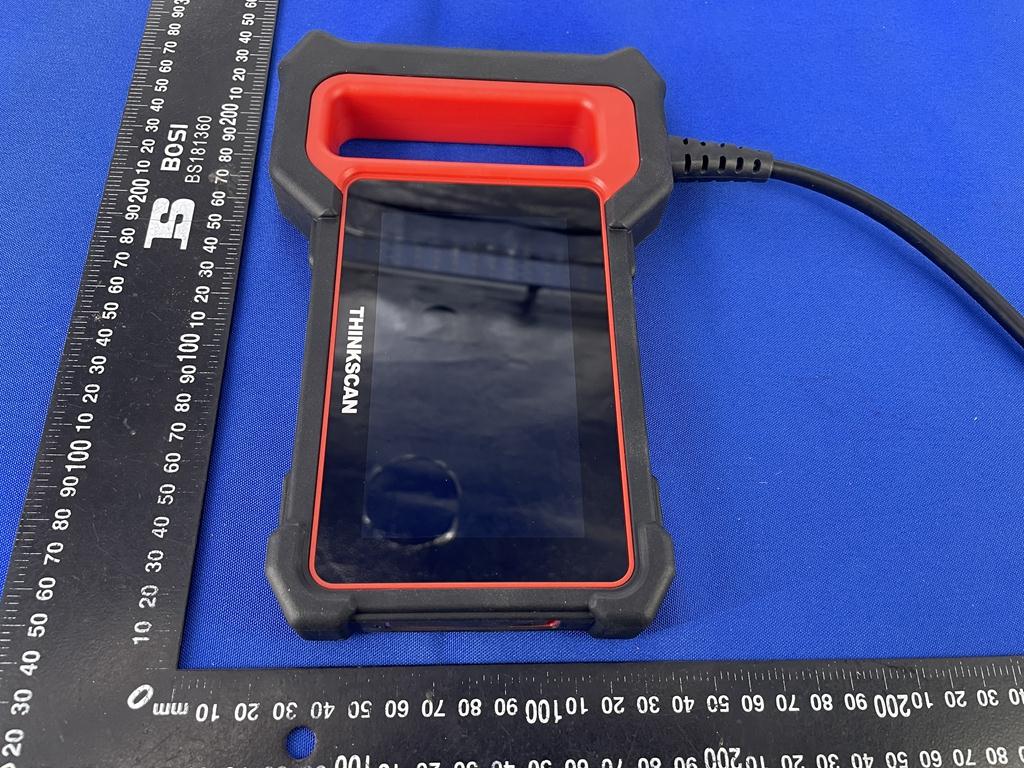

Page 1 of 4 Appendix C: Photographs of EUT Product: THINKSCAN PLUS Model: TKPS6 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Label Artwork and Location Model: TKPS6 Label: Size: L*W=75.1*56.1mm Location

Page 1 of 4 Appendix C: Photographs of EUT Product: THINKSCAN PLUS Model: TKPS6 Internal Photos Page 2 of 4 Page 3 of 4 Antenna Page 4 of 4

Maximum Permissible Exposure Applicable Standard According to §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. Remark: 1) For BT: The maximum output power for antenna is 6.93dBm (4.93mW) at 2480MHz, 1dBi antenna gain(with 1.26numeric antenna gain.) For WIFI: The maximum output power for antenna is 15.200dBm (33.11mW) at 2462MHz, 1dBi antenna gain(with 1.26numeric antenna gain.) 2) For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20cm, even if the calculation indicate that the MPE distance would be lesser. For BT: Maximum Permissible Exposure output power= 4.93mW Numeric Antenna gain= 1.26 Substituting the MPE safe distance using d=20cm into above equation. Yields: S=0.000199*P*G Where P=Power in mW G=Numeric antenna gain S=Power density in mW/cm 2 Power density= 0.001236mW/cm 2 For WIFI: Maximum Permissible Exposure output power= 33.11mW Numeric Antenna gain= 1.26 Substituting the MPE safe distance using d=20cm into above equation. Yields: S=0.000199*P*G Where P=Power in mW G=Numeric antenna gain S=Power density in mW/cm 2 Power density= 0.008302mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2AUARSCANPLUS Test Report No. ............... : TCT211020E054 Date of issue ................... : Nov. 11, 2021 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: TCT Testing Industrial Park Fuqiao 5th Industrial Zone, Fuhai Street, Bao'an District Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : THINKCAR TECH CO., LTD. Address ........................... : 2606, building 4, phase II, TiananYungu, Gangtou community, Bantian, Longgang District, Shenzhen, China Manufacturer's name ... : THINKCAR TECH CO., LTD. Address ........................... : 2606, building 4, phase II, TiananYungu, Gangtou community, Bantian, Longgang District, Shenzhen, China Standard(s) ..................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 Test item description ..... : THINKSCAN PLUS Trade Mark ...................... : THINKCAR Model/Type reference..... : TKPS6, TKPS2, TKPS4, TKPS5, TKPS7, TKPS9 Rating(s).......................... : Rechargeable Li-ion battery DC 3.7V Date of receipt of test item ......................................... : Oct. 20, 2021 Date (s) of performance of test ................................... : Oct. 20, 2021 ~ Nov. 11, 2021 Tested by (+signature) ... : Rleo Check by (+signature) .... : Beryl Zhao Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT211020E054 Page 2 of 83 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 1.3. Operation Frequency ............................................................................................ 4 2. Test Result Summary .............................................................................. 5 3. General Information ................................................................................. 6 3.1. Test environment and mode ................................................................................. 6 3.2. Description of Support Units ................................................................................ 7 4. Facilities and Accreditations .................................................................. 8 4.1. Facilities ................................................................................................................. 8 4.2. Location ................................................................................................................. 8 4.3. Measurement Uncertainty ..................................................................................... 8 5. Test Results and Measurement Data ..................................................... 9 5.1. Antenna requirement ............................................................................................ 9 5.2. Conducted Emission ........................................................................................... 10 5.3. Maximum Conducted (Average) Output Power ................................................ 11 5.4. Emission Bandwidth ........................................................................................... 15 5.5. Power Spectral Density ....................................................................................... 16 5.6. Conducted Band Edge and Spurious Emission Measurement ....................... 17 5.7. Radiated Spurious Emission Measurement ...................................................... 19 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT211020E054 Page 3 of 83 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Test item description ........... : THINKSCAN PLUS Model/Type reference........... : TKPS6 Sample Number....................: TCT211020E032-0101 Operation Frequency ........... : 2412MHz~2462MHz (802.11b/802.11g/802.11n(HT20)) 2422MHz~2452MHz (802.11n(HT40)) Channel Separation .............. : 5MHz Number of Channel .............. : 11 for 802.11b/802.11g/802.11n(HT20) 7 for 802.11n(HT40) Modulation Technology ....... : 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g/802.11n: Orthogonal Frequency Division Multiplexing(OFDM) Data speed ............................ : 802.11b: 1Mbps, 2Mbps, 5.5Mbps, 11Mbps 802.11g: 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbps, 36Mbps, 48Mbps, 54Mbps 802.11n: Up to 150Mbps Antenna Type ........................ : Internal Antenna Antenna Gain ........................ : 1dBi Rating(s)................................ : Rechargeable Li-ion battery DC 3.7V Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list No. Model No. Tested with 1 TKPS6 Other models TKPS2, TKPS4, TKPS5, TKPS7, TKPS9 Note: TKPS6 is tested model, other models are derivative models. The models are identical in circuit and PCB layout, different on the model names. So the test data of TKPS6 can represent the remaining models. Report No.: TCT211020E054 Page 4 of 83 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax…

Text truncated - open the document above for the full version.

Page 1 of 2 Appendix B: Photographs of Test Setup Product: THINKSCAN PLUS Model: TKPS6 Radiated Emission Page 2 of 2 Conducted Emission
