2AUARTKTOOL12Automotive Diagnostic Tool

Version: V1.00.001 Statement: XHINKCAR | THINKCAR owns the complete intellectual property rights for the software used by this product. For any reverse engineering or cracking actions against the software, XHINKCAR | THINKCAR will block the use of this product and reserve the right to pursue their legal liabilities. I FCC Requirement Changes or modifications not expressly approved by the party responsible for compliance could void the user’ s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. FCC WARNING This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The mobile device is designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA). These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the body is 0.226W/kg. For body operation, this device has been tested and meets FCC RF exposure guidelines when used with any accessory that contains no metal and that positions a minimum of 15mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. www.thinkcar.com II IC Requirement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,Science and Economic Development Canada’ s licence-exempt RSS(s). Operation is subject to the following two conditions: (1)This device may not cause interference. (2)This device must accept any interference,including interference that may cause undesired operation of the device. L'émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d'Innovation,Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L 'exploitation est autorisée aux deux conditions suivantes: 1)L'appareil ne doit pas produire de brouillage; 2)L'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. IC WARNING Cet équipement est conforme aux limites d’exposition aux rayonnements ISED établies pour un environnement non contrôlé. L’utilisateur final doit suivre les instructions spécifiques pour satisfaire les normes. Cet émetteur ne doit pas être co-implanté ou fonctionner en conjonction avec toute autre antenne ou transmetteur. Le dispositif portatif est conçu pour répondre aux exigences d’exposition aux ondes radio établie par ledéveloppement énergétique DURABLE. Ces exigences un SAR limite de 1,6 W/kg en moyenne pour un gramme de tissu. La valeur SAR la 0.226W/kg plus élevée signalée en vertu de cette norme lors de la certification de produit à utiliser lorsqu’il est correctement porté sur le corps. www.thinkcar.com III Copyright Information Copyright © 2022 by THINKCAR TECH CO., LTD (hereinafter referred to as “THINKCAR”). All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying and recording or otherwise, without the prior written permission of THINKCAR. The information contained herein is designed only for the use of this unit. THINKCAR is not responsible for any use of this information as applied to other units. Neither THINKCAR nor its affiliates shall be liable to the purchaser of this unit or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: Accident, misuse, or abuse of this unit, or unauthorized modifications, repairs, or alterations to this unit, or failure to strictly comply with THINKCAR operating and maintenance instructions. THINKCAR shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original THINKCAR Products or THINKCAR Approved Products. Formal statement: The names of other products mentioned in this manual are intended to explain how to use this equipment, and the registered trademark ownership still belongs to the original company. This equipment is designed for professional technicians or maintenance personnel. Trademark All THINKCAR trademarks, service marks, domain names, logos, and company names referred to in this manual are either trademarks, registered trademarks, service marks, domain names, logos, company names of o…

Text truncated - open the document above for the full version.

Date:04/17/2018VCB_F-01:OperatingProceduresForm–FCCAuthorizationv02Page1of1 THINKCARTECHCO.,LTD. FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Date:2022-12-12 SUBJECT:FCCApplicationfor(FCCID:2AUARTKTOOL12) ToWhomItMayConcern: We,theundersigned,herebyauthorizeYoyoZhouin ShenzhenHuaxiaTesting TechnologyCo.,Ltdat1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad, DalangStreet,LonghuaDistrict,Shenzhen,Chinaonourbehalf,toapplytotheFederal CommunicationsCommissiononourequipment.Anyandallactscarriedoutby ShenzhenHuaxiaTestingTechnologyCo.,Ltd onourbehalfshallhavethesame effectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We, theapplicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection 5301oftheAnti-DrugActof1988,21USC853a,andnopartytotheapplicationis subjecttoadenialoffederalbenefitspursuanttothatsection. Sincerely, (MustbesignedbythepersonthatislistedontheFCCWebsite) Signature: Contactname:JinyuanTang Companyname:THINKCARTECHCO.,LTD. Address:2606,building4,phaseII,TiananYungu,Gangtoucommunity,Bantian,Longgang District,Shenzhen,Chnia.

Date:04/17/2018VCB_F-01:OperatingProceduresForm–FCCConfidentialityv02Page1of1 THINKCARTECHCO.,LTD. FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID: 2AUARTKTOOL12 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequest confidentialtreatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName 1.BlockDiagram, 2.Schematics, 3.OperationalDescription 1.2AUARTKTOOL12-Blockdiagram 2.2AUARTKTOOL12-SCH 3.2AUARTKTOOL12-Operationaldescription Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesematerialsmaybeharmfultothe applicantandprovideunjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateofthe Grantforthisapplication. PursuanttoDA04-1705June15,2004oftheCommission’spublicnotice,wealso requesttemporaryconfidentialtreatmentofinformationaccompanyingthisapplication asoutlinedbelowforaninitialperiodofxxxx(ie-“45”,“90”or“180”)days: ExhibitTypeFileName N/AN/A Signature: Contactname:JinyuanTang Companyname:THINKCARTECHCO.,LTD. Address: 2606,building4,phaseII,TiananYungu,Gangtoucommunity,Bantian,Longgang District,Shenzhen,China.

THINKCARTECHCO.,LTD. ModelConfirmationLetter We,(THINKCARTECHCO.,LTD.)certifytheproduct: ModularComprehensiveAutomotiveDiagnosticTool ModelNo.:TKT16,THINKTOOLEuroExpert,THINKTOOLPlatinumS12 Theirelectricalcircuitdesign,layout,componentsusedandinternalwiringare identical,Onlythemodelisdifferent. Signiture: GranteeContact:JinyuanTang CompanyName:THINKCARTECHCO.,LTD. Date:2022-12-12

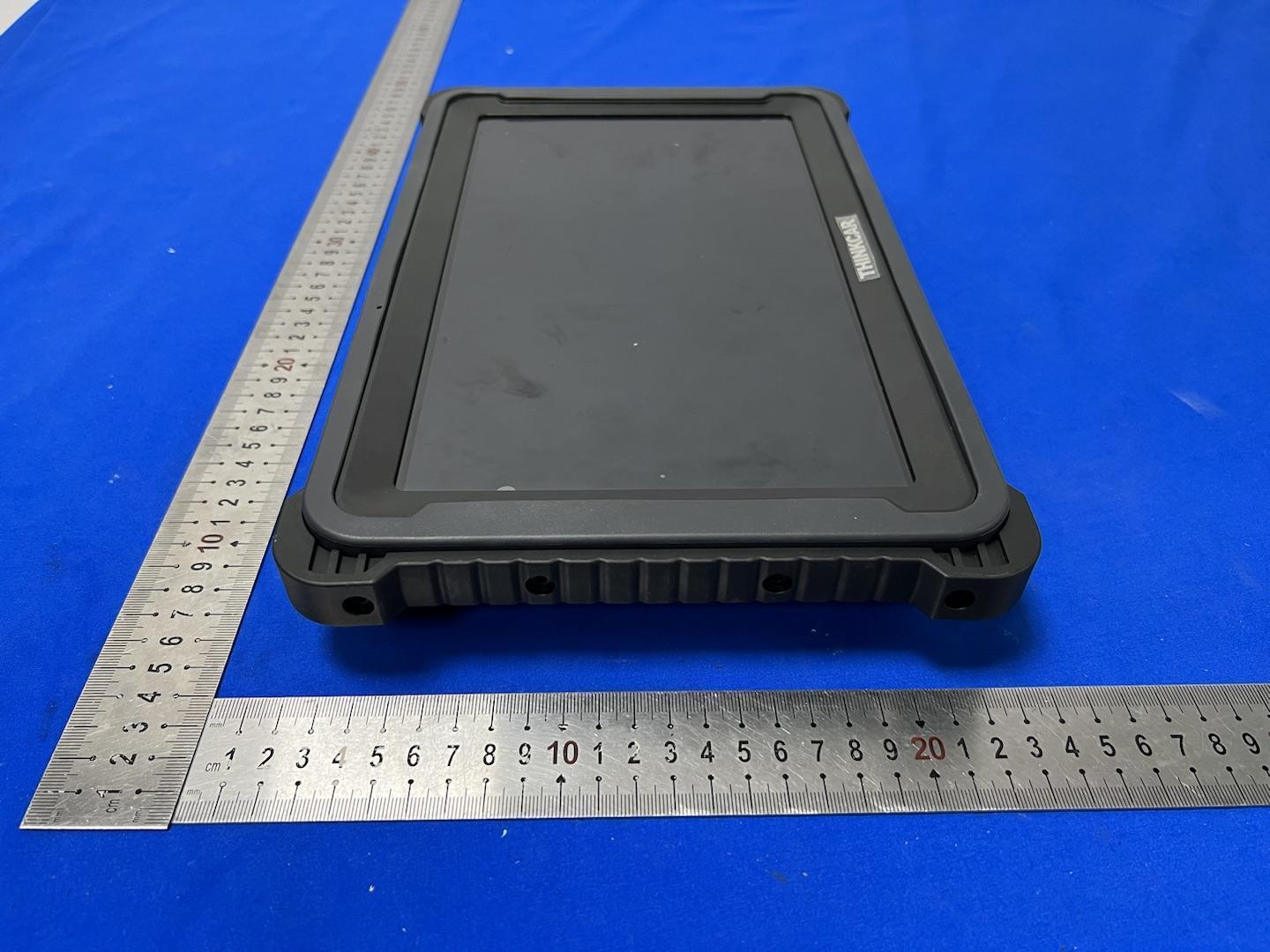

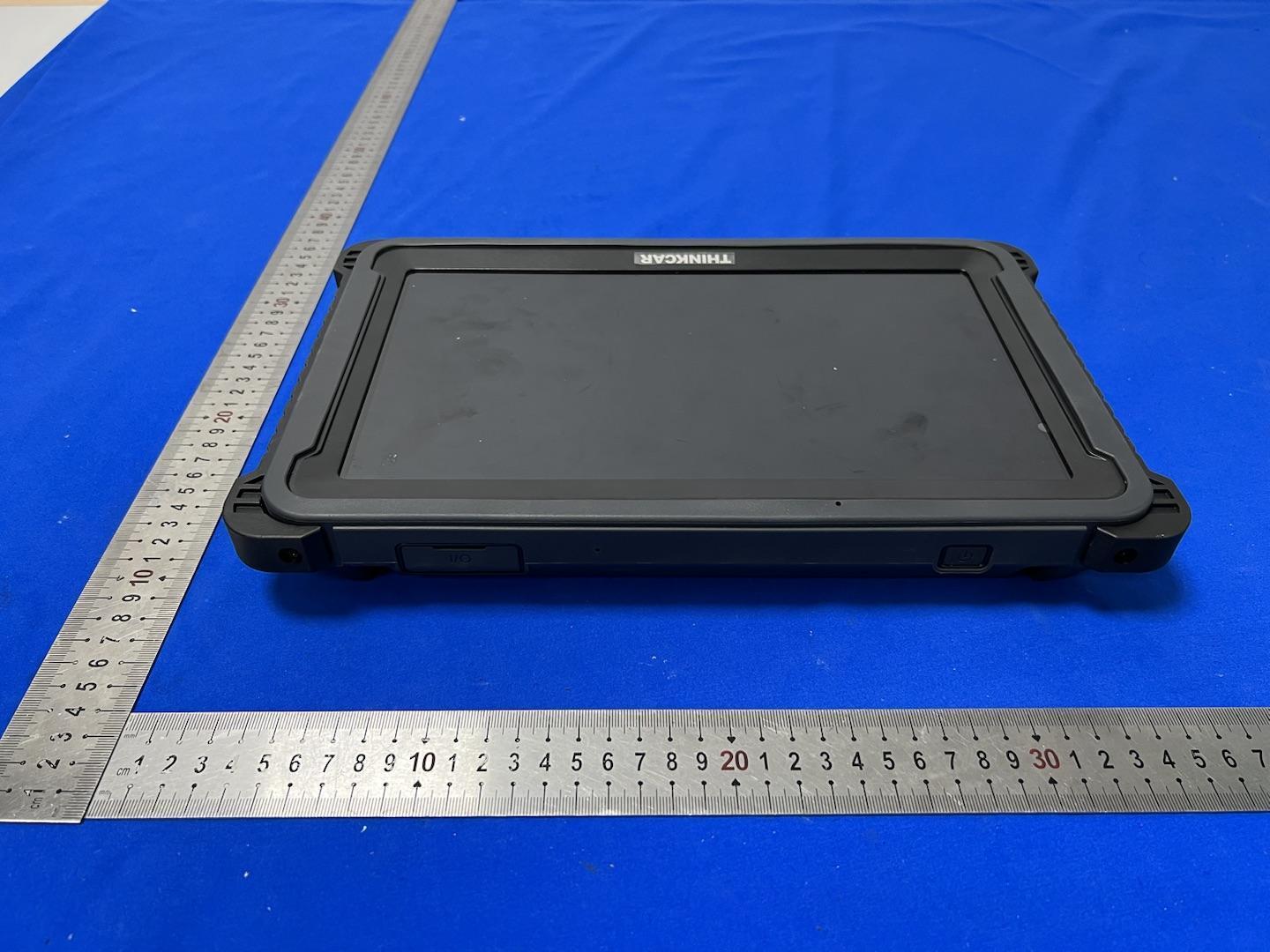

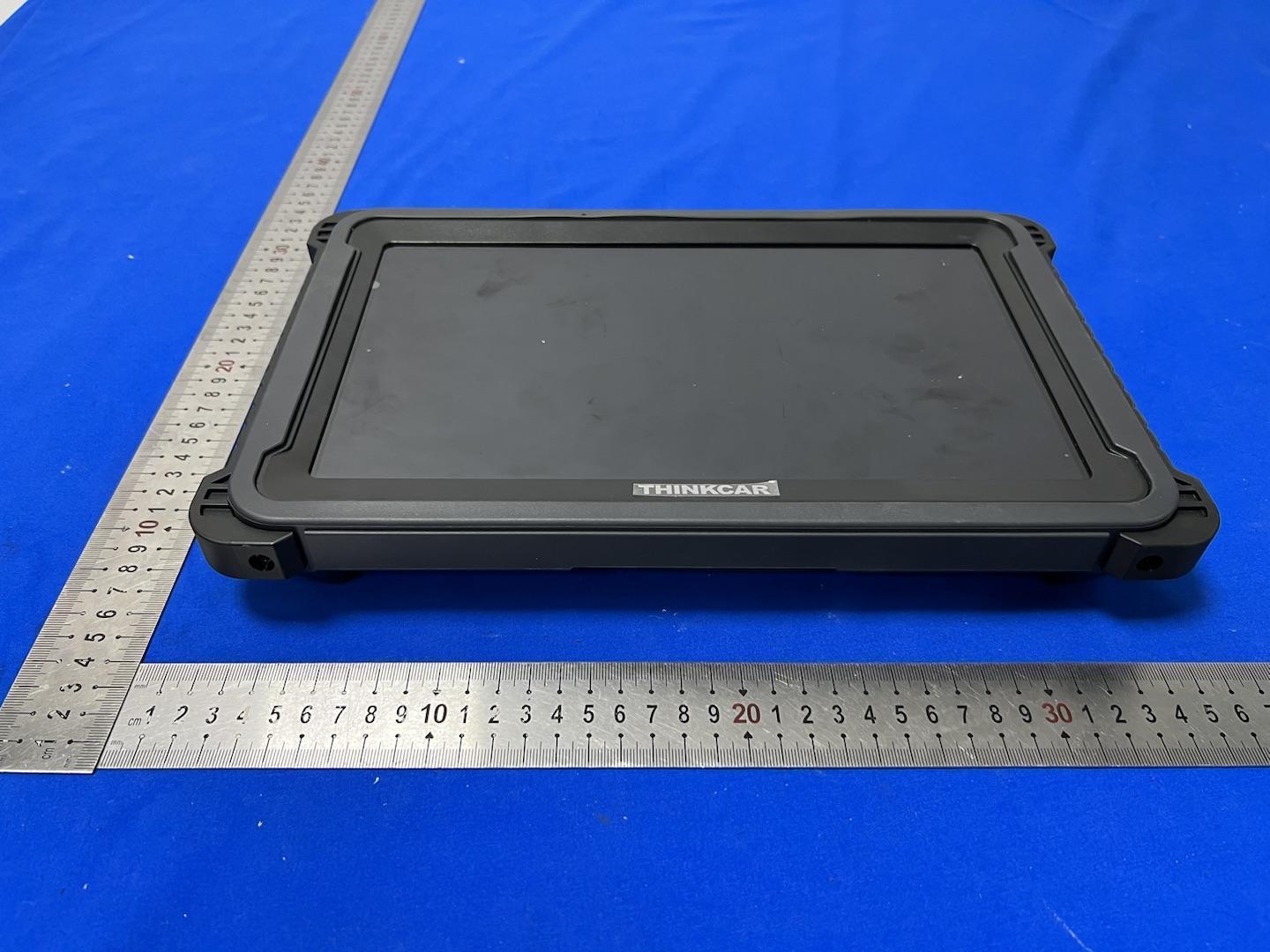

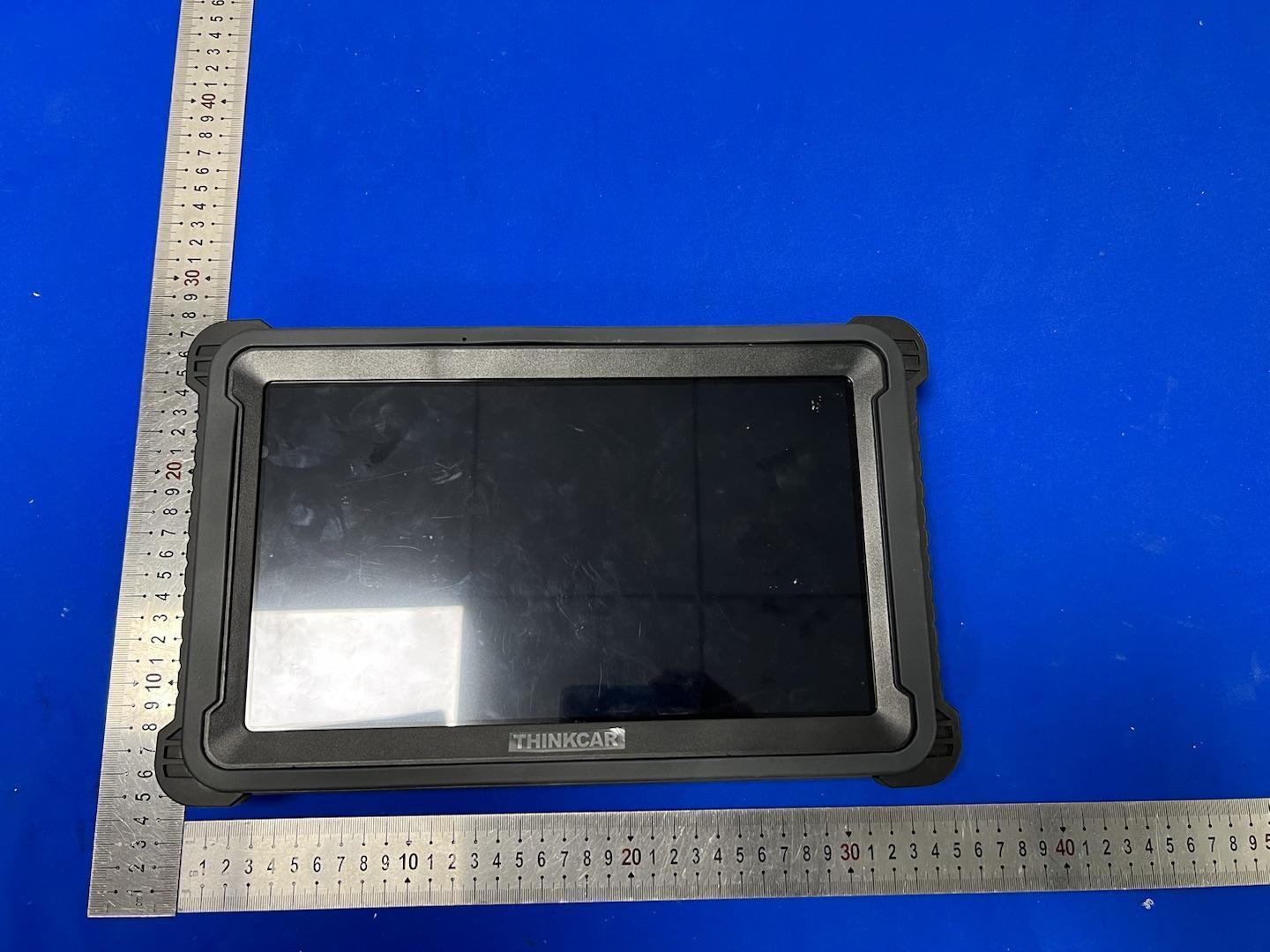

Externalphotos

Internalphotos

TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X＝±X.X＝±X.XX＝± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:D ewen APPROVEDBY:YS TITLE：KC.IA.00391AntennaSpecification SPECREV. P0 PAGE1OF8 KC.IA.00391WiFi&GPS AntennaSpecification 1.Application: Thisapplicationshallapplyforantennaunitwhichshallbeusedsuchasautomotive, conventionalcommunications,smarthome,etc.. 2.ElectricalSpecification: Thosespecificationswerespeciallydefinedfor customer’s model,andall characteristicsweremeasuredunderthemodel’shandsettestingjig. 2-1.FrequencyBand: FrequencyBandMHz GPS1560~1580MHz WIFI2400~2500/5150~5850MHz 2-2.Impedance 50ohmnominal 2-3.VSWR 2-3-1.MeasurementfrequencypointsandVSWRvalue TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X＝±X.X＝±X.XX＝± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:D ewen APPROVEDBY:YS TITLE：KC.IA.00391AntennaSpecification SPECREV. P0 PAGE2OF8 FrequencyBand(MHz) 15752400250051505850 TypicalValue: （ VSWR ） 2.751.991.381.991.64 WiFi&GPS TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X＝±X.X＝±X.XX＝± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:D ewen APPROVEDBY:YS TITLE：KC.IA.00391AntennaSpecification SPECREV. P0 PAGE3OF8 2-4.EfficiencyandGain 4-5.1Measuremethod 1.Usingalowlosscoaxialcabletolinkastandardhandsetjig 2.Fixedthishandsetjigonchamber’srotatorplane 3.Linkingjigintonetworkanalyzerportandusingaprobinghornantennato collectdata. 4.Usinganotherstandardgainhornantennatocalibratedthosedata 4-5.2Chamberdefinition 1.Ananechoicchamber(7mx4mx3m)whichsatisfiedfar-fieldconditionwasappliedto avoidmulti-patheffect 2.Thequiteroomregionis40cmx40cmx40cmatthecenterofrotator 3.ThedistancebetweenDUTandstandardantennais4.38m 4.Probingantenna(9120Dhornantenna)andstandardgainhornantenna(BBHA9120LPF 700MHz~6GHz) 4.38 m Rotatory controller Vector Network Aanlyzer Port 2Port 1 DUT Far-Field Chamber Std. Ant. TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X＝±X.X＝±X.XX＝± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:D ewen APPROVEDBY:YS TITLE：KC.IA.00391AntennaSpecification SPECREV. P0 PAGE4OF8 2-4-1WiFi&GPSEfficiencyandGain Frequency/MhzMaxGain/dBiEfficiency/% 15601.1245.47 15650.7943.23 15700.4645.35 15750.0741.99 15800.1945.47 Frequency/MhzMaxGain/dBiEfficiency/% 24003.1252.24 24103.2753.21 24203.2251.29 24303.4851.17 24403.6353.46 24503.6350.35 24603.6253.09 24703.7252 24803.6554.08 24903.7152.48 25003.754.33 TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X＝±X.X＝±X.XX＝± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:D ewen APPROVEDBY:YS TITLE：KC.IA.00391AntennaSpecification SPECREV. P0 PAGE5OF8 Frequency/MhzMaxGain/dBiEfficiency/%Frequency/MhzMaxGain/dBiEfficiency/% 51502.6855104.2152.48 51703.1153.4655303.9752 5190523.29.1255503.8851.64 5210533.65.5855703.8150.12 5230513.73.8855903.9551.17 52503.73 49.66 56104.0352.36 52703.79 49.09 56304.1652.36 5290513.93.0556504.1852.48 5310503.72.1256704.2151.88 5330513.85.2956904.1749.77 5350523.96.4857104.4951.76 53703.945257304.5551.88 53903.71 49.55 57504.4850.35 5410513.96.457704.3447.64 543051 4.08 .457904.1445.5 545053 4.29 .4658104.1646.88 547053 4.37 .758304.247.1 549053 4.41 .5858504.2145.92 51.88 TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X＝±X.X＝±X.XX＝± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:D ewen APPROVEDBY:YS TITLE：KC.IA.00391AntennaSpecification SPECREV. P0 PAGE6OF8 placeweatherReceived quantity Highest value Fifthfloor top overcast2442 TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X＝±X.X＝±X.XX＝± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:D ewen APPROVEDBY:YS TITLE：KC.IA.00391AntennaSpecification SPECREV. P0 PAGE7OF8 3.MechanicalSpecification: 3-1.MechanicalConfiguration(Unit:mm) Theappearanceoftheantennaisaccordingtodrawing TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X＝±X.X＝±X.XX＝± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:D ewen APPROVEDBY:YS TITLE：KC.IA.00391AntennaSpecification SPECREV. P0 PAGE8OF8 4.Packagingspecification： Productnumber ： KC.IA.00391 Productmodel ： WIFI&GPS 一、Labelrequirements： Customerxxx supplierxxxxx Materialcodingxx Productmodelxx NumberXXXPCSFactorydateXXX Remarks 二、Boxing： Jobdescription ： 1.Innerpackaging： XXpcsAbag 2.Externalpackaging ： XxPCS ； 3.Mattersneedingattention： a．Whethertoaddpartitionandpearlcotton； b ． Labelattachments,suchasROHS,etc. …

Text truncated - open the document above for the full version.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 TestReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20220801509E-01 Applicant: THINKCARTECHCO.,LTD. AddressofApplicant: 2606,building4,phaseII,TiananYungu,Gangtoucommunity,Bantian, LonggangDistrict,Shenzhen EquipmentUnderTest(EUT): Product: ModularComprehensiveAutomotiveDiagnosticTool ModelNo.: TKT16,THINKTOOLEuroExpert,THINKTOOLPlatinumS12 TestModelNo.: TKT16 BrandName: THINKCAR,XHINKCAR,MUCAR FCCID: 2AUARTKTOOL12 Standards:47CFRPart15,SubpartC DateofReceipt:2022-08-31 DateofTest: 2022-08-31to2022-09-20 DateofIssue:2022-12-08 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove. TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:2of91 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20220801509E-01Rev.01 Initialreport 2022-12-08 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:3of91 2TestSummary TestItemTestRequirementTestmethodResult AntennaRequirement 47CFRPart15,SubpartCSection 15.203/15.247(c) ANSIC63.10(2013)PASS ACPowerLineConducted Emission 47CFRPart15,SubpartCSection 15.207 ANSIC63.10(2013)PASS ConductedPeakOutput Power 47CFRPart15,SubpartCSection 15.247(b)(1) ANSIC63.10(2013)PASS 20dBOccupiedBandwidth 47CFRPart15,SubpartCSection 15.247(a)(1) ANSIC63.10(2013)PASS CarrierFrequencies Separation 47CFRPart15,SubpartCSection 15.247(a)(1) ANSIC63.10(2013)PASS HoppingChannelNumber 47CFRPart15,SubpartCSection 15.247(a)(1) ANSIC63.10(2013)PASS DwellTime 47CFRPart15,SubpartCSection 15.247(a)(1) ANSIC63.10(2013)PASS PseudorandomFrequency HoppingSequence 47CFRPart15,SubpartCSection 15.247(b)(4)&TCBExclusionList (7July2002) ANSIC63.10(2013)PASS Band-edgeforRF ConductedEmissions 47CFRPart15,SubpartCSection 15.247(d) ANSIC63.10(2013)PASS RFConductedSpurious Emissions 47CFRPart15,SubpartCSection 15.247(d) ANSIC63.10(2013)PASS RadiatedSpurious emissions 47CFRPart15,SubpartCSection 15.205/15.209 ANSIC63.10(2013)PASS Restrictedbandsaround fundamentalfrequency (RadiatedEmission) 47CFRPart15,SubpartCSection 15.205/15.209 ANSIC63.10(2013)PASS ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:4of91 3Contents Page 1VERSION..........................................................................................................................................................................2 2TESTSUMMARY............................................................................................................................................................3 3CONTENTS......................................................................................................................................................................4 4GENERALINFORMATION...........................................................................................................................................5 4.1CLIENTINFORMATION.................................................................................................................................................5 4.2GENERALDESCRIPTIONOFEUT.................................................................................................................................5 4.3ADDITIONALINSTRUCTIONS........................................................................................................................................7 4.4TESTENVIRONMENT...................................................................................................................................................8 4.5DESCRIPTIONOFSUPPORTUNITS...............................................................................................................................8 4.6STATEMENTOFTHEMEASUREMENTUNCERTAINTY....................................................................................................9 4.7TESTLOCATION........................................................................................................................................................10 4.8TESTFACILITY..........................................................................................................................................................10 4.9ABNORMALITIESFROMSTANDARDCONDITIONS......................................................................................................10 4.10OTHERINFORMATIONREQUESTEDBYTHECUSTOMER..........................................................................................10 4.11EQUIPMENTLIST.....................................................................................................................................................11 5TESTRESULTSANDMEASUREMENTDATA.....................................................................................................12 5.1ANTENNAREQUIREMENT..........................................................................................................................................12 5.2CONDUCTEDEMISSIONS............................................................................................................................................13 5.3CONDUCTEDPEAKOUTPUTPOWER.........................................................................................................................17 5.420DBOCCUPYBANDWIDTH......................................................................................................................................24 5.5CARRIERFREQUENCIESSEPARATION.........................................................................................…

Text truncated - open the document above for the full version.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:41of91 DH5_Ant1_Hop ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:42of91 2DH1_Ant1_Hop ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:43of91 2DH3_Ant1_Hop ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:44of91 2DH5_Ant1_Hop ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:45of91 3DH1_Ant1_Hop ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:46of91 3DH3_Ant1_Hop ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:47of91 3DH5_Ant1_Hop ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:48of91 5.8 Band-edgeforRFConductedEmissions TestRequirement:47CFRPart15CSection15.247(d) TestMethod:ANSIC63.10:2013 TestSetup: Remark:Offset=cableloss+attenuationfactor. Limit:Inany100kHzbandwidthoutsidethefrequencybandinwhichthespread spectrumintentionalradiatorisoperating,theradiofrequencypowerthatis producedbytheintentionalradiatorshallbeatleast20dBbelowthatinthe 100kHzbandwidthwithinthebandthatcontainsthehighestlevelofthe desiredpower,basedoneitheranRFconductedoraradiatedmeasurement. ExploratoryTestMode:HoppingandNon-hoppingtransmittingwithallkindofmodulationandallkind ofdatatype FinalTestMode:ThroughPre-scan,findtheDH5ofdatatypeistheworstcaseofGFSK modulationtype,2-DH5ofdatatypeistheworstcaseofπ/4DQPSK modulationtype,3-DH5ofdatatypeistheworstcaseof8DPSKmodulation type. Onlytheworstcaseisrecordedinthereport. TestResults:Pass ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:49of91 MeasurementData TestModeAntennaChNameChannel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 Low24027.58-50.49≤-12.42PASS High24808.04-48.44≤-11.96PASS LowHop_24027.58-48.5≤-12.42PASS HighHop_24808.36-47.9≤-11.64PASS 2DH5Ant1 Low24026.81-49.34≤-13.19PASS High24807.33-49.14≤-12.67PASS LowHop_24026.10-50≤-13.9PASS HighHop_24807.09-48.69≤-12.91PASS 3DH5Ant1 Low24025.64-50.67≤-14.36PASS High24806.52-49.17≤-13.48PASS LowHop_24026.70-49.66≤-13.3PASS HighHop_24807.53-47.84≤-12.47PASS ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:50of91 Testplotasfollows: DH5_Ant1_Low_2402 DH5_Ant1_High_2480 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:51of91 DH5_Ant1_Low_Hop_2402 DH5_Ant1_High_Hop_2480 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:52of91 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:53of91 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:54of91 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:55of91 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:56of91 5.9SpuriousRFConductedEmissions TestRequirement:47CFRPart15CSection15.247(d) TestMethod:ANSIC63.10:2013 TestSetup: Remark:Offset=cableloss+attenuationfactor. Limit:Inany100kHzbandwidthoutsidethefrequencybandinwhichthespread spectrumintentionalradiatorisoperating,theradiofrequencypowerthatis producedbytheintentionalradiatorshallbeatleast20dBbelowthatinthe 100kHzbandwidthwithinthebandthatcontainsthehighestlevelofthe desiredpower,basedoneitheranRFconductedoraradiated measurement. ExploratoryTestMode:Non-hoppingtransmittingwithallkindofmodulationandallkindofdatatype FinalTestMode:ThroughPre-scan,findtheDH5ofdatatypeistheworstcaseofGFSK modulationtype,2-DH5ofdatatypeistheworstcaseofπ/4DQPSK modulationtype,3-DH5ofdatatypeistheworstcaseof8DPSKmodulation type. TestResults:Pass ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:57of91 DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:58of91 DH5_Ant1_2402_1000~26500 DH5_Ant1_2441_0~Reference ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:59of91 DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:60of91 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:61of91 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:62of91 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:63of91 2DH5_Ant1_2441_0~Reference 2DH5_Ant1_2441_30~1000 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:64of91 2DH5_Ant1_2441_1000~26500 2DH5_Ant1_2480_0~Reference ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:65of91 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:66of91 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:67of91 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:68of91 3DH5_Ant1_2441_30~1000 3DH5_Ant1_2441_1000~26500 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:69of91 3DH5_Ant1_2480_0~Reference 3DH5_Ant1_2480_30~1000 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:70of91 3DH5_Ant1_2480_1000~26500 Remark: Pretest9kHzto25GHz,findthehighestpointwhentesting,soonlytheworstdatawereshowninthetest report.PerFCCPart15.33(a)and15.31(o),Theamplitudeofspuriousemissionsfromintentionalradiators whichareattenuatedmorethan20dBbelowthepermissiblevalueneednotbereportedunlessspecifically requiredelsewhereinthispart.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:71of91 5.10 OtherrequirementsFrequencyHoppingSpreadSpectrumSystem TestRequirement:47CFRPart15CSection15.247(a)(1),(h)requirement: Thesystemshallhoptochannelfrequenciesthatareselectedatthesystemhopping ratefromaPseudorandomorderedlistofhoppingfrequencies.Eachfrequencymustbeusedequally ontheaveragebyeachtransmitter.Thesystemreceiversshallhaveinputbandwidthsthatmatchthe hoppingchannelbandwidthsoftheircorrespondingtransmittersandshallshiftfrequenciesin synchronizationwiththetransmittedsignals. Frequencyhoppingspreadspectrumsystemsarenotrequiredtoemployallavailablehopping channelsduringeachtransmission.However,thesystem,consistingofboththetransmitterandthe receiver,mustbedesignedtocomplywithalloftheregulationsinthissectionshouldthe transmitterbepresentedwithacontinuousdata(orinformation)stream.Inaddition,asystem employingshorttransmissionburstsmustcomplywiththedefinitionofafrequencyhoppingsystem andmustdistributeitstransmissionsovertheminimumnumberofhoppingchannelsspecifiedin thissection. Theincorporationofintelligencewithinafrequencyhoppingspreadspectrumsystemthatpermits thesystemtorecognizeotheruserswithinthespectrumbandsothatitindividuallyand independentlychoosesandadaptsitshopsetstoavoidhoppingonoccupiedchannelsispermitted. Thecoordinationoffrequencyhoppingsystemsinanyothermannerfortheexpresspurposeof avoidingthesimultaneousoccupancyofindividualhoppingfrequenciesbymultipletransmittersis notpermitted. Complianceforsection15.247(a)(1) AccordingtoBluetoothCoreSpecification,thepseudorandomsequencemaybegeneratedinanine- stageshiftregisterwhose5thand9thstage outputsareaddedinamodulo-twoadditionstage.Andtheresultisfedbacktotheinputofthefirst stage.ThesequencebeginswiththefirstONEof9consecutiveONEs;i.e.theshiftregisterisinitialized withnineones. •Numberofshiftregisterstages:9 •Lengthofpseudo-randomsequence:2 9 -1=511bits •Longestsequenceofzeros:8(non-invertedsignal) AnexampleofPseudorandomFrequencyHoppingSequenceasfollow: Eachfrequencyusedequallyontheaveragebyeachtransmitter. AccordingtoBluetoothCoreSpecification,BluetoothreceiversaredesignedtohaveinputandIF bandwidthsthatmatchthehoppingchannelbandwidthsofanyBluetoothtransmittersandshift frequenciesinsynchronizationwiththetransmittedsignals. Complianceforsection15.247(g) AccordingtoBluetoothCoreSpecification,theBluetoothsystemtransmitsthepacketwiththe pseudorandomhoppingfrequencywithacontinuousdataandtheshortbursttransmissionfromthe Bluetoothsystemisalsotransmittedunderthefrequencyhoppingsystemwiththepseudorandom hoppingfrequencysystem. ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801509E-01 Page:72of91 Complianceforsection15.247(h) AccordingtoBluetoothCorespecification,theBluetoothsystemincorporateswithanadaptive systemtodetectotheruserwithinthespectrumbandsothatitindividuallyandindependentlyto avoidhoppingontheoccupiedchannels. AccordingtotheBluetoothCorespecification,theBluetoothsystemisdesignednothavetheability tocoordinatedwithotherFHSSSysteminanefforttoavoidthesimultaneousoccupancyofindividual hoppingfrequenciesbymultipletransmitter. ShenzhenHuaxiaTestingTechn…

Text truncated - open the document above for the full version.
