2AUB7-CKWENC1RTWS Earbuds

CKWENC1 TWS earbuds User Manual Product schematic diagram Package list Charging case 1PCS USB cable 1PCS User Manual 1PCS Packing box 1PCS Wearing schematic 1PCS Product specifications Power supply: input DC 5v1A / output 5v1A Battery capacity: headset 30mAh / charging box 200mah Working time: the headset can be used for about 4 hours at a time, and the charging box can be charged for about 2 times Charging time: 1.5 hour Support protocol: HSP / HFP / A2DP / AVRCP Frequency response: 20-20000hz Impedance: 32 Ω Remarks: For the first use, it is recommended to charge the product for 30 minutes Products use 1、 Bluetooth pairing The two headphones are picked up from the charging box at the same time. The headphones automatically turn on to indicate that the red and blue lights will flash slowly alternately. About 3 seconds later, the headphones will flash alternately. Find the corresponding Bluetooth name "WY-X60" in the Bluetooth list of the mobile phone, click Connect to wait for pairing, and the voice prompts that the connection is successful for about 3 seconds When the headset is used for the same mobile phone again, it will automatically press the last paired connection Use other mobile phones, repeat the above operations 2、 State of charge The red light is always on when the charging box is charging, and the red light is always off when it is full When the charging box is charging the headset, the red light of the charging box is always on, the red light of the headset is on, and the lights of the headset and the charging box are off when the headset is full. 3、 Call function Touch the headset function key for about 5 seconds, the red light of the headset flashes 3 times and the voice prompts "power off" the headset turns off. If the headset is not connected to an electronic device, it will turn off automatically after 5 minutes 4、 Call When the headset is turned on and connected to the mobile phone, you can receive and make calls When calling, voice prompts the calling number, touch the function key of single headset to answer the call, and touch the function key for 2 seconds to reject the call. In the phone, a single touch of the function key will hang up the phone and return to the previous state. During the phone call, you can adjust the call volume through the mobile phone 5、 Voice assistant Touch the left ear or right ear function key for about 2 second, and hear the prompt tone to release the hand and wake up“ Sir ”i function 6、 Listen to music The headset is connected to the phone when it is turned on. You can use the headset to listen to music. In the process of music, press the headset function key briefly to pause the music, and press again to continue playing the music. Double click the right ear function key to play the next music, double click the left ear function key to play the previous music 7、 Precautions 1. The earphones should be stored in a dry and ventilated environment. Keep it away from oil,water,steam,moisture and dust to avoid affecting product performance. 2. Do not clean this product with any detergent containing chemical element or other liquid. 3. Please use earphones according to the correct specifications, Pay attention to the influence of environment on earphones. It is recommended that the distance between the mobile phone and earphones be within 10 meters to ensure a smooth connection. 4. If the earphones failed to connect or with poor communication or other problems, please do not disassemble earphones body and its accessories by yourself, otherwise you will lose the right to warranty. 5. Please use the standard car charger or the charger specified by the company to charge the eraphones. 6. To ensure normal use, Please make sure the earphones are fully charged FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found t o comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is co nnected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement.

Rev 2/6/2023 Shenzhen BEB Electronics CO., Limited Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023.2.15 FCC ID: 2AUB7-CKWENC1R Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing Shenzhen BEB Electronics CO., Limited (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing Shenzhen BEB Electronics CO., Limited (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Cover List Link: (https://www.fcc.gov/supplychain/coveredlist) Applicant: Shenzhen BEB Electronics CO., Limited Address: Xinhuiteng Technology Park, Baoan District, Shenzhen, 518102, Guangdong, China Contact Person: Mia Wang Tel.: 0755-36872735 Email: [email protected] Sincerely,

Rev 2/6/2023 Shenzhen BEB Electronics CO., Limited Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023.2.15 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2AUB7-CKWENC1R Shenzhen BEB Electronics CO., Limited (“the applicant”) certifies that, as of the date of the filing of the application, Startek Enterprises, LLC is our designated U.S. agent for service of process for the above referenced FCC ID. Shenzhen BEB Electronics CO., Limited accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment and will notify the TCB/FCC in a timely manner if the US Processing Agent changes. Startek Enterprises, LLC accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Startek Enterprises, LLC Address: 807 Shotgun Rd,Sunrise, FL 33326 Contact Person: Victor Diaz Tel.: 1-954-4724320 Email: [email protected] Sincerely, [Insert applicant name] Shenzhen BEB Electronics CO., Limited (Applicant printed name) Mia Wang (Applicant signature) [Insert US Local Agent name] Startek Enterprises, LLC US Local Agent FRN number 0033402017 (US Local Agent printed name) Victor Diaz (US Local Agent signature)

SCS-F019: Confidentiality Request Letter Page 1 of 2 Rev 7.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] W ebsite: https://www.cps.bureauveritas.com/ Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (obsolete) 4.0 5.0 Nov-19-2015 Updated company logo (current) 5.0 6.0 Jun-26-2019 Updated References and Contact Info 6.0 7.0 Aug-30-2020 SCS-F019: Confidentiality Request Letter Page 2 of 2 Rev 7.0 Shenzhen BEB Electronics CO., Limited 2023.2.14 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046-1609 Cc: Bureau Veritas Consumer Products Services Inc. 775 Montague Expressway Milpitas, CA 95035 Subject: Confidentiality Request for FCC ID: 2AUB7-CKWENC1R Pursuant to CFR 47 sections 0.457 and 0.459, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application be held confidential: Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagram Short Term External Photos Short Term Permanent i Internal Photos Short Term Permanent Operational Description/ Theory of Operation Short Term Permanent Parts List Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent i User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: To avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days; or for a specified date of not to exceed 180 days from the Grant Date The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name & title: Mia Wang/CEO Contact information / address: Xinhuiteng Technology Park, Baoan District, Shenzhen, 518102, Guangdong, China i Permanent confidentiality may be requested in accordance with FCC KDB 72692

Shenzhen BEB Electronics CO., Limited Declaration of Identical Product Hereby, Name of manufacturer: Shenzhen BEB Electronics CO., Limited Address: Xinhuiteng Technology Park, Baoan District, Shenzhen, 518102, Guangdong, China City: Shenzhen Country: China declares that: Product description: TWS Earbuds Type designation(s): CKWEENC1R Trademark: NA Family name is technically identical to: Product description: TWS Earbuds Type designation: CKWENC1R Trademark: NA Certificate number (if applicable) It is identical with the test model CKWENC1R except the model name for trading purpose. Date: 2023.2.23 City: Shenzhen Name: Mia Wang Signature

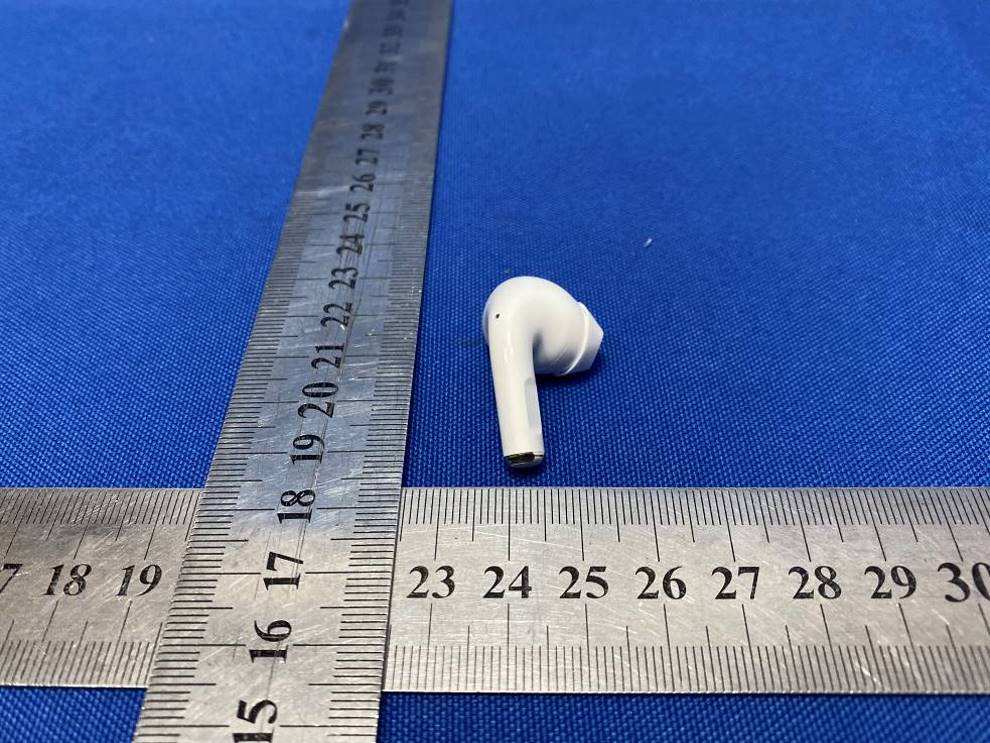

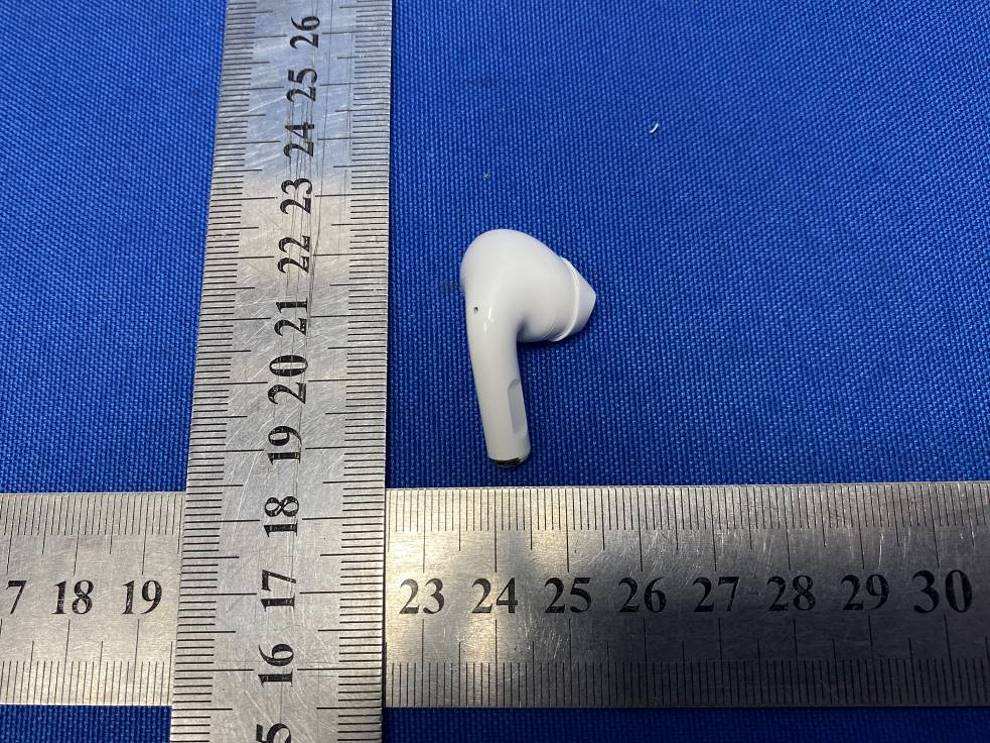

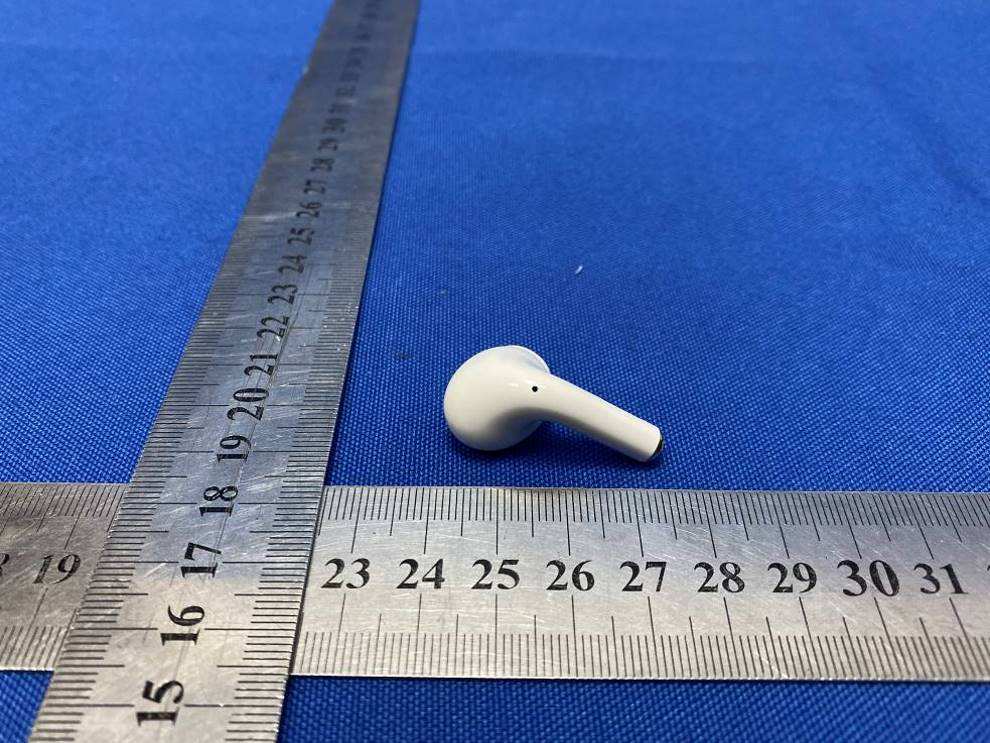

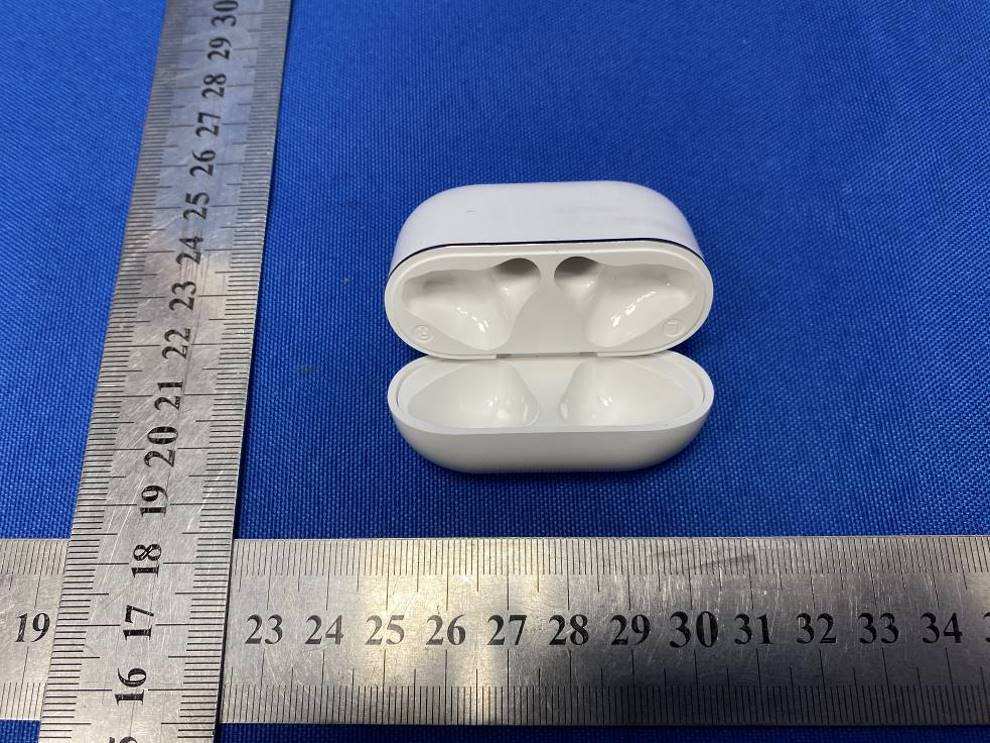

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 4 Report Version A Reference No.: 2212WDG0231-1 PHOTOGRAPHS OF THE EUT Charging Case Right Earbuds: Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 4 Report Version A Reference No.: 2212WDG0231-1 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 4 Report Version A Reference No.: 2212WDG0231-1 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 4 Report Version A Reference No.: 2212WDG0231-1

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 3 Report Version A Reference No.: 2212WDG0231-1 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 3 Report Version A Reference No.: 2212WDG0231-1 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 3 Report Version A Reference No.: 2212WDG0231-1 BT ANT

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 6 Report Version A Test Report No.: FM2212WDG0231-1 RF EXPOSURE REPORT Applicant Shenzhen BEB Electronics CO., Limited Address Xinhuiteng Technology Park, Baoan District, Shenzhen, 518102, Guangdong, China Manufacturer or Supplier Shenzhen BEB Electronics CO., Limited Address Xinhuiteng Technology Park, Baoan District, Shenzhen, 518102, Guangdong, China Product TWS Earbuds Brand Name N/A Model CKWENC1R Additional Model & Model Difference CKWEENC1R; see items 1 Date of tests Jan. 03, 2023 ~ Feb. 10, 2023 FCC Part 2 (Section 2.1093) KDB 447498 D01 IEEE C95.1 CONCLUSION: The submitted sample was found to COMPLY with the test requirement Tested by Lucas Chen Project Engineer / EMC Department Approved by Glyn He Assistant Manager / EMC Department Date: Feb. 15, 2023 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 6 Report Version A Test Report No.: FM2212WDG0231-1 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................ 3 1. CERTIFICATION .............................................................................................. 4 2. RF EXPOSURE DEFINE ................................................................................. 5 3. CLASSIFICATION ........................................................................................... 5 4. SAR TEST EXCLUSION THRESHOLDS ........................................................ 6 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 6 Report Version A Test Report No.: FM2212WDG0231-1 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED FM2212WDG0231-1 Original release Feb. 15, 2023 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 6 Report Version A Test Report No.: FM2212WDG0231-1 1. CERTIFICATION FCC ID: 2AUB7-CKWENC1R PRODUCT: TWS Earbuds BRAND NAME: N/A MODEL NO.: CKWENC1R ADDITIONAL NO.: CKWEENC1R TEST SAMPLE: Engineering Sample APPLICANT: Shenzhen BEB Electronics CO., Limited STANDARDS: FCC Part 2 (Section 2.1093) KDB 447498 D01 IEEE C95.1 NOTE: 1. Additional model CKWEENC1R is identical with the test model CKWENC1R except the model name for trading purpose. Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 5 of 6 Report Version A Test Report No.: FM2212WDG0231-1 2. RF EXPOSURE DEFINE The corresponding SAR Exclusion Threshold condition, listed below: 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[ √f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where   f(GHz) is the RF channel transmit frequency in GHz   Power and distance are rounded to the nearest mW and mm before calculation   The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 2) At 100 MHz to 6 GHz and for test separation distances > 50 mm, the SAR test exclusion threshold is determined according to the following: a) [Threshol…

Text truncated - open the document above for the full version.

2.4GHz 3216 Chip Antenna: RANT3216F245X02 _ Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT3216F245X02 (A)(B)(C)(D)(E)(F) ElectricalSpecification ThespecificationisdefinedonEVB. DimensionandTerminalConfiguration No.TerminalName 1Feeding/GNG 2GND/Feeding (A)ProductTypeChipAntenna (B)SizeCode 3.2x1.6mm( ± 0.2mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=01 WorkingFrequencyRange2400~2500MHz Bandwidth120MHz(Min.) PeakGain1.15dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature(°C)-40~85°C ResistancetoSolderingHeats 10sec.(@280°C) TerminationNi/Au(Leadless) Dimension(mm) L 3.20±0.20 W 1.60±0.20 T 0.45±0.20 咏成國際科技有限公司電話 :13530576606 RAINInternationalTechnologyCo.,Ltd. TEL:13530576606 2.4GHz 3216 Chip Antenna: RANT3216F245X02 _ 1 EvaluationBoardReference PCBDimensionAntennaLayoutReference Unit:mm ElectricalCharacteristics ReturnLoss&Radiation ReturnLoss Frequency(MHz) S11(dB) 2400-10.50 2450-30.62 2500-11.47 Radiation 2400MHz2450MHz2500MHz Efficiency82.52%85.26%83.01% PeakGain1.15dBi1.24dBi1.19dBi Directivity1.89dBi1.97dBi1.91dBi X Y Z 2400MHz 2450MHz 2500MHz 2.4GHz 3216 Chip Antenna: RANT3216F245X02 _ TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 32167”5K/Reel 9.0±0.5 60±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTψDP PaperType3216 1.90±0.203.50±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.10 1.50±0.10 4.0±0.1 2.4GHz 3216 Chip Antenna: RANT3216F245X02 Reliability Table _ TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz 3216 Chip Antenna: RANT3216F245X02 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12019/03/01NewDatasheet 22021/02/22Add2Dradiationcharacteristic

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 44 Report Version A Test Report No.: RF2212WDG0231-2 TEST REPORT Applicant Shenzhen BEB Electronics CO., Limited Address Xinhuiteng Technology Park, Baoan District, Shenzhen, 518102, Guangdong, China Manufacturer or Supplier Shenzhen BEB Electronics CO., Limited Address Xinhuiteng Technology Park, Baoan District, Shenzhen, 518102, Guangdong, China Product TWS Earbuds Brand Name N/A Model CKWENC1R Additional Model & Model Difference CKWEENC1R; see items 3.1 Date of tests Jan. 03, 2023 ~ Feb. 10, 2023 The tests have been carried out according to the requirements of the following standard: FCC Part 15, Subpart C, Section 15.247 CONCLUSION: The submitted sample was found to COMPLY with the test requirement Tested by Lucas Chen Project Engineer / EMC Department Approved by Glyn He Assistant Manager / EMC Department Date: Feb. 15, 2023 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 44 Report Version A Test Report No.: RF2212WDG0231-2 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................................. 4 1 SUMMARY OF TEST RESULTS ...................................................................................................... 5 2 MEASUREMENT UNCERTAINTY ................................................................................................... 5 3 GENERAL INFORMATION .............................................................................................................. 6 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................. 6 3.2 DESCRIPTION OF TEST MODES ............................................................................................... 7 3.2.1. CONFIGURATION OF SYSTEM UNDER TEST ................................................................. 7 3.2.2. TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...................................... 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................................. 9 3.4 DESCRIPTION OF SUPPORT UNITS ......................................................................................... 9 3.5 CONFIGURATION OF SYSTEM UNDER TEST .......................................................................... 9 4 TEST TYPES AND RESULTS ........................................................................................................ 10 4.1 RADIATED EMISSION MEASUREMENT .................................................................................. 10 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT ...................................................... 10 4.1.2 TEST INSTRUMENTS ....................................................................................................... 11 4.1.3 TEST PROCEDURES ....................................................................................................... 12 4.1.4 DEVIATION FROM TEST STANDARD ............................................................................. 13 4.1.5 TEST SETUP ..................................................................................................................... 13 4.1.6 EUT OPERATING CONDITIONS ...................................................................................... 14 4.1.7 TEST RESULTS ................................................................................................................ 15 4.2 6DB BANDWIDTH MEASUREMENT ................................................................................…

Text truncated - open the document above for the full version.
